  1. Seismic monitoring in Romania, an overview of Romanian Network C. Neagoe, L.M. Manea and C. Ionescu National Institute for Earth Physics, Magurele-Ilfov, Romania November 2012 Istanbul, Turkey

  2. History In February 1977, the Department of Seismology from the Romanian Geophysical and Geological Institute (GGI) together with the Laboratory of Geodynamics of the Romanian Academy formed the Centre of the Earth Physics (CEP). In 1994, after a governmental decision, CEP was transformed in the National Institute for Earth Physics (NIEP). NIEP is coordinated by the Romanian Ministry of Education, Research, Youth and Sport. Structure (1) Laboratory of Seismological Research (2) Laboratory of Romanian Seismic Network for Seismic Survey (3) National Data Centre (NDC) (4) Laboratory of Structure and Dynamics of the Lithosphere (5) Laboratory of Engineering Seismology (6) Compartment for Magnetotelluric and Bioseismic Studies (7) Financial Office (8) Technical-administrative Service and Work Protection (9) Compartment for technological transfer (10) Marketing Compartment (11) Compartment for Internal Audit and Financial Control (12) Compartment of personnel, dissemination of information, public relation and mass-media

  3. Mission Research Tasks seismic source and seismotectonics seismic hazard assessment site effects and microzonation lithosphere structure and dynamics earthquake prediction assessment and mitigation of seismic risk Romania's Technical Participation to global seismological monitoring in support of Comprehensive Nuclear-Test-Ban Treaty (CTBT) National Institute for Earth Physics Seismic Survey of Romania & National Seismic Network Operation and Maintenance Advanced Seismic Data Collection Management System robust real-time data acquisition techniques reliable communications links rapid processing and exchange of earthquake information creating and handling of large data sets compilation of bulletins and earthquake catalogues

  4. Romanian Seismic Stations Real Time Seismic Network • 52 BB sensors • 45 SP sensors - Mark l4c - Mark l22 - S13 - Ranger - gs21 • Sts2 • Cmg3esp • Cmg40t • Cmg3t • Ks2000 Strong Motion Stations • 102 episensors

  5. Romanian Seismic Stations Seismic and Strong Motion Stations in Bucharest area - 23 strong motion stations - 9 real-time seismic stations, installed in the same locations as correspondent strong motion stations (CIOR, BSTR, BTMR, BVCR, INCR, CNCR, BAPR, BUC and BUC1)

  6. BURAR Array - Medium aperture array, consisting of 10 seismic stations located in boreholes and distributed over a 5 km2 area: 9 elements equipped with short-period (SP) vertical sensors (GS-21) and one station equipped with broad-band (BB) three component sensor (KS 54000) - New elements added: 3 broad-band (BB) sensor at BUR01, BUR02 and BUR05 and one strong motion (episensor) at BUR01 - New locations: BUR32 and BUR33 equipped with broad-band (BB) sensors.

  7. Plostina Array Plostina infrasound Plostina Observatory · Consists of a seismic array with 6 elements distributed within an 2.5 km aperture (PLOR1, PLOR2, PLOR3, PLOR4, PLOR5 and PLOR6) and an 6 site infrasound array (IPL2, IPL3, IPL4, IPH4, IPH5 and IPH6) ·  In addition, sites 2, 3 and 4 are equipped with electrometers and three-component fluxgate sensors ·  The collected data are continuously recorded and real-time transmitted to the Romanian National Data Centre, in Bucharest

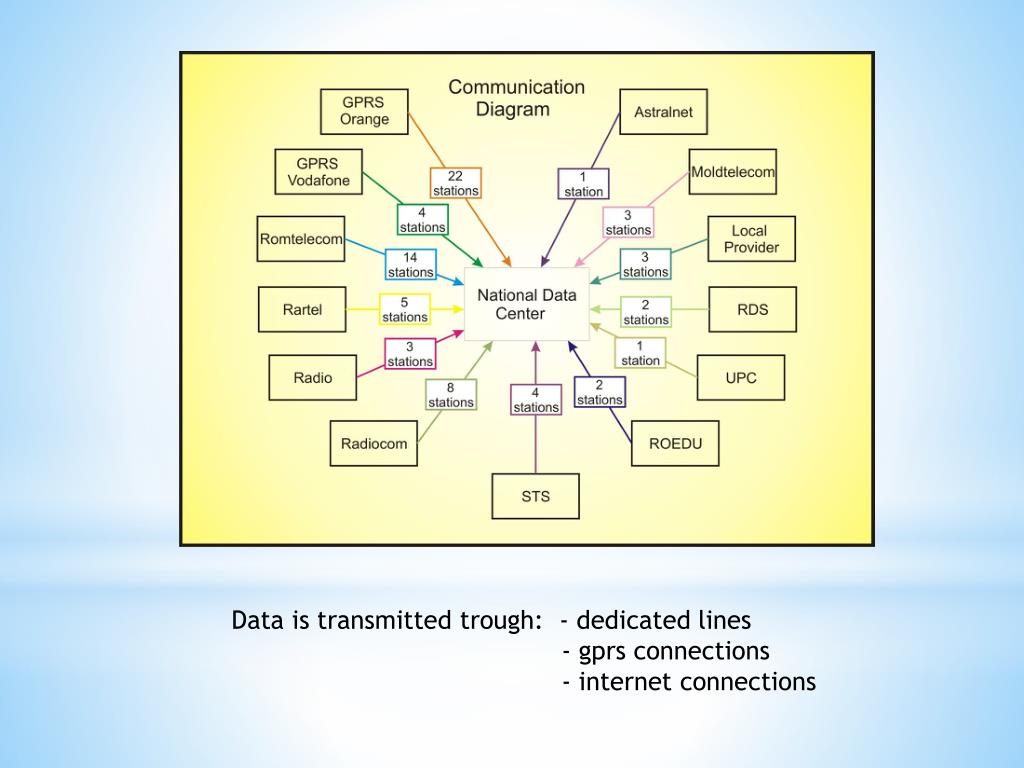

  8. Data is transmitted trough: - dedicated lines - gprs connections - internet connections

  9. DATA ANALYSIS USING ANTELOPE Automatic processing - P-wave picking - event association - event localization - computation of magnitude - sending e-mail / SMS alerts Manual processing - phase picking - event association - computation of magnitude - creation of database - sending reports/ bulletins

  10. DATA ANALYSIS USING SEISCOMP3

  11. Data Exchange Real Time Romania Seismic Network in the framework of Virtual European Broadband Seismic Network (VEBSN) Data from all real-time national seismic network stations and from several European stations: VTS (Bulgaria), MORC, VRAC (Czech Republic), APE (Greece), PSZ, PKSM (Hungary), AQU (Italy), KIV (Russia) and ANTO, MALT, ISP (Turkey) are send to the Romania Data Center (RO NDC).

  12. RO_NDC Products • The NDC has developed tools to make information available across the internet. • Acts like a hub between antelope database to mysql database. • Send notification (SMS and email) based on the parameter of an earthquake.

  13. RO_NDC Products Community Internet Intensity Map

  14. RO_NDC Products Intensity Shakemap

  15. Ro-NDC Facilities FacilitiesatDobrogeaObservatory Data Center Facilities at National Data Center - Bucharest

  16. Thank you for your attention
