  1. Silverlight 5 Mike Taulty Microsoft Ltd @mtaulty mtaulty.com mtaulty@microsoft.com bit.ly/mtaultyPresentations

  2. timeline

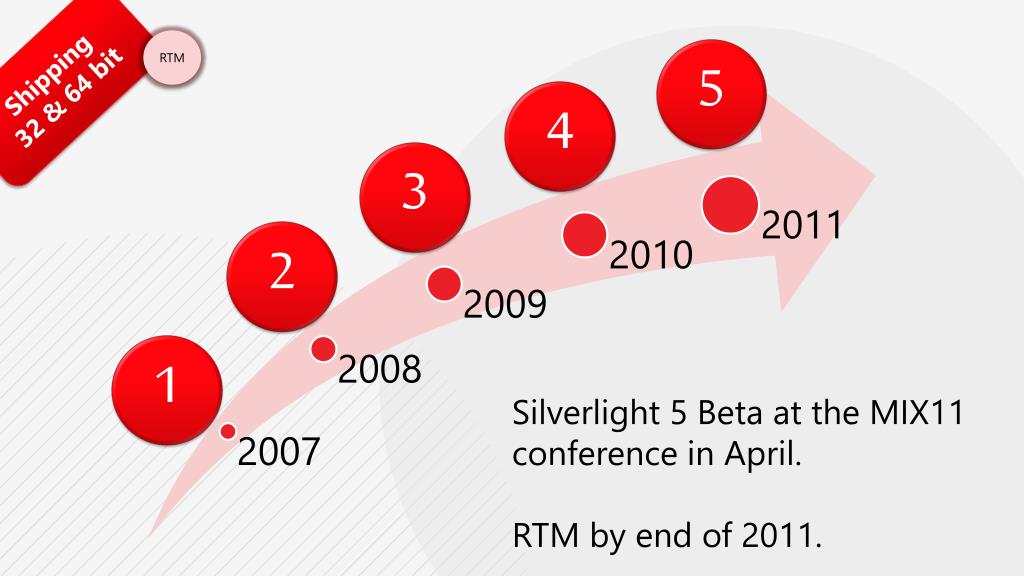

  3. RTM Shipping 32 & 64 bit 5 4 3 • 2011 2 • 2010 • 2009 1 • 2008 Silverlight 5 Beta at the MIX11 conference in April. RTM by end of 2011. • 2007

  4. what’s in the beta bits? • 32-bit developer runtime (5.0.60401.0) • beta tools for Visual Studio 2010 Sp1 • preview of Expression Blend for Silverlight 5 • additionally you might download • WCF RIA Services for Silverlight 5 beta • developer runtime for the Mac

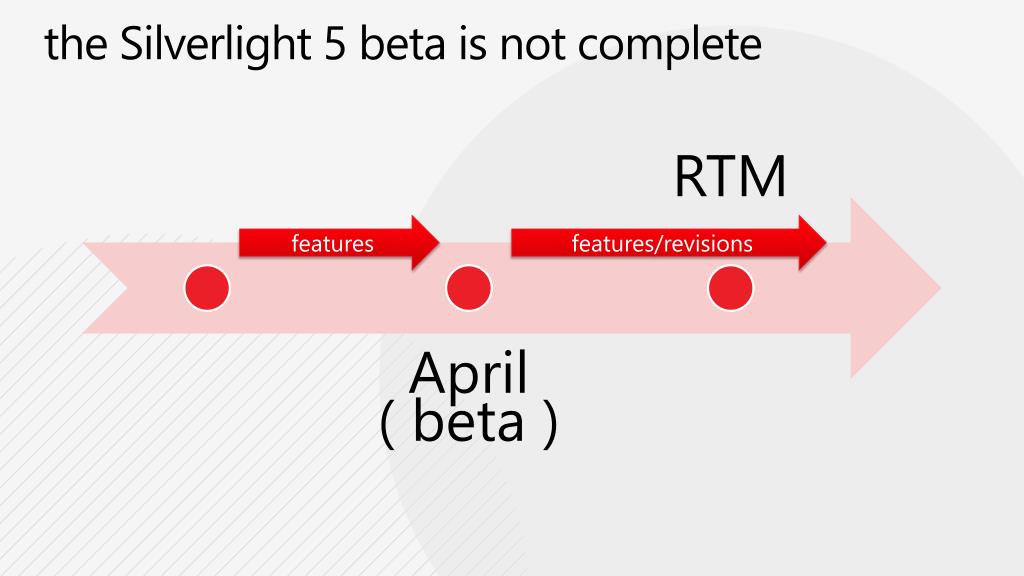

  5. the Silverlight 5 beta is not complete • RTM features features/revisions • April • ( beta )

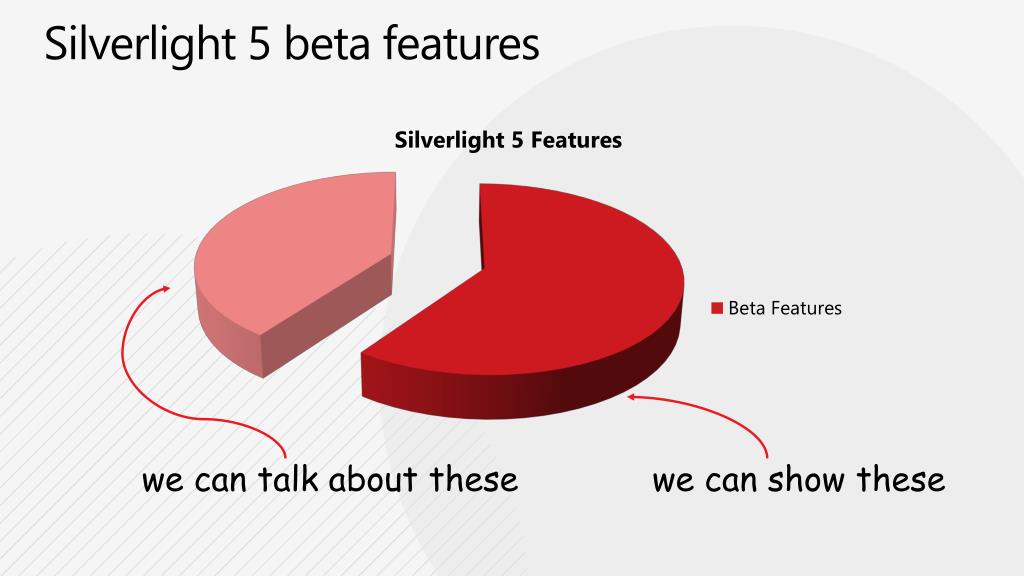

  6. Silverlight 5 beta features we can talk about these we can show these

  7. partitioning Silverlight 5

  8. partitioning Silverlight 5 • graphics & text • media • performance • miscellany & tooling • data • application model

  9. graphics and text

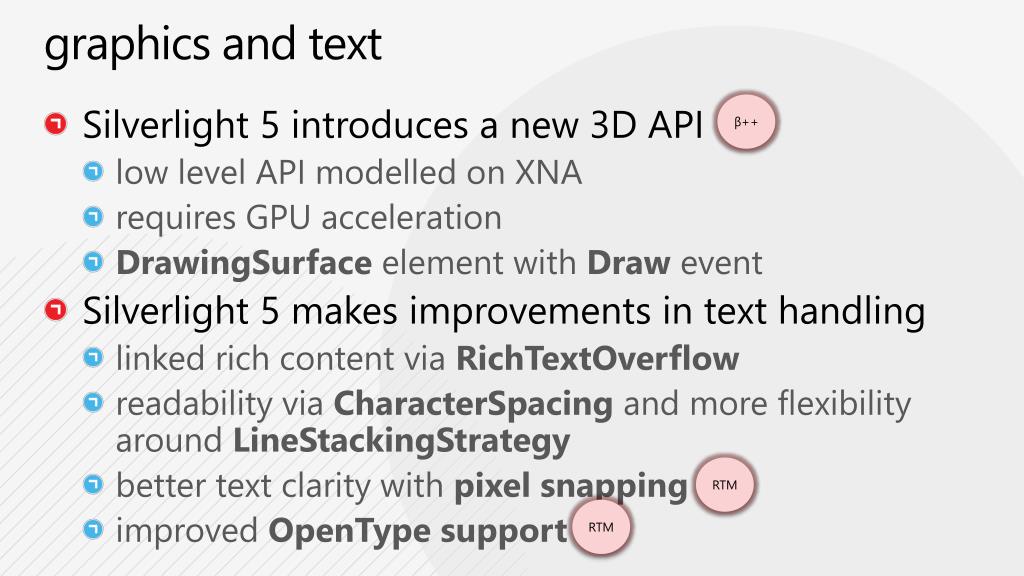

  10. graphics and text β++ • Silverlight 5 introduces a new 3D API • low level API modelled on XNA • requires GPU acceleration • DrawingSurface element with Draw event • Silverlight 5 makes improvements in text handling • linked rich content via RichTextOverflow • readability via CharacterSpacing and more flexibility around LineStackingStrategy • better text clarity with pixel snapping • improved OpenType support RTM RTM

  11. media

  12. media • video • MediaElement now has PlayBackRate with pitch correction • hardware accelerated H.264 video decoding • audio • low-latency audio effects via SoundEffect • remote control • remote control capabilities for media play • power awareness • e.g. avoid the screen saver during video play β++ RTM RTM

  13. performance

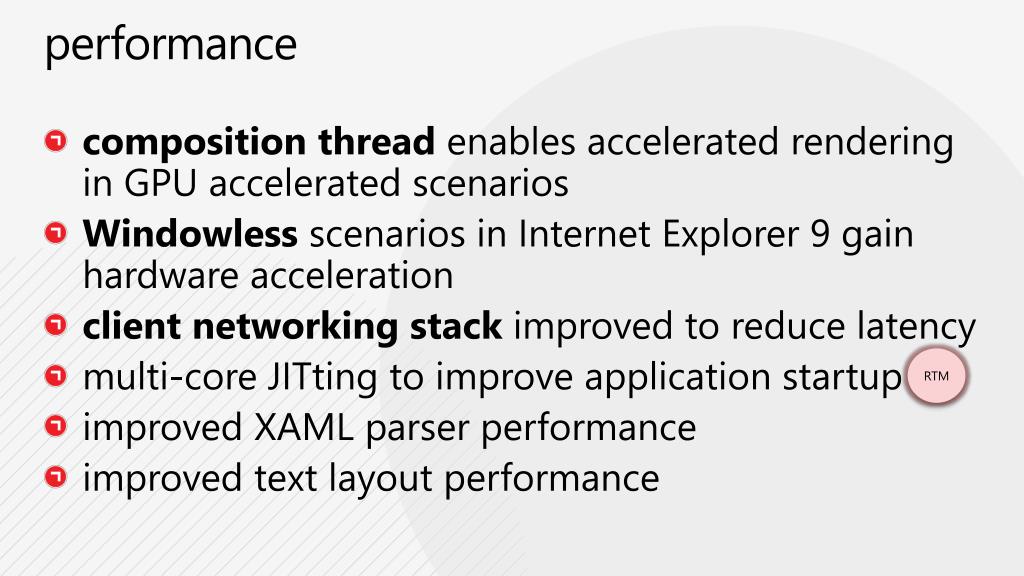

  14. performance • composition thread enables accelerated rendering in GPU accelerated scenarios • Windowless scenarios in Internet Explorer 9 gain hardware acceleration • client networking stack improved to reduce latency • multi-core JITting to improve application startup • improved XAML parser performance • improved text layout performance RTM

  15. tooling & miscellany

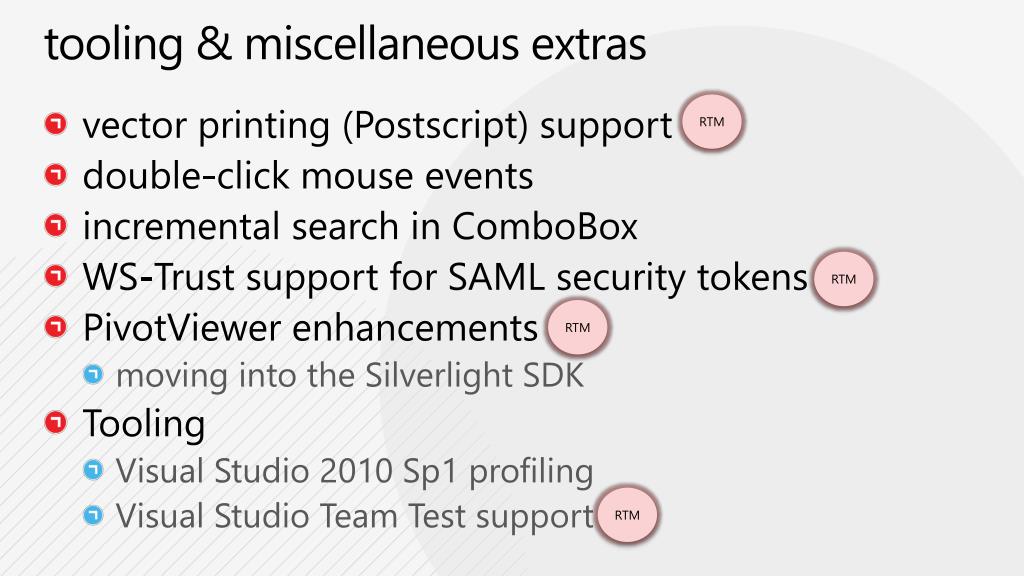

  16. tooling & miscellaneous extras RTM • vector printing (Postscript) support • double-click mouse events • incremental search in ComboBox • WS-Trust support for SAML security tokens • PivotViewer enhancements • moving into the Silverlight SDK • Tooling • Visual Studio 2010 Sp1 profiling • Visual Studio Team Test support RTM RTM RTM

  17. data

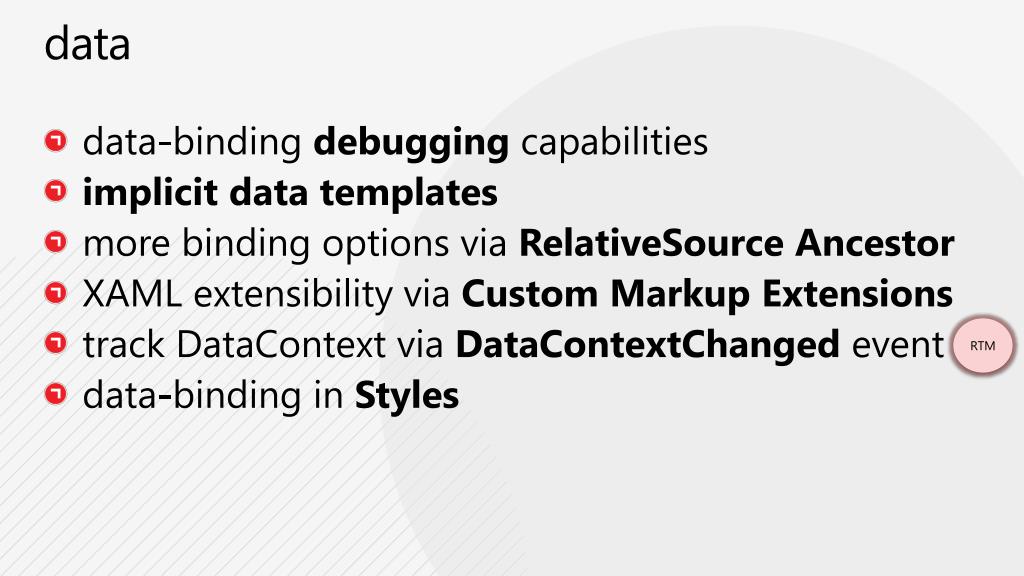

  18. data • data-binding debugging capabilities • implicit data templates • more binding options via RelativeSourceAncestor • XAML extensibility via Custom Markup Extensions • track DataContext via DataContextChanged event • data-binding in Styles RTM

  19. application model

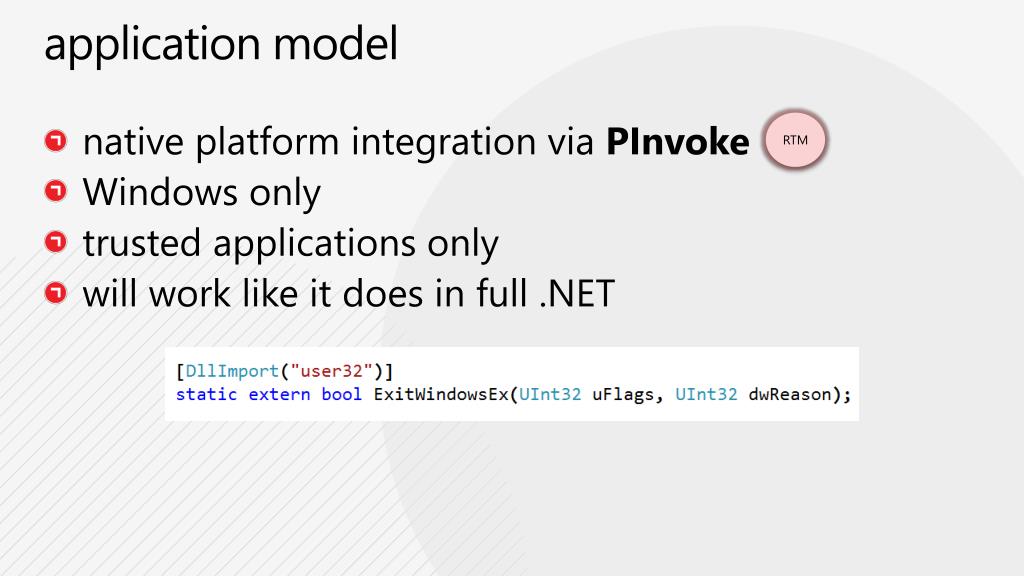

  20. application model • native platform integration via PInvoke • Windows only • trusted applications only • will work like it does in full .NET RTM

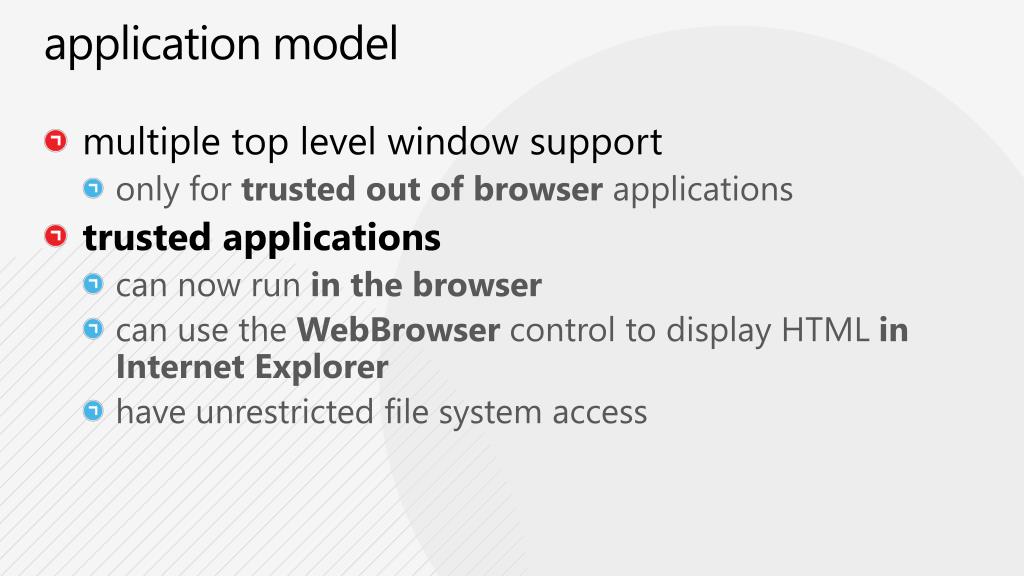

  21. application model • multiple top level window support • only for trusted out of browserapplications • trusted applications • can now run in the browser • can use the WebBrowser control to display HTML in Internet Explorer • have unrestricted file system access

  22. detail – trusted apps in browser • a trusted browser application needs • a XAP file signed with a code-signing certificate • the code signing certificate installed into the Trusted Publishers store • a registry key (HKLM\SOFTWARE\Microsoft\Silverlight\AllowElevatedTrustAppsInBrowser = 1) set to allow trusted browser applications • trusted browser applications cannot • use APIs that are specific to out-of-browser apps • impacted by browser settings such as IE’s protected mode

  23. follow up resources? bit.ly/Silverlight5Beta

  24. Silverlight 5 Mike Taulty Microsoft Ltd @mtaulty mtaulty.com mtaulty@microsoft.com bit.ly/mtaultyPresentations
