  1. ENHANCED YOUR NETWORKwith D-Link Integrated SolutionLive Demo October - November 2008 D-Link Indonesia

  2. Agenda • Session 1 : • Microsoft NAP demo • Session 2 : • D-Link Zone Defense demo • Session 3 : • Unified Switches demo

  3. Microsot NAP • Perangkat yang digunakan : • 1 unit PC dengan Microsoft Windows Server 2008 (Domain Controller dan NPS terinstall didalamnya) • 1 unit Laptop dengan Microsoft Windows Vista Business • 1 unit DES-3828 L3 Fast Ethernet Switch • 1 unit Laptop untuk monitoring

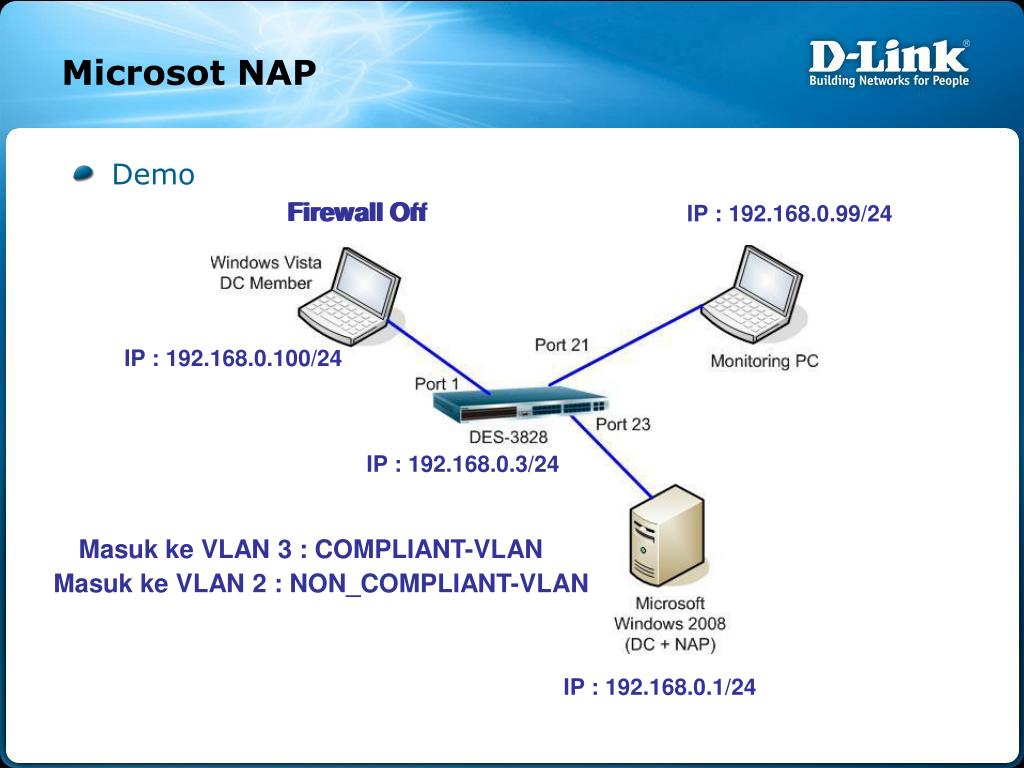

  4. Microsot NAP • Demo Firewall Off Firewall On IP : 192.168.0.99/24 IP : 192.168.0.100/24 IP : 192.168.0.3/24 Masuk ke VLAN 3 : COMPLIANT-VLAN Masuk ke VLAN 2 : NON_COMPLIANT-VLAN IP : 192.168.0.1/24

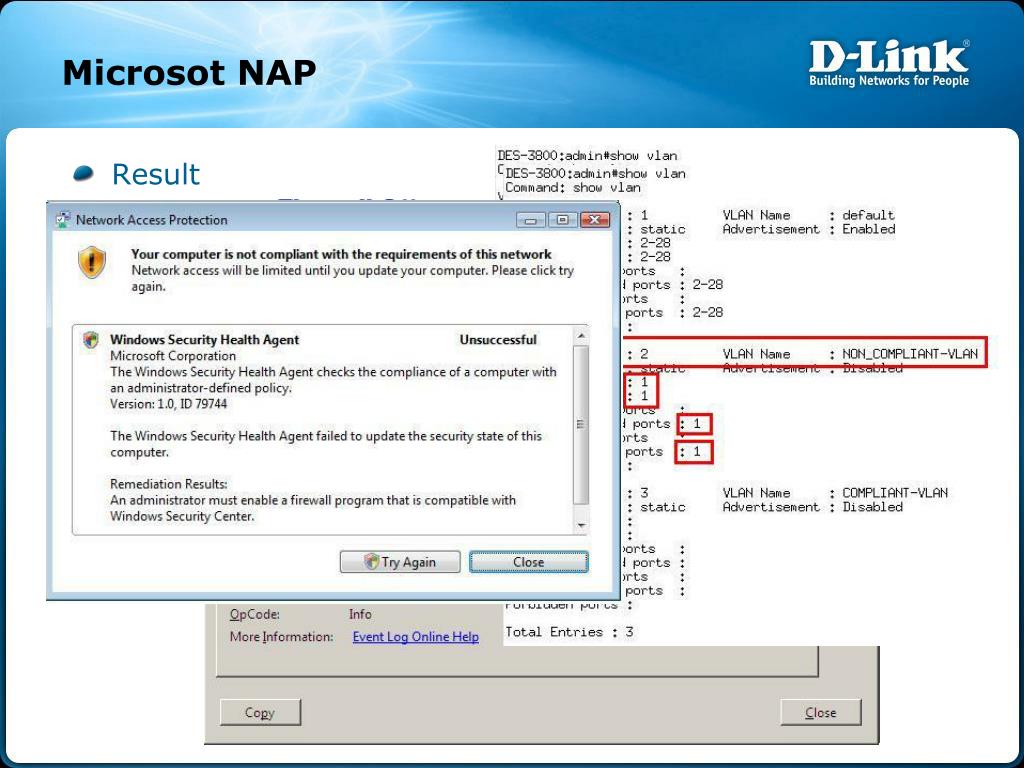

  5. Microsot NAP • Result Firewall Off Firewall On

  6. Q & A

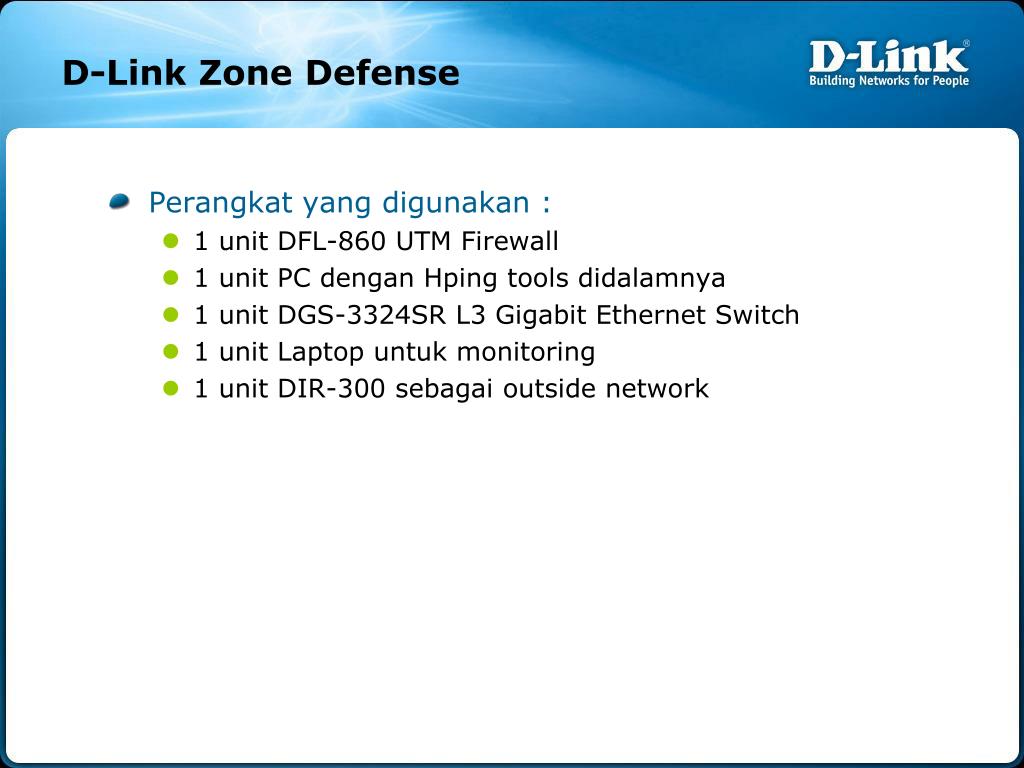

  7. D-Link Zone Defense • Perangkat yang digunakan : • 1 unit DFL-860 UTM Firewall • 1 unit PC dengan Hping tools didalamnya • 1 unit DGS-3324SR L3 Gigabit Ethernet Switch • 1 unit Laptop untuk monitoring • 1 unit DIR-300 sebagai outside network

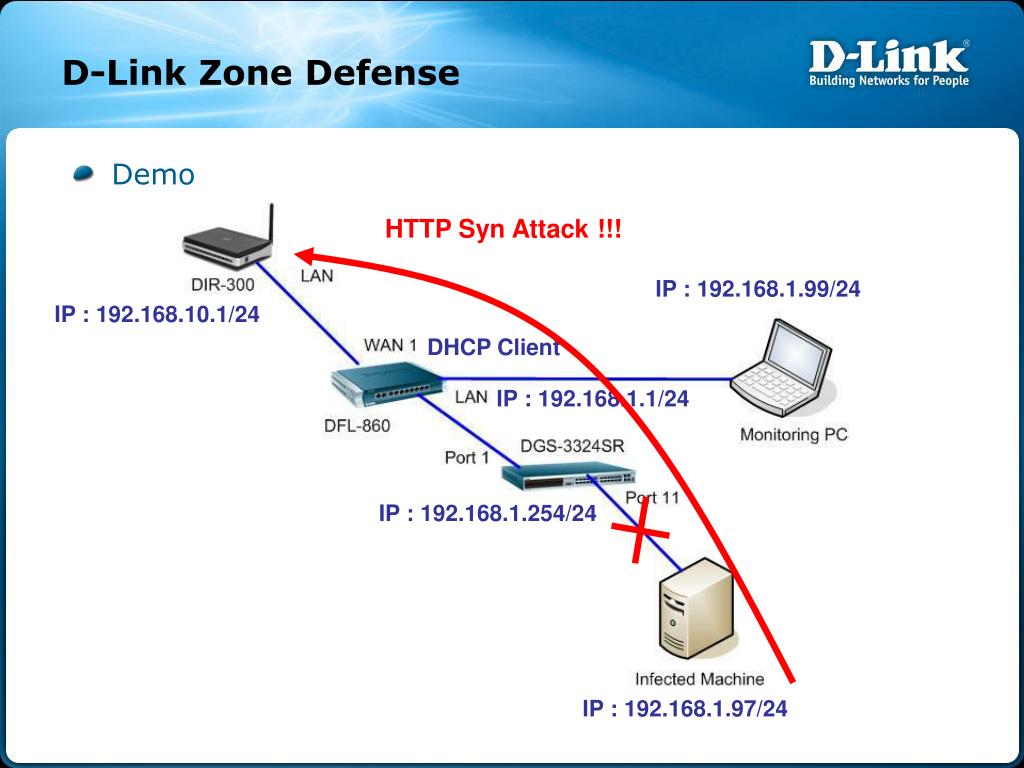

  8. D-Link Zone Defense • Demo HTTP Syn Attack !!! IP : 192.168.1.99/24 IP : 192.168.10.1/24 DHCP Client IP : 192.168.1.1/24 IP : 192.168.1.254/24 IP : 192.168.1.97/24

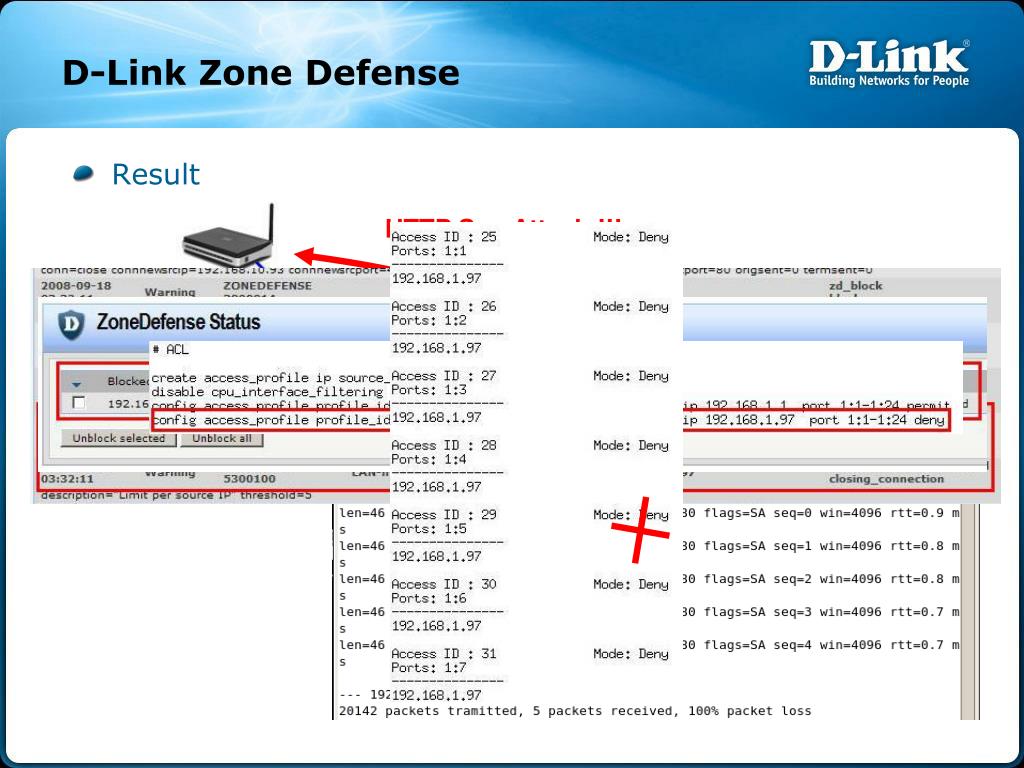

  9. D-Link Zone Defense • Result HTTP Syn Attack !!!

  10. Q & A

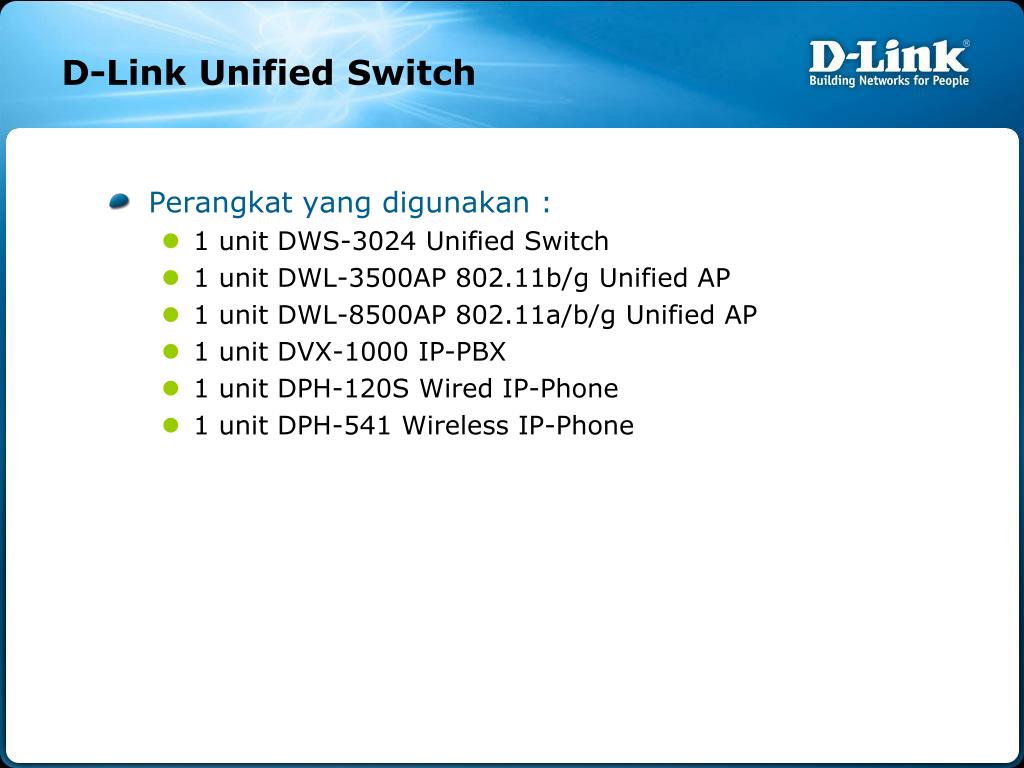

  11. D-Link Unified Switch • Perangkat yang digunakan : • 1 unit DWS-3024 Unified Switch • 1 unit DWL-3500AP 802.11b/g Unified AP • 1 unit DWL-8500AP 802.11a/b/g Unified AP • 1 unit DVX-1000 IP-PBX • 1 unit DPH-120S Wired IP-Phone • 1 unit DPH-541 Wireless IP-Phone

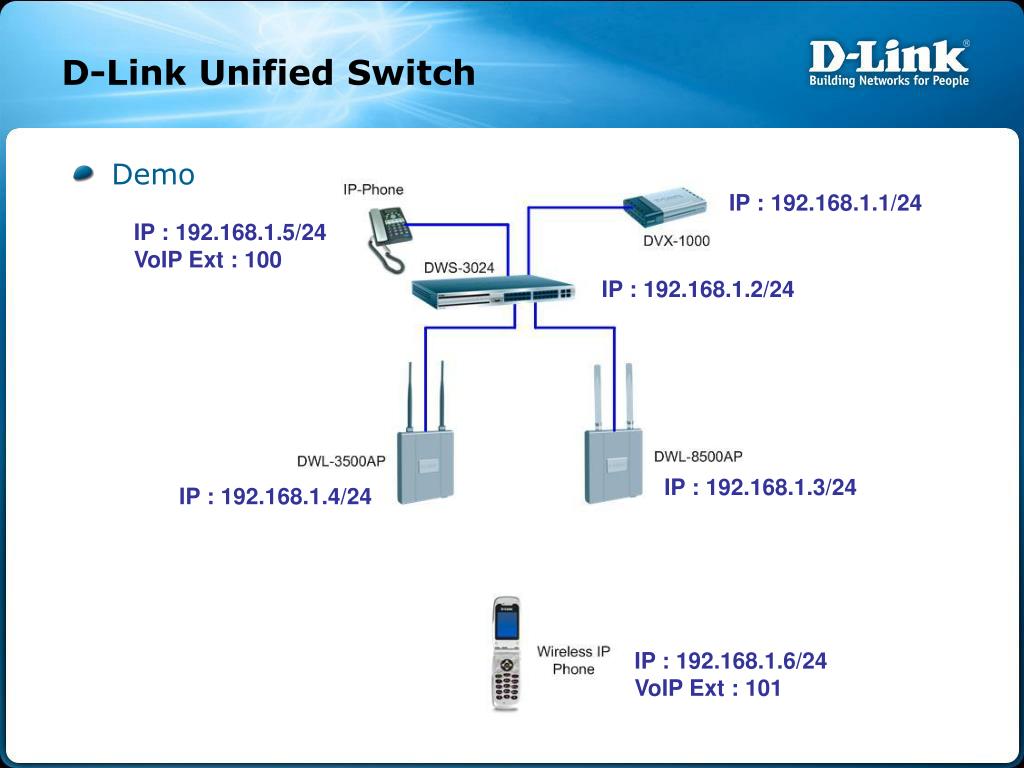

  12. D-Link Unified Switch • Demo IP : 192.168.1.1/24 IP : 192.168.1.5/24 VoIP Ext : 100 IP : 192.168.1.2/24 IP : 192.168.1.3/24 IP : 192.168.1.4/24 IP : 192.168.1.6/24 VoIP Ext : 101

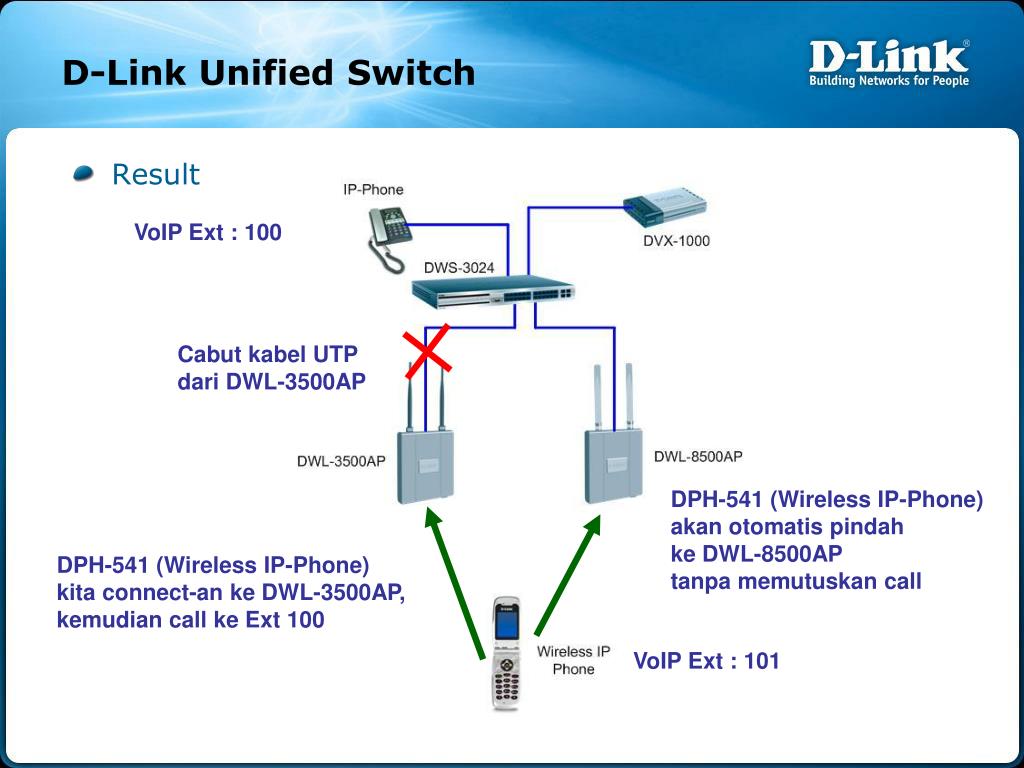

  13. D-Link Unified Switch • Result VoIP Ext : 100 Cabut kabel UTP dari DWL-3500AP DPH-541 (Wireless IP-Phone) akan otomatis pindah ke DWL-8500AP tanpa memutuskan call DPH-541 (Wireless IP-Phone) kita connect-an ke DWL-3500AP, kemudian call ke Ext 100 VoIP Ext : 101

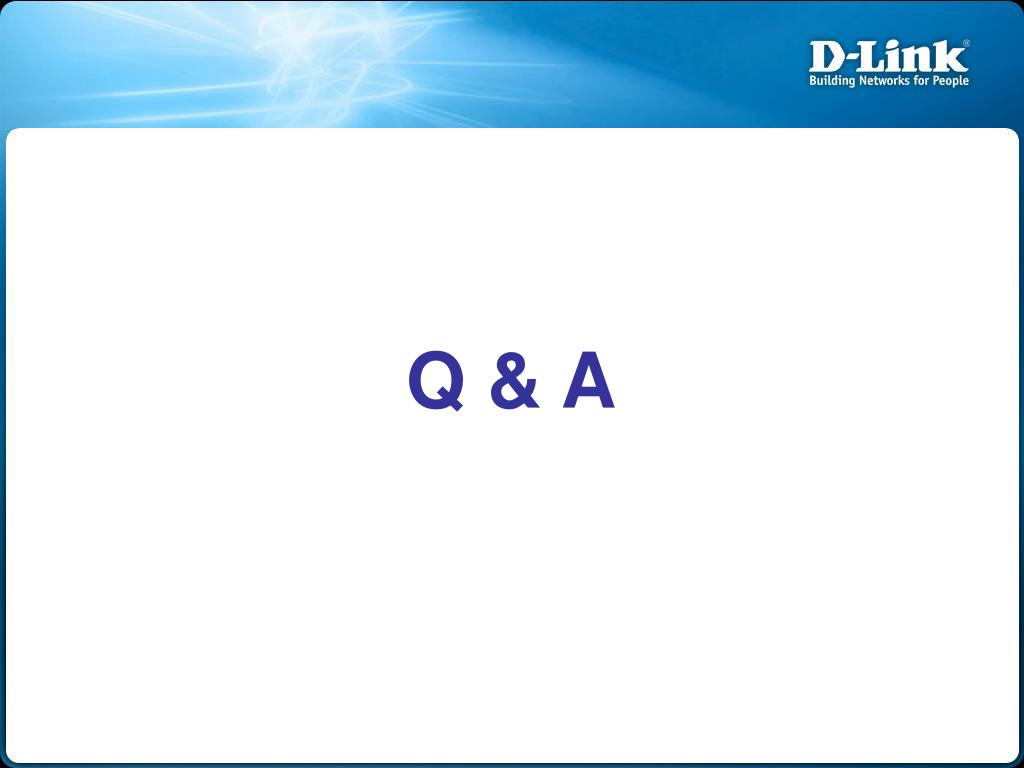

  14. Q & A
