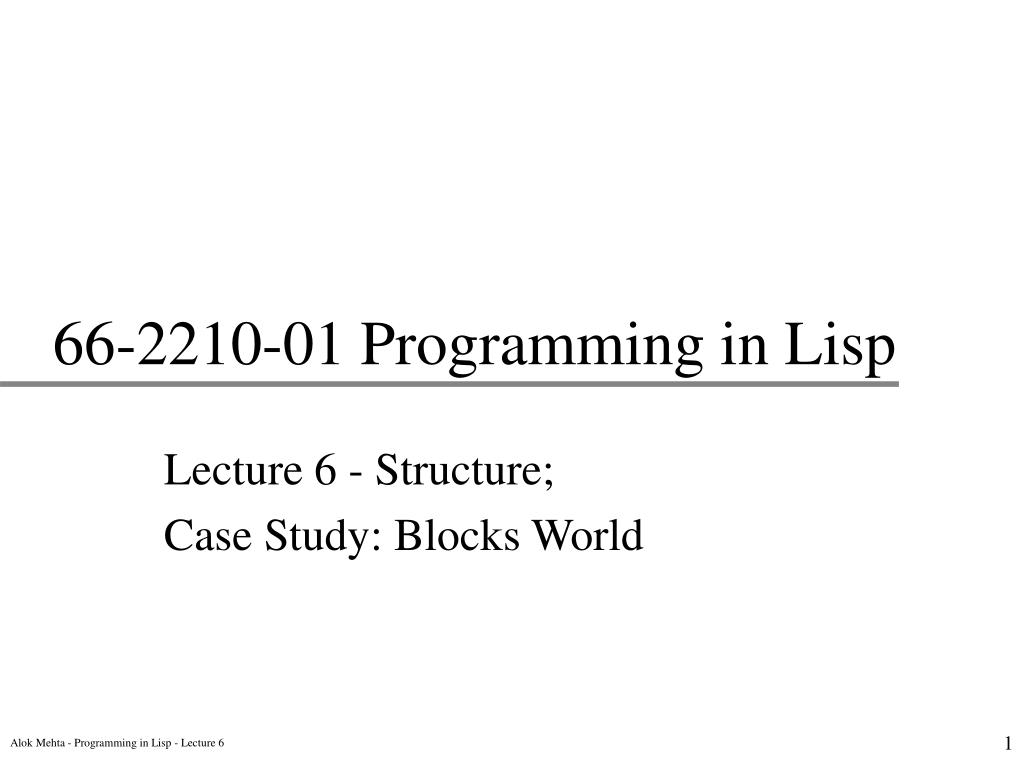

  1. 66-2210-01 Programming in Lisp Lecture 6 - Structure; Case Study: Blocks World Alok Mehta - Programming in Lisp - Lecture 6

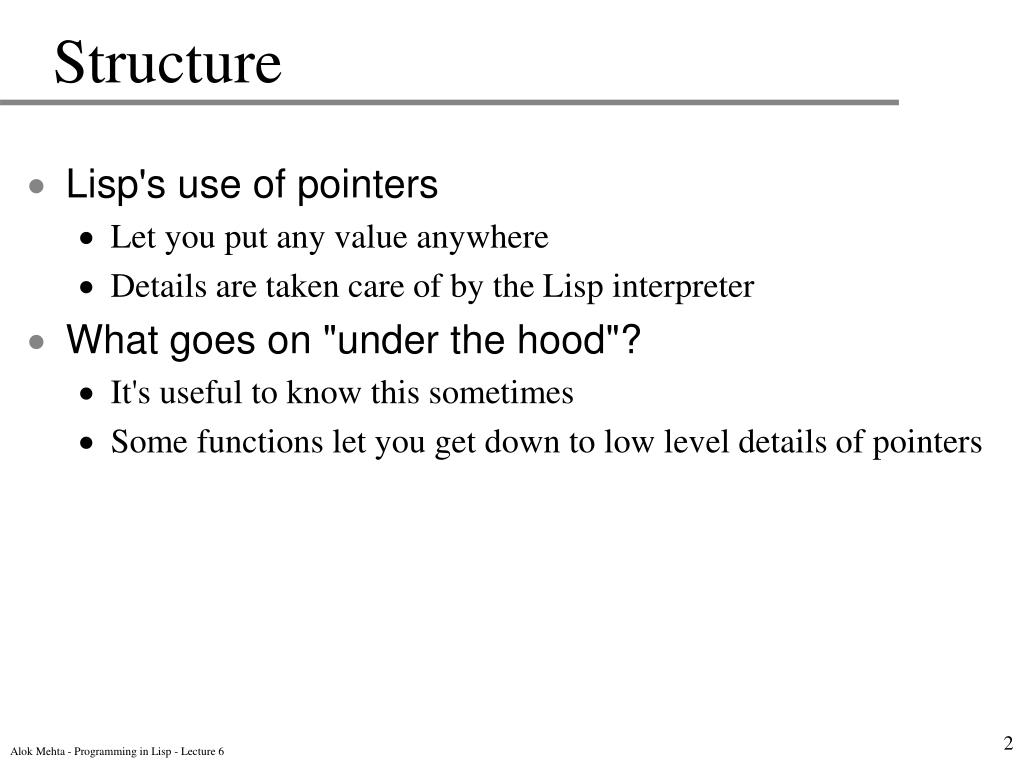

  2. Structure • Lisp's use of pointers • Let you put any value anywhere • Details are taken care of by the Lisp interpreter • What goes on "under the hood"? • It's useful to know this sometimes • Some functions let you get down to low level details of pointers Alok Mehta - Programming in Lisp - Lecture 6

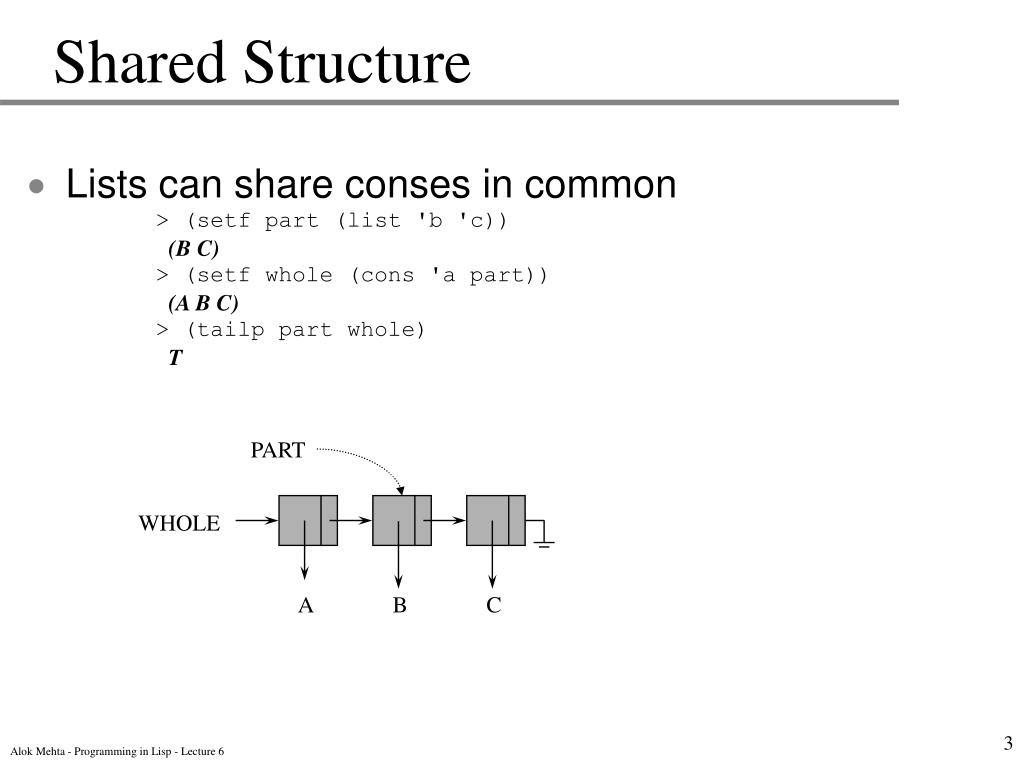

  3. Shared Structure • Lists can share conses in common • > (setf part (list 'b 'c)) • (B C) • > (setf whole (cons 'a part)) • (A B C) • > (tailp part whole) • T PART WHOLE A B C Alok Mehta - Programming in Lisp - Lecture 6

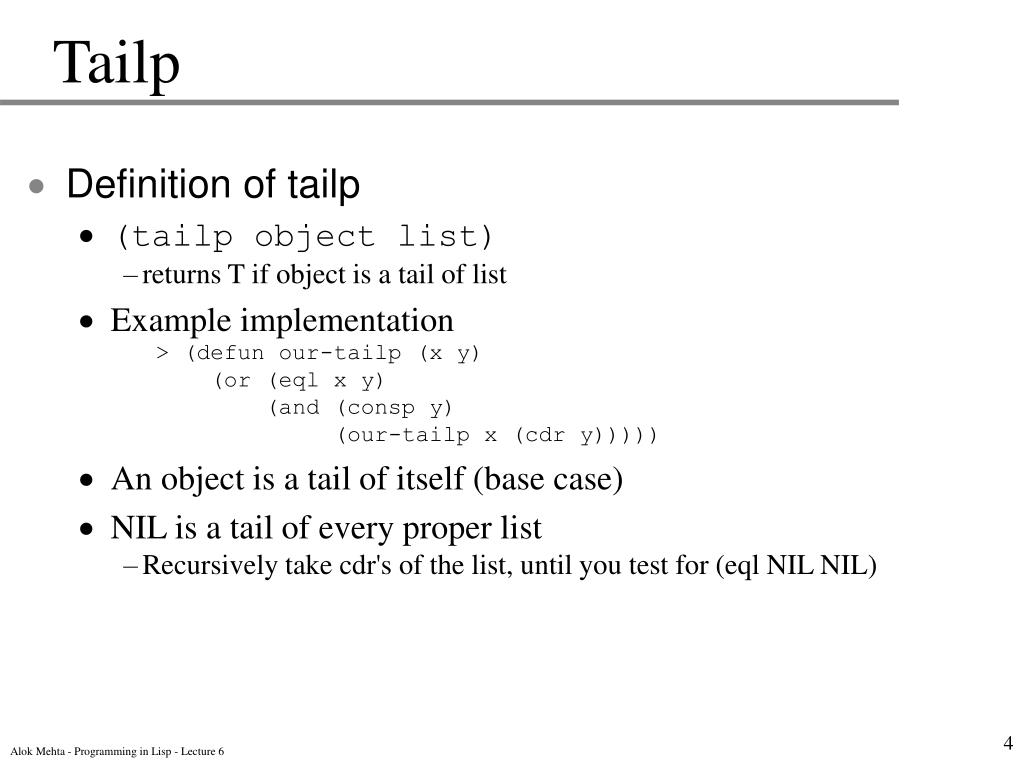

  4. Tailp • Definition of tailp • (tailp object list) • returns T if object is a tail of list • Example implementation • > (defun our-tailp (x y) • (or (eql x y) • (and (consp y) • (our-tailp x (cdr y))))) • An object is a tail of itself (base case) • NIL is a tail of every proper list • Recursively take cdr's of the list, until you test for (eql NIL NIL) Alok Mehta - Programming in Lisp - Lecture 6

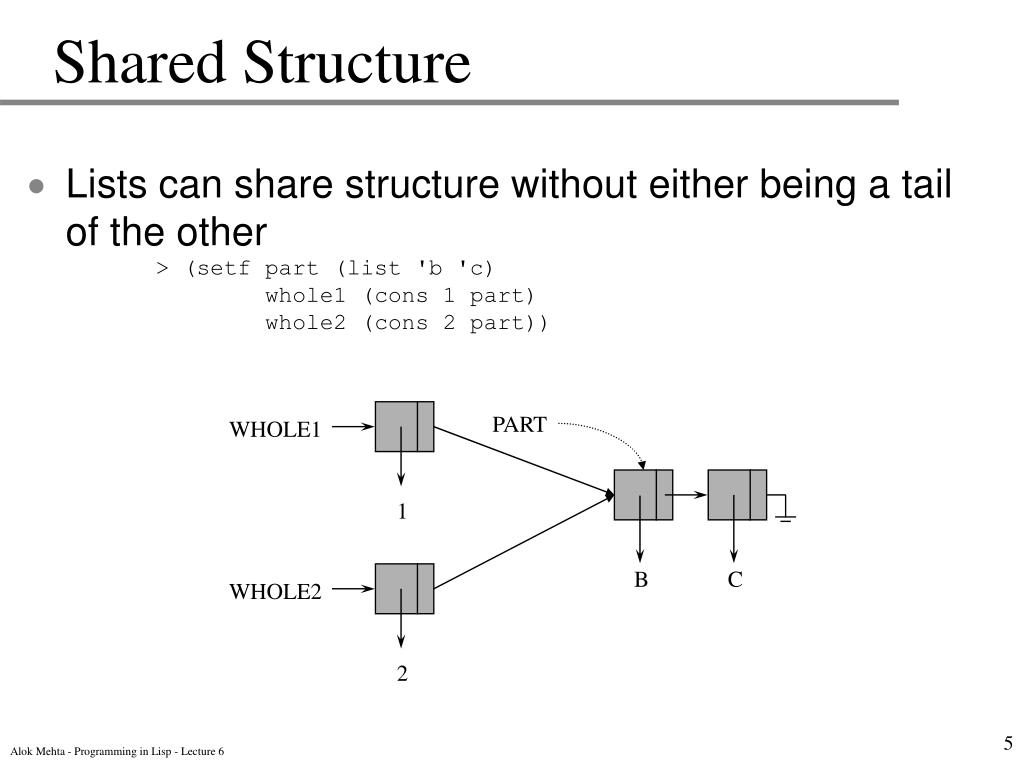

  5. Shared Structure • Lists can share structure without either being a tail of the other • > (setf part (list 'b 'c) • whole1 (cons 1 part) • whole2 (cons 2 part)) PART WHOLE1 1 B C WHOLE2 2 Alok Mehta - Programming in Lisp - Lecture 6

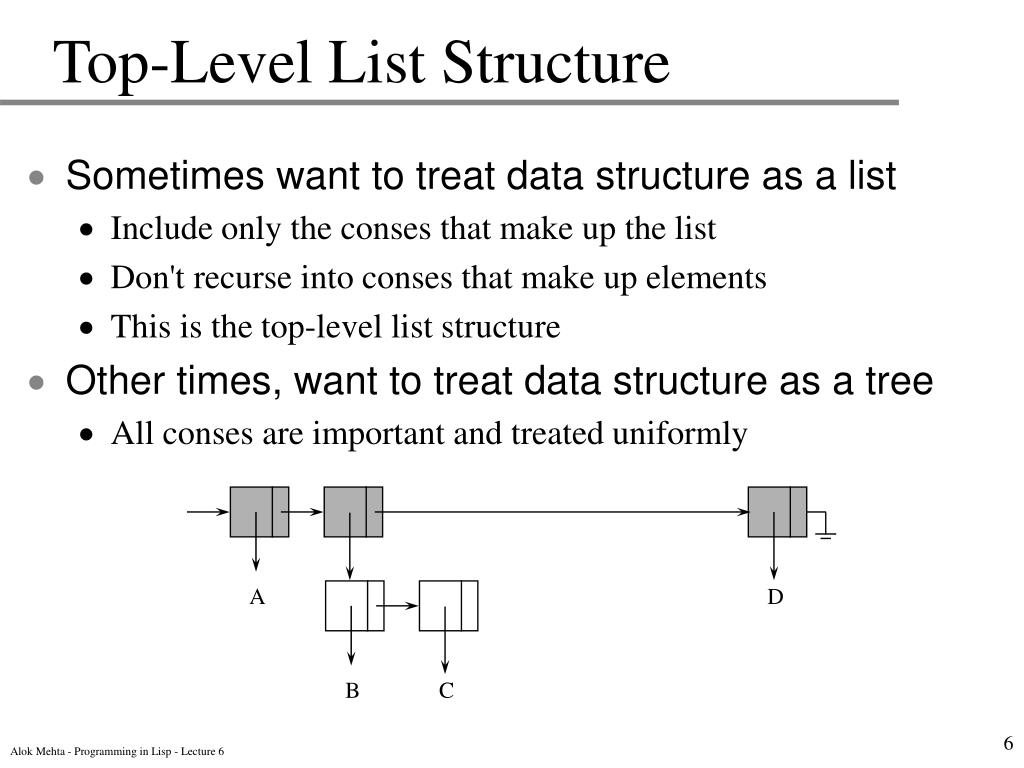

  6. Top-Level List Structure • Sometimes want to treat data structure as a list • Include only the conses that make up the list • Don't recurse into conses that make up elements • This is the top-level list structure • Other times, want to treat data structure as a tree • All conses are important and treated uniformly A D B C Alok Mehta - Programming in Lisp - Lecture 6

  7. Copy-list vs. Copy-tree Original A D B C Copy-list Copy-tree A D B C Alok Mehta - Programming in Lisp - Lecture 6

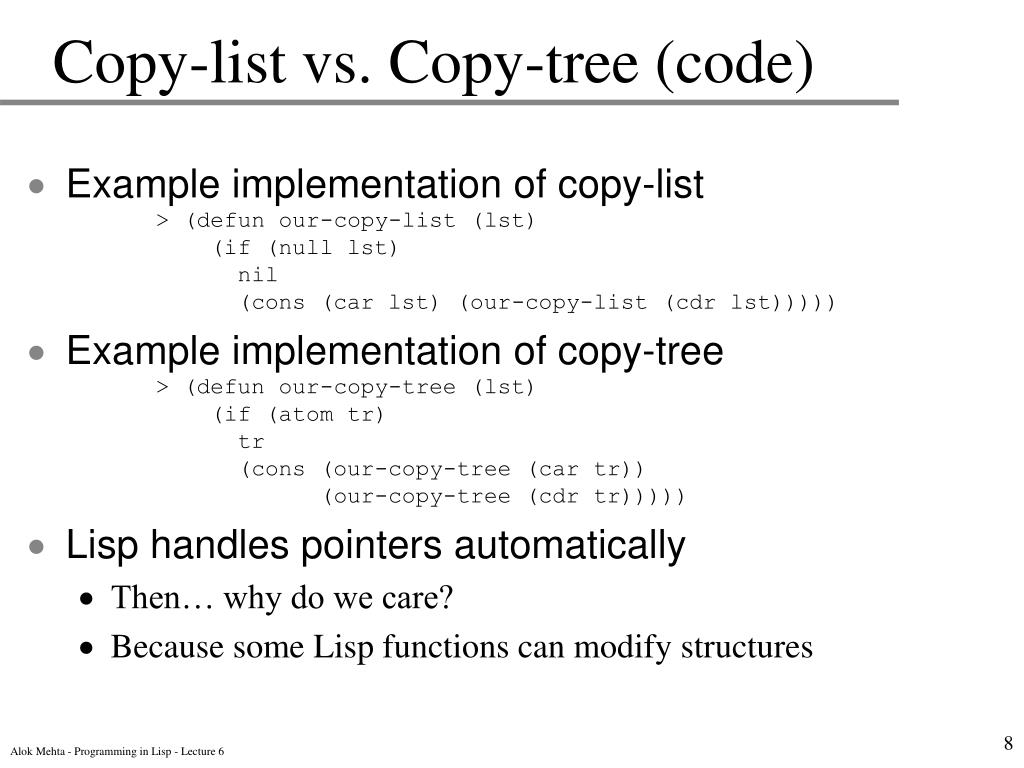

  8. Copy-list vs. Copy-tree (code) • Example implementation of copy-list • > (defun our-copy-list (lst) • (if (null lst) • nil • (cons (car lst) (our-copy-list (cdr lst))))) • Example implementation of copy-tree • > (defun our-copy-tree (lst) • (if (atom tr) • tr • (cons (our-copy-tree (car tr)) • (our-copy-tree (cdr tr))))) • Lisp handles pointers automatically • Then… why do we care? • Because some Lisp functions can modify structures Alok Mehta - Programming in Lisp - Lecture 6

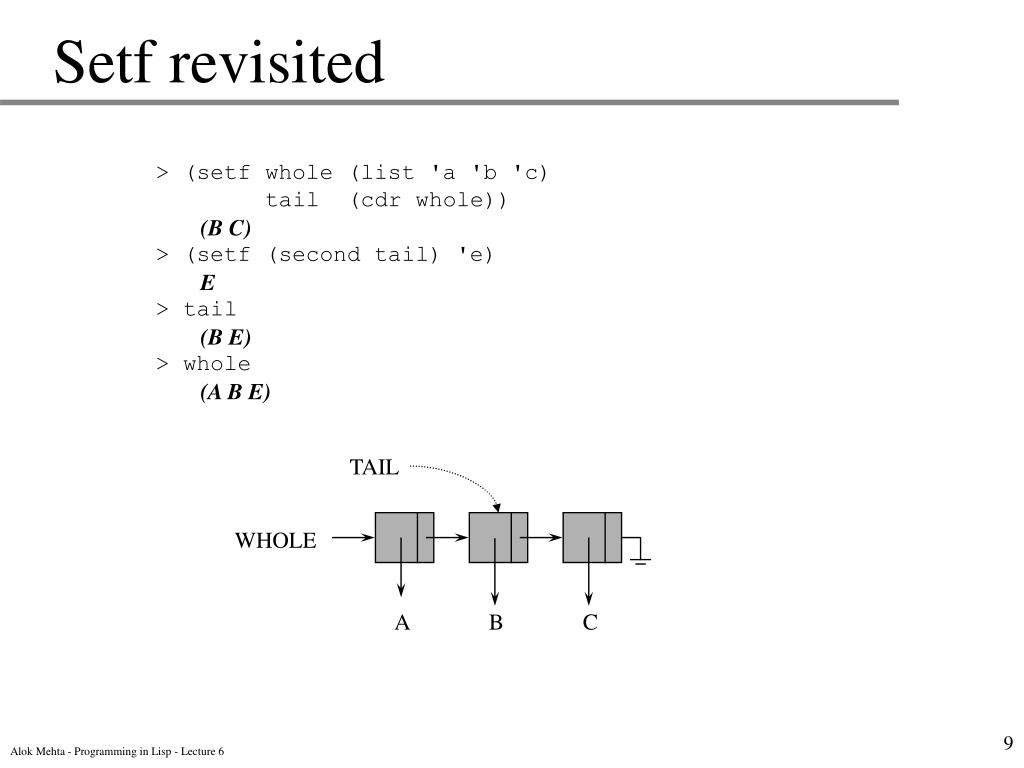

  9. Setf revisited • > (setf whole (list 'a 'b 'c) • tail (cdr whole)) • (B C) • > (setf (second tail) 'e) • E • > tail • (B E) • > whole • (A B E) TAIL WHOLE A B C Alok Mehta - Programming in Lisp - Lecture 6

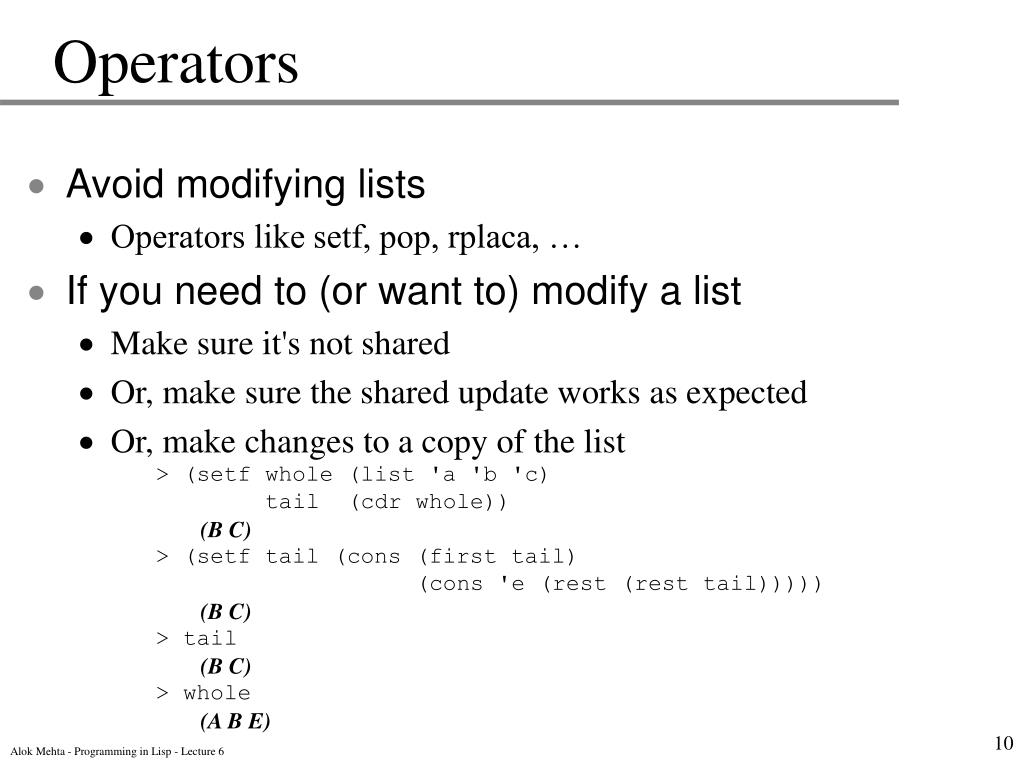

  10. Operators • Avoid modifying lists • Operators like setf, pop, rplaca, … • If you need to (or want to) modify a list • Make sure it's not shared • Or, make sure the shared update works as expected • Or, make changes to a copy of the list • > (setf whole (list 'a 'b 'c) • tail (cdr whole)) • (B C) • > (setf tail (cons (first tail) • (cons 'e (rest (rest tail))))) • (B C) • > tail • (B C) • > whole • (A B E) Alok Mehta - Programming in Lisp - Lecture 6

  11. Parameter passing • Parameters are passed by value • The value is copied into the function • If the value is a list… • The entire list is not copied • The reference to the list is copied • A function can permanently alter a list passed in as a parameter! • Similar to parameter passing in Java • Can cause unintentional errors • But, can also be useful Alok Mehta - Programming in Lisp - Lecture 6

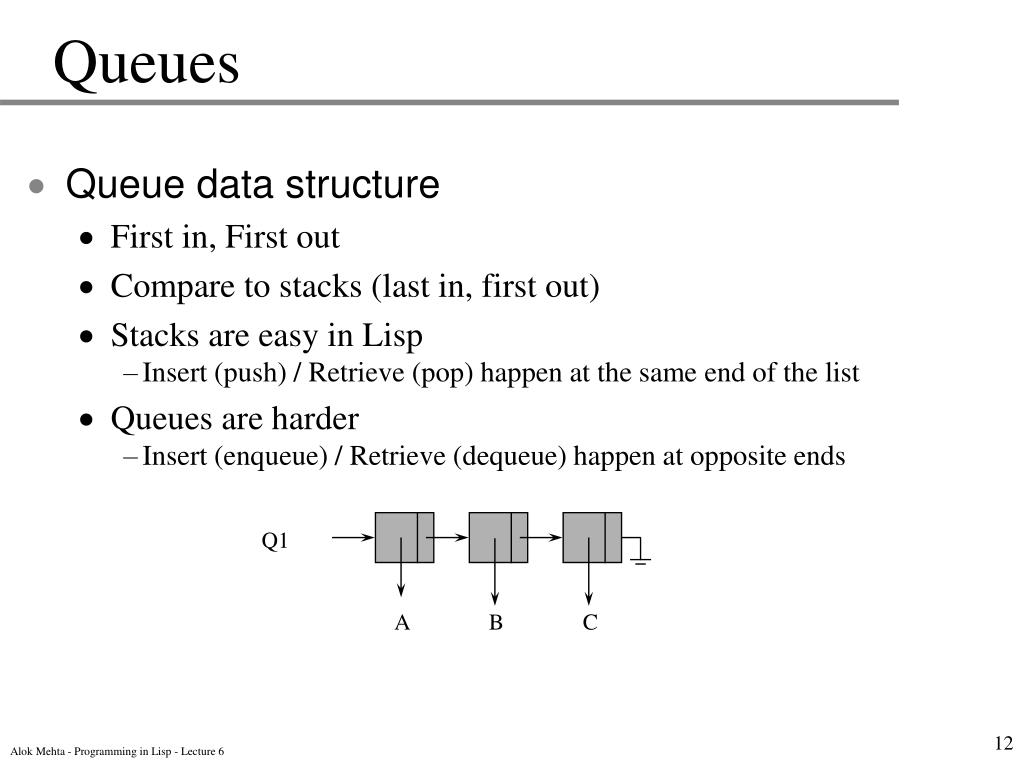

  12. Queues • Queue data structure • First in, First out • Compare to stacks (last in, first out) • Stacks are easy in Lisp • Insert (push) / Retrieve (pop) happen at the same end of the list • Queues are harder • Insert (enqueue) / Retrieve (dequeue) happen at opposite ends Q1 A B C Alok Mehta - Programming in Lisp - Lecture 6

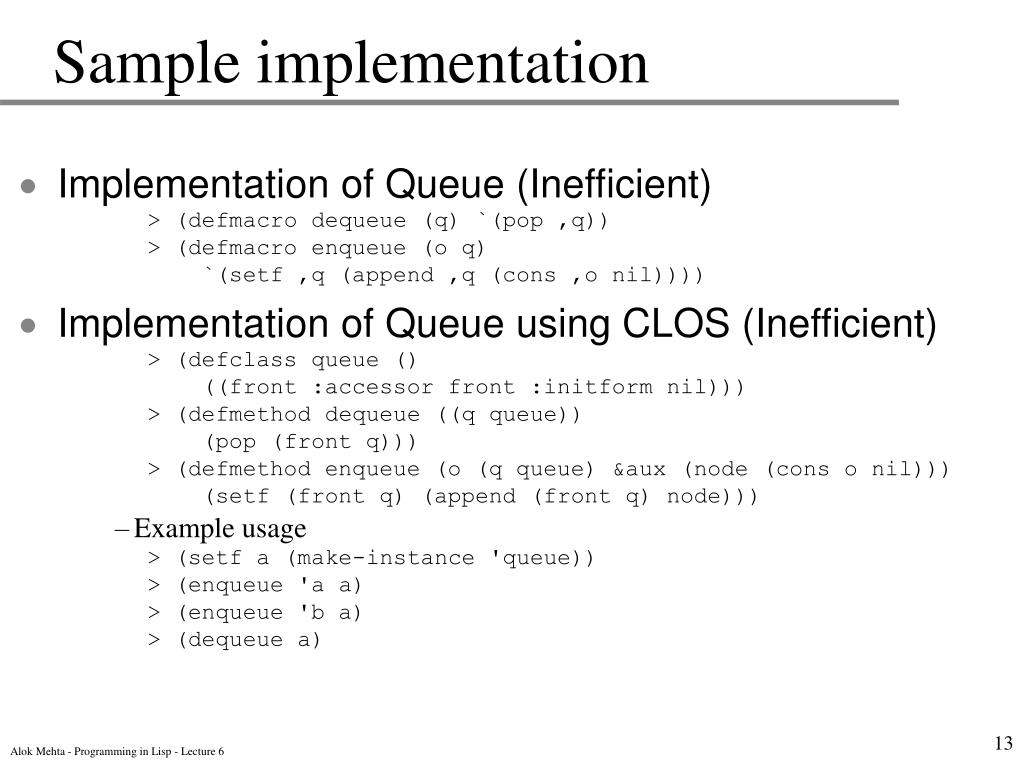

  13. Sample implementation • Implementation of Queue (Inefficient) • > (defmacro dequeue (q) `(pop ,q)) • > (defmacro enqueue (o q) • `(setf ,q (append ,q (cons ,o nil)))) • Implementation of Queue using CLOS (Inefficient) • > (defclass queue () • ((front :accessor front :initform nil))) • > (defmethod dequeue ((q queue)) • (pop (front q))) • > (defmethod enqueue (o (q queue) &aux (node (cons o nil))) • (setf (front q) (append (front q) node))) • Example usage • > (setf a (make-instance 'queue)) • > (enqueue 'a a) • > (enqueue 'b a) • > (dequeue a) Alok Mehta - Programming in Lisp - Lecture 6

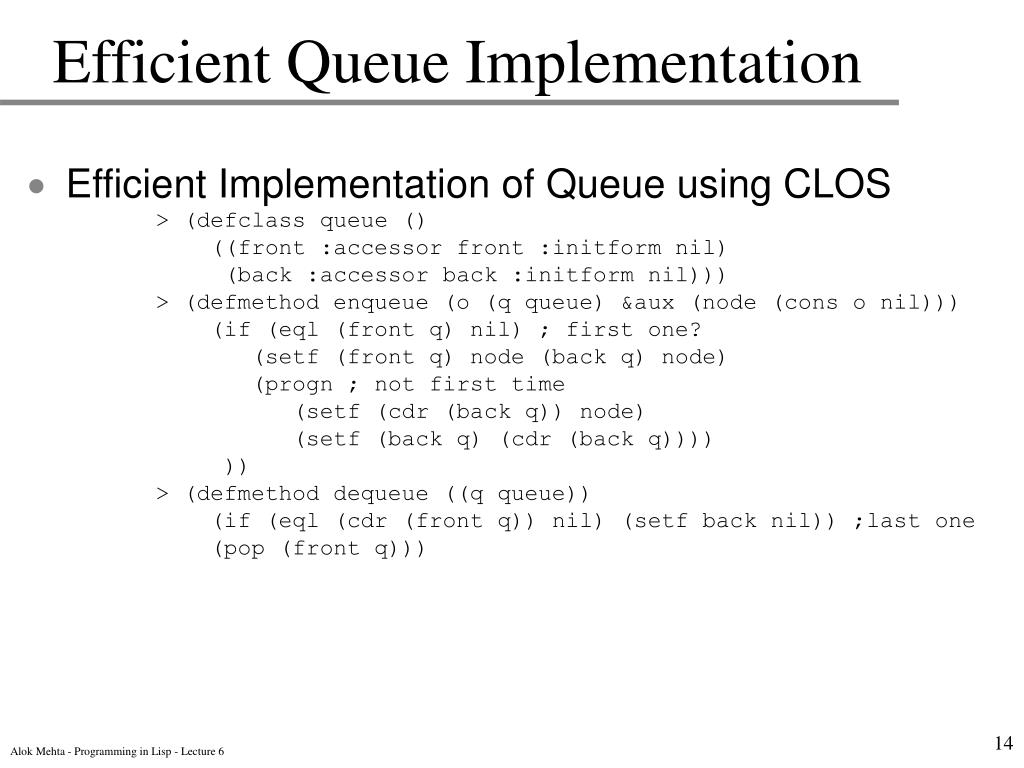

  14. Efficient Queue Implementation • Efficient Implementation of Queue using CLOS • > (defclass queue () • ((front :accessor front :initform nil) • (back :accessor back :initform nil))) • > (defmethod enqueue (o (q queue) &aux (node (cons o nil))) • (if (eql (front q) nil) ; first one? • (setf (front q) node (back q) node) • (progn ; not first time • (setf (cdr (back q)) node) • (setf (back q) (cdr (back q)))) • )) • > (defmethod dequeue ((q queue)) • (if (eql (cdr (front q)) nil) (setf back nil)) ;last one • (pop (front q))) Alok Mehta - Programming in Lisp - Lecture 6

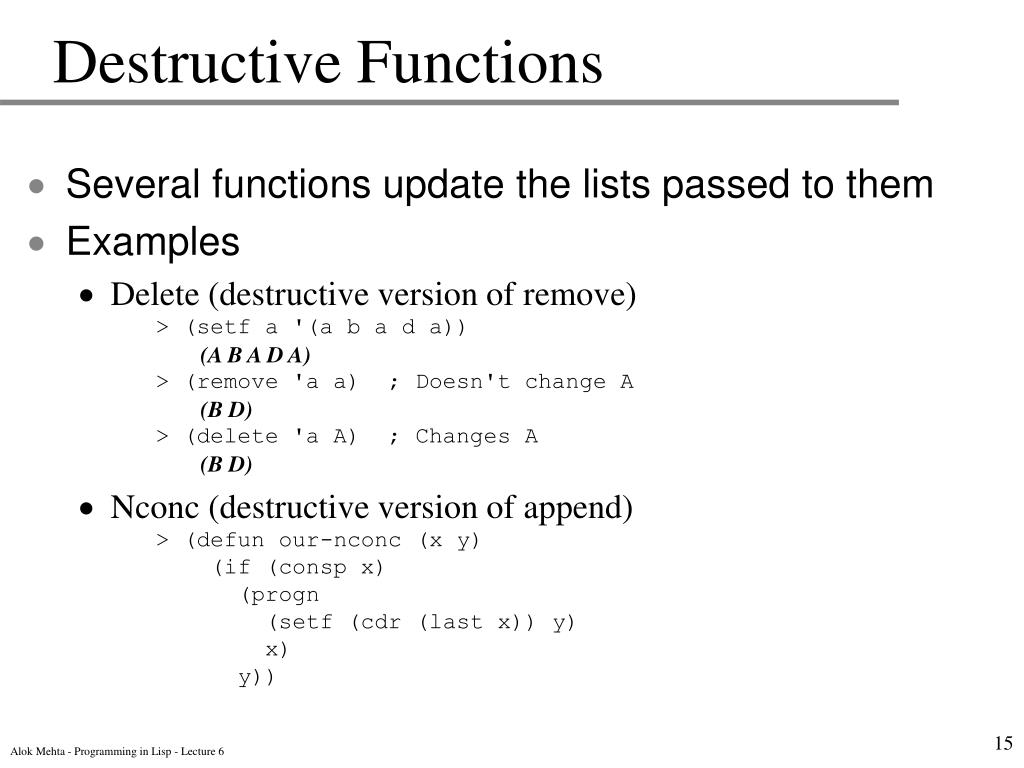

  15. Destructive Functions • Several functions update the lists passed to them • Examples • Delete (destructive version of remove) • > (setf a '(a b a d a)) • (A B A D A) • > (remove 'a a) ; Doesn't change A • (B D) • > (delete 'a A) ; Changes A • (B D) • Nconc (destructive version of append) • > (defun our-nconc (x y) • (if (consp x) • (progn • (setf (cdr (last x)) y) • x) • y)) Alok Mehta - Programming in Lisp - Lecture 6

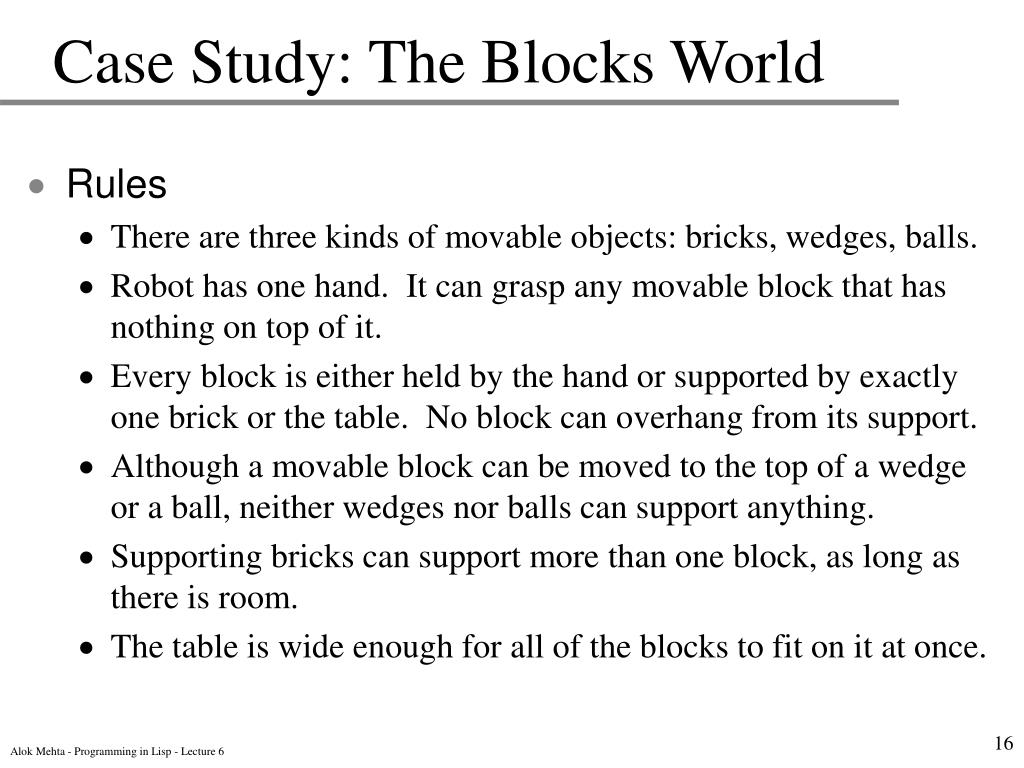

  16. Case Study: The Blocks World • Rules • There are three kinds of movable objects: bricks, wedges, balls. • Robot has one hand. It can grasp any movable block that has nothing on top of it. • Every block is either held by the hand or supported by exactly one brick or the table. No block can overhang from its support. • Although a movable block can be moved to the top of a wedge or a ball, neither wedges nor balls can support anything. • Supporting bricks can support more than one block, as long as there is room. • The table is wide enough for all of the blocks to fit on it at once. Alok Mehta - Programming in Lisp - Lecture 6

  17. Case Study: The Blocks World • Several moves are required to put block B1 on block B2 • Sample path • Move W7; Move B4; Move B1 onto B2 P <=== Robotic Hand W5 W7 B4 B3 B1 B2 B6 L8 Table Alok Mehta - Programming in Lisp - Lecture 6

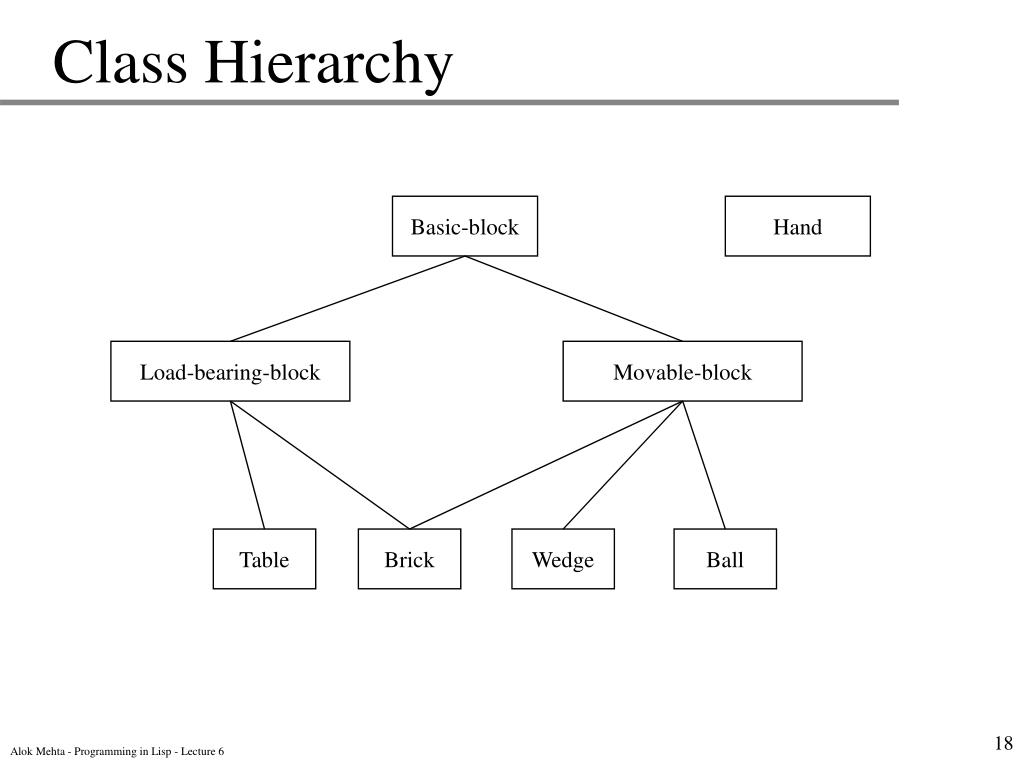

  18. Class Hierarchy Basic-block Hand Load-bearing-block Movable-block Table Brick Wedge Ball Alok Mehta - Programming in Lisp - Lecture 6

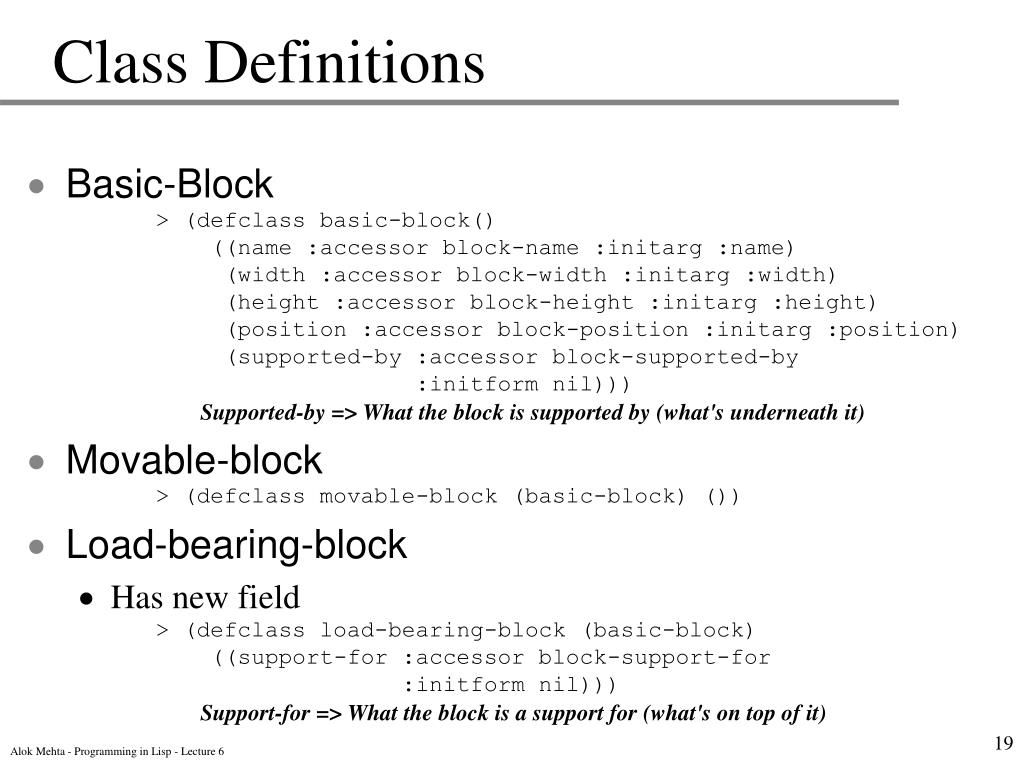

  19. Class Definitions • Basic-Block • > (defclass basic-block() • ((name :accessor block-name :initarg :name) • (width :accessor block-width :initarg :width) • (height :accessor block-height :initarg :height) • (position :accessor block-position :initarg :position) • (supported-by :accessor block-supported-by • :initform nil))) • Supported-by => What the block is supported by (what's underneath it) • Movable-block • > (defclass movable-block (basic-block) ()) • Load-bearing-block • Has new field • > (defclass load-bearing-block (basic-block) • ((support-for :accessor block-support-for • :initform nil))) • Support-for => What the block is a support for (what's on top of it) Alok Mehta - Programming in Lisp - Lecture 6

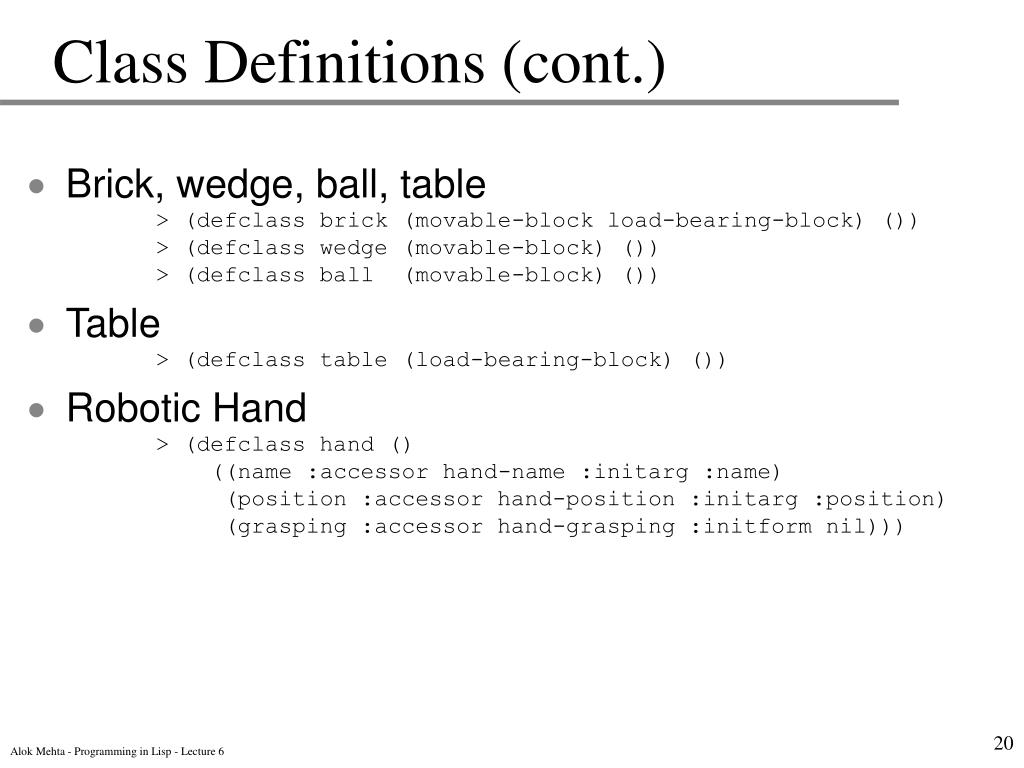

  20. Class Definitions (cont.) • Brick, wedge, ball, table • > (defclass brick (movable-block load-bearing-block) ()) • > (defclass wedge (movable-block) ()) • > (defclass ball (movable-block) ()) • Table • > (defclass table (load-bearing-block) ()) • Robotic Hand • > (defclass hand () • ((name :accessor hand-name :initarg :name) • (position :accessor hand-position :initarg :position) • (grasping :accessor hand-grasping :initform nil))) Alok Mehta - Programming in Lisp - Lecture 6

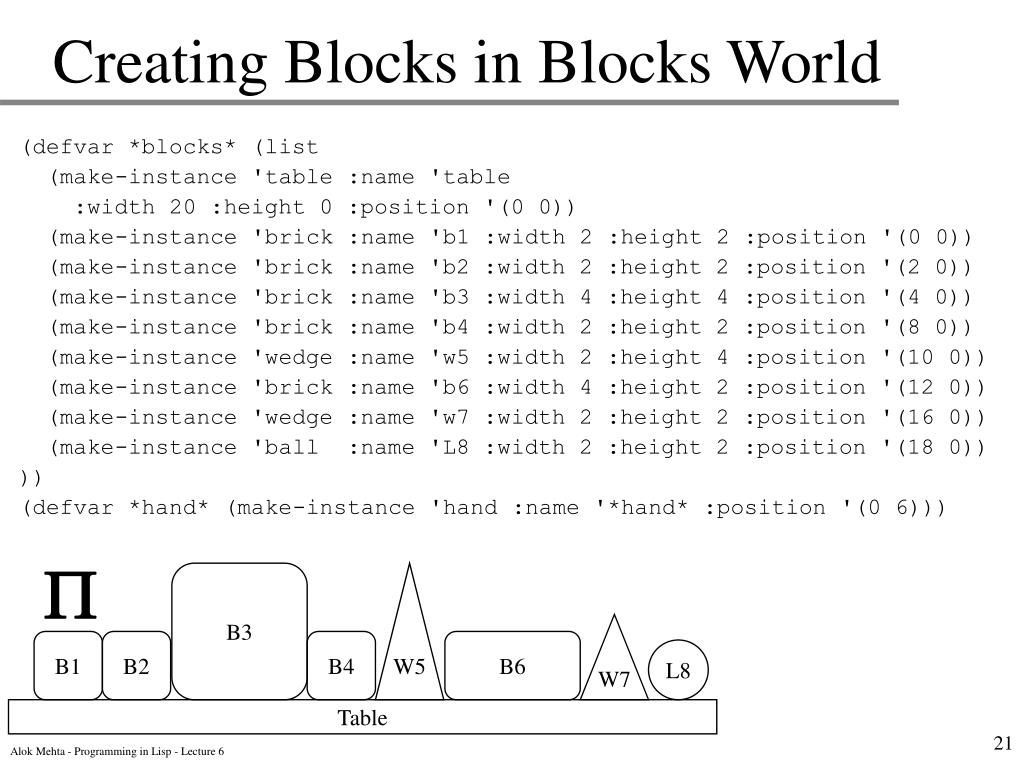

  21. Creating Blocks in Blocks World (defvar *blocks* (list (make-instance 'table :name 'table :width 20 :height 0 :position '(0 0)) (make-instance 'brick :name 'b1 :width 2 :height 2 :position '(0 0)) (make-instance 'brick :name 'b2 :width 2 :height 2 :position '(2 0)) (make-instance 'brick :name 'b3 :width 4 :height 4 :position '(4 0)) (make-instance 'brick :name 'b4 :width 2 :height 2 :position '(8 0)) (make-instance 'wedge :name 'w5 :width 2 :height 4 :position '(10 0)) (make-instance 'brick :name 'b6 :width 4 :height 2 :position '(12 0)) (make-instance 'wedge :name 'w7 :width 2 :height 2 :position '(16 0)) (make-instance 'ball :name 'L8 :width 2 :height 2 :position '(18 0)) )) (defvar *hand* (make-instance 'hand :name '*hand* :position '(0 6))) P B3 W5 W7 B1 B2 B4 B6 L8 Table Alok Mehta - Programming in Lisp - Lecture 6

  22. Initializing Blocks World • Create other global variables for convenience • > (dolist (l *blocks*) (set (block-name l) l)) • This sets the global variables TABLE, B1, B2, … W7, L8 to their respective block • All blocks rest on the table initially • > (dolist (l (rest *blocks*)) ; For each, except table • (setf (block-supported-by l) table) • (push l (block-support-for table))) • Load-bearing-block has a method block-support-for • This was automatically generated • Create a dummy stub for this method in basic-block • > (defmethod block-support-for ((object basic-block)) • nil) • By default, basic-blocks do not have anything on top of them. Only Load-bearing-blocks may have something on top of them. Alok Mehta - Programming in Lisp - Lecture 6

  23. Block-Support-For Returns Nil Returns value of Slot Support-For Basic-block Block-Support-For Hand Load-bearing-block Block-Support-For Movable-block Table Brick Wedge Ball Alok Mehta - Programming in Lisp - Lecture 6

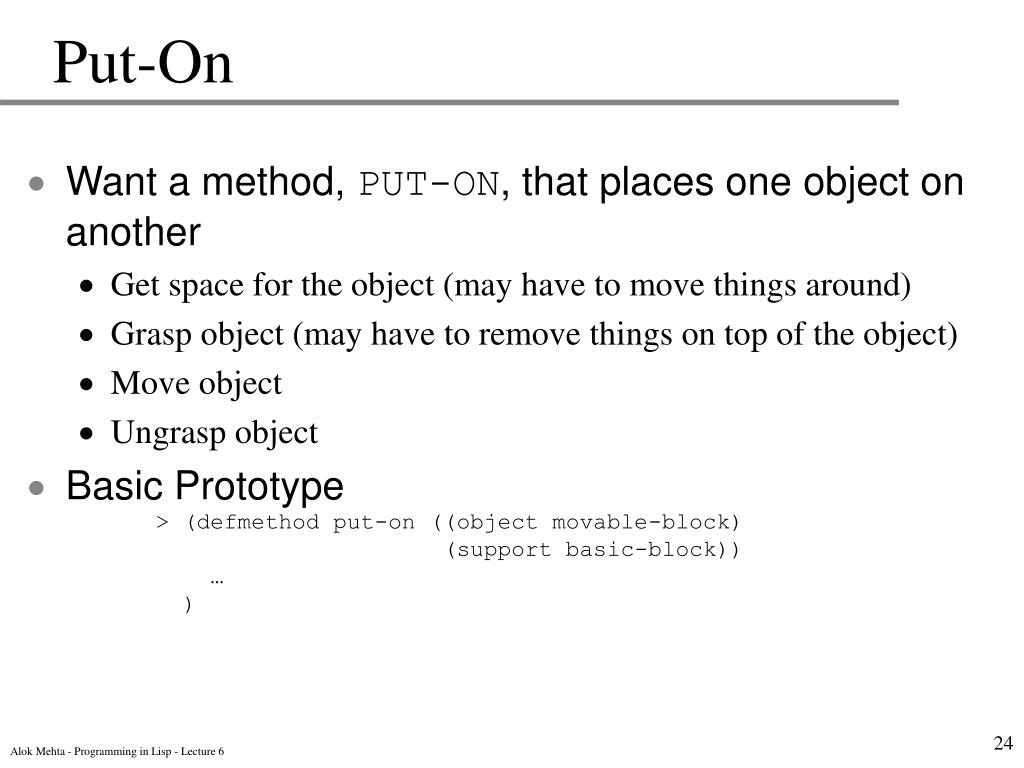

  24. Put-On • Want a method, PUT-ON, that places one object on another • Get space for the object (may have to move things around) • Grasp object (may have to remove things on top of the object) • Move object • Ungrasp object • Basic Prototype • > (defmethod put-on ((object movable-block) • (support basic-block)) • … • ) Alok Mehta - Programming in Lisp - Lecture 6

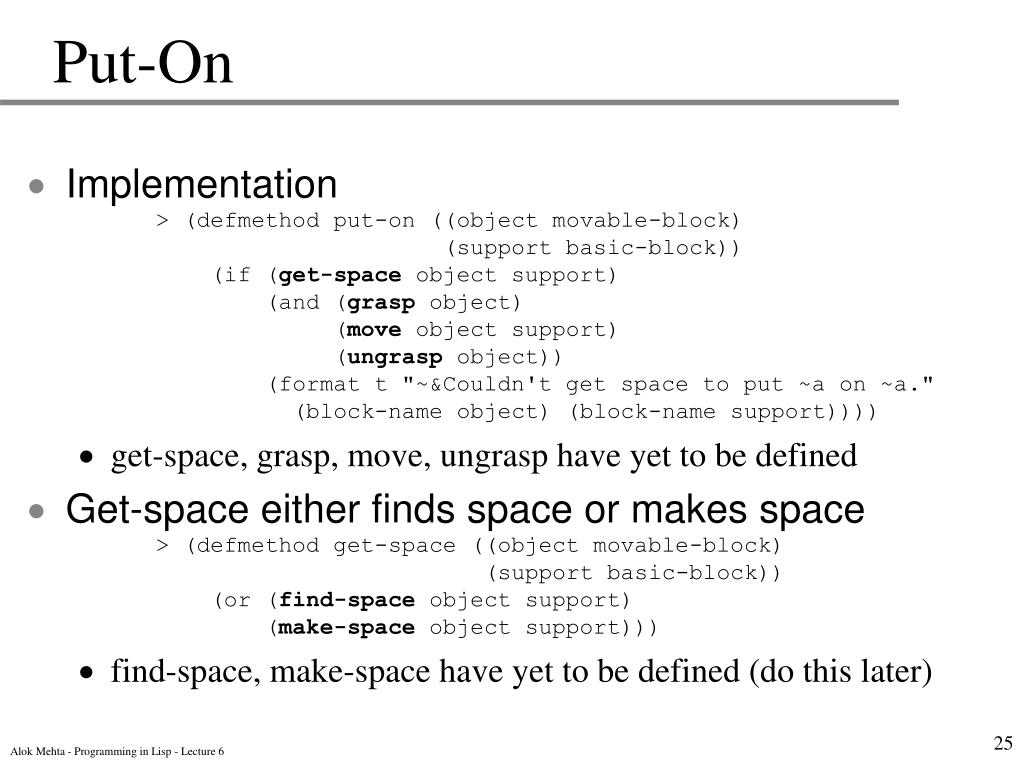

  25. Put-On • Implementation • > (defmethod put-on ((object movable-block) • (support basic-block)) • (if (get-space object support) • (and (grasp object) • (move object support) • (ungrasp object)) • (format t "~&Couldn't get space to put ~a on ~a." • (block-name object) (block-name support)))) • get-space, grasp, move, ungrasp have yet to be defined • Get-space either finds space or makes space • > (defmethod get-space ((object movable-block) • (support basic-block)) • (or (find-space object support) • (make-space object support))) • find-space, make-space have yet to be defined (do this later) Alok Mehta - Programming in Lisp - Lecture 6

  26. Grasp • Grasp • Puts desired object in robot's hand • > (defmethod grasp ((object movable-block)) • (unless (eq (hand-grasping *hand*) object) ; already holding? • ; Make sure nothing else is on top of object • (when (block-support-for object) (clear-top object)) • ; Make sure robot isn't holding anything else • (when (hand-grasping *hand*) • (get-rid-of (hand-grasping *hand*))) • (format t "~&Move hand to pick up ~a at location ~a." • (block-name object) (top-location object)) • (setf (hand-position *hand*) (top-location object)) • (format t "~&Grasp ~a." (block-name object)) • (setf (hand-grasping *hand*) object)) • t) • Need to define: Clear-top, top-location • Function returns T if successful Alok Mehta - Programming in Lisp - Lecture 6

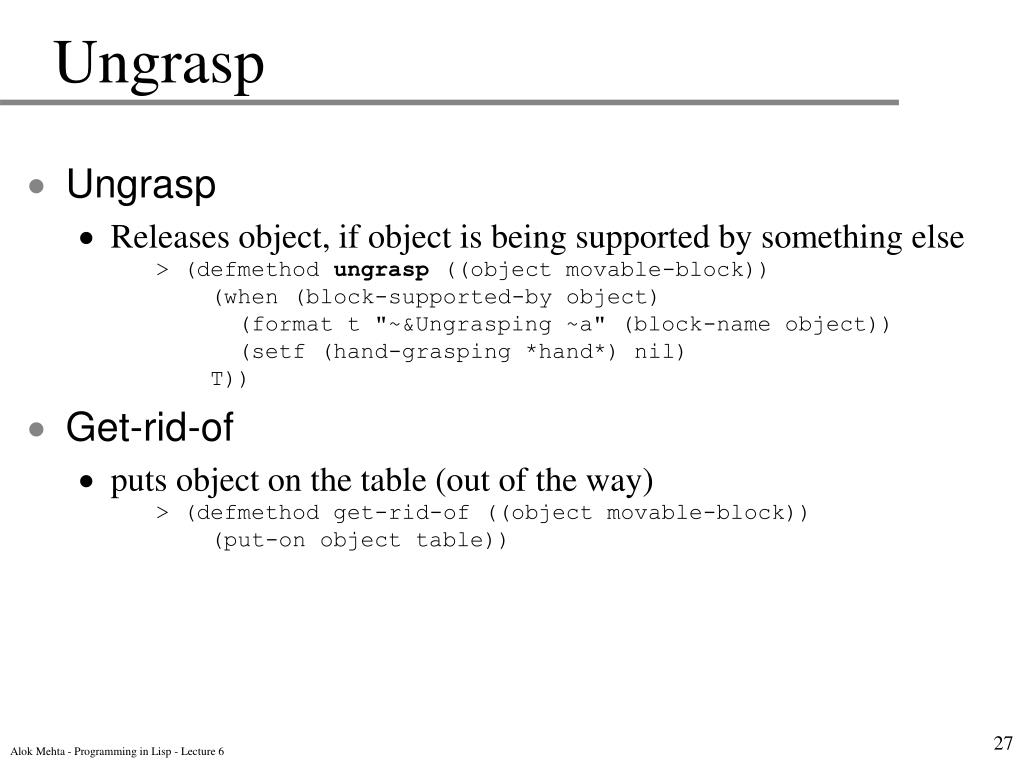

  27. Ungrasp • Ungrasp • Releases object, if object is being supported by something else • > (defmethod ungrasp ((object movable-block)) • (when (block-supported-by object) • (format t "~&Ungrasping ~a" (block-name object)) • (setf (hand-grasping *hand*) nil) • T)) • Get-rid-of • puts object on the table (out of the way) • > (defmethod get-rid-of ((object movable-block)) • (put-on object table)) Alok Mehta - Programming in Lisp - Lecture 6

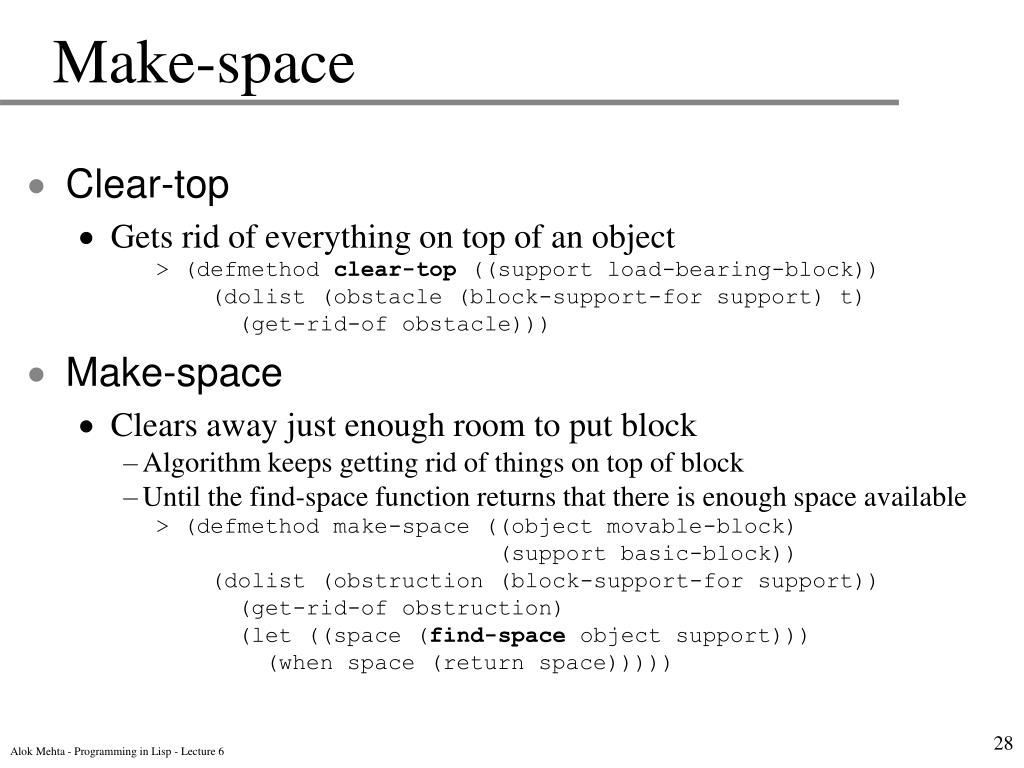

  28. Make-space • Clear-top • Gets rid of everything on top of an object • > (defmethod clear-top ((support load-bearing-block)) • (dolist (obstacle (block-support-for support) t) • (get-rid-of obstacle))) • Make-space • Clears away just enough room to put block • Algorithm keeps getting rid of things on top of block • Until the find-space function returns that there is enough space available • > (defmethod make-space ((object movable-block) • (support basic-block)) • (dolist (obstruction (block-support-for support)) • (get-rid-of obstruction) • (let ((space (find-space object support))) • (when space (return space))))) Alok Mehta - Programming in Lisp - Lecture 6

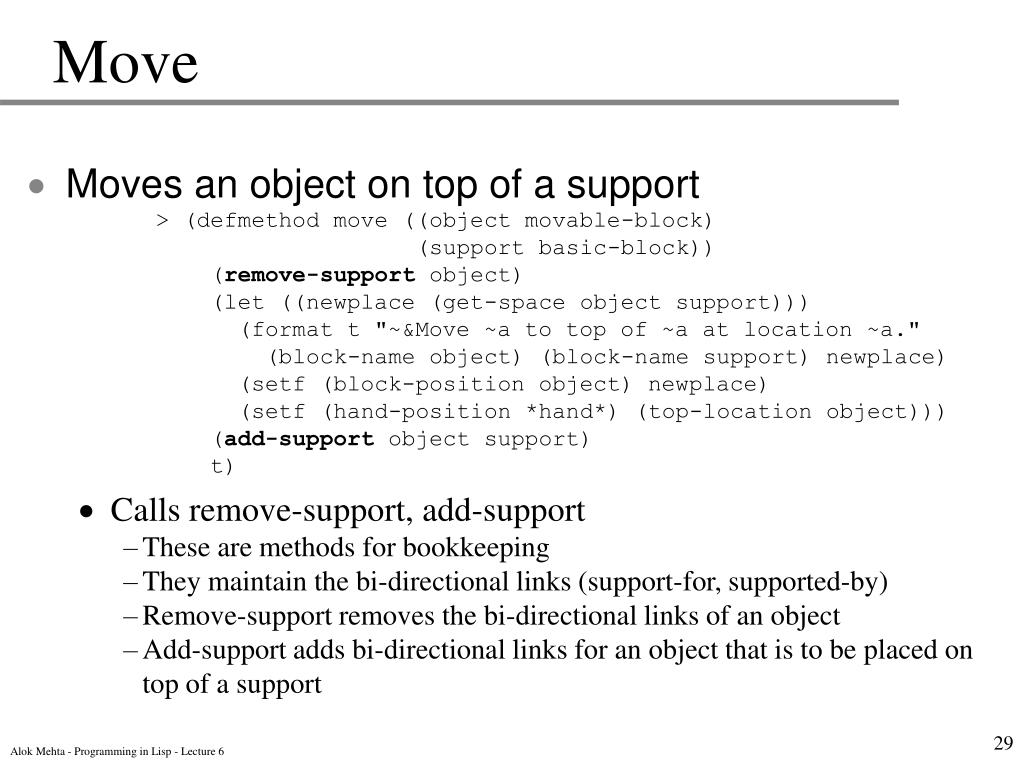

  29. Move • Moves an object on top of a support • > (defmethod move ((object movable-block) • (support basic-block)) • (remove-support object) • (let ((newplace (get-space object support))) • (format t "~&Move ~a to top of ~a at location ~a." • (block-name object) (block-name support) newplace) • (setf (block-position object) newplace) • (setf (hand-position *hand*) (top-location object))) • (add-support object support) • t) • Calls remove-support, add-support • These are methods for bookkeeping • They maintain the bi-directional links (support-for, supported-by) • Remove-support removes the bi-directional links of an object • Add-support adds bi-directional links for an object that is to be placed on top of a support Alok Mehta - Programming in Lisp - Lecture 6

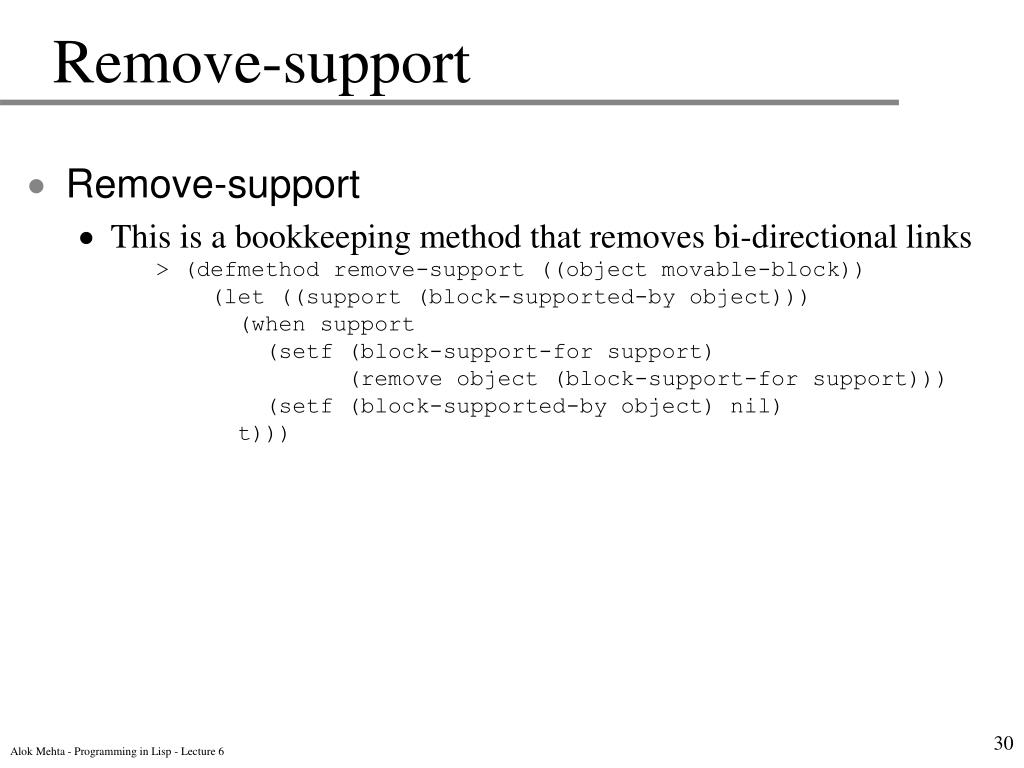

  30. Remove-support • Remove-support • This is a bookkeeping method that removes bi-directional links • > (defmethod remove-support ((object movable-block)) • (let ((support (block-supported-by object))) • (when support • (setf (block-support-for support) • (remove object (block-support-for support))) • (setf (block-supported-by object) nil) • t))) Alok Mehta - Programming in Lisp - Lecture 6

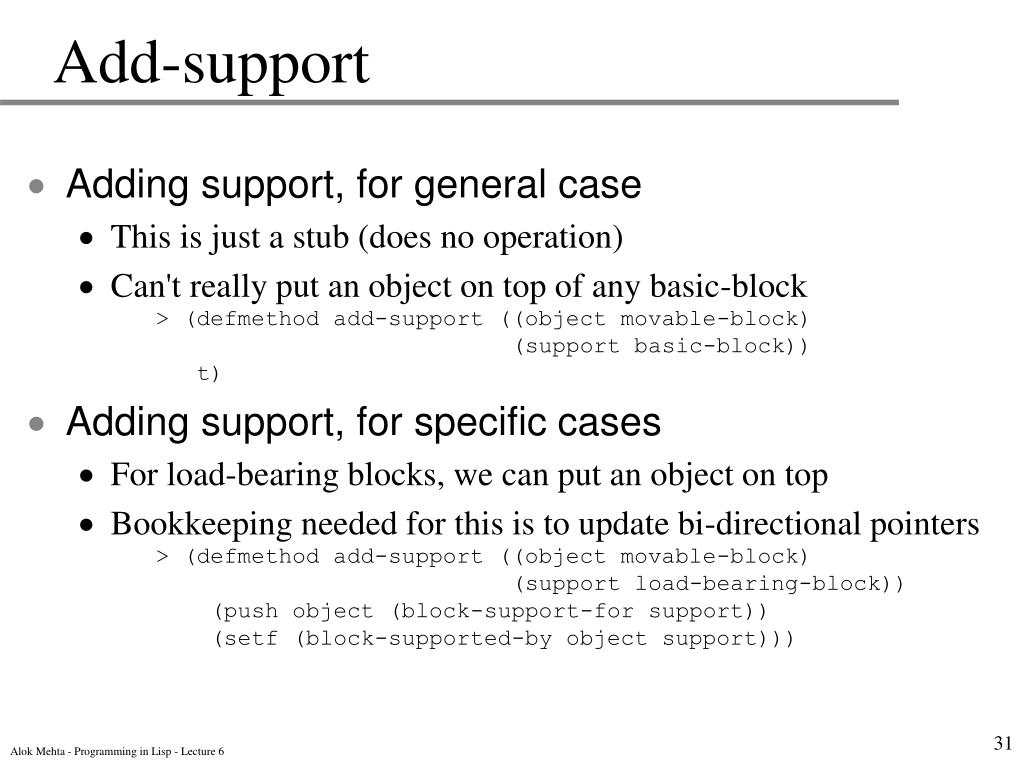

  31. Add-support • Adding support, for general case • This is just a stub (does no operation) • Can't really put an object on top of any basic-block • > (defmethod add-support ((object movable-block) • (support basic-block)) • t) • Adding support, for specific cases • For load-bearing blocks, we can put an object on top • Bookkeeping needed for this is to update bi-directional pointers • > (defmethod add-support ((object movable-block) • (support load-bearing-block)) • (push object (block-support-for support)) • (setf (block-supported-by object support))) Alok Mehta - Programming in Lisp - Lecture 6

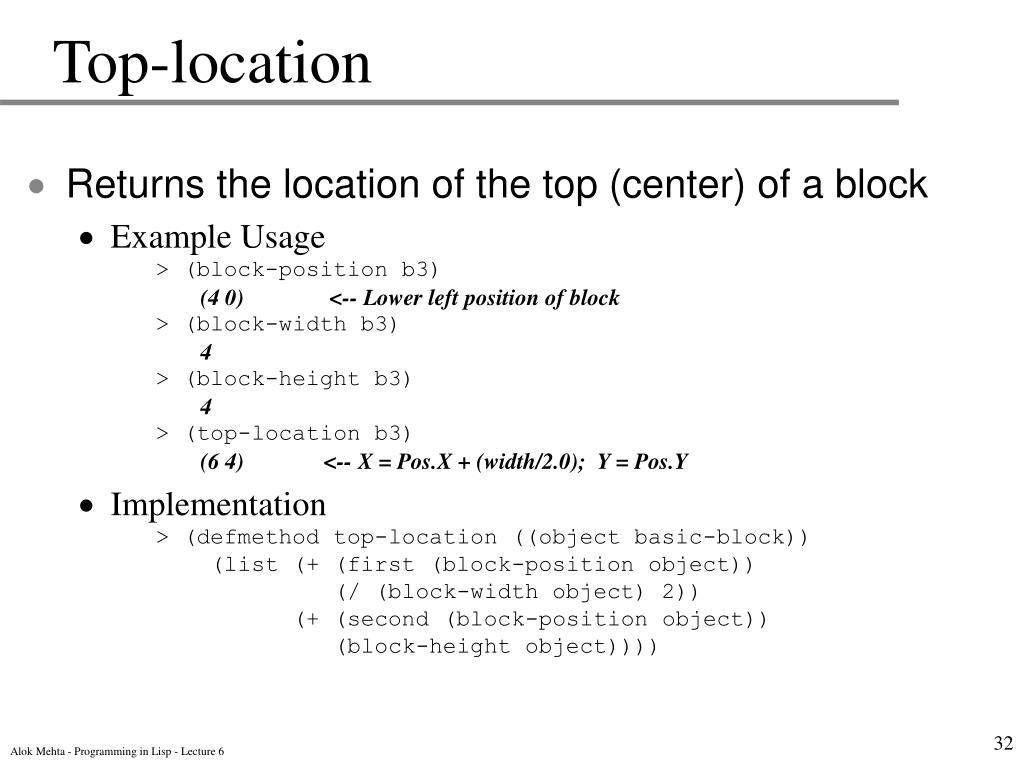

  32. Top-location • Returns the location of the top (center) of a block • Example Usage • > (block-position b3) • (4 0) <-- Lower left position of block • > (block-width b3) • 4 • > (block-height b3) • 4 • > (top-location b3) • (6 4) <-- X = Pos.X + (width/2.0); Y = Pos.Y • Implementation • > (defmethod top-location ((object basic-block)) • (list (+ (first (block-position object)) • (/ (block-width object) 2)) • (+ (second (block-position object)) • (block-height object)))) Alok Mehta - Programming in Lisp - Lecture 6

  33. Find-space B4 B4 • Find-space • Basic algorithm • For each possible location on top of support that the object can be placed, • Is the position occupied? If not, we've found the space; else continue • > (defmethod find-space ((object basic-block) • (support basic-block)) • (dotimes (offset (+ 1 (- (block-width support) • (block-width object)))) • (unless (intersections-p object offset • (first (block-position support)) • (block-support-for support)) • (return (list (+ offset • (first (block-position support))) (+ (second (block-position support)) • (block-height support))))))) • Intersections-p is to be defined next B6 B6 Alok Mehta - Programming in Lisp - Lecture 6

  34. Intersections-p • Intersections-p • Checks for intersections (only checks the X dimension) • > (defun intersections-p (object offset base obstacles) • (dolist (obstacle obstacles) • (let* ((ls_proposed (+ offset base)) • (rs_proposed • (+ ls_proposed (block-width object))) • (ls_obstacle (first (block-position obstacle))) • (rs_obstacle • (+ ls_obstacle (block-width obstacle)))) • (unless (or (>= ls_proposed rs_obstacle) • (<= rs_Proposed ls_obstacle)) • (return t))))) Proposed ObjectLocation Obstacle Alok Mehta - Programming in Lisp - Lecture 6

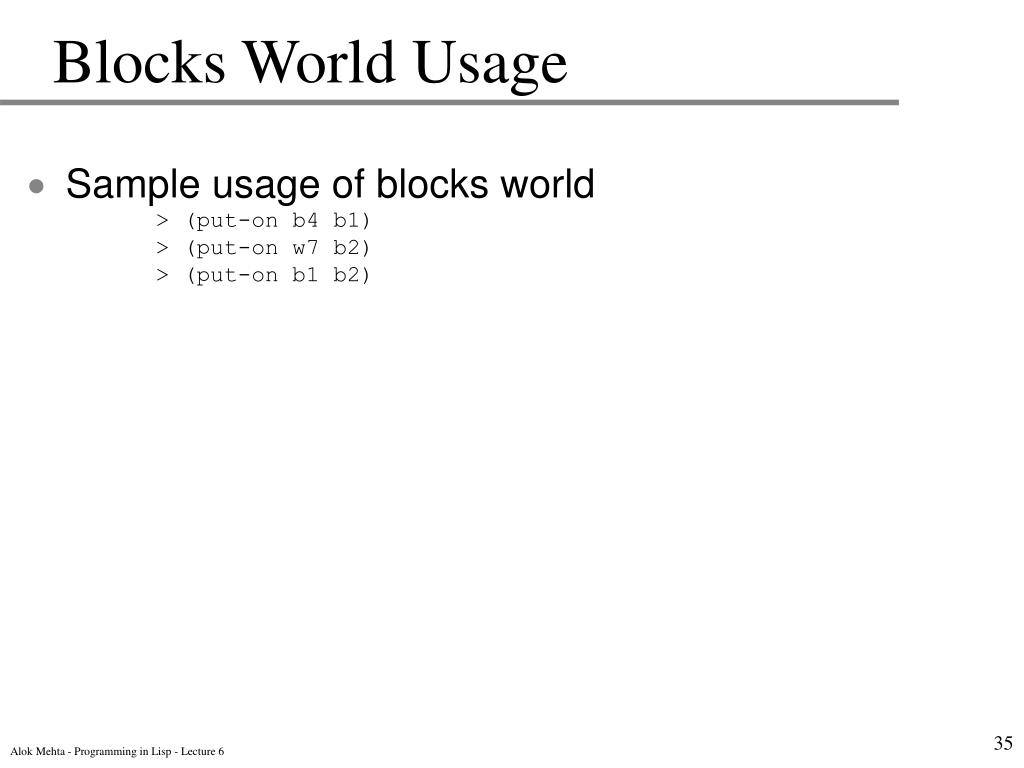

  35. Blocks World Usage • Sample usage of blocks world • > (put-on b4 b1) • > (put-on w7 b2) • > (put-on b1 b2) Alok Mehta - Programming in Lisp - Lecture 6

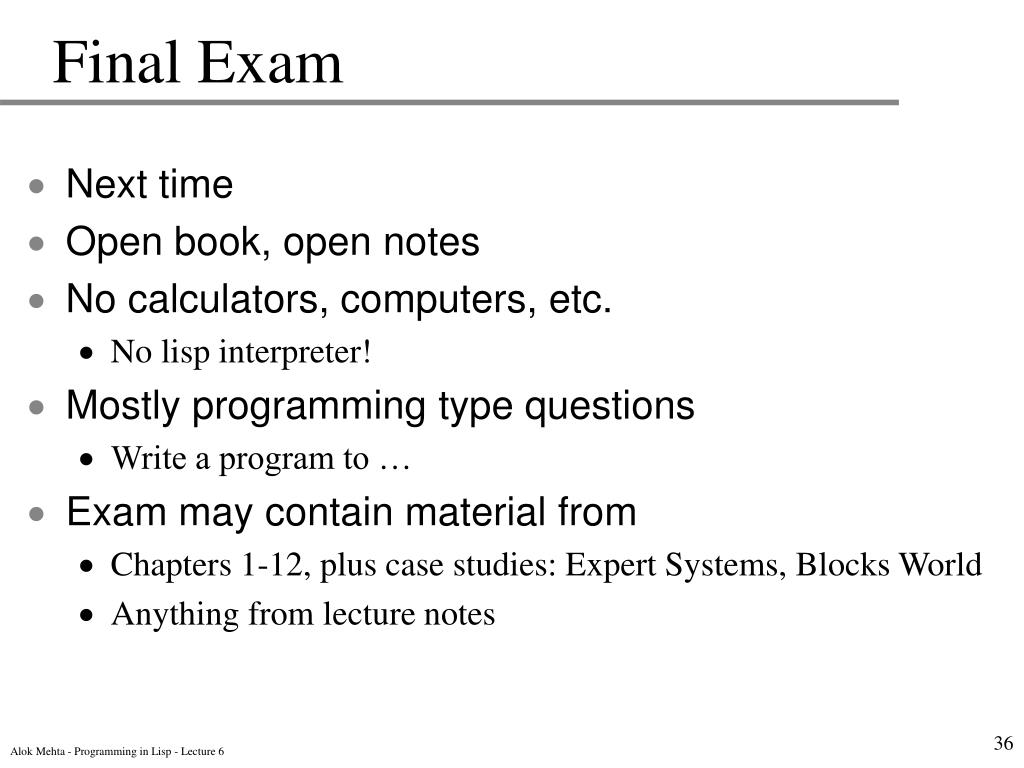

  36. Final Exam • Next time • Open book, open notes • No calculators, computers, etc. • No lisp interpreter! • Mostly programming type questions • Write a program to … • Exam may contain material from • Chapters 1-12, plus case studies: Expert Systems, Blocks World • Anything from lecture notes Alok Mehta - Programming in Lisp - Lecture 6
