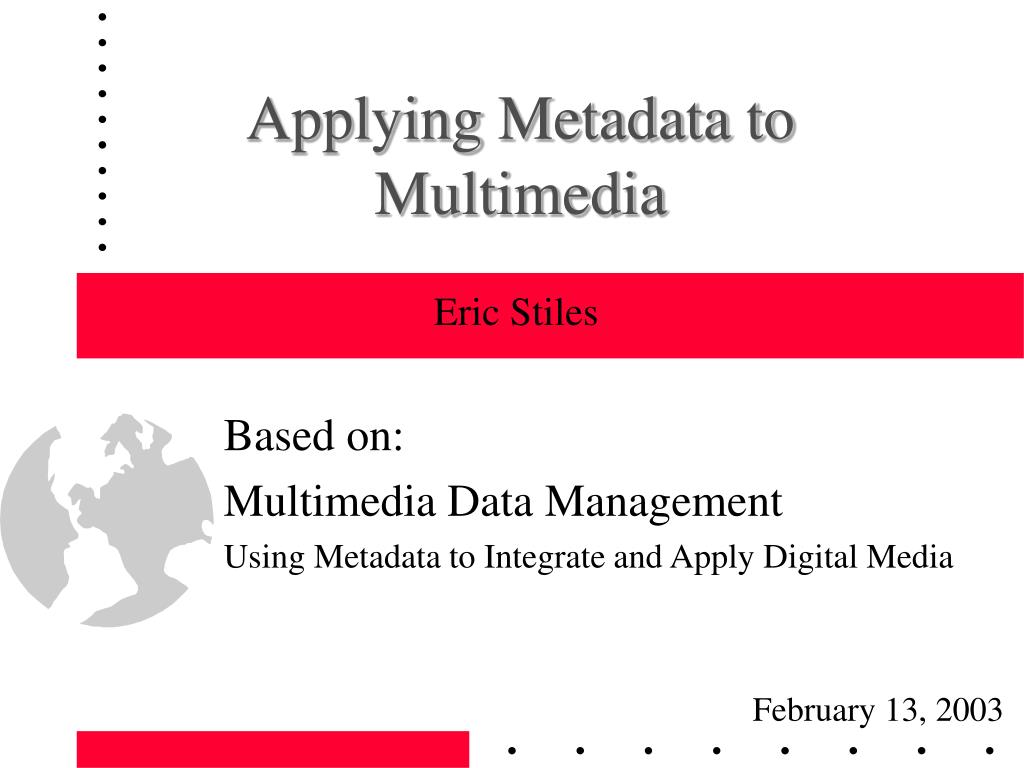

  1. Applying Metadata to Multimedia Eric Stiles Based on: Multimedia Data Management Using Metadata to Integrate and Apply Digital Media February 13, 2003

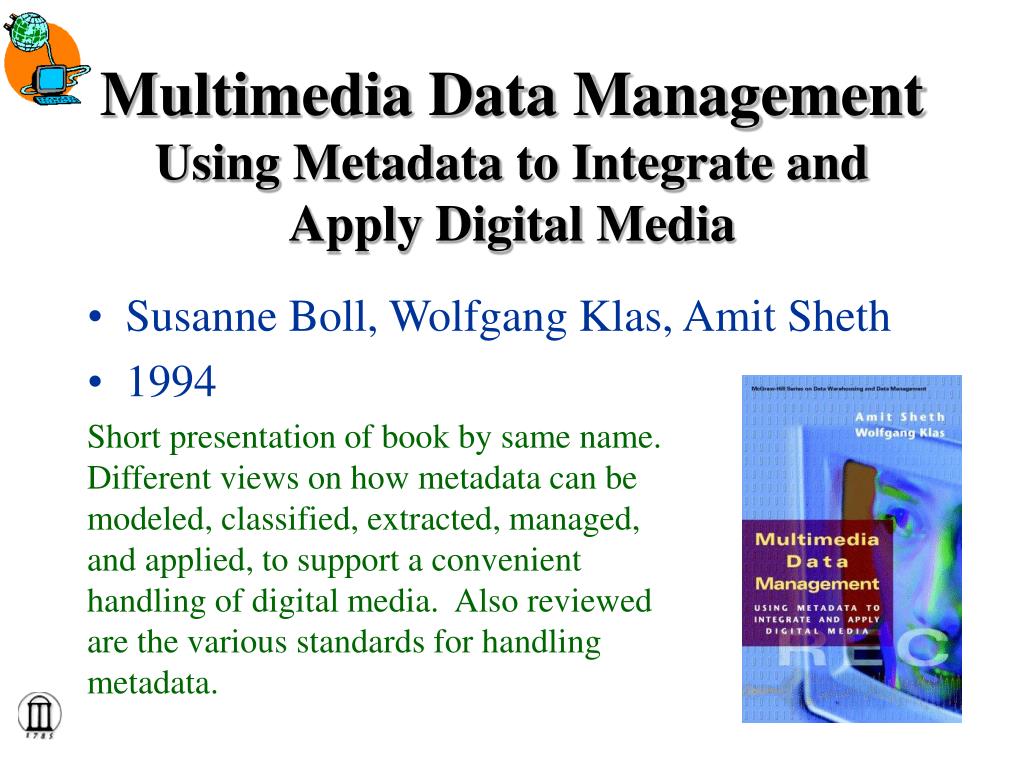

  2. Multimedia Data Management Using Metadata to Integrate and Apply Digital Media • Susanne Boll, Wolfgang Klas, Amit Sheth • 1994 Short presentation of book by same name. Different views on how metadata can be modeled, classified, extracted, managed, and applied, to support a convenient handling of digital media. Also reviewed are the various standards for handling metadata.

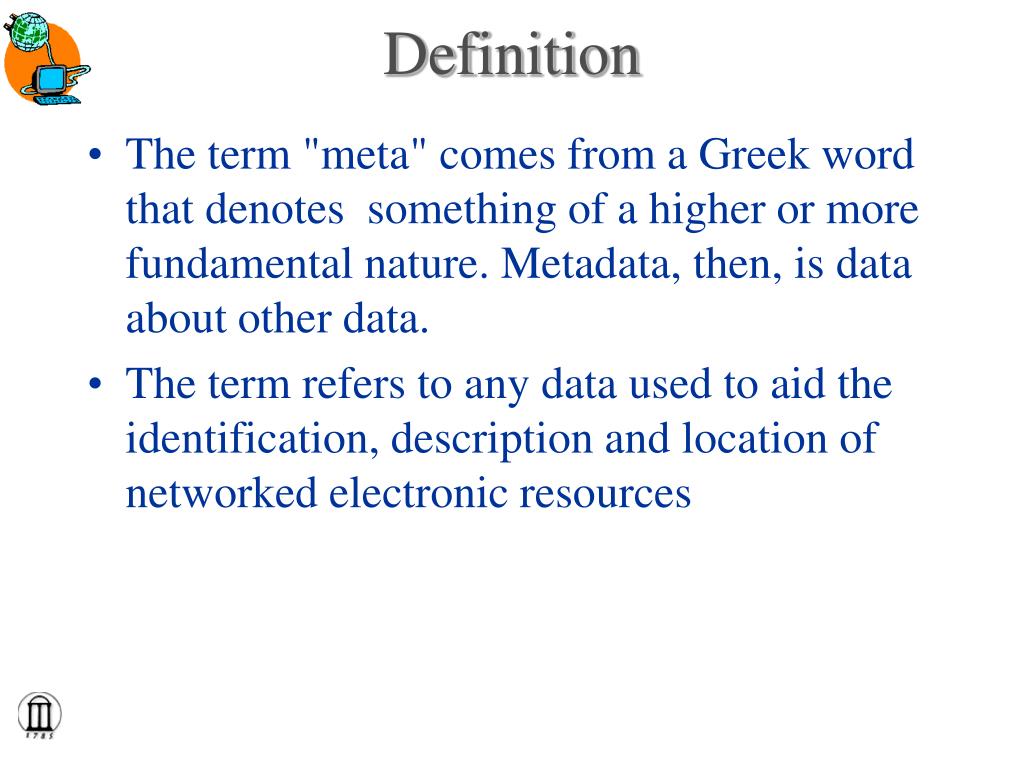

  3. Definition • The term "meta" comes from a Greek word that denotes something of a higher or more fundamental nature. Metadata, then, is data about other data. • The term refers to any data used to aid the identification, description and location of networked electronic resources

  4. The Need for Multimedia Metadata • Allows for the ability to handle and capture large amounts of content data in efficient system • Metadata is easier to query with traditional methods than raw digital data. That being said ontologies play a more important role here than with textual information.

  5. Metadata Classification • Content-independent • Content-dependent • Direct content-based • Content-descriptive • Domain-independent • Domain-specific

  6. Another Classification • Gilliland-Swetland (1998)distinguishes between 4 types of Metadata: • Administrative • Metadata used in managing and administering information resources • Descriptive • Metadata used to describe or identify information resources • Preservation • Metadata related to the preservation management of information resource • Technical • Metadata related to how a system functions or metadata behave

  7. Issues To Deal With • Different query paradigm • Inadequate processing techniques • Lacking efficiency • Semantics of multimedia data • Media specific metadata • Maintenance of metadata • update as raw data changes • changes as semantic knowledge changes (scalable)

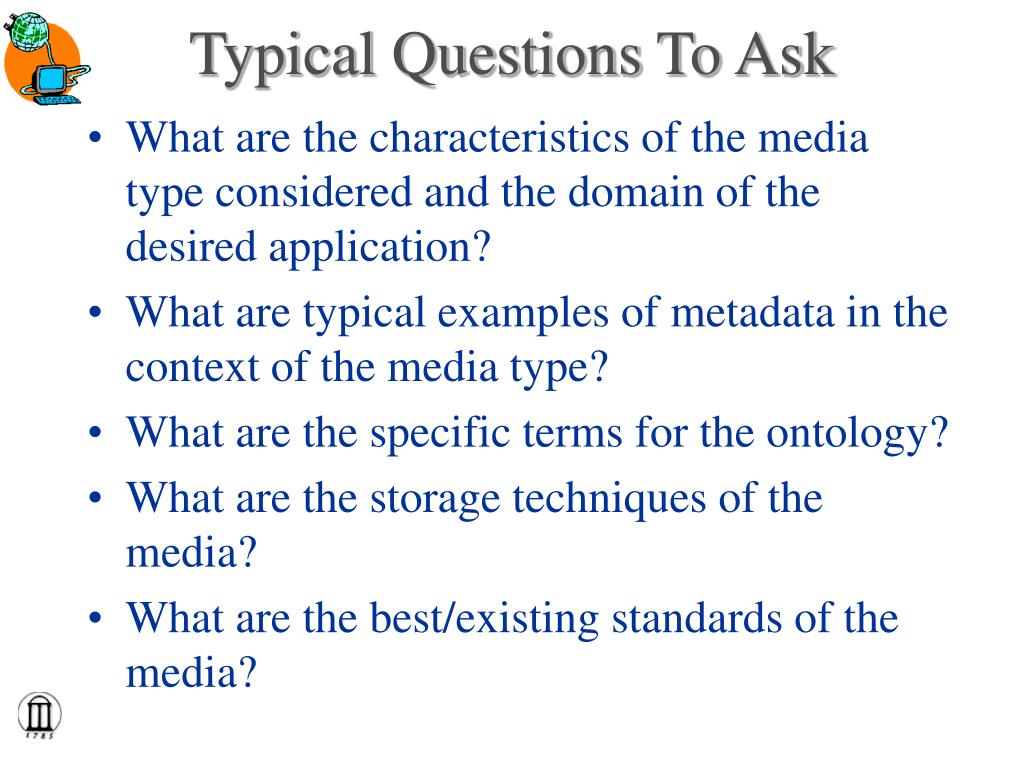

  8. Typical Questions To Ask • What are the characteristics of the media type considered and the domain of the desired application? • What are typical examples of metadata in the context of the media type? • What are the specific terms for the ontology? • What are the storage techniques of the media? • What are the best/existing standards of the media?

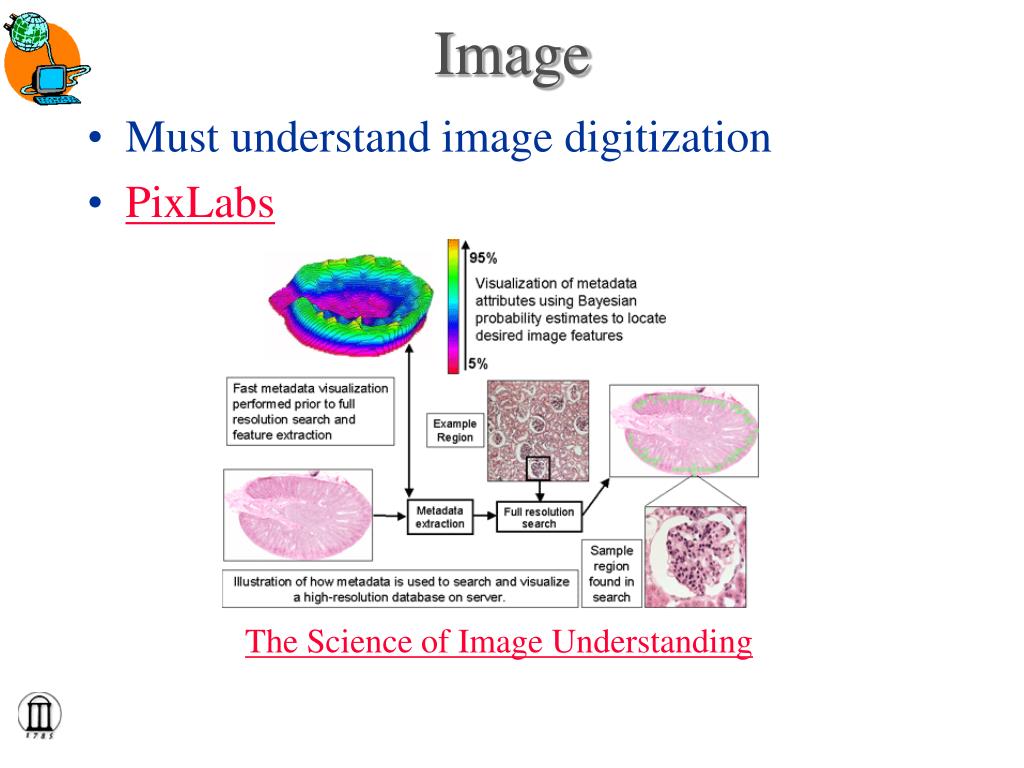

  9. Image • Must understand image digitization • PixLabs The Science of Image Understanding

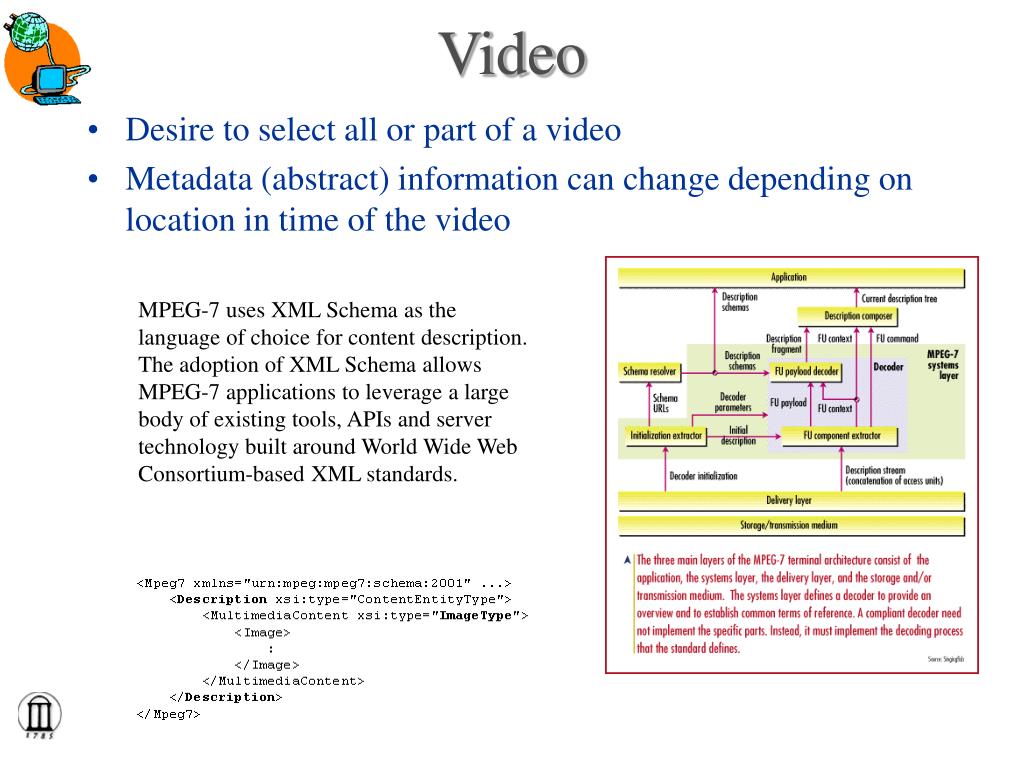

  10. Video • Desire to select all or part of a video • Metadata (abstract) information can change depending on location in time of the video MPEG-7 uses XML Schema as the language of choice for content description. The adoption of XML Schema allows MPEG-7 applications to leverage a large body of existing tools, APIs and server technology built around World Wide Web Consortium-based XML standards.

  11. Audio • Not only do we have time to deal with but also speech recognition. • Metadatamap CDDB sites • Muse • AMG • etc • SpeechBot: a Speech Recognition based Audio Indexing Systemfor the Web

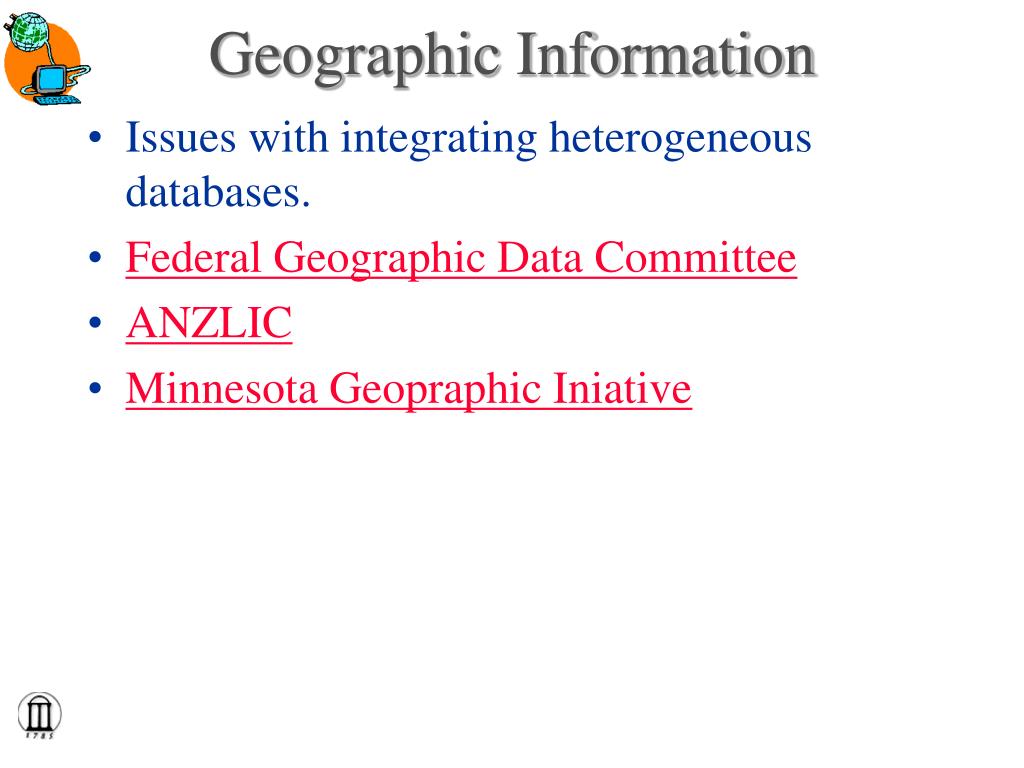

  12. Geographic Information • Issues with integrating heterogeneous databases. • Federal Geographic Data Committee • ANZLIC • Minnesota Geopraphic Iniative

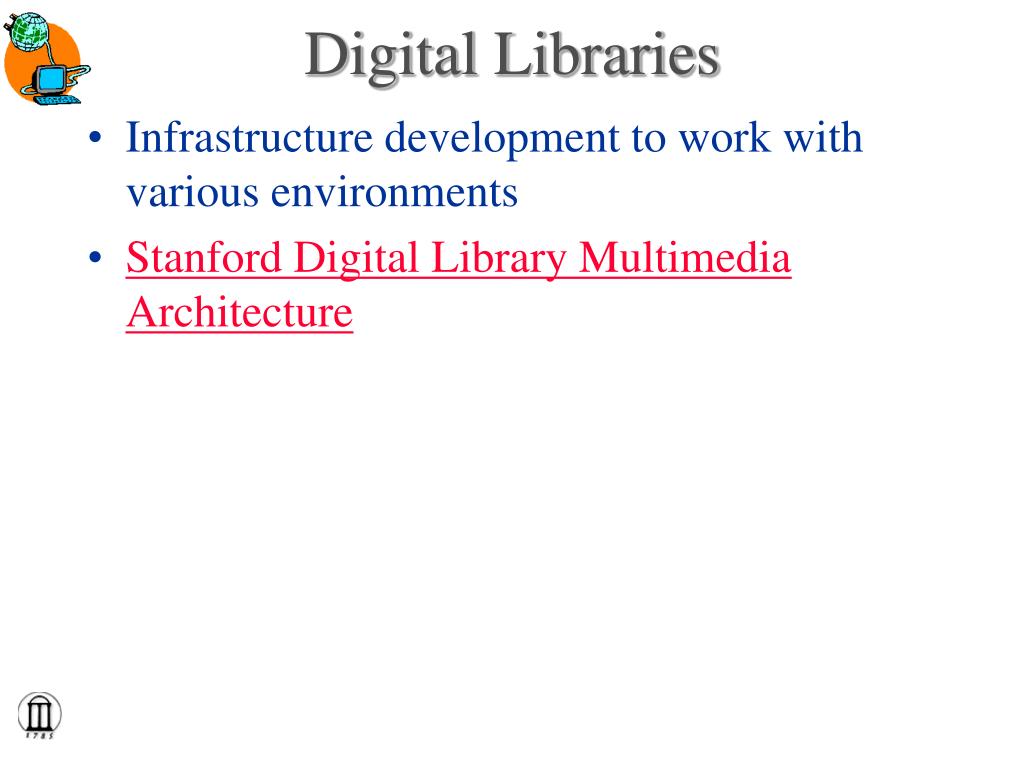

  13. Digital Libraries • Infrastructure development to work with various environments • Stanford Digital Library Multimedia Architecture

  14. AMICO Metadata Conversion “Raw” Metadata files: - catdata (8 files), - tiffmetada (23 files), - thumbmeta (52,689 files) Consolidated Metadata files: - 1 catdata - 1 tiffmetadata - 1 thumbmeta Tape Read Merge Convert to XML Multiple XML files per museum 3 XML files: - 1 catdata - 1 tiffmetadata - 1 thumbmeta Split-by- museums 1 XML file per museum 1 XML file per museum Split-by- file size Multiple museum XML files per machine eXcelon Data Server eXcelon Data Server eXcelon Data Server Split-by- machines eXcelon Dump&Load Utility

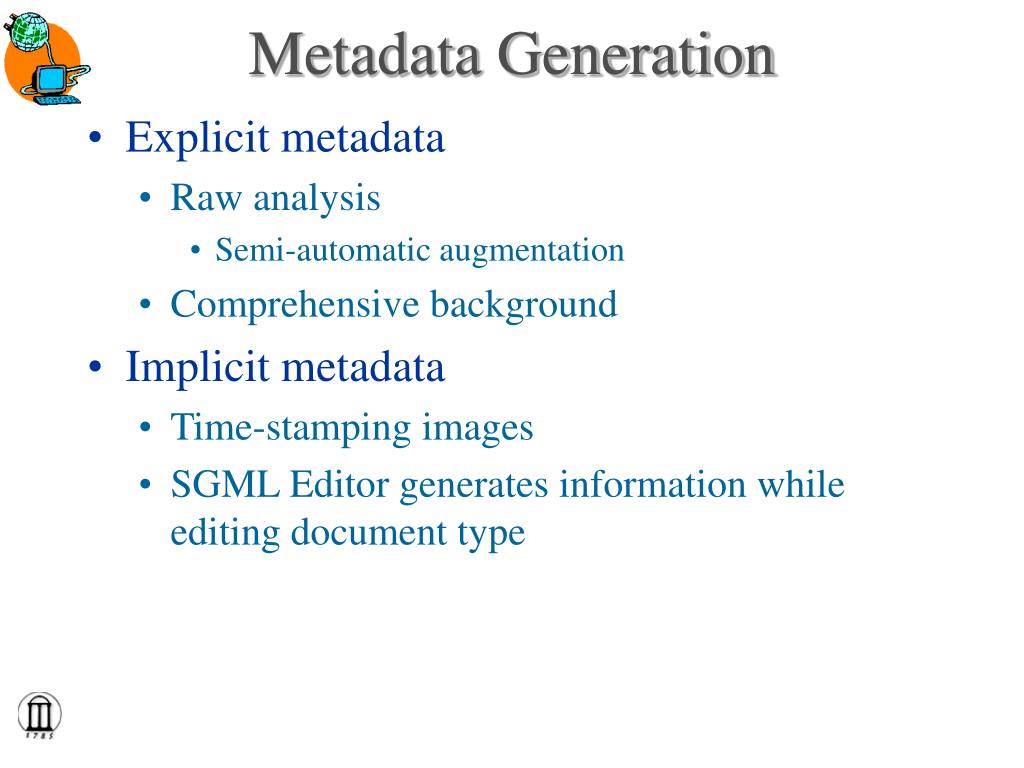

  15. Metadata Generation • Explicit metadata • Raw analysis • Semi-automatic augmentation • Comprehensive background • Implicit metadata • Time-stamping images • SGML Editor generates information while editing document type

  16. Standards • Multimedia • ISO 11179 • Metadata Interchange Specification V 1.1 • Meta Content Format (MCF) • Dublin Core Metadata Element Set • FGDC • HL7 • STEP - ANSI (American National Standards Institute)

  17. Standardization Projects • ESA Prototype International Directory • Environmental Data Registry • Basic Semantic Repository • Data Documentation Iniative • Government Information Locator • MÆNAD

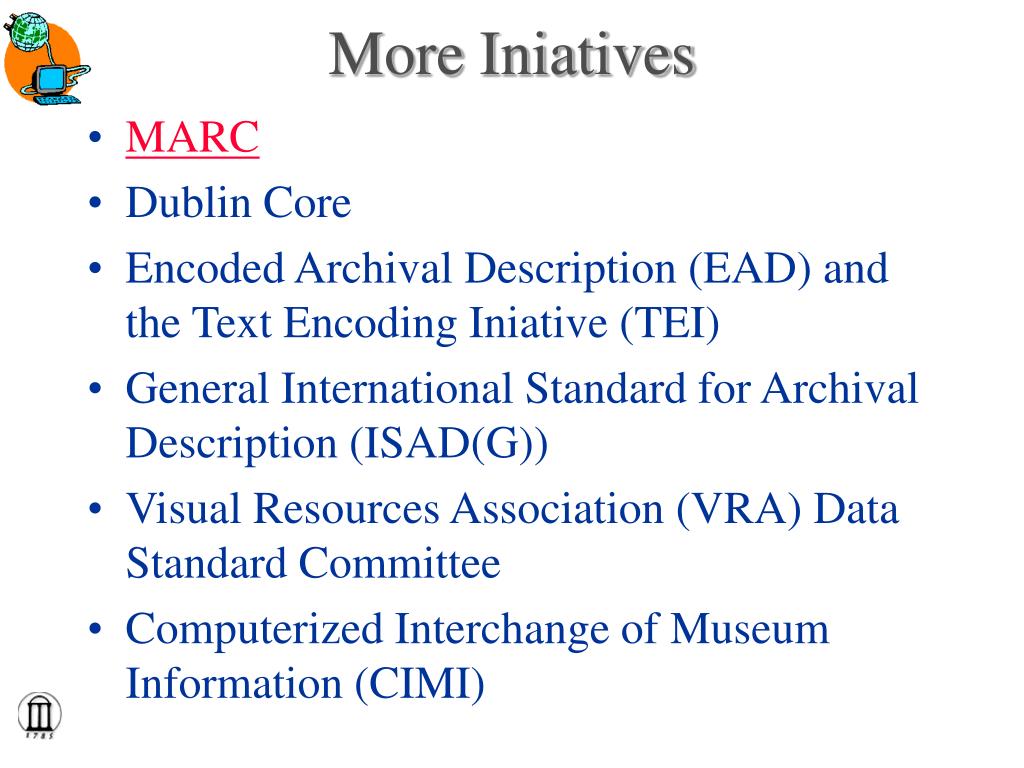

  18. More Iniatives • MARC • Dublin Core • Encoded Archival Description (EAD) and the Text Encoding Iniative (TEI) • General International Standard for Archival Description (ISAD(G)) • Visual Resources Association (VRA) Data Standard Committee • Computerized Interchange of Museum Information (CIMI)

  19. Interoperability • Mappings first list • Mappings second list

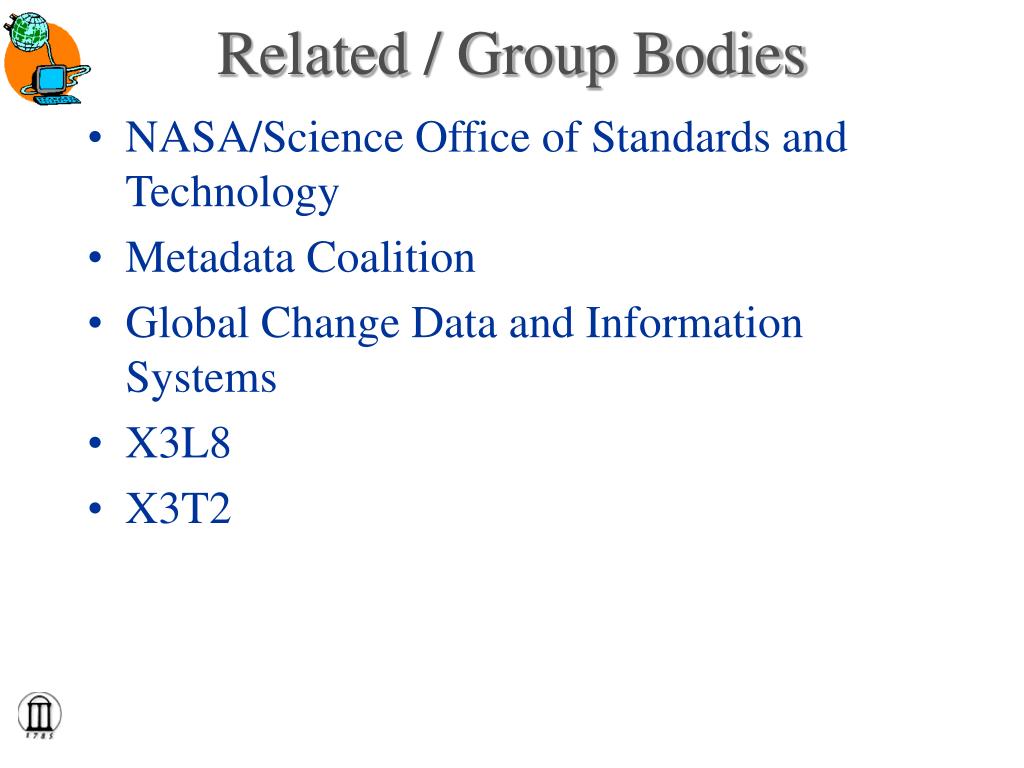

  20. Related / Group Bodies • NASA/Science Office of Standards and Technology • Metadata Coalition • Global Change Data and Information Systems • X3L8 • X3T2

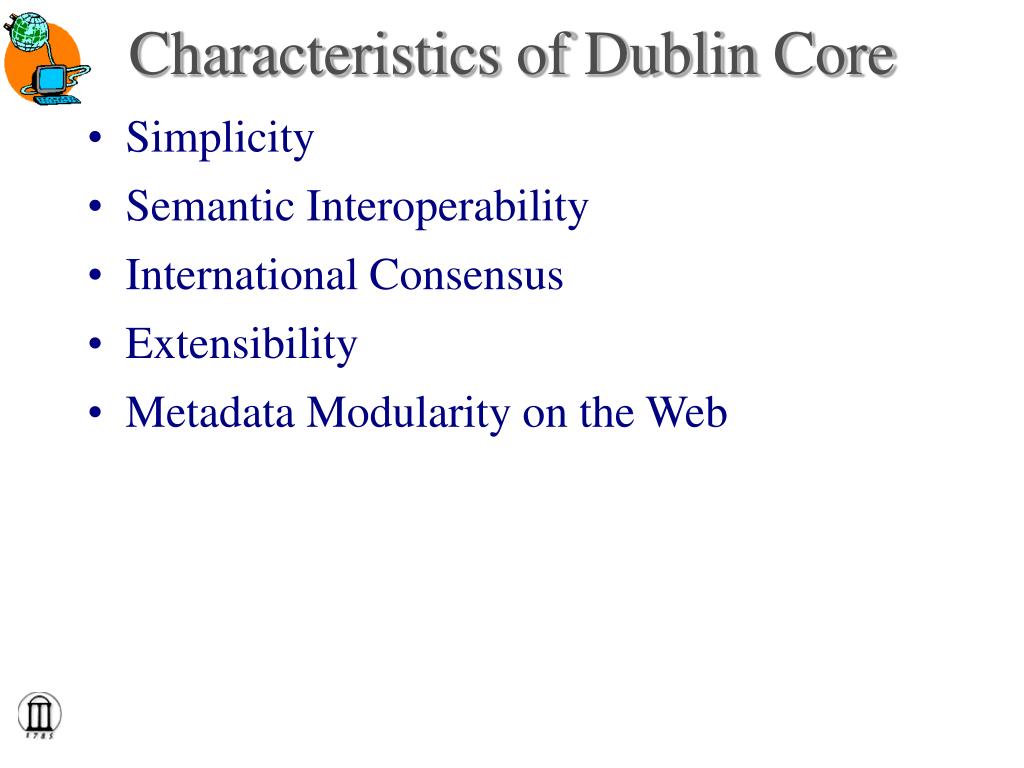

  21. Characteristics of Dublin Core • Simplicity • Semantic Interoperability • International Consensus • Extensibility • Metadata Modularity on the Web

  22. Dublin Core • Initiated in 1995 at OCLC in Dublin, Ohio • A set of simple 15 information elements that can be used by authors and publishers to describe a wide variety of information resources, including images, on the Web for the purpose of simple cross-disciplinary resource discovery

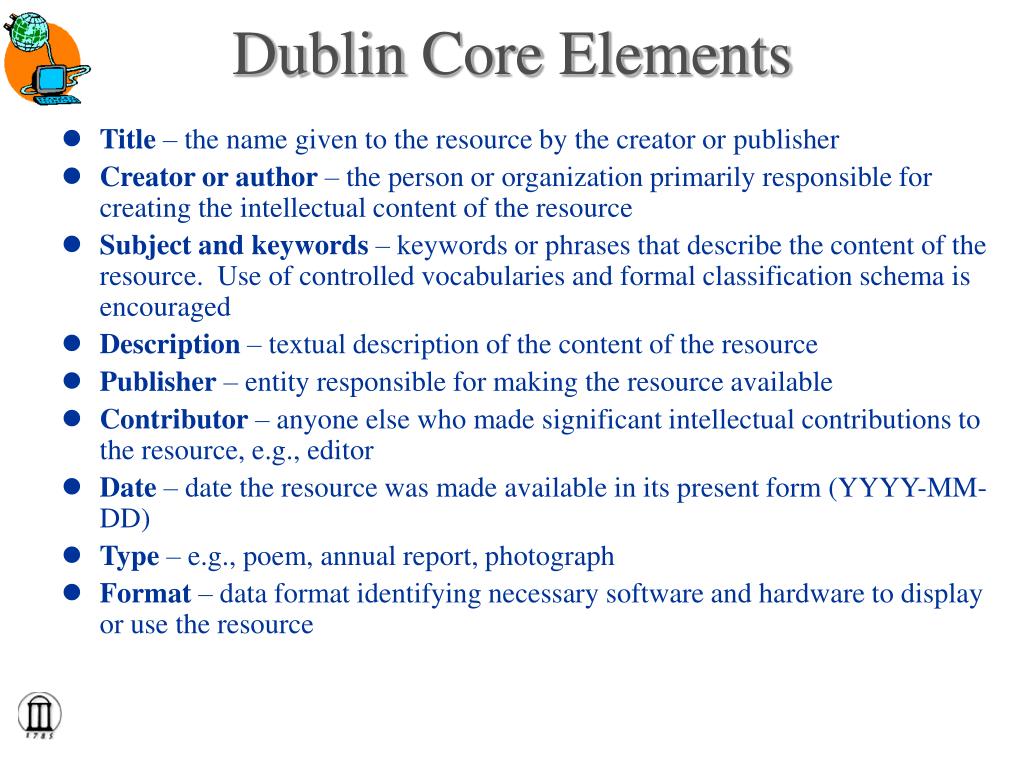

  23. Dublin Core Elements • Title – the name given to the resource by the creator or publisher • Creator or author – the person or organization primarily responsible for creating the intellectual content of the resource • Subject and keywords – keywords or phrases that describe the content of the resource. Use of controlled vocabularies and formal classification schema is encouraged • Description – textual description of the content of the resource • Publisher – entity responsible for making the resource available • Contributor – anyone else who made significant intellectual contributions to the resource, e.g., editor • Date – date the resource was made available in its present form (YYYY-MM-DD) • Type – e.g., poem, annual report, photograph • Format – data format identifying necessary software and hardware to display or use the resource

  24. Dublin Core Elements • Identifier – unique identifying name of number, e.g., URL or ISBN • Source – unique identifier of source material from which this resource was derived • Language – language(s) of the intellectual content of the resource • Relation – relationship of this resource to other resources, e.g., pages of a book, photographs in a series • Coverage – spatial and or temporal coverage of the resource, e.g., span dates, geographic coordinates • Rights – rights management statement or link to other specification of intellectual property and other rights

  25. Principles of DC Element Set • Extensibility • Core set can be extended by using more specialized metadata • Optionality • All elements are optional • Repeatability • All elements are repeatable

  26. Using Dublin Core on the Web • Authors or publishers of Web resources embed Dublin Core metadata elements as META tags before the body of the document, either by hand or using a tool that generates Dublin Core • META tags must then be collected together into a Web index that can be accessed by a search engine. This is often done using a robot

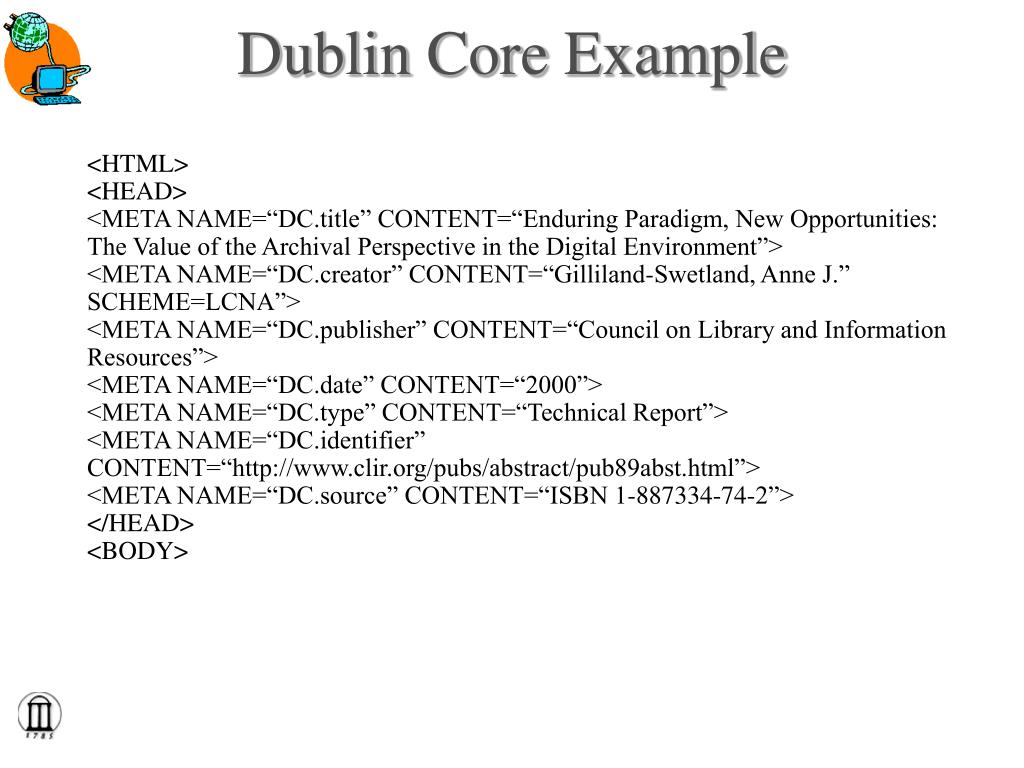

  27. Dublin Core Example <HTML> <HEAD> <META NAME=“DC.title” CONTENT=“Enduring Paradigm, New Opportunities: The Value of the Archival Perspective in the Digital Environment”> <META NAME=“DC.creator” CONTENT=“Gilliland-Swetland, Anne J.” SCHEME=LCNA”> <META NAME=“DC.publisher” CONTENT=“Council on Library and Information Resources”> <META NAME=“DC.date” CONTENT=“2000”> <META NAME=“DC.type” CONTENT=“Technical Report”> <META NAME=“DC.identifier” CONTENT=“http://www.clir.org/pubs/abstract/pub89abst.html”> <META NAME=“DC.source” CONTENT=“ISBN 1-887334-74-2”> </HEAD> <BODY>

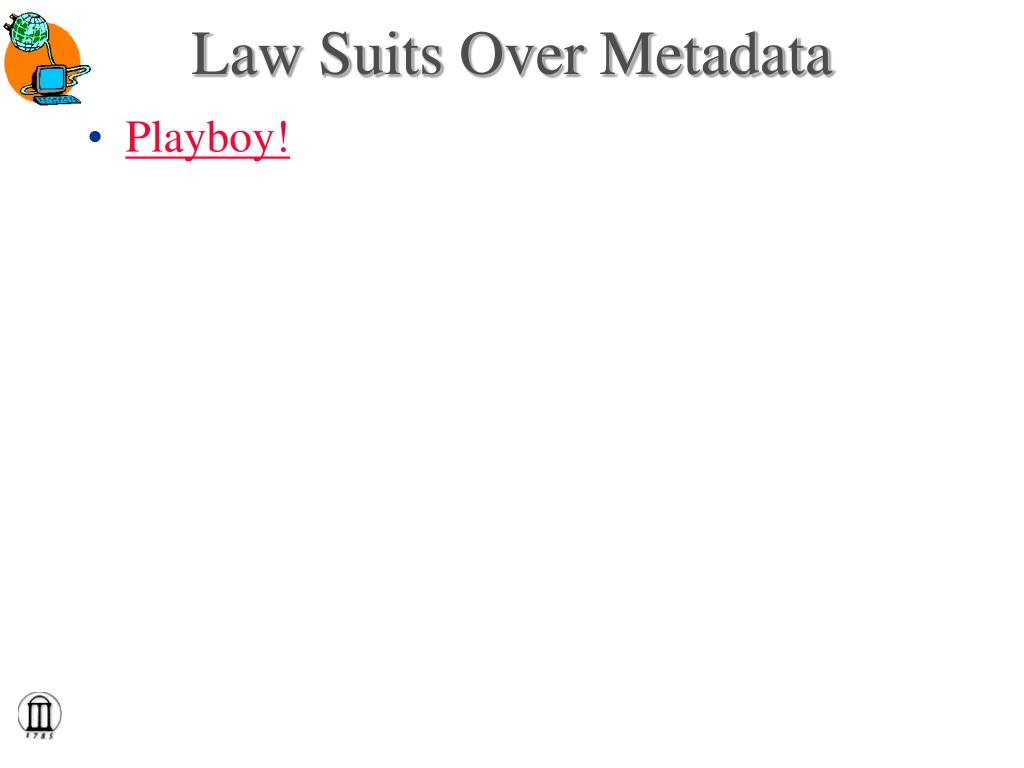

  28. Law Suits Over Metadata • Playboy!
