  1. IP Proprietary TelephonesKX-NT300 series

  2. Contents • Introduction • Feature Highlights • Line Up • Specifications • Compatibility • Accessories • Features • Self Labelling on NT366 • Peer to Peer Communication between IP Extensions • Voice Encryption Security • Presence Client • Text Messaging • Double Tilt Adjustment • Connection and Registration

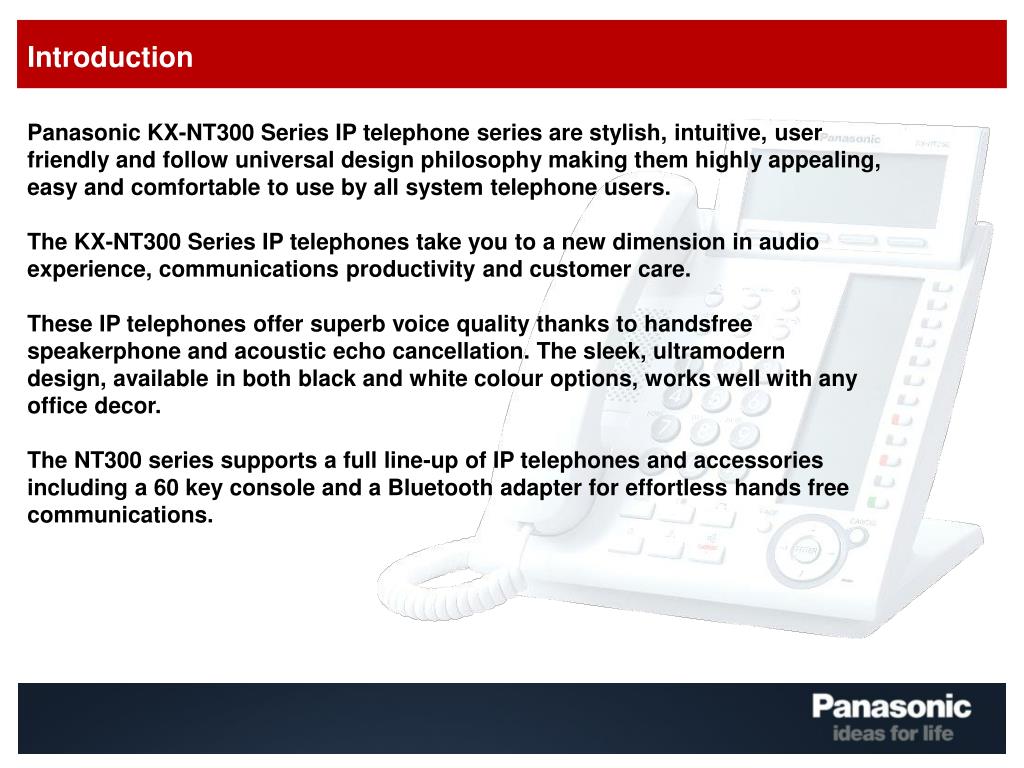

  3. Introduction Panasonic KX-NT300 Series IP telephone series are stylish, intuitive, user friendly and follow universal design philosophy making them highly appealing, easy and comfortable to use by all system telephone users. The KX-NT300 Series IP telephones take you to a new dimension in audio experience, communications productivity and customer care. These IP telephones offer superb voice quality thanks to handsfree speakerphone and acoustic echo cancellation. The sleek, ultramodern design, available in both black and white colour options, works well with any office decor. The NT300 series supports a full line-up of IP telephones and accessories including a 60 key console and a Bluetooth adapter for effortless hands free communications.

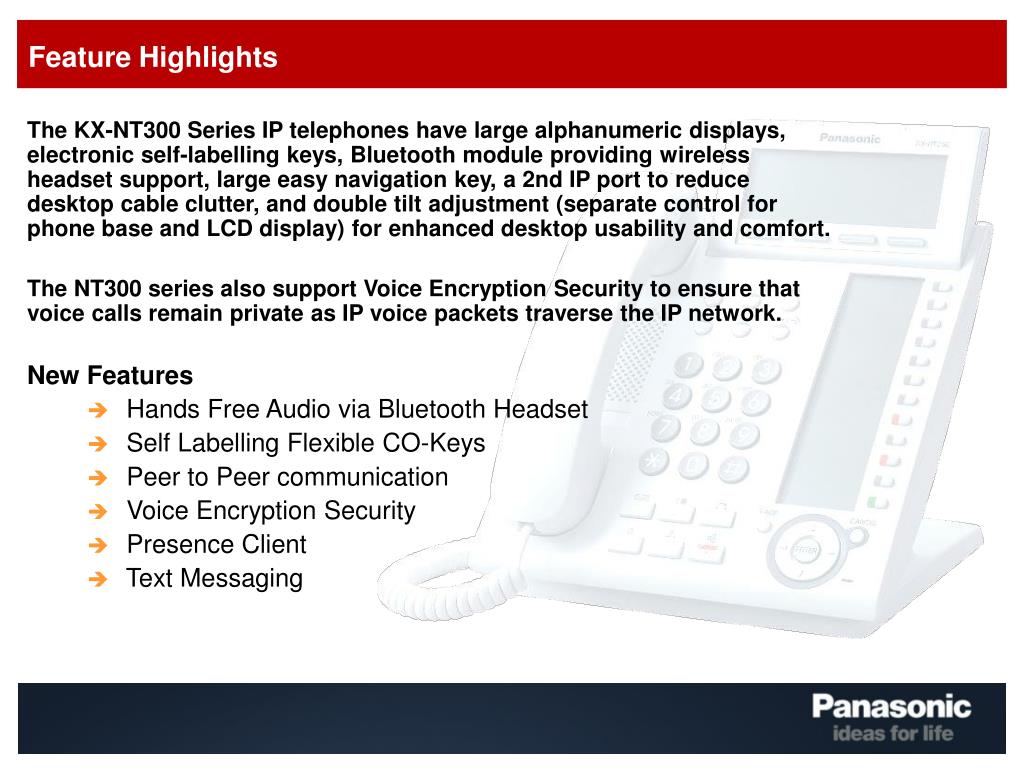

  4. Feature Highlights • The KX-NT300 Series IP telephones have large alphanumeric displays, electronic self-labelling keys, Bluetooth module providing wireless headset support, large easy navigation key, a 2nd IP port to reduce desktop cable clutter, and double tilt adjustment (separate control for phone base and LCD display) for enhanced desktop usability and comfort. • The NT300 series also support Voice Encryption Security to ensure that voice calls remain private as IP voice packets traverse the IP network. • New Features • Hands Free Audio via Bluetooth Headset • Self Labelling Flexible CO-Keys • Peer to Peer communication • Voice Encryption Security • Presence Client • Text Messaging

  5. IP Proprietary Telephones (IP-PT) KX-NT366 KX-NT343 KX-NT346 KX-NT321 KX-NT300 Series - Line Up * All models are available in both Black and White

  6. KX-NT321 KX-NT366 KX-NT346 KX-NT343 6 x 24 6 x 24 3 x 24 1 x 16 4 Steps 4 Steps 4 Steps 2 Steps 4 Levels 4 Levels 4 Levels 3 Levels Yes Yes Yes - 4 4 4 - 48 (12 x 4)* 24 (36**) 24 (36**) 8 Yes Yes Yes - Yes Yes Yes Yes 12 Levels 12 Levels 12 Levels 12 Levels 4 Levels 4 Levels 4 Levels 4 Levels 4 Levels 4 Levels 4 Levels 4 Levels Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes - 10 10 10 10 Yes Yes Yes Yes KX-NT300 Series Specifications Display Alphanumeric Display (Lines x Characters) Tilt-Angle Adjustment Display-Contrast Adjustment Back-Lit LCD (White) Display Feature Access Keys Programmable Keys with Dual-Colour LEDs Keys / Functions Navigation Key Ringer/Message Waiting Lamp Speakerphone (Full Duplex) Audio Handset Volume Control Ringer Volume Control Off-Hook Monitor Whisper OHCA Ethernet Port Connection Second Ethernet Port Bluetooth Headset Compatible Station Speed Dial Numbers Others Wall Mount * 12 Self Labelling Keys x 4 pages (Total 48) ** 36 Programmable Keys are available when the optional 12 Programmable Key Add-on Module (KX-T7603) is selected.

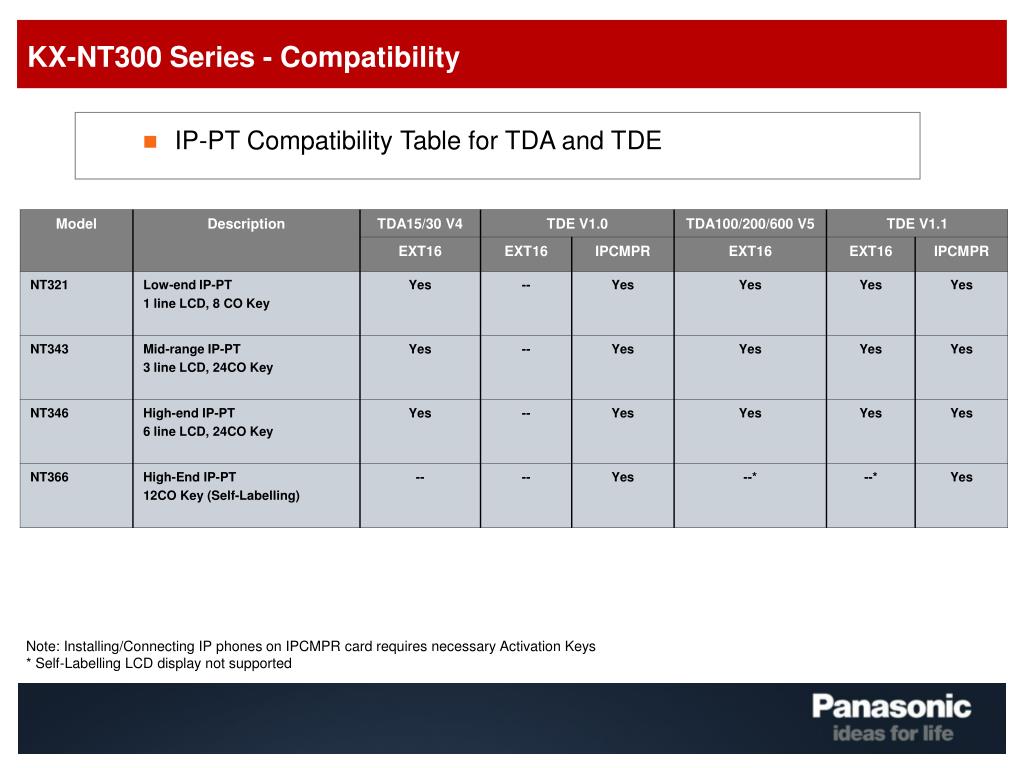

  7. IP-PT Compatibility Table for TDA and TDE KX-NT300 Series -Compatibility Note: Installing/Connecting IP phones on IPCMPR card requires necessary Activation Keys * Self-Labelling LCD display not supported

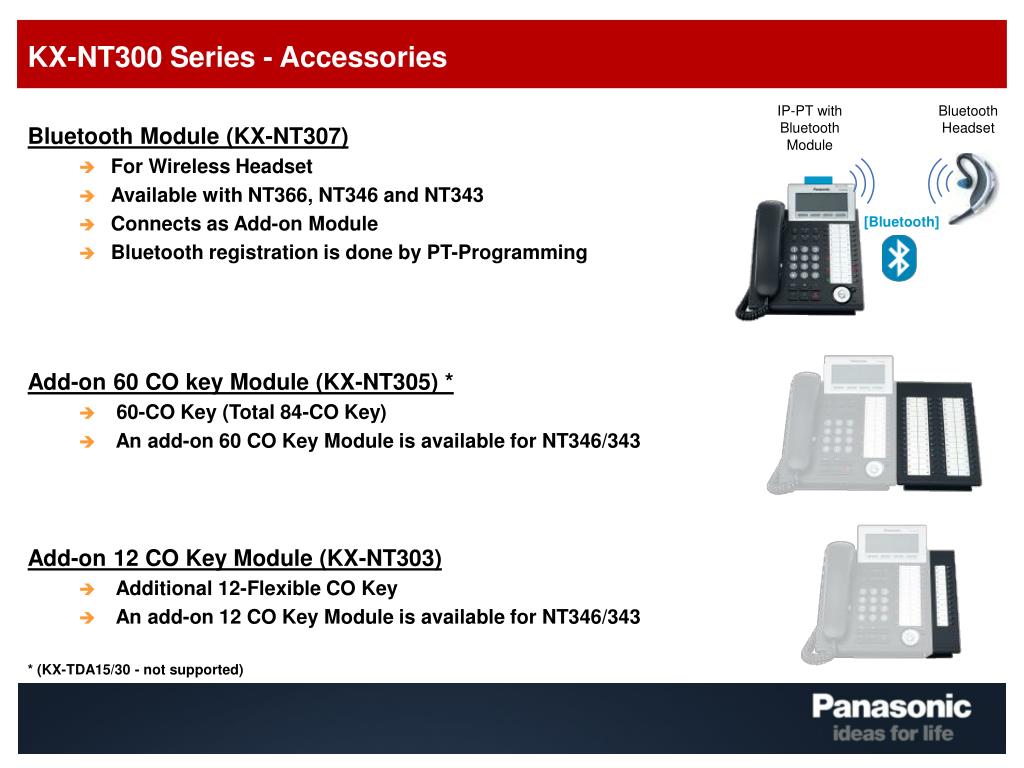

  8. IP-PT with Bluetooth Module Bluetooth Headset [Bluetooth] KX-NT300 Series - Accessories • Bluetooth Module (KX-NT307) • For Wireless Headset • Available with NT366, NT346 and NT343 • Connects as Add-on Module • Bluetooth registration is done by PT-Programming • Add-on 60 CO key Module (KX-NT305) * • 60-CO Key (Total 84-CO Key) • An add-on 60 CO Key Module is available for NT346/343 • Add-on 12 CO Key Module (KX-NT303) • Additional 12-Flexible CO Key • An add-on 12 CO Key Module is available for NT346/343 * (KX-TDA15/30 - not supported)

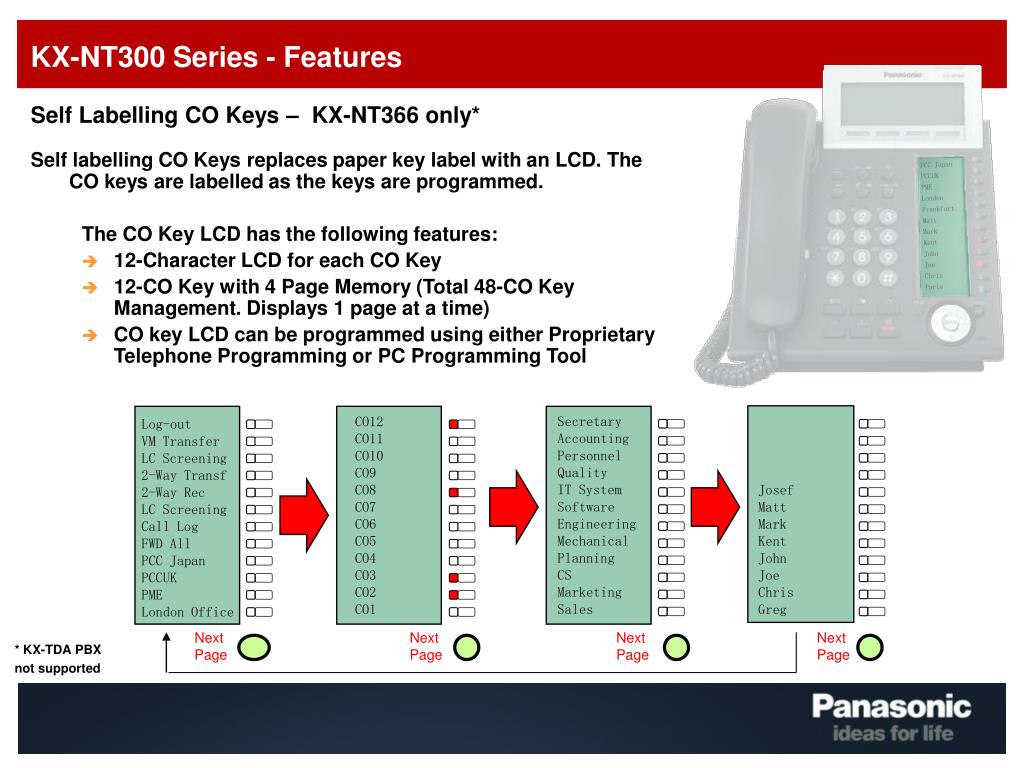

  9. Josef Matt Mark Kent John Joe Chris Greg Secretary Accounting Personnel Quality IT System Software Engineering Mechanical Planning CS Marketing Sales CO12 CO11 CO10 CO9 CO8 CO7 CO6 CO5 CO4 CO3 CO2 CO1 Log-out VM Transfer LC Screening 2-Way Transf 2-Way Rec LC Screening Call Log FWD All PCC Japan PCCUK PME London Office Next Page Next Page Next Page Next Page KX-NT300 Series - Features Self Labelling CO Keys – KX-NT366 only* PCC Japan PCCUK PME London Frankfurt Matt Mark Kent John Joe Chris Paris • Self labelling CO Keys replaces paper key label with an LCD. The CO keys are labelled as the keys are programmed. The CO Key LCD has the following features: • 12-Character LCD for each CO Key • 12-CO Key with 4 Page Memory (Total 48-CO Key Management. Displays 1 page at a time) • CO key LCD can be programmed using either Proprietary Telephone Programming or PC Programming Tool * KX-TDA PBX not supported

  10. Call Set-up LAN Peer to Peer Communication NT300 NT300 KX-TDE IP PBX KX-NT300 Series - Features Peer to Peer Communication* KX-NT300 peer-to-peer compatible IP extensions automatically establishes peer-to-peer communication when connected to a KX-TDE IP PBX. In Peer-to-Peer mode, the call set up and tear-down signalling travels between the IP phones and the PBX while the audio communication happens directly between the two IP phones. By using Peer to Peer mode, the KX-NT300 series: - reduces network traffic - improves voice quality KX-NT300 supports wideband CODEC G.722 enabling peer to peer, high quality voice communication. Voice band is expanded from 3.4kHz max. to 7kHz max., and the sampling is done at a rate of 16 kHz, double that of traditional telephony interfaces, which results in superior audio quality and clarity. This vastly improves handset and speakerphone quality. *KX-TDA PBX not supported

  11. KX-TDE IP PBX KX-TDE IP PBX DSP DSP Encrypted NT300 NT300 NT300 NT300 KX-NT300 Series - Features Voice Encryption Security* When connecting a NT300 series IP telephone to a KX-TDE IP PBX with an optional SD card (KX-TDES01XJ) installed, Voice Encryption Security feature is activated. When activated, all voice packets are encrypted between the following end points. (1) NT300  NT300 (2) NT300  TDE PBX (VoIP DSP) (3) VoIP DSP  VoIP DSP (KX-TDE to KX-TDE. KX-TDES01XJ must be installed on both systems) Voice Encryption ensures that the voice data sent and received between the two endpoints can not be listened to if the data was captured by network sniffer devices on the IP Network. *KX-TDA PBX not supported

  12. KX-NT300 Series - Features Double Tilt Adjustment The telephone base and LCD has multiple points of adjustment for maximum visibility at any angle. The phone base as well as the LCD display can be independently adjusted for maximum usability and user comfort. KX-NT321 has two (2) step tilt angle adjustment.
