Main Menu. In diagnostic tool, it can test Touch Panel, Display, Buttons, Speaker, MIC, Camera, SD and Vibrator functions. Select the function you want to test then tap “OK” to start. Step 1 – Select the item. Step 2 – Tap “OK” to start testing. Test item – 1.multituch1 (Touch Panel).

netis
Télécharger la présentation

Main Menu

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

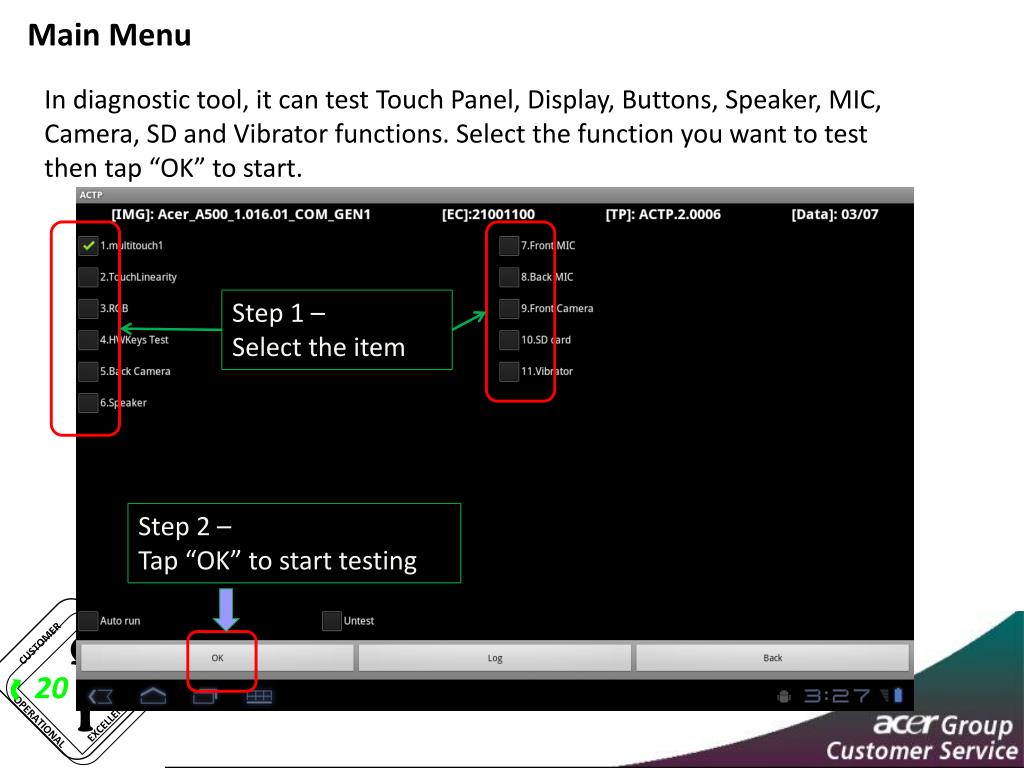

  1. Main Menu In diagnostic tool, it can test Touch Panel, Display, Buttons, Speaker, MIC, Camera, SD and Vibrator functions. Select the function you want to test then tap “OK” to start. Step 1– Select the item Step 2– Tap “OK” to start testing

  2. Test item – 1.multituch1 (Touch Panel) User your finger touch the yellow area as below screen and draw it along the square. The result is pass if you fill all yellow area then it backs to main menu.

  3. Test item – 2.TouchLinearity (Touch Panel) User your finger touch the yellow area as below screen and draw it along the “X”. The result is pass if you fill all yellow area then it backs to main menu.

  4. Test item – 3.RGB (Display) Continue to tap screen then display changes. Use this test item to verity any abnormal lines or dead pixels on LCD screen. Finish

  5. Test item – 4.HWKeys Test (Keys) Press volume up, volume down and lock keys to verify if all keys work. Color changes to green means key function works.

  6. Test item – 5.Back Camera Take device rear side face to an object. Tap “Photograph” icon to test picture taking.

  7. Test item – 6.Speaker Loud tone sounds in left speaker then switch to right speaker.

  8. Test item – 7.Front MIC Tap screen start the test. When “Recording” screen appears, voice to device front side. Then check the voice if recorded when switching to “Playing” screen.

  9. Test item – 8.Rear MIC Tap screen start the test. When “Recording” screen appears, voice to Device rear side. Then check the voice if recorded when switching to “Playing” screen.

  10. Test item – 9.Front Camera Take device front side face to an object. Tap “Photograph” icon to test picture taking.

  11. Test item – 10.SD Card (SD read/write test) Insert a micro SD card to device. Start the SD read and write test. It switches to success screen if pass the test. System requests to insert a micro SD if you forget to insert a card.

  12. Test item – 11.Vibrator It starts vibrating for two seconds then switches to success screen if pass the test.

  13. Un-installation procedure It MUST uninstall diagnostic tool once the testing is done. DO NOT disclose this tool out of service center. Step 1 Into “Running services” (Settings  Applications  Running services).

  14. Un-installation procedure Step 2 In “Running services”, select “All” and find the application “ACTP”.

  15. Un-installation procedure Step 3 In ACTP application, select “Uninstall” to remove the tool.

  16. Un-installation procedure Step 4 Select “OK” start to uninstall.

  17. Un-installation procedure Step 5 “Uninstall finished” message pop-up when the process is complete.
