  1. Digital Image Compression via Singular Value Decomposition Robert WhiteRay Buhr Math 214 Prof. Buckmire May 3, 2006

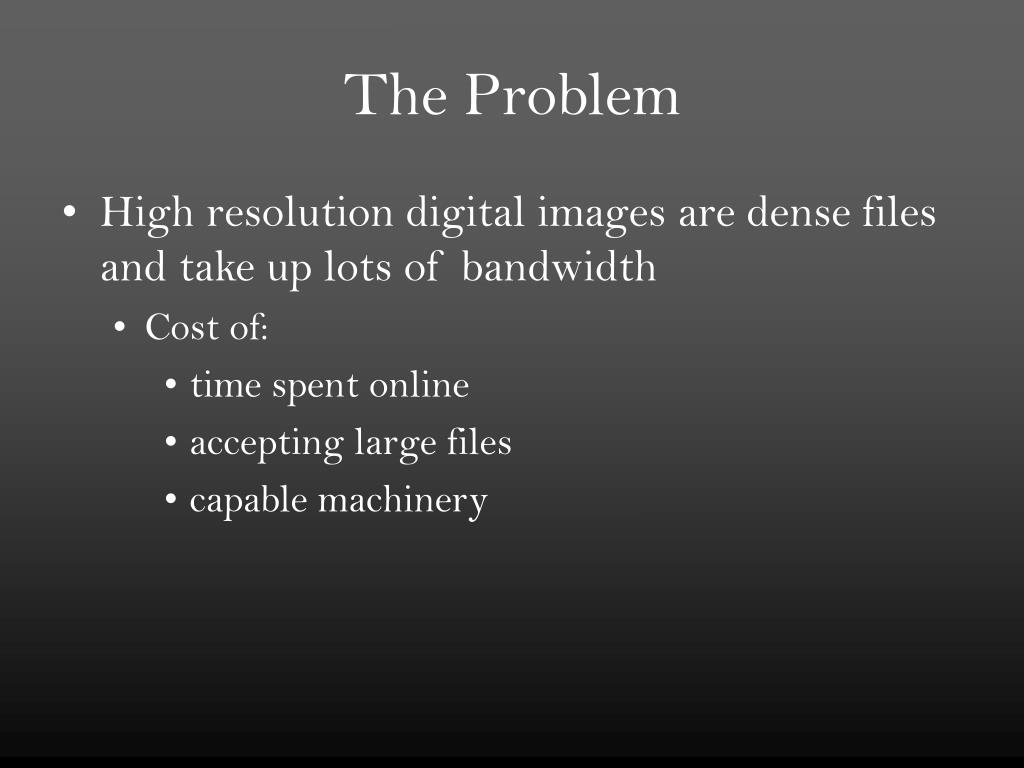

  2. The Problem • High resolution digital images are dense files and take up lots of bandwidth • Cost of: • time spent online • accepting large files • capable machinery

  3. The Solution • Using Singular Value Decomposition, we can reduce the size of the image’s matrix • Eliminates the end SVDs • Cuts out the boring parts

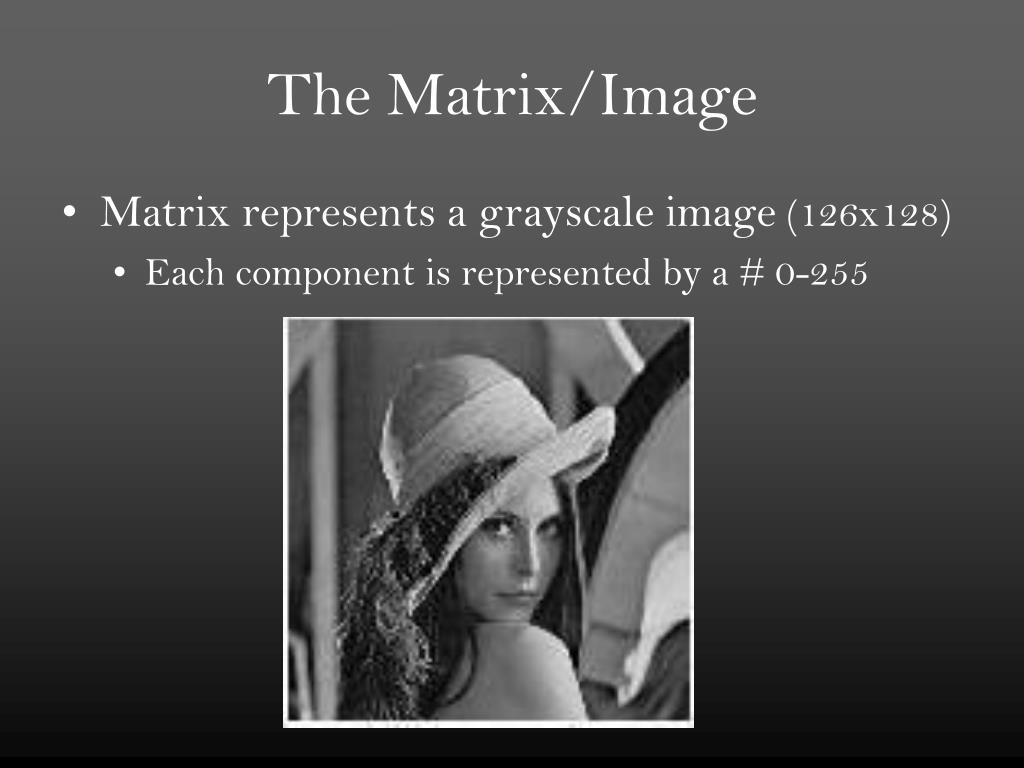

  4. The Matrix/Image • Matrix represents a grayscale image (126x128) • Each component is represented by a # 0-255

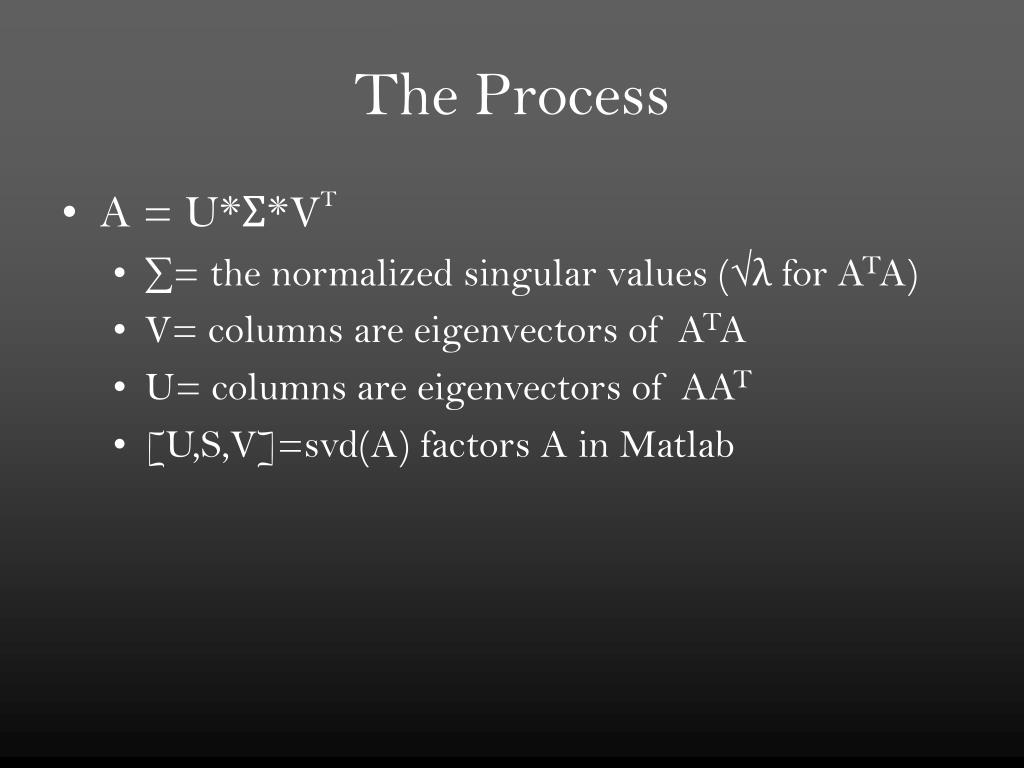

  5. The Process • A = U*Σ*VT • ∑= the normalized singular values (√λ for ATA) • V= columns are eigenvectors of ATA • U= columns are eigenvectors of AAT • [U,S,V]=svd(A) factors A in Matlab

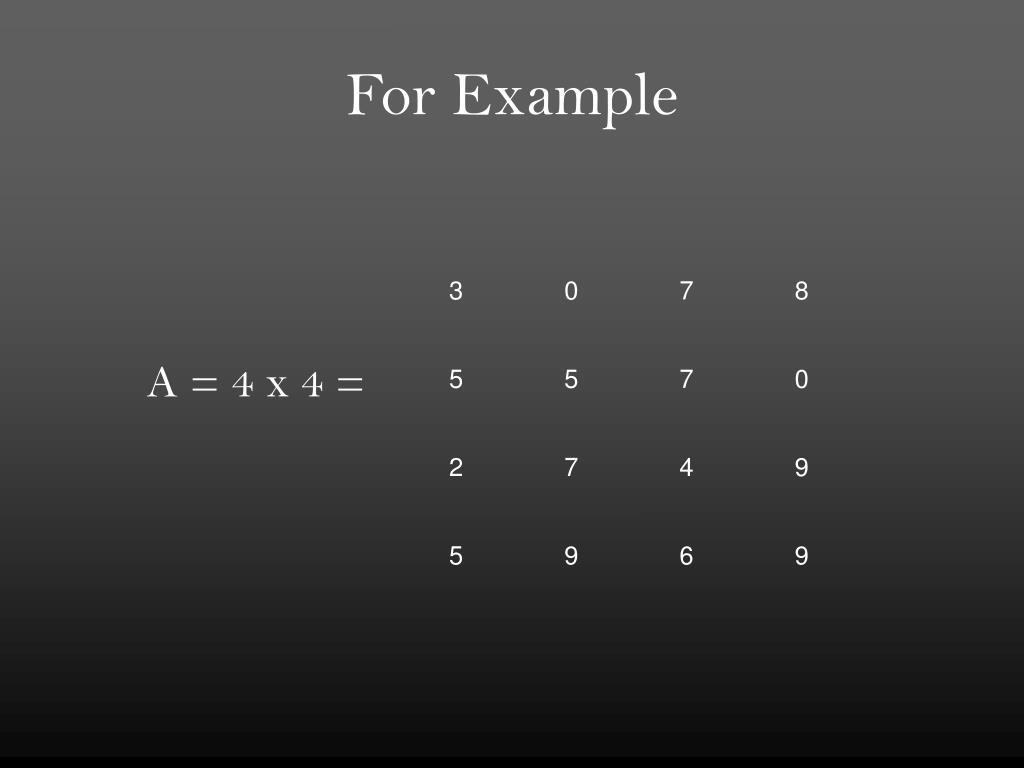

  6. For Example A = 4 x 4 =

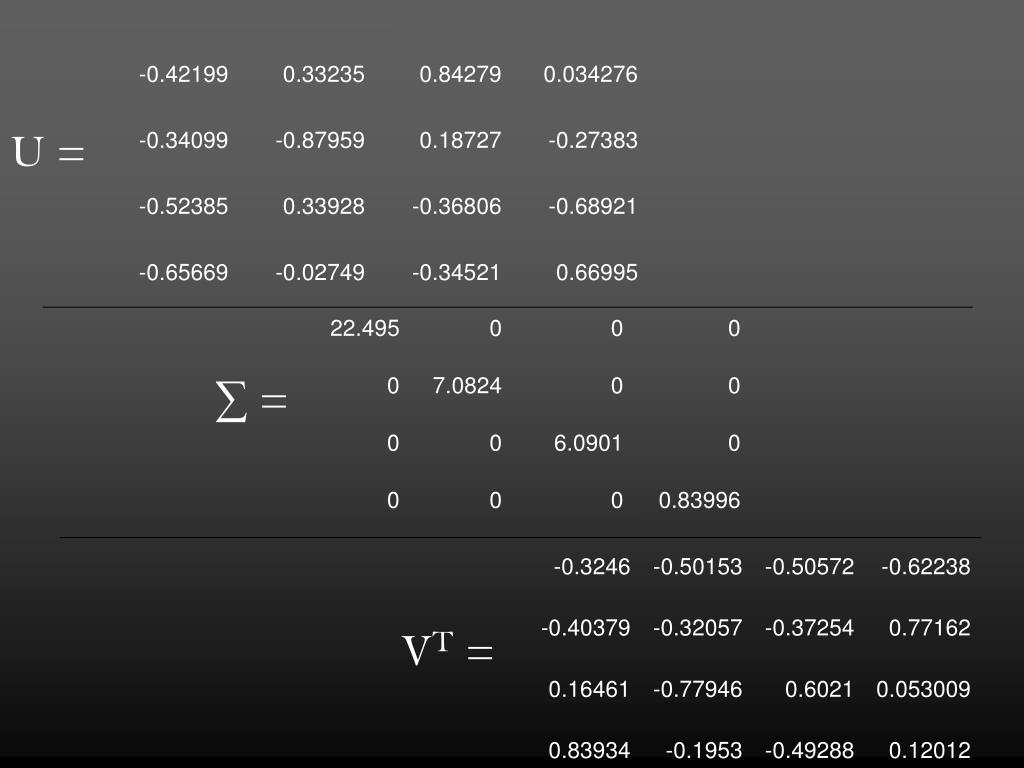

  7. U = ∑ = VT =

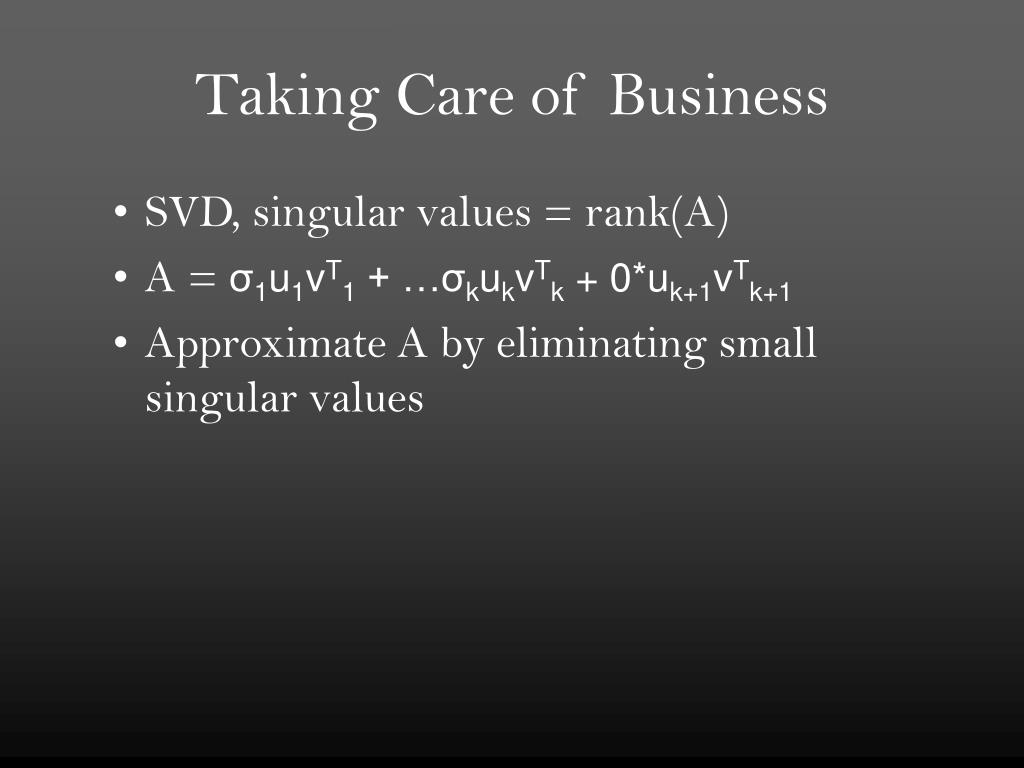

  8. Taking Care of Business • SVD, singular values = rank(A) • A = σ1u1vT1 + …σkukvTk + 0*uk+1vTk+1 • Approximate A by eliminating small singular values

  9. The Pictures The original, k=126 k=4

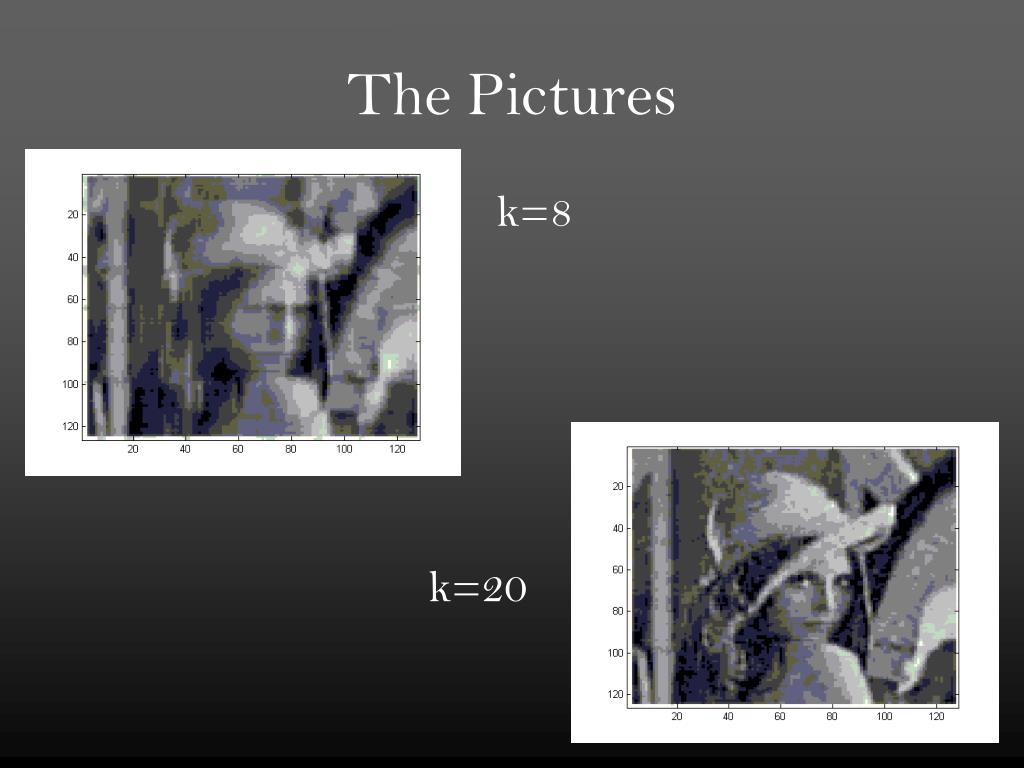

  10. The Pictures k=8 k=20

  11. The Pictures k=50 Original, again, k=126

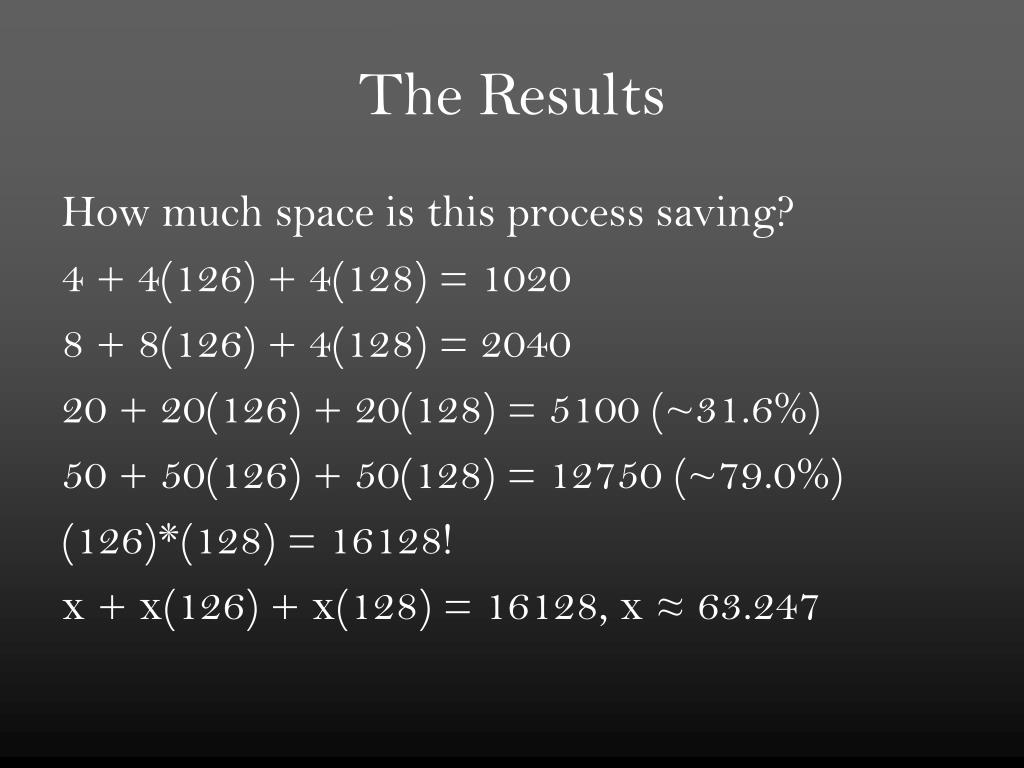

  12. The Results How much space is this process saving? 4 + 4(126) + 4(128) = 1020 8 + 8(126) + 4(128) = 2040 20 + 20(126) + 20(128) = 5100 (~31.6%) 50 + 50(126) + 50(128) = 12750 (~79.0%) (126)*(128) = 16128! x + x(126) + x(128) = 16128, x ≈ 63.247
