  1. SAFETY MEETING WARNING LIGHTS

  2. WARNING LIGHTS L.E.D. STROBES REVOLVING LIGHTS

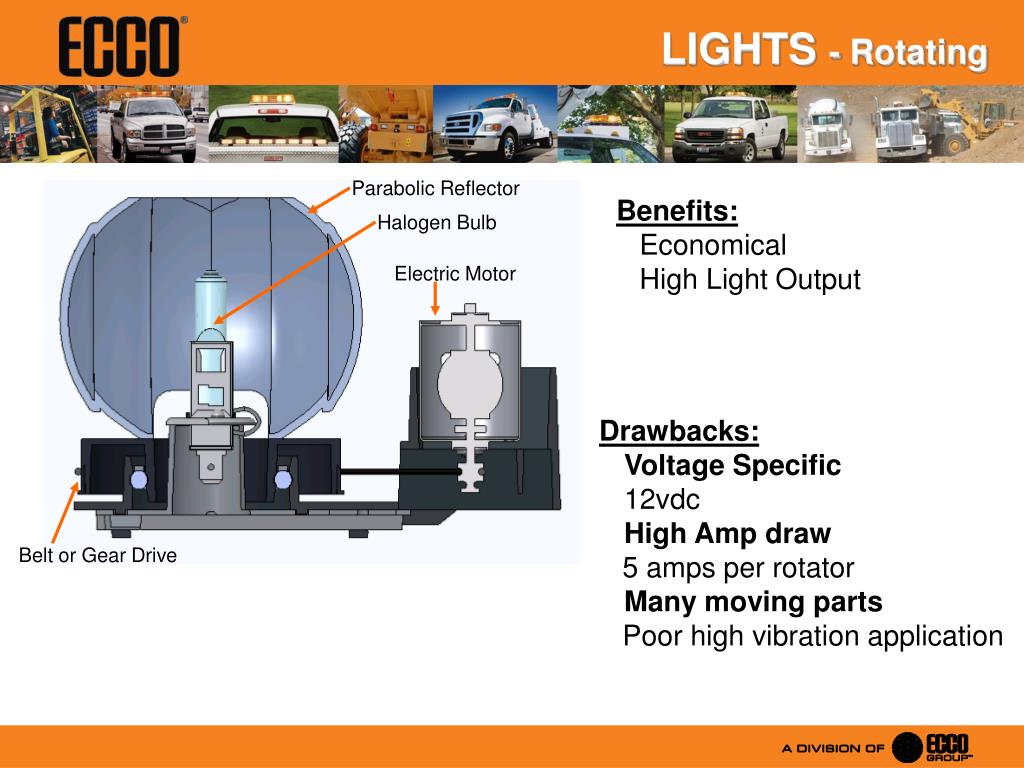

  3. LIGHTS - Rotating Parabolic Reflector Benefits: Economical High Light Output Halogen Bulb Electric Motor Drawbacks: Voltage Specific 12vdc High Amp draw 5 amps per rotator Many moving parts Poor high vibration application Belt or Gear Drive

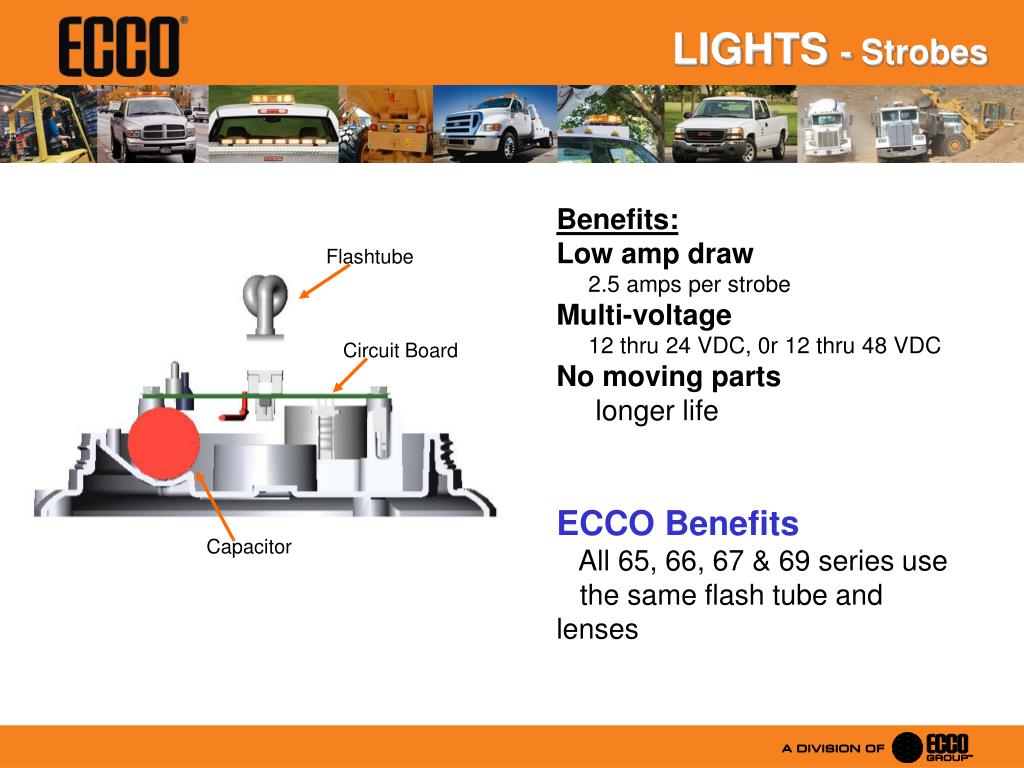

  4. LIGHTS - Strobes Benefits: Low amp draw 2.5 amps per strobe Multi-voltage 12 thru 24 VDC, 0r 12 thru 48 VDC No moving parts longer life ECCO Benefits All 65, 66, 67 & 69 series use the same flash tube and lenses Flashtube Circuit Board Capacitor

  5. LIGHTS - LED Benefits: LOWEST amp draw .2 -.5 amps per unit No moving parts longer life, usually 5 years No bulbs or flash tubes Low Maintenance Costs Great for “NO IDLE” Requirements Heat Sink L.E.D. Circuit Board

  6. LIGHTS – SAE J1318 Warning Lights CLASS 1… Primary warning lamps for authorized emergency vehicles 4 Times Brighter than Class 2 10 Times Brighter than Class 3 CLASS 2… Primary warning lamps for authorized maintenance vehicles CLASS 3… Primary warning lamps for vehicles that are authorized to display warning lamps

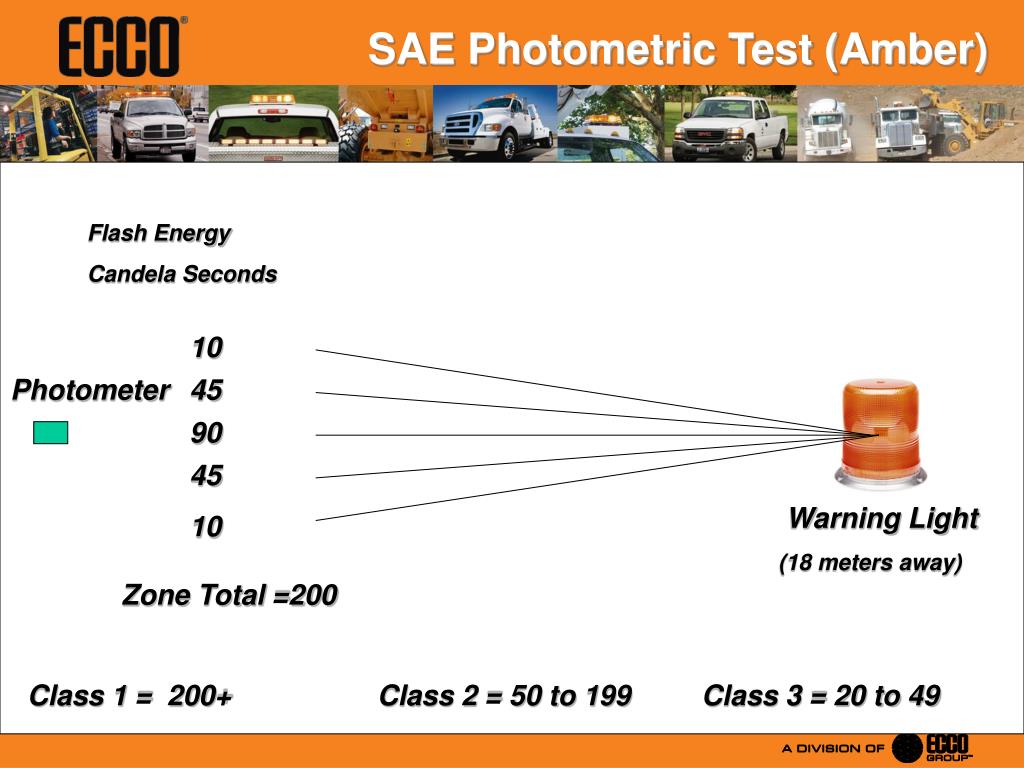

  7. Flash Energy Candela Seconds 10 45 Photometer 90 45 Warning Light (18 meters away) 10 SAE Photometric Test (Amber) Zone Total =200 Class 1 = 200+ Class 2 = 50 to 199 Class 3 = 20 to 49

  8. Certificates Tested by an AMECA lab to meet S.A.E. requirements The ECCO test lab has been certified by AMECA for Back-Up Alarms, Forward Horns & Warning Lights

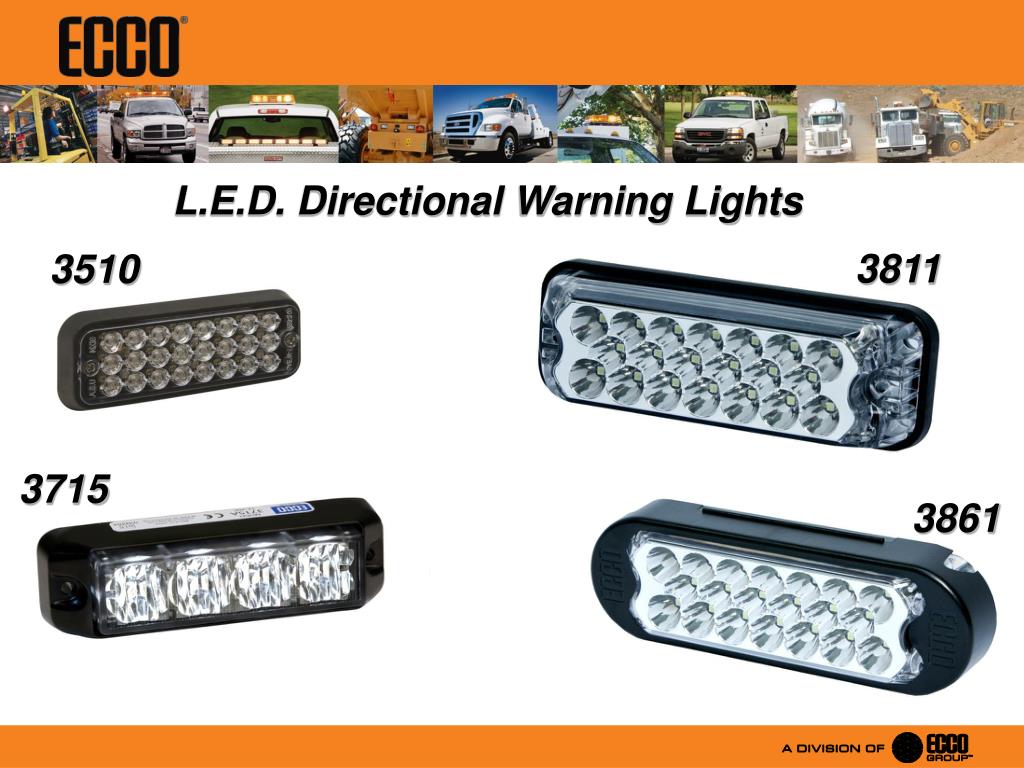

  9. L.E.D. Directional Warning Lights 3811 3510 3715 3861

  10. Mini Light Light Rear Camera Directional L.E.D. Warning Lights Back-up Alarm

  11. Directional L.E.D. Warning Lights Strobe Light Work Lights Rear Camera Back-up Alarm

  12. Questions On Warning Lights
