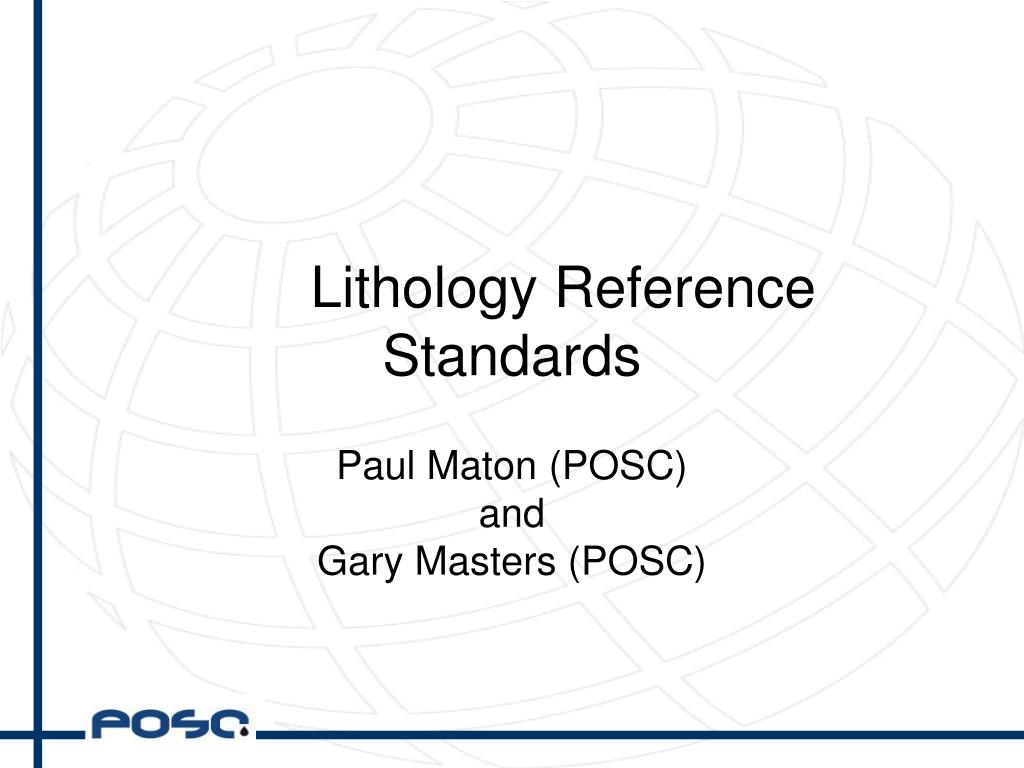

  1. Lithology Reference Standards Paul Maton (POSC)and Gary Masters (POSC)

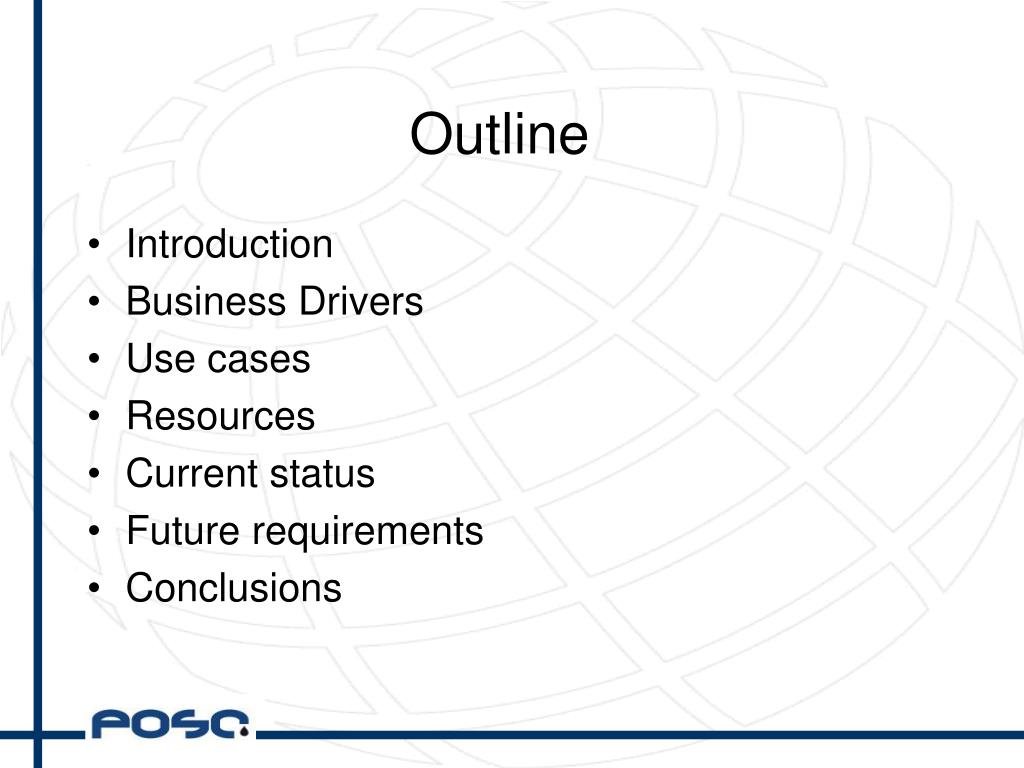

  2. Outline • Introduction • Business Drivers • Use cases • Resources • Current status • Future requirements • Conclusions

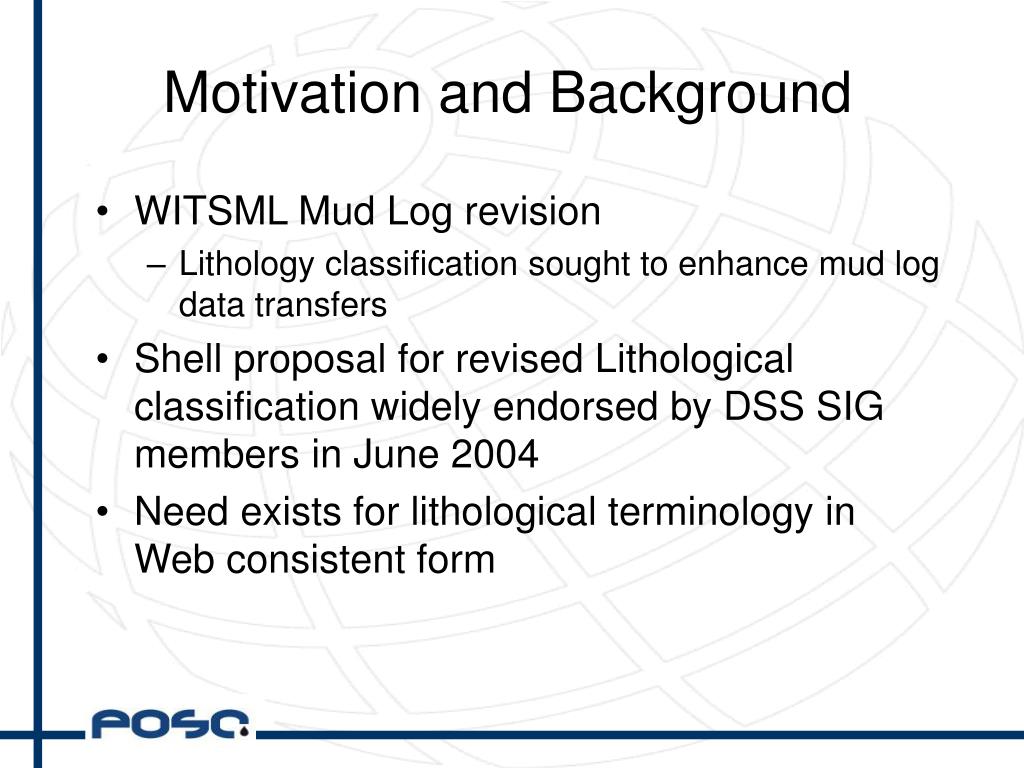

  3. Motivation and Background • WITSML Mud Log revision • Lithology classification sought to enhance mud log data transfers • Shell proposal for revised Lithological classification widely endorsed by DSS SIG members in June 2004 • Need exists for lithological terminology in Web consistent form

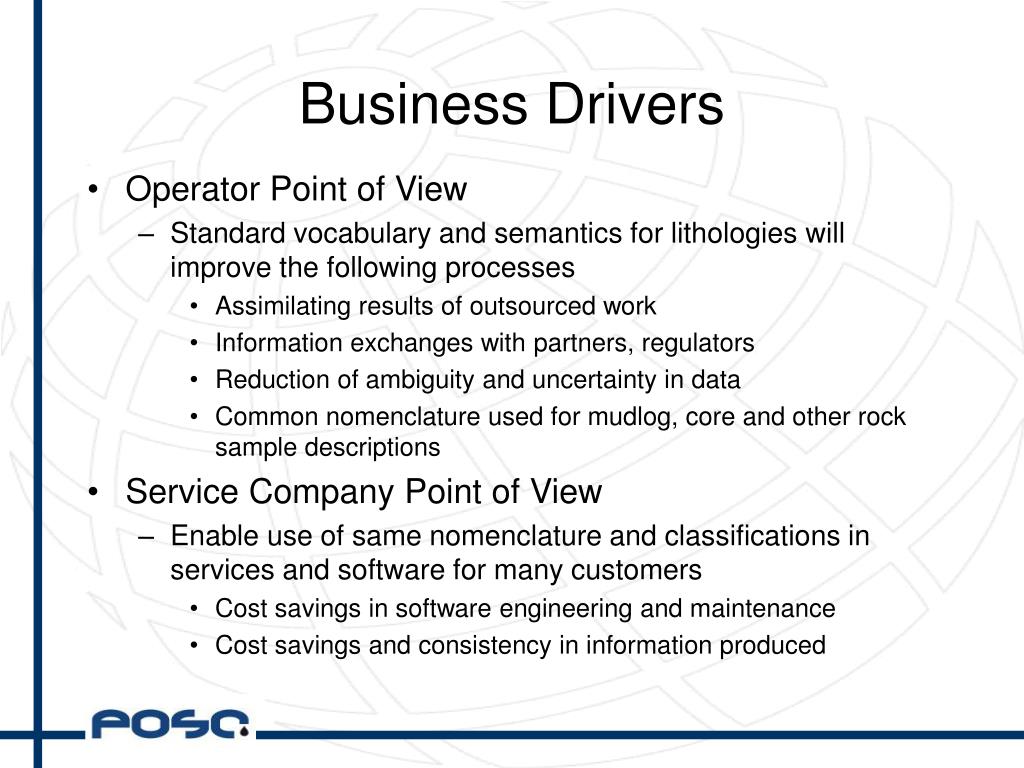

  4. Business Drivers • Operator Point of View • Standard vocabulary and semantics for lithologies will improve the following processes • Assimilating results of outsourced work • Information exchanges with partners, regulators • Reduction of ambiguity and uncertainty in data • Common nomenclature used for mudlog, core and other rock sample descriptions • Service Company Point of View • Enable use of same nomenclature and classifications in services and software for many customers • Cost savings in software engineering and maintenance • Cost savings and consistency in information produced

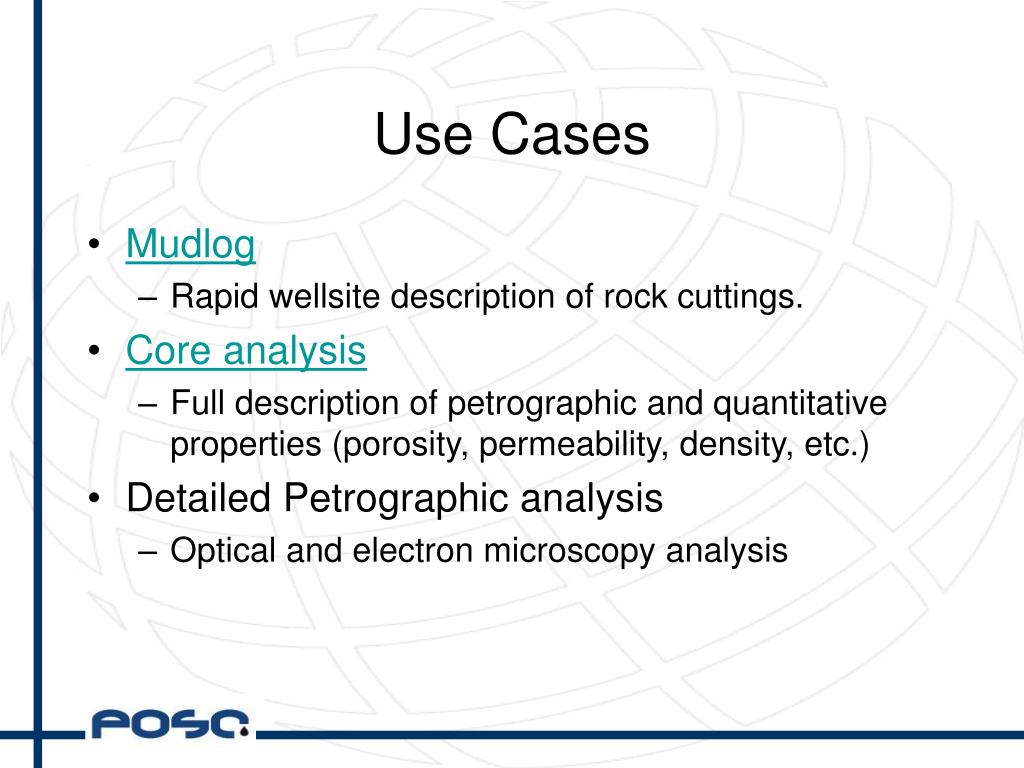

  5. Use Cases • Mudlog • Rapid wellsite description of rock cuttings. • Core analysis • Full description of petrographic and quantitative properties (porosity, permeability, density, etc.) • Detailed Petrographic analysis • Optical and electron microscopy analysis

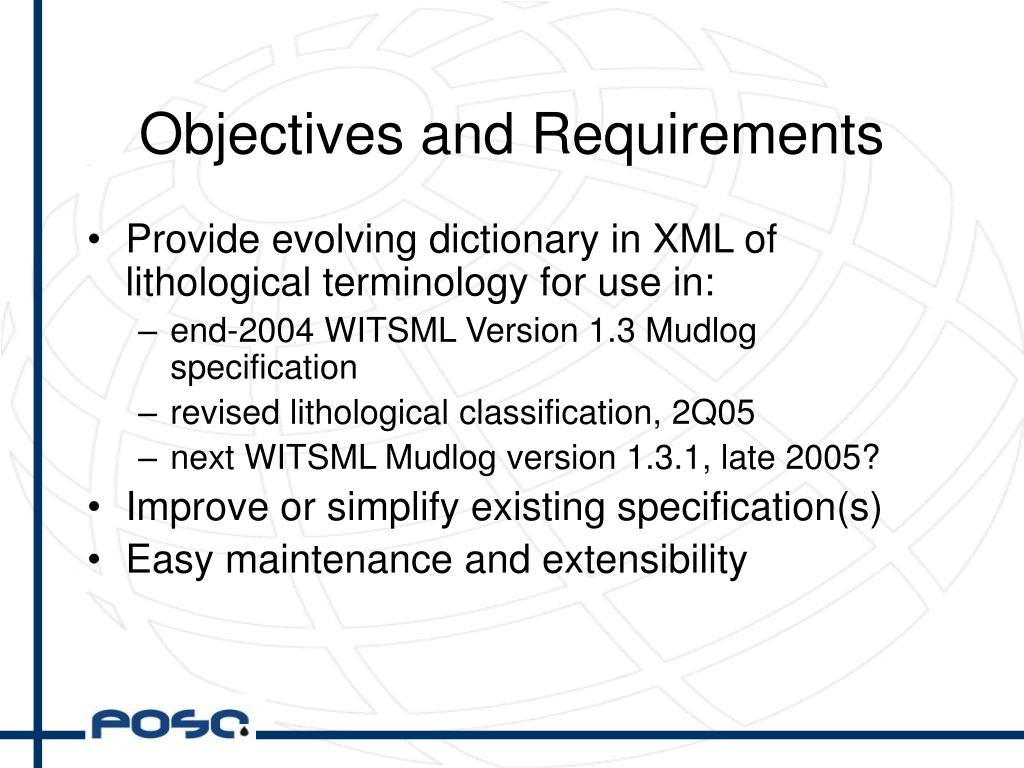

  6. Objectives and Requirements • Provide evolving dictionary in XML of lithological terminology for use in: • end-2004 WITSML Version 1.3 Mudlog specification • revised lithological classification, 2Q05 • next WITSML Mudlog version 1.3.1, late 2005? • Improve or simplify existing specification(s) • Easy maintenance and extensibility

  7. Available Resources • Landmark Graphics • List of Lithology Classes with Qualifiers and Symbol Codes • Norwegian Petroleum Directorate • Reporting requirements for Digital Well Data: Lithological Codes • Shell • 1995 Standard Legend • Statoil • Current Listing of Lithological codes

  8. Common Descriptors • Primary and secondary lithologies • Use of the following characteristics as qualifiers • Mineral content • Fossil content • Cement • Grain size • Sorting • …~ 10 others

  9. Lithology types in WITSML Mudlog v1.3 Andesite Anhydrite Arkose Basalt Breccia Calcarenite Calcilutite Calcisiltite Chalk Chert Clay Claystone Coal Conglomerate Diabase Diorite Dolerite Dolomite Dolomite, Calcareous Extrusive Rock (Volcanic) Feldspar Gabbro Glauconite Gneiss Granite Gravel Greenstones Greywacke Gumbo Gypsum Halite Igneous Intrusvie Rock (Plutonic) Lignite Limestone Limestone, Argillaceous

  10. Lithology types in WITSML Mudlog v1.3 Quartzite Rhyolite Salt Sand Sandstone Schist Serpentine Shale Silicilyte Silt Siltstone Slate Limestone, Dolomitic Limestone, Sandy Marble Marl Metamorphic Rocks Mudstone No Description No Sample Ophiolites Peat Phosphate Potassium and Magnesium Salts Syenite Tillite (Diamictite) Trachyte Tuff Ultrabasic

  11. Qualifiers in WITSML Mudlog v1.3 Anhydrite Argillaceous Barite Belemnitic Bioturbated Bituminous Bryozoans Burrowed Calcareous Calcite concr Calcitic Carbonaceous Chalky Chamosite Chert Chlorite Concretions Conglomeratic Conglomeritic Coral Crinoids Diatoms Dolomite concr Dolomite Stringer Dolomitic Feldspar Ferruginous/Illite Fissile Forams gen Fossil Frags Fossils gen Glauconite Glauconitic Gravelly Gypsiferous Halite

  12. Qualifiers in WITSML Mudlog v1.3 Kaolinite Lignite Limestone stringer Lithic frags Marly Mica Microfossils No Description None Oolithic Ostrocods Pebbly Pelletal Pellets Peloidal Phosphates Plant Remains Potassium salt Pyrite Quartz Radiolaria Salty Sandy Shells Siderite Siderite concr Silty Spicular Stylolitic Tuffaceous Tuffite

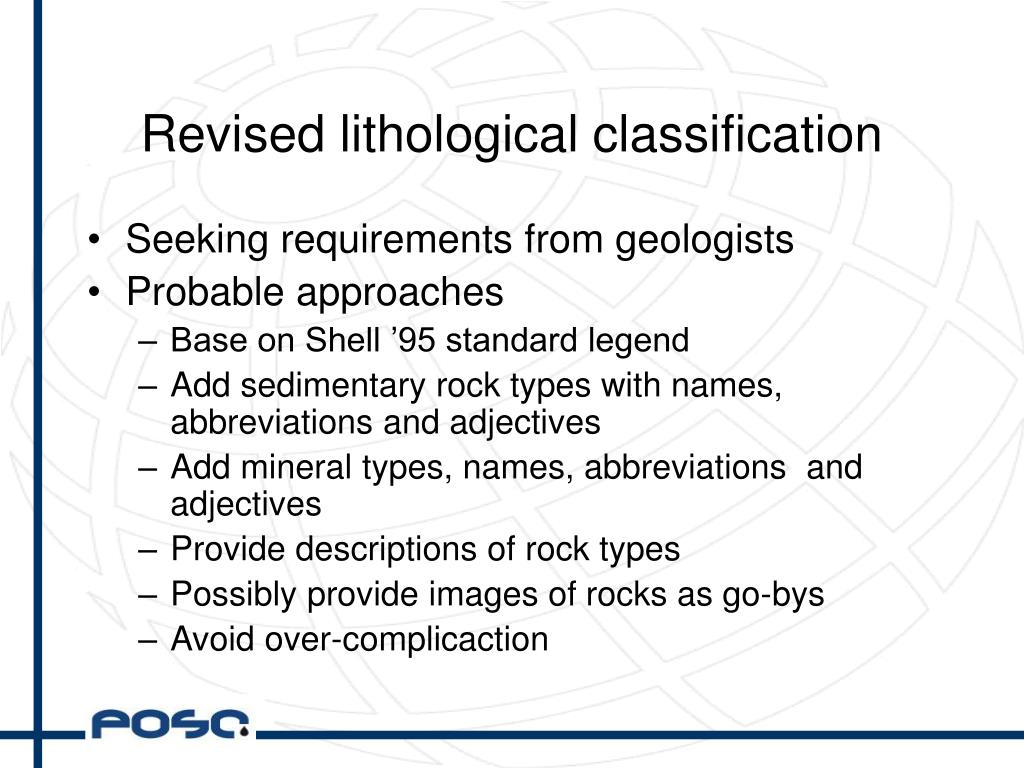

  13. Revised lithological classification • Seeking requirements from geologists • Probable approaches • Base on Shell ’95 standard legend • Add sedimentary rock types with names, abbreviations and adjectives • Add mineral types, names, abbreviations and adjectives • Provide descriptions of rock types • Possibly provide images of rocks as go-bys • Avoid over-complicaction

  14. WITSML Mudlog version 1.3.1 • Seeking requirements from geologists, and feedback from users of version 1.3.0 • Probable approaches • Base on Shell ’95, improve current lithology list • More sedimentary rock types with names, but test need for abbreviations and adjectives • More mineral types, names, but test need for abbreviations and adjectives • Keep specification simple, within bounds of observational capabilities

  15. Participant discussion • Comments and suggestions re:- • Business case? • Resources needed – expert reviewers • Proposed approaches? • Recommendations, Next steps? • Any other aspects?

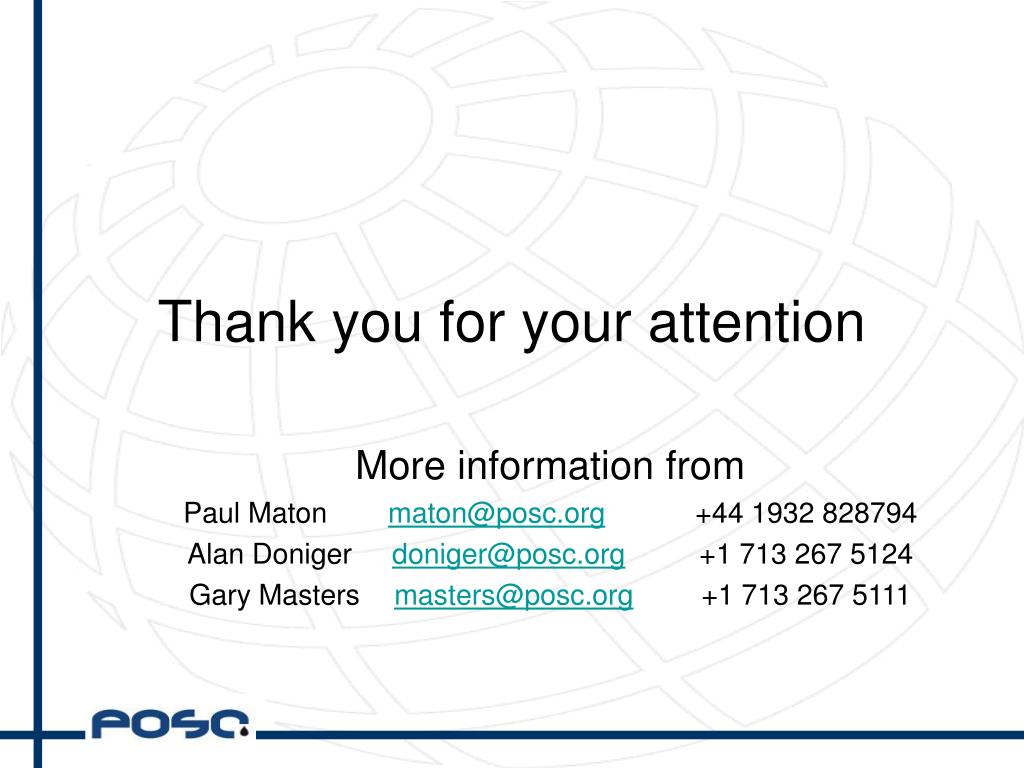

  16. Thank you for your attention More information from Paul Maton maton@posc.org +44 1932 828794 Alan Doniger doniger@posc.org +1 713 267 5124 Gary Masters masters@posc.org +1 713 267 5111
