FREQUENCY PATTERN DURING JAN 2007

FREQUENCY PATTERN DURING JAN 2007. <49.0 HZ. <49.2 HZ. <49.5 HZ. OCT - DEC. OCT - JAN. Freq Profile 1-11. Freq Profile 12-21. AVG FREQ. Freq Profile 22-31. FREQUENCY EXCURSION BELOW 49.0 HZ & 49.5 HZ. OCT - DEC. Frequency Trend for 31-01-07. Frequency Trend for 01-02-07.

nigel-phelps
Télécharger la présentation

FREQUENCY PATTERN DURING JAN 2007

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FREQUENCY PATTERN DURING JAN 2007 <49.0 HZ <49.2 HZ <49.5 HZ OCT - DEC OCT - JAN Freq Profile 1-11 Freq Profile 12-21 AVG FREQ Freq Profile 22-31

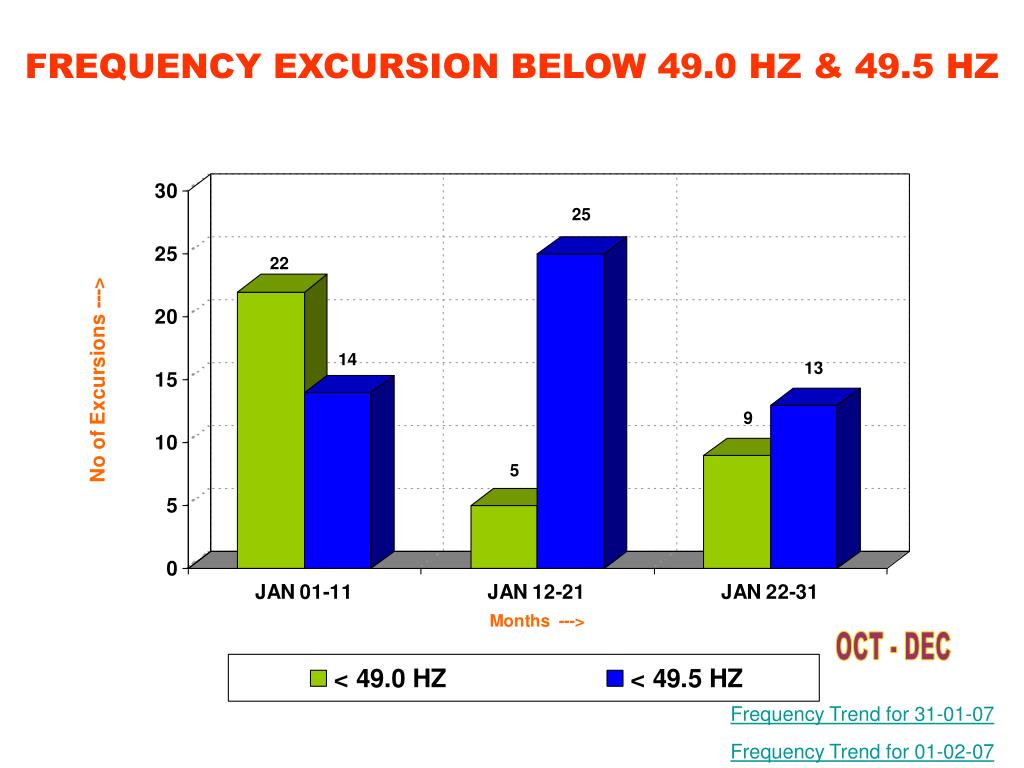

  2. FREQUENCY EXCURSION BELOW 49.0 HZ & 49.5 HZ OCT - DEC Frequency Trend for 31-01-07 Frequency Trend for 01-02-07

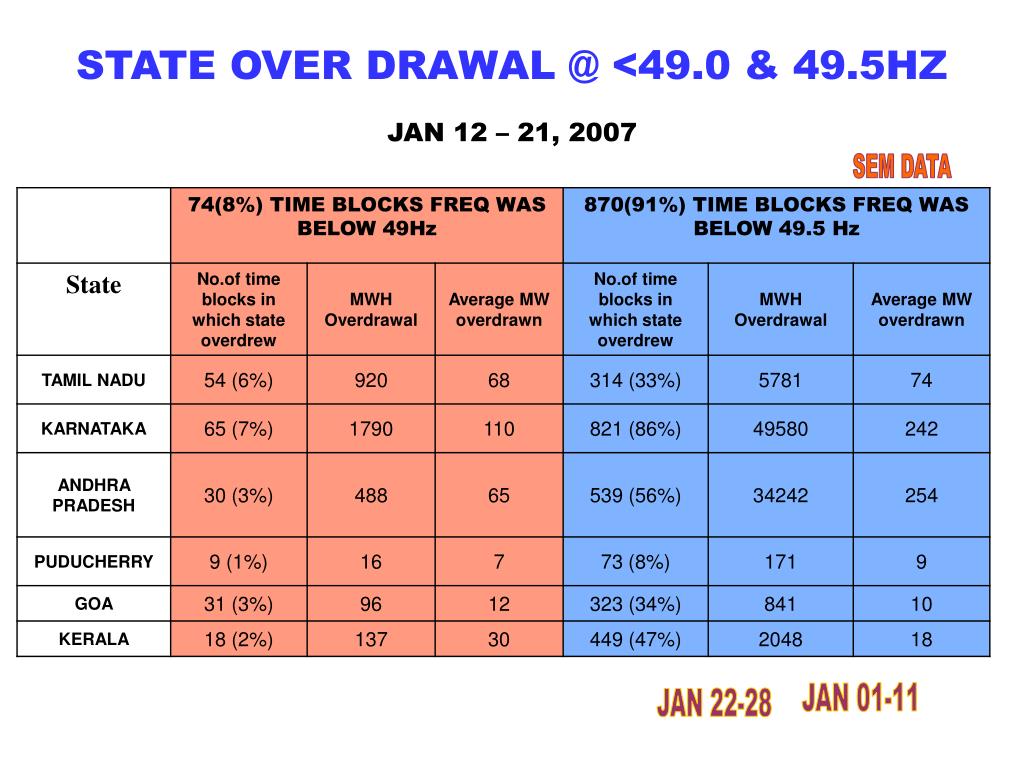

  3. STATE OVER DRAWAL @ <49.0 & 49.5HZ JAN 12 – 21, 2007 SEM DATA JAN 01-11 JAN 22-28

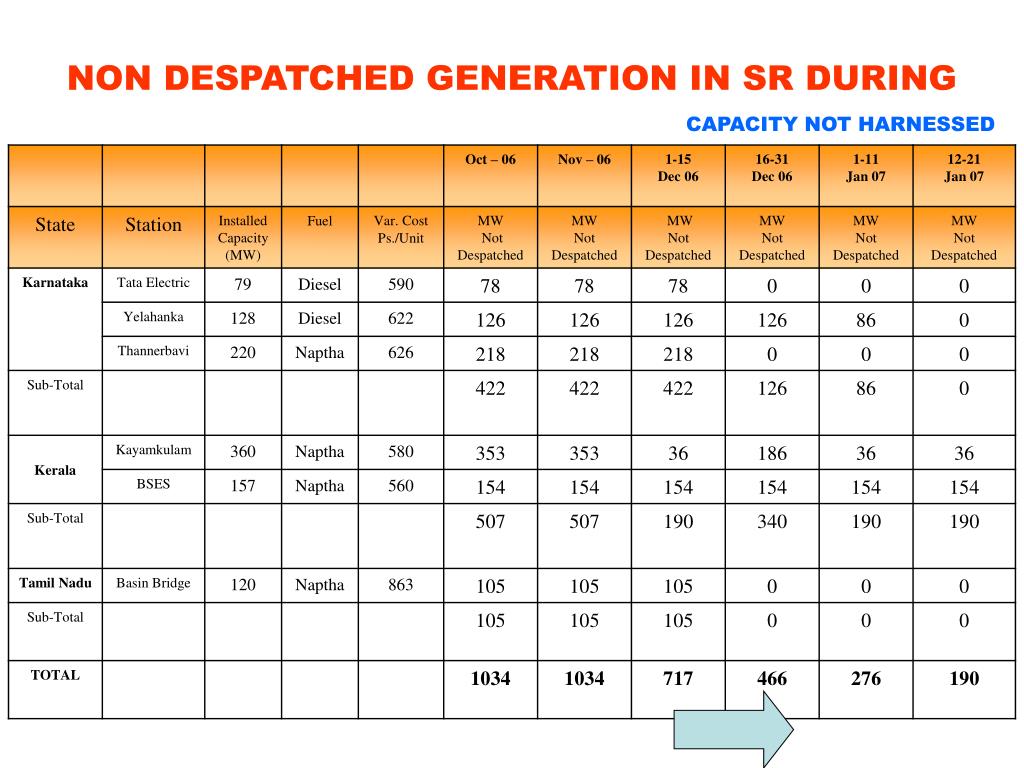

  4. NON DESPATCHED GENERATION IN SR DURING CAPACITY NOT HARNESSED

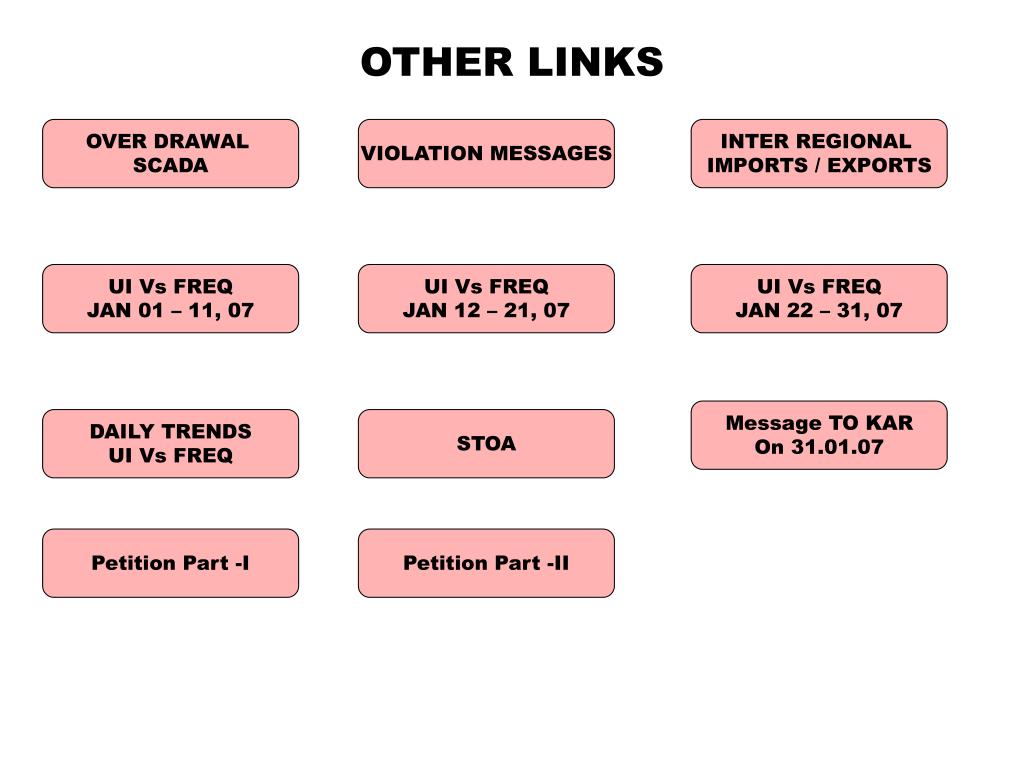

  5. OTHER LINKS OVER DRAWAL SCADA VIOLATION MESSAGES INTER REGIONAL IMPORTS / EXPORTS UI Vs FREQ JAN 01 – 11, 07 UI Vs FREQ JAN 12 – 21, 07 UI Vs FREQ JAN 22 – 31, 07 Message TO KAR On 31.01.07 DAILY TRENDS UI Vs FREQ STOA Petition Part -I Petition Part -II

  6. FREQUENCY PATTERN DURING OCT TO DEC 2006 <49.0 HZ <49.2 HZ <49.5 HZ

  7. FREQUENCY PATTERN DURING OCT DEC & JAN 06-07 <49.0 HZ <49.2 HZ <49.5 HZ Note : January data for 24 days i.e. excluding Pongal (13th to 16th) & Republic day (26th to 28th) holidays.

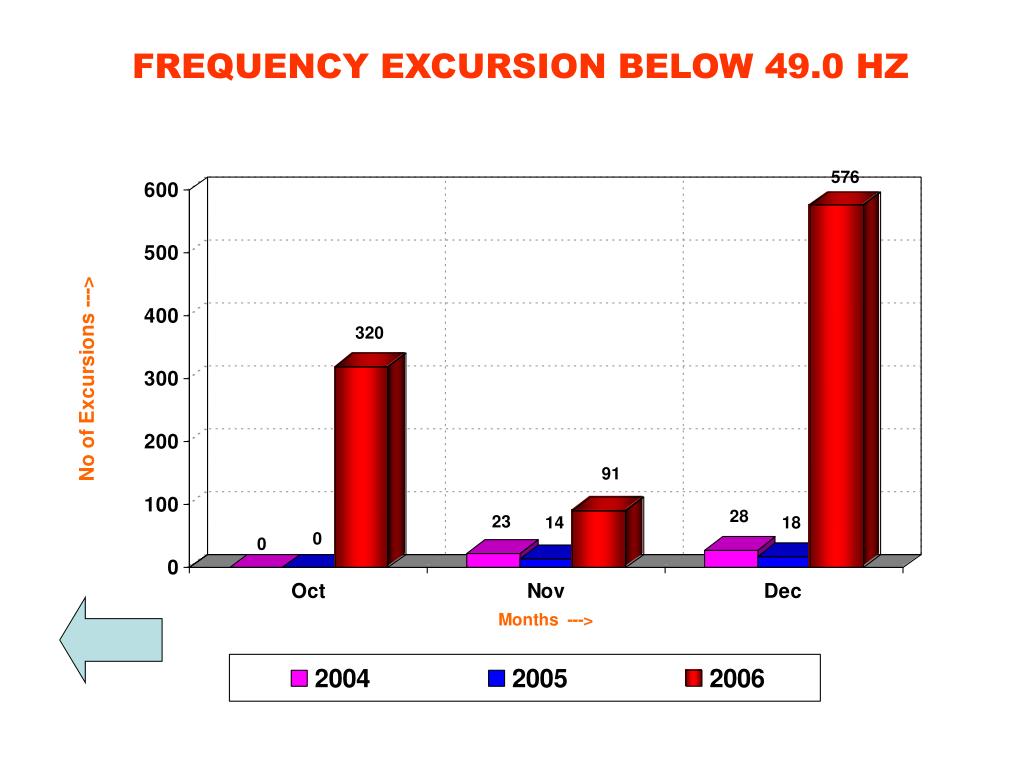

  8. FREQUENCY EXCURSION BELOW 49.0 HZ

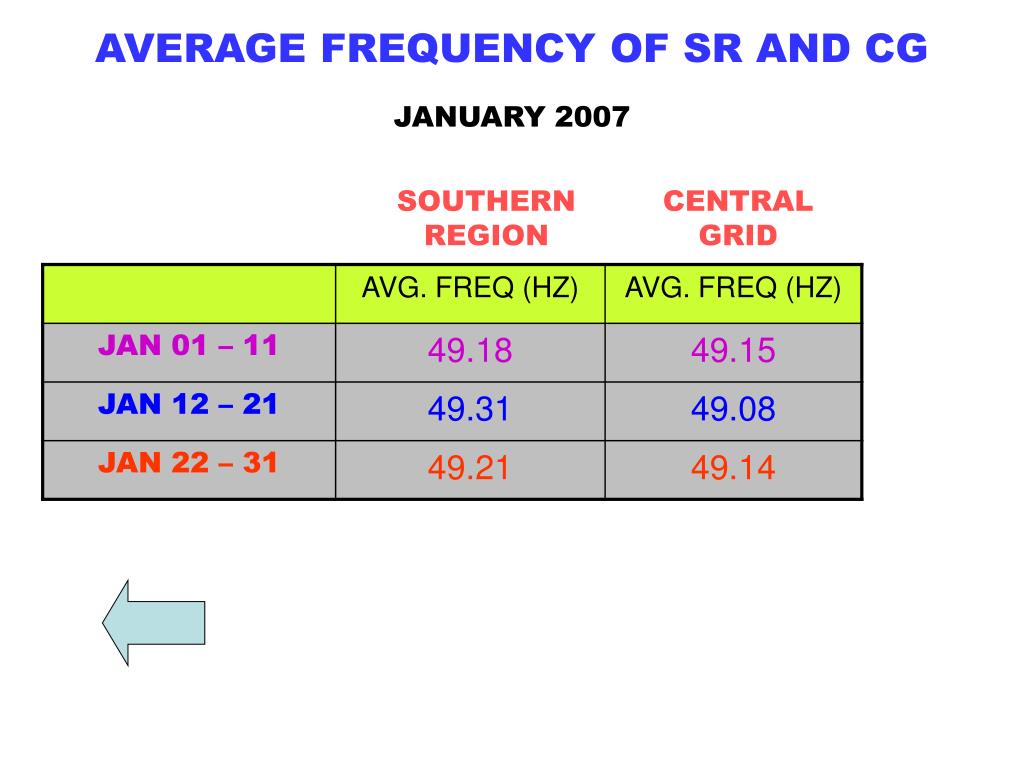

  9. AVERAGE FREQUENCY OF SR AND CG JANUARY 2007 SOUTHERN REGION CENTRAL GRID

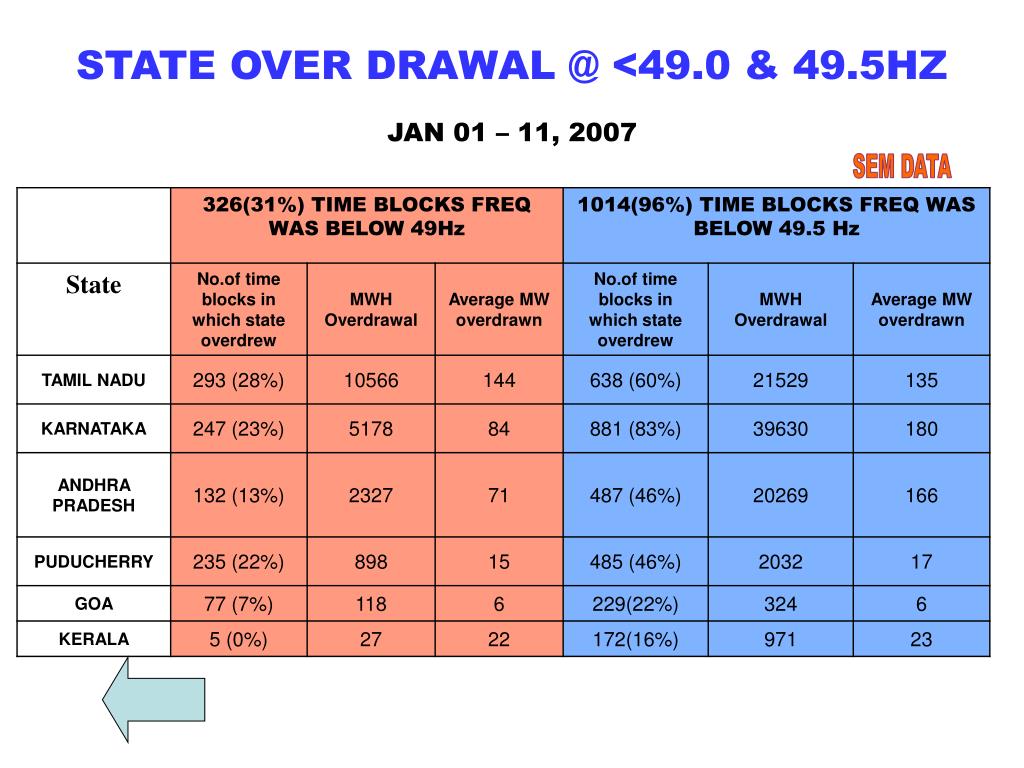

  10. STATE OVER DRAWAL @ <49.0 & 49.5HZ JAN 01 – 11, 2007 SEM DATA

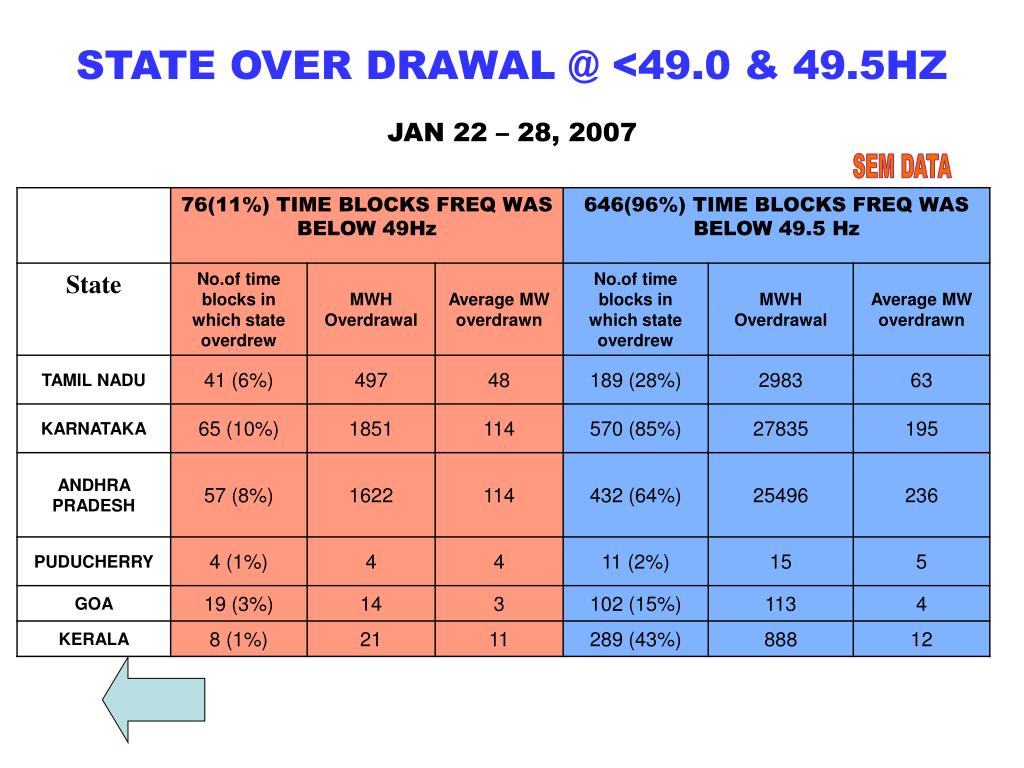

  11. STATE OVER DRAWAL @ <49.0 & 49.5HZ JAN 22 – 28, 2007 SEM DATA

  12. NON DESPATCHED GENERATION IN SR DURING AVG MW NOT AVAILABLE TO THE GRID

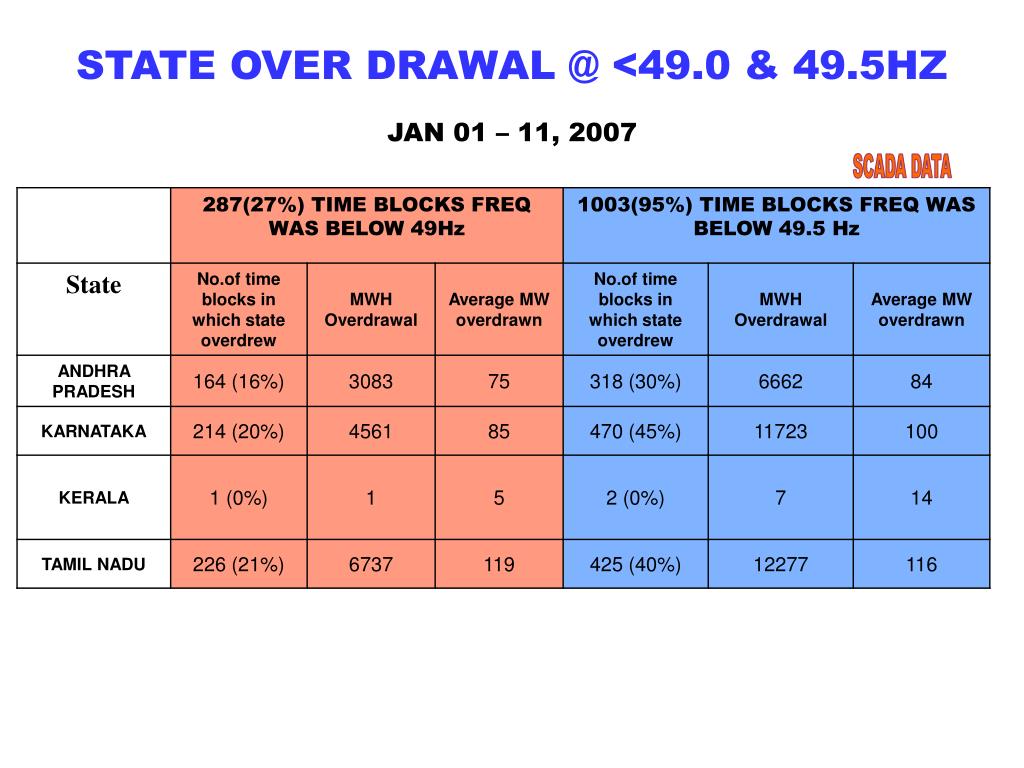

  13. STATE OVER DRAWAL @ <49.0 & 49.5HZ JAN 01 – 11, 2007 SCADA DATA

  14. STATE OVER DRAWAL @ <49.0 & 49.5HZ JAN 12 – 21, 2007 SCADA DATA

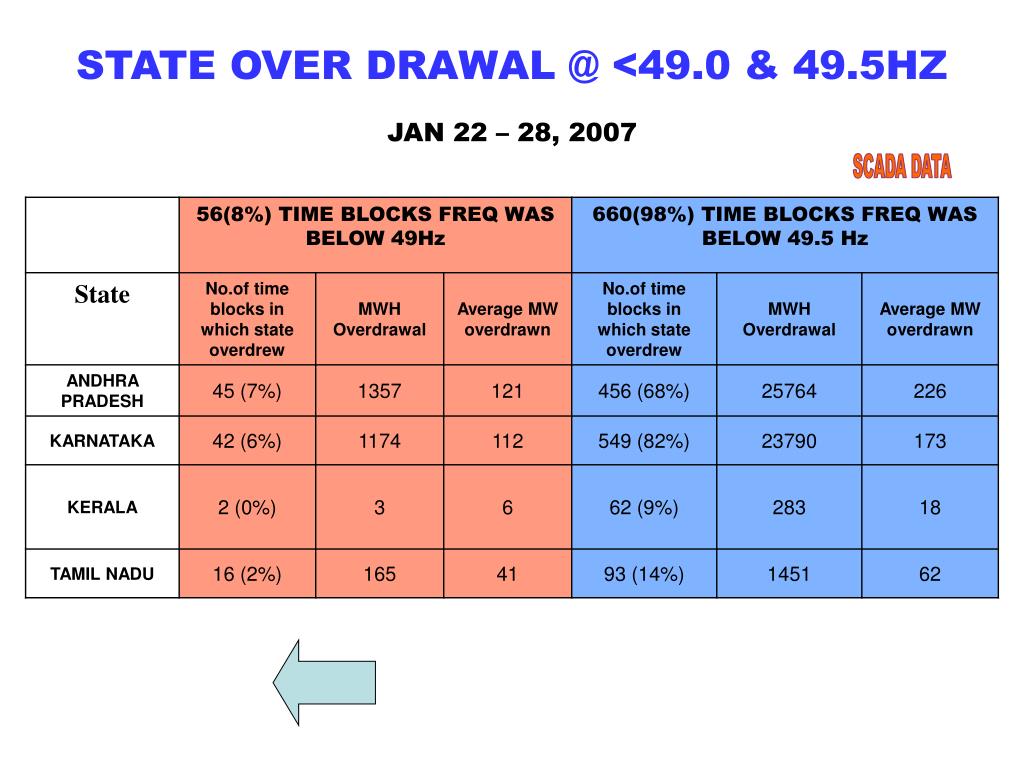

  15. STATE OVER DRAWAL @ <49.0 & 49.5HZ JAN 22 – 28, 2007 SCADA DATA

  16. VIOLATION MESSAGES ISSUED JAN 01 – 11, 2007 Type A message issued when freq < 49.2 Hz and State O/D > 100MW

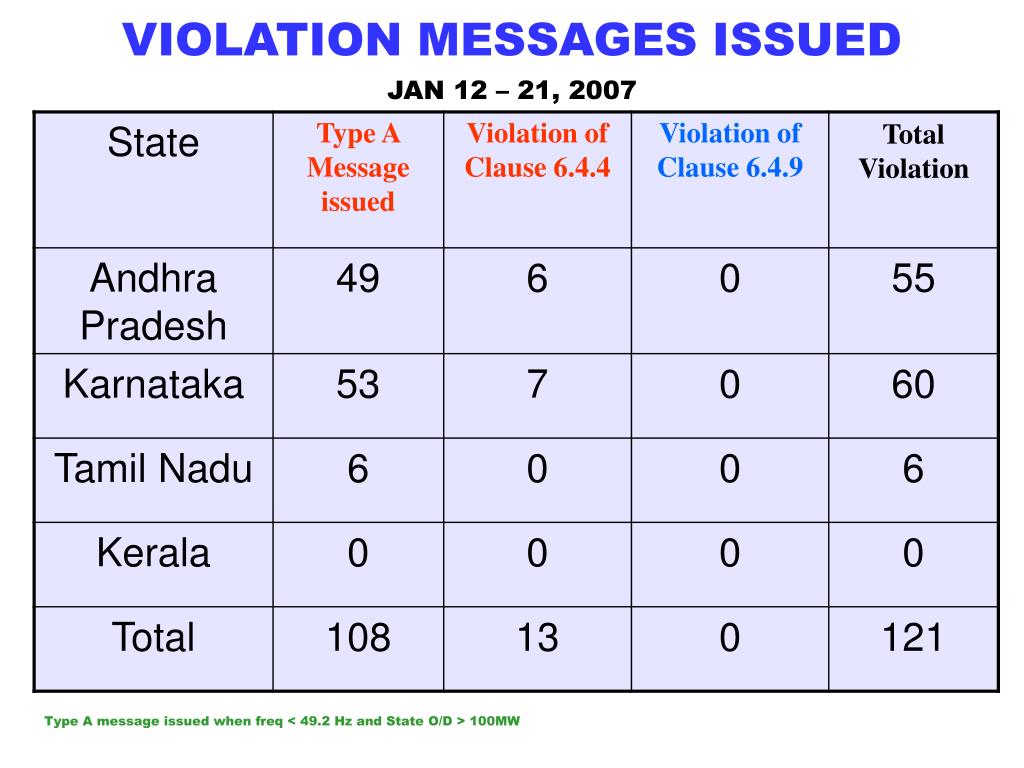

  17. VIOLATION MESSAGES ISSUED JAN 12 – 21, 2007 Type A message issued when freq < 49.2 Hz and State O/D > 100MW

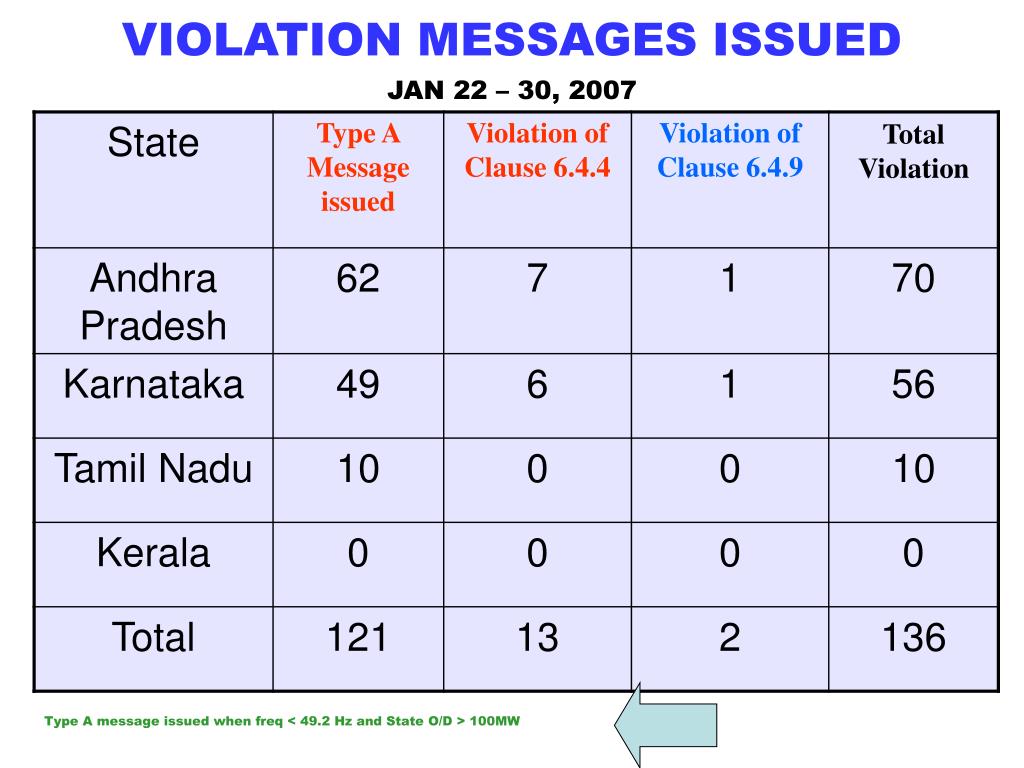

  18. VIOLATION MESSAGES ISSUED JAN 22 – 30, 2007 Type A message issued when freq < 49.2 Hz and State O/D > 100MW

  19. INTER-REGIONAL IMPORTS JANUARY 2007 FROM WESTERN REGION FROM EASTERN REGION

  20. INTER-REGIONAL EXPORTS JANUARY 2007 FROM WESTERN REGION FROM EASTERN REGION

  21. UI Vs FREQUENCY OF ANDHRA PRADESH01-JAN-07 JAN 01 – 11, 2007

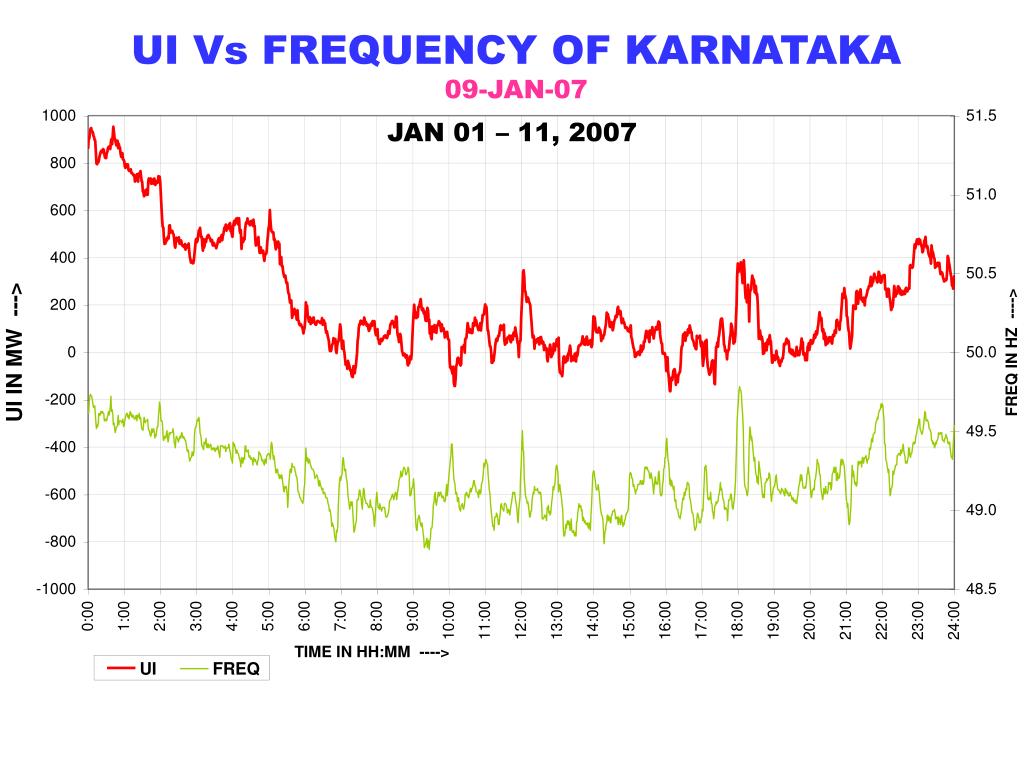

  22. UI Vs FREQUENCY OF KARNATAKA09-JAN-07 JAN 01 – 11, 2007

  23. UI Vs FREQUENCY OF TAMIL NADU02-JAN-07 JAN 01 – 11, 2007

  24. UI Vs FREQUENCY OF ANDHRA PRADESH20-JAN-07 JAN 12 – 21, 2007

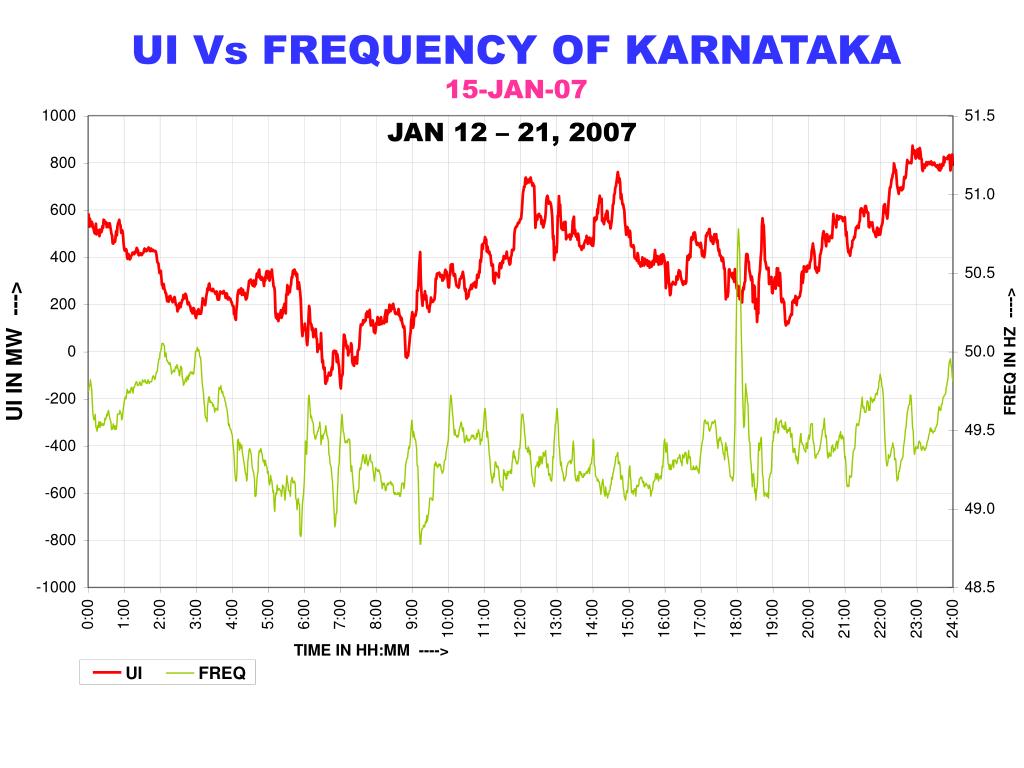

  25. UI Vs FREQUENCY OF KARNATAKA15-JAN-07 JAN 12 – 21, 2007

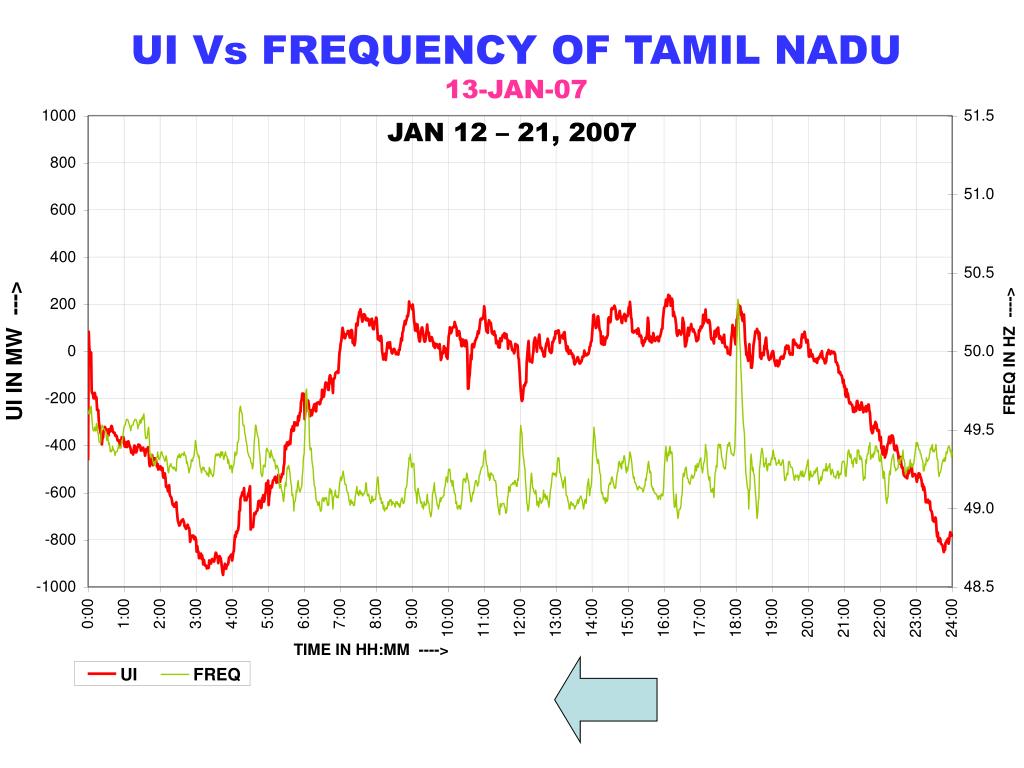

  26. UI Vs FREQUENCY OF TAMIL NADU13-JAN-07 JAN 12 – 21, 2007

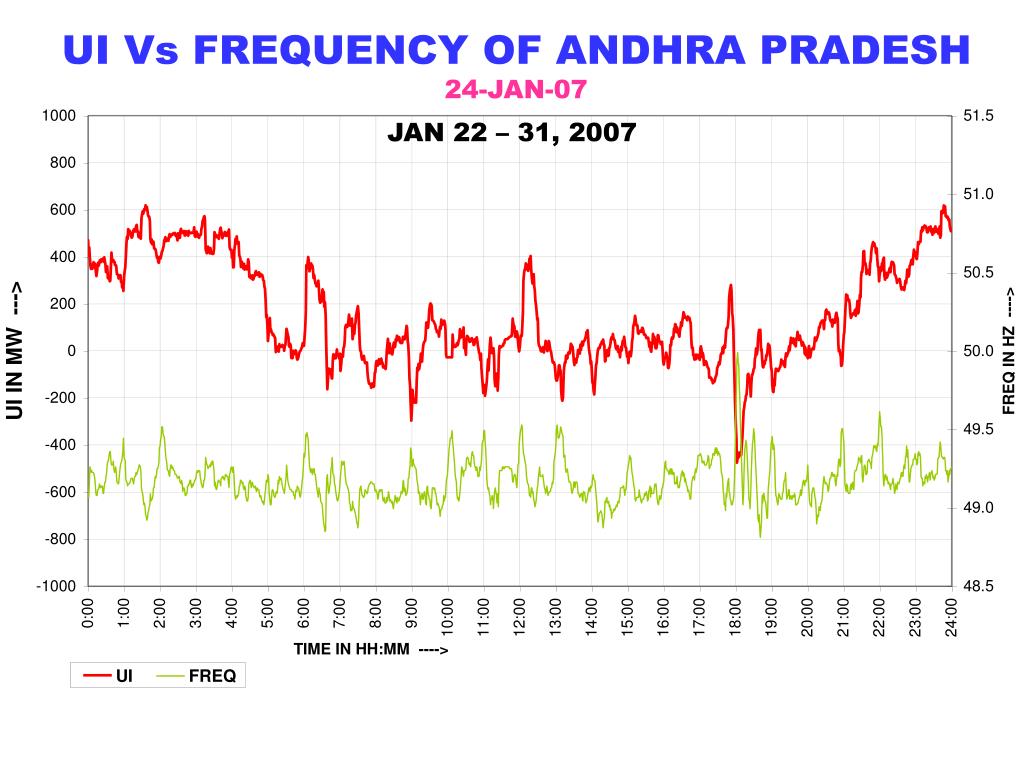

  27. UI Vs FREQUENCY OF ANDHRA PRADESH24-JAN-07 JAN 22 – 31, 2007

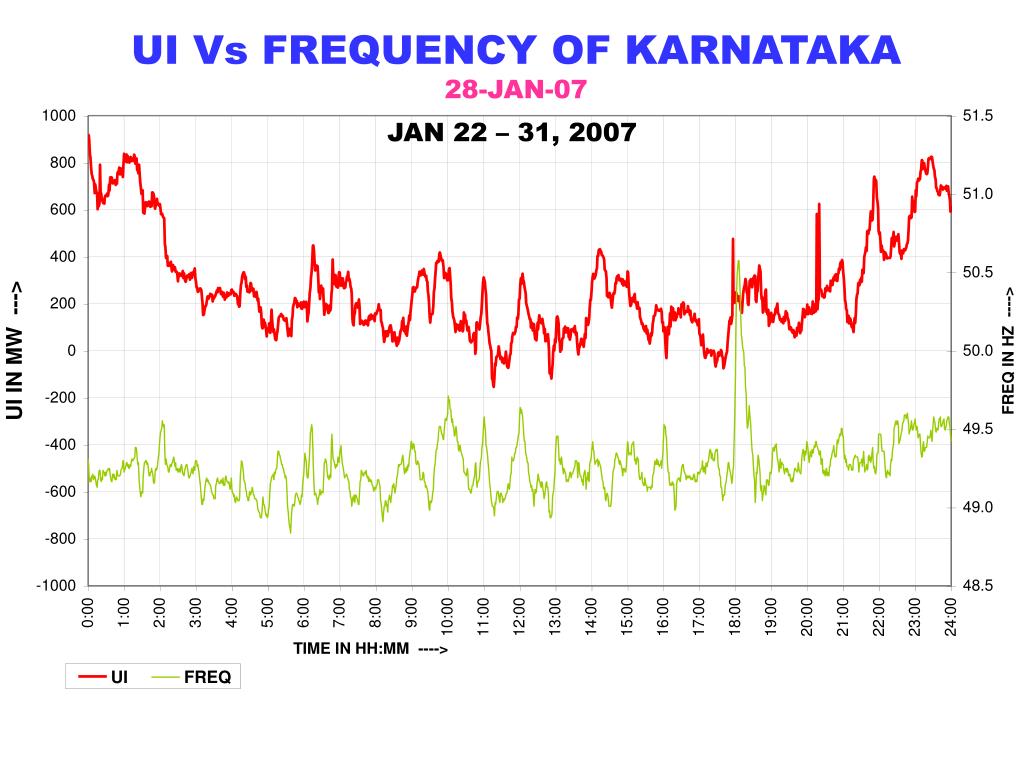

  28. UI Vs FREQUENCY OF KARNATAKA28-JAN-07 JAN 22 – 31, 2007

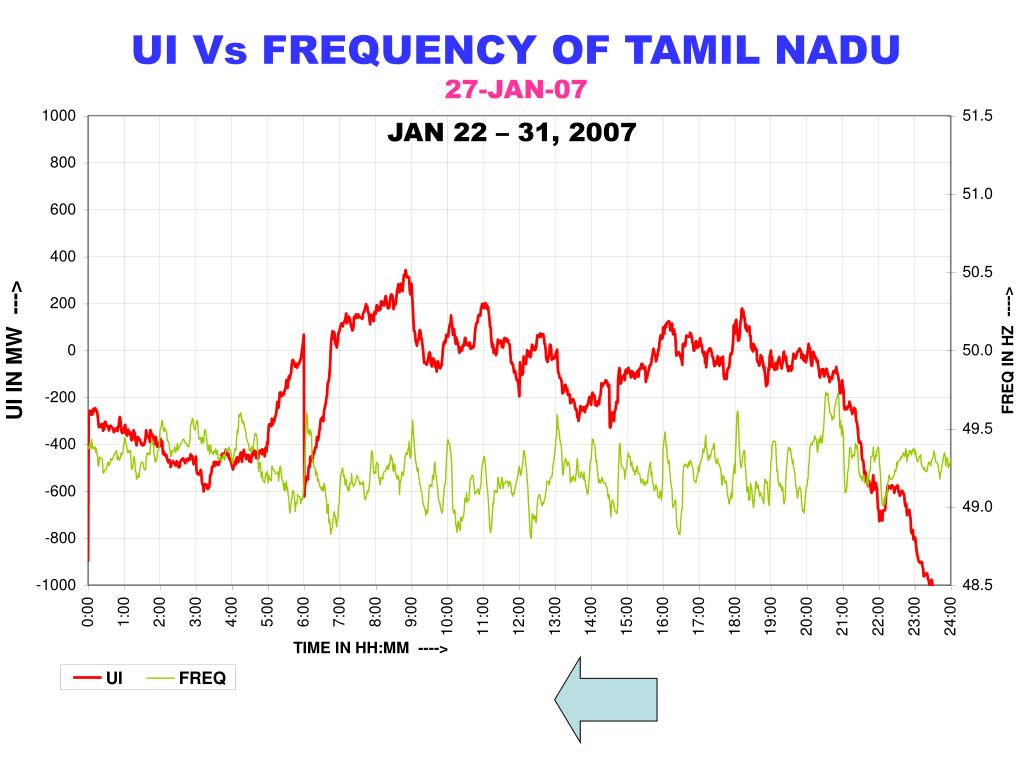

  29. UI Vs FREQUENCY OF TAMIL NADU27-JAN-07 JAN 22 – 31, 2007

  30. SR CONSTITUENTS EXPORT STOAsDURING THE PERIOD 01-11th JAN 07

  31. SR CONSTITUENTS IMPORT STOAsDURING THE PERIOD 01-11th JAN 07

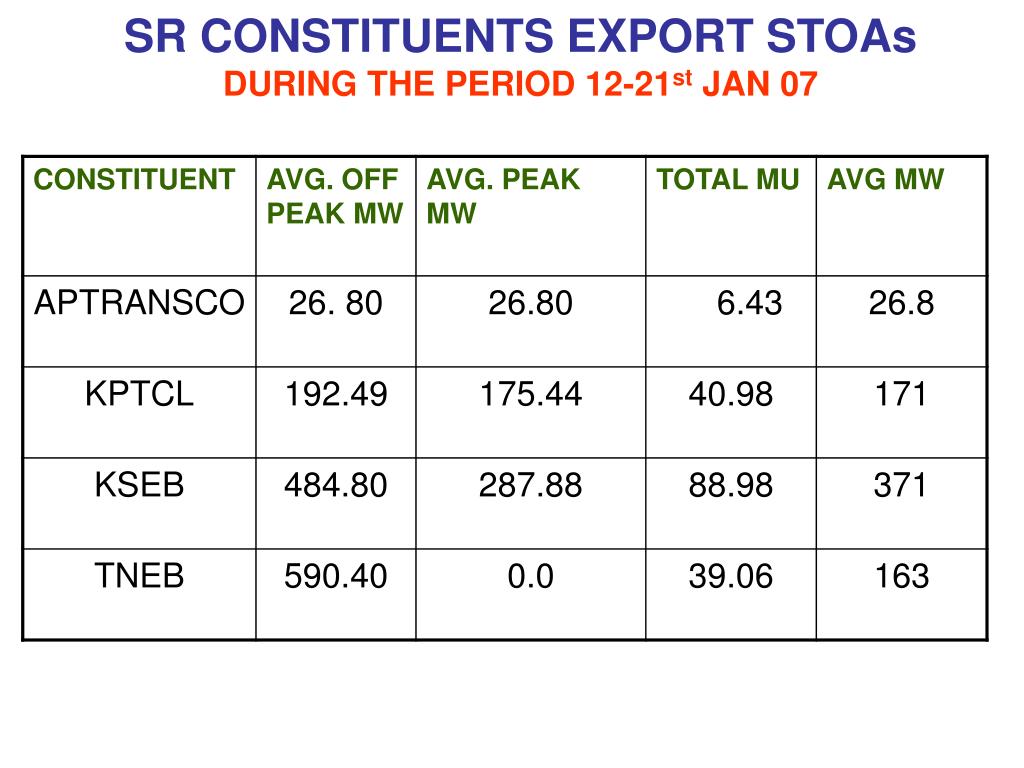

  32. SR CONSTITUENTS EXPORT STOAsDURING THE PERIOD 12-21st JAN 07

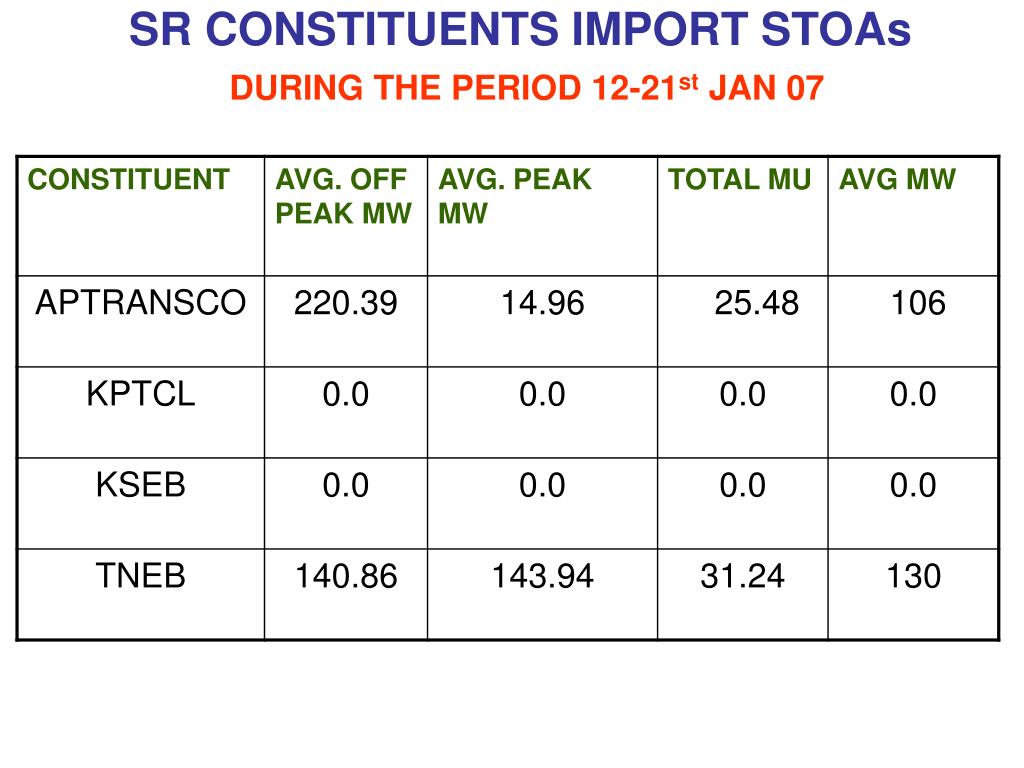

  33. SR CONSTITUENTS IMPORT STOAsDURING THE PERIOD 12-21st JAN 07

  34. SR CONSTITUENTS EXPORT STOAsDURING THE PERIOD 22-31st JAN 07

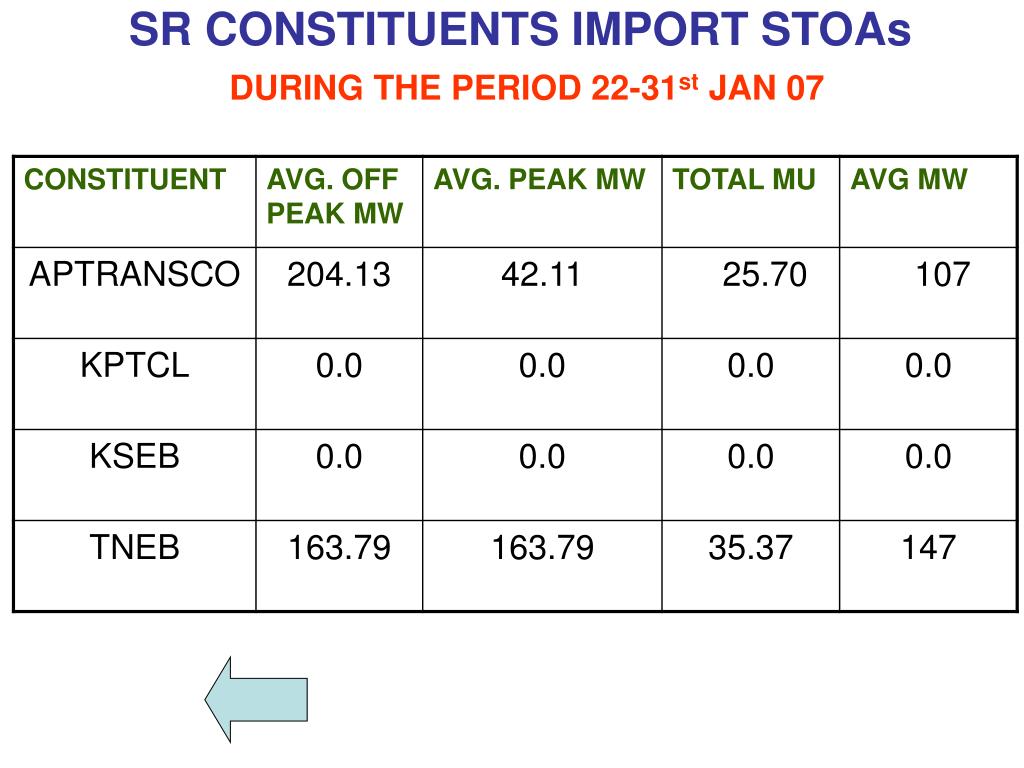

  35. SR CONSTITUENTS IMPORT STOAsDURING THE PERIOD 22-31st JAN 07

  36. BACK

  37. BACK

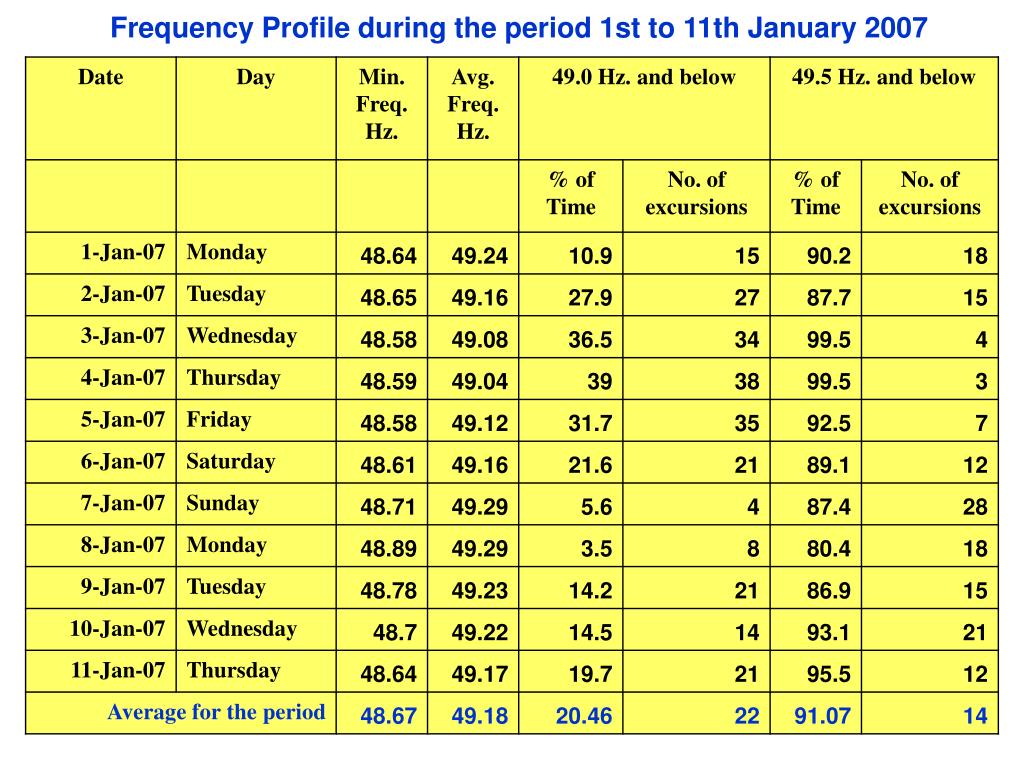

  38. Frequency Profile during the period 1st to 11th January 2007

  39. Frequency profile during the period 12th to 21st January 2007

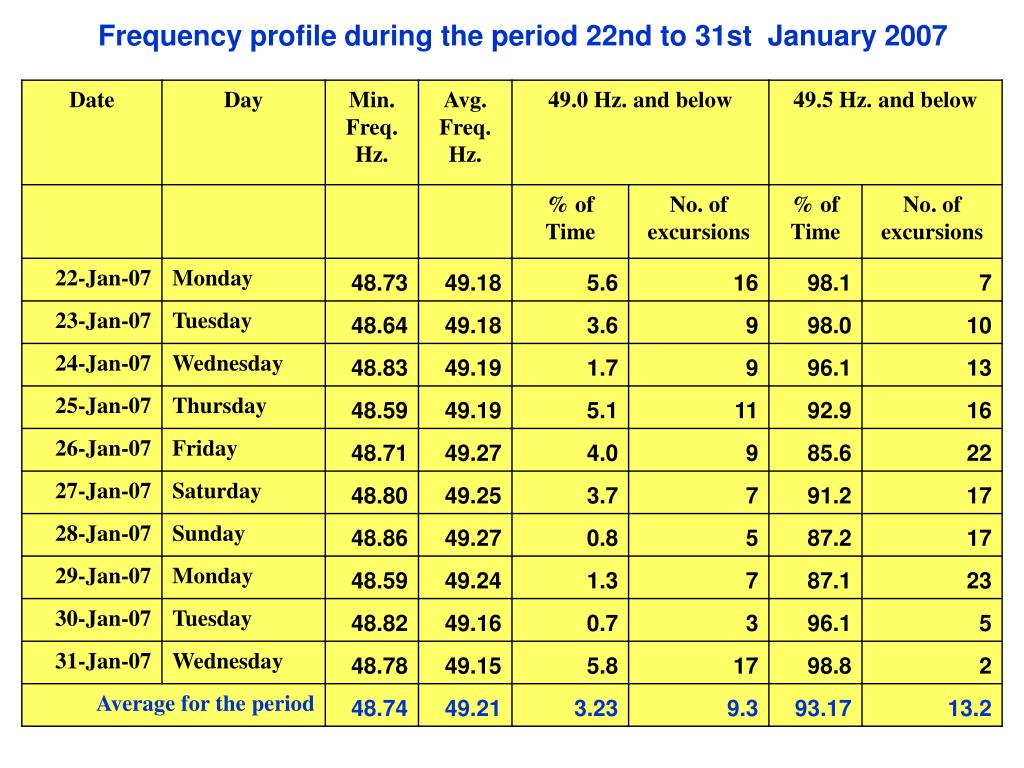

  40. Frequency profile during the period 22nd to 31st January 2007
