  1. Standards Implementation and Testing Environment (SITE)Direct Transport Sandbox

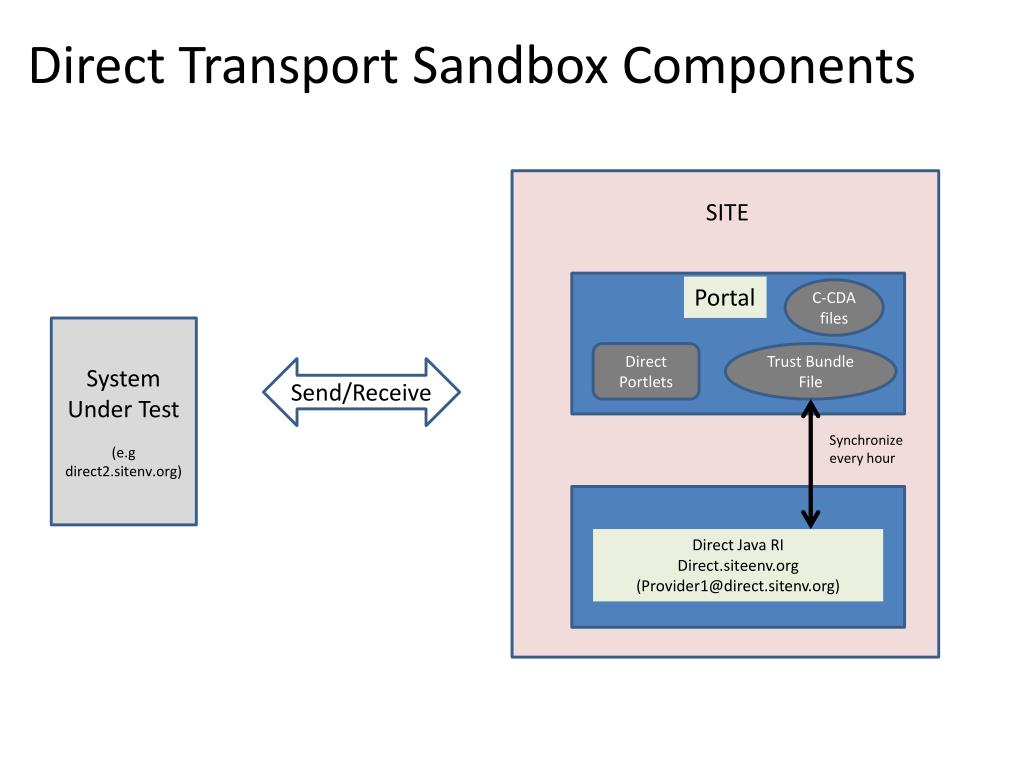

  2. SITE Direct Transport Sandbox Components Portal C-CDA files System Under Test (e.g direct2.sitenv.org) Direct Portlets Trust Bundle File Send/Receive Synchronize every hour Direct Java RI Direct.siteenv.org (Provider1@direct.sitenv.org)

  3. SITE Direct Transport Sandbox - Trust Anchor Exchange Portal C-CDA files 1. Upload Trust Anchor System Under Test (e.g direct2.sitenv.org) 2. Update Bundle Direct Portlets (Trust Anchor Exchange Portlet) Trust Bundle File 4. Download Trust Anchor or Trust Bundle 3. Synchronize every hour Direct Java RI Direct.siteenv.org (Provider1@direct.sitenv.org)

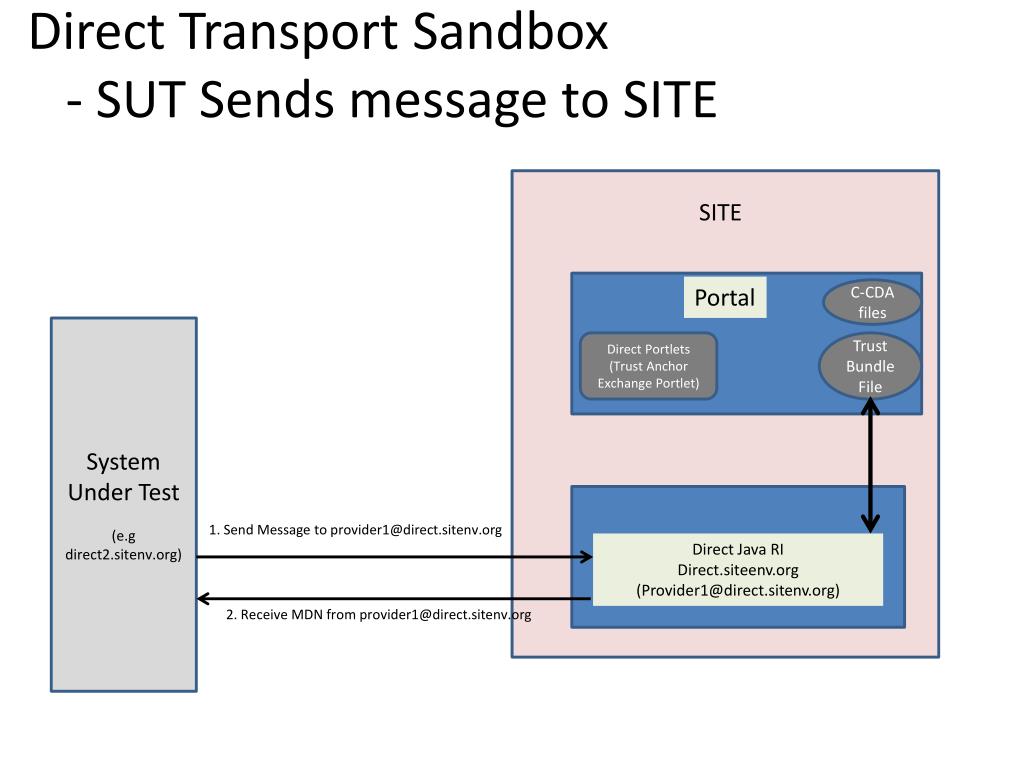

  4. SITE Direct Transport Sandbox - SUT Sends message to SITE Portal C-CDA files System Under Test (e.g direct2.sitenv.org) Direct Portlets (Trust Anchor Exchange Portlet) Trust Bundle File 1. Send Message to provider1@direct.sitenv.org Direct Java RI Direct.siteenv.org (Provider1@direct.sitenv.org) 2. Receive MDN from provider1@direct.sitenv.org

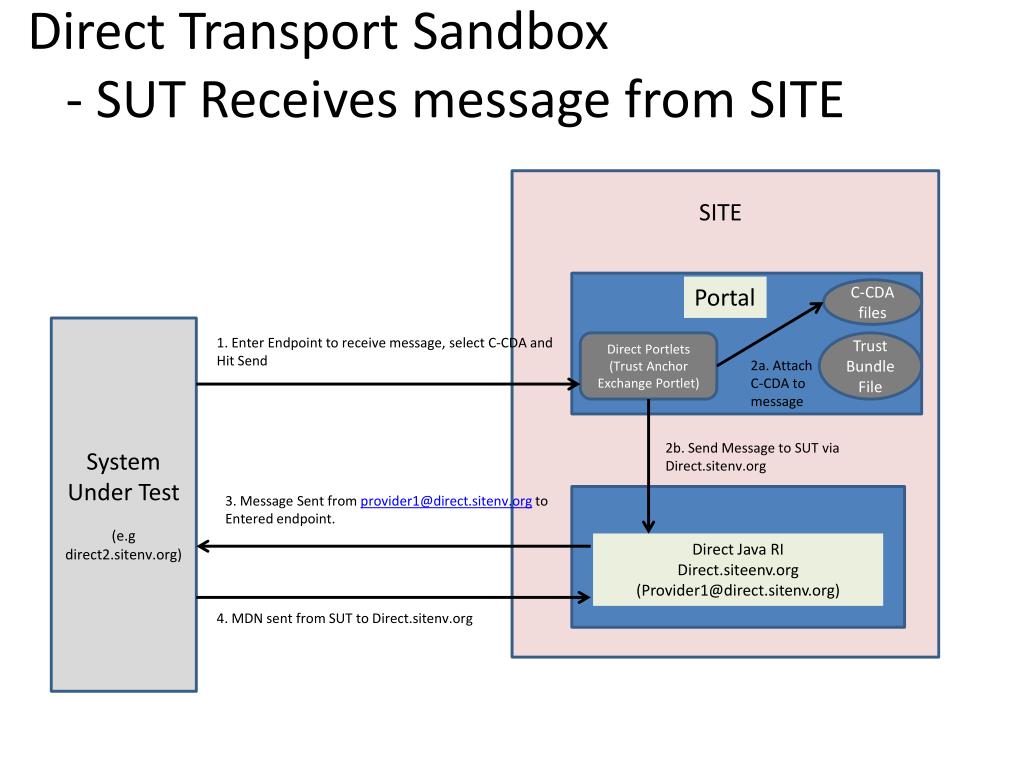

  5. SITE Direct Transport Sandbox - SUT Receives message from SITE Portal C-CDA files System Under Test (e.g direct2.sitenv.org) 1. Enter Endpoint to receive message, select C-CDA and Hit Send Direct Portlets (Trust Anchor Exchange Portlet) Trust Bundle File 2a. Attach C-CDA to message 2b. Send Message to SUT via Direct.sitenv.org 3. Message Sent from provider1@direct.sitenv.org to Entered endpoint. Direct Java RI Direct.siteenv.org (Provider1@direct.sitenv.org) 4. MDN sent from SUT to Direct.sitenv.org
