  1. Benchmark databaseinhomogeneous data, surrogate data and synthetic data Victor Venema

  2. Content • Introduction to benchmark dataset • Some results • Some questions about exercise • Question about future work • Analyse and publish the results

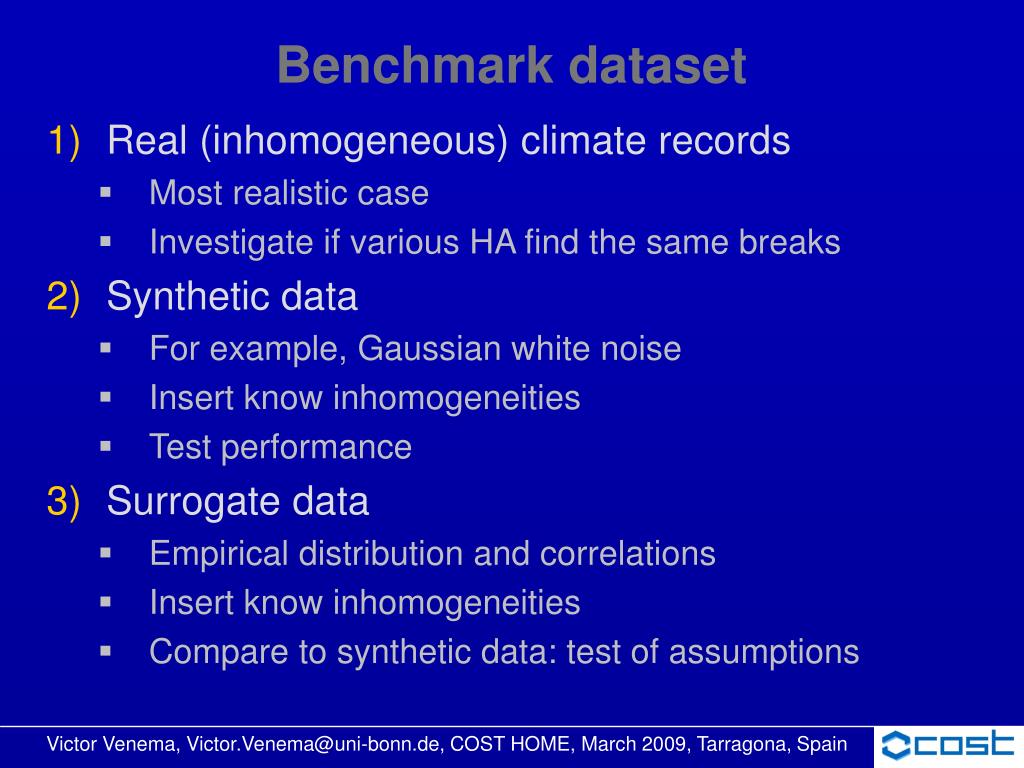

  3. Benchmark dataset • Real (inhomogeneous) climate records • Most realistic case • Investigate if various HA find the same breaks • Synthetic data • For example, Gaussian white noise • Insert know inhomogeneities • Test performance • Surrogate data • Empirical distribution and correlations • Insert know inhomogeneities • Compare to synthetic data: test of assumptions

  4. Creation benchmark – Outline talk • Start with homogeneous data • Multiple surrogate and synthetic realisations • Mask surrogate records • Add global trend • Insert inhomogeneities in station time series • Published on the web • Homogenize by COST participants and third parties • Analyse the results and publish

  5. 1) Start with homogeneous data • Monthly mean temperature and precipitation • Later also daily data (WG4), maybe other variables (pressure, wind) • Homogeneous, no missing data • Longer surrogates are based on multiple copies • Generated networks are 100 a

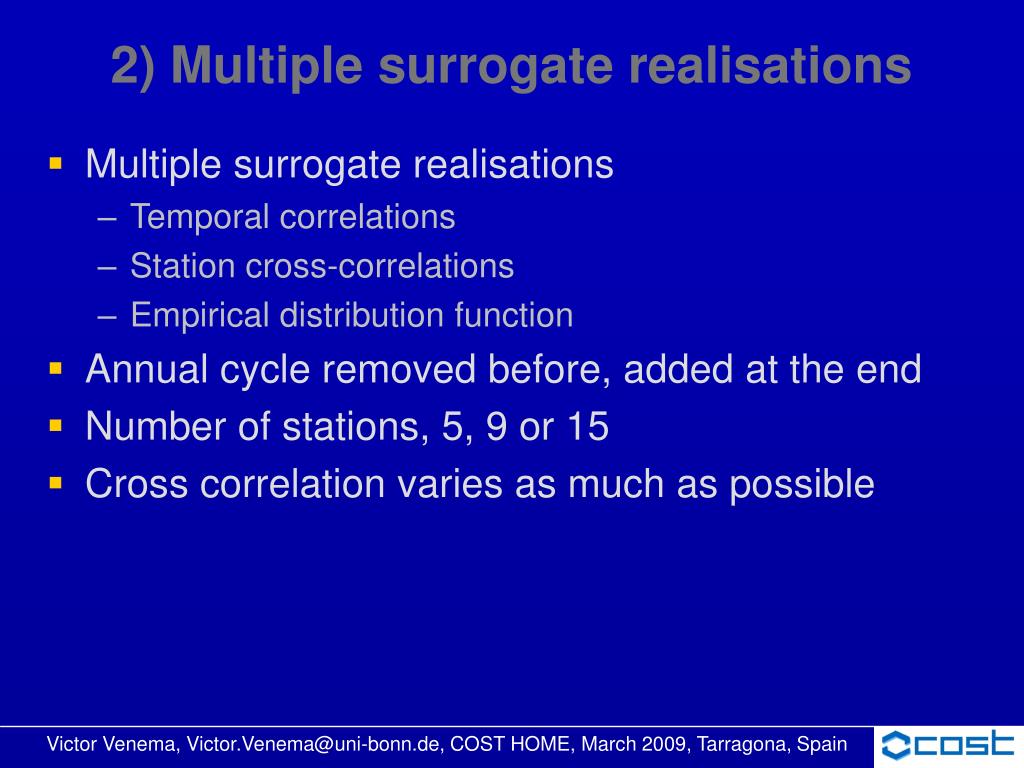

  6. 2) Multiple surrogate realisations • Multiple surrogate realisations • Temporal correlations • Station cross-correlations • Empirical distribution function • Annual cycle removed before, added at the end • Number of stations, 5, 9 or 15 • Cross correlation varies as much as possible

  7. 5) Insert inhomogeneities in stations • Independent breaks • Determined at random for every station and time • 5 Breaks per 100 a • Monthly slightly different perturbations • Temperature • Additive • Size: Gaussian distribution, σ=0.8°C • Rain • Multiplicative • Size: Gaussian distribution, <x>=1, σ=10%

  8. Example break perturbations station

  9. Example break perturbations network

  10. 5) Insert inhomogeneities in stations • Correlated break in network • One break in 10 % of networks • In 30 % of the station simultaneously • Position random • At least 10 % of data points on either side

  11. Example correlated break

  12. 5) Insert inhomogeneities in stations • Outliers • Size • Temperature: < 1 or > 99 percentile • Rain: < 0.1 or > 99.9 percentile • Frequency • 50 % of networks: 1 % • 50 % of networks: 3 %

  13. Example outlier perturbations station

  14. Example outliers network

  15. 5) Insert inhomogeneities in stations • Local trends (only temperature) • Linear increase or decrease in one station • Duration: between 30 and 60a • Maximum size: Gaussian distribution, σ=0.8°C • Frequency: once in 10 % of the stations

  16. Example local trends

  17. 6) Published on the web • Inhomogeneous data are published on the COST-HOME homepage • Everyone is welcome to download and homogenize the data • http://www.meteo.uni-bonn.de/ venema/themes/homogenisation

  18. 7) Homogenize by participants • Return homogenised data • Should be in COST-HOME file format (next slide) • For real data including quality flags • Return break detection file • BREAK • OUTLI • BEGTR • ENDTR • Multiple breaks at one data possible

  19. Typical errors • The file format needs to be perfect! • Forgetting the station-file that describes which stations belong to the homogenised network • Changing the file names in this station file to homogeneous data files ► • (Forgetting to return the files with the quality flags) • The sizes of the breaks are not in the break file • Please, keep directory structure of the benchmark like it is, also for partial contributions • The only difference is the main directory • All files are tab-delimited ASCII files

  20. COST-HOME file format – network file

  21. Typical errors • The file format needs to be perfect! • Forgetting the station-file that describes which stations belong to the homogenised network • Changing the file names in this station file to homogeneous data files • (Forgetting to return the files with the quality flags) • The sizes of the breaks are not in the break file ► • Please, keep directory structure of the benchmark like it is, also for partial contributions • The only difference is the main directory • All files are tab-delimited ASCII files

  22. Detected breaks file

  23. Typical errors – see discussion • The file format needs to be perfect! • Forgetting the station-file that describes which stations belong to the homogenised network • Changing the file names in this station file to homogeneous data files • (Forgetting to return the files with the quality flags) • The sizes of the breaks are not in the break file • Please, keep directory structure of the benchmark like it is, also for partial contributions • The only difference is the main directory • All files are tab-delimited ASCII files ►

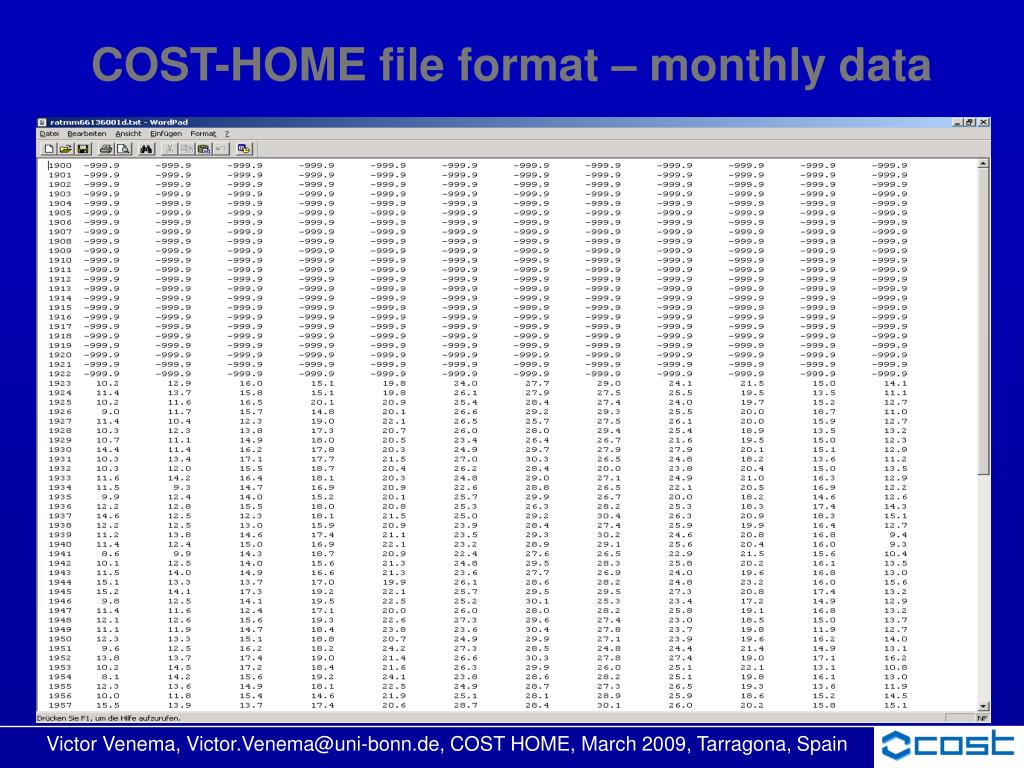

  24. COST-HOME file format – monthly data

  25. Contributions

  26. No. homogenised networks - algorithm

  27. No. homogenised networks – input data

  28. Mean no. outliers per station

  29. Mean no. breaks per station

  30. Homogenising the exercise • Tab-delimited files: also space-delimited? • Mixture of strings and numbers • Data quality files only for real data section • Do we want to use the Diurnal Temperature Range (DTR)? • Not useful for surrogate and synthetic data! • If we do, everyone should do it • End or begin uncorrected? • Compute statistics independent of absolute level? • Filling missing values part exercise? • Human quality control or raw algorithm output? • Homogenise all or homogenisable networks, times

  31. Contributions – who is missing?

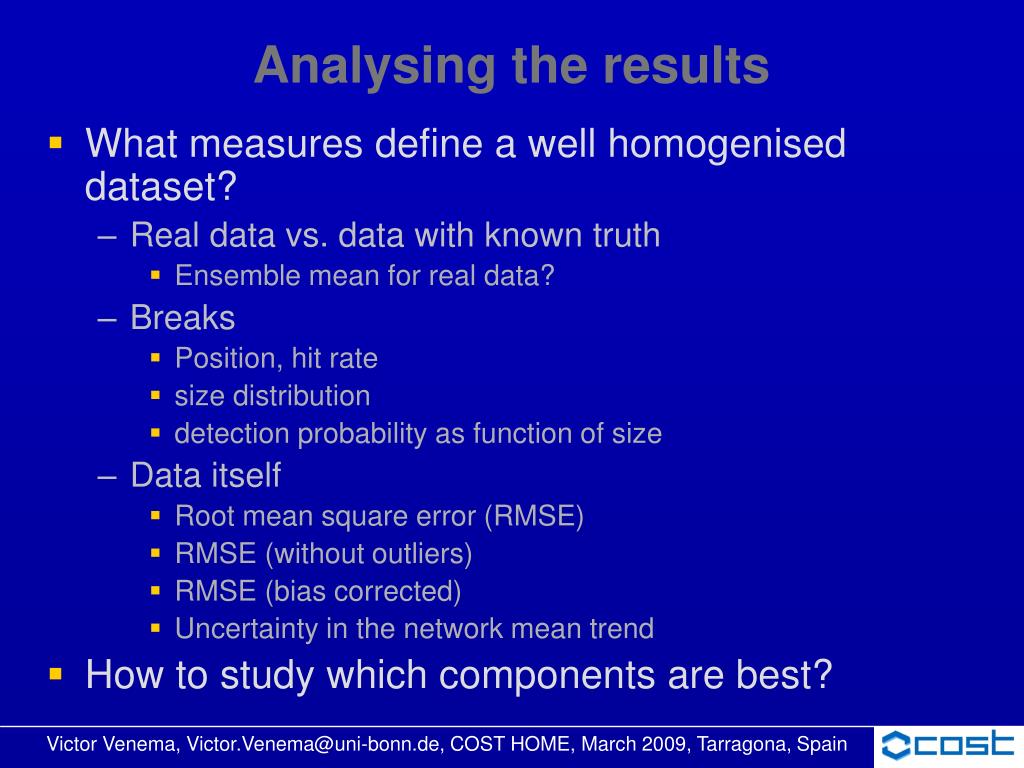

  32. Analysing the results • What measures define a well homogenised dataset? • Real data vs. data with known truth • Ensemble mean for real data? • Breaks • Position, hit rate • size distribution • detection probability as function of size • Data itself • Root mean square error (RMSE) • RMSE (without outliers) • RMSE (bias corrected) • Uncertainty in the network mean trend • How to study which components are best?

  33. Deadline(s) • Agreed on 09/2009, September this year • Multiple deadlines • For example: synthetic data, real data, surrogate data • After deadline the truth can be revealed • After deadline the other contributions can be revealed(?) • Start earlier analysing the results • For example: May, July, September • Bologna, 25 – 26 May, EGU, 19 – 24 April

  34. Articles • Articles • Overview COST Action & benchmark with very basic analysis results • Performance difference between synthetic (Gaussian, white noise) and surrogate data • How to deal multiple contributions per algorithm? • Do we have references to all algorithms? • What should the others be about • Analysing results, which components are best • Who will organise, coordinate it? • Not everyone should do the same analysis • How to subdivide the work? • After deadline: sensitivity analysis
