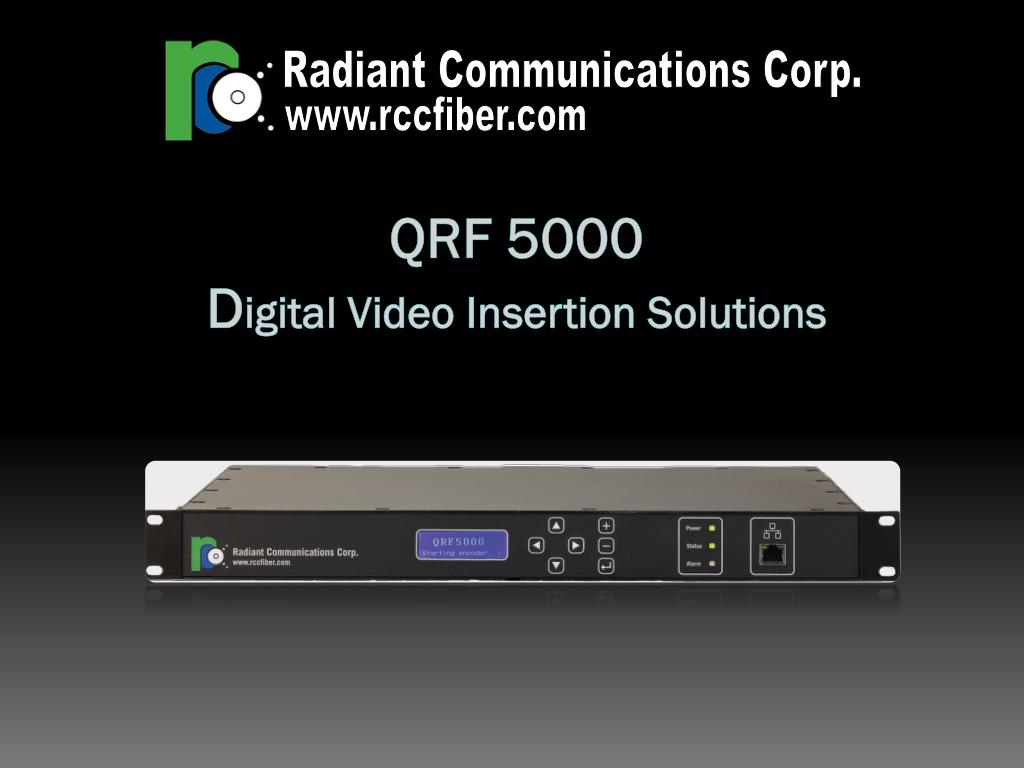

  1. Radiant Communications Corp. www.rccfiber.com QRF 5000Digital Video Insertion Solutions

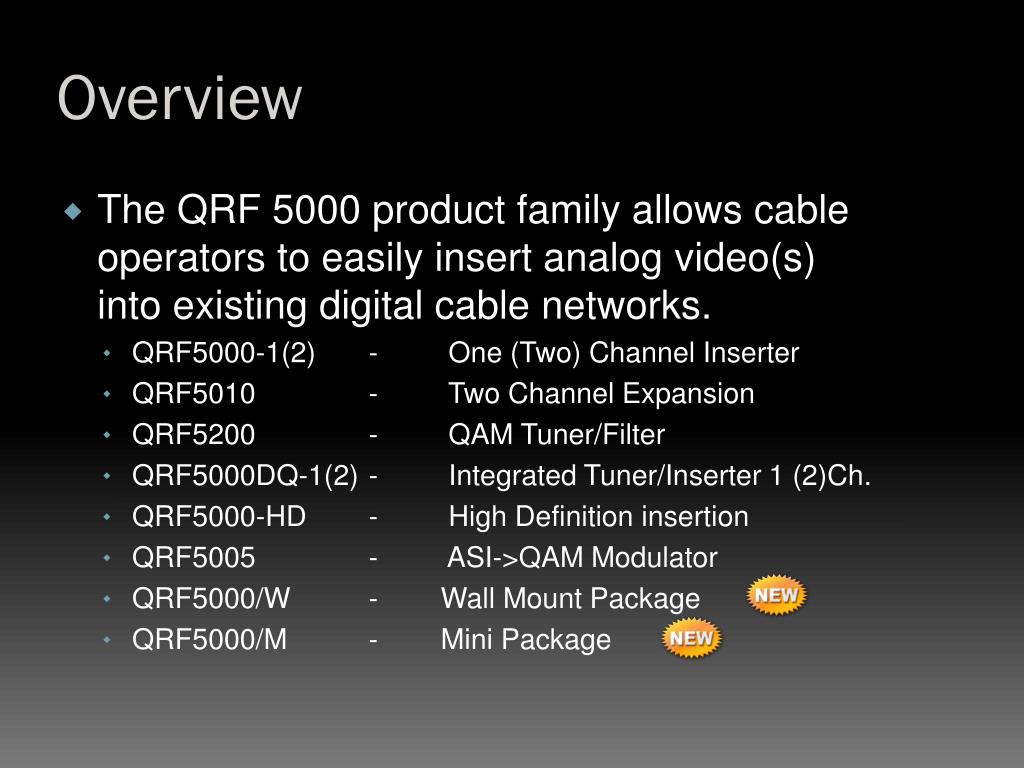

  2. Overview • The QRF 5000 product family allows cable operators to easily insert analog video(s) into existing digital cable networks. • QRF5000-1(2) - One (Two) Channel Inserter • QRF5010 - Two Channel Expansion • QRF5200 - QAM Tuner/Filter • QRF5000DQ-1(2) - Integrated Tuner/Inserter 1 (2)Ch. • QRF5000-HD - High Definition insertion • QRF5005 - ASI->QAM Modulator • QRF5000/W - Wall Mount Package • QRF5000/M - Mini Package

  3. QRF5000-1 / QRF5000-2 • One or two channel inserter • Single Box Solution – Includes: • Encoder(s) • QAM • RF up-converter • Front Panel LCD • Network Interface • RS-232 Interface

  4. QRF5000-1 / QRF5000-2 (cont.) • Easy Connectivity Connect Video and Audio Sources Connect Power Connect Expansion port (if used) Connect Output to Cable Network

  5. Network Connectivity Notch * Coupler Cable In Cable Out QRF5000 * Notch Required only if desired channel is currently utilized

  6. QRF5010 • Two channel daisy chain expansion encoder • Single Box Solution – Includes: • Encoders • Front Panel LCD • Network Interface • RS-232 Interface • Expansion capability limited only by accumulated encoding bit rates and QAM rate

  7. QRF5010 (cont.) • Daisy Chain for increased capacity QRF5000 QRF5010 QRF5010 QRF5010

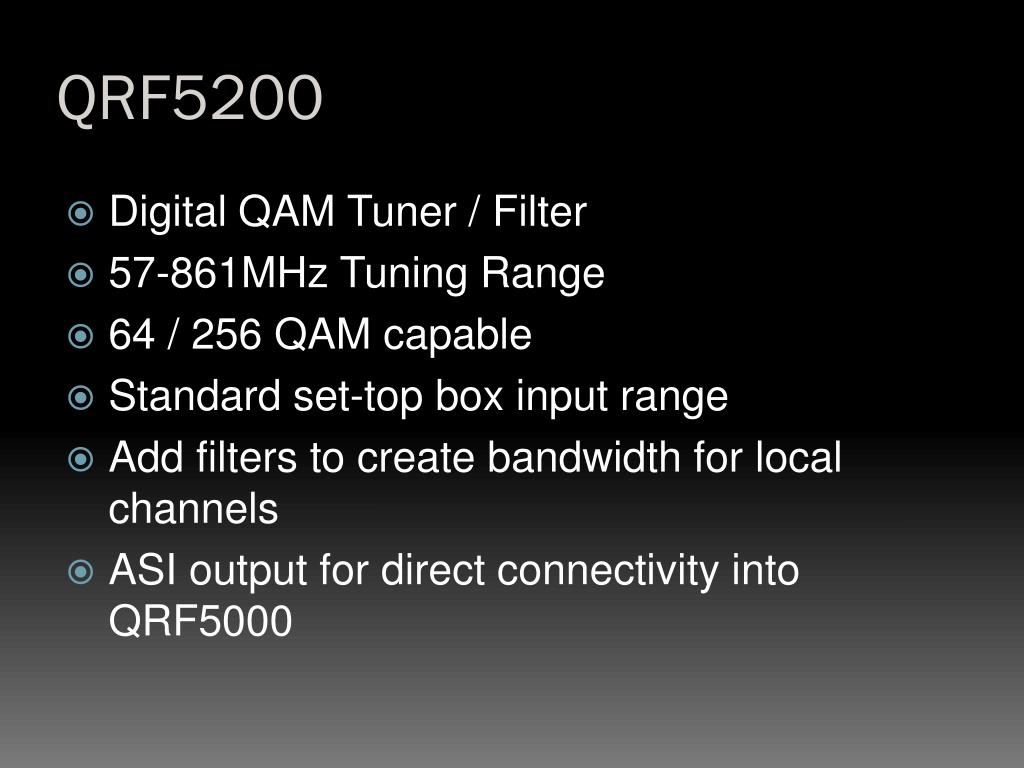

  8. QRF5200 • Digital QAM Tuner / Filter • 57-861MHz Tuning Range • 64 / 256 QAM capable • Standard set-top box input range • Add filters to create bandwidth for local channels • ASI output for direct connectivity into QRF5000

  9. QRF5200 Connectivity QRF5200 ASI output to QRF5000 / QRF5010 Cable In • Connect Cable from plant to QRF5200 • Tune QRF5200 to digital QAM channel • Use QRF5200 to see active services • Use QRF5200 to filter unwanted services to create bandwidth for local insertion • QRF5200 outputs directly to QRF5000 or QRF5010

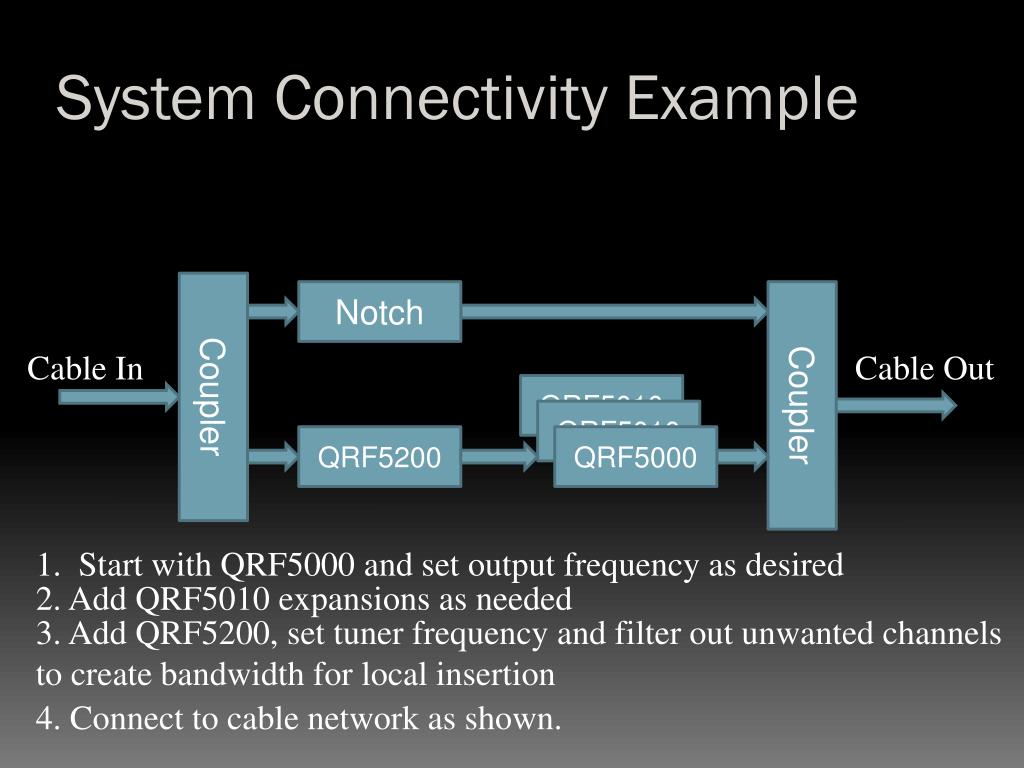

  10. System Connectivity Example Coupler Notch Coupler Cable In Cable Out QRF5010 QRF5010 QRF5200 QRF5000 1. Start with QRF5000 and set output frequency as desired 2. Add QRF5010 expansions as needed 3. Add QRF5200, set tuner frequency and filter out unwanted channels to create bandwidth for local insertion 4. Connect to cable network as shown.

  11. QRF5000DQ-1 / QRF5000DQ-2 • Single Box solution combines: • Digital QAM Tuner • Digital Service Filter • Local Video / Audio Encoder(s) • QAM Modulation • Agile RF Up-conversion • Maintains ASI expansion port for adding more channels via QRF5010.

  12. System Connectivity –QRF5000DQ Coupler Coupler Notch Cable In Cable Out QRF5000DQ • Simplifies system connectivity by integrating multiple functions into one product. • Notch remains separate to maintain frequency flexibility • Additional channels can still be added using QRF5010’s as required.

  13. QRF5000/W Wall Mount • New Rugged Wall mount package includes the following features: • 1 or 2 channels, with Tuner • Mount for integrated notch filter • Integrated couplers and splitters • Optional Integrated Bypass switch • Input and Output test ports • Cable modem port • Lockable cabinet

  14. QRF5000/W Wall mount

  15. QRF5000/M Mini enclosure • Cost effective, small enclosure • 1 or 2 channels with tuner (DQ) optional • Tiny, lightweight package - 7” x 3” x 9” • Front Panel indicators • Power, Status, Alarm • Network controlled and configured

  16. QRF5000/W Wall mount

  17. QRF5000 Configuration • Front Panel • RS232 Serial Interface • Telnet • REP Manager - Application GUI

  18. QRF5000-HD • High Definition digital insertion • Single Box solution combines: • IEEE-1394 (Firewire) STB interface • QAM Modulation • Agile RF Up-conversion

  19. System Connectivity –QRF5000-HD Coupler Coupler Notch Cable In Cable Out STB QRF5000HD • Tune STB to High Definition channel for decryption. • Connect IEEE-1394 port to QRF5000HD • Modulate into system for clear channel HD distribution

  20. QRF5005 • ASI – QAM Modulation • Single Box solution combines: • Digital ASI interface • QAM Modulation • Agile RF Up-conversion

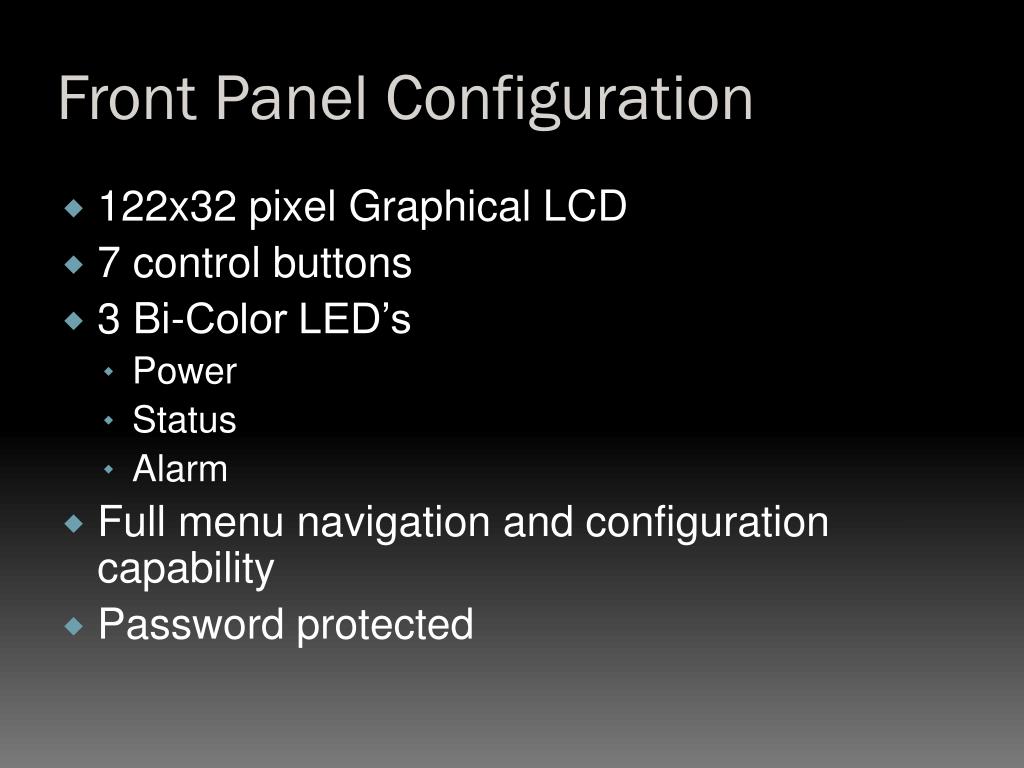

  21. Front Panel Configuration • 122x32 pixel Graphical LCD • 7 control buttons • 3 Bi-Color LED’s • Power • Status • Alarm • Full menu navigation and configuration capability • Password protected

  22. REP Manager • Discover Utility • Remote Configuration • Remote status monitoring • Handles multiple units simultaneously • Utilizes configuration files for saving and loading system settings.

  23. REP Manager – screen shots

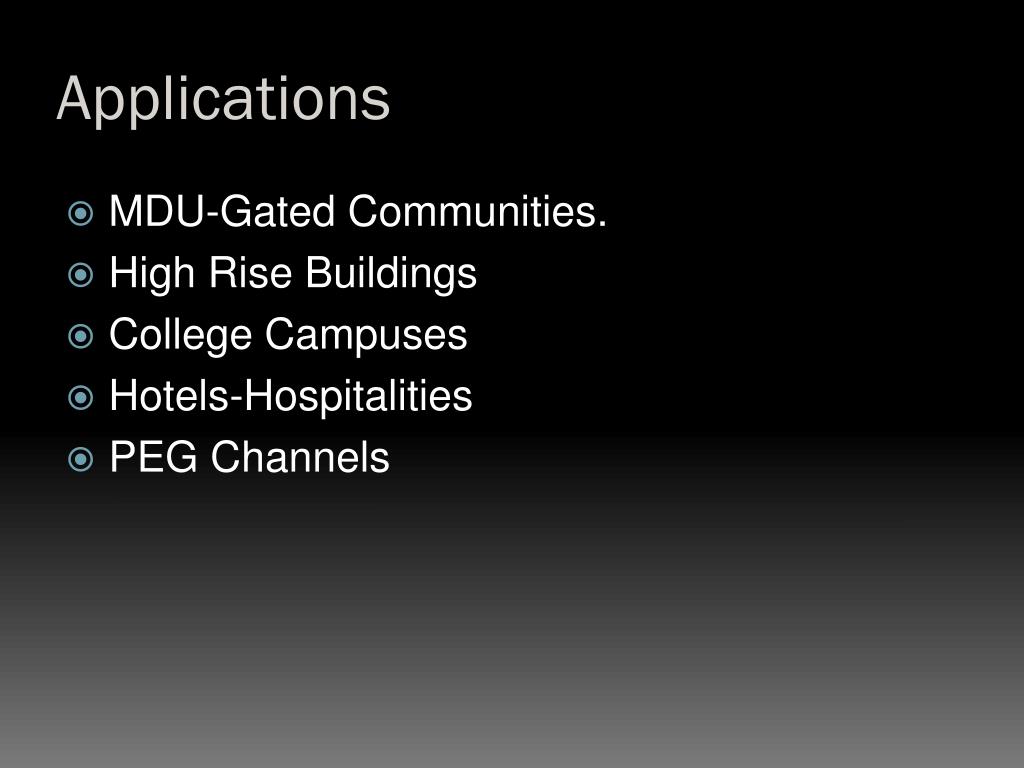

  24. Applications • MDU-Gated Communities. • High Rise Buildings • College Campuses • Hotels-Hospitalities • PEG Channels

  25. Specifications • Encoding: • MPEG2 • 1-15Mbps CBR encoding range • Composite or S-Video Inputs • Variable PID selections • Modulation • QAM 64/256 Annex A,B,C • Adjustable Inter-leaver • RF Output • Agile RF up-conversion • 46-62dBmV output power • 93-876MHz output frequency • Tuner • 57-861MHz Tuning Range • 64 / 256 QAM capable • 0 dBmv nominal input +/- 12dB input range

  26. Availability • Contact factory for pricing and availability • Radiant Communications, Inc. 5001 Hadley Road South Plainfield, NJ 07080 (908) 757-7444 www.rccfiber.com
