Compressor Replacement – ODU

Compressor Replacement – ODU. Open the Discharge Valve to release the Refrigerant from AC completely. Remove Control Board Cover plate ( 1 Screw) & Disconnect the IDU & ODU Connection. Remove the locking Screws of Top cover (8 Screw).

nitza
Télécharger la présentation

Compressor Replacement – ODU

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

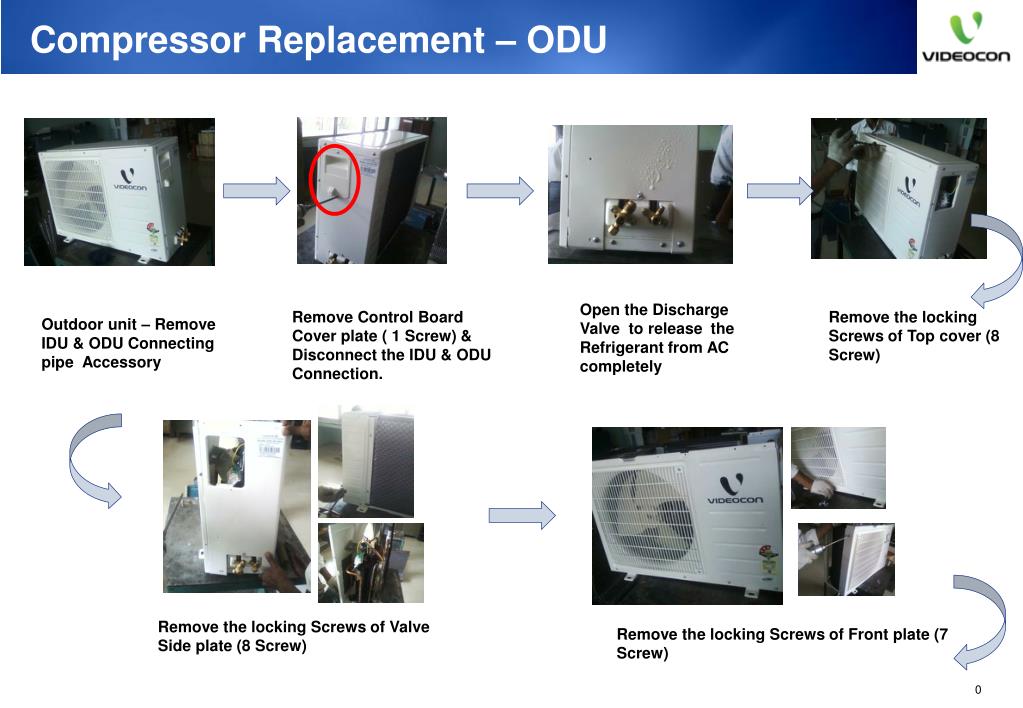

  1. Compressor Replacement – ODU Open the Discharge Valve to release the Refrigerant from AC completely Remove Control Board Cover plate ( 1 Screw) & Disconnect the IDU & ODU Connection. Remove the locking Screws of Top cover (8 Screw) Outdoor unit – Remove IDU & ODU Connecting pipe Accessory Remove the locking Screws of Valve Side plate (8 Screw) Remove the locking Screws of Front plate (7 Screw)

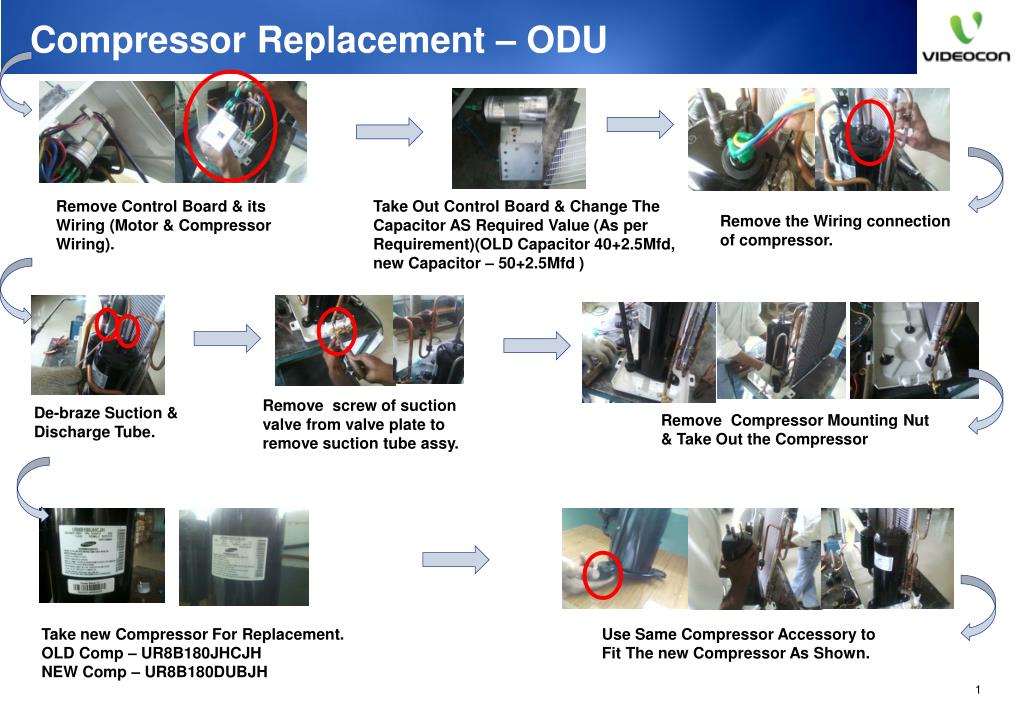

  2. Compressor Replacement – ODU Remove Control Board & its Wiring (Motor & Compressor Wiring). Take Out Control Board & Change The Capacitor AS Required Value (As per Requirement)(OLD Capacitor 40+2.5Mfd, new Capacitor – 50+2.5Mfd ) Remove the Wiring connection of compressor. Remove screw of suction valve from valve plate to remove suction tube assy. De-braze Suction & Discharge Tube. Remove Compressor Mounting Nut & Take Out the Compressor Take new Compressor For Replacement. OLD Comp – UR8B180JHCJH NEW Comp – UR8B180DUBJH Use Same Compressor Accessory to Fit The new Compressor As Shown.

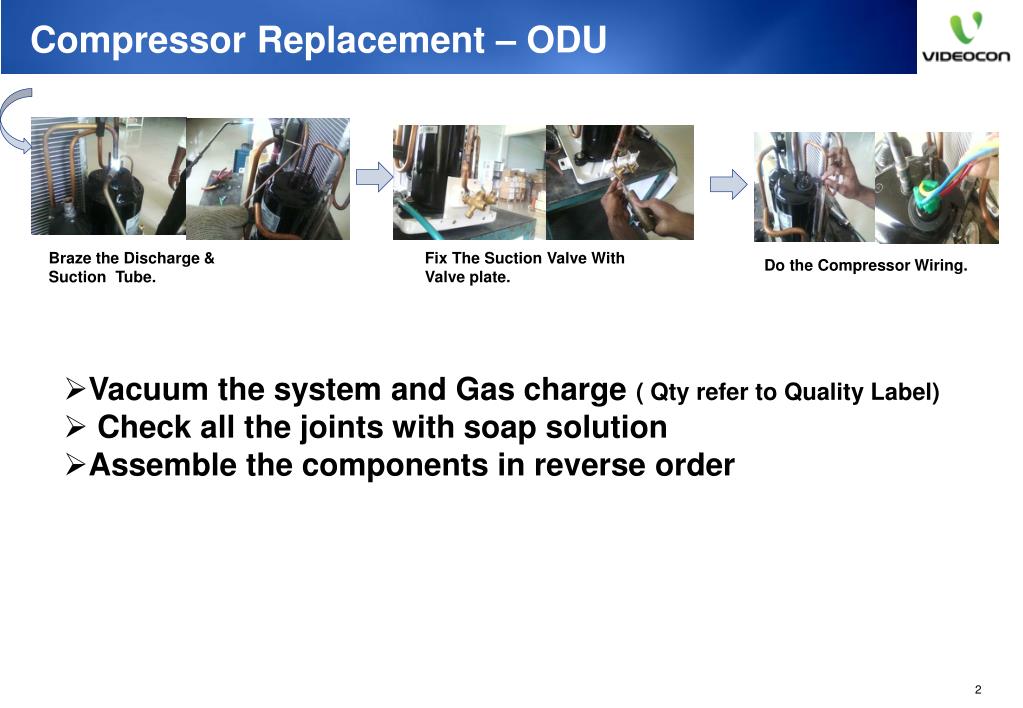

  3. Compressor Replacement – ODU Braze the Discharge & Suction Tube. Fix The Suction Valve With Valve plate. Do the Compressor Wiring. • Vacuum the system and Gas charge ( Qty refer to Quality Label) • Check all the joints with soap solution • Assemble the components in reverse order
