  1. Analytical Modeling of RF Noise in MOSFETs – A Review S. Asgaran and M. Jamal Deen Electrical and Computer Engineering, CRL 226 McMaster University, Hamilton, ON L8S 4K1, Canada jamal@mcmaster.ca

  2. RF Performance of MOSFETs • DUTs are fabricated in 0.18mm CMOS technology and measured at VDS = 1V • Maximum fT is around 50 GHz and the best NFmin is about 0.5 dB at 2 GHz

  3. Noise in MOSFETs

  4. distance Why Does Noise Matter The battery life time and the distancebetween the wireless components will be limited by the noise floor of the front-end amplifier.

  5. Outline • Introduction • Noise sources • RF MOSFET noise models: long and short channel – only explicit analytical models are discussed • Induced gate noise • Applications of models to design • Conclusions

  6. Introduction • Why CMOS for RF? • Low cost • High integration • Integration with digital IC (SoC) • Technology advancement • higher frequencies J.C. Rudell, J-J. Ou, T.B. Cho, G. Chien, F. Brianti, J.A. Weldon, P.R. Gray, A 1.9-GHz wide-band IF double conversion CMOS receiver for cordless telephone applicationsIEEE Journal of Solid-State Circuits, Vol. 32, pp. 2071-2088, Dec. 1997

  7. SiD: Channel noise + flicker noise SiG: Induced gate noise SiR: Thermal noise of real resistances SvRG RG G CGS CGB SiG CGD Im Ims RD RS S D SiRS SiD SiRD RDS CBS CBD RDSB SiRDSB SiRSB RSB RDB SiRDB B B Noise Sources in MOSFET 88% 0.25mm technology SiD ~ Lch-1 RSUB ~20% total Sin RG ~5% total Sin L=0.18 mm, f=3 GHz A.J. Scholten et al, Noise modeling for RF CMOS circuit simulation, IEEE Trans. Electron Devices, Vol. 50, pp. 618- 632, Mar. 2003. C. Enz, An MOS transistor model for RF IC design valid in all regions of operation IEEE Trans. Microwave Theory Tech., Vol. 50, pp. 342-359, Jan. 2002. ~20% discrepancy for 0.18mm, low f SiD increases with f in 2mm FET No dependence on VDS in saturation

  8. Noise Models- Long Channel Case • Klaassen-Prins: • Integrating the noise current over the entire channel • Van der ziel: • Includes hot electron effects • Te: a function of E(x) • Tsividis: • Simpler model

  9. 20 VGS=0.7, 0.9, 1.1, 1.3, 1.9V VDS=2.5V 16 12 G iD (Amp/Hz1/2) 8 4 D S (I) (II) Lsat,VDSat DL 0 0 2 4 6 8 10 12 Leff,VDS Channel Length (mm) Noise Models - Short Channel • Increased noise in short channel devices • A divided channel is used • Linear region (GCA) • Velocity saturation region; thermal assumption questionable P. Klein, An analytical thermal noise model of deep submicron MOSFET’s, IEEE Electron Dev. Letters, Vol. 20, pp. 399-401, Aug. 1998. vsat~107cm/s t~4.3ps SID ~ indep. of VDS

  10. 10-21 Measurement Total noise Region I noise 10-22 Drain Current Noise (Amp2/Hz) Region II noise 10-23 VDS=4V 10-24 0 1 2 3 4 5 6 VGS (V) RF MOSFET Noise Models Triantis et al • is questionable!gDSis not constant • Te: in both parts of the channel • thermal noise source in vel. sat. region: questionable!DrD is an ac resistance • Old measurements (Abidi, ‘86) used • SID ~ indep. of VDS (< 1.5x) W=30mm; L=0.7mm D.P. Triantis, A.N. Birbas and D. Kondis, Thermal noise modeling for short-channnel MOSFET’s, IEEE Trans. Electron Devices, Vol. 43, no. 11, pp.1950-1955, Nov. 1996. Note: Region II noise increases with VGS; device is less saturated Note: Calculations > measurements

  11. 10-21 Total noise - Triantis Park & Park Measurement Region II noise Park & Park 10-22 Region I noise Triantis Drain Current Noise (Amp2/Hz) Region I noise Park & Park 10-23 VDS=4V Region II noise Triantis 10-24 5 1 2 4 3 VGS (V) RF MOSFET Noise Models Park and Park • Mobility degradation due to channel field absent • Carrier temperature, Te, used to model hot carrier effects • Noise of VS region: intrinsic diffusion noise • SiD=g2DS×(SvI+SvII) - questionable! • Measurements (Abidi, ‘86) • Temp: • d~5-20 for EC=2-4V/mm C.H. Park and Y.J. Park, Modeling of thermal noise in short-channel MOSFETs at saturation, Solid-State Electronics, Vol. 44, pp. 2053-2057, 2000.

  12. G (I) D S (II) DL Lsat,VDSat Leff,VDS RF MOSFET Noise Models Knoblinger et al • Te: in both parts of channel • Te: • meff=v(x)/E(x) in both parts of the channel: wrong! G. Knoblinger, P. Klein & H. Tiebout, A new model for thermal channel noise of deep-submicron MOSFETs and its application in RF-CMOS design, IEEE J. Solid-State Cir., vol. 36, pp. 831-7, May 2001. d~1.0 and noise from region Ia (T=lattice temperature) gave better fit to data at VGS>1.5V

  13. RF MOSFET Noise Models Scholten et al • CLM not taken into account Te is not needed! A.J. Scholten et al, Accurate thermal noise model for deep-submicron CMOS, IEDM Tech. Digest, pp. 155-158, 1999.

  14. RF MOSFET Noise Models Chen & Deen • Channel length modulation (CLM) is accounted for • d=0 in experiments • no Te needed • No noise from VS region C.H. Chen and M.J. Deen, Channel noise modeling of deep submicron MOSFETs, IEEE Trans. Electron Devices, vol. 49, pp. 1484-1487, Aug. 2002.

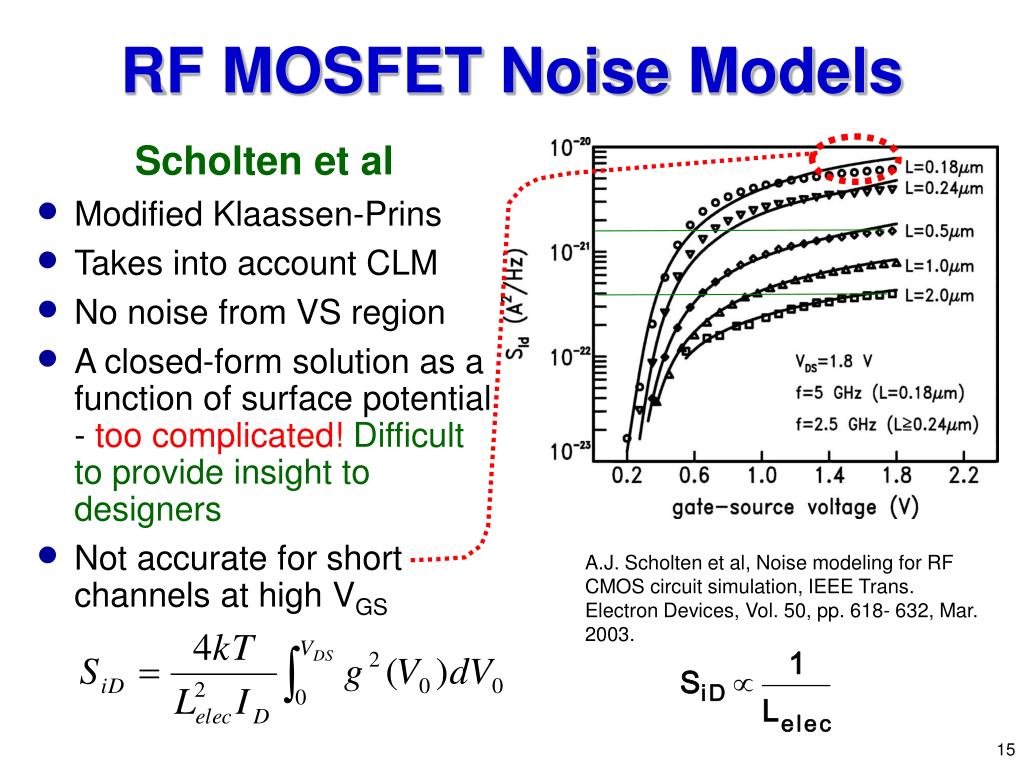

  15. RF MOSFET NoiseModels Scholten et al • Modified Klaassen-Prins • Takes into account CLM • No noise from VS region • A closed-form solution as a function of surface potential - too complicated! Difficult to provide insight to designers • Not accurate for short channels at high VGS A.J. Scholten et al, Noise modeling for RF CMOS circuit simulation, IEEE Trans. Electron Devices, Vol. 50, pp. 618- 632, Mar. 2003.

  16. RF MOSFET Noise Models Han et al. • Considers the channel field effect on mobility • Starts from impedance field theory • Uses Einstein equation in MOSFET channel : questionable! MOSFET channel is degenerate in strong inversion • The result is based on thermal noise theory K. Han, H.Shin and K. Lee, Analytical Drain Thermal Noise Current Model Valid for Deep Submicron MOSFETs, IEEE Trans. Electron Devices, vol. 51, pp. 261-269, Feb. 2004.

  17. RF MOSFET Noise Models Dashed line is without this term K. Han, H.Shin and K. Lee, Analytical Drain Thermal Noise Current Model Valid for Deep Submicron MOSFETs, IEEE Trans. Electron Devices, vol. 51, pp. 261-269, Feb. 2004.

  18. G D S (I) (II) Lelec DL Leff,VDS RF MOSFET Noise Models Analytical Model • Based on simple analytical drain current expression • Includes the channel field effect • Purely analytical (no integration, etc.) • Suitable for circuit design

  19. RF MOSFET Noise Models model Analytical model Analytical model B. Wang, J.R. Hellums and C.G. Sodini, MOSFET thermal noise modeling for analog integrated circuits, IEEE JSSC vol. 29, pp. 833-835, July 1994.

  20. RF MOSFET Noise Models • Noise and scaling • For very short channel devices

  21. CGS Did(xo) Induced Gate Noise • Induced gate noise at x in channel where • Induced gate noise Dig(xo) is fully correlated with the channel thermal noise Did (xo) • VDS becomes VDSsat in the saturation mode

  22. SIG and Correlation Noise • MOSFET channel- RC network at high f • Gate capacitance and channel R • Channel noise coupled to the gate→ SIG, correlation noise • Frequency dependent • Negligible as the channel length shrinks 8×10-23 L=0.97 mm 1×10-22 L=0.64 mm L=0.97 mm 6×10-23 L=0.42 mm 1×10-23 L=0.27 mm L=0.64 mm Correlation Noise(A2/Hz) 4×10-23 SiG (A2/Hz) L=0.18 mm L=0.42 mm 1×10-24 2×10-23 L=0.27 mm L=0.18 mm 0 1×10-25 2 4 5 6 1 3 1 10 Frequency (GHz) Frequency (GHz) M.J. Deen, C.H. Chen and Y. Cheng, MOSFET Modeling for Low Noise, RF Circuit Design, Proceedings of IEEE CICC, pp. 201-208, May 2002

  23. NFmin gm,max Choosing Device Size • Channel length of devices reduced • Increased gm and peak value of gm occurs at lower VGS values • The faster increase in gm results in • Reduced NFmin and the lowest NFmin is shifted to lower VGS values

  24. gm Choosing DC Bias Conditions • Higher VDS bias will increase gm at the higher VGS region • Higher gm will decrease NFmin at higher VGS region • Decreased NFmin at higher VGS makes lowest NFmin less sensitive to VGS NFmin

  25. Concluding Remarks • MOSFET channel noise analytical models discussed • Long channel case • Short channel case • Some ideas on how to use noise to design circuits • Future applications demand low power • MOSFET in moderate or weak inversion • Noise models needed in these regions

  26. Acknowledgements • Professor C.H. Chen (McMaster University) • Dr. Y. Cheng (Conexant/Skyworks) • Funding - Rockwell/Conexant/Skyworks, USA and Gennum, Canada • Funding - NSERC of Canada • Funding - Micronet • Funding - Canada Research Chair Program
