11.2 Areas of Triangles, Trapezoids, and Rhombi

11.2 Areas of Triangles, Trapezoids, and Rhombi. Objectives. Find areas of triangles. Find areas of trapezoids and rhombi. Area of a Triangle. If a triangle has an area of A square units, a base of b units, and a corresponding height of h units, then A=½ bh. Example 1.

nora
Télécharger la présentation

11.2 Areas of Triangles, Trapezoids, and Rhombi

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 11.2 Areas of Triangles, Trapezoids, and Rhombi

  2. Objectives • Find areas of triangles. • Find areas of trapezoids and rhombi.

  3. Area of a Triangle • If a triangle has an area of A square units, a base of b units, and a corresponding height of h units, then A=½bh.

  4. Example 1 Find the area of quadrilateral XYZW if XZ=39, HW=20, and YG=21. The area of the quadrilateral is equal to the sum of the areas of triangle XWZ and triangle XYZ. area of XYZW= area of triangle XYZ+ area of triangle XWZ

  5. Ex. 1 continued.. =½bh₁ + ½bh₂ =½(39)(21) + ½(39)(20) =409.5 + 390 =799.5

  6. Areas of Trapezoids • If a trapezoid has an area of A square units, bases of b₁ units and b₂ units, and a height of h units, then A=½h(b₁ + b₂).

  7. Example 2 Find the area of the trapezoid. h=7, b₁=9, and b₂=11

  8. Ex. 2 continued.. = ½(7)(9+11) =½(7)(20) =½(140) =70

  9. Area of a Trapezoid on the Coordinate Plane Find the area of trapezoid TVWZ with vertices T(-3,4), V(3,4), W(6,-1), and Z(-5,-1). • Bases: Since TV and ZW are horizontal, find their length by subtracting the x-coordinates of their endpoints. • Height: Because the bases are horizontal segments, the distance between them can be measured on a vertical line. That is, subtract the y-coordinates.

  10. Coordinates cont.. =½h(b₁ + b₂) =½(5)(6+11) =½(5)(17) =½(85) =42.5

  11. Area of a Rhombus If a rhombus has an area of A square units and diagonals of d₁ and d₂ units, then A=½d₁d₂. Ex. A=½(AC)(BD)

  12. Example 3 Find the area of the rhombus. d₁=12, d₂=6

  13. Example 3 cont.. =½(12)(6) =½(72) =36

  14. Area of a rhombus on a coordinate plane Find the area of rhombus EFGH with vertices at E(-1,3), F(2,7), G(5,3), and H(2,-1). Plan: • Find the lengths of each diagonal. • Let EG be d₁ and FH be d₂. • Subtract the x-coordinates of E and G to find that d₁ is 6. • Subtract the y-coordinates of F and H to find that d₂ is 8.

  15. Coordinates cont.. =½(6)(8) =½(48) =24

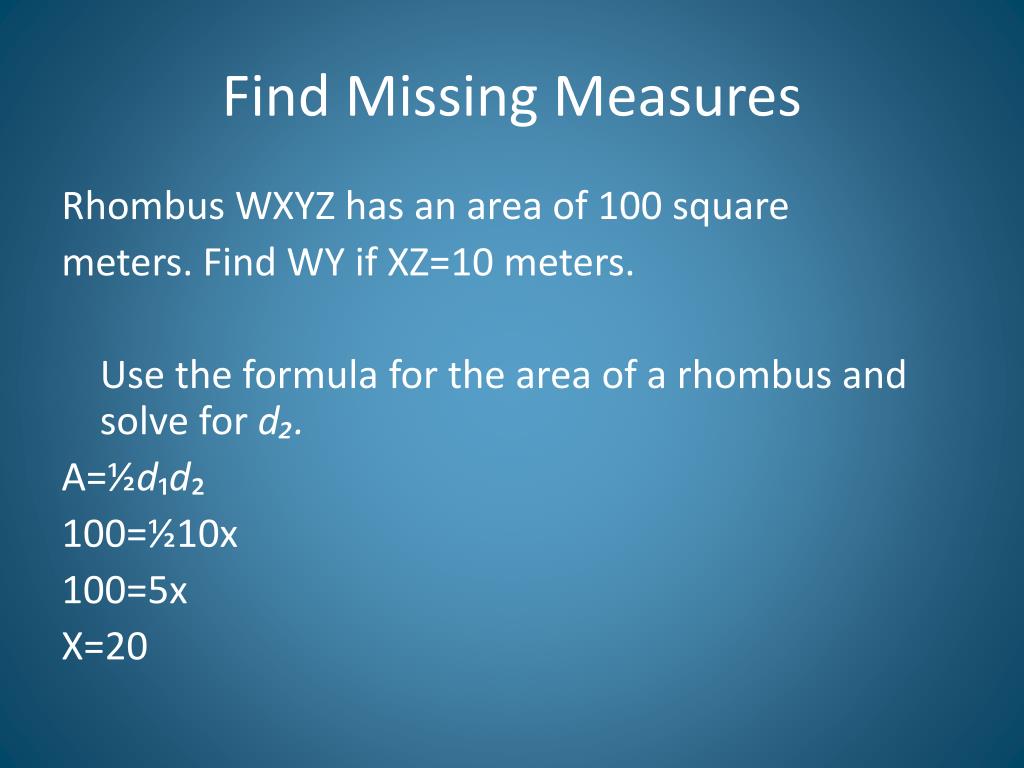

  16. Find Missing Measures Rhombus WXYZ has an area of 100 square meters. Find WY if XZ=10 meters. Use the formula for the area of a rhombus and solve for d₂. A=½d₁d₂ 100=½10x 100=5x X=20

  17. Postulate 11.1 • Congruent figures have equal areas.

  18. Assignment • Pre-AP Geometry: pg. 606 #13-22, 26, 30-35 • Geometry: umm NO.
