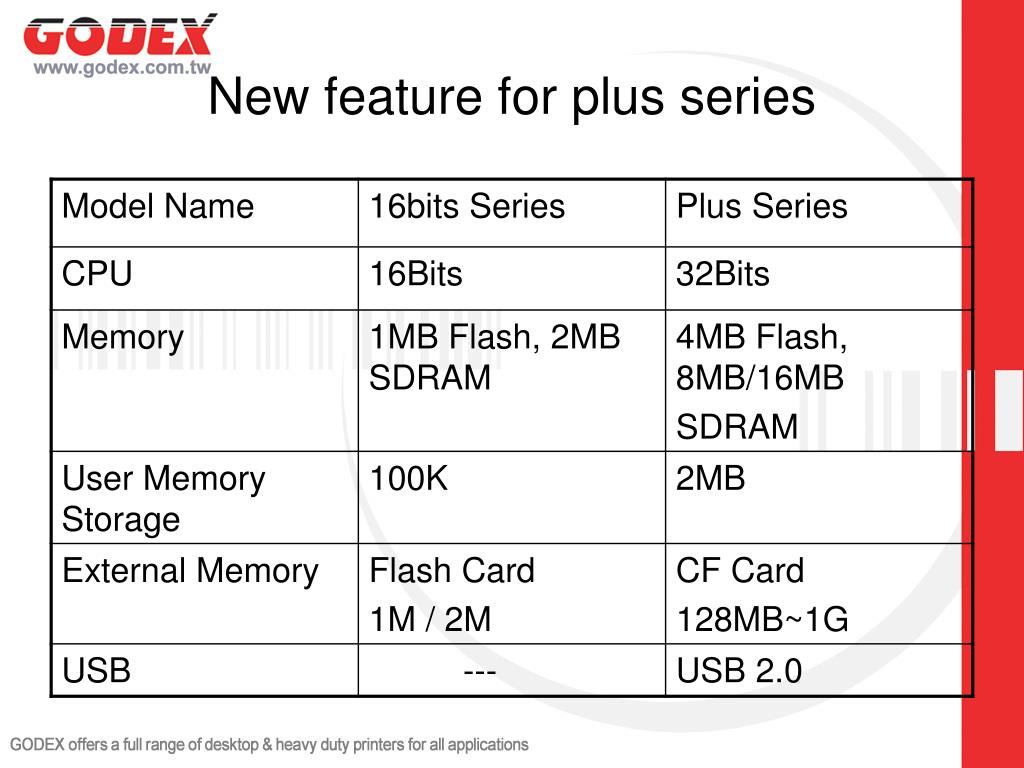

New feature for plus series. New feature for plus series. New feature for plus series. Double Buffer. Benefit of double buffer Double Buffer (Plus Series) Almost no delay in several objects printing . Single Buffer(16 Bits) Delay in several objects printing.

nora
Télécharger la présentation

New feature for plus series

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

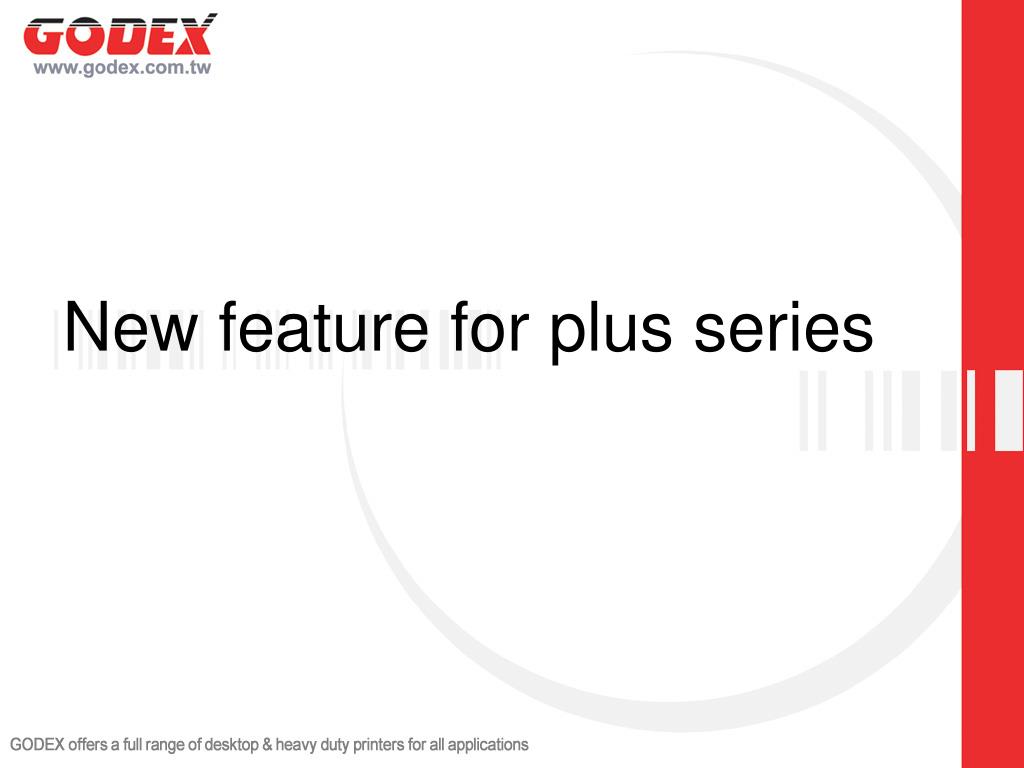

  1. New feature for plus series

  2. New feature for plus series

  3. New feature for plus series

  4. Double Buffer • Benefit of double buffer • Double Buffer (Plus Series) Almost no delay in several objects printing . • Single Buffer(16 Bits) Delay in several objects printing.

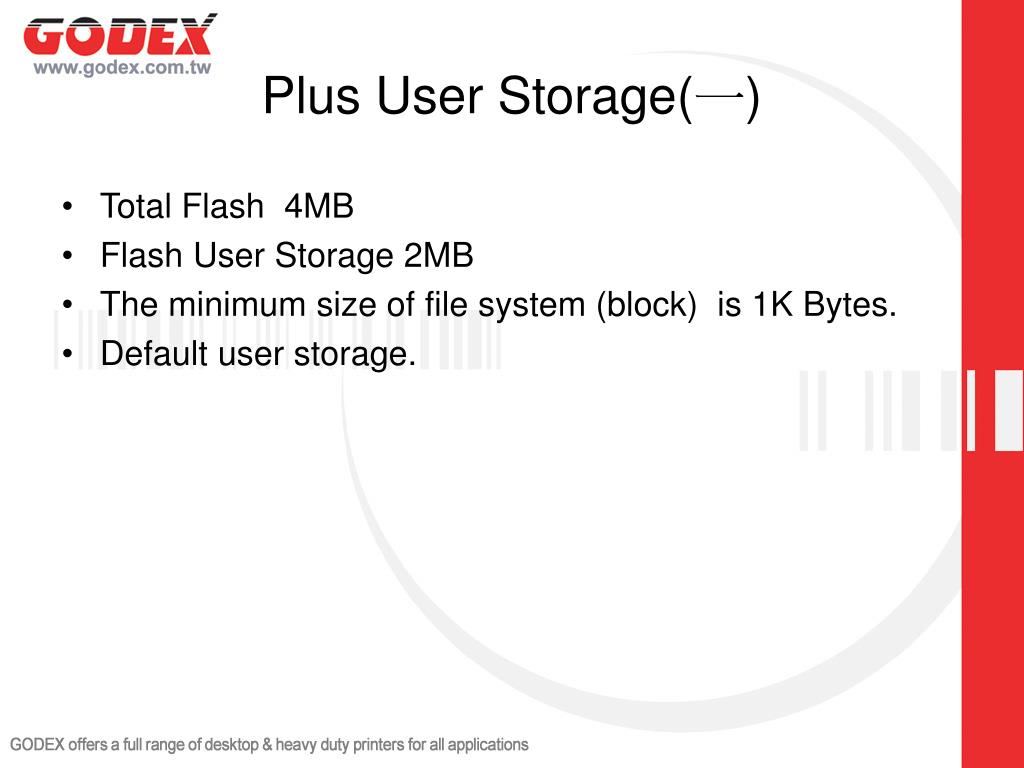

  5. Plus User Storage(一) • Total Flash 4MB • Flash User Storage 2MB • The minimum size of file system (block) is 1K Bytes. • Default user storage.

  6. Plus User Storage(二) • CF Card-- Support 128MBytes~1GBytes CF card (FAT 16) • Auto detect CF Card , if it exist the user storage is CF Card.

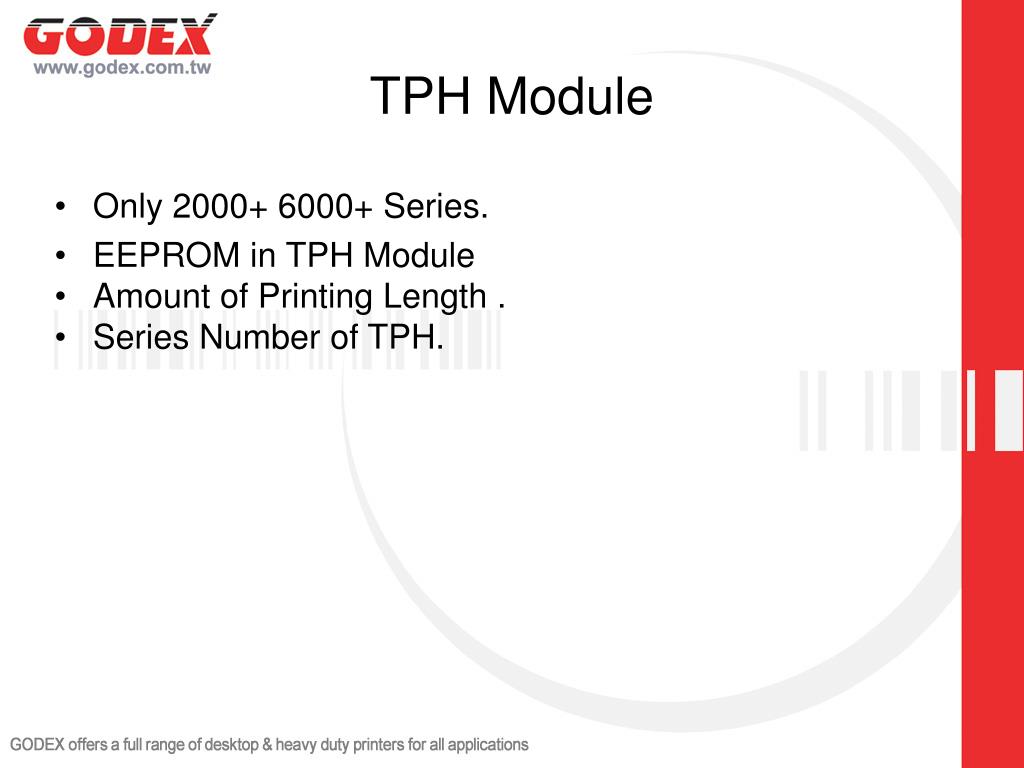

  7. TPH Module • Only 2000+ 6000+ Series. • EEPROM in TPH Module • Amount of Printing Length . • Series Number of TPH.

  8. TPH Quality Detect • Provide command to detect electric resistance of TPH. • Information on LCD / RS232.

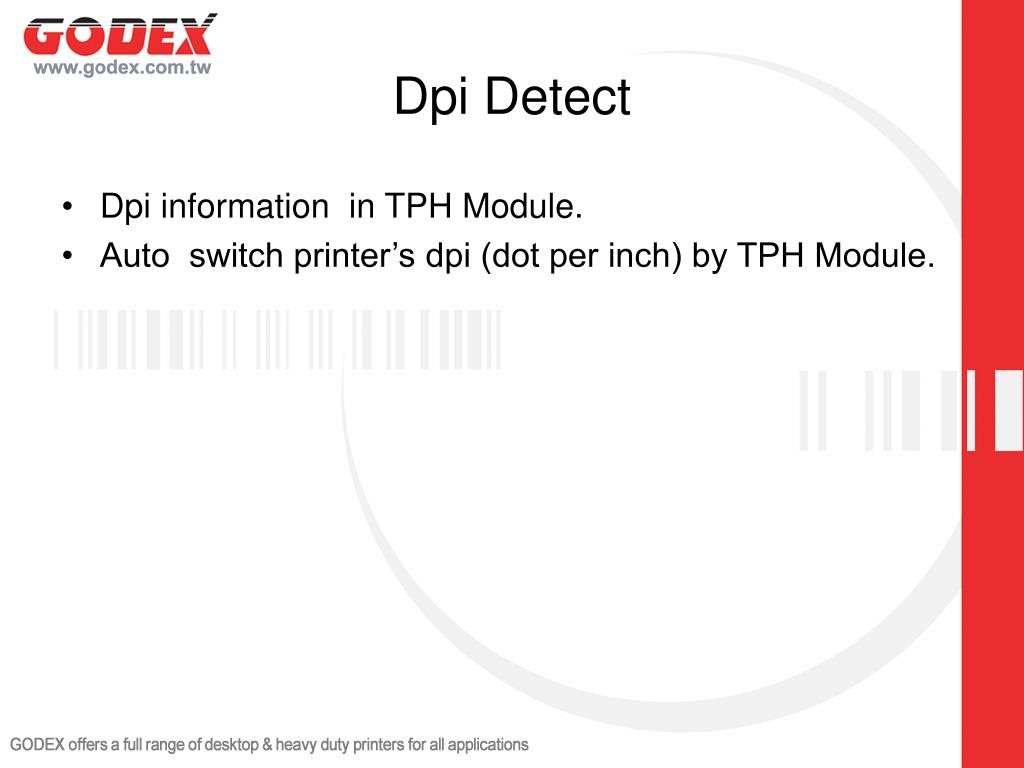

  9. Dpi Detect • Dpi information in TPH Module. • Auto switch printer’s dpi (dot per inch) by TPH Module.

  10. ElectricalBlock diagram of the plus platform

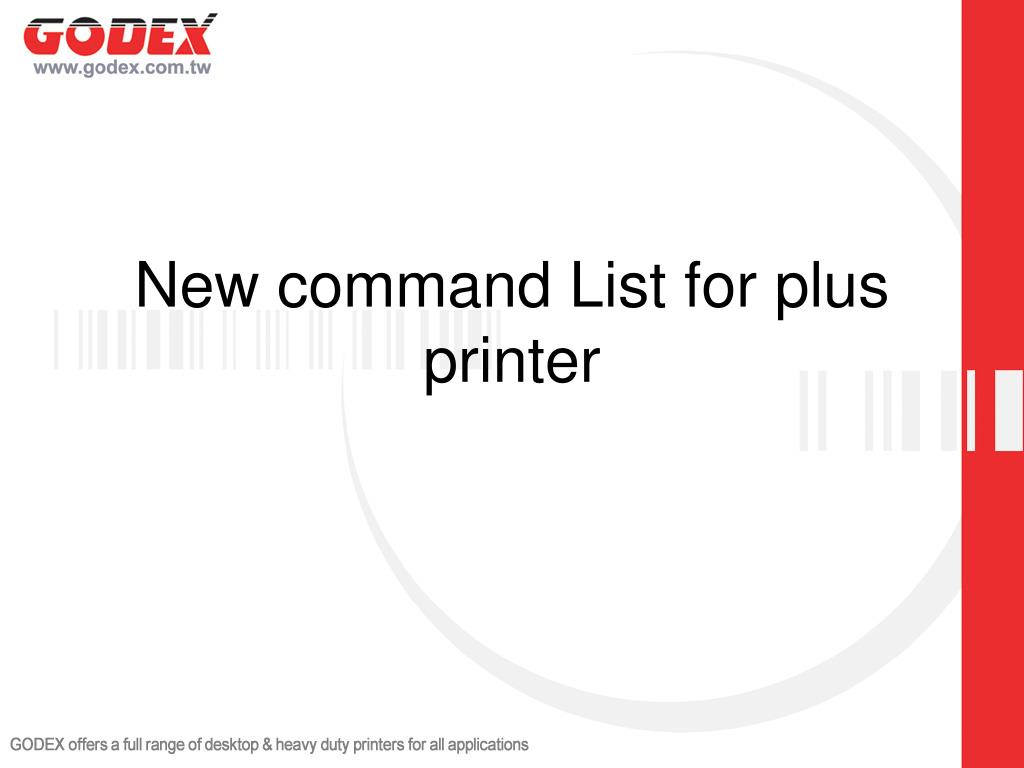

  11. New command List for plus printer

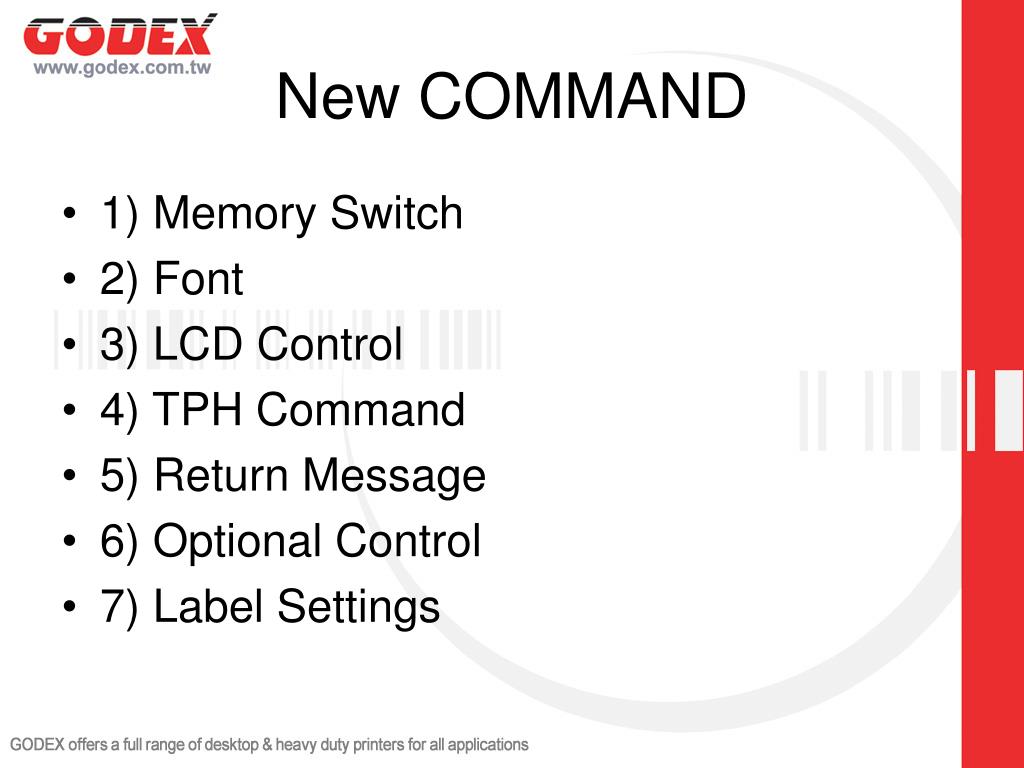

  12. New COMMAND • 1) Memory Switch • 2) Font • 3) LCD Control • 4) TPH Command • 5) Return Message • 6) Optional Control • 7) Label Settings

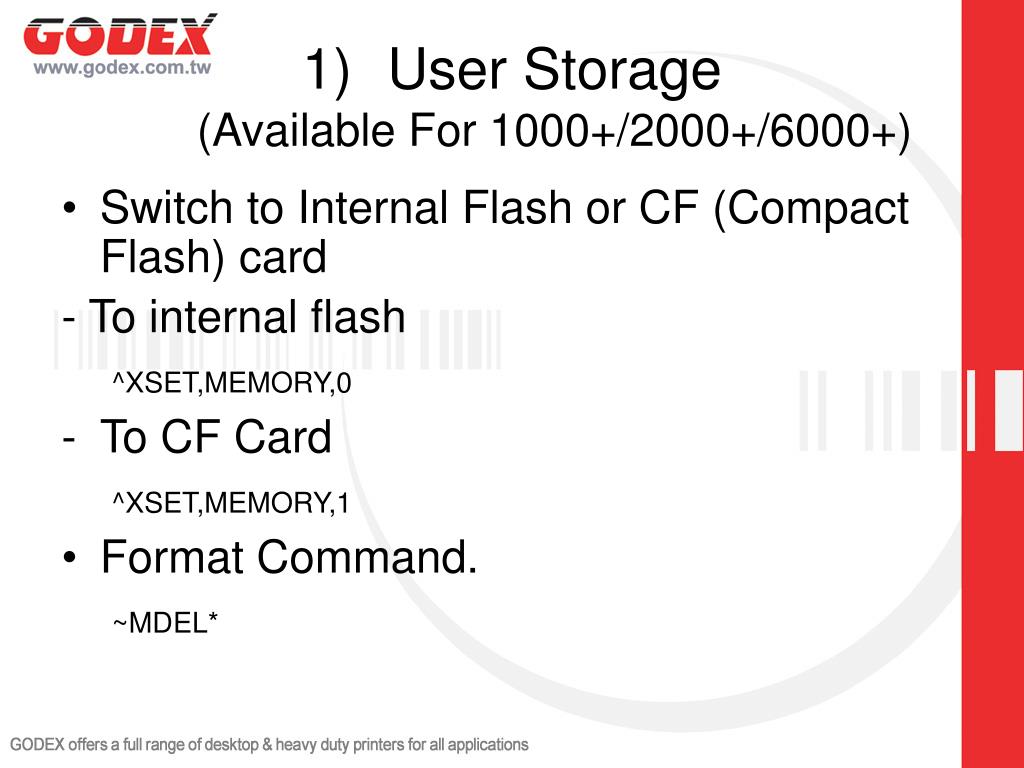

  13. User Storage (Available For 1000+/2000+/6000+) • Switch to Internal Flash or CF (Compact Flash) card - To internal flash ^XSET,MEMORY,0 • To CF Card ^XSET,MEMORY,1 • Format Command. ~MDEL*

  14. 2) Fonts • Download/Delete True Type Font • Download/Delete Unicode Table Support Big5 GB JIS KSC table. • Internal Font Inverse AC,29,77,1,1,0,0I,TEXT • External Font Inverse VC,29,77,1,1,0,0I,TEXT • Asian Font Inverse AZ1,29,77,1,1,0,0I,TEXT

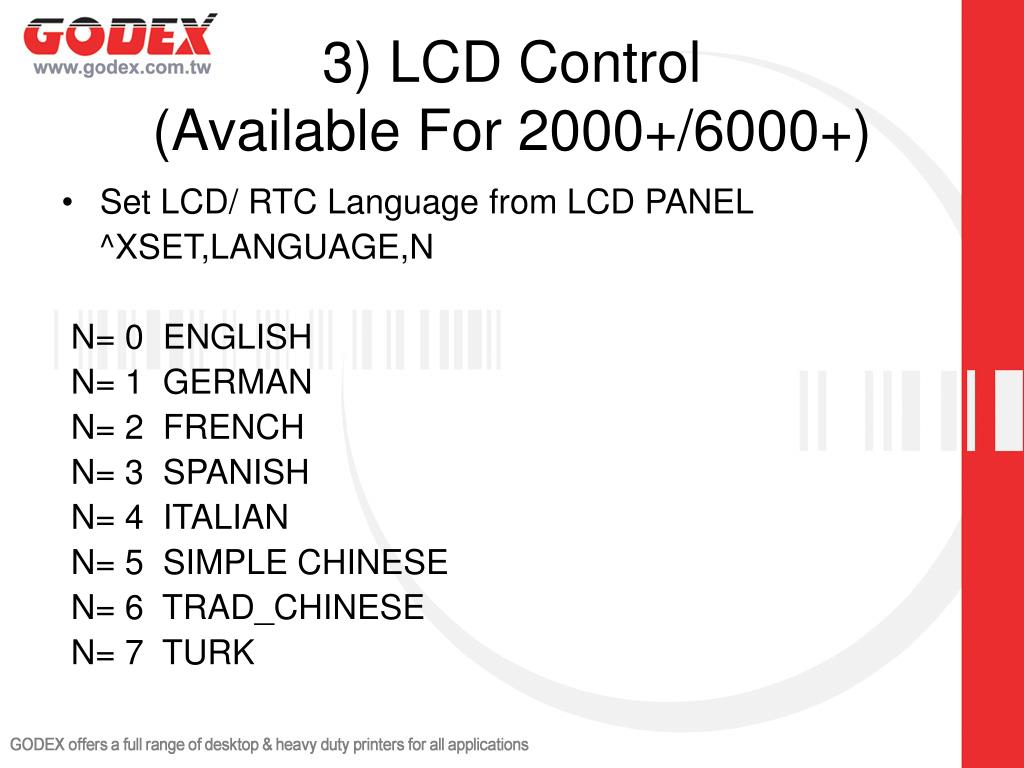

  15. 3) LCD Control (Available For 2000+/6000+) • Set LCD/ RTC Language from LCD PANEL ^XSET,LANGUAGE,N N= 0 ENGLISH N= 1 GERMAN N= 2 FRENCH N= 3 SPANISH N= 4 ITALIAN N= 5 SIMPLE CHINESE N= 6 TRAD_CHINESE N= 7 TURK

  16. 4) TPH Control • For 2000+/6000+ • Get TPH Module SN and Printing Length. ~~INTERNALCOMMANDT1 (LCD) • Change TPH Dpi ~~INTERNALCOMMANDT4,dpi (dpi : 200/300)

  17. TPH Heat Dot Detect (return all resistance) ^XGET,TPHRESISTANCE

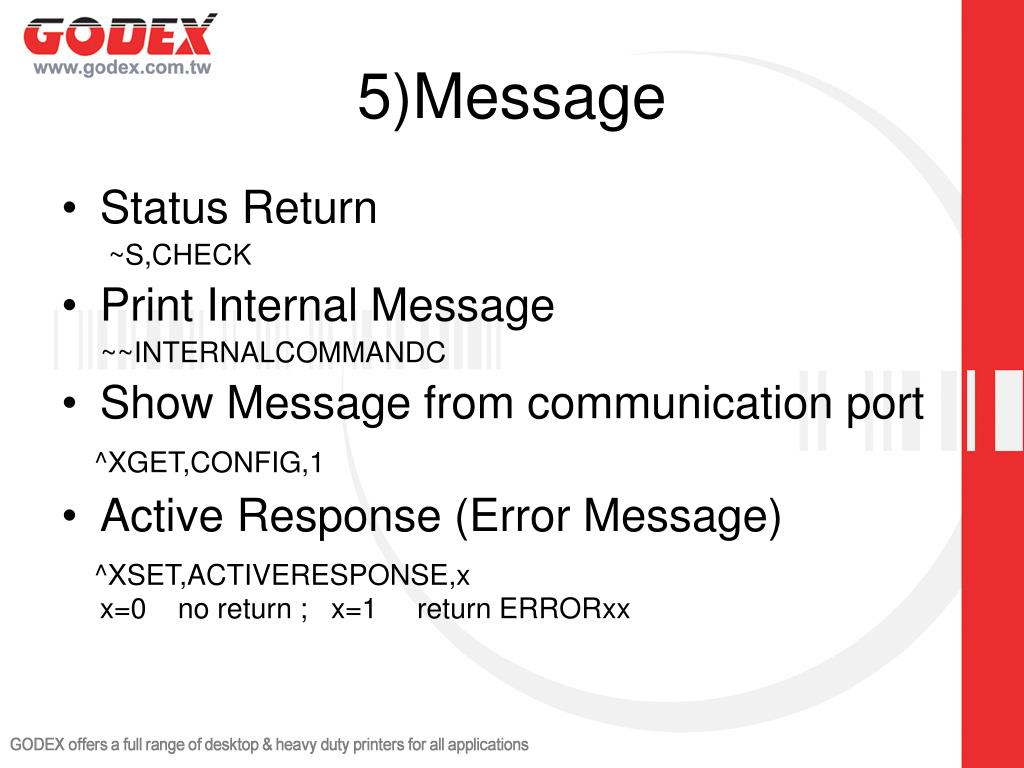

  18. 5)Message • Status Return ~S,CHECK • Print Internal Message ~~INTERNALCOMMANDC • Show Message from communication port ^XGET,CONFIG,1 • Active Response (Error Message) ^XSET,ACTIVERESPONSE,x x=0 no return ; x=1 return ERRORxx

  19. Status Return • ~S,CHECK aa,nnnnn<CR><LF> aa = printer status information 00 – Ready 01 – Paper out 02 – Paper jam or miss gap 03 – Ribbon out 04 – Print head is up 05 – Rewinder full 06 – Memory is full 07 – filename can not be found 08 – filename is repeat 09 – Syntax error 20 – Pause 21 – In Setting Mode 22 – In Keyboard Mode 50 – Printer is printing. 60 – Have Printing Job nnnnn = number of remaining labels From 00000 to 99999

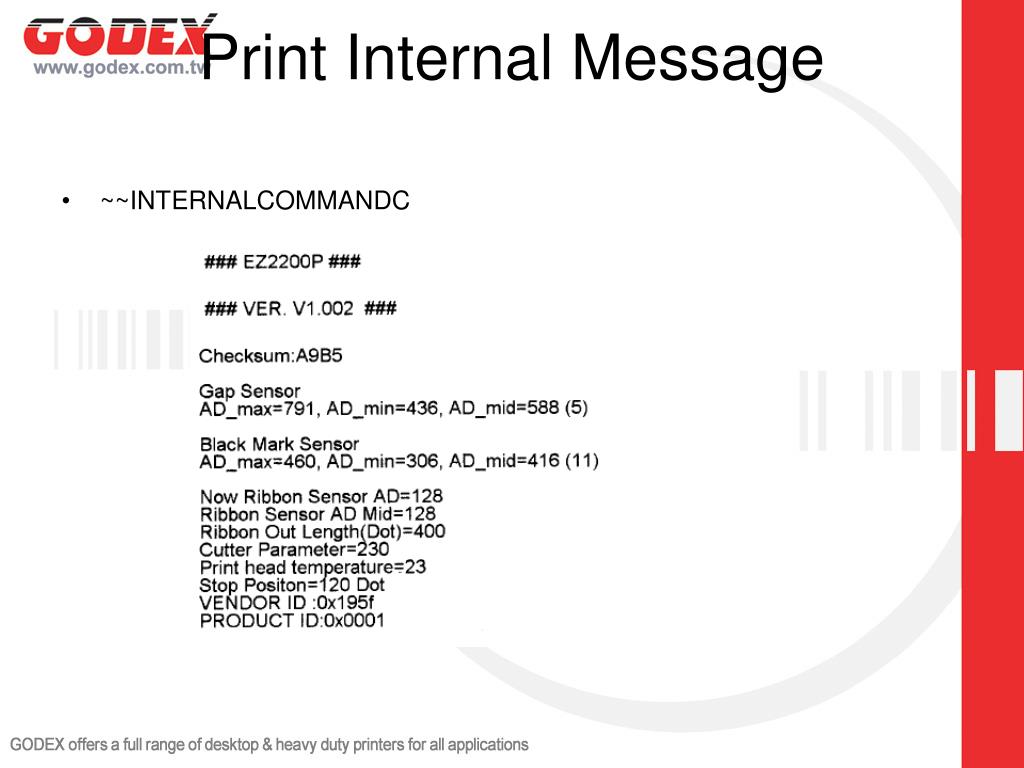

  20. Print Internal Message • ~~INTERNALCOMMANDC

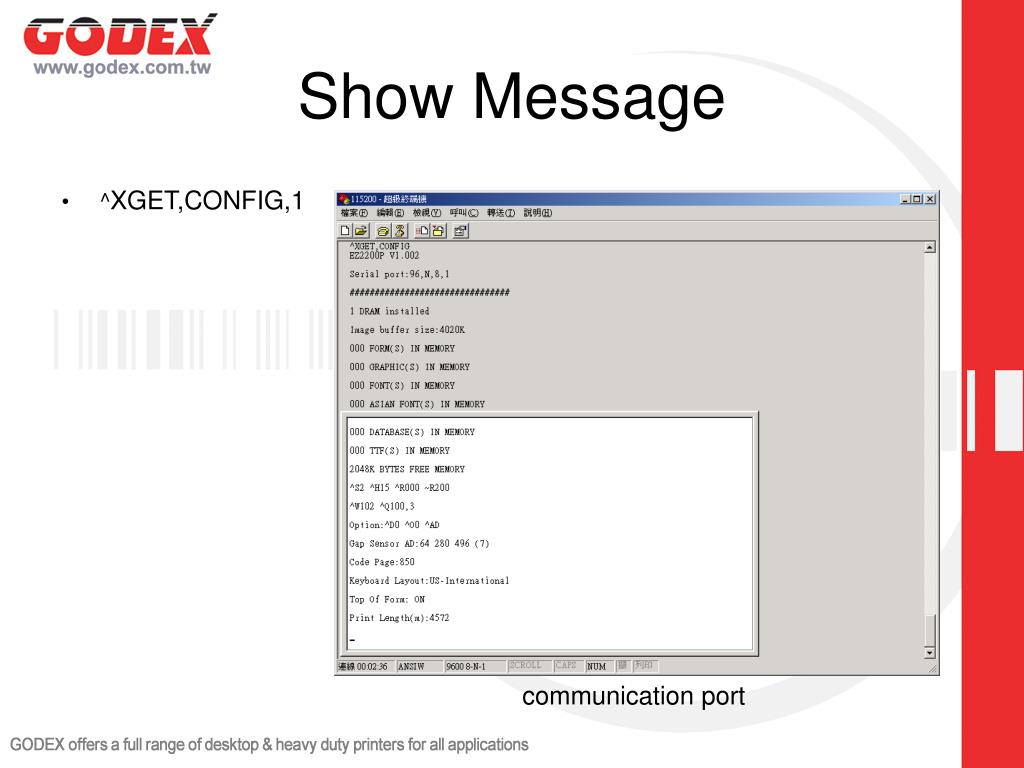

  21. Show Message • ^XGET,CONFIG,1 communication port

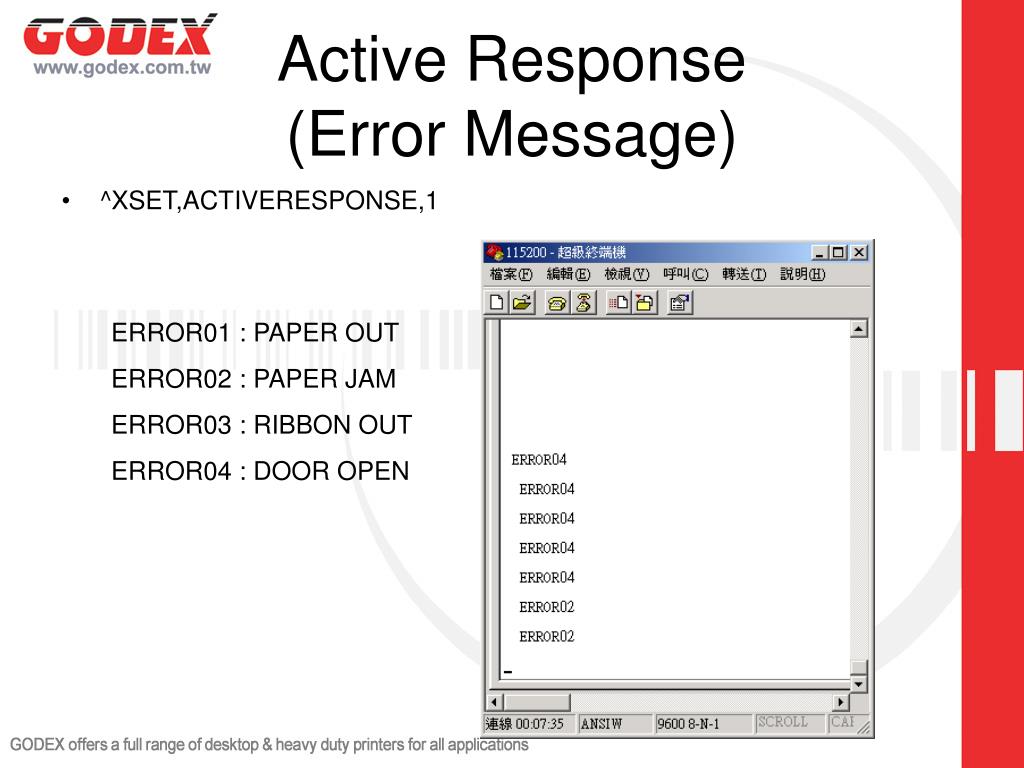

  22. Active Response (Error Message) • ^XSET,ACTIVERESPONSE,1 ERROR01 : PAPER OUT ERROR02 : PAPER JAM ERROR03 : RIBBON OUT ERROR04 : DOOR OPEN

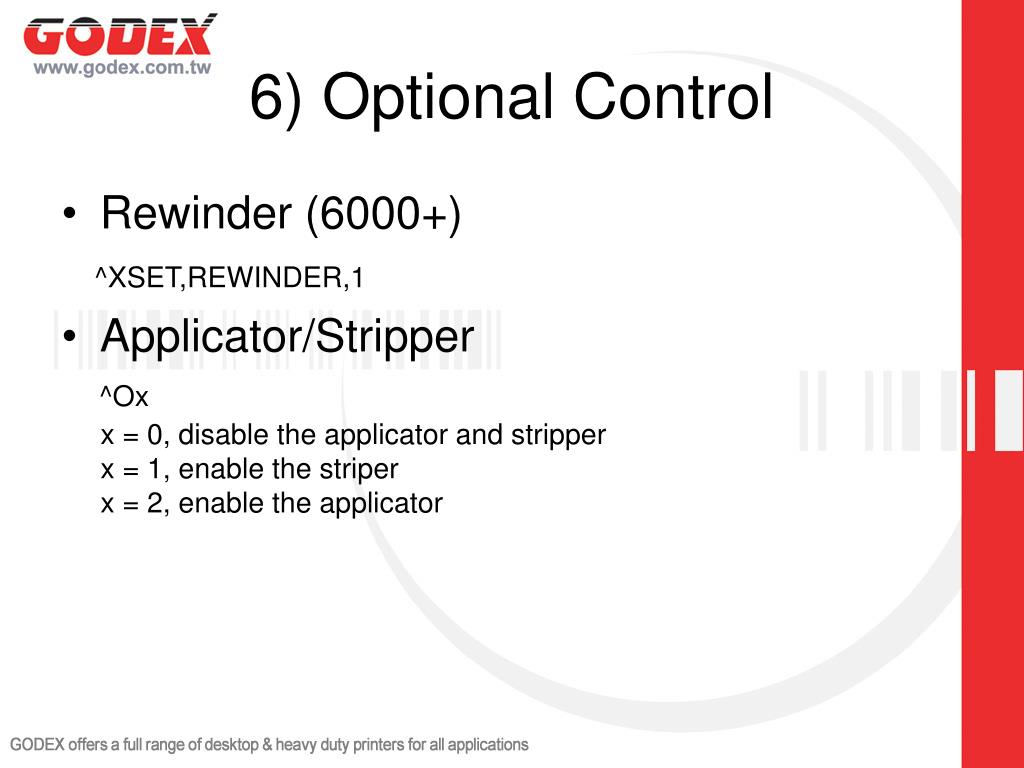

  23. 6) Optional Control • Rewinder (6000+) ^XSET,REWINDER,1 • Applicator/Stripper ^Ox x = 0, disable the applicator and stripper x = 1, enable the striper x = 2, enable the applicator

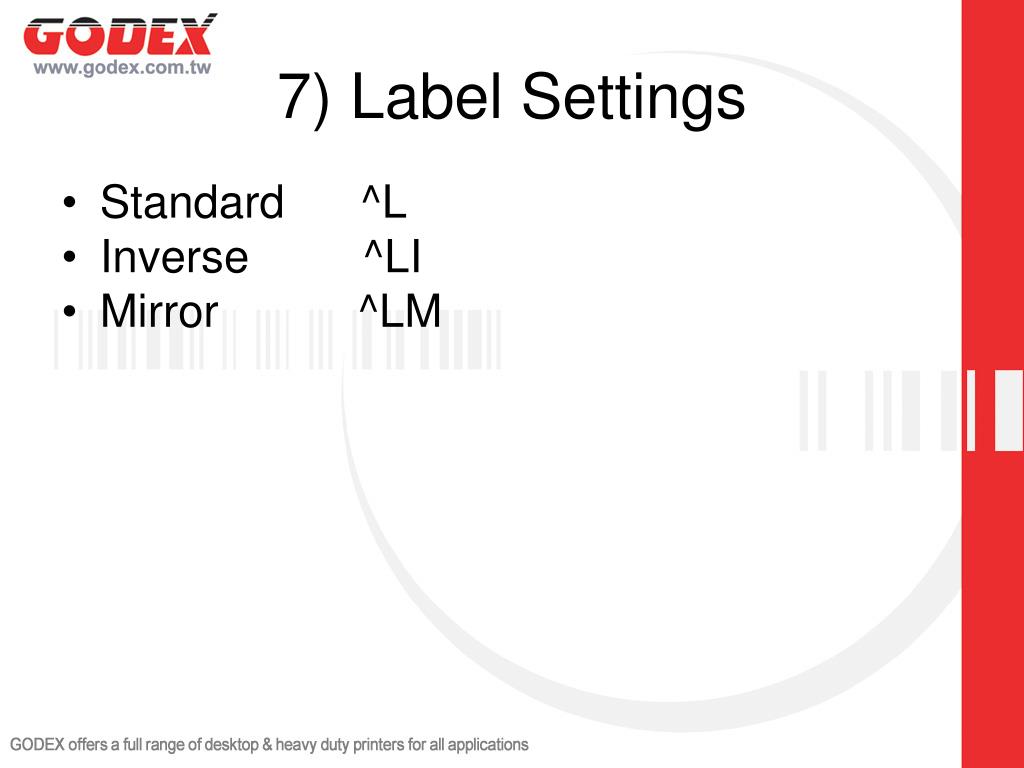

  24. 7) Label Settings • Standard ^L • Inverse ^LI • Mirror ^LM

  25. Standard ^L

  26. Inverse ^LI

  27. Mirror ^LM

  28. New Command Breakdown list and example

  29. The End Thanks for your attention
