  1. EnsemBlue: Integrating Distributed Storage and Consumer Electronics Daniel Peek and Jason Flinn University of Michigan

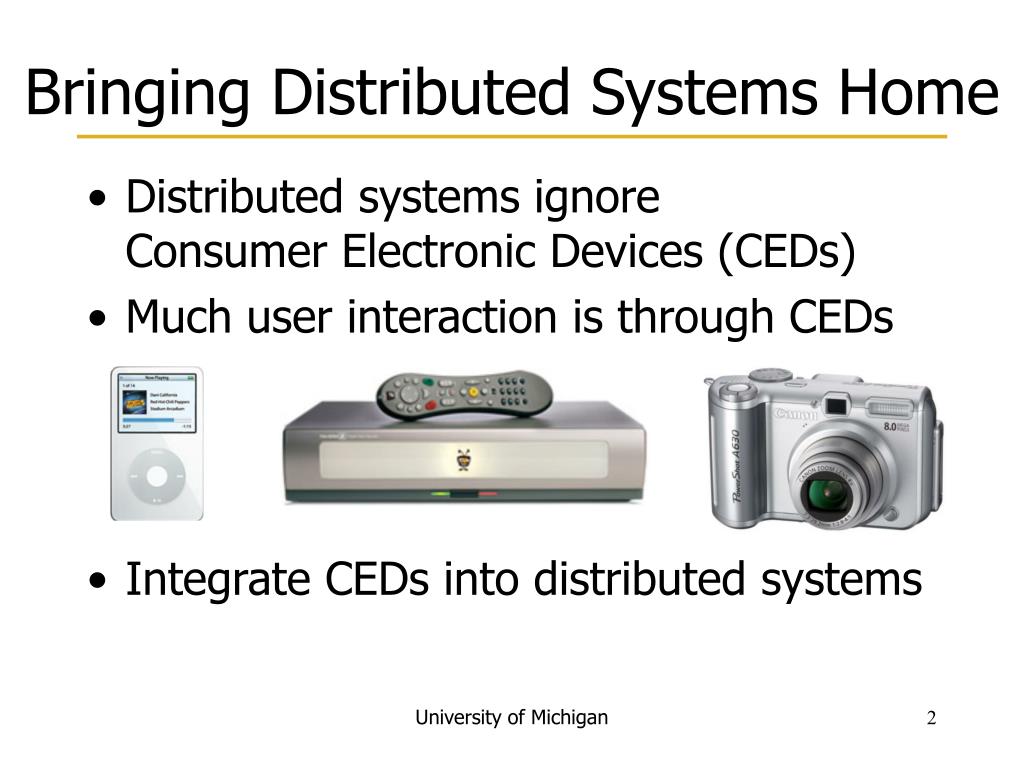

  2. Bringing Distributed Systems Home • Distributed systems ignore Consumer Electronic Devices (CEDs) • Much user interaction is through CEDs • Integrate CEDs into distributed systems University of Michigan

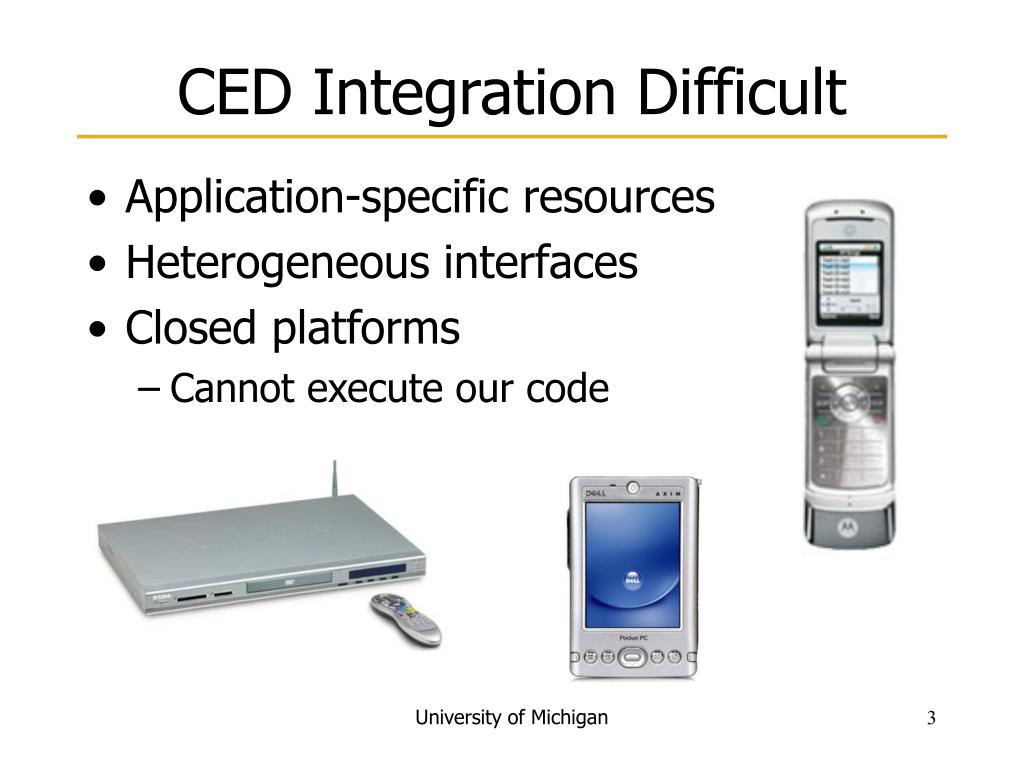

  3. CED Integration Difficult • Application-specific resources • Heterogeneous interfaces • Closed platforms • Cannot execute our code University of Michigan

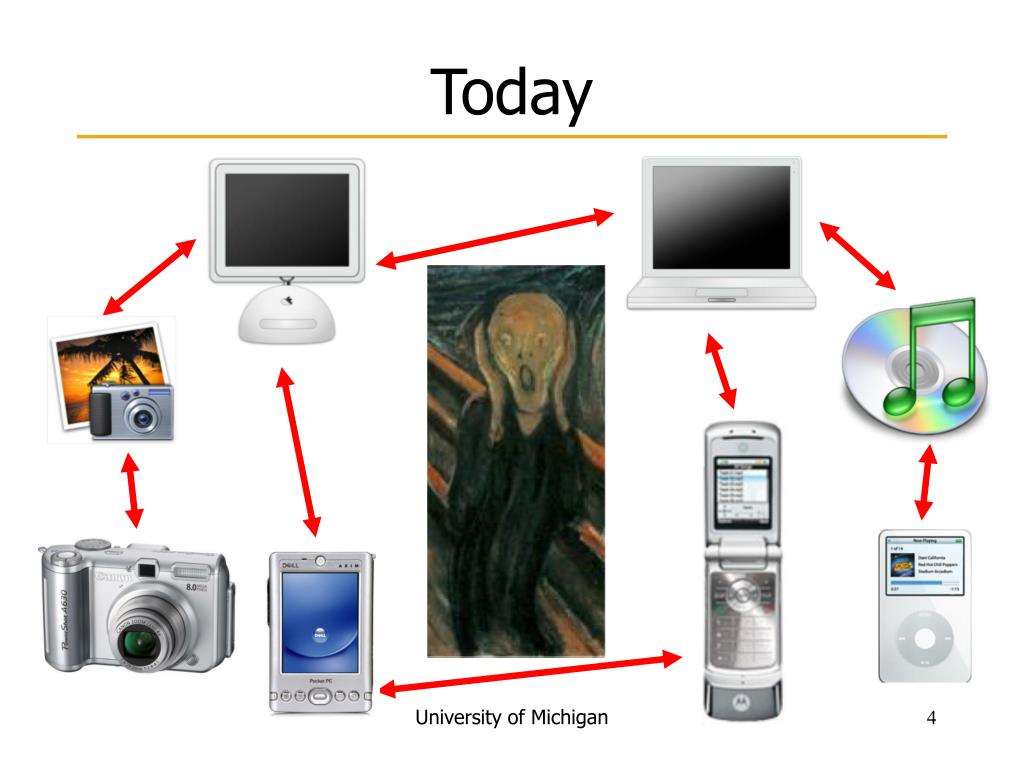

  4. Today University of Michigan

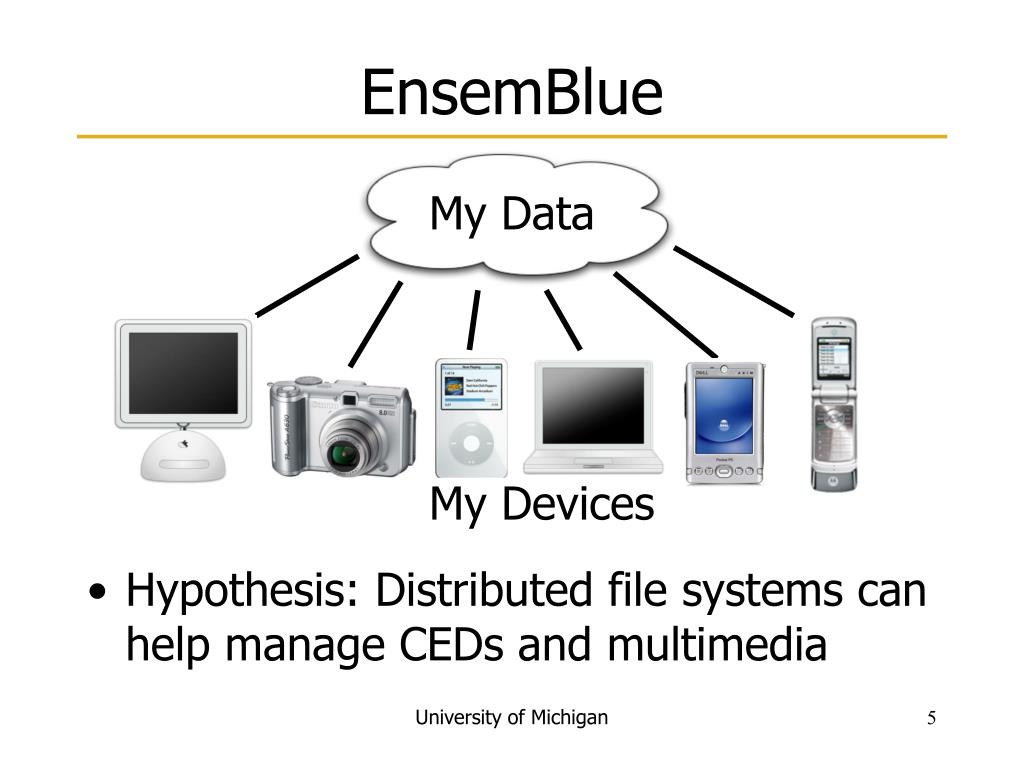

  5. EnsemBlue • Hypothesis: Distributed file systems can help manage CEDs and multimedia My Data My Devices University of Michigan

  6. EnsemBlue • Based on BlueFS [Nightingale 04] • Client-server design • Single namespace • Supports mobile clients • Designed for small group of users File Server University of Michigan

  7. Outline • Motivation • Device-Specific Namespaces • Device-Specific Functionality • Disconnected Collections of Devices • Evaluation • Conclusion University of Michigan

  8. DFS Protocol Connecting CEDs • CEDs cannot perform DFS protocol Distributed File System Device-Specific Protocol Device-Specific Protocol DFS Protocol? • Attach: computer speaks for CED • Works with disconnected clients University of Michigan

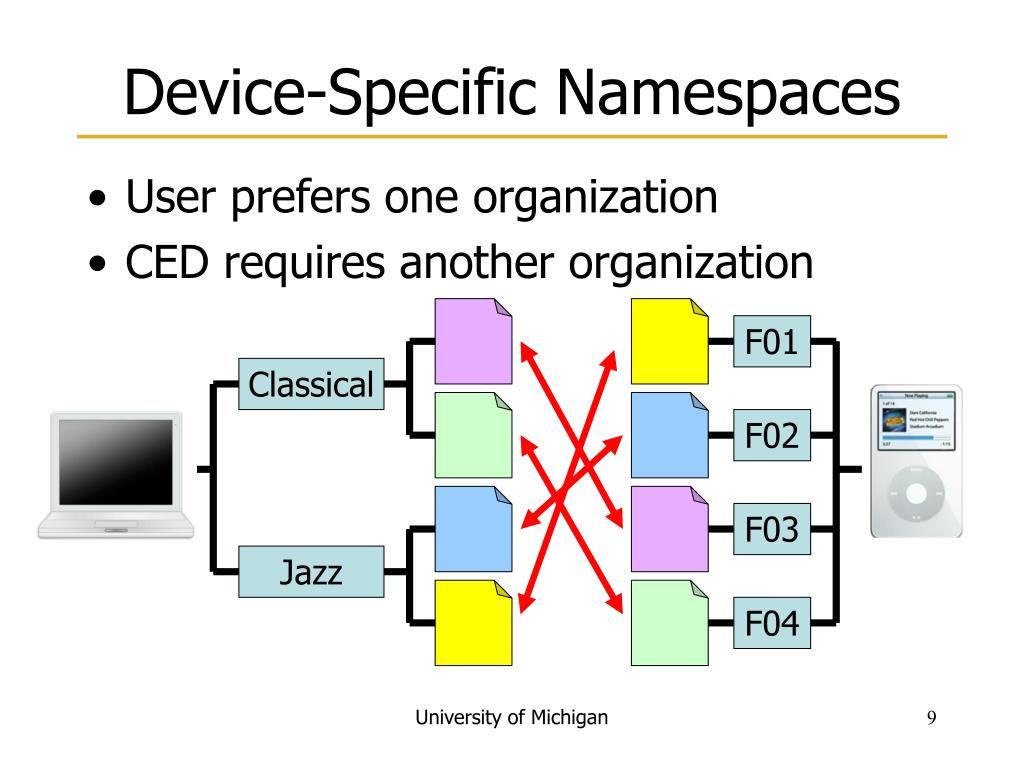

  9. F01 Classical F02 F03 Jazz F04 Device-Specific Namespaces • User prefers one organization • CED requires another organization University of Michigan

  10. Device-Specific Namespaces • Where to store the mapping? • Cannot store in DFS due to partial caching • Make CEDs self-describing University of Michigan

  11. Receipts • What should mapping look like? ~dpeek/classical/song.mp3 /iPod/f27/ABCD.mp3 Object 1.123.46F2 • Path lookups may fail with partial caching • Receipts bypass path resolution University of Michigan

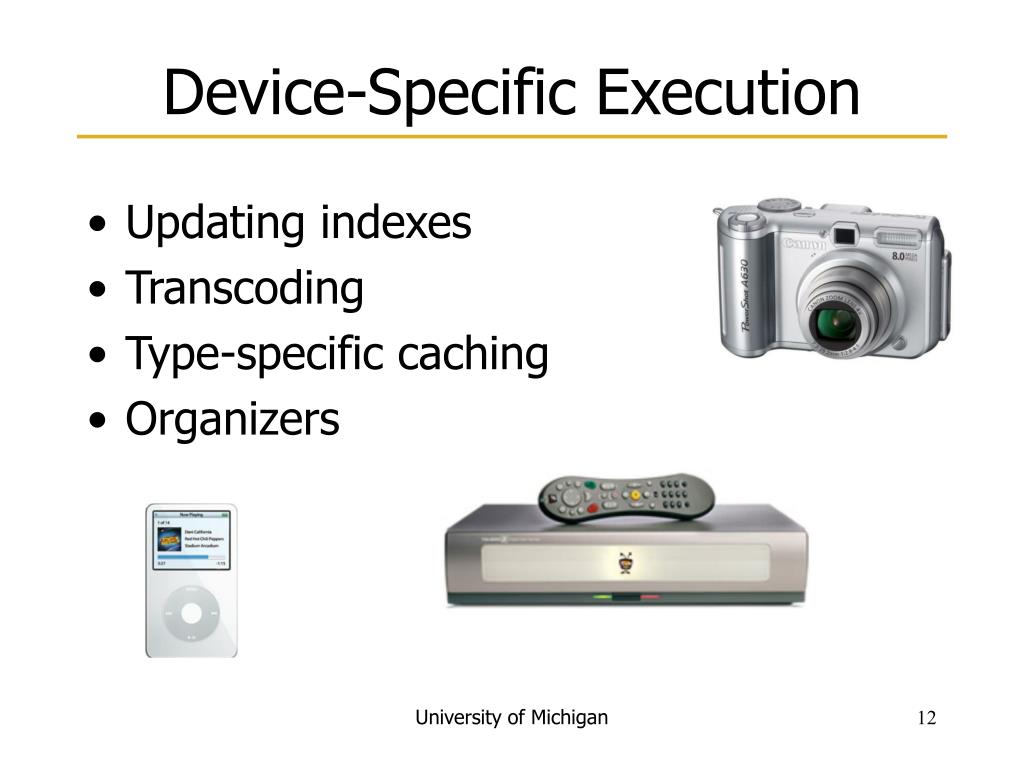

  12. Device-Specific Execution • Updating indexes • Transcoding • Type-specific caching • Organizers University of Michigan

  13. Device-Specific Execution • Cannot execute on CED • Leverage general computers • Take action when files change • Problem: Need notification of file changes University of Michigan

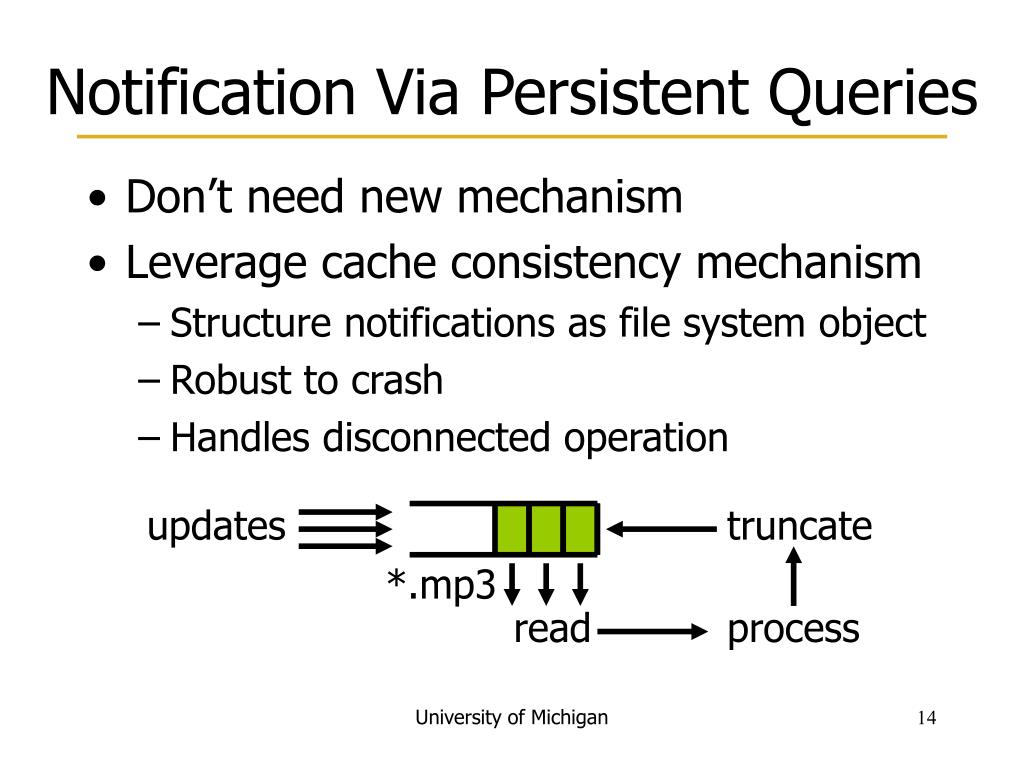

  14. Notification Via Persistent Queries • Don’t need new mechanism • Leverage cache consistency mechanism • Structure notifications as file system object • Robust to crash • Handles disconnected operation updates truncate *.mp3 read process University of Michigan

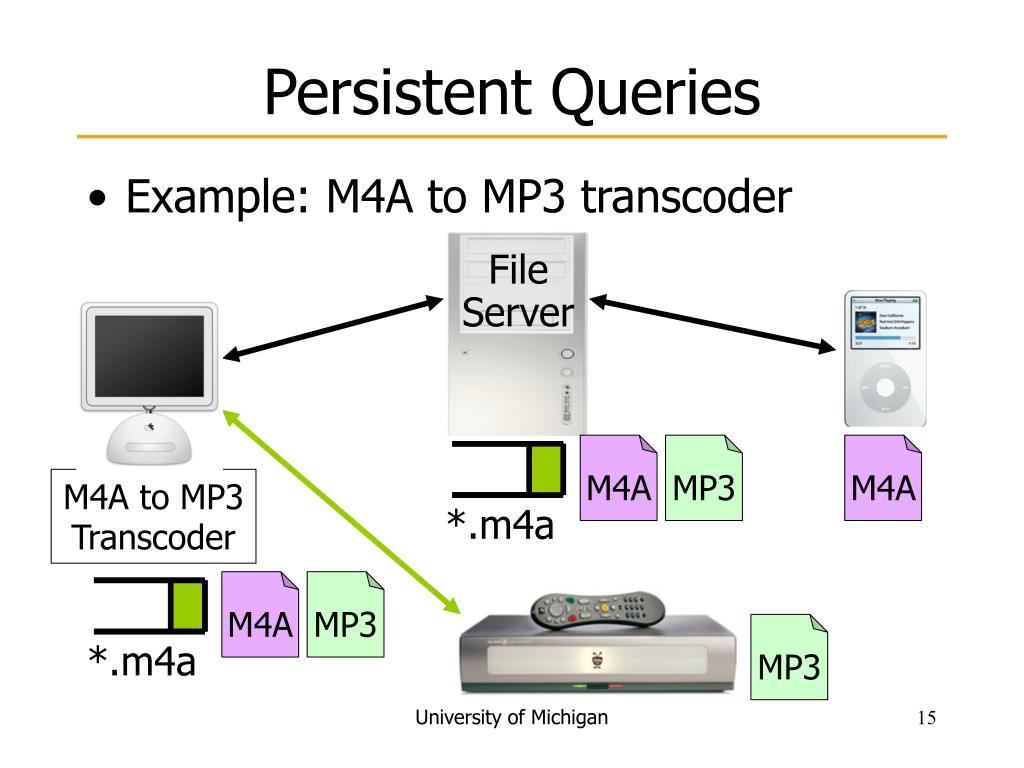

  15. Persistent Queries • Example: M4A to MP3 transcoder File Server M4A MP3 M4A M4A to MP3 Transcoder *.m4a M4A MP3 MP3 *.m4a University of Michigan

  16. Disconnected Devices • Server gives safety, availability, consistency • Server mediates communication File Server University of Michigan

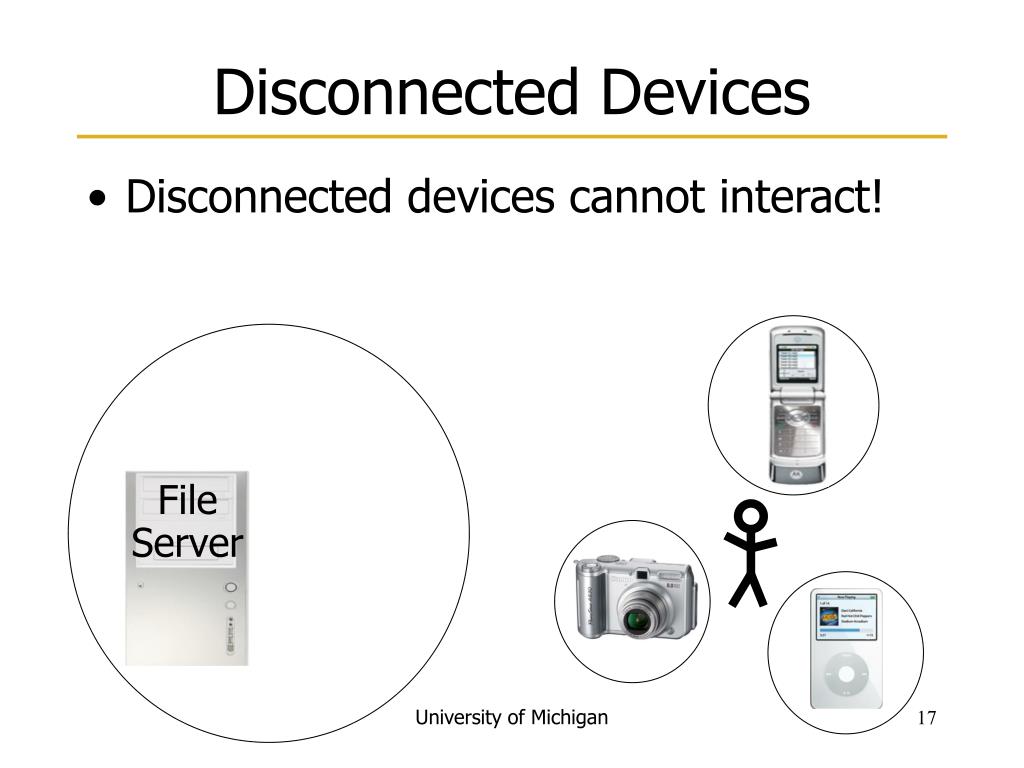

  17. Disconnected Devices • Disconnected devices cannot interact! File Server University of Michigan

  18. Disconnected Devices • Peer-to-Peer better supports mobility • CEDs store and forward updates File Server University of Michigan

  19. ? ? Ensembles • Ensembles can avoid these problems • Select a pseudo file server • Consistent view of all files • Improved data access • Update propagation Pseudo File Server University of Michigan

  20. Outline • Motivation • Device-Specific Namespaces • Device-Specific Functionality • Disconnected Collections of Devices • Evaluation • Conclusion University of Michigan

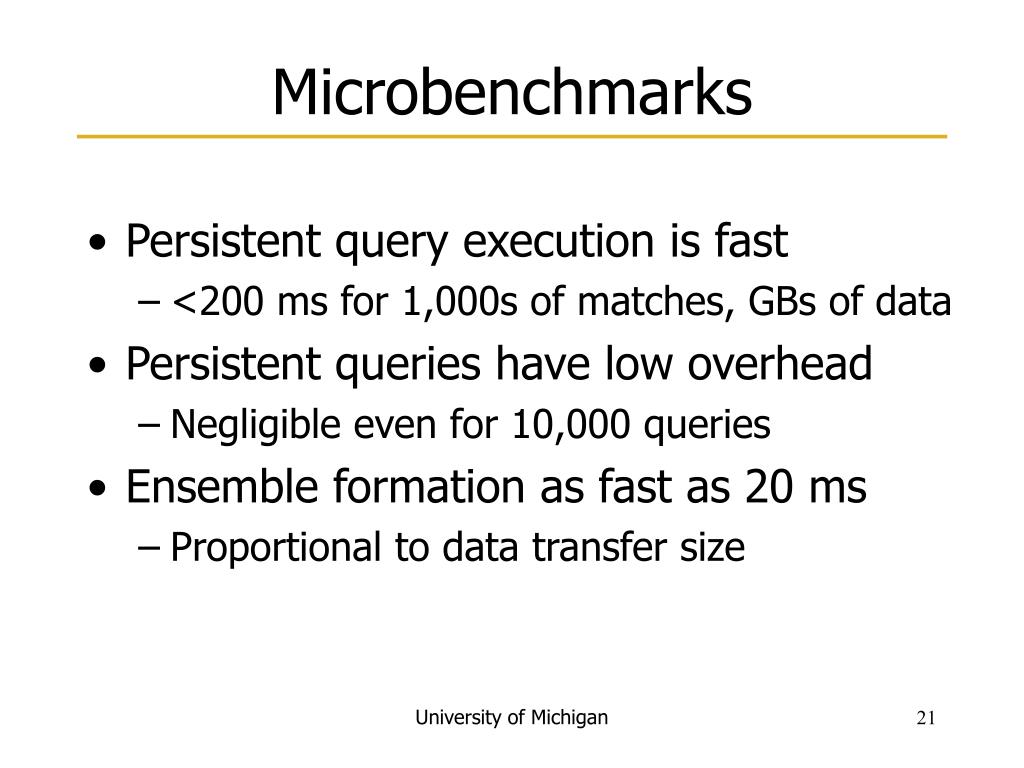

  21. Microbenchmarks • Persistent query execution is fast • <200 ms for 1,000s of matches, GBs of data • Persistent queries have low overhead • Negligible even for 10,000 queries • Ensemble formation as fast as 20 ms • Proportional to data transfer size University of Michigan

  22. Organizing My Photos File Server *.jpg Photo Organizer iCal University of Michigan

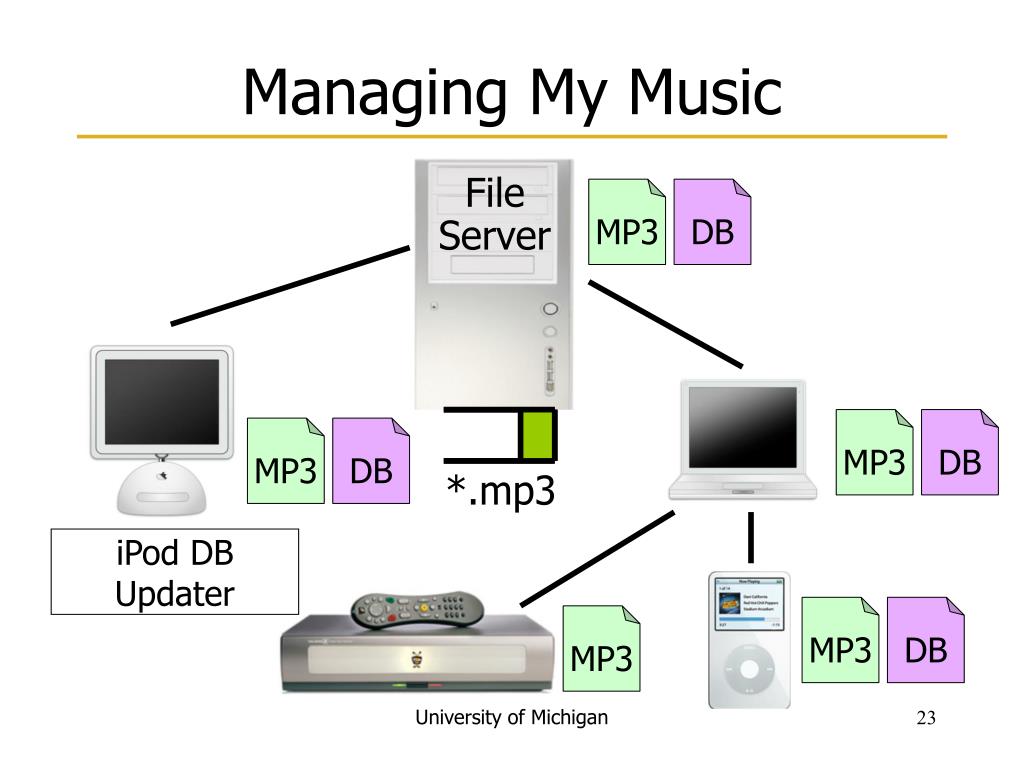

  23. Managing My Music File Server MP3 DB MP3 DB MP3 DB *.mp3 iPod DB Updater MP3 DB MP3 University of Michigan

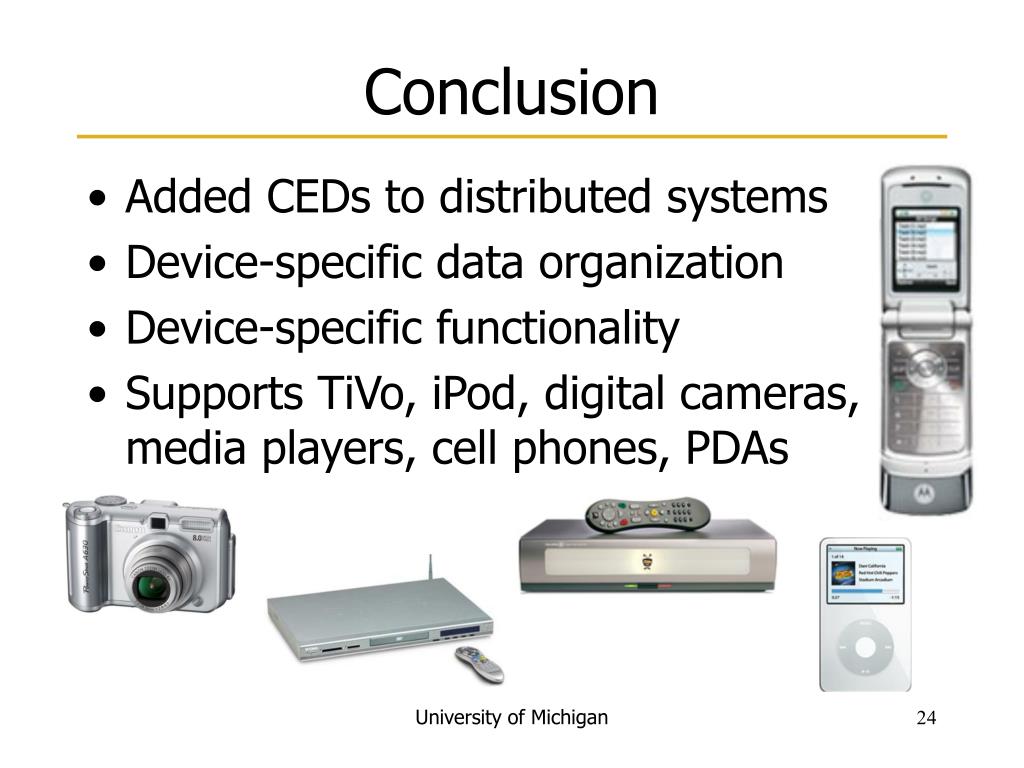

  24. Conclusion • Added CEDs to distributed systems • Device-specific data organization • Device-specific functionality • Supports TiVo, iPod, digital cameras, media players, cell phones, PDAs University of Michigan

  25. Questions ? University of Michigan
