  1. Chapter 5Creating and Editing Drawing Views

  2. Chapter 5 - Objectives • After completing this chapter, you will be able to perform the following: • Make changes under the Drawing tab of the Application Options dialog box • Create base and projected drawing views from a part • Create auxiliary, section, detail, broken, break out, and cropped views • Edit the properties and location of drawing views • Retrieve and arrange model dimensions for use in drawing views • Edit, move, and hide dimensions • Add automated centerlines • Add general dimensions, baseline, chain, and ordinate dimensions

  3. Chapter 5 – Objectives - continued • After completing this chapter, you will be able to perform the following: • Add annotations such as text, leaders, Geometric Dimensioning & Tolerancing • (GD&T), surface finish symbols, weld symbols, and datum identifiers • Create hole notes • Open a model from a drawing • Open a drawing from a model • Create hole, general, and revision tables

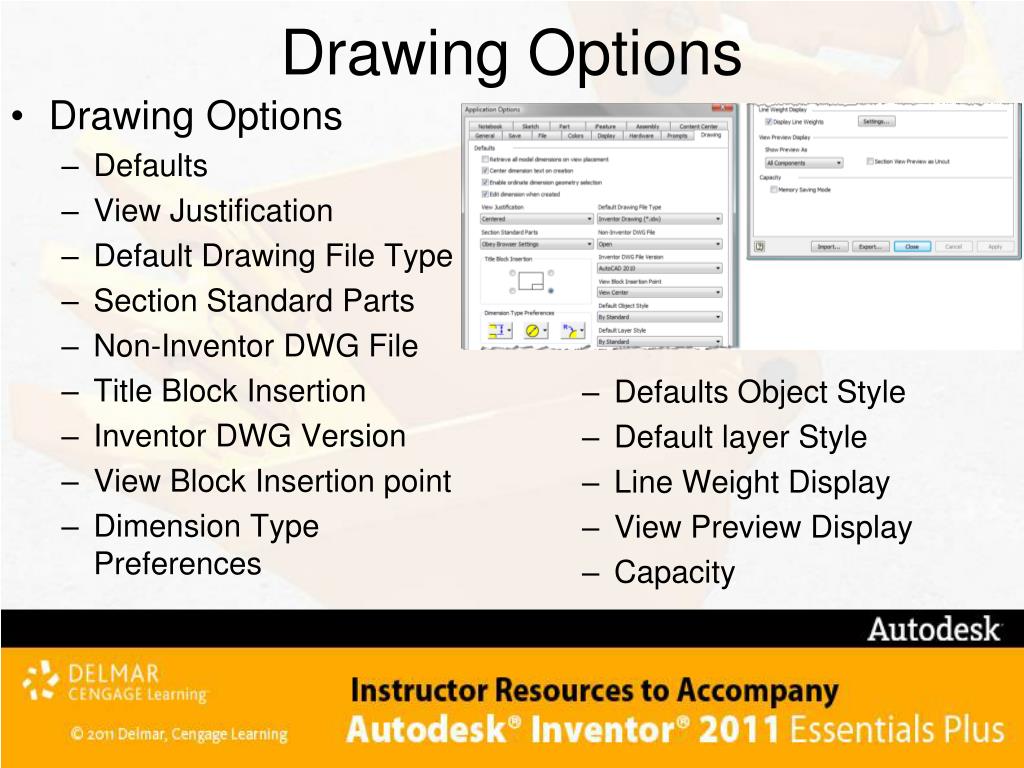

  4. Drawing Options • Drawing Options • Defaults • View Justification • Default Drawing File Type • Section Standard Parts • Non-Inventor DWG File • Title Block Insertion • Inventor DWG Version • View Block Insertion point • Dimension Type Preferences • Defaults Object Style • Default layer Style • Line Weight Display • View Preview Display • Capacity

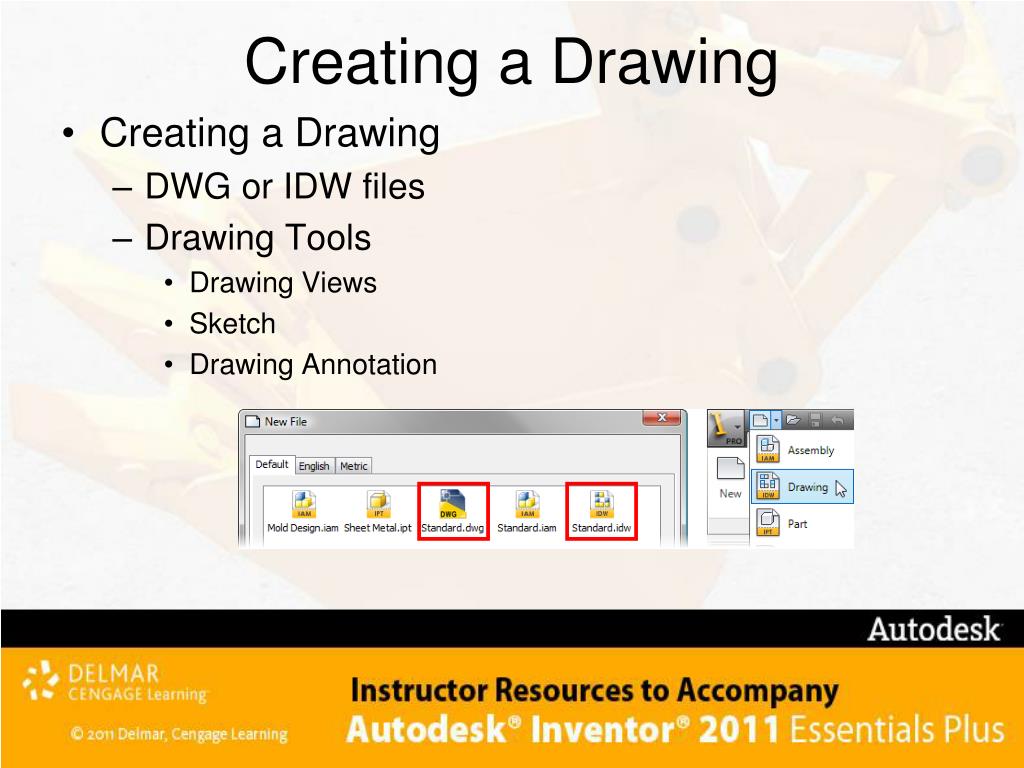

  5. Creating a Drawing • Creating a Drawing • DWG or IDW files • Drawing Tools • Drawing Views • Sketch • Drawing Annotation

  6. Drawing Sheet Preparation • Sheets • Sheet format • Sheet size

  7. Title Block Insertion • Insert Title Block • Delete existing title block • Insert title block from Drawing Resources folder

  8. Border • Insert Border • Delete existing border • Insert border from Drawing Resources folder

  9. Property Fields • Property Fields and iProperties • Summary • Project • Status

  10. Creating Drawing Views • Creating Drawing Views • Created from an existing part, assembly, or presentation file • Save drawing in same directory as the parent file • Types.. • Base View • Projected View • Orthographic (Ortho View) • ISO View • Auxiliary View • Section View • Detail View • Crop • Slice • Broken View

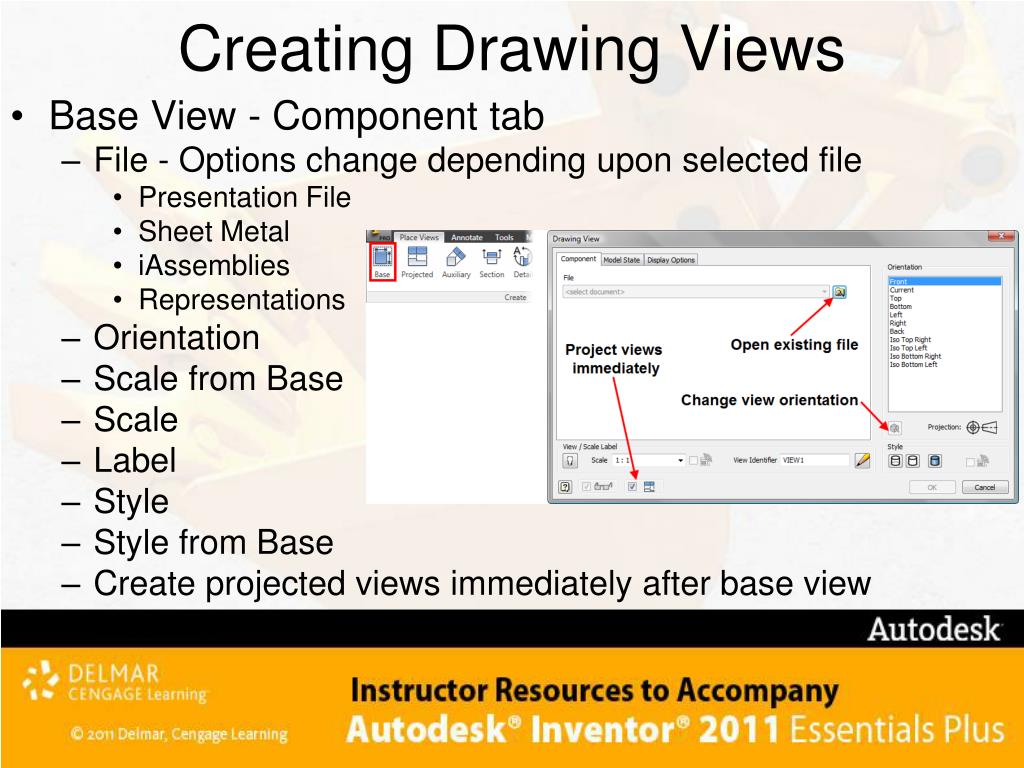

  11. Creating Drawing Views • Base View - Component tab • File - Options change depending upon selected file • Presentation File • Sheet Metal • iAssemblies • Representations • Orientation • Scale from Base • Scale • Label • Style • Style from Base • Create projected views immediately after base view creation

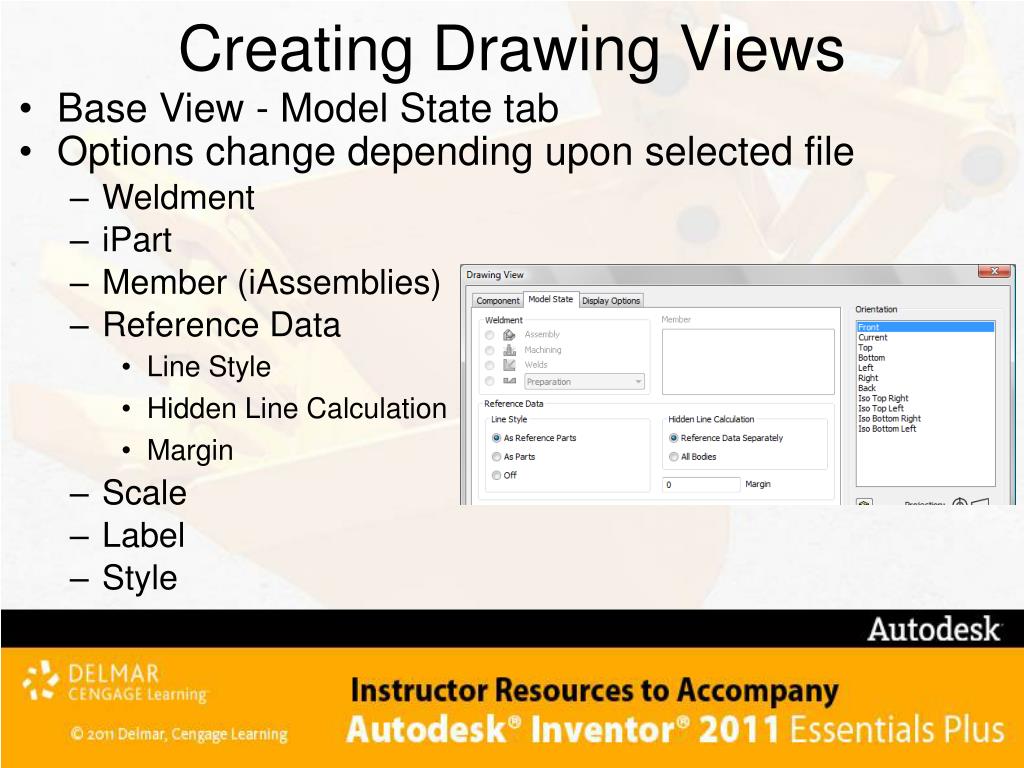

  12. Creating Drawing Views • Base View - Model State tab • Options change depending upon selected file • Weldment • iPart • Member (iAssemblies) • Reference Data • Line Style • Hidden Line Calculation • Margin • Scale • Label • Style

  13. Creating Drawing Views • Base View - Options tab • All Model Dimensions • Model Weld Symbols • Bend Extents • Thread Feature • Weld Annotations • User Work Features • Tangent Edges • Foreshortened • Show Trails • Hatching • Align to Base • Definition in Base View • Section Standard Parts • View justification

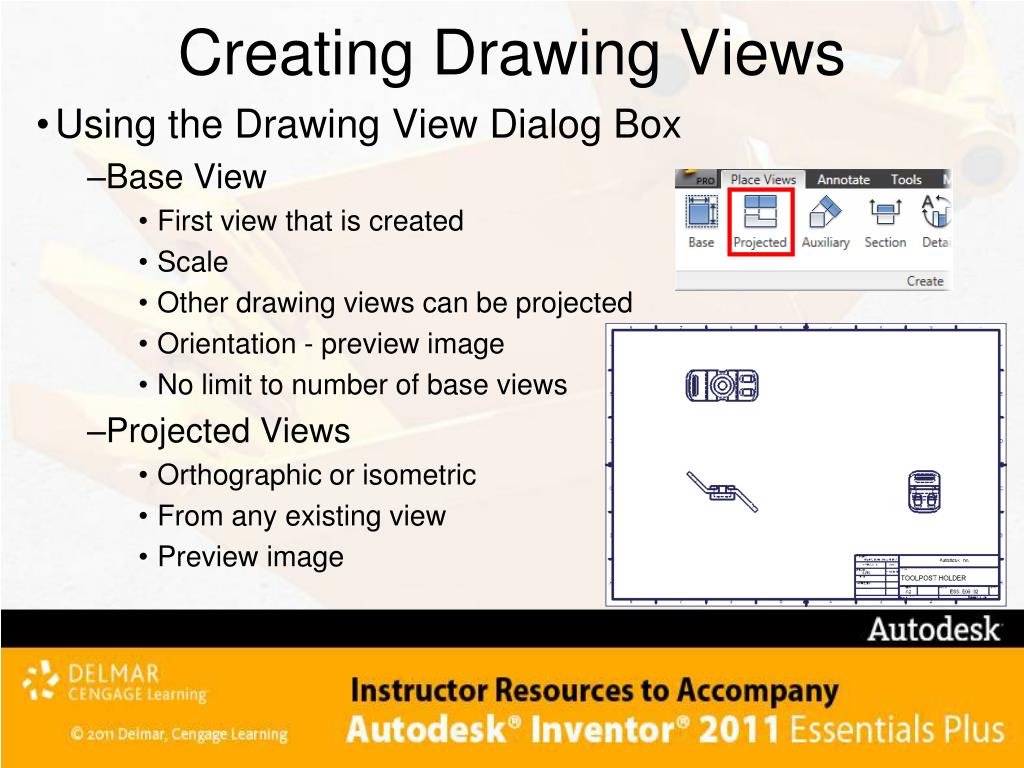

  14. Creating Drawing Views • Using the Drawing View Dialog Box • Base View • First view that is created • Scale • Other drawing views can be projected • Orientation - preview image • No limit to number of base views • Projected Views • Orthographic or isometric • From any existing view • Preview image

  15. Exercise 5-1 • Creating a Multiview Drawing

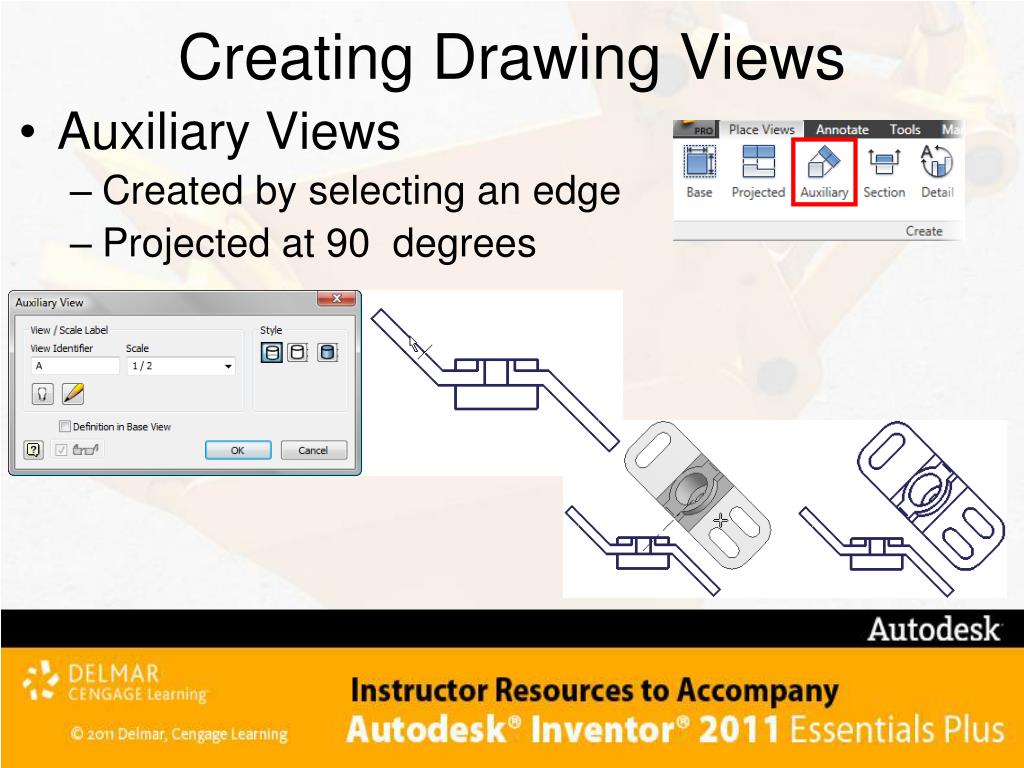

  16. Creating Drawing Views • Auxiliary Views • Created by selecting an edge • Projected at 90 degrees

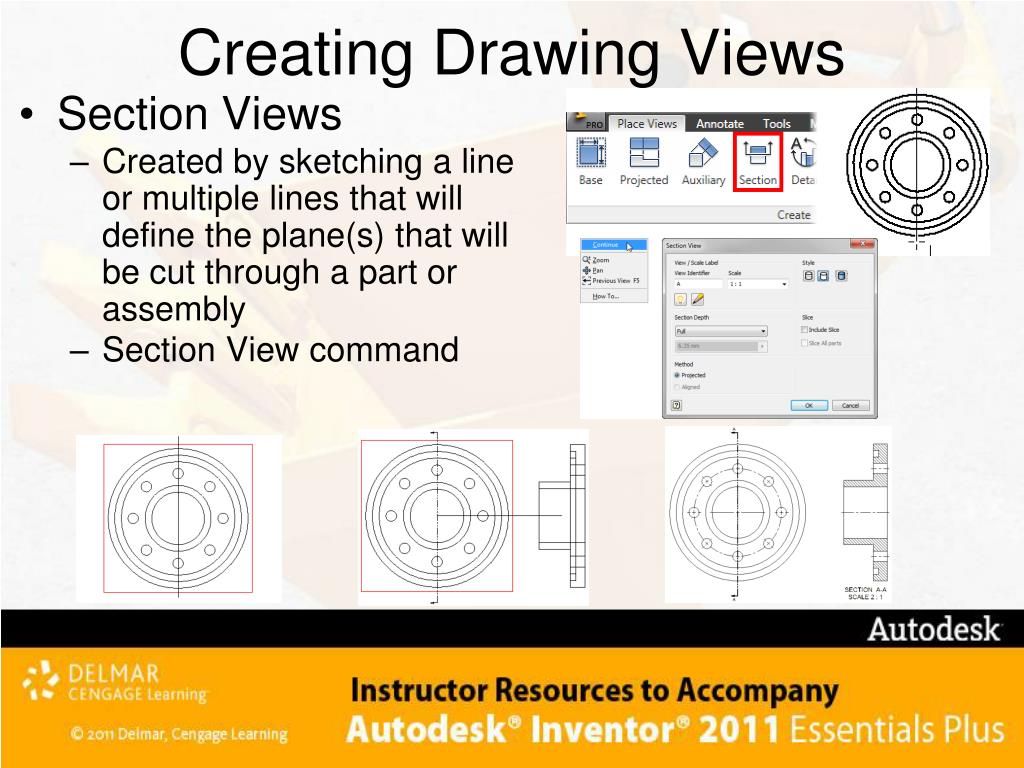

  17. Creating Drawing Views • Section Views • Created by sketching a line or multiple lines that will define the plane(s) that will be cut through a part or assembly • Section View command

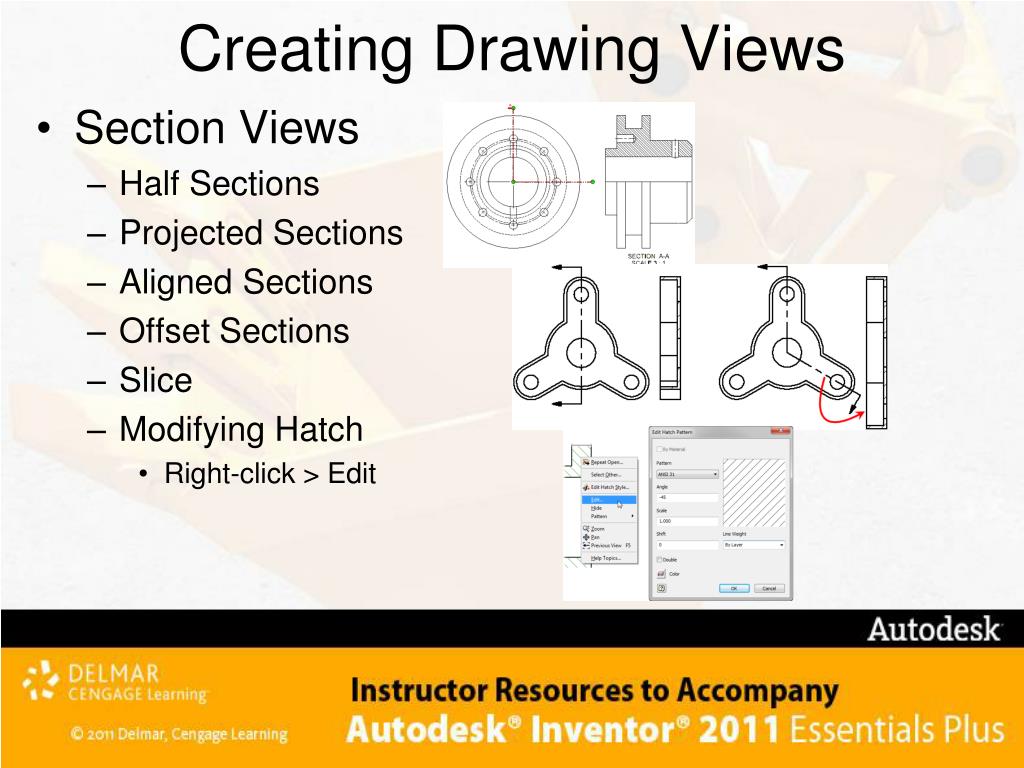

  18. Creating Drawing Views • Section Views • Half Sections • Projected Sections • Aligned Sections • Offset Sections • Slice • Modifying Hatch • Right-click > Edit

  19. Creating Drawing Views • Hatching Isometric Views • Edit View

  20. Creating Drawing Views • Slice View • Based on sketch in source view • Target view = projected, orthographic or isometric

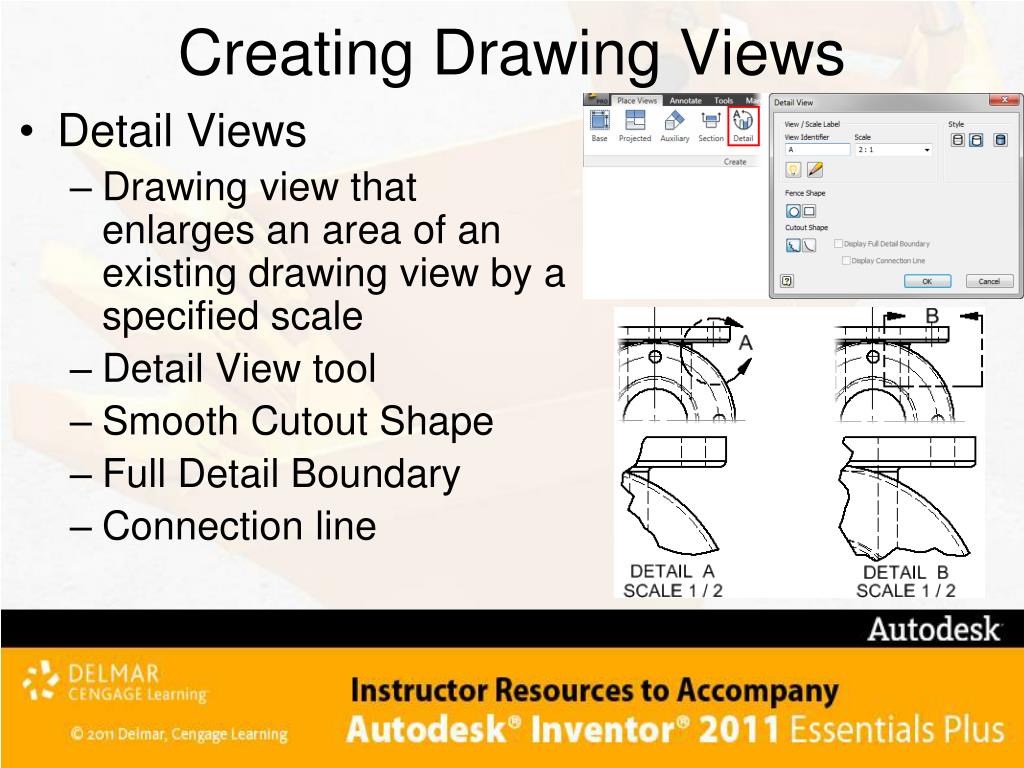

  21. Creating Drawing Views • Detail Views • Drawing view that enlarges an area of an existing drawing view by a specified scale • Detail View tool • Smooth Cutout Shape • Full Detail Boundary • Connection line

  22. Creating Drawing Views • Break Views • Removes a section or multiple sections from the middle of a long part and show just the ends • Break command

  23. Creating Drawing Views • Break Out Views • Expose internal components or features • Break Out tool • Boundary Profile

  24. Creating Drawing Views • Break Out Views • Depth Options • From Point

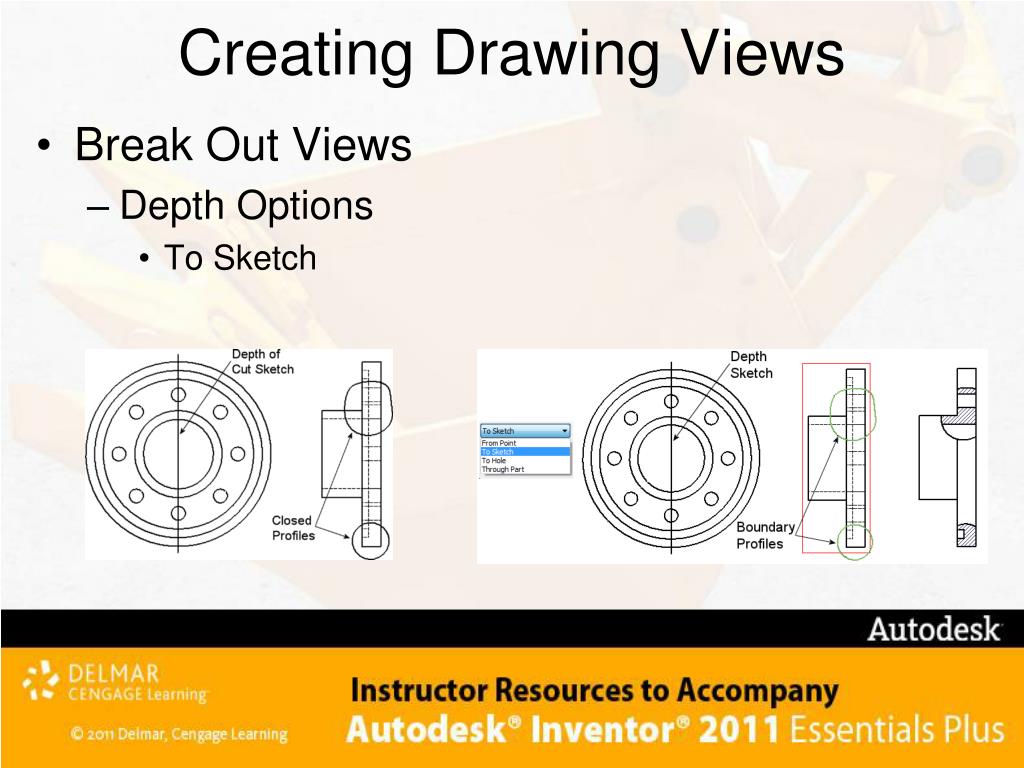

  25. Creating Drawing Views • Break Out Views • Depth Options • To Sketch

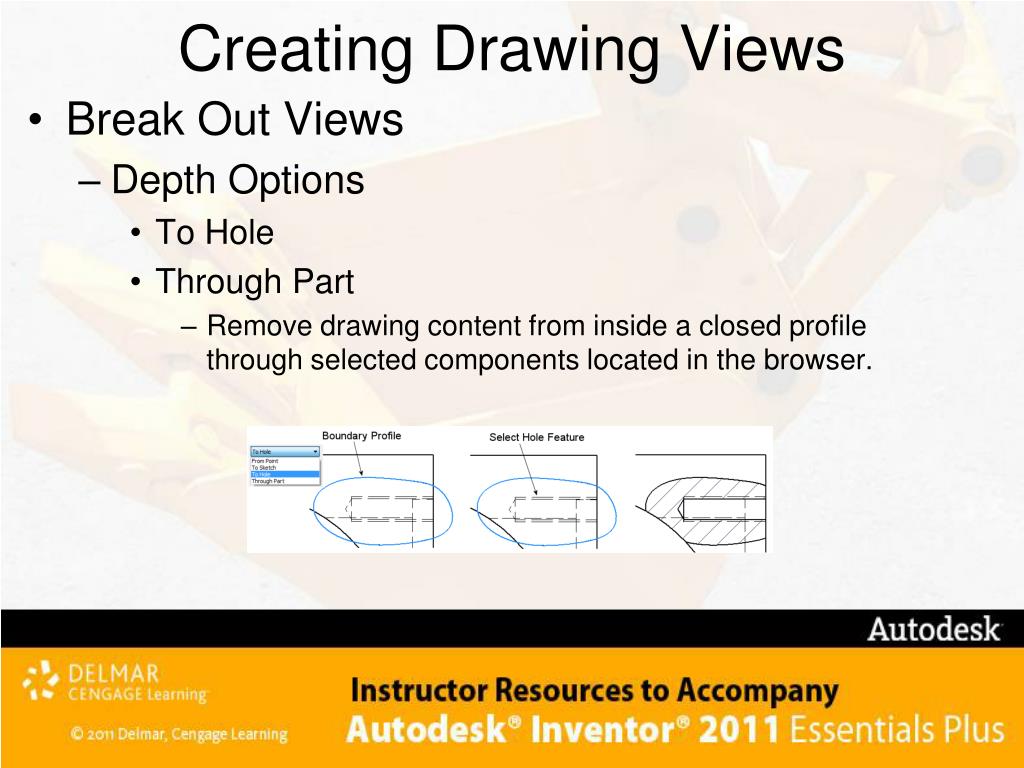

  26. Creating Drawing Views • Break Out Views • Depth Options • To Hole • Through Part • Remove drawing content from inside a closed profile through selected components located in the browser.

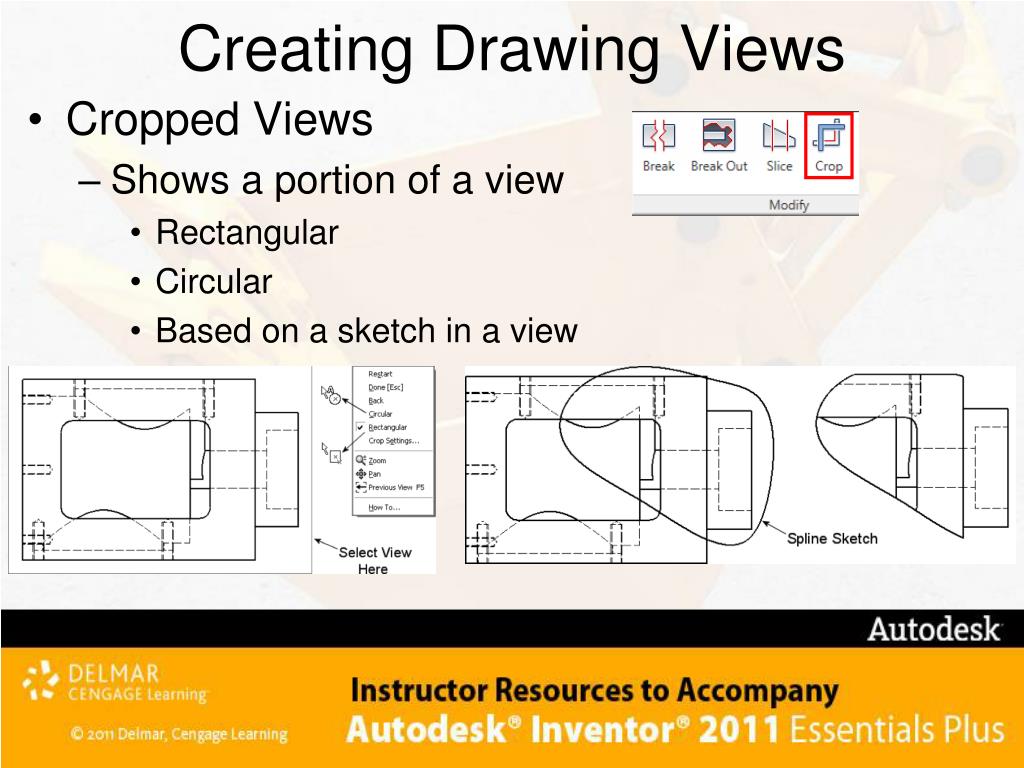

  27. Creating Drawing Views • Cropped Views • Shows a portion of a view • Rectangular • Circular • Based on a sketch in a view

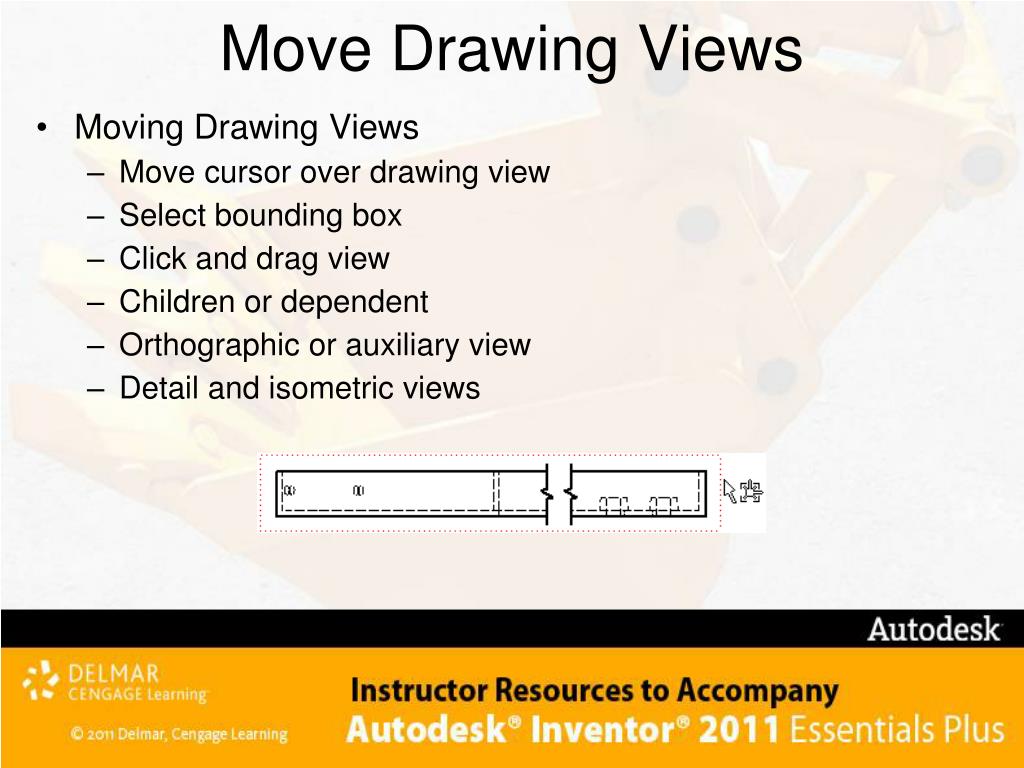

  28. Move Drawing Views • Moving Drawing Views • Move cursor over drawing view • Select bounding box • Click and drag view • Children or dependent • Orthographic or auxiliary view • Detail and isometric views

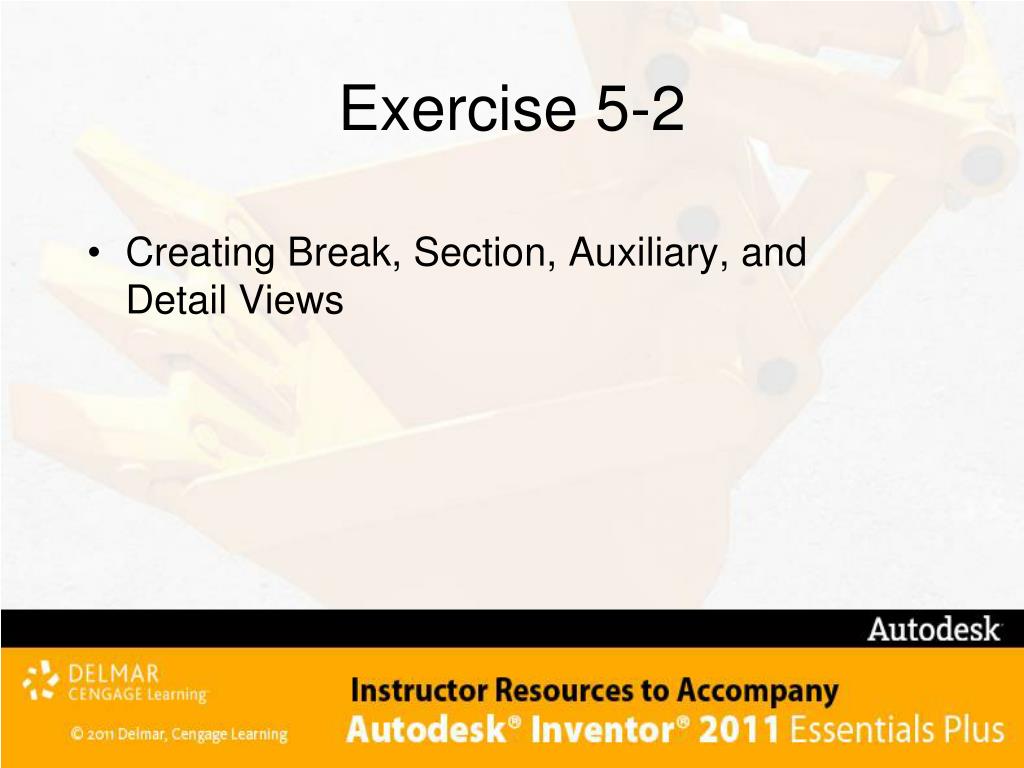

  29. Exercise 5-2 • Creating Break, Section, Auxiliary, and Detail Views

  30. Editing Drawing Views • Editing Drawing View Properties • Edit a drawing view • Drawing View dialog box • Deleting Drawing Views • Views that are dependent

  31. Break and Align Views • Break alignment • Create alignment • Horizontal • Vertical • In Position

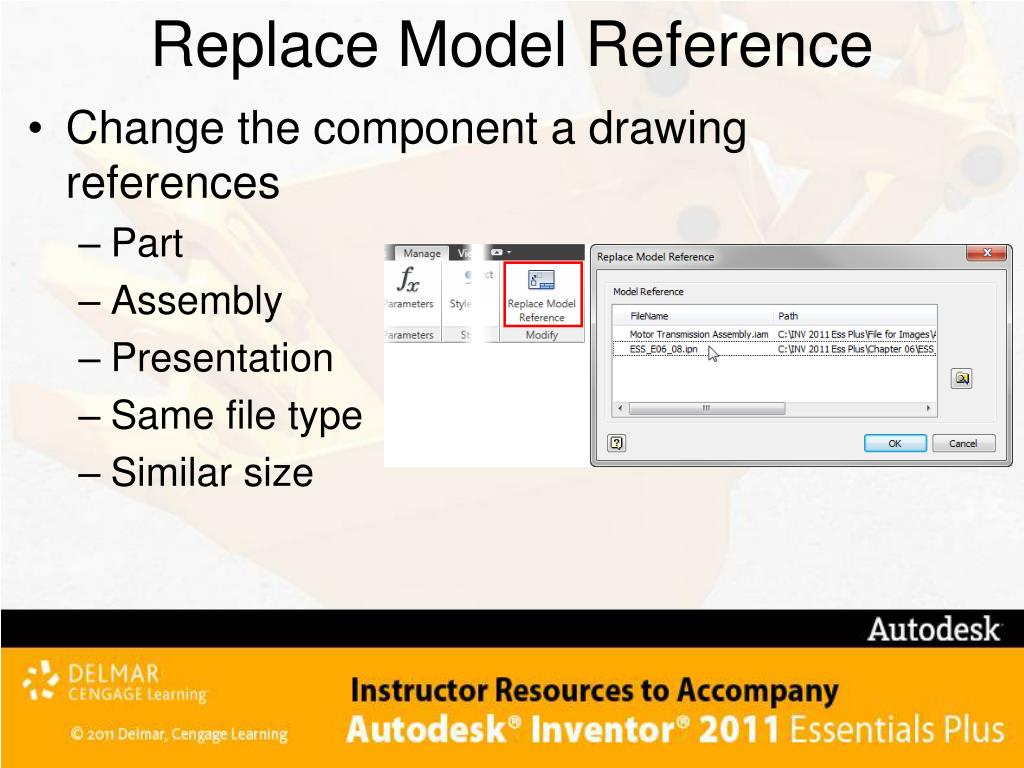

  32. Replace Model Reference • Change the component a drawing references • Part • Assembly • Presentation • Same file type • Similar size

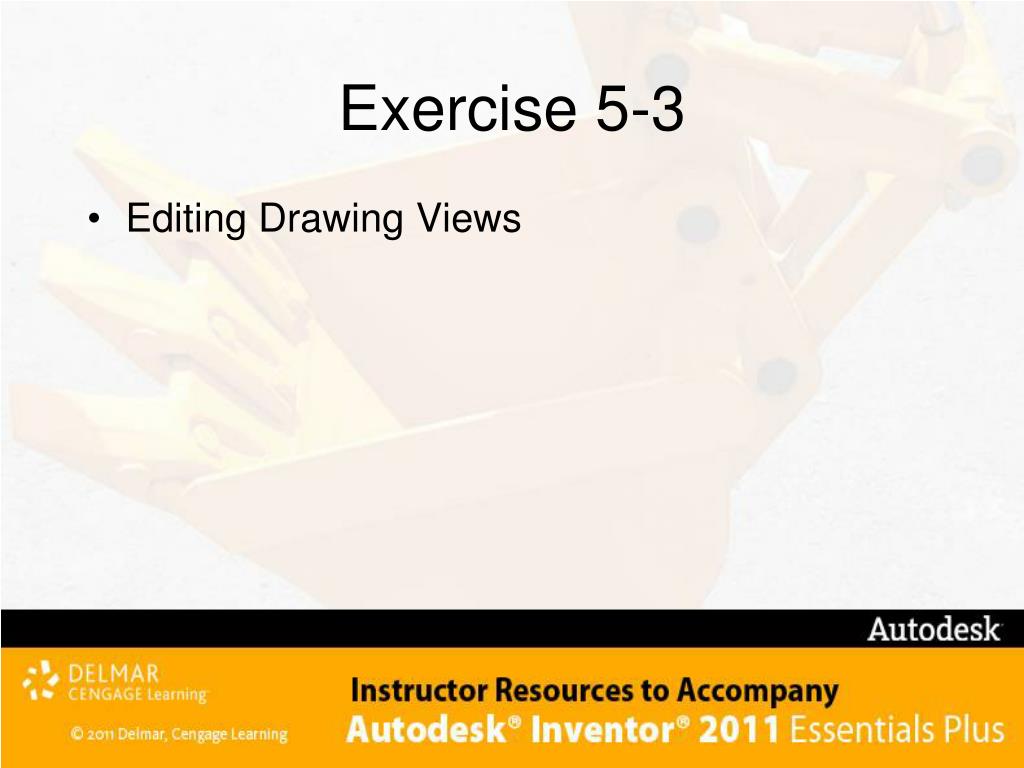

  33. Exercise 5-3 • Editing Drawing Views

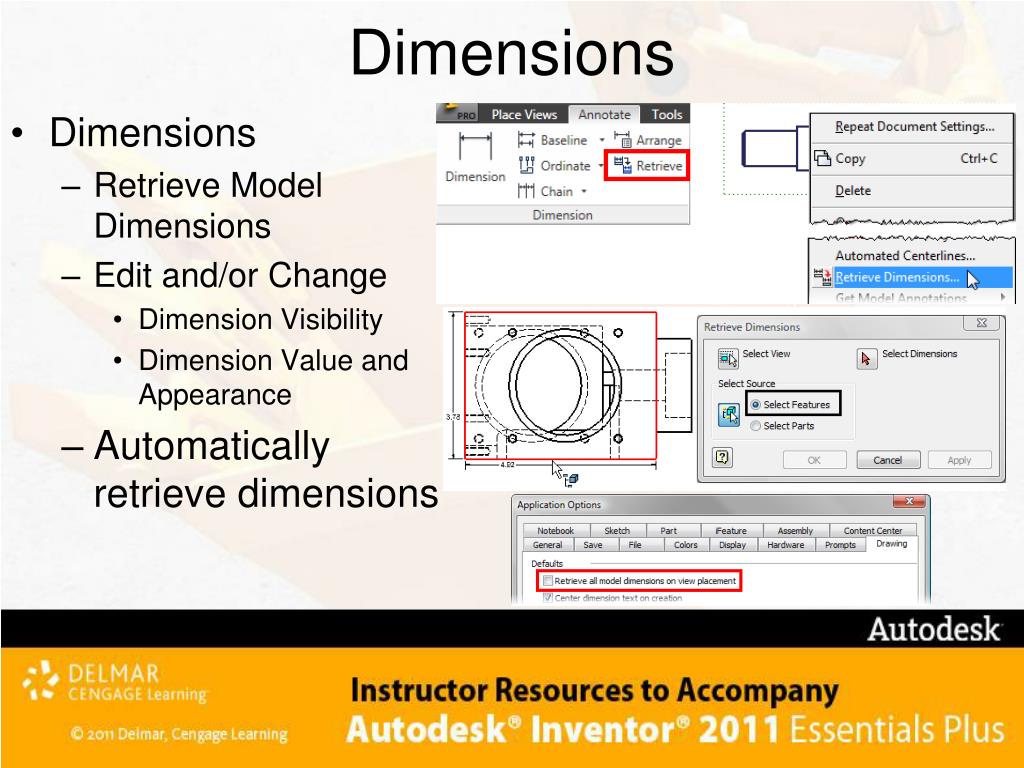

  34. Dimensions • Dimensions • Retrieve Model Dimensions • Edit and/or Change • Dimension Visibility • Dimension Value and Appearance • Automatically retrieve dimensions

  35. Dimensions • Dimensions • Edit Model Dimension • Change model dimensions value • Option available when Inventor is installed

  36. Selecting Dimensions • Quick Access toolbar • Select All Inventor Dimensions • Select All Model Dimensions • Select All Overridden Dimensions • Select All AutoCAD Dimensions

  37. Auto-Arrange Dimensions • Rearrange selected dimensions • Select dimensions in one or multiple views • Arrangement based on dimension style

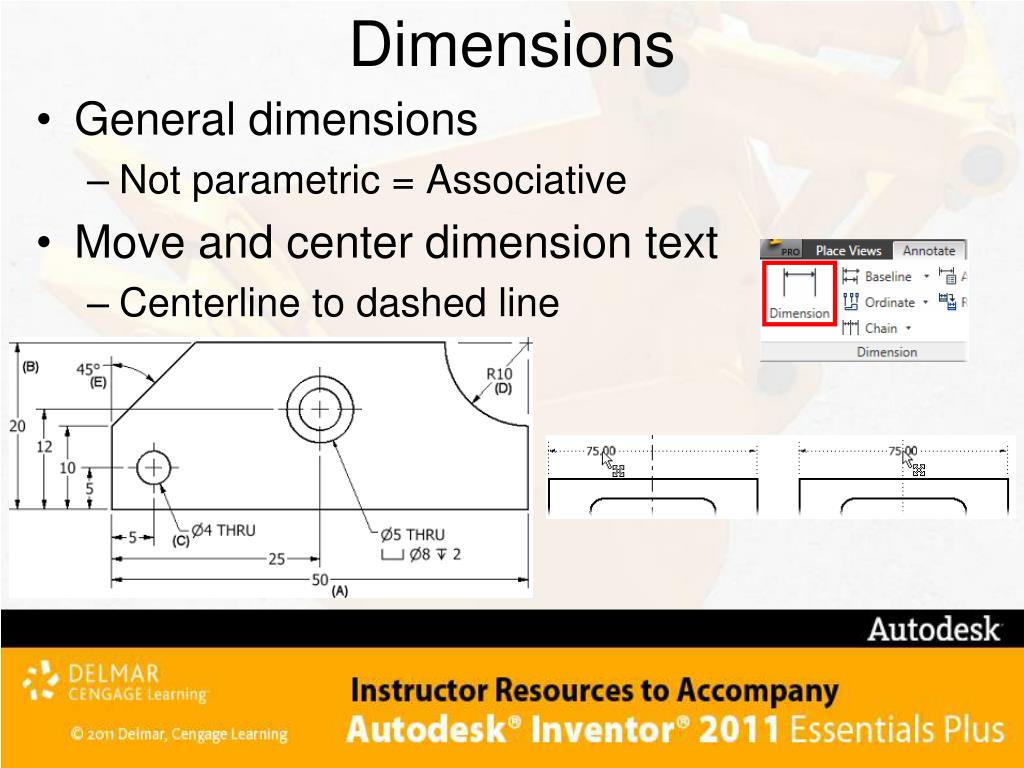

  38. Dimensions • General dimensions • Not parametric = Associative • Move and center dimension text • Centerline to dashed line

  39. Dimensions • Add dimensions to an isometric view • Retrieve or add general dimensions • Space bar - Toggle between planes • Show All Part / Visible Work Planes

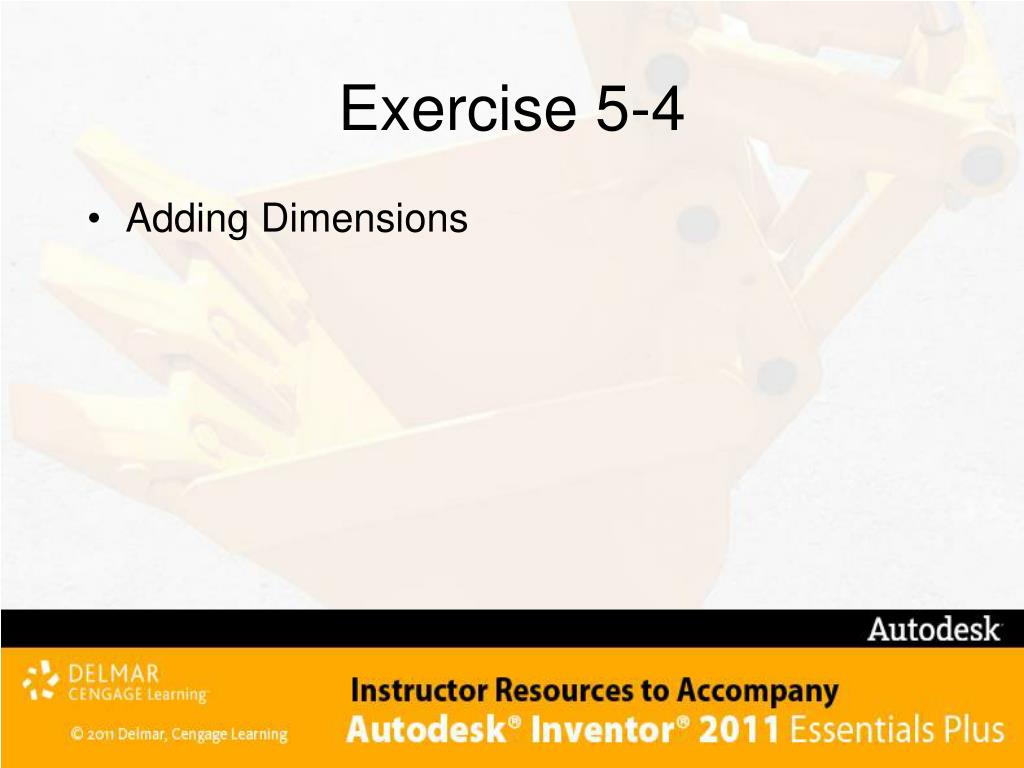

  40. Exercise 5-4 • Adding Dimensions

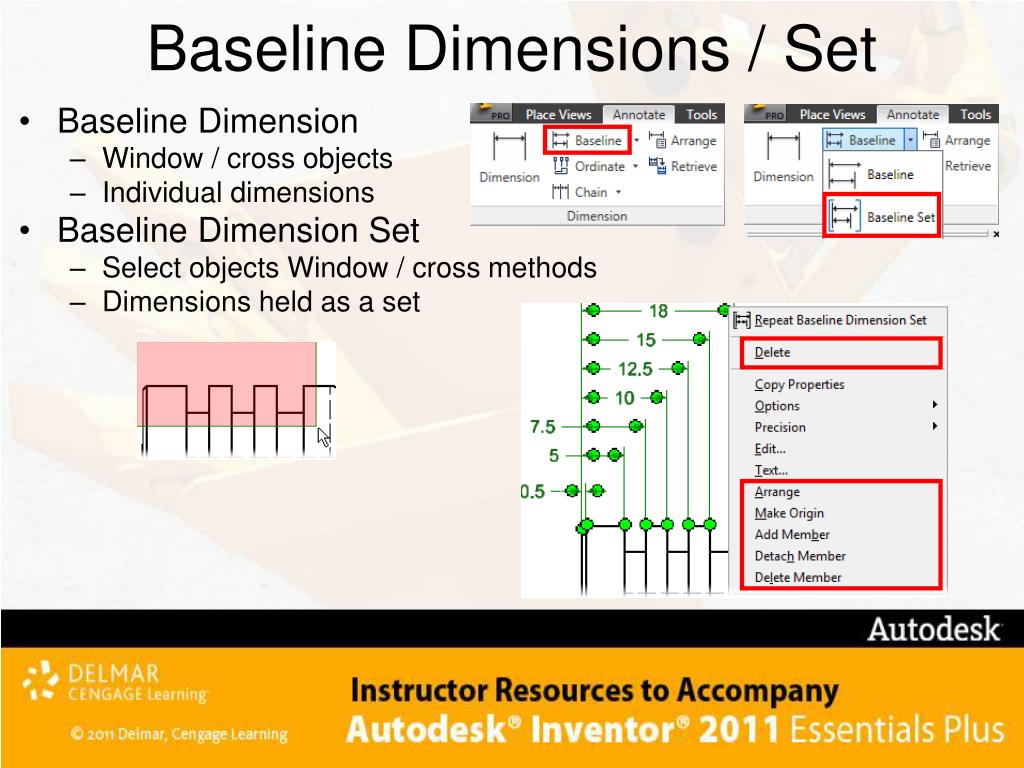

  41. Baseline Dimensions / Set • Baseline Dimension • Window / cross objects • Individual dimensions • Baseline Dimension Set • Select objects Window / cross methods • Dimensions held as a set

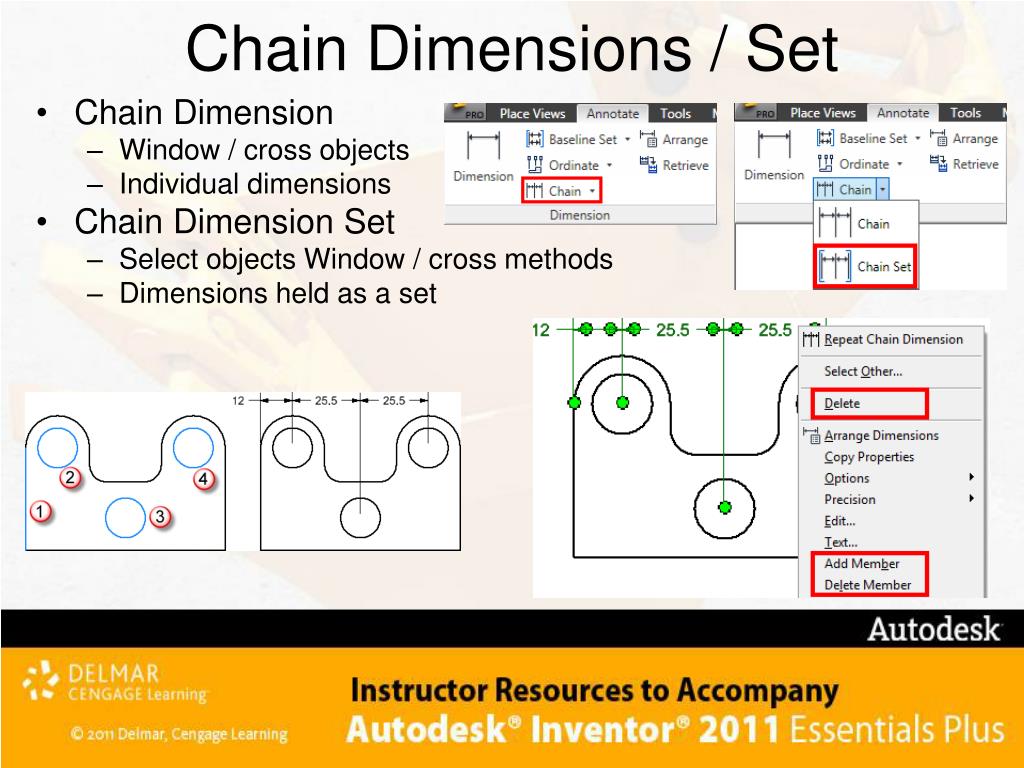

  42. Chain Dimensions / Set • Chain Dimension • Window / cross objects • Individual dimensions • Chain Dimension Set • Select objects Window / cross methods • Dimensions held as a set

  43. Exercise 5-5 • Creating Baseline and Chain Dimensions

  44. Ordinate Dimensions / Set • Ordinate Dimension • Select points or window / cross objects • Individual dimensions • Ordinate Dimension Set • Select points or window / cross objects • Dimensions held as a set

  45. Styles Editor • Edit existing style • Create new style based on current

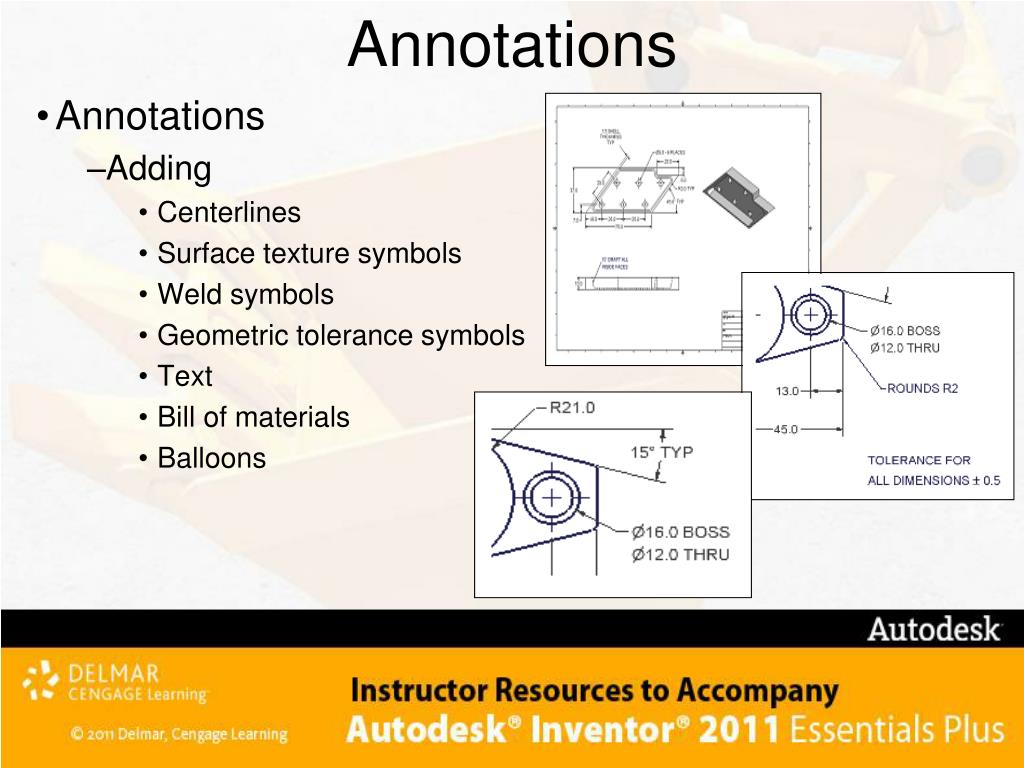

  46. Annotations • Annotations • Adding • Centerlines • Surface texture symbols • Weld symbols • Geometric tolerance symbols • Text • Bill of materials • Balloons

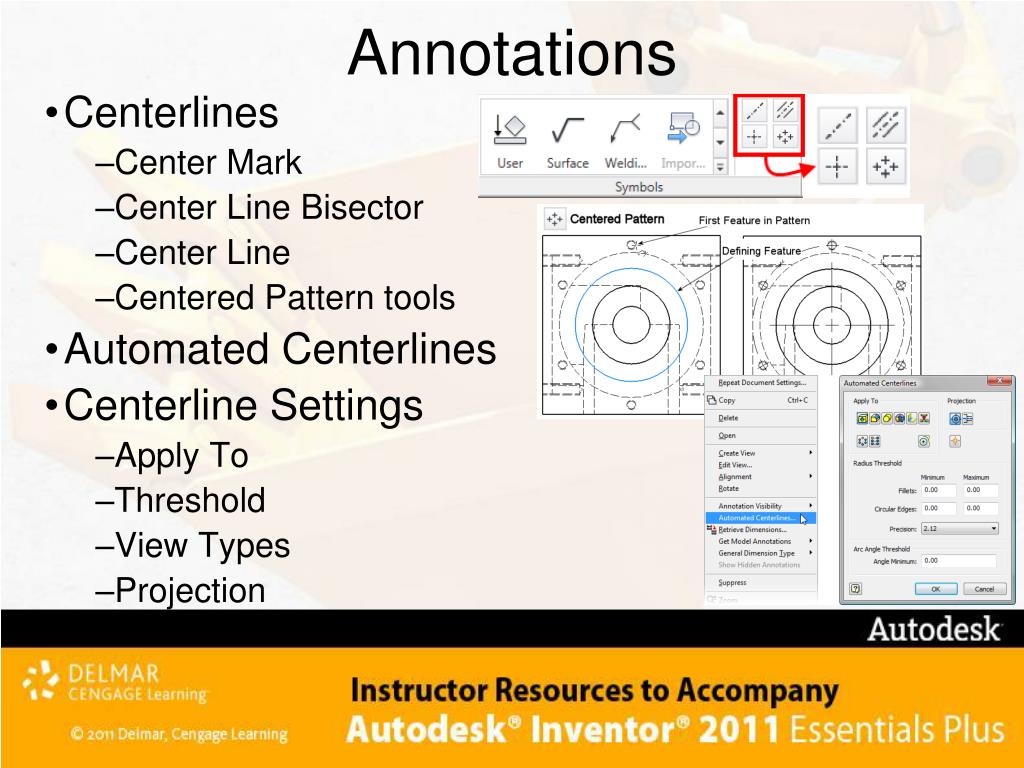

  47. Annotations • Centerlines • Center Mark • Center Line Bisector • Center Line • Centered Pattern tools • Automated Centerlines • Centerline Settings • Apply To • Threshold • View Types • Projection

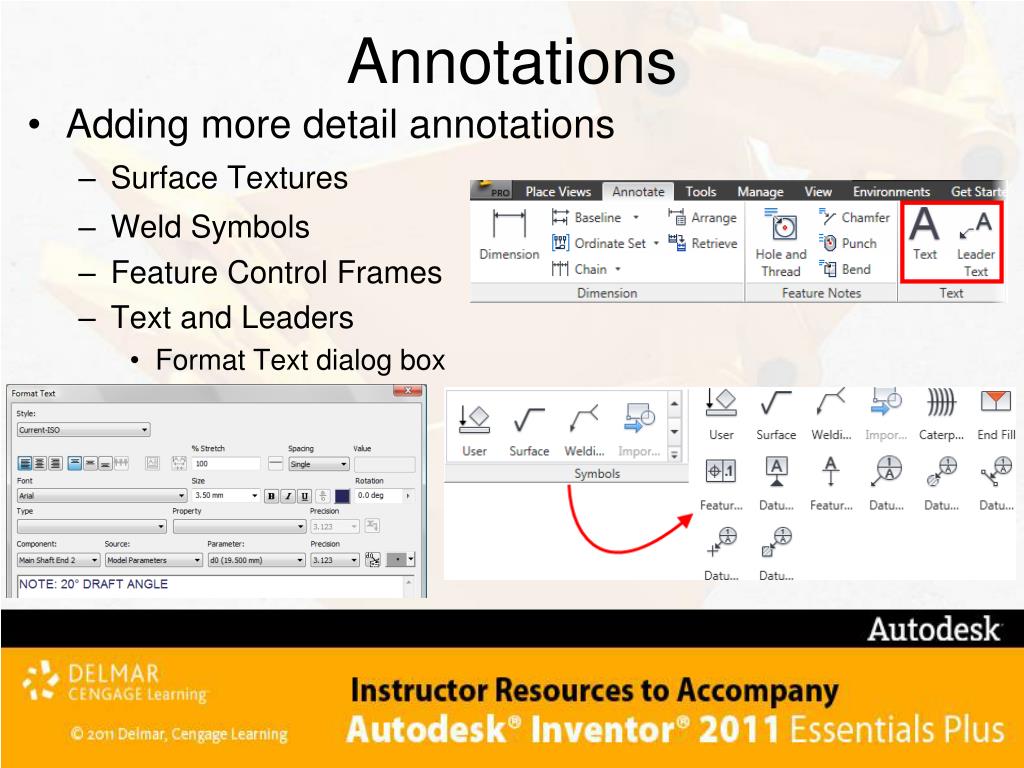

  48. Annotations • Adding more detail annotations • Surface Textures • Weld Symbols • Feature Control Frames • Text and Leaders • Format Text dialog box

  49. Hole and Thread Notes • Adding… • Hole & Thread Notes • Hole Note Styles • Formatting • Apply tolerance values • Editing • Side Views

  50. Exercise 5-6 • Adding Annotations
