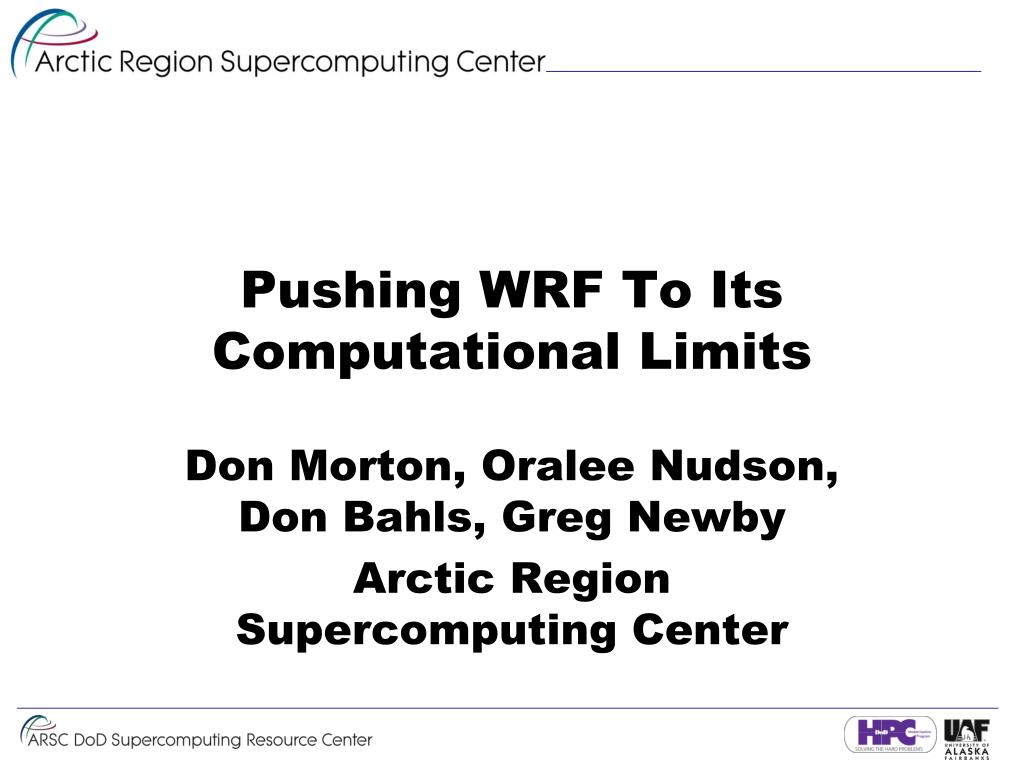

  1. Pushing WRF To Its Computational Limits Don Morton, Oralee Nudson, Don Bahls, Greg Newby Arctic Region Supercomputing Center

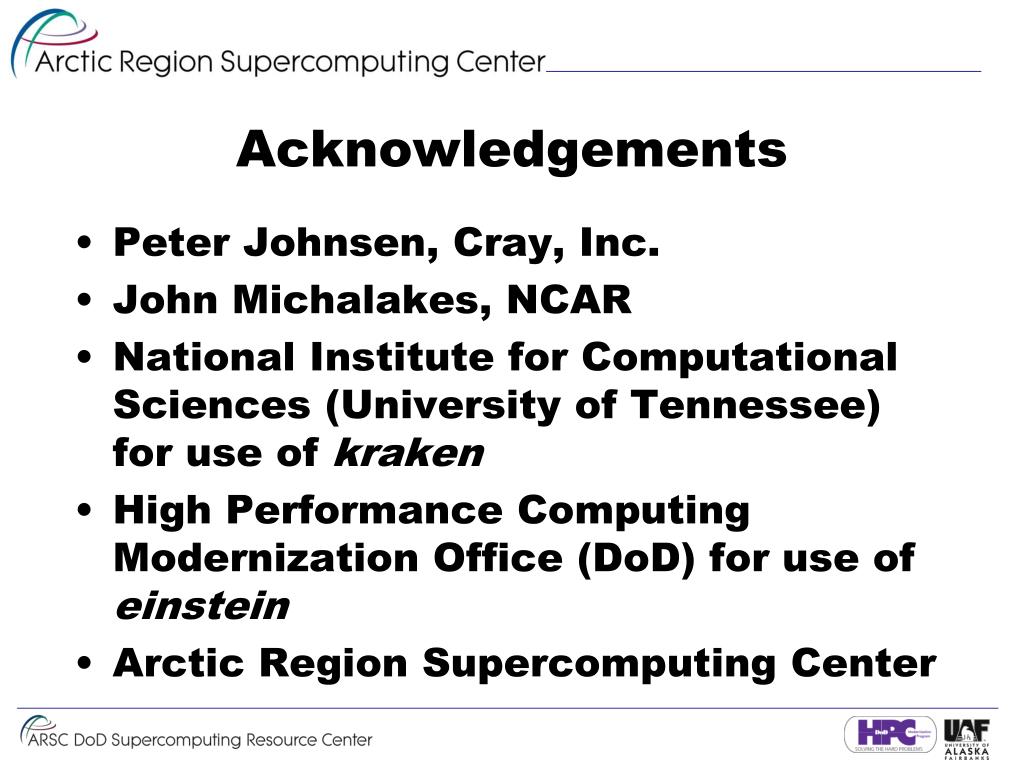

  2. Acknowledgements • Peter Johnsen, Cray, Inc. • John Michalakes, NCAR • National Institute for Computational Sciences (University of Tennessee) for use of kraken • High Performance Computing Modernization Office (DoD) for use of einstein • Arctic Region Supercomputing Center

  3. Motivation • Insatiable need for • Higher resolution • Larger domains • More realistic physics and dynamics

  4. Image obtained from http://pafg.arh.noaa.gov/zones/zoomd/AKZ222.jpg

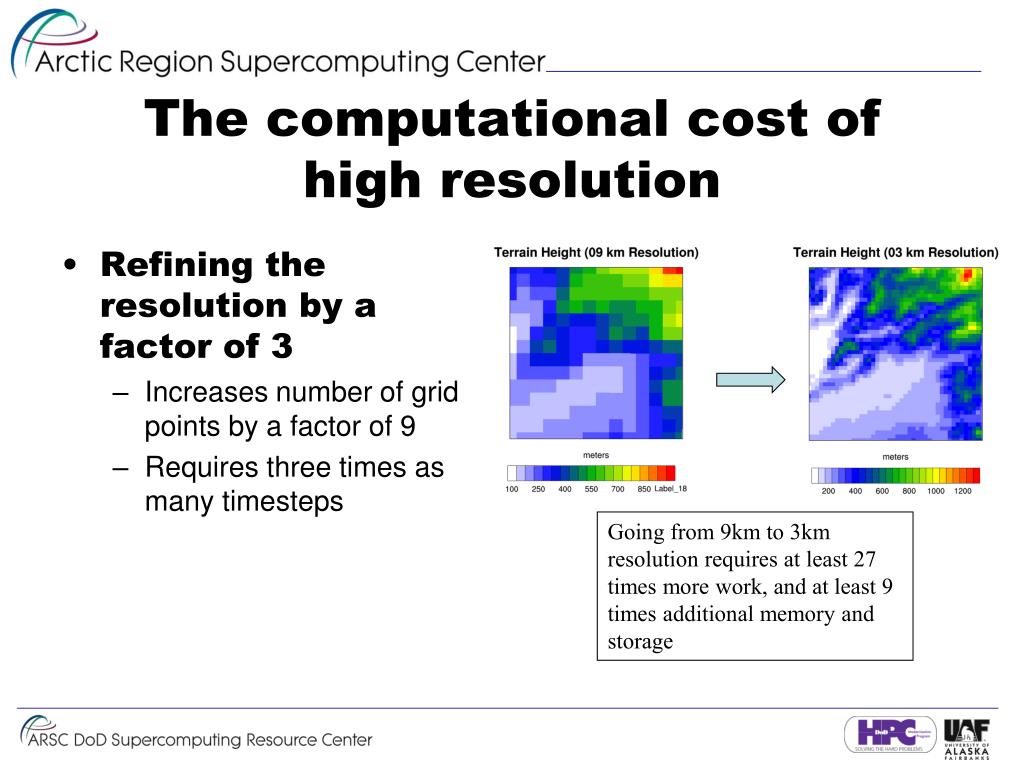

  5. The computational cost of high resolution • Refining the resolution by a factor of 3 • Increases number of grid points by a factor of 9 • Requires three times as many timesteps Going from 9km to 3km resolution requires at least 27 times more work, and at least 9 times additional memory and storage

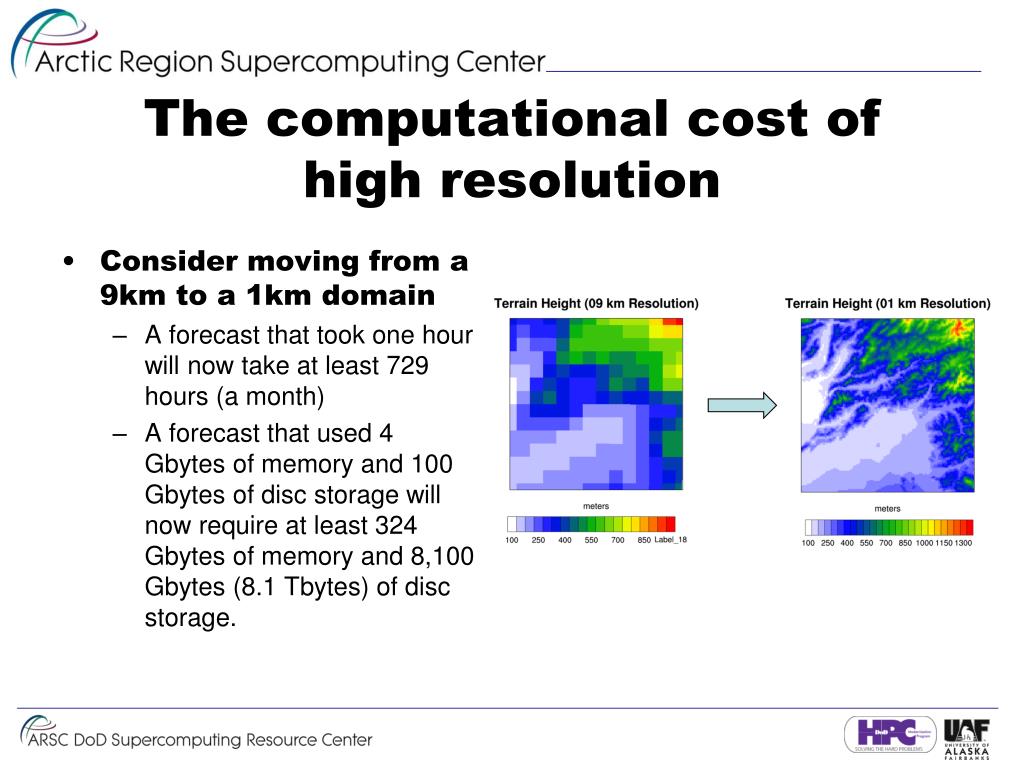

  6. The computational cost of high resolution • Consider moving from a 9km to a 1km domain • A forecast that took one hour will now take at least 729 hours (a month) • A forecast that used 4 Gbytes of memory and 100 Gbytes of disc storage will now require at least 324 Gbytes of memory and 8,100 Gbytes (8.1 Tbytes) of disc storage.

  7. Motivation • Vision – computer models are a primary tool for understanding and experimenting with complex systems • Computer scientists – push the limits to facilitate super high resolution and large-scale runs • Atmospheric scientists – keep up with the issues posed by finer resolutions

  8. Our Aim • Maintain a repository of data and information for • Gauging performance of WRF on wide variety of architectures • Understanding the limits of WRF and methods for getting around some of these • Push WRF and HPC to the limits in preparation for the next generation of simulations

  9. Background • WRF V3 Parallel Benchmark Page (Eldred & Michalakes) • 25km and 12.5km • Provides • wrfrst_d01_2001-10-25_00_00_00 • wrfbdy_d01 • namelist.input • Reference wrfout

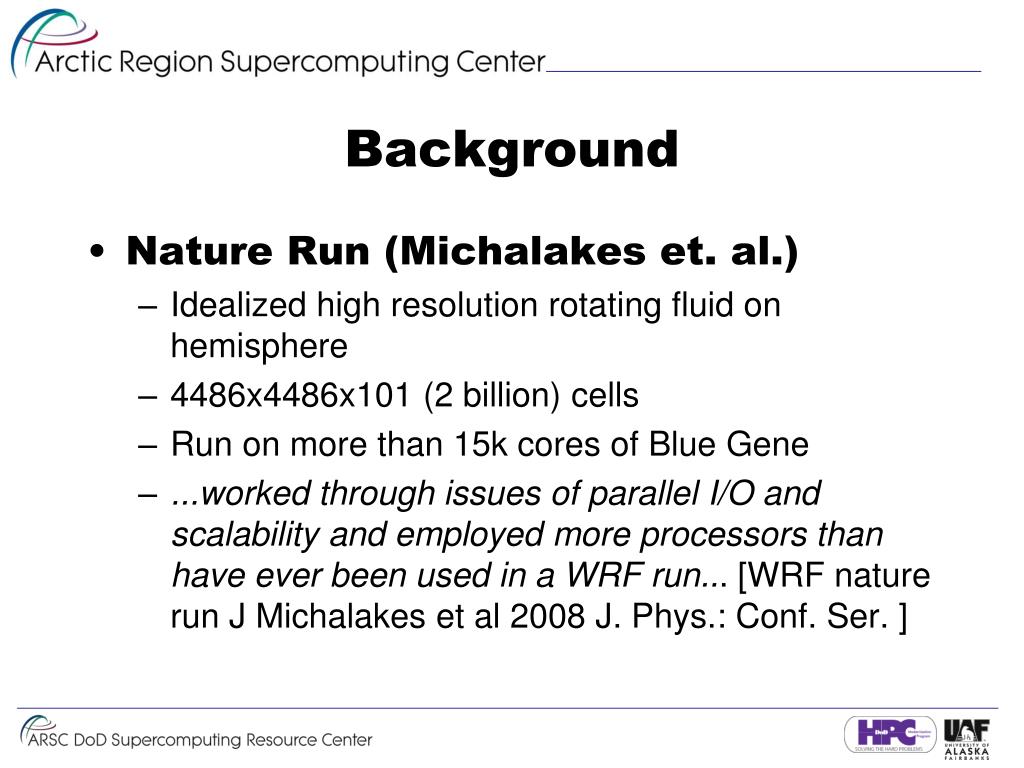

  10. Background • Nature Run (Michalakes et. al.) • Idealized high resolution rotating fluid on hemisphere • 4486x4486x101 (2 billion) cells • Run on more than 15k cores of Blue Gene • ...worked through issues of parallel I/O and scalability and employed more processors than have ever been used in a WRF run... [WRF nature run J Michalakes et al 2008 J. Phys.: Conf. Ser. ]

  11. ARSC WRF Benchmarking Suite • Standard 6075x6075km domain centered on Frank Williams’ office • Multiple resolutions to support full range of benchmarking needs

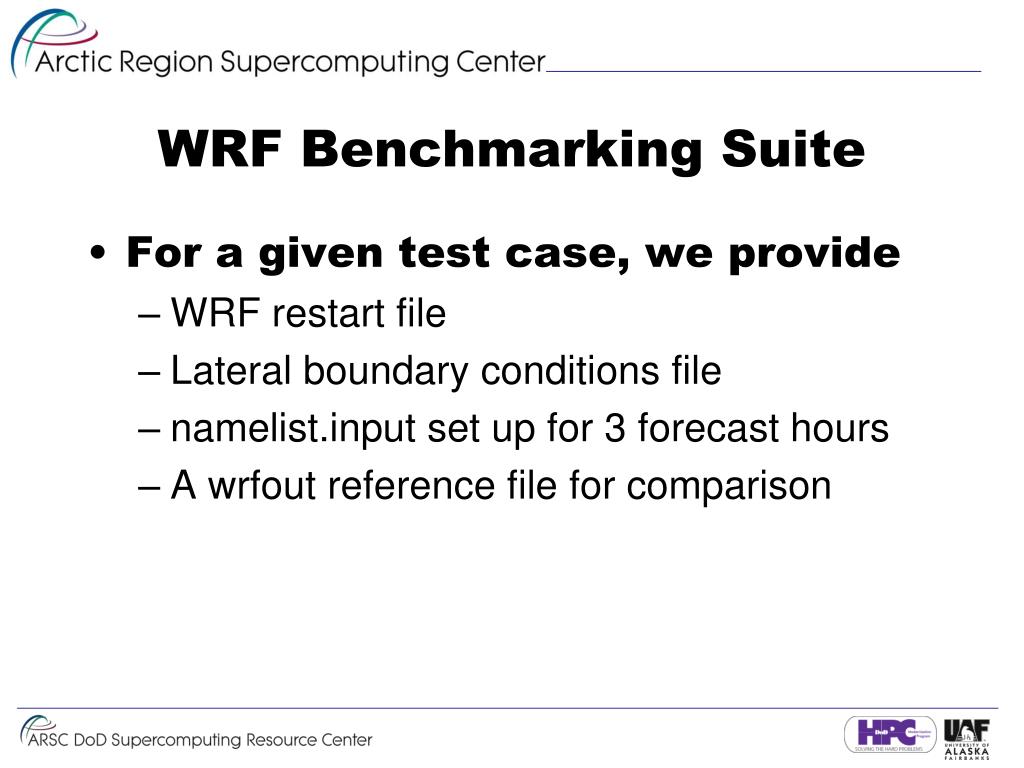

  12. WRF Benchmarking Suite • For a given test case, we provide • WRF restart file • Lateral boundary conditions file • namelist.input set up for 3 forecast hours • A wrfout reference file for comparison

  13. WRF Benchmarking Suite • Some preliminary experiments

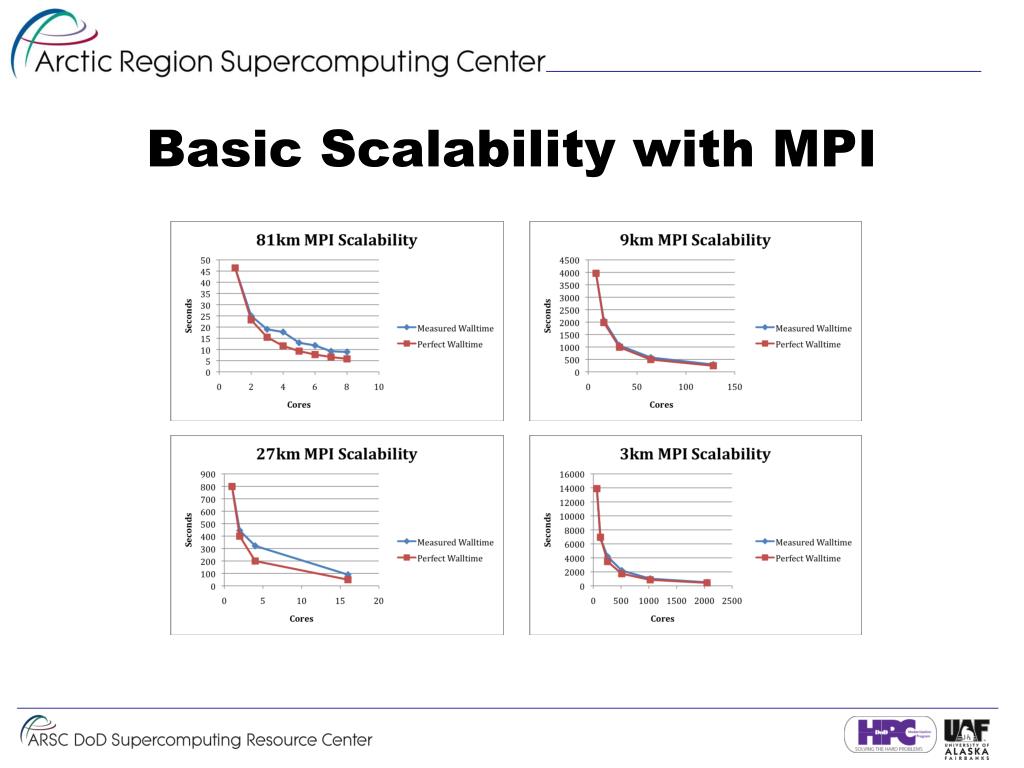

  14. Basic Scalability with MPI

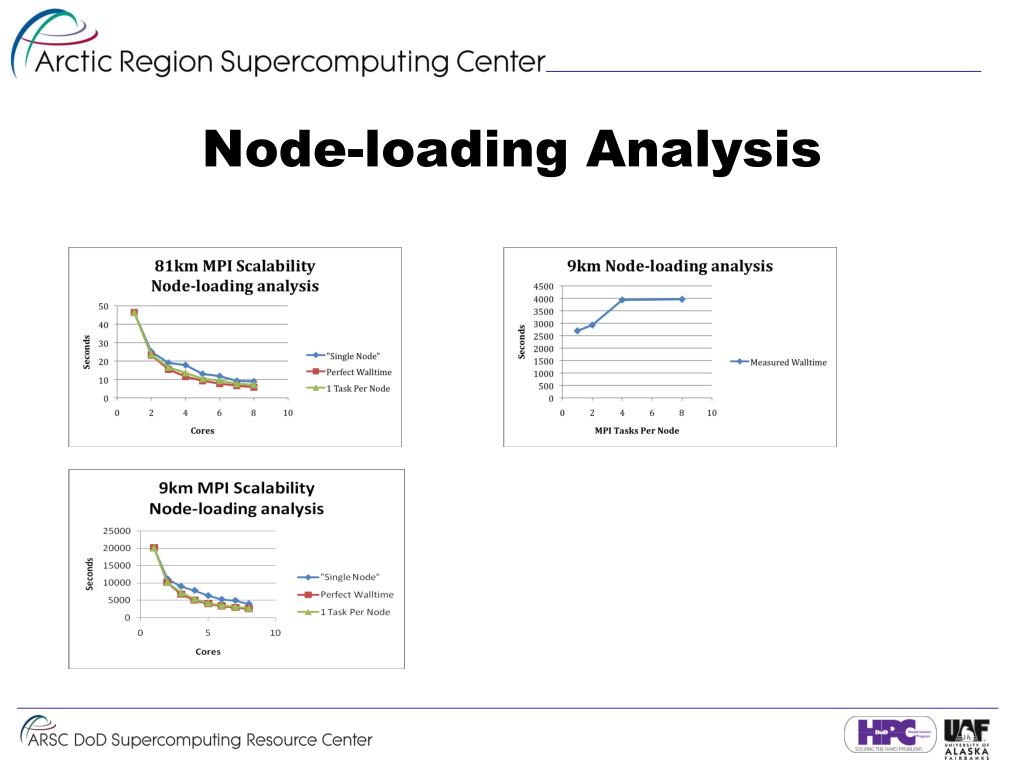

  15. Node-loading Analysis

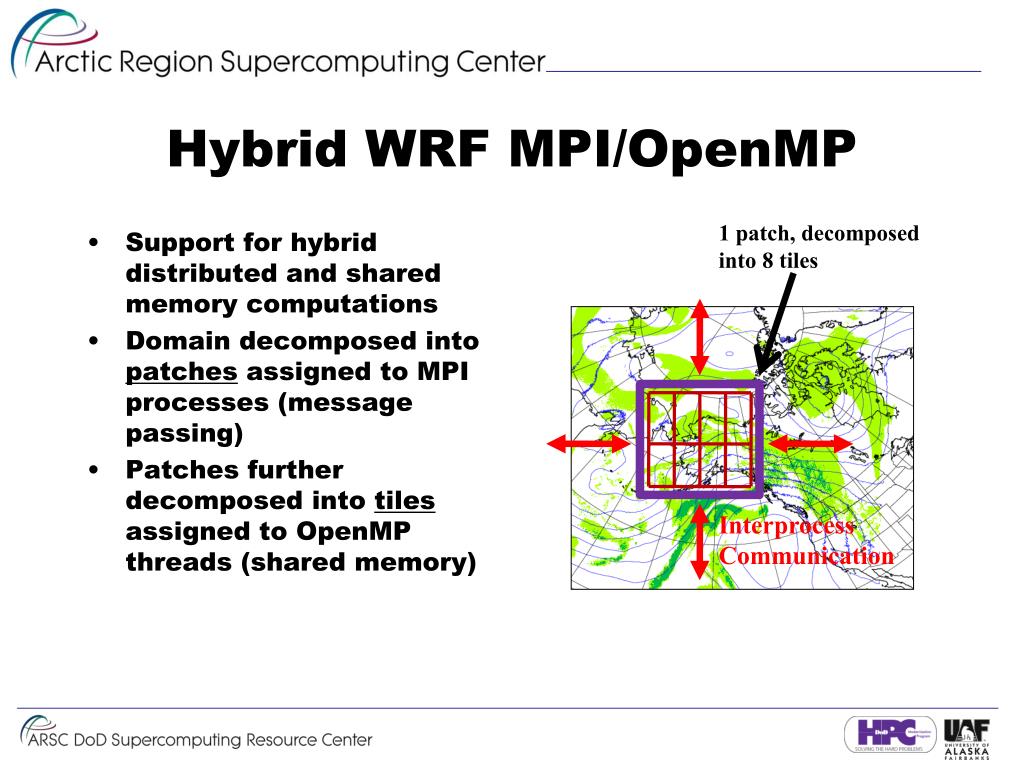

  16. Hybrid WRF MPI/OpenMP 1 patch, decomposed into 8 tiles • Support for hybrid distributed and shared memory computations • Domain decomposed into patches assigned to MPI processes (message passing) • Patches further decomposed into tiles assigned to OpenMP threads (shared memory) Interprocess Communication

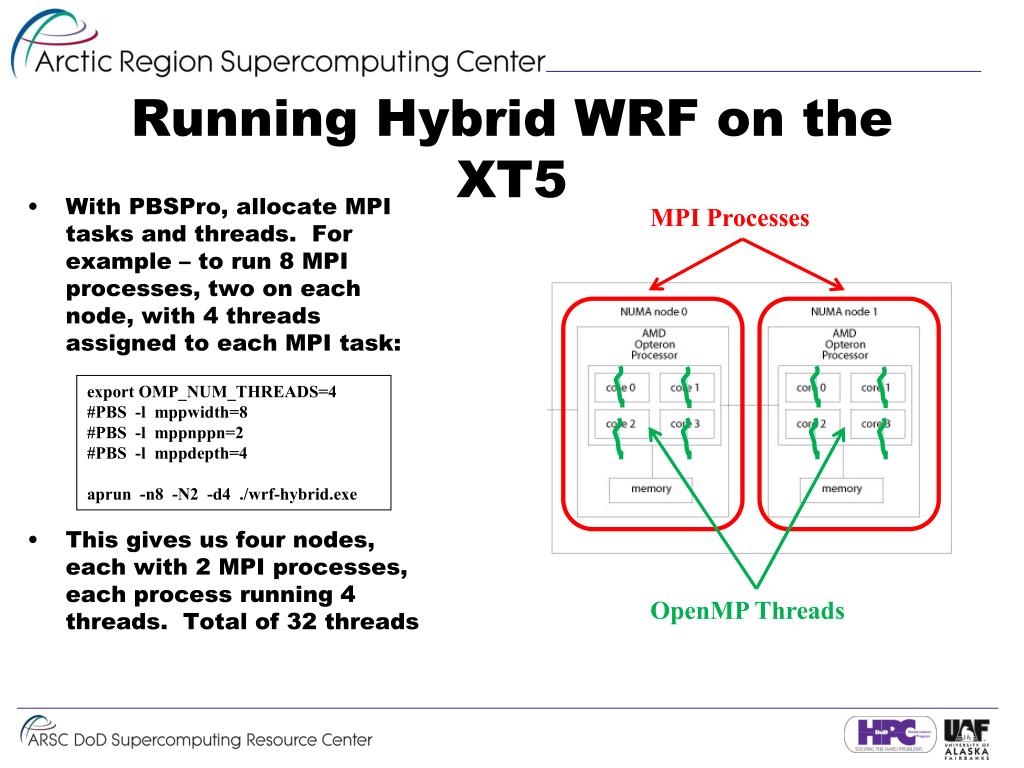

  17. Running Hybrid WRF on the XT5 MPI Processes • With PBSPro, allocate MPI tasks and threads. For example – to run 8 MPI processes, two on each node, with 4 threads assigned to each MPI task: • This gives us four nodes, each with 2 MPI processes, each process running 4 threads. Total of 32 threads export OMP_NUM_THREADS=4 #PBS -l mppwidth=8 #PBS -l mppnppn=2 #PBS -l mppdepth=4 aprun -n8 -N2 -d4 ./wrf-hybrid.exe OpenMP Threads

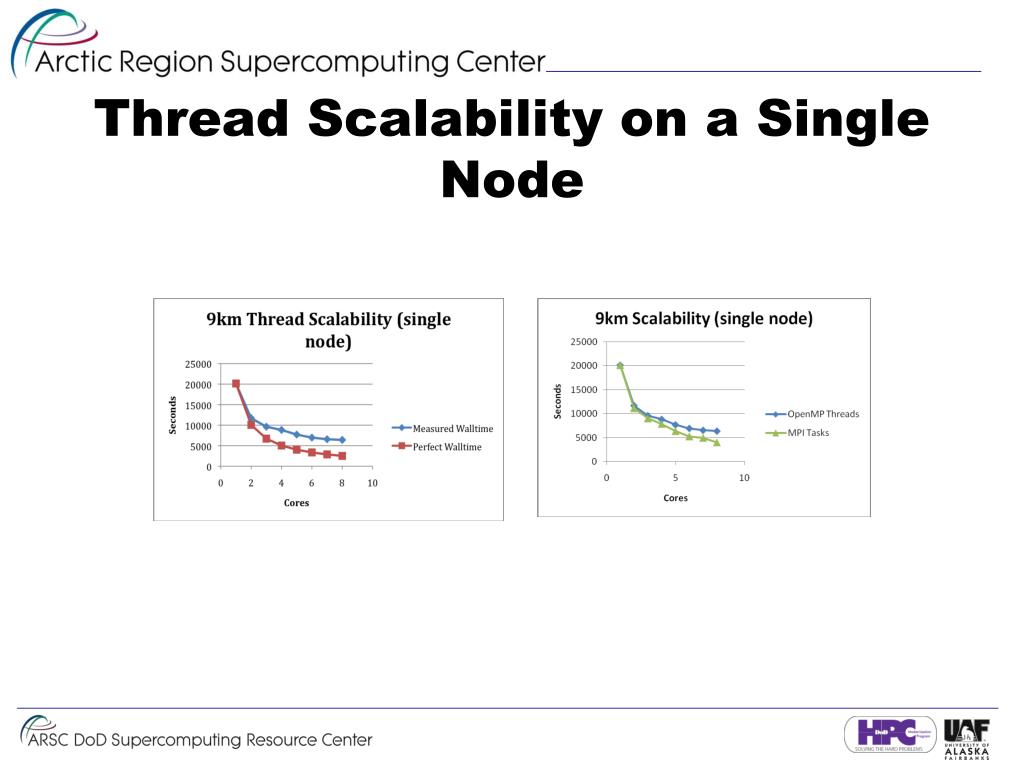

  18. Thread Scalability on a Single Node

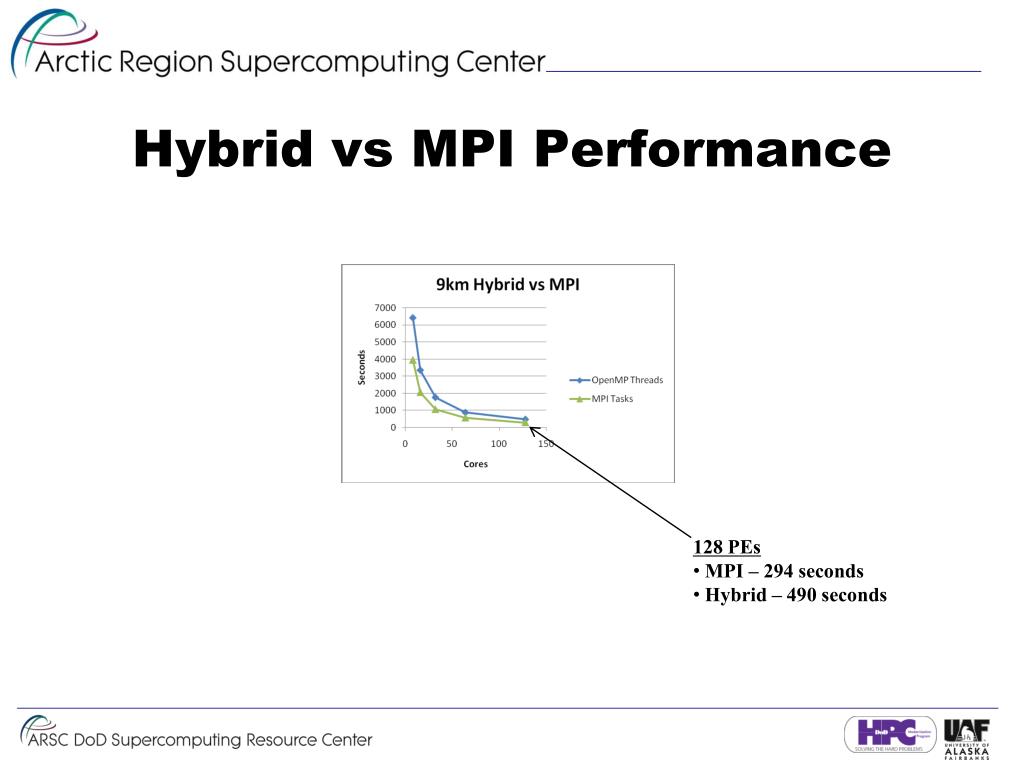

  19. Hybrid vs MPI Performance • 128 PEs • MPI – 294 seconds • Hybrid – 490 seconds

  20. Task/Thread Decomposition Analysis 8 threads per MPI task 4 threads per MPI task 2 threads per MPI task

  21. First problems with large-scale runs • Task 0 exhibits larger memory requirements relative to other tasks • Example • 4000x4000x28 = 448 million points • 75 quad-core nodes (300 cores), each with 8 GBytes memory • Problem decomposes into 300 subdomains of approximately 1.9 GBytes each, or 7.6 GB per node – it just might fit, BUT... • Task 0 needs an additional 1.8 GB for global buffer, so Node 0 now needs 9.4 GBytes

  22. First problems with large-scale runs - Resolutions • Allocate more nodes • Resolve through clever core/node allocations (don’t use all the cores in a node) • Parallel I/O • Resolves some of these issues • Reduces I/O bottlenecks

  23. Tackling the 1km, 1 Gigapoint run – getting started • real.exe and ...would go off top... message • Trying to discern whether numerical or memory issue • Experimenting on huge datasets is time and resource intensive • Finally narrowed down to “size” problem • High numbered tasks had unrealistic pressures • Traced to MPI_Scatter() call with a 32-bit argument, trying to pass array offsets larger than 232

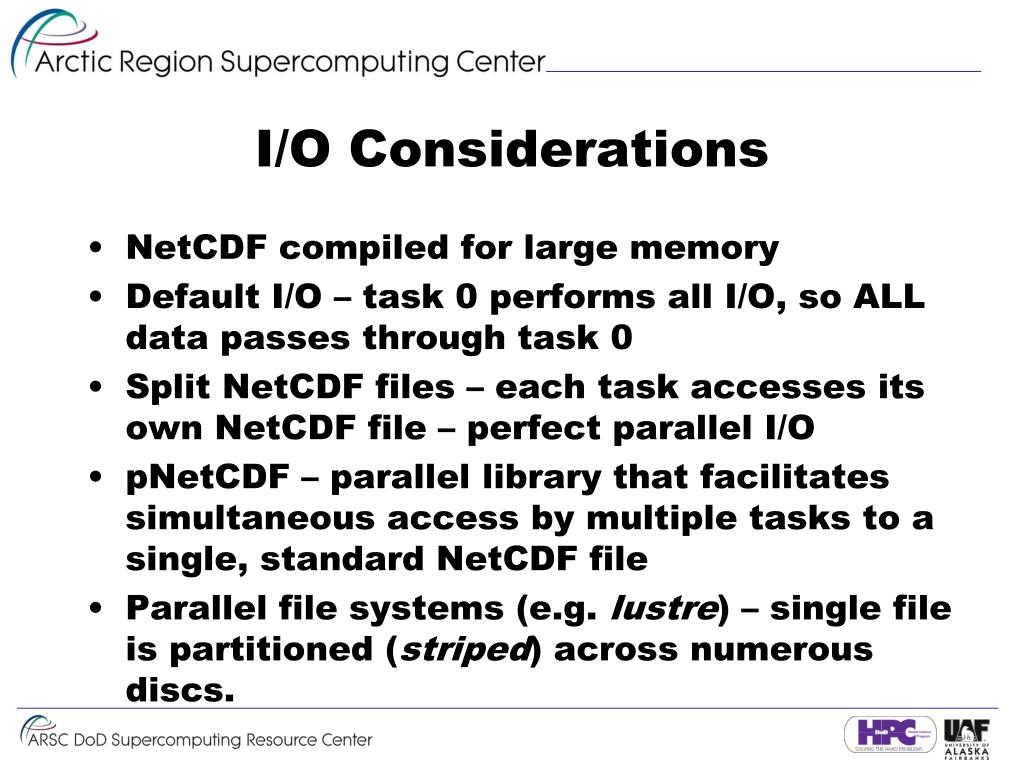

  24. I/O Considerations • NetCDF compiled for large memory • Default I/O – task 0 performs all I/O, so ALL data passes through task 0 • Split NetCDF files – each task accesses its own NetCDF file – perfect parallel I/O • pNetCDF – parallel library that facilitates simultaneous access by multiple tasks to a single, standard NetCDF file • Parallel file systems (e.g. lustre) – single file is partitioned (striped) across numerous discs.

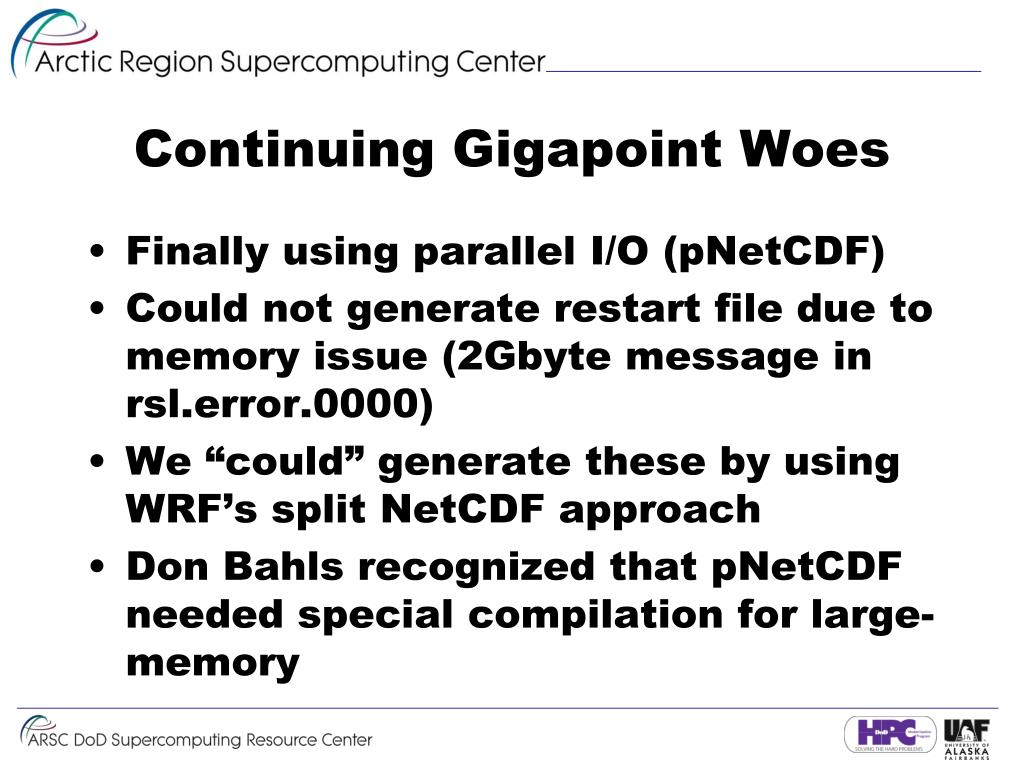

  25. Continuing Gigapoint Woes • Finally using parallel I/O (pNetCDF) • Could not generate restart file due to memory issue (2Gbyte message in rsl.error.0000) • We “could” generate these by using WRF’s split NetCDF approach • Don Bahls recognized that pNetCDF needed special compilation for large-memory

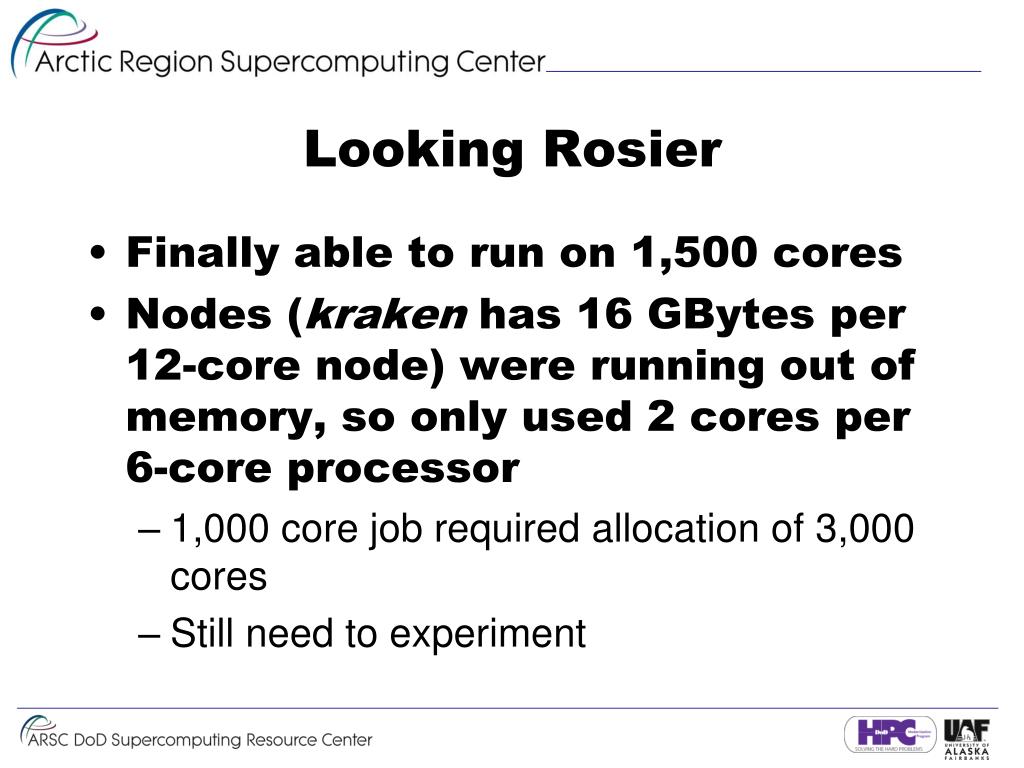

  26. Looking Rosier • Finally able to run on 1,500 cores • Nodes (kraken has 16 GBytes per 12-core node) were running out of memory, so only used 2 cores per 6-core processor • 1,000 core job required allocation of 3,000 cores • Still need to experiment

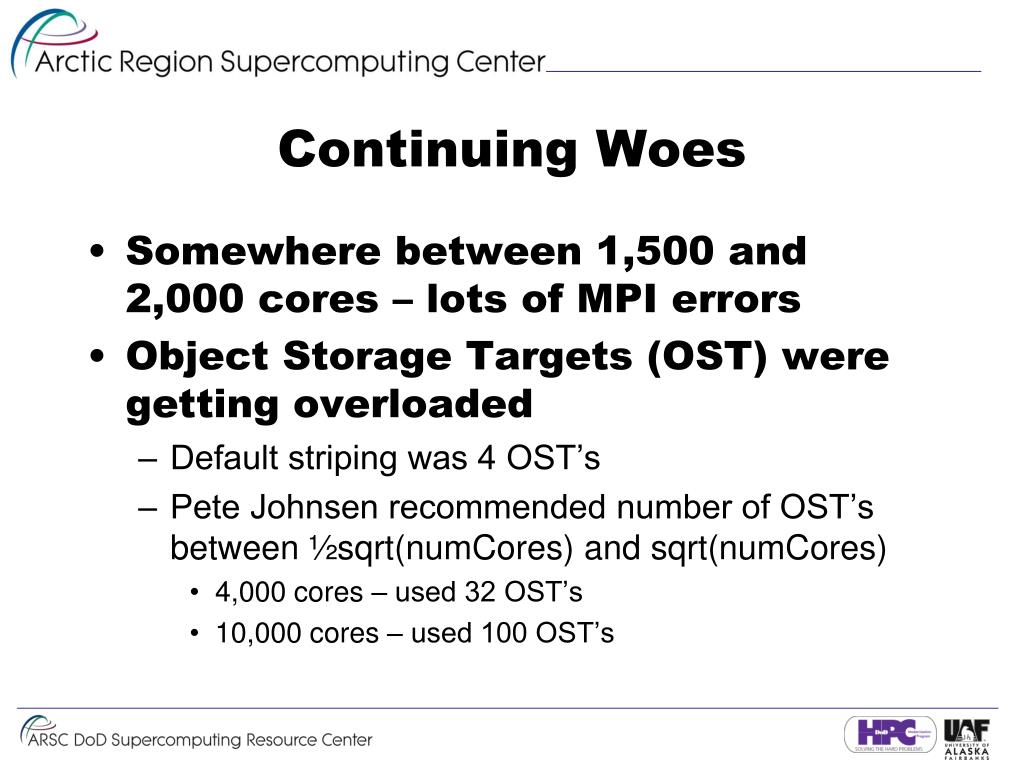

  27. Continuing Woes • Somewhere between 1,500 and 2,000 cores – lots of MPI errors • Object Storage Targets (OST) were getting overloaded • Default striping was 4 OST’s • Pete Johnsen recommended number of OST’s between ½sqrt(numCores) and sqrt(numCores) • 4,000 cores – used 32 OST’s • 10,000 cores – used 100 OST’s

  28. Success • Got up to 10,000 cores running (had to allocate 30,000) • Preliminary timings – time required for the third timestep

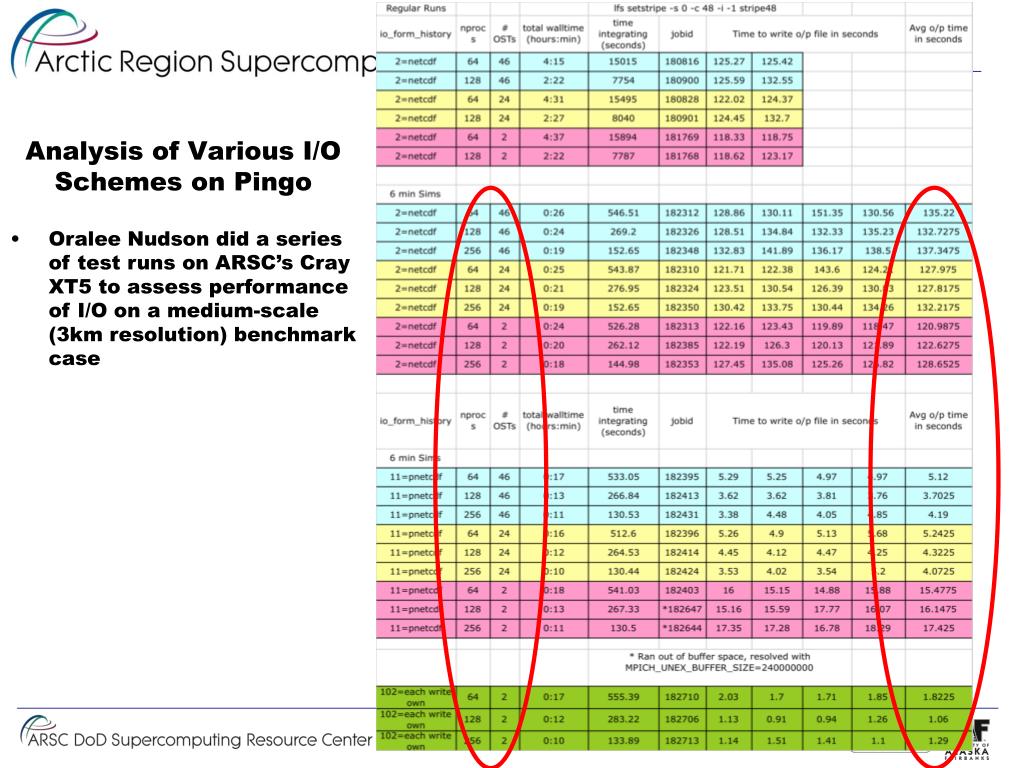

  29. Analysis of Various I/O Schemes on Pingo • Oralee Nudson did a series of test runs on ARSC’s Cray XT5 to assess performance of I/O on a medium-scale (3km resolution) benchmark case

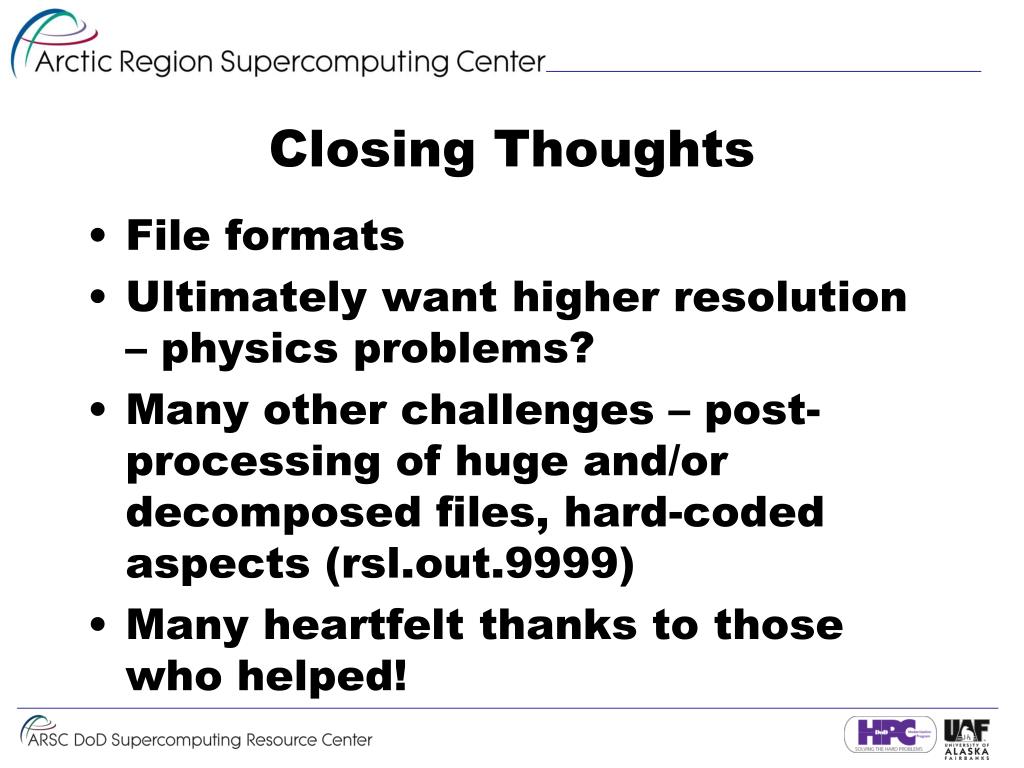

  30. Closing Thoughts • File formats • Ultimately want higher resolution – physics problems? • Many other challenges – post-processing of huge and/or decomposed files, hard-coded aspects (rsl.out.9999) • Many heartfelt thanks to those who helped!
