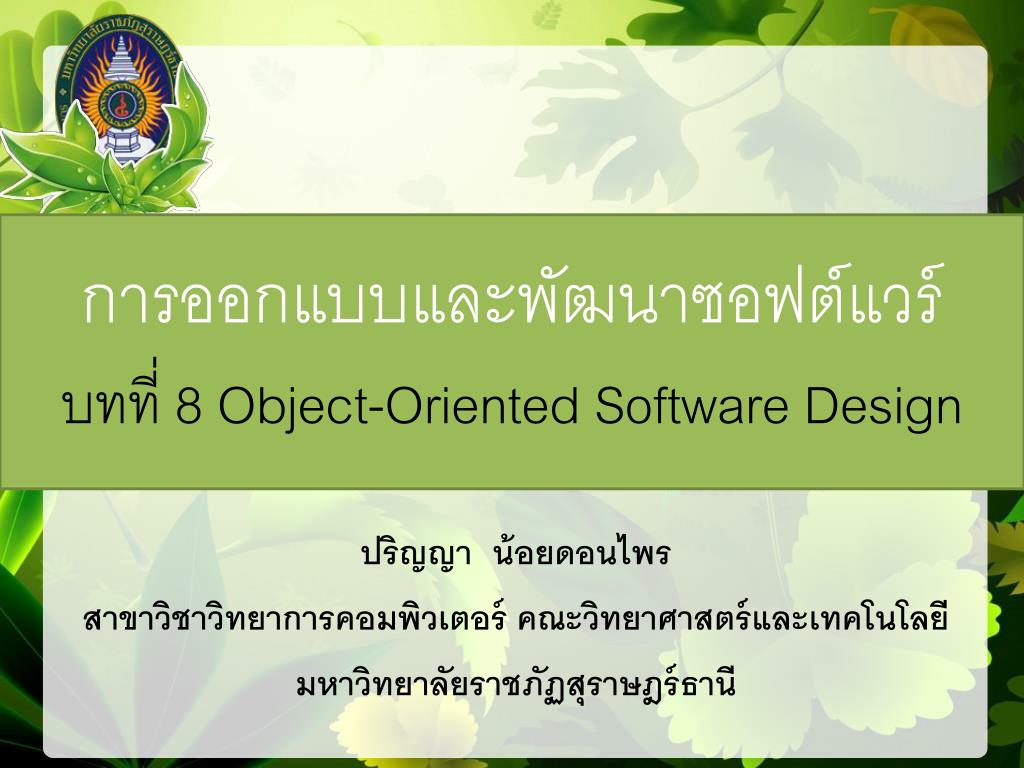

  1. การออกแบบและพัฒนาซอฟต์แวร์บทที่ 8 Object-Oriented Software Design ปริญญา น้อยดอนไพร สาขาวิชาวิทยาการคอมพิวเตอร์ คณะวิทยาศาสตร์และเทคโนโลยี มหาวิทยาลัยราชภัฏสุราษฎร์ธานี

  2. Object-Oriented Software Design • Object-Oriented Concept • Introduction to Object-Oriented Software Design

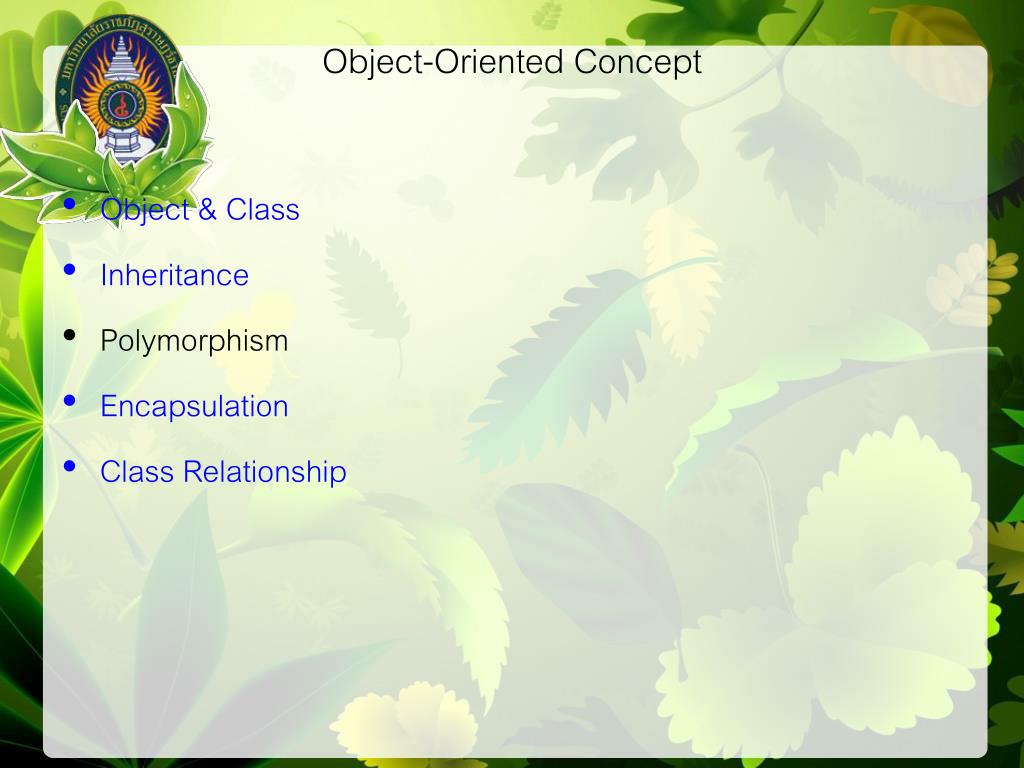

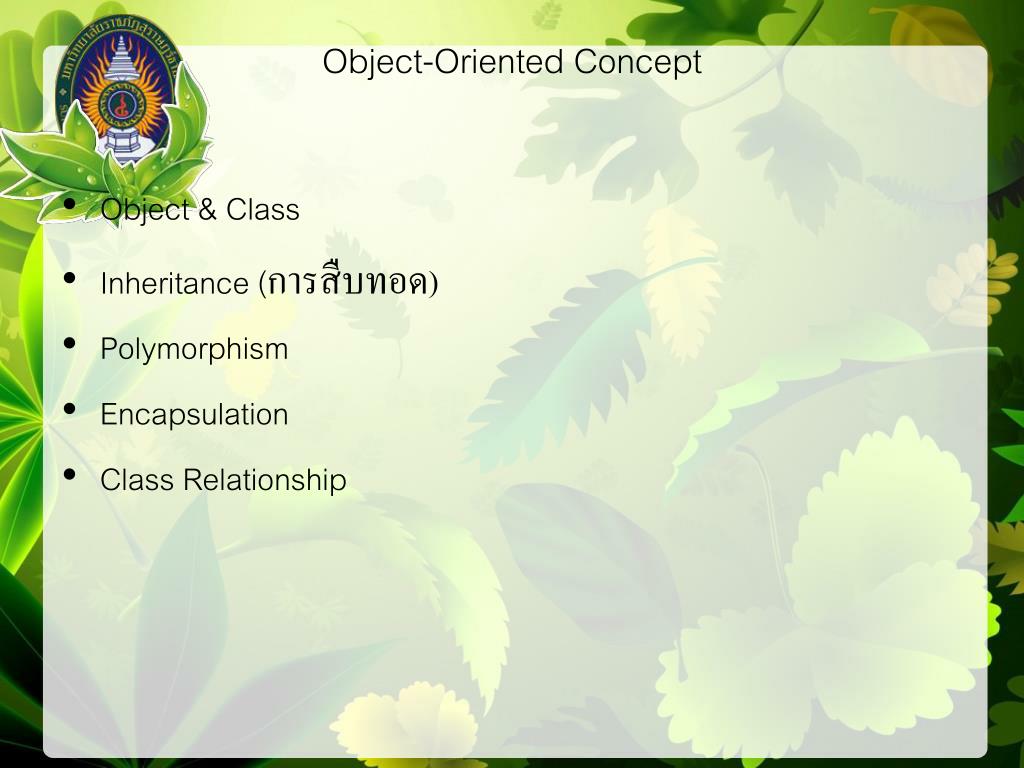

  3. Object-Oriented Concept • Object & Class • Inheritance (การสืบทอด) • Polymorphism • Encapsulation • Class Relationship

  4. Introduction to Object-Oriented Software Design

  5. Object-Oriented Concept • Object & Class • Inheritance • Polymorphism • Encapsulation • Class Relationship

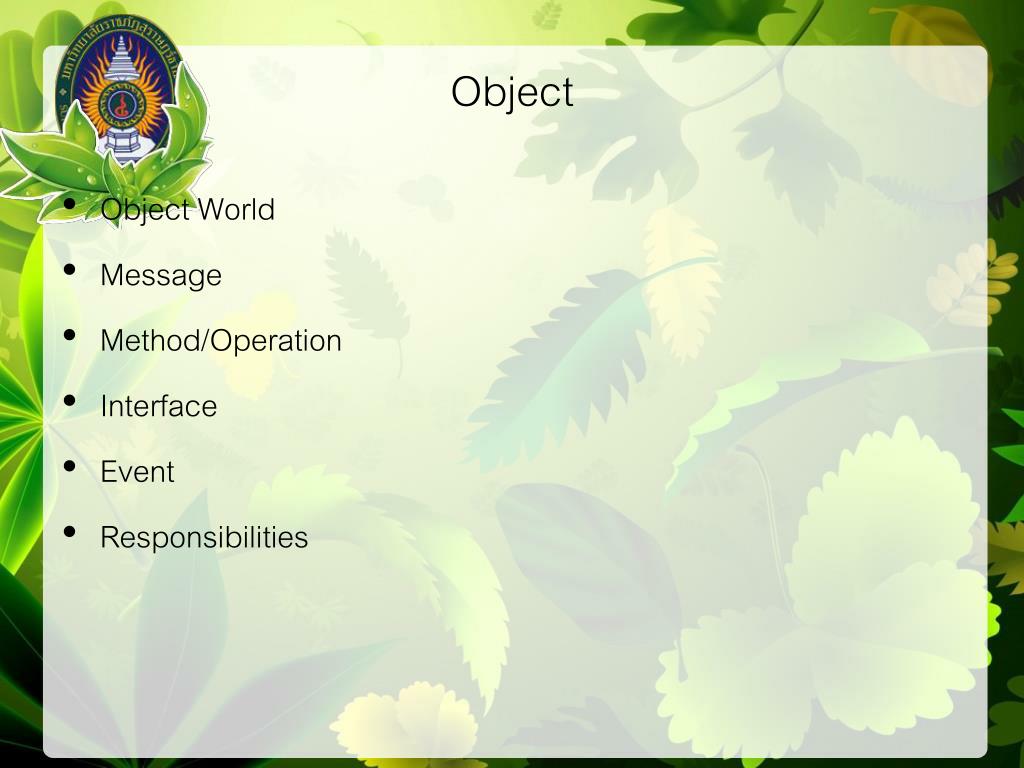

  6. Object • Object World • Message • Method/Operation • Interface • Event • Responsibilities

  7. Object

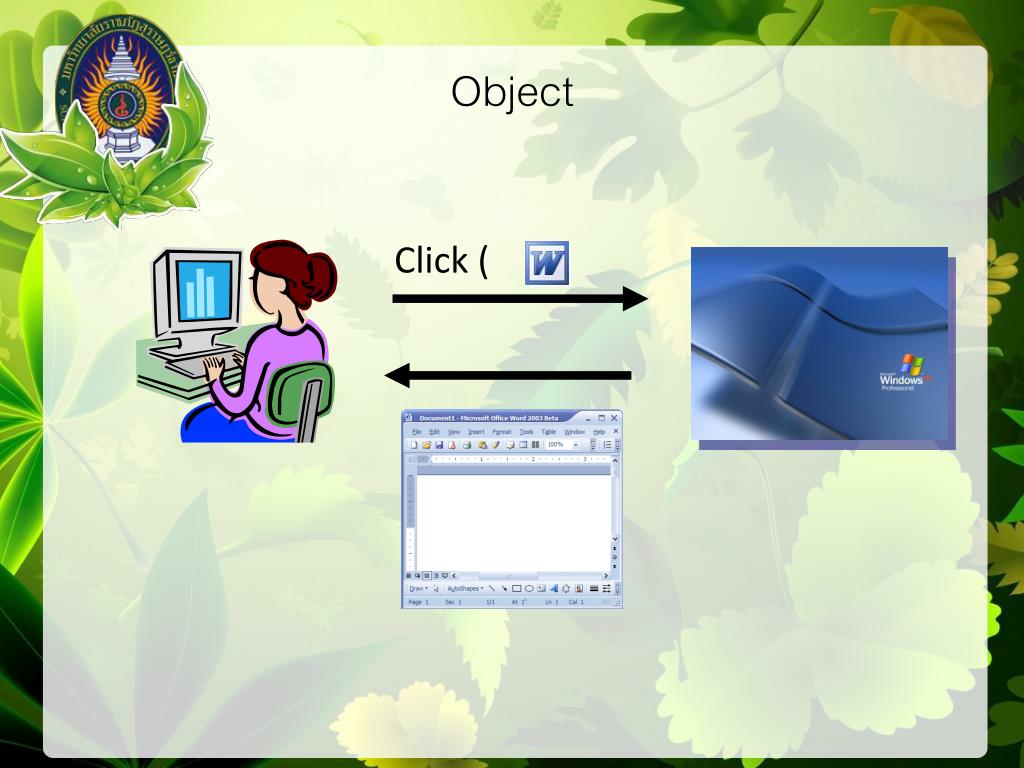

  8. Click ( ) Object

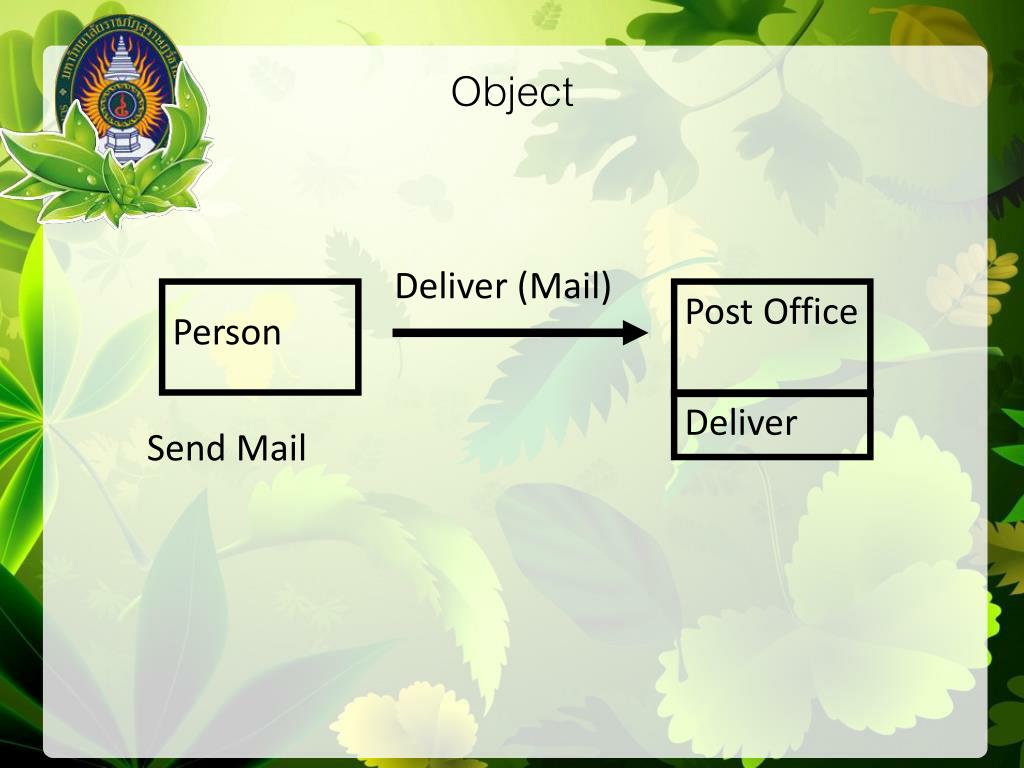

  9. Deliver (Mail) Object Person Post Office Deliver Send Mail

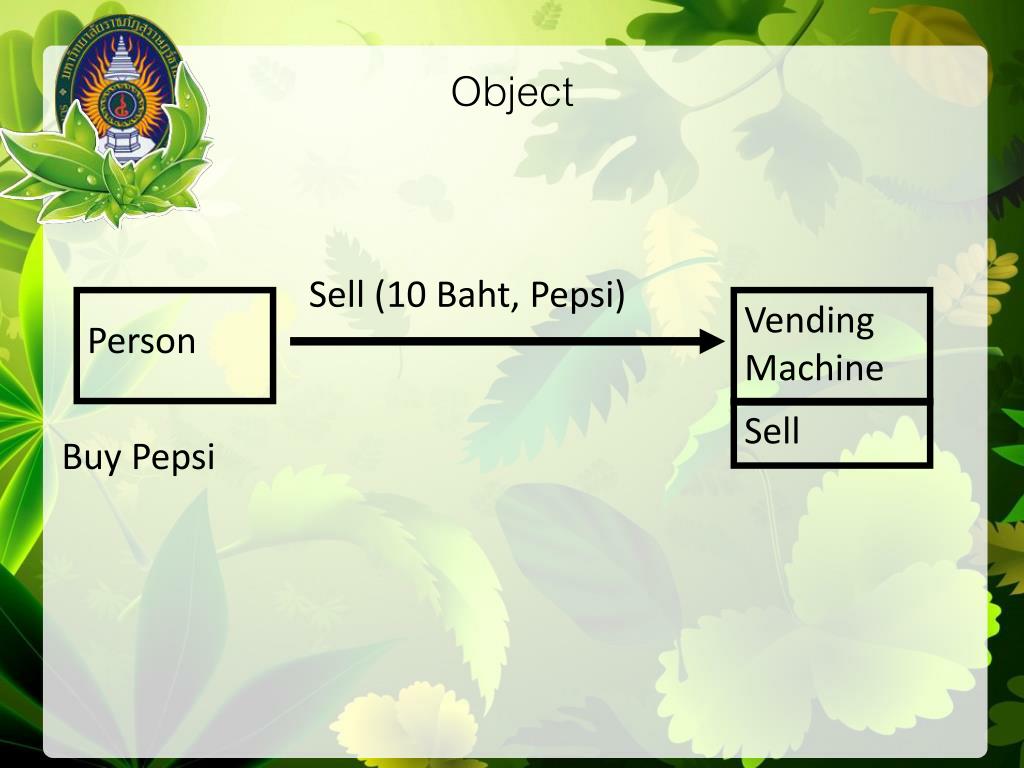

  10. Sell (10 Baht, Pepsi) Object Person Vending Machine Sell Buy Pepsi

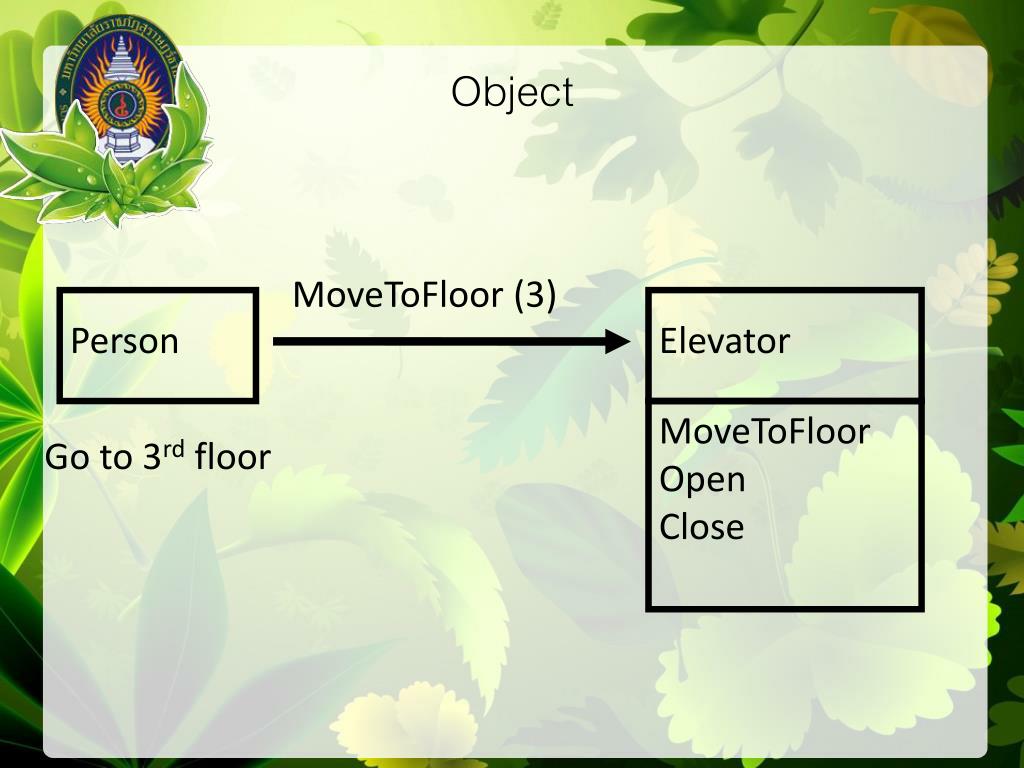

  11. MoveToFloor (3) Object Person Elevator MoveToFloor Open Close Go to 3rd floor

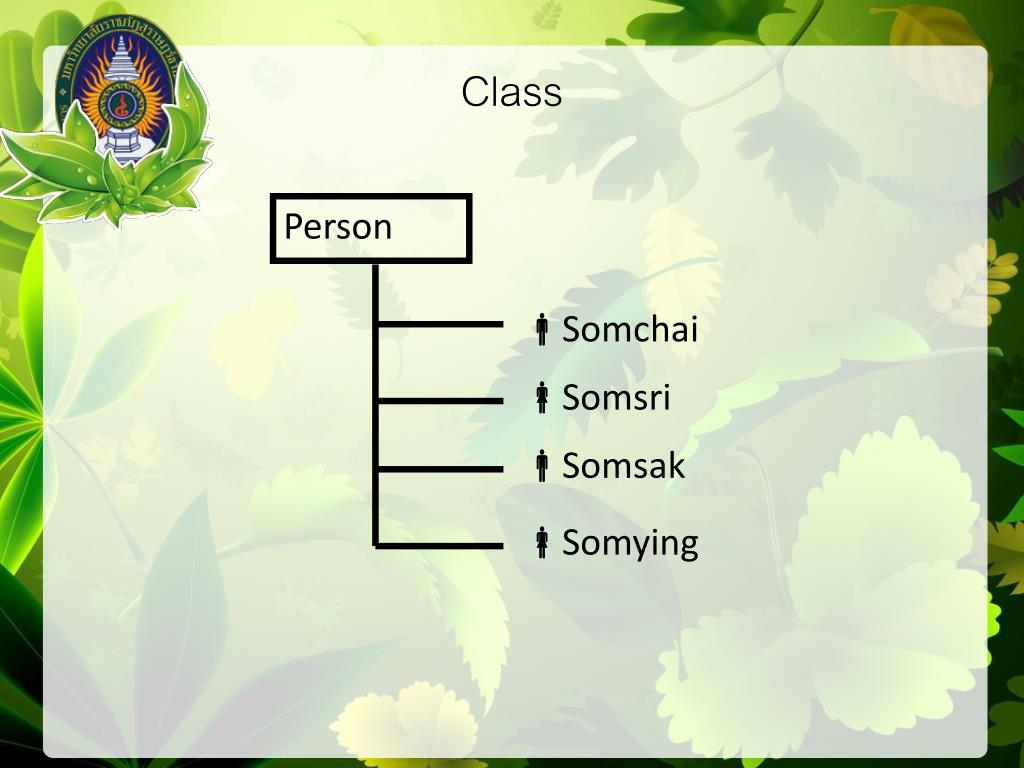

  12. Class Person Somchai Somsri Somsak Somying

  13. Class Student Somchai Somsri Somsak Somying

  14. Class Tennis Player Paradorn Venus Marat Martina

  15. Class Institute Social Technology Engineering Science Agricultural Technology

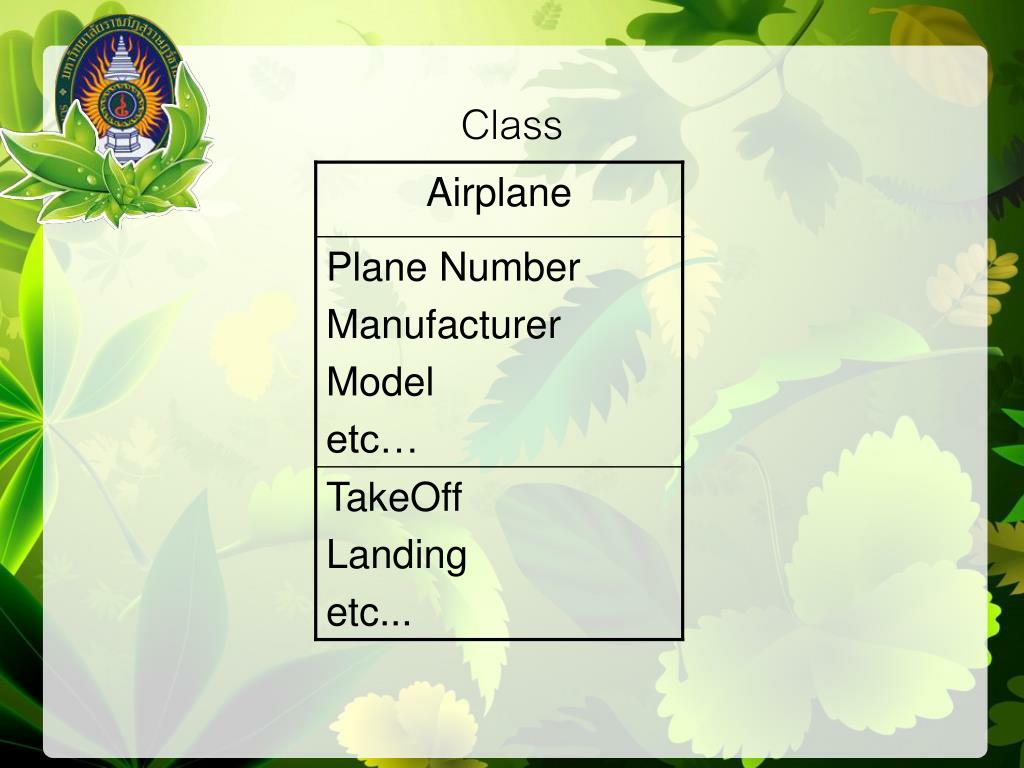

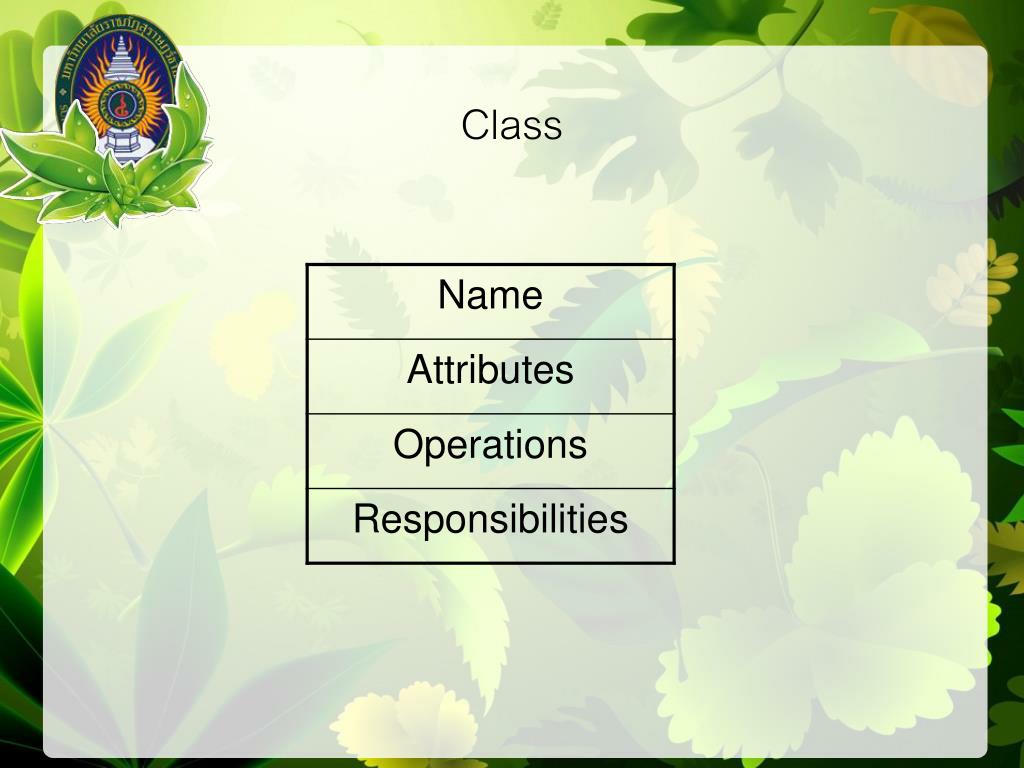

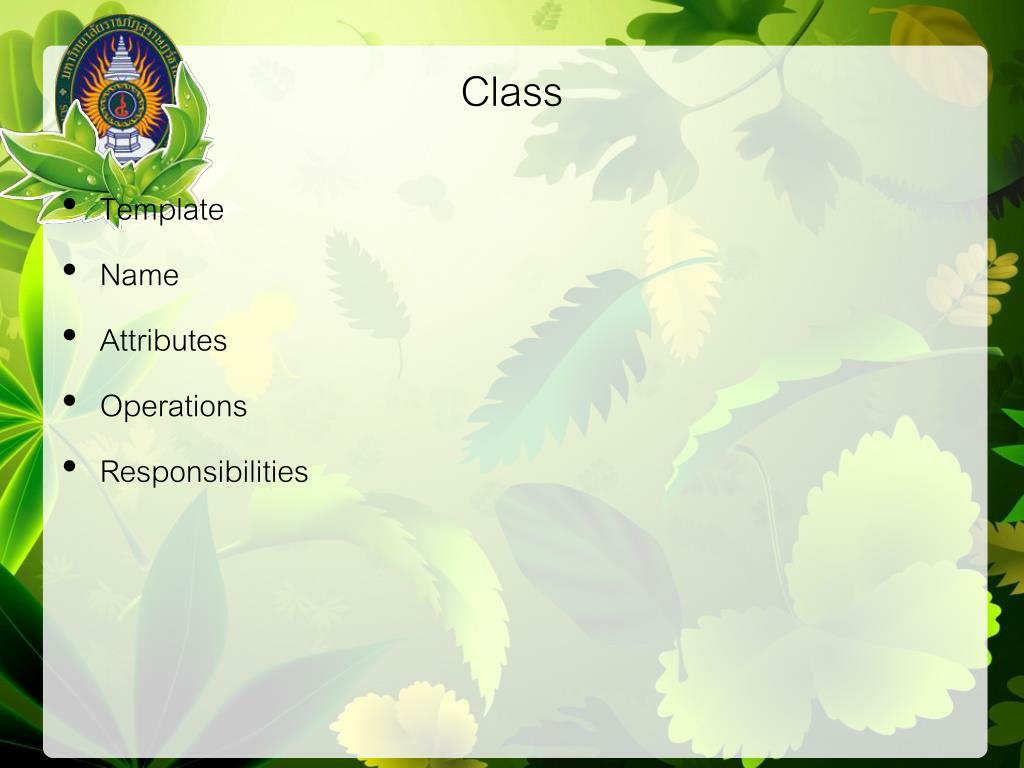

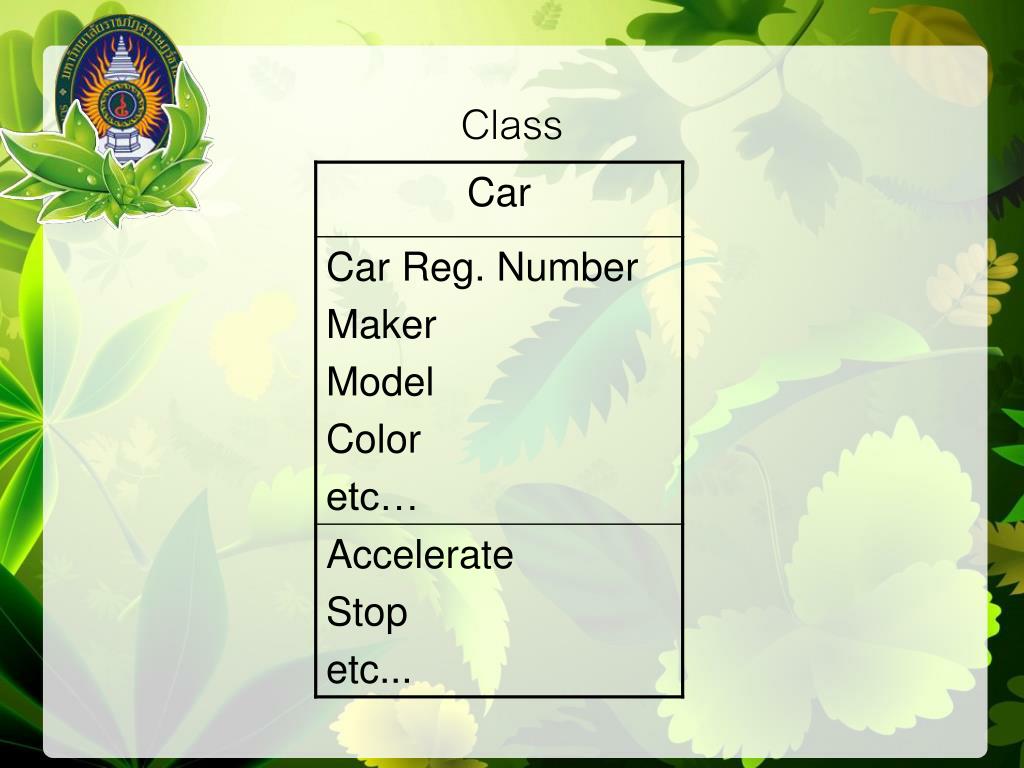

  16. Class • Template • Name • Attributes • Operations • Responsibilities

  17. Class

  18. Class

  19. Class

  20. Class

  21. Class

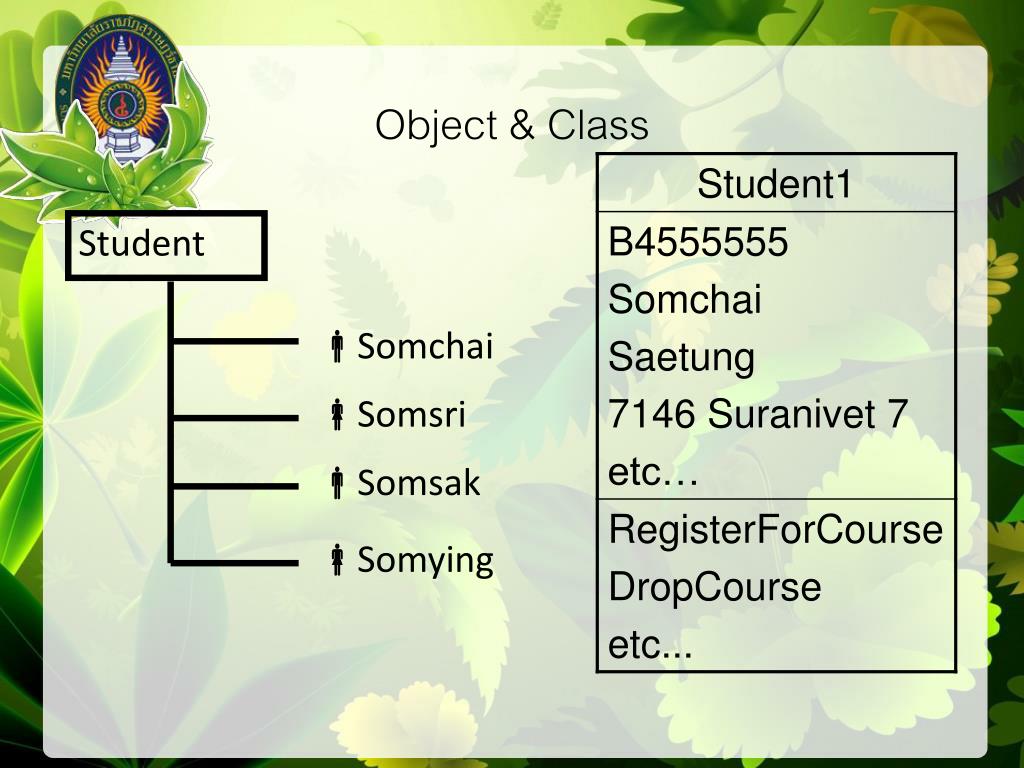

  22. Student Somchai Somsri Somsak Somying Object & Class

  23. Student Somchai Somsri Somsak Somying Object & Class

  24. Object & Class Student Somchai Somsri Somsak Somying

  25. Object-Oriented Concept • Object & Class • Inheritance • Polymorphism • Encapsulation • Class Relationship

  26. Cat Dog Person Inheritance Animal

  27. Bus Truck Car Inheritance Land Vehicle

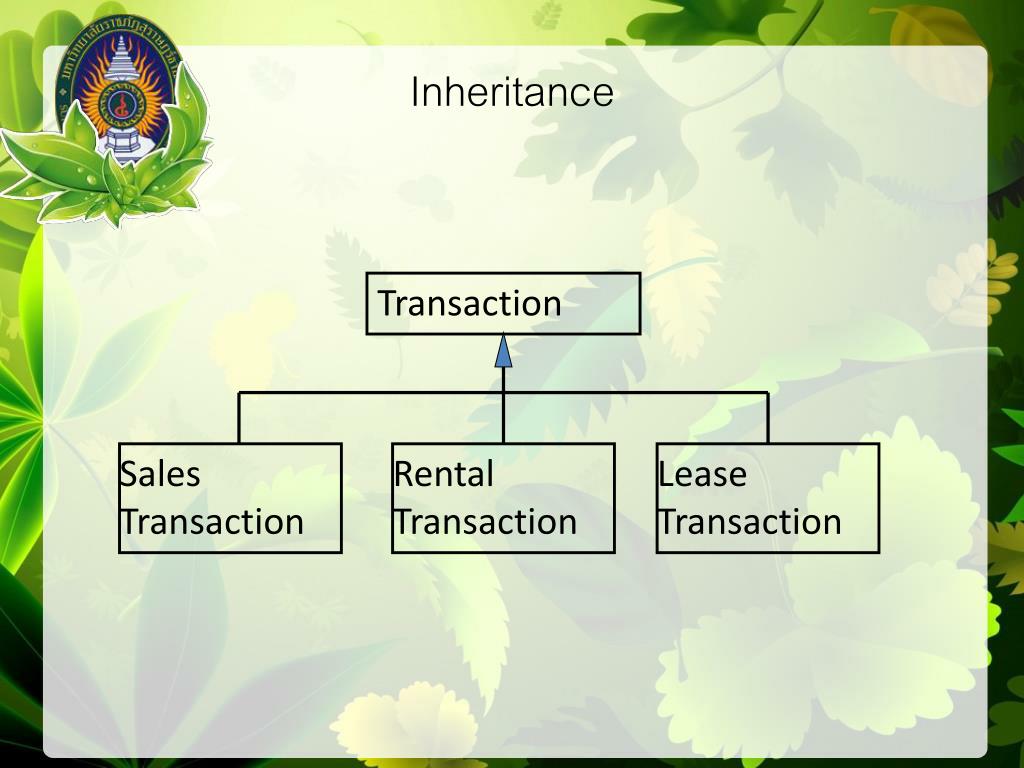

  28. Sales Transaction Rental Transaction Lease Transaction Inheritance Transaction

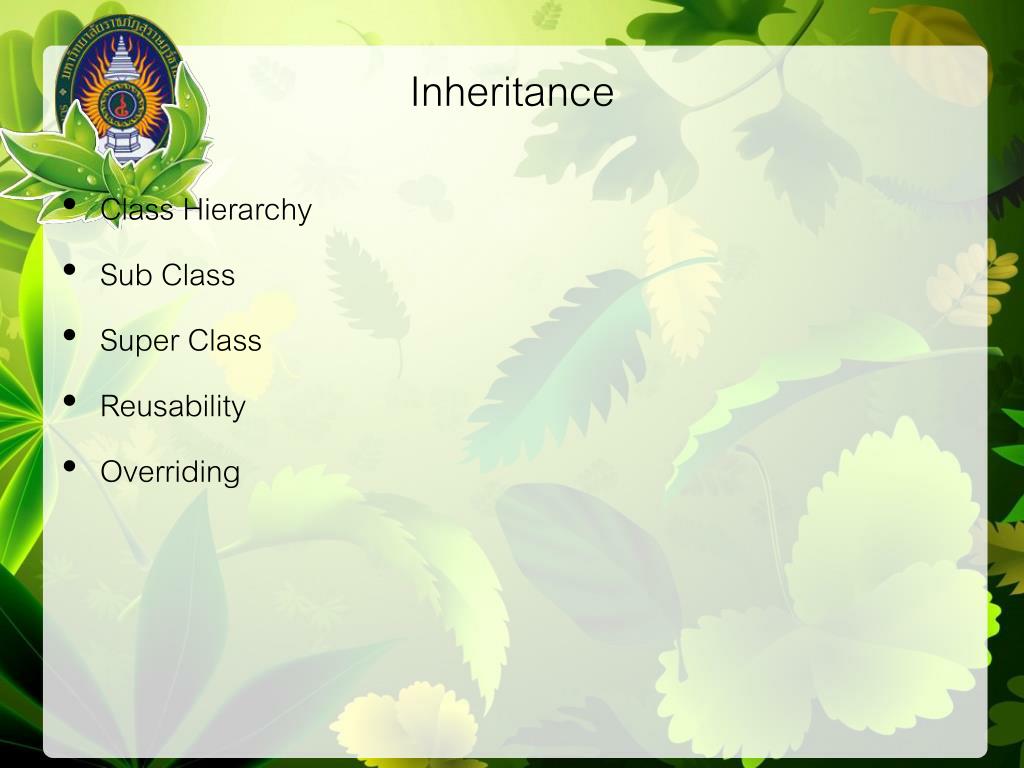

  29. Inheritance • Class Hierarchy • Sub Class • Super Class • Reusability • Overriding

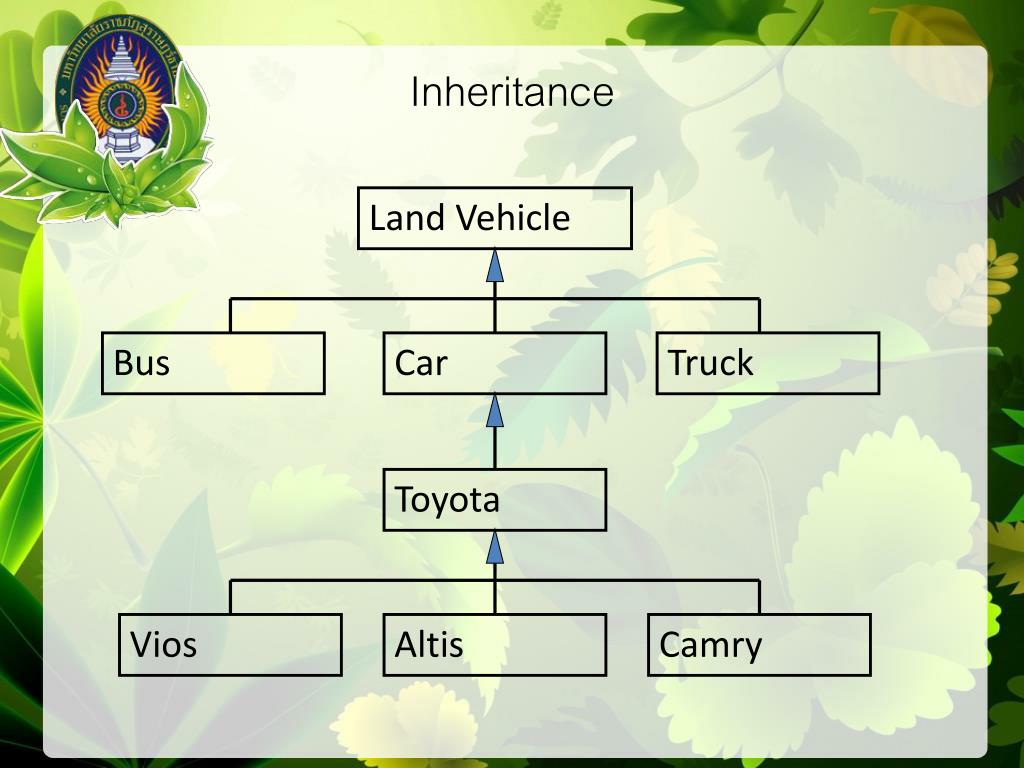

  30. Bus Truck Inheritance Land Vehicle Car Toyota Vios Altis Camry

  31. Sales Transaction Rental Transaction Lease Transaction transNo transDate transTime etc… quantitySold… transNo transDate transTime etc… memberNo… transNo transDate transTime etc… duration… Transaction transNo transDate transTime etc…

  32. Object-Oriented Concept • Object & Class • Inheritance • Polymorphism • Encapsulation • Class Relationship

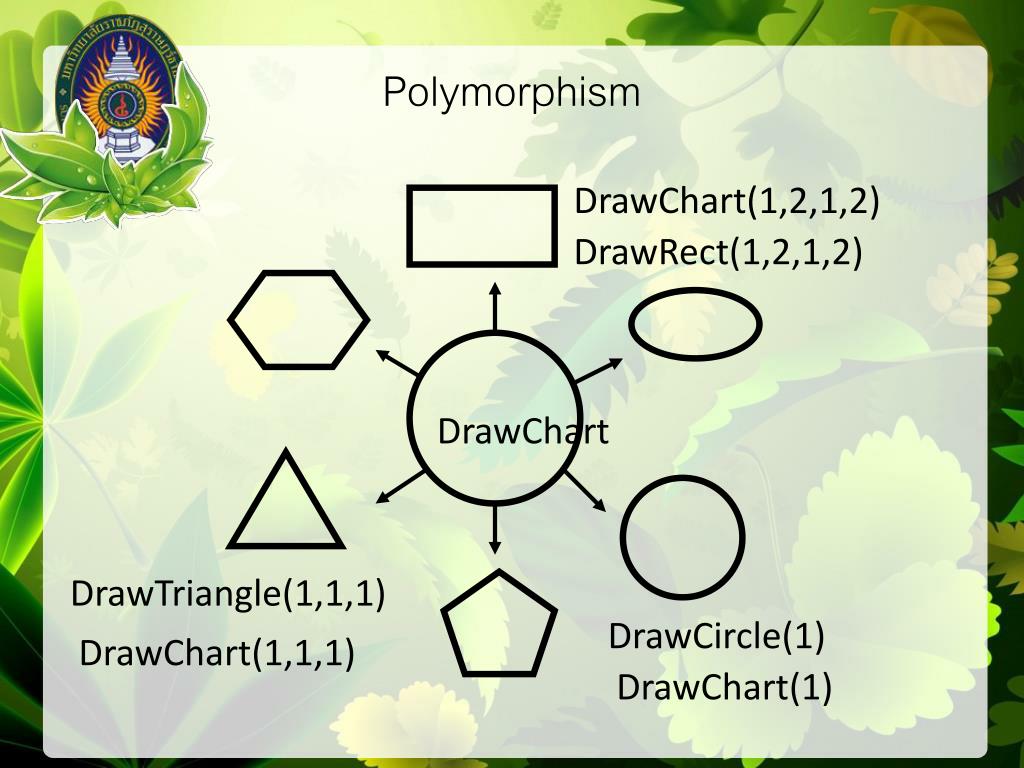

  33. Polymorphism DrawChart(1,2,1,2) DrawRect(1,2,1,2) DrawChart DrawTriangle(1,1,1) DrawCircle(1) DrawChart(1,1,1) DrawChart(1)

  34. Polymorphism • Add(integer, integer) • Add(string, string) • Add(string, integer) • Add(1,1)  2 • Add(“Hello”, “World”)  “HelloWorld” • Add(“Hello”, 2)  “Hello2” • Add(2, “Hello”)  ?

  35. Polymorphism :HourlyPaidEmployee calculatePay()  :PaySlip :WeeklyPaidEmployee getTotalPay() calculatePay() :MonthlyPaidEmployee calculatePay()

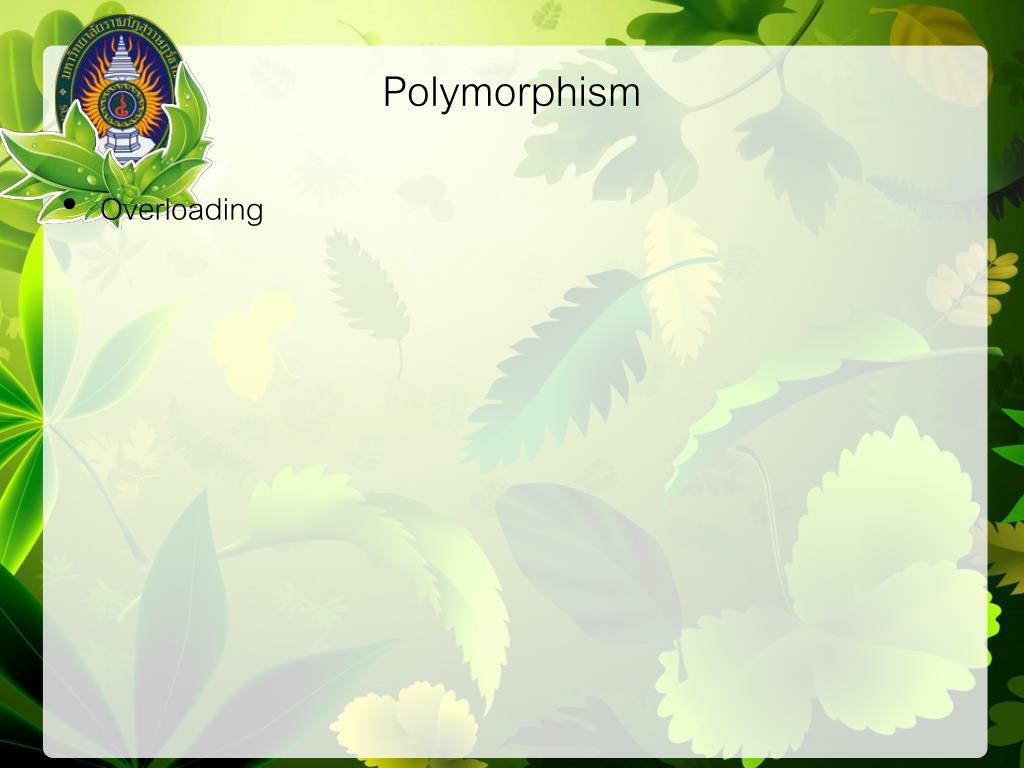

  36. Polymorphism • Overloading

  37. Object-Oriented Concept • Object & Class • Inheritance • Polymorphism • Encapsulation • Class Relationship

  38. Encapsulation • Abstraction • Information Hiding • Security

  39. Encapsulation

  40. Sell (10 Baht, Pepsi) Encapsulation Person Vending Machine Sell Buy Pepsi

  41. Object-Oriented Concept • Object & Class • Inheritance • Polymorphism • Encapsulation • Class Relationship

  42. Class Relationship • Association • Aggregation • Composition • Generalization

  43. Class Relationship • Association Pilot Planes

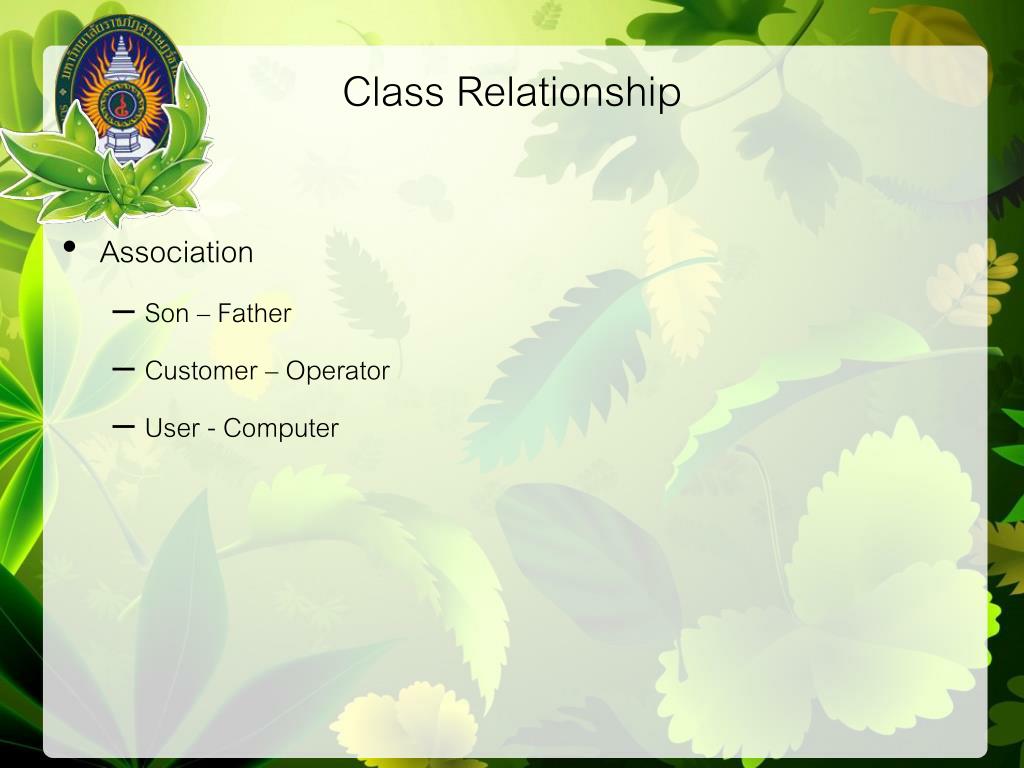

  44. Class Relationship • Association • Son – Father • Customer – Operator • User - Computer

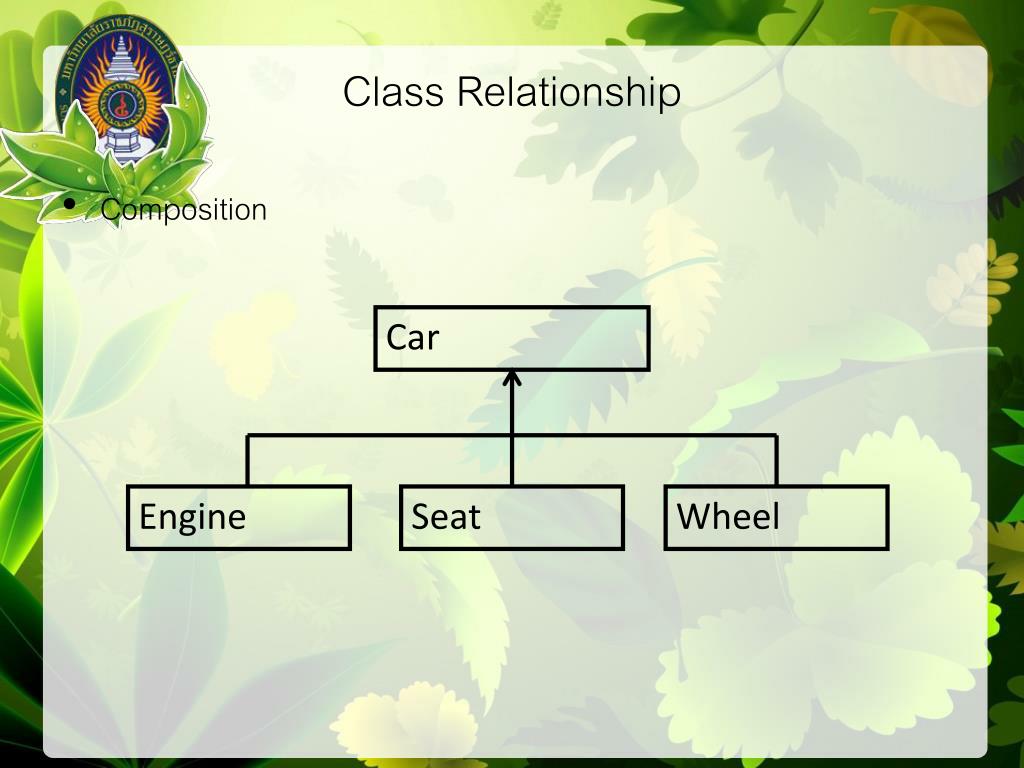

  45. Class Relationship • Composition Car Engine Seat Wheel

  46. Class Relationship • Composition • Car – Wheel, Engine, Seat • House – Window, Roof, Door, Wall • Computer – Monitor, CPU, Keyboard • Building – Rooms • Circle – Points • Book - Chapter

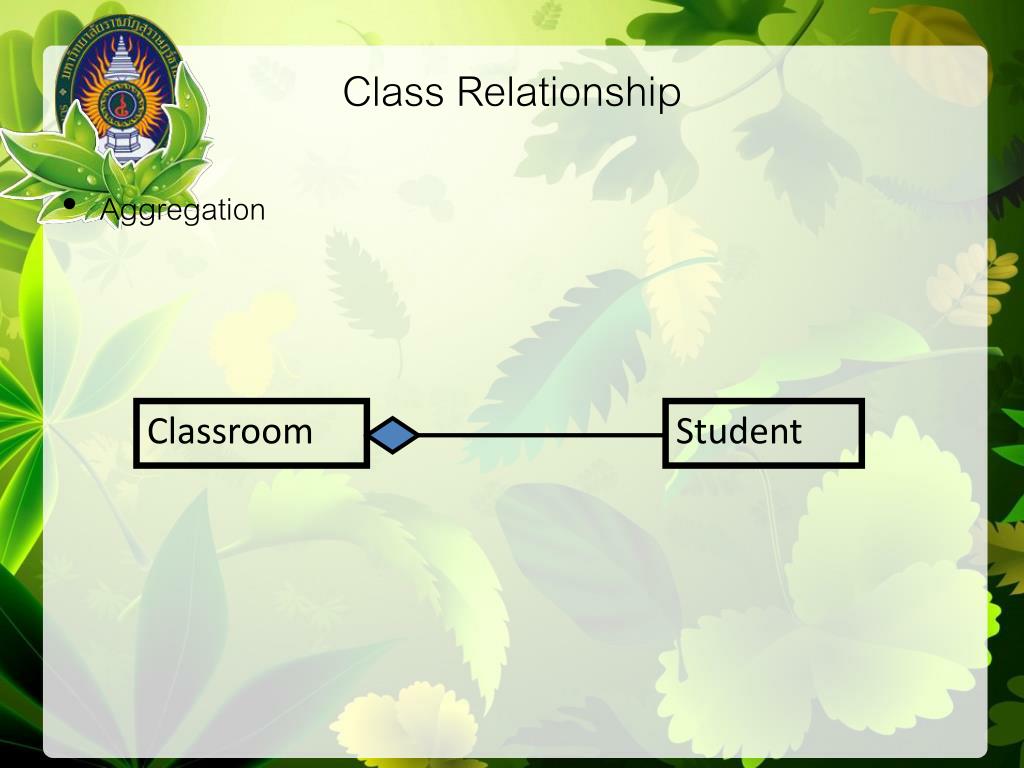

  47. Class Relationship • Aggregation Classroom Student

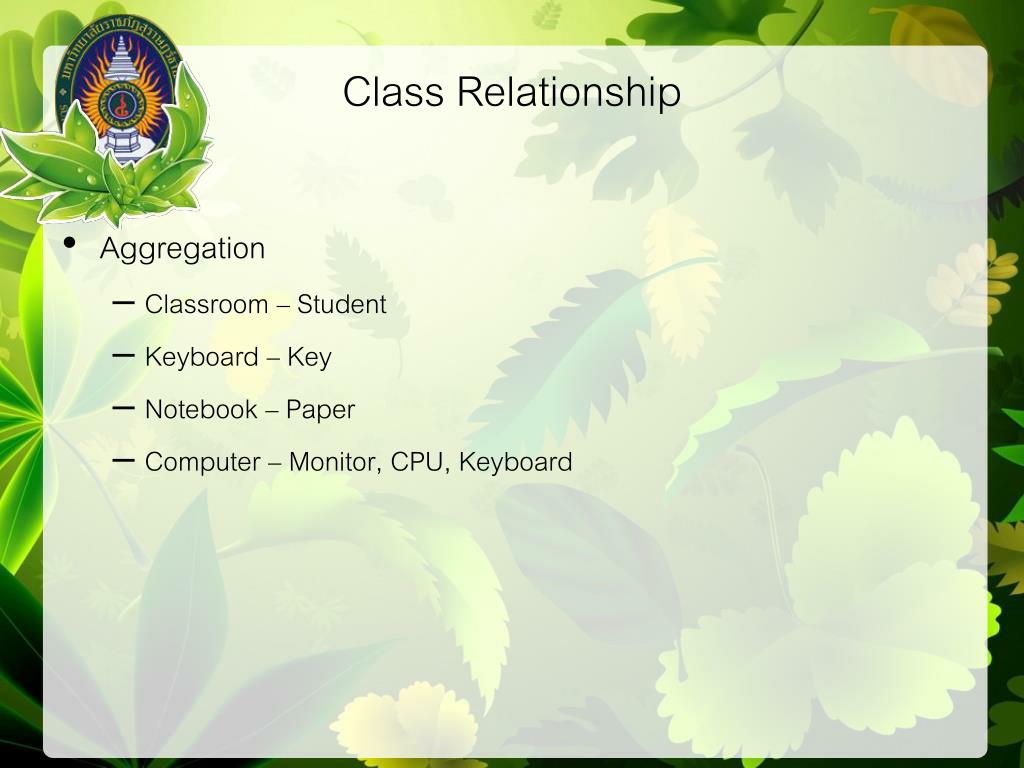

  48. Class Relationship • Aggregation • Classroom – Student • Keyboard – Key • Notebook – Paper • Computer – Monitor, CPU, Keyboard

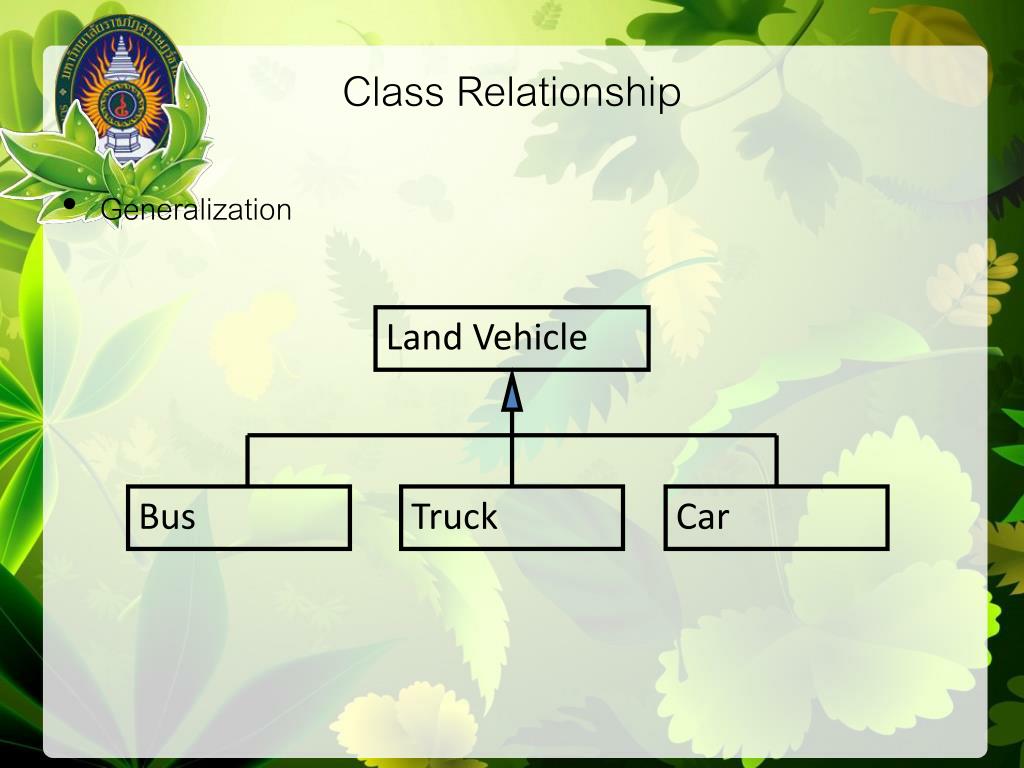

  49. Bus Truck Car Class Relationship • Generalization Land Vehicle
