  1. Issues in the AIA/ASD Suite of ILS Standards Inputs to the KoM of the ILS Handbook R. SomozaAirbus Military

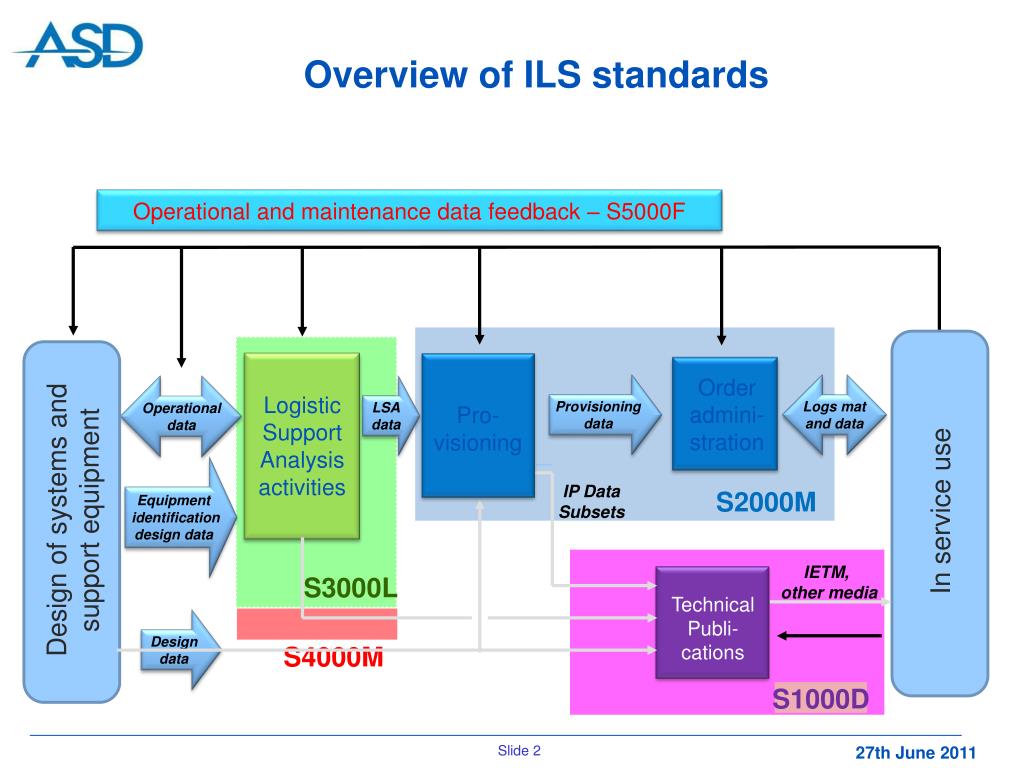

  2. Logistic Support Analysisactivities Order admini- stration Provisioningdata Logs matand data LSAdata Operationaldata Pro-visioning Equipment identificationdesign data Design of systems and support equipment In service use S2000M Technical Publi-cations S3000L S4000M Designdata S1000D Overview of ILS standards Operational and maintenance data feedback – S5000F IP DataSubsets IETM, other media

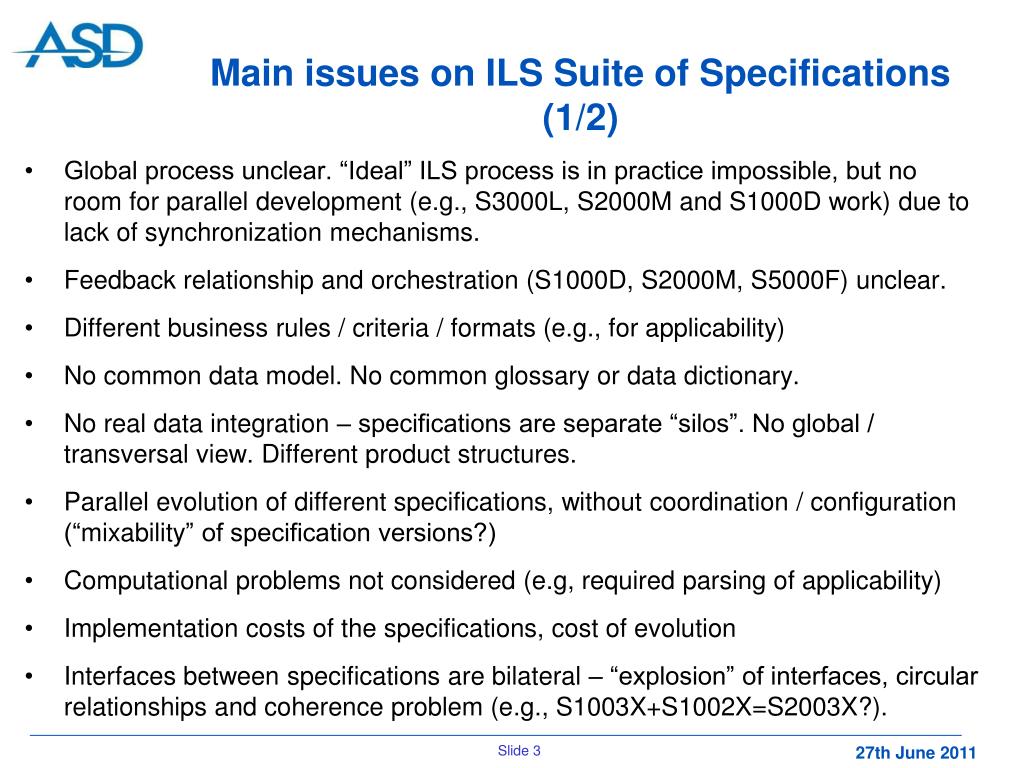

  3. Global process unclear. “Ideal” ILS process is in practice impossible, but no room for parallel development (e.g., S3000L, S2000M and S1000D work) due to lack of synchronization mechanisms. Feedback relationship and orchestration (S1000D, S2000M, S5000F) unclear. Different business rules / criteria / formats (e.g., for applicability) No common data model. No common glossary or data dictionary. No real data integration – specifications are separate “silos”. No global / transversal view. Different product structures. Parallel evolution of different specifications, without coordination / configuration (“mixability” of specification versions?) Computational problems not considered (e.g, required parsing of applicability) Implementation costs of the specifications, cost of evolution Interfaces between specifications are bilateral – “explosion” of interfaces, circular relationships and coherence problem (e.g., S1003X+S1002X=S2003X?). Main issues on ILS Suite of Specifications(1/2)

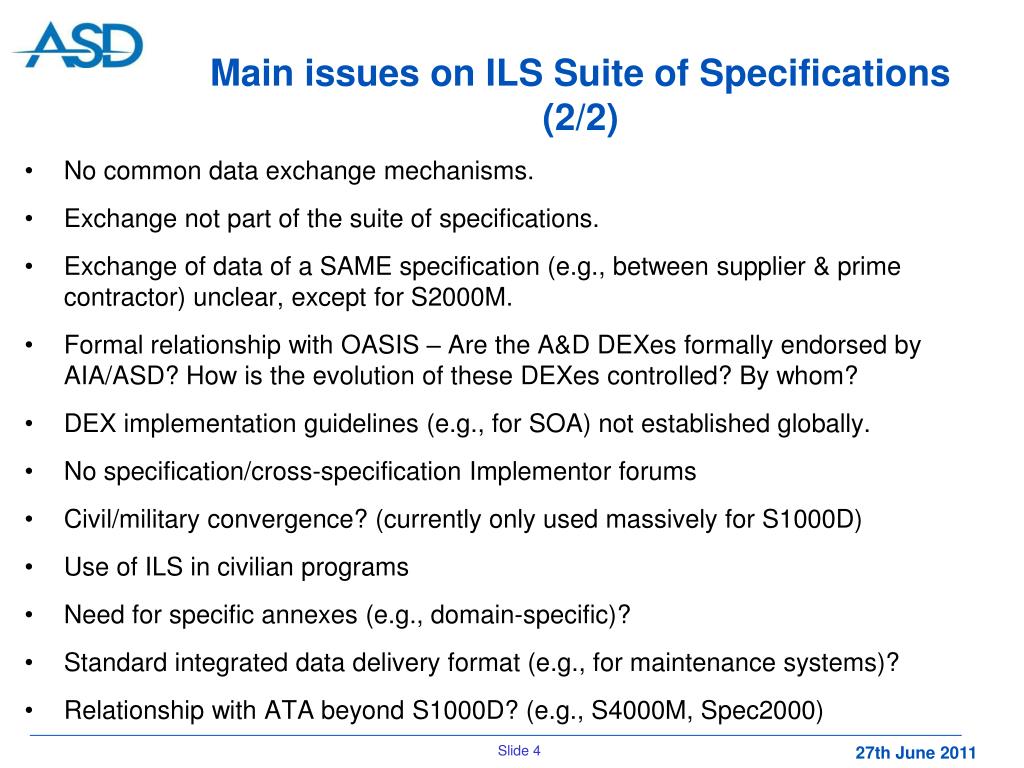

  4. No common data exchange mechanisms. Exchange not part of the suite of specifications. Exchange of data of a SAME specification (e.g., between supplier & prime contractor) unclear, except for S2000M. Formal relationship with OASIS – Are the A&D DEXes formally endorsed by AIA/ASD? How is the evolution of these DEXes controlled? By whom? DEX implementation guidelines (e.g., for SOA) not established globally. No specification/cross-specification Implementor forums Civil/military convergence? (currently only used massively for S1000D) Use of ILS in civilian programs Need for specific annexes (e.g., domain-specific)? Standard integrated data delivery format (e.g., for maintenance systems)? Relationship with ATA beyond S1000D? (e.g., S4000M, Spec2000) Main issues on ILS Suite of Specifications(2/2)

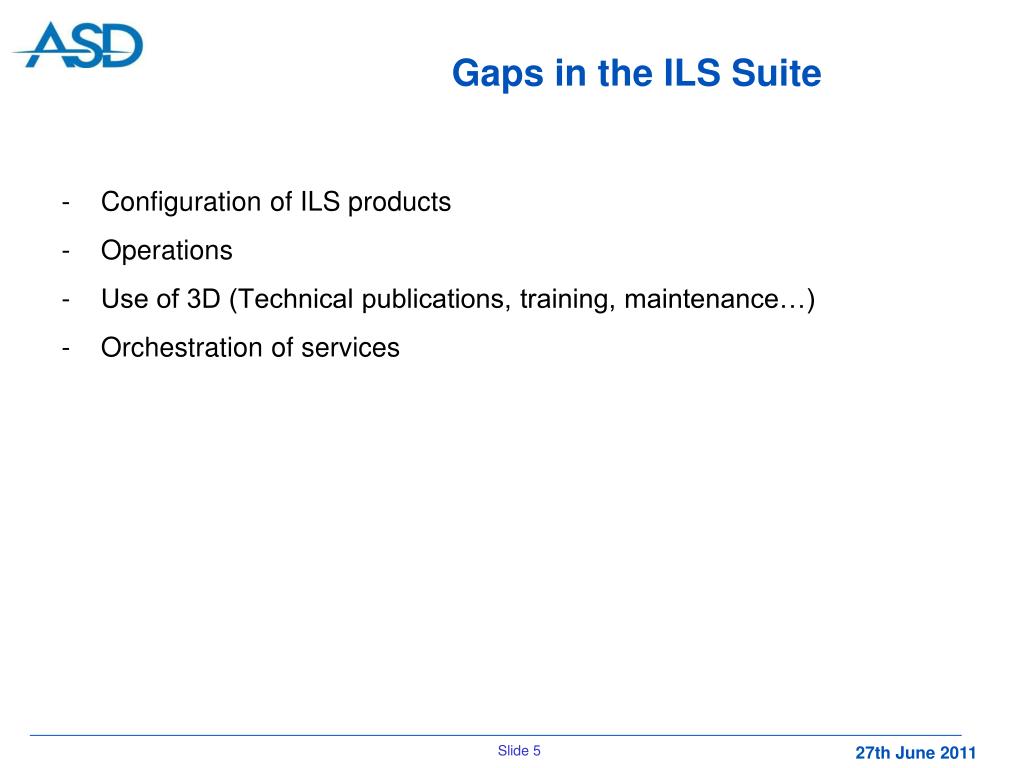

  5. Gaps in the ILS Suite • Configuration of ILS products • Operations • Use of 3D (Technical publications, training, maintenance…) • Orchestration of services

  6. BASIC PROCESSES PRIMARY PROCESSES SECONDARY PROCESSES PRODUCT & SERVICES Integrated Logistic Support S E R V I C E S Group 1 Logistic Support Analysis • Maintenability • Reliability • Testability INDUSTRY • Influence Design Product Design • Analyze Results • Maint. Program • LCC Support to Product Design Group 2 Support Equipments & Simulators Design the Product Support Equipment • AGE • ATE • GSE • Design AGE • Design Training Devices • CBT • FFS • MST OPERATOR • Operations Manual Checklist • MMEL • Develop Operational Documentation Group 3 Support, Maintenance & Operations Support Operation • Design Crew Courses • Courses • Manuals • Design Maintenance Courses • Courses • Manuals • Design Maintenance Support • FSR • SB (Upgrades) • MRO Support Maintenance • Develop Maintenance Documentation • AMM • CMM • WDM Customer Support • Prepare Material Support • IPC • Develop Material Documentation • IPL • Repair Services Program Office • Develop Services Level Agreements • Deliver the Contracted Service Group 4 Customer Solutions Mission & Operation of Services • Develop Documentation • Develop Processes

  7. SERVICES SCOPE OF ACTIVITIES • “Partnering” • Total services delivery • Operation of assets • PBL Customer Related • “Outsourcing” • Customer Solutions • Services Centers • Repair Centers • Logistic Services • PBH Mission & Operation of Services Customer Services • “…abilities” • RMT • LSA • LORA • LCC Product Related Product Support After Sales • “Classic Disciplines” • Technical Assistance • Material Support • Training • Tech. Documentation

  8. ASD/AIA ILS Spec’s Organisation Data Model and Exchange Working Group ASD - CPSC Customer & Product Support Committee AIA Product Support Committee CPSC Specifications Group ILS Spec Council S2000MSteering Committee S3000LSteering Committee S4000MSteering Committee S5000FSteering Committee NB S1000D has separate organisation

  9. ILS Suite Production plan ASD – STE100 Iss 5.0 Iss 6.0 Iss 4.0 S1000D Iss 4.0 Iss 4.1 S1002X S1003X Iss 0.1 S1003X Iss 1.0 S1003X Iss 1.1 S2000M Iss 4.0 Iss 5.0 S2000M PLCS S3002X Iss 6.0 S3000L Iss 1.1 Iss 1.0 Draft 0.1 S4000M Draft 0.1 Iss 1.0 S5000F Iss1.0 Draft 0.1 SX000I Iss1.0 2005 2006 2007 2008 2009 2010 2011 2012 2013
