  1. VirtualMaster Control

  2. Before You Start • Solid IP Backbone • 100% QOS • Isolated Segments • FTP • Live Program Delivery • Remote Stream Monitoring

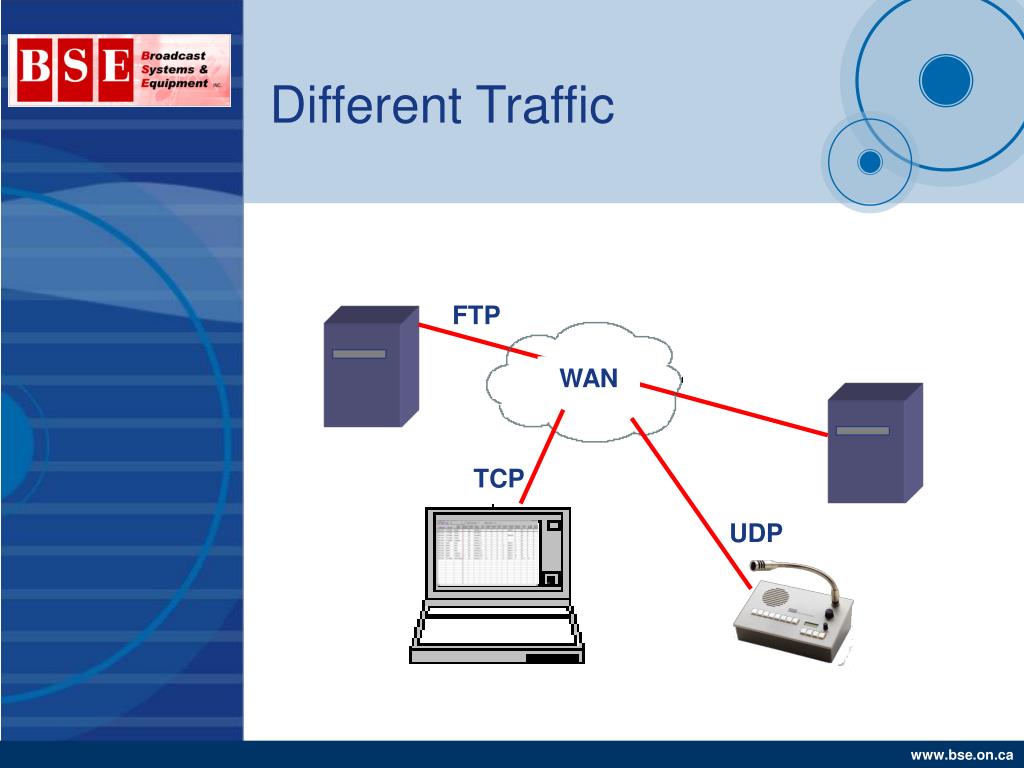

  3. Different Traffic FTP WAN TCP UDP

  4. What Priority?

  5. TCP vs. UDP

  6. Reserved Bandwidth

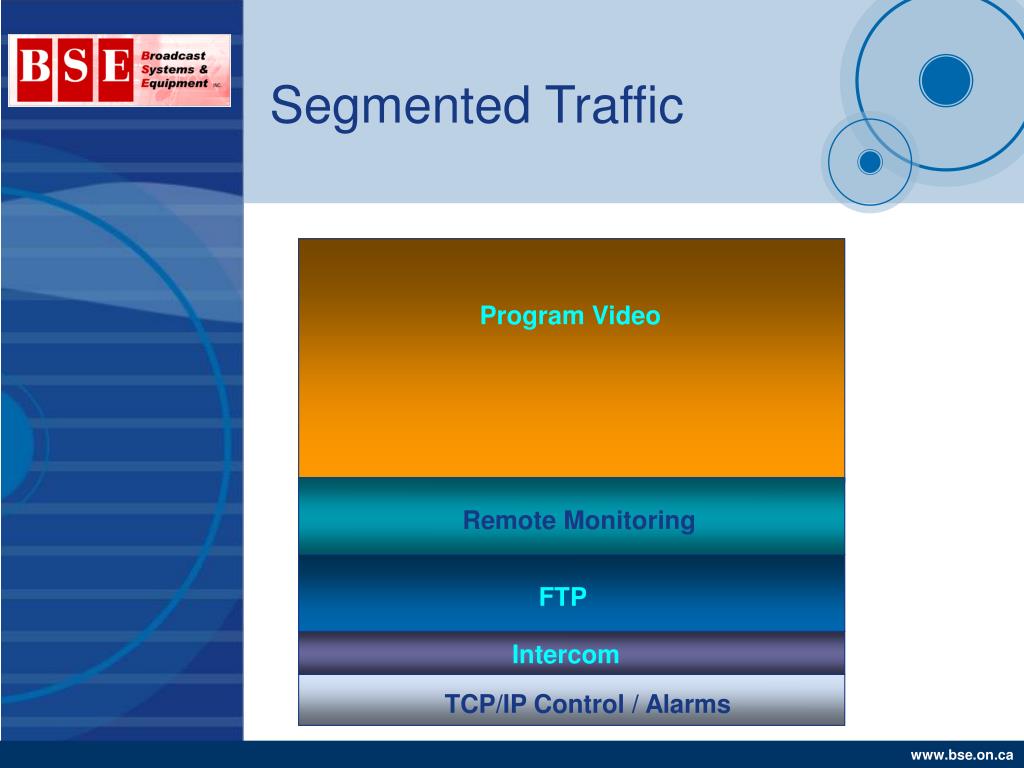

  7. Segmented Traffic Program Video Remote Monitoring FTP Intercom TCP/IP Control / Alarms

  8. Segmented Traffic Program Video Remote Monitoring FTP Intercom TCP/IP Control / Alarms

  9. Carrier Services Voice Video VPNs Managed IP Internet App. Services MPLS/IP DTM MPLS/IP SONET SONET GE Fibre

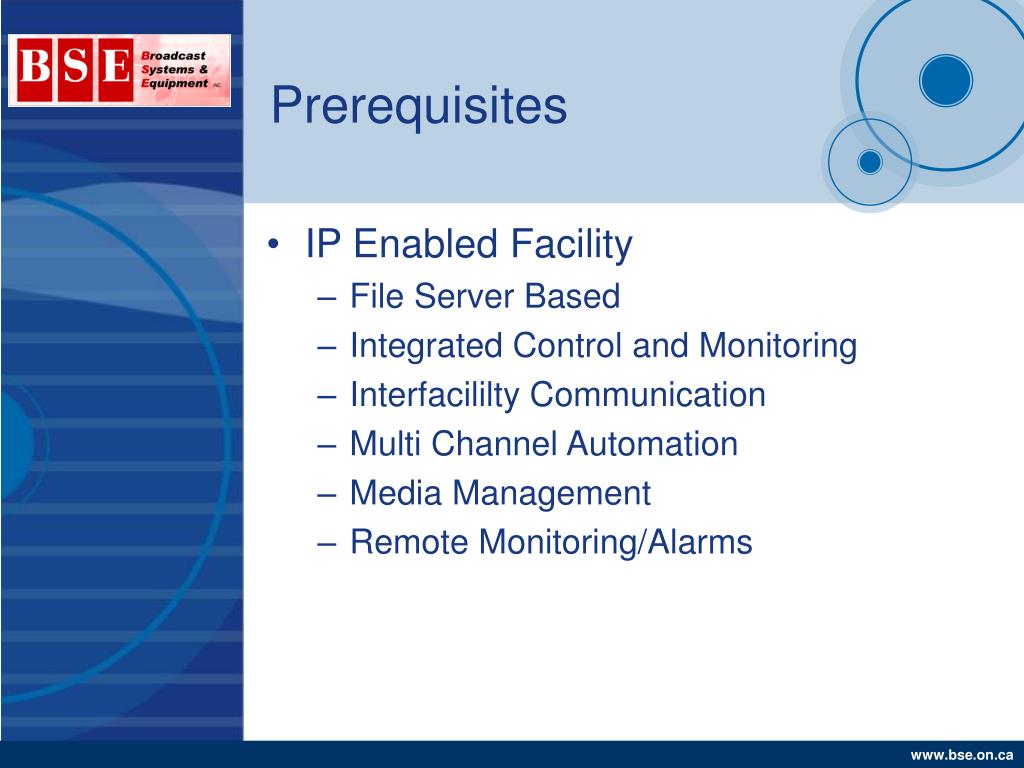

  10. Prerequisites • IP Enabled Facility • File Server Based • Integrated Control and Monitoring • Interfacililty Communication • Multi Channel Automation • Media Management • Remote Monitoring/Alarms

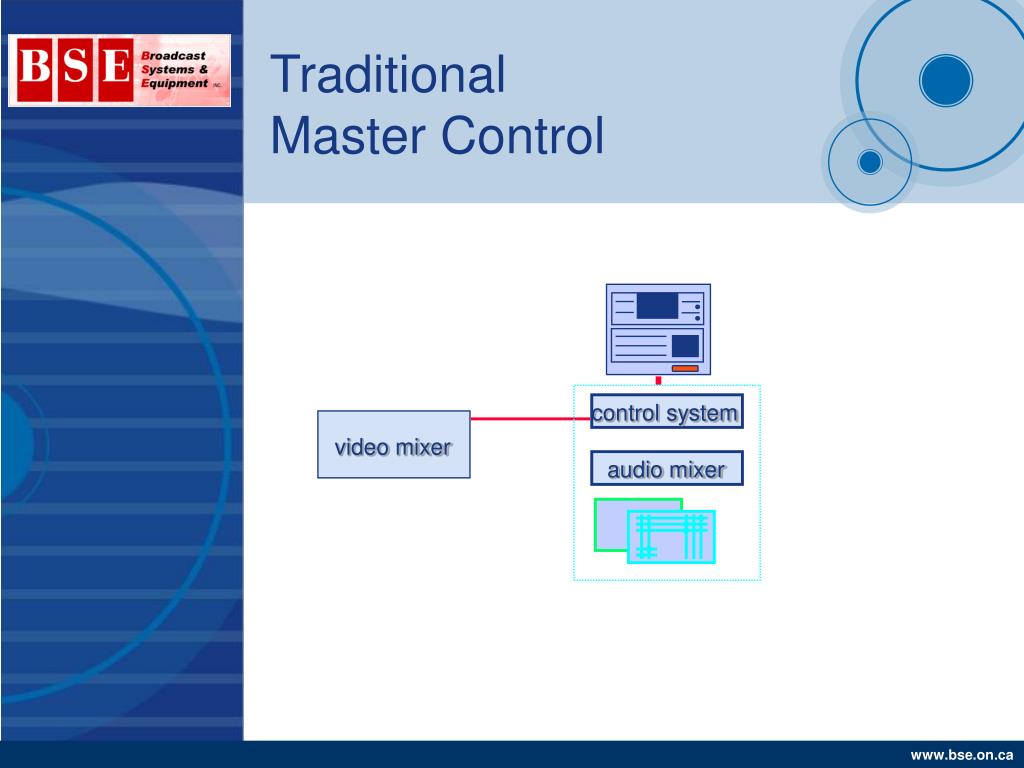

  11. control system video mixer audio mixer Traditional Master Control

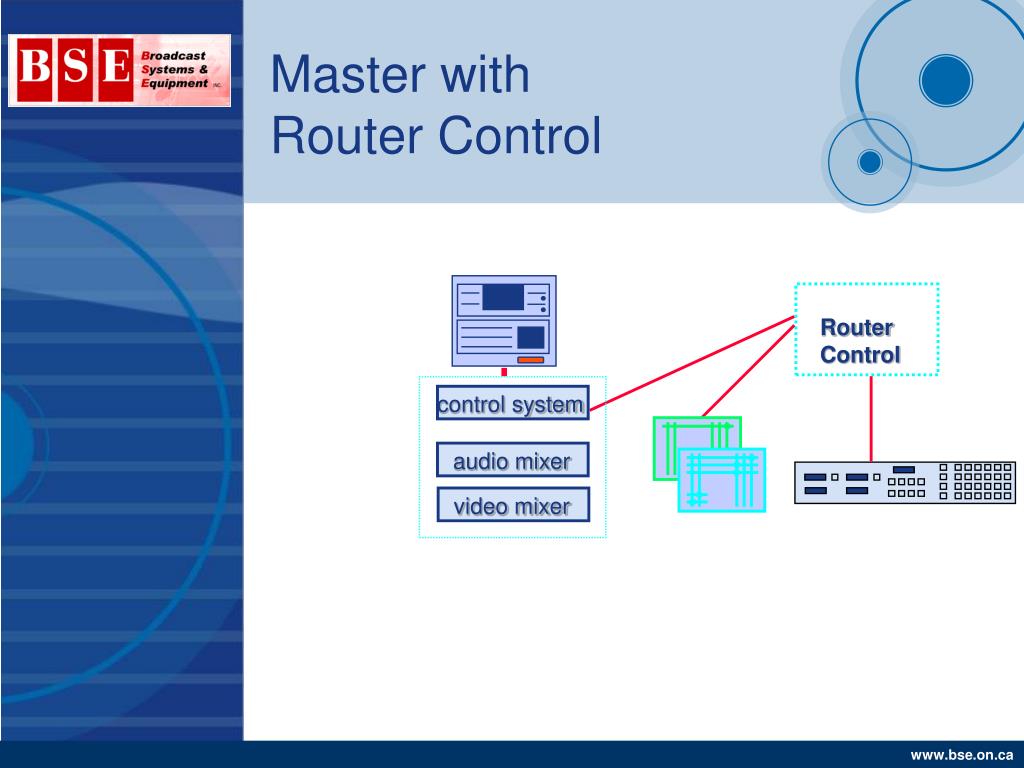

  12. control system video mixer audio mixer Master with Router Control Router Control

  13. control system video mixer audio mixer Master withAutomation Automation System

  14. control system audio mixer video mixer Master with Router and Automation Automation System Router Control

  15. Control frame Control Control Control Control Control frame 6 Multi Channel Model PGM2 PGM1 PGM3 PGM4 PGM5 PGM6 1 2 3 4 5 Assign Clear

  16. User GUI • Windows applications • Router Control • Access to Master Control Control Surface • Live Remote Video Monitoring • Local and wide area networking • Future front end for Monitoring/ Alarms • Access to Automation System • Visibility/ Control of Media Management • Access/ Control of Complete Broadcast System

  17. control system audio mixer video mixer Virtual Master Router Control Automation System Media Management Bypass Switch Element Manager FTP Alarm/ Control Virtual Master WAN

  18. Software Systems Automation System Router Control Media Manager Master Control Element Manager Monitoring/ Alarms

  19. WAN Shared Content Disaster Recovery Collaborative Production

  20. WAN Master Control

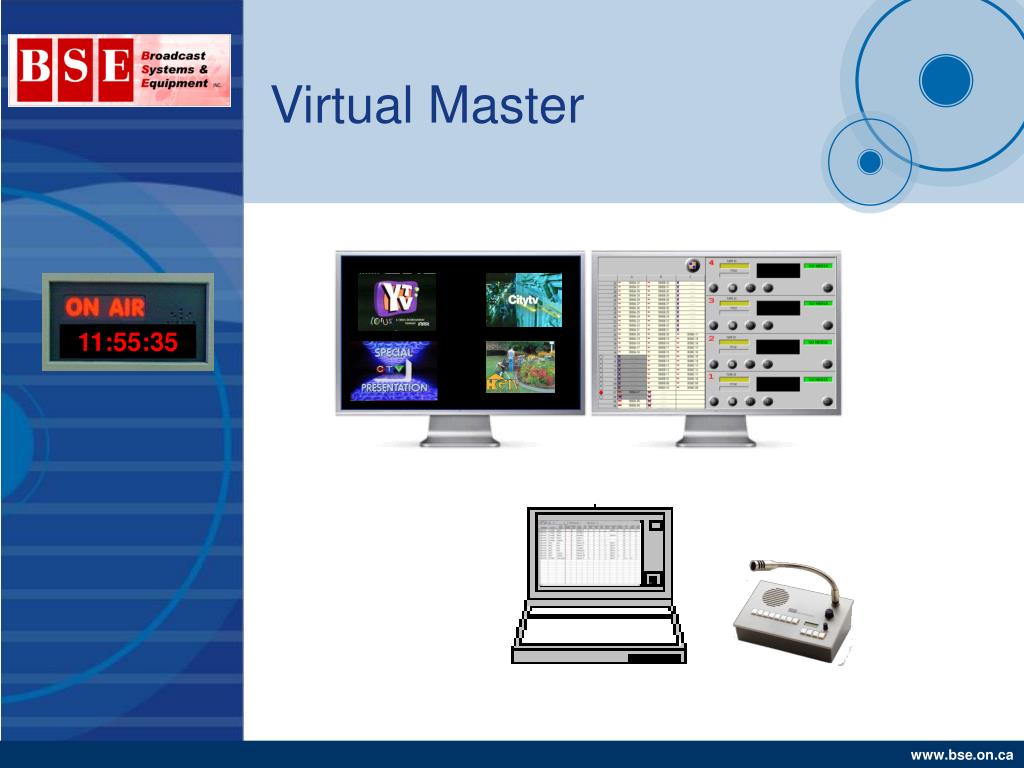

  21. Virtual Master 11:55:35

  22. Thanks
