  1. Hardware/Software Co-Design Final Project Emulation on Distributed Simulation Co-Verification System 陳少傑 教授 R91921081 黃鼎鈞 R91943004 尤建智 R91921089 林語亭

  2. Agenda • 1. Introduction of verification • 2. Simulation / Emulation • 3. Principle of co-verification • 4. System Architecture • 5. Experiment Result • 6. Conclusion • 7. Reference

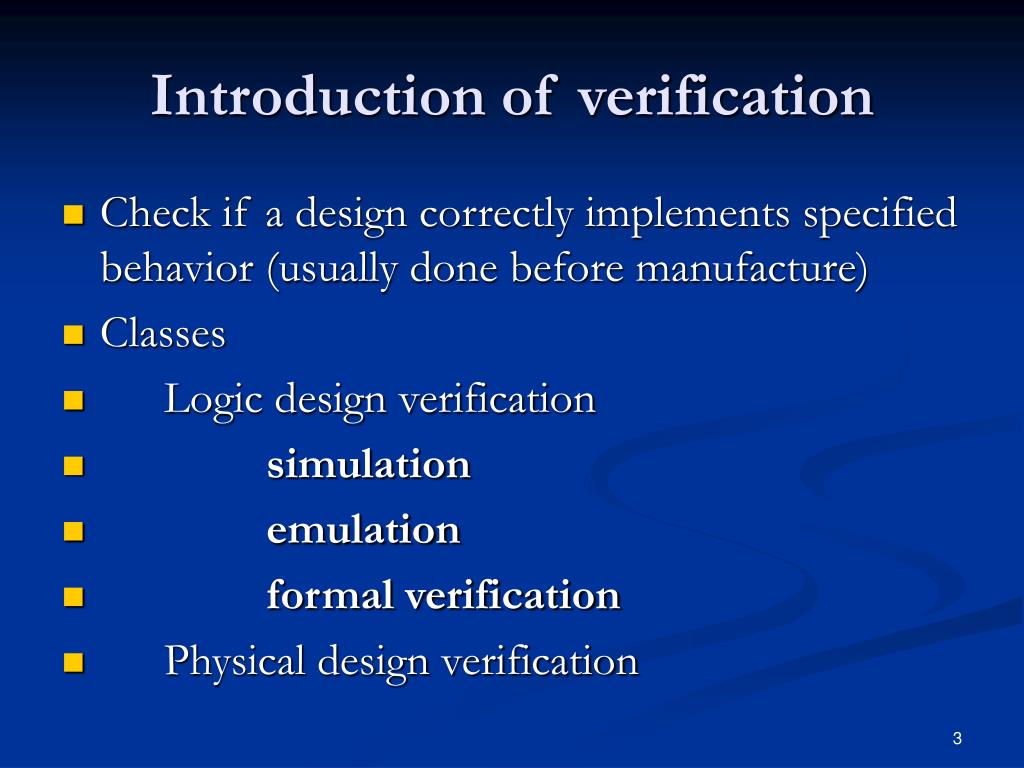

  3. Introduction of verification • Check if a design correctly implements specified behavior (usually done before manufacture) • Classes • Logic design verification • simulation • emulation • formal verification • Physical design verification

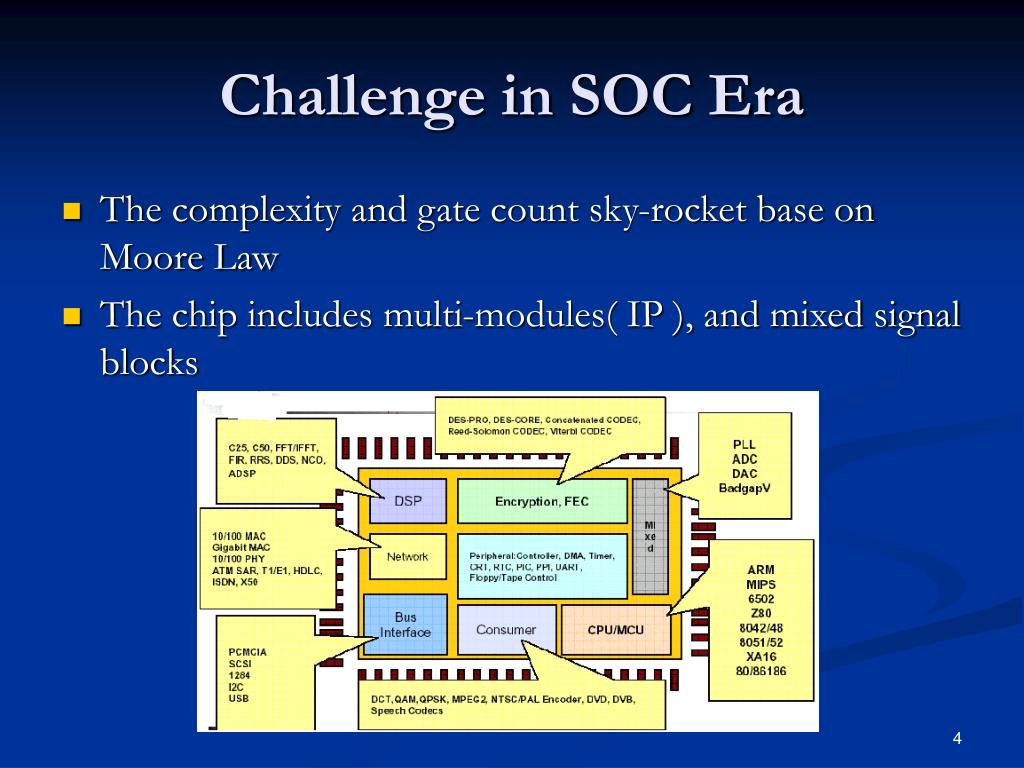

  4. Challenge in SOC Era • The complexity and gate count sky-rocket base on Moore Law • The chip includes multi-modules( IP ), and mixed signal blocks

  5. Design and Verification Process Design: writing design specification and start design cycle Implement: Implement and refine the design through all phases Verify: Verify the Correctness of design

  6. The Verification Bottleneck Verification problem grows even faster due to the combination of increased gate count and increased vector count

  7. Approaches to Design Verification Software Simulation─ traditional software-based simulation Hardware Accelerated Simulation ─ use special purpose hardware to accelerate simulation of circuit Emulation ─ Emulation actual circuit behavior Rapid Prototyping─ Create a prototype of actual hardware Formal Verification─ formal method

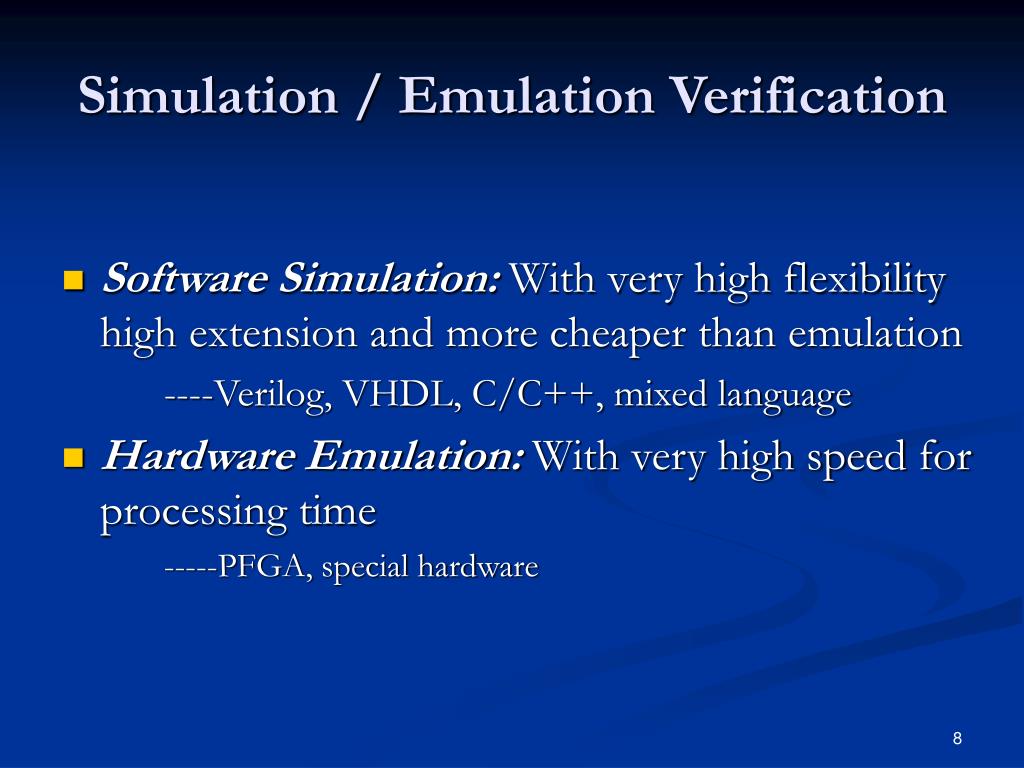

  8. Simulation / Emulation Verification • Software Simulation: With very high flexibility high extension and more cheaper than emulation ----Verilog, VHDL, C/C++, mixed language • Hardware Emulation: With very high speed for processing time -----PFGA, special hardware

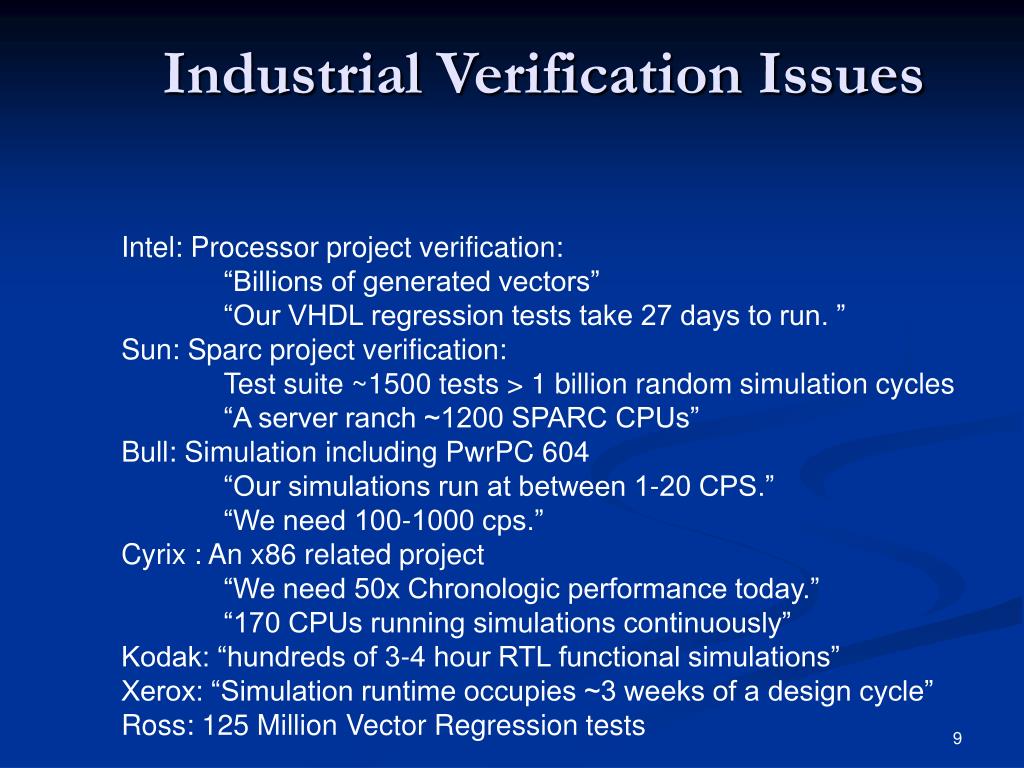

  9. Industrial Verification Issues Intel: Processor project verification: “Billions of generated vectors” “Our VHDL regression tests take 27 days to run. ” Sun: Sparc project verification: Test suite ~1500 tests > 1 billion random simulation cycles “A server ranch ~1200 SPARC CPUs” Bull: Simulation including PwrPC 604 “Our simulations run at between 1-20 CPS.” “We need 100-1000 cps.” Cyrix : An x86 related project “We need 50x Chronologic performance today.” “170 CPUs running simulations continuously” Kodak: “hundreds of 3-4 hour RTL functional simulations” Xerox: “Simulation runtime occupies ~3 weeks of a design cycle” Ross: 125 Million Vector Regression tests

  10. Software Verification Mechanism Monitor or Rule Check Library Simulation Engine Test Patterns Design Under Test Specific outputs

  11. System/Abstract level simulation • Easily debug and diagnosis • Reduce simulation time 1. Saving data structure transfer time 2. Native code predominance • Much more memory function HDL HDL HDL Perl HDL HDL Simulation Engine C/C++

  12. Emulation System • Advantages:+ easiest to implement (involves little change to the simulation environment)+ 10X to 100X faster than traditional simulation • Disadvantages:--All module must be synthesized --Difficult to handle verification scripts or mathematical formulas --Can’t probe any signal we want (only on input/output)

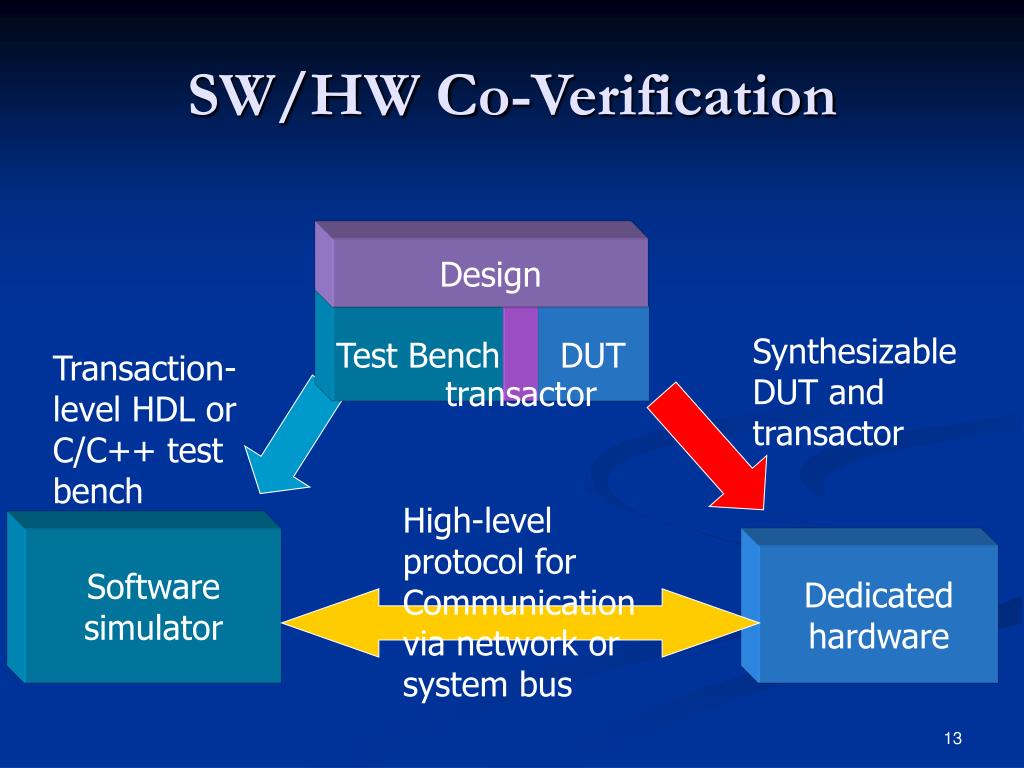

  13. Design Test Bench DUT SW/HW Co-Verification Synthesizable DUT and transactor Transaction-level HDL or C/C++ test bench transactor High-level protocol for Communication via network or system bus Software simulator Dedicatedhardware

  14. Principle of co-verification • How to design an hardware / software co-verification system ? ----The key issue is PARTITION

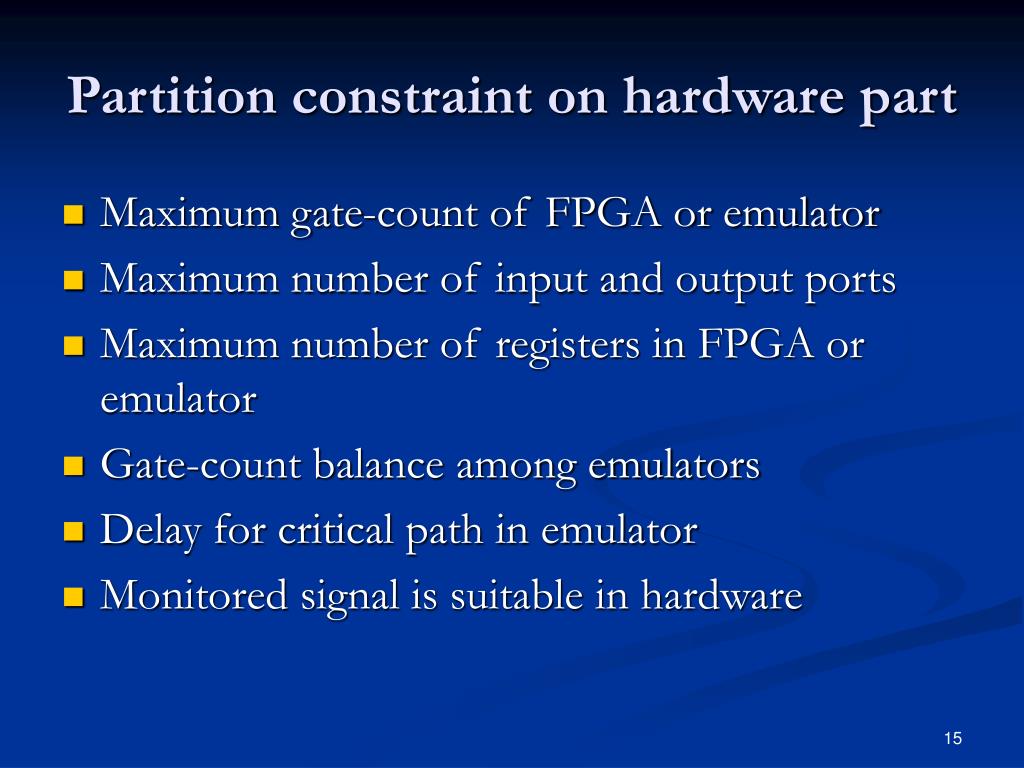

  15. Partition constraint on hardware part • Maximum gate-count of FPGA or emulator • Maximum number of input and output ports • Maximum number of registers in FPGA or emulator • Gate-count balance among emulators • Delay for critical path in emulator • Monitored signal is suitable in hardware

  16. Partition constraint on software part • Communication overhead among simulators and emulators • Monitored signal is suitable in hardware • Tight clock policy or loose clock policy (multi-clock system) ALL of these are test patterns related factors

  17. Partition process flow--Dynamic process Hardware constraint Software constraint Emulator Partition Engine HDL file Simulator Test Patterns

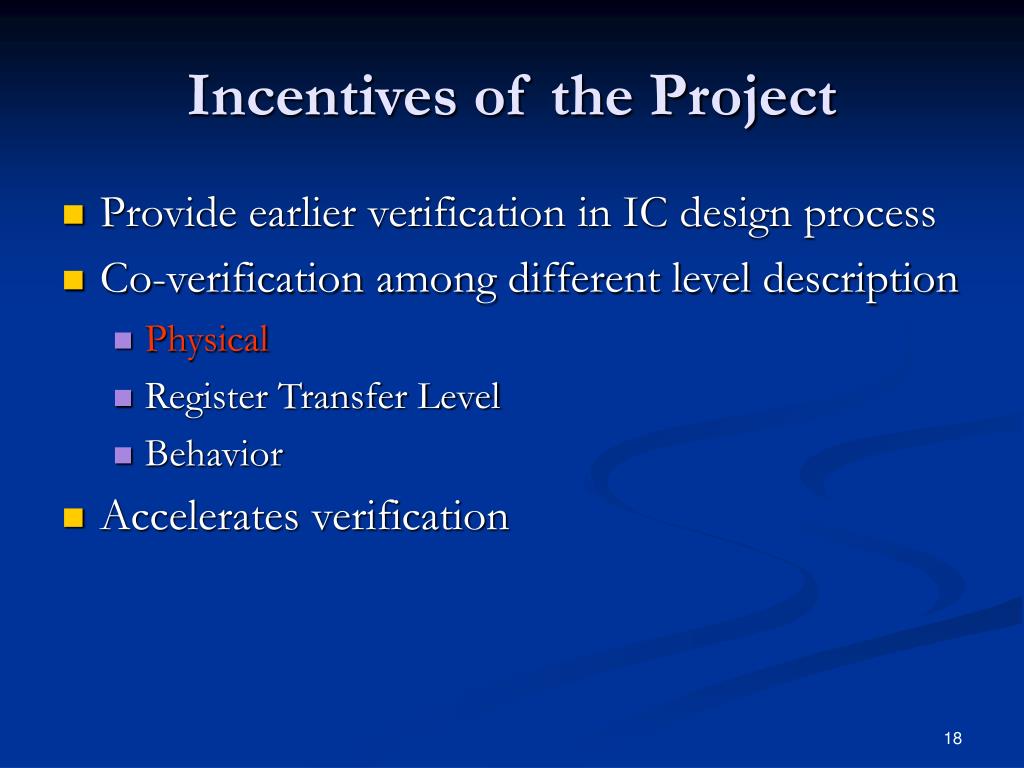

  18. Incentives of the Project • Provide earlier verification in IC design process • Co-verification among different level description • Physical • Register Transfer Level • Behavior • Accelerates verification

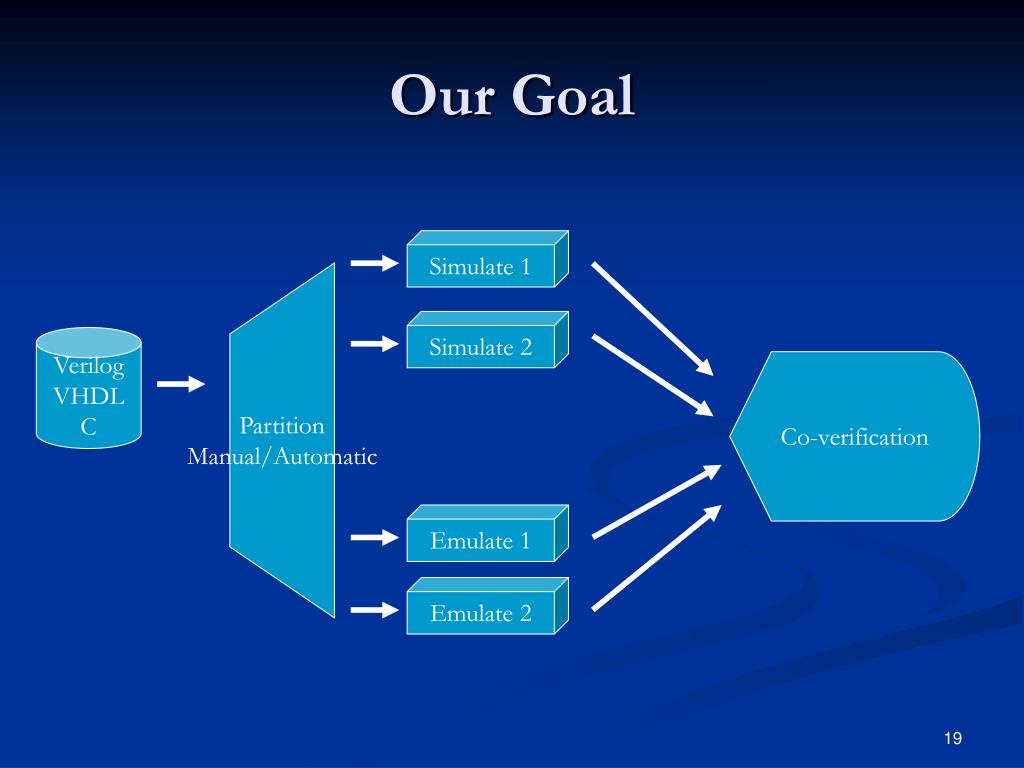

  19. Our Goal Simulate 1 Simulate 2 Verilog VHDL C Co-verification Partition Manual/Automatic Emulate 1 Emulate 2

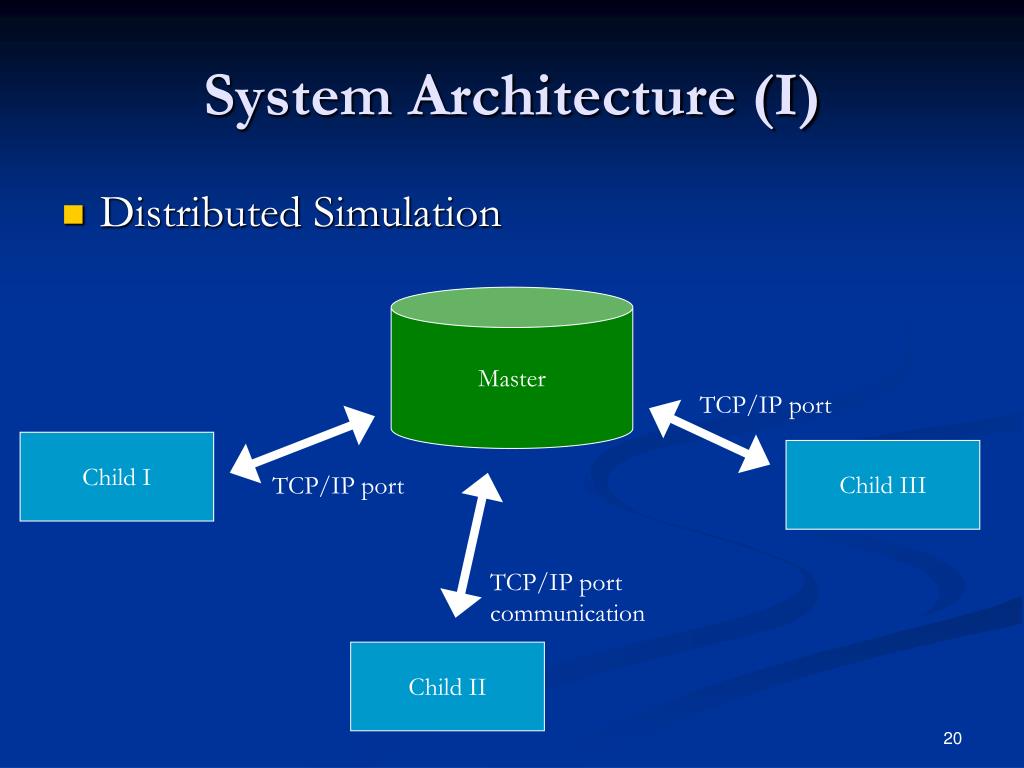

  20. System Architecture (I) • Distributed Simulation Master TCP/IP port Child I Child III TCP/IP port TCP/IP port communication Child II

  21. Features of the Simulator • A master process • must be setup to manipulate communication • Several child processes • Each corresponds to one part • Communication • TCP/IP ports

  22. Potential Difficulties (I) • Distributed Simulation • Synchronization • Different simulating speeds among parts • The faster have to wait • Data communication • Communication overhead • Partition • Clocks are the bottleneck • Duplicate global clocks within each parts speedup simulation

  23. System Architecture (II) • Emulation Master Simulation TCP/IP port TCP/IP port Child I Simulation Child III Simulation TCP/IP port Child II FPGA Emulation

  24. Features of the Emulator • Must be child processes • Each corresponds to one part synthesized as EDIF • Under the control of a corresponding child simulation • Communication • Through IDE to its corresponding simulation process

  25. Potential Difficulties (II) • Emulation • Synchronization • Among FPGA’s and Simulator • Clock Signals must be handled by Simulator • Among different FPGA’s • Simulator synchronize the verification progression • Data communication • Must be manipulated by the simulator • Multiple clocks • Handled by Simulator

  26. Potential Difficulties (III) • Design Partition • Manual / Automatic • Emulation parts must be synthesizable • Hardware constrains • Communication overhead • Among different emulation parts • Among different simulation parts

  27. System Limitation • Emulation • Clocks are handled by Simulator, emulation can progress one clock cycle at each call. • FPGAs works interruptedly instead at their full speeds. • Partition among emulation parts may dominate communication overhead.

  28. Experiment Results • RTL module : Jazz2020 (DSP core) • Gate Count : 0.5M (estimated) • Number of test patterns : 374 (with verification function) • Purely software simulation : 183 sec • Co-simulation (with Xilinx Vertex 400E) : 94 sec • Speed up : 2x (almost) Not fast as we expect

  29. Future work • We will separate RTL code into nonsynthesizable part and synthesizable part • Nonsynthesizable Part : Convert to C code (compiled code type) run under embedded CPU on FPGA chip • Synthesizable Part : put into FPGA block • Goal : All process will be done only on one FPGA chip

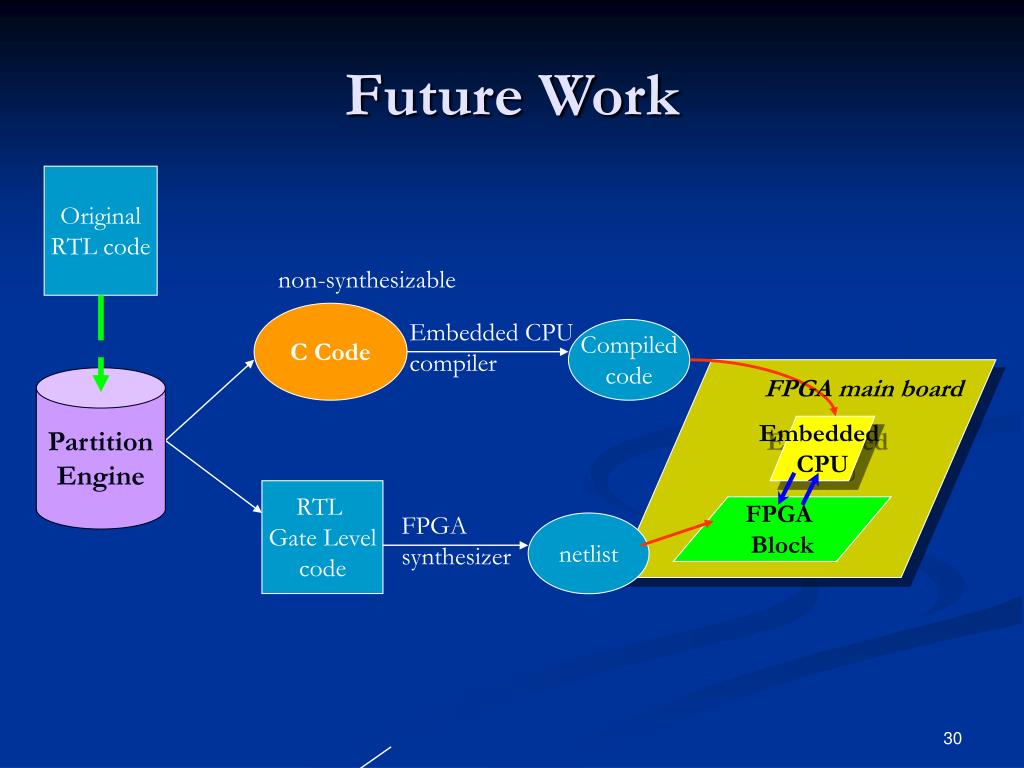

  30. Future Work Original RTL code non-synthesizable C Code Embedded CPU compiler Compiled code Partition Engine FPGA main board Embedded CPU RTL Gate Level code FPGA Block FPGA synthesizer netlist

  31. Conclusion • Simulation is and will be the most popular verification method. • Emulation will standout as an accelerator under heavy simulation load.
