Annotating Microarray Data with the MGED Ontology

1. Annotating Microarray Data with the MGED Ontology NCI Center for Bioinformatics April 15, 2004 P. L. Whetzel, A. Pizarro, E. Manduchi, J. Liu, H. He, G. Grant, M. Mailman, C. Stoeckert Center for Bioinformatics University of Pennsylvania

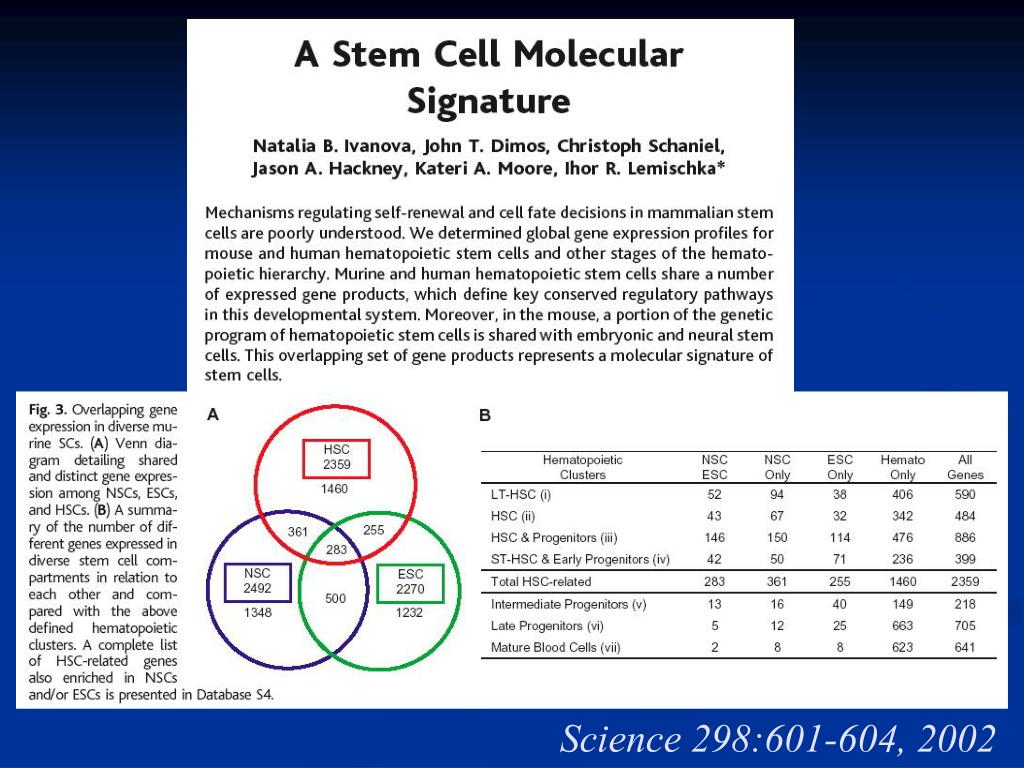

2. Science 298:601-604, 2002

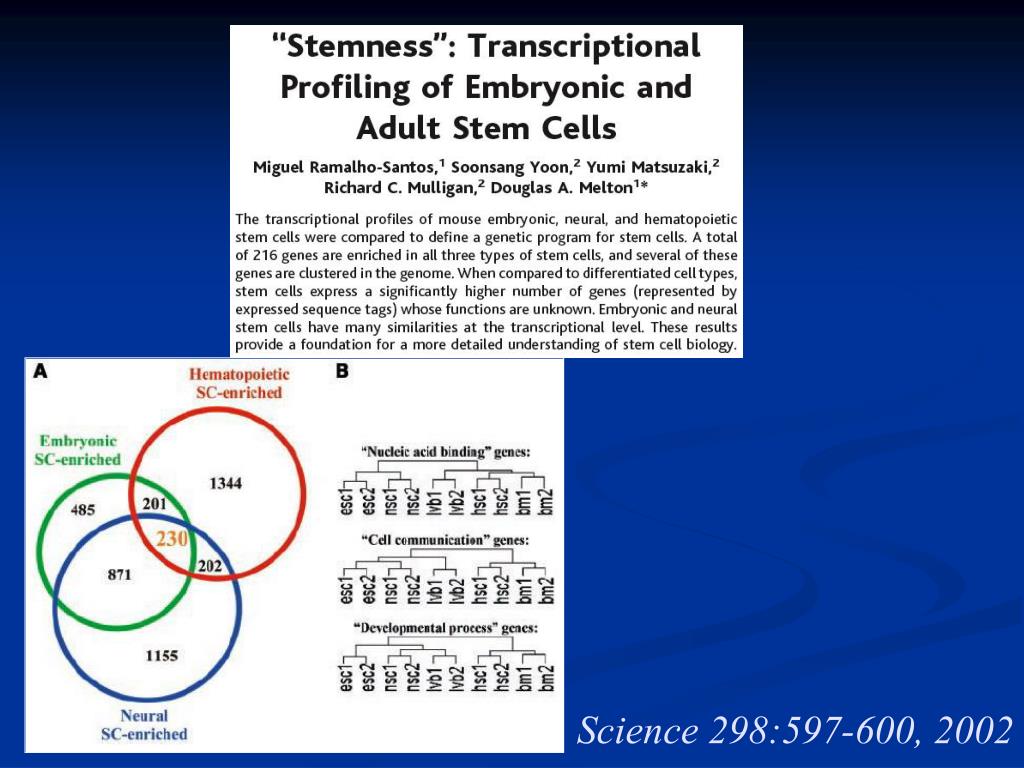

3. Science 298:597-600, 2002

4. To compare experiments, you need some minimum information about the microarray experiments. Ivanova et al. Science 2003

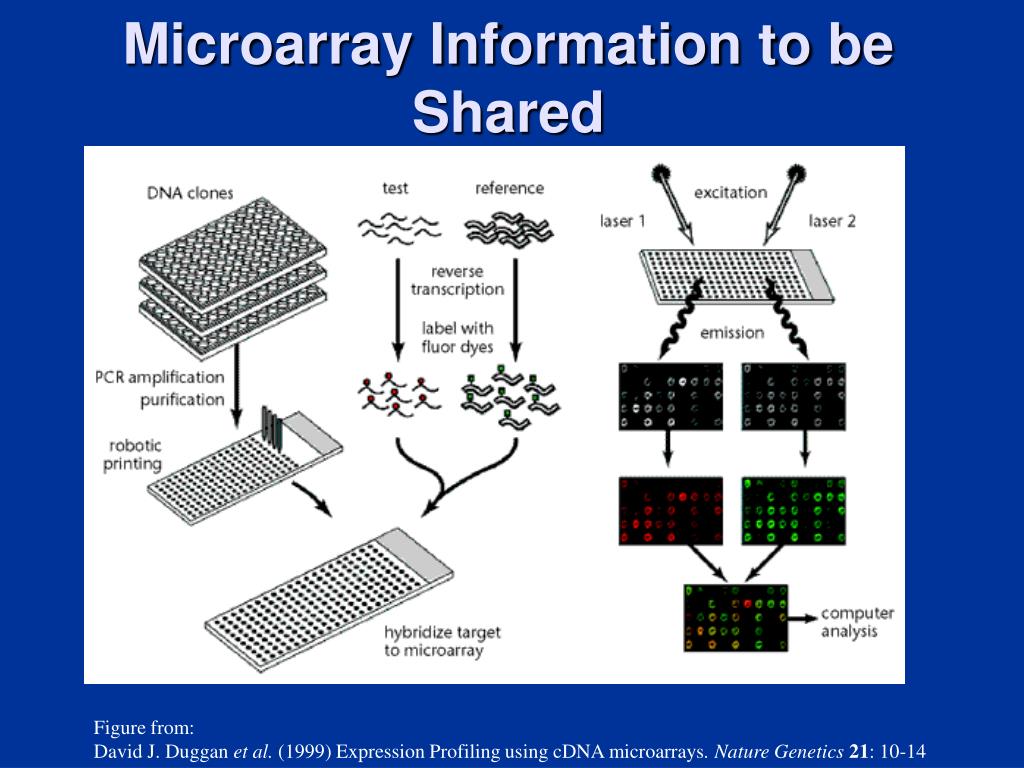

5. Microarray Information to be Shared Figure from: David J. Duggan et al. (1999)Expression Profiling using cDNA microarrays. Nature Genetics21: 10-14

6. The Computational View of Microarray Information

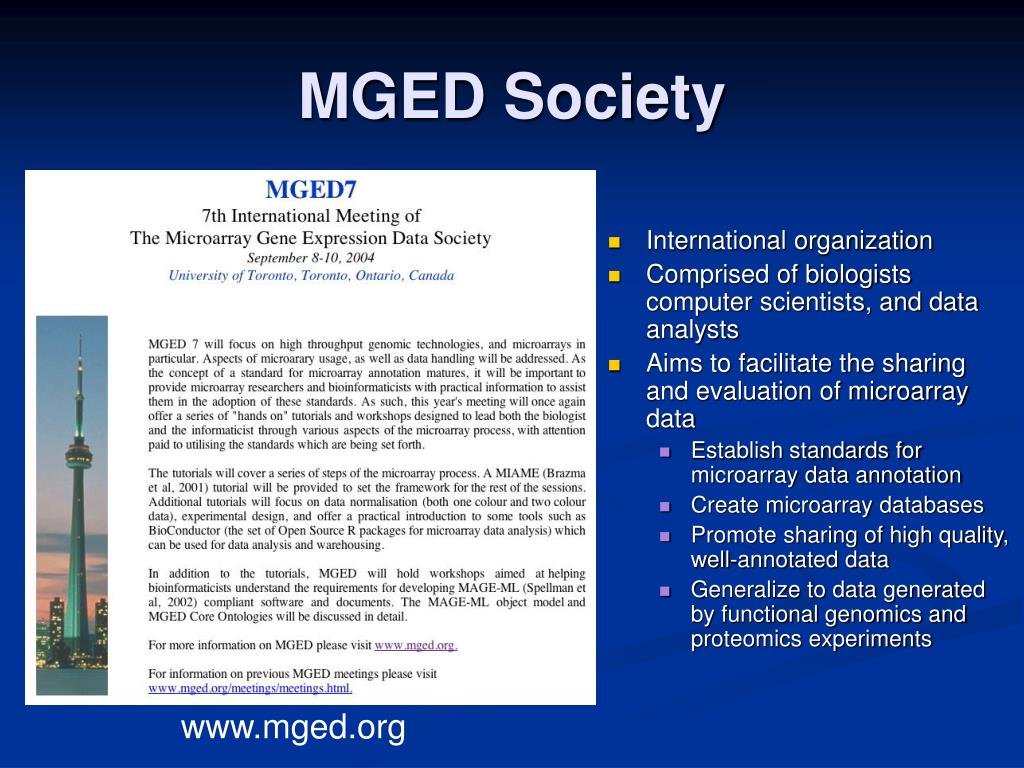

7. International organization Comprised of biologists computer scientists, and data analysts Aims to facilitate the sharing and evaluation of microarray data Establish standards for microarray data annotation Create microarray databases Promote sharing of high quality, well-annotated data Generalize to data generated by functional genomics and proteomics experiments MGED Society www.mged.org

8. MGED Standardization Efforts • MIAME • The formulation of the minimum information about a microarray experiment required to interpret and verify the results. (Brazma et al. Nature Genetics 2001) • MAGE-OM • The establishment of a data exchange format and object model for microarray experiments. (Spellman et al. Genome Biol. 2002) • MGED Ontology • The development of an ontology for microarray experiment description and biological material (biomaterial) annotation in particular. (Stoeckrt & Parkinson, Comp. Funct. Genom. 2003) • Transformations • The development of recommendations regarding microarray data transformations and normalization methods.

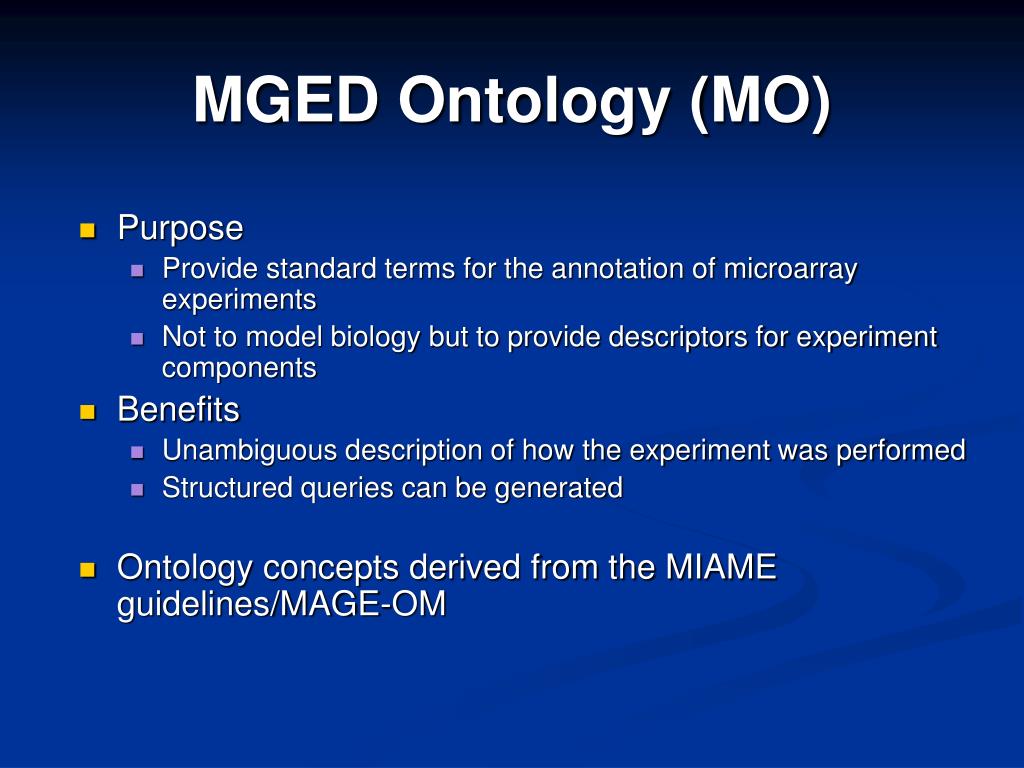

9. MGED Ontology (MO) • Purpose • Provide standard terms for the annotation of microarray experiments • Not to model biology but to provide descriptors for experiment components • Benefits • Unambiguous description of how the experiment was performed • Structured queries can be generated • Ontology concepts derived from the MIAME guidelines/MAGE-OM

10. MGED Ontology developmenthttp://mged.sourceforge.net/ontologies/MGEDontology.php • OILed • File formats • DAML file • HTML file • NCI DTS Browser • Changes • Notes • Term Tracker

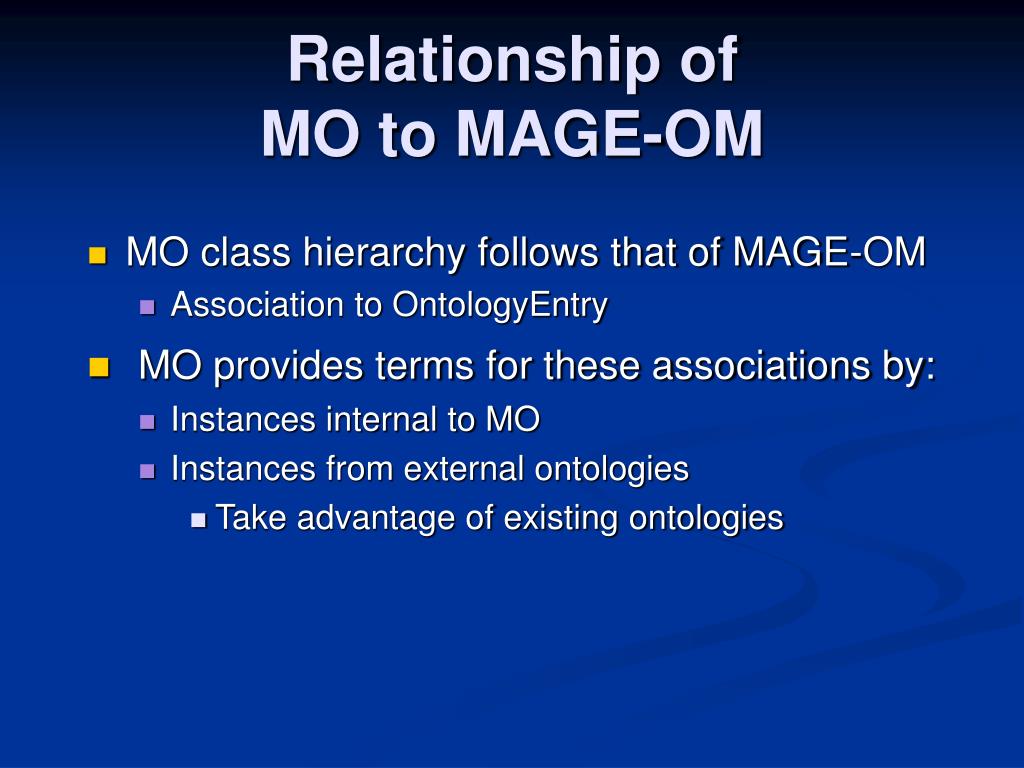

11. Relationship of MO to MAGE-OM • MO class hierarchy follows that of MAGE-OM • Association to OntologyEntry • MO provides terms for these associations by: • Instances internal to MO • Instances from external ontologies • Take advantage of existing ontologies

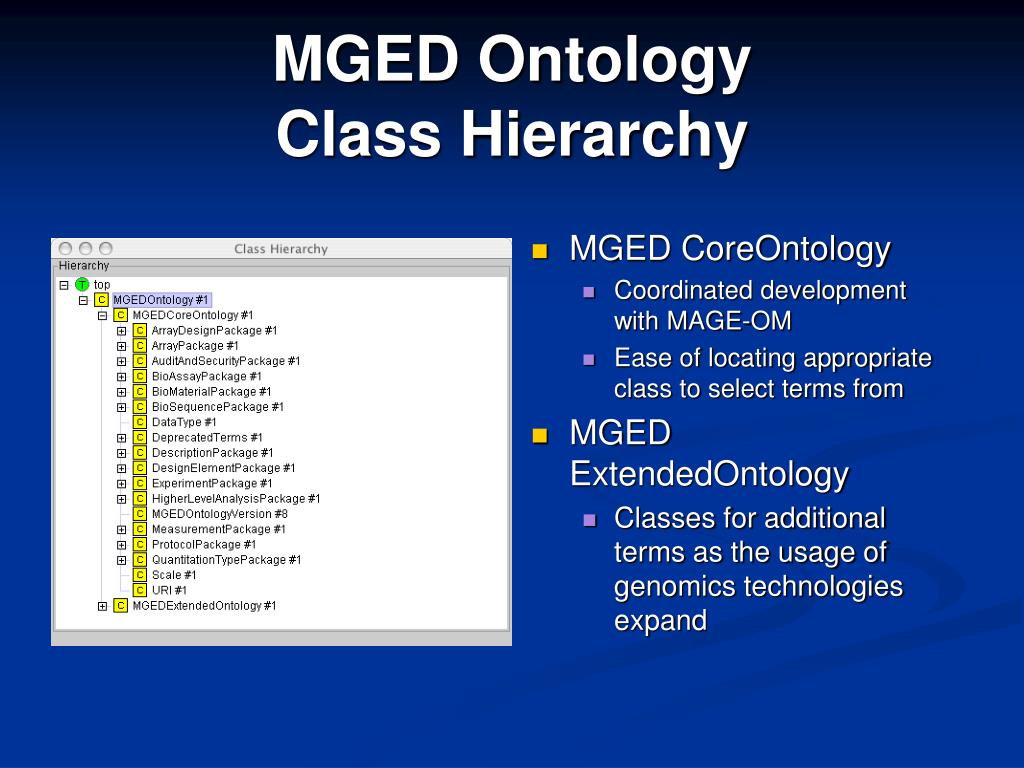

12. MGED Ontology Class Hierarchy • MGED CoreOntology • Coordinated development with MAGE-OM • Ease of locating appropriate class to select terms from • MGED ExtendedOntology • Classes for additional terms as the usage of genomics technologies expand

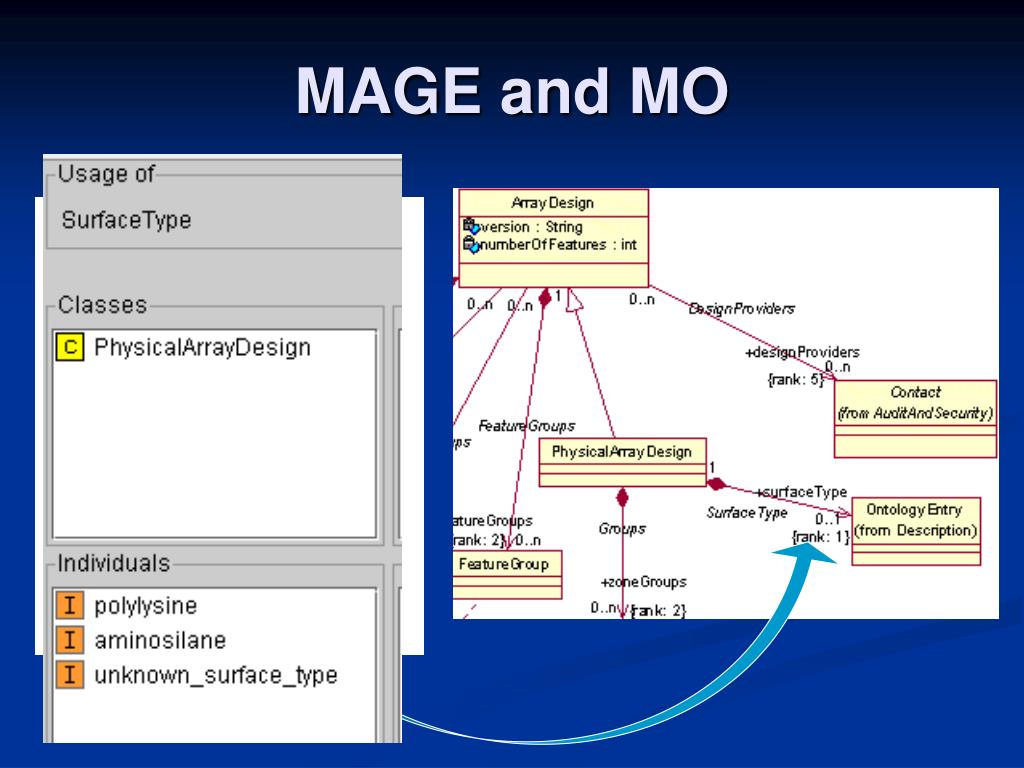

13. MAGE and MO

14. MAGE and MO

15. BioMaterial OntologyEntry Main focus of MGED Ontology • Structured and rich description of BioMaterials +characteristics +associations

18. MO and References to External Ontologies

19. MO and references to External Ontologies

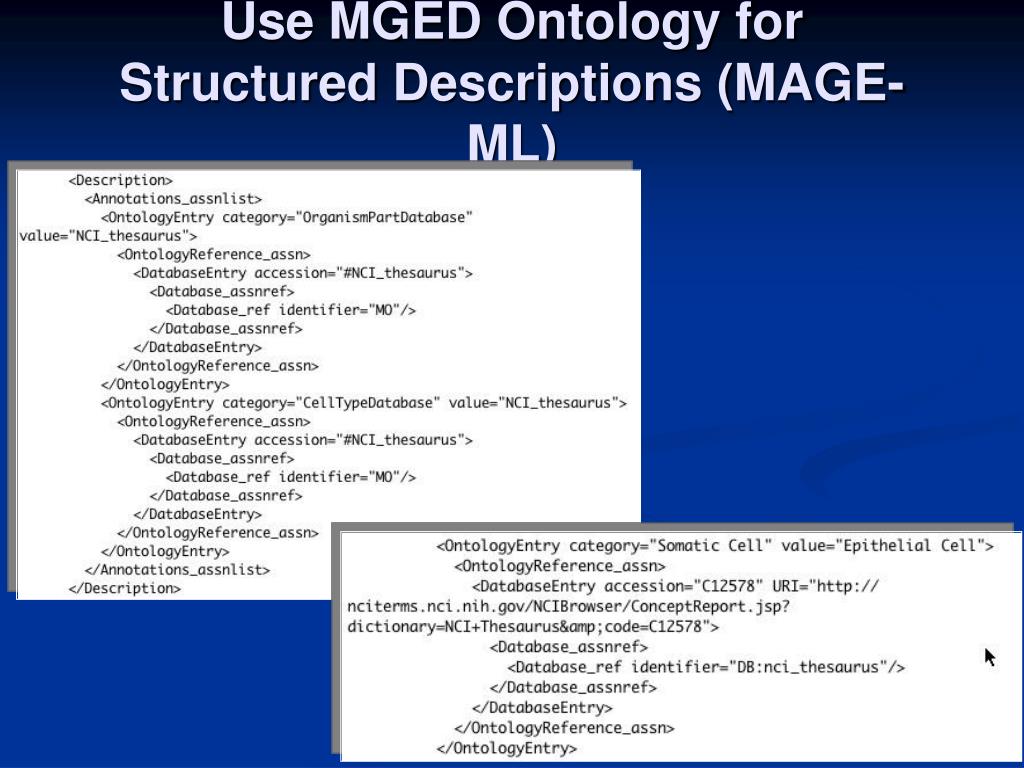

20. Use MGED Ontology for Structured Descriptions (MAGE-ML)

21. http://www.sofg.org

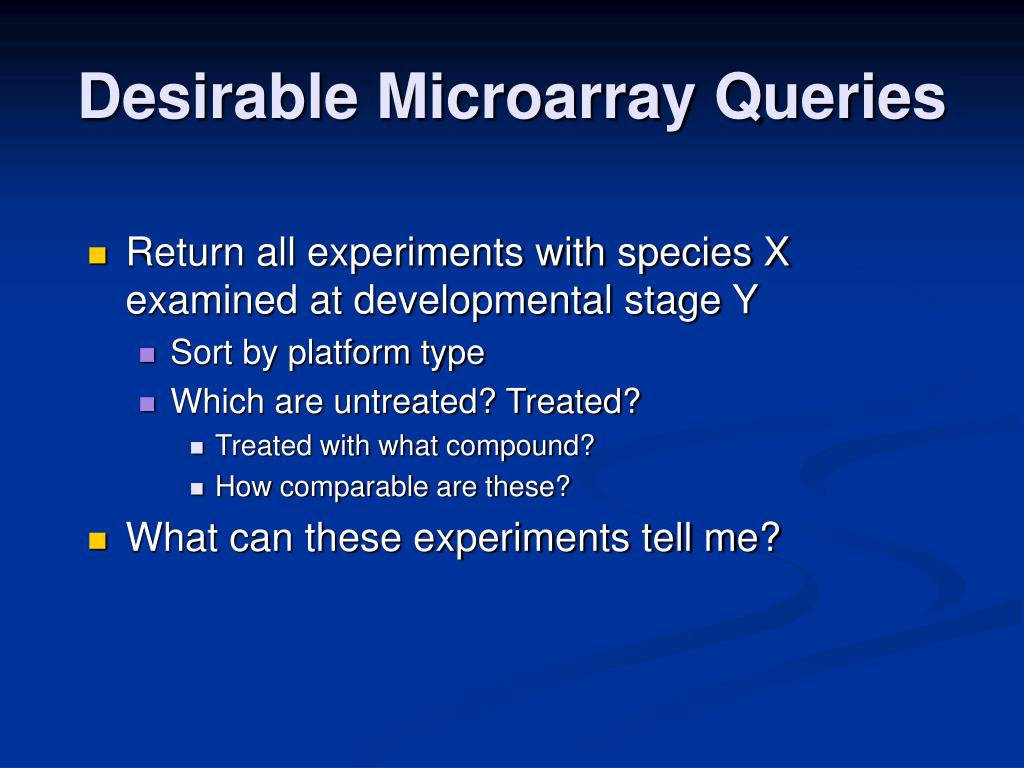

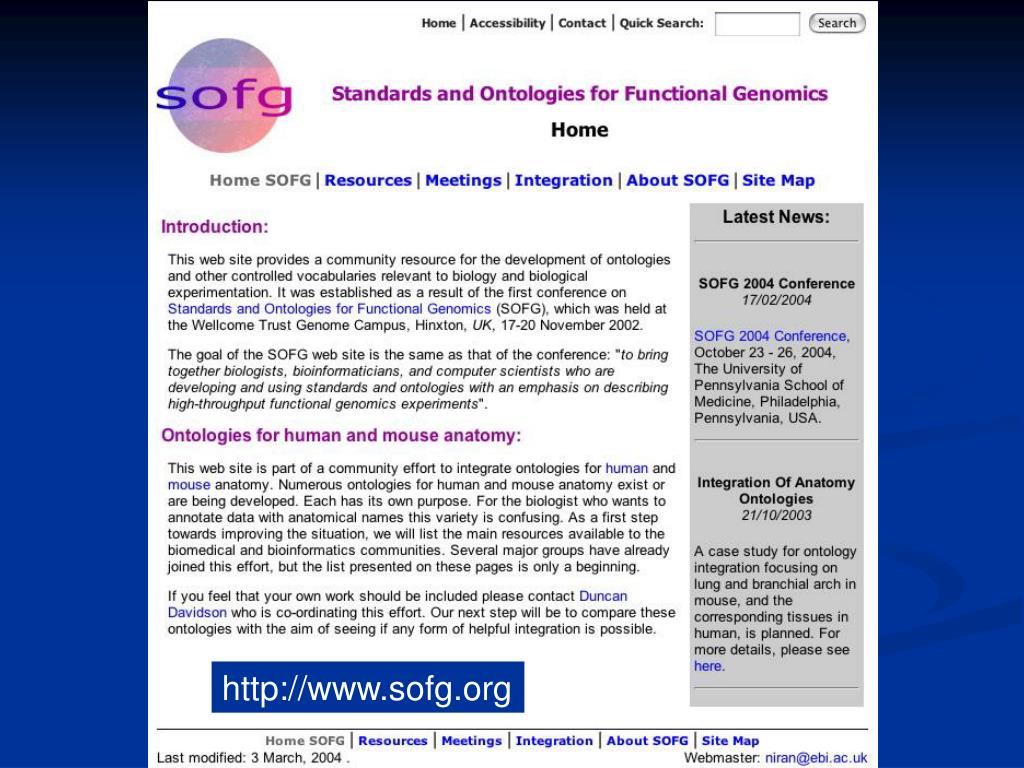

22. Desirable Microarray Queries • Return all experiments with species X examined at developmental stage Y • Sort by platform type • Which are untreated? Treated? • Treated with what compound? • How comparable are these? • What can these experiments tell me?

23. MO and Structured Queries

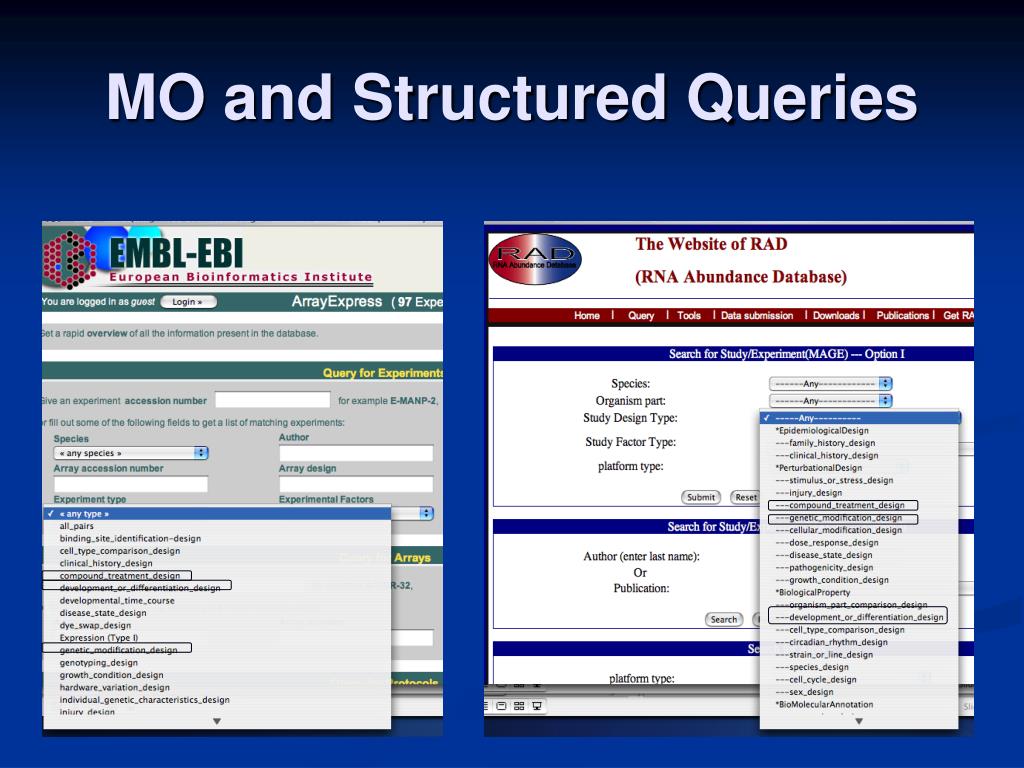

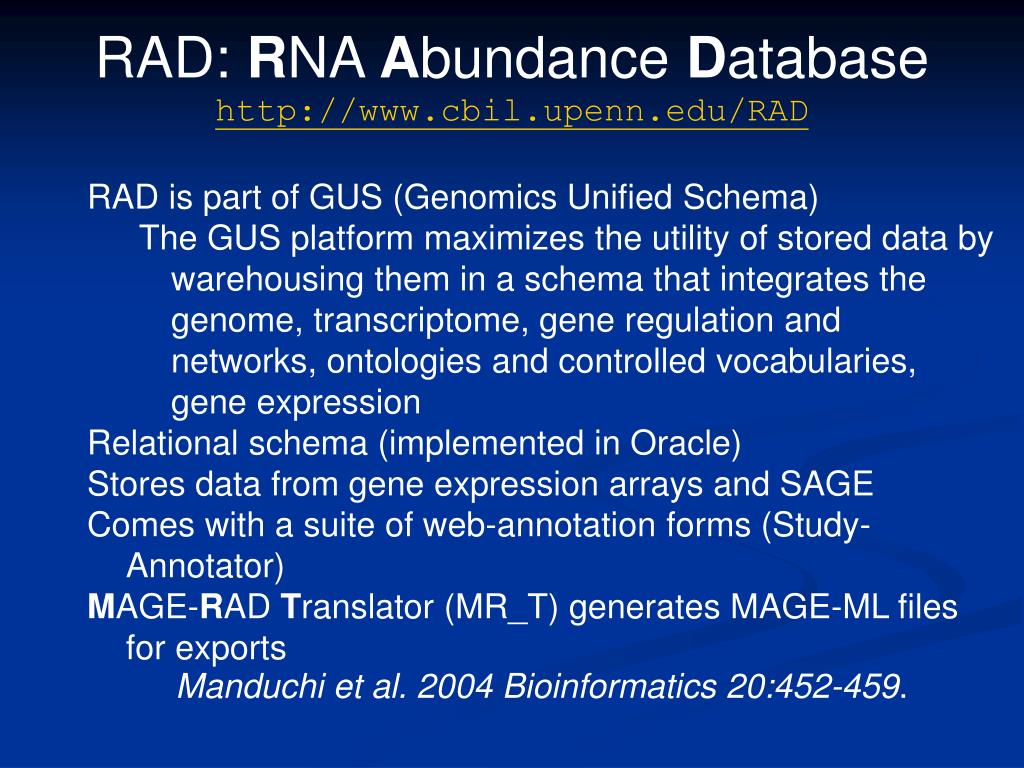

24. RAD: RNA Abundance Databasehttp://www.cbil.upenn.edu/RAD • RADis part of GUS (Genomics Unified Schema) • The GUS platform maximizes the utility of stored data by warehousing them in a schema that integrates the genome, transcriptome, gene regulation and networks, ontologies and controlled vocabularies, gene expression • Relational schema (implemented in Oracle) • Stores data from gene expression arrays and SAGE • Comes with a suite of web-annotation forms (Study-Annotator) • MAGE-RAD Translator (MR_T) generates MAGE-ML files for exports • Manduchi et al. 2004 Bioinformatics 20:452-459.

25. Namespace Domain Features RAD Gene Expression MIAME/MAGE-OM SRes Shared Resources Ontologies DoTS Sequence and annotation Central dogma Core Data Provenance Documentation TESS Gene regulation Grammars GUS (Genomics Unified Schema) http://www.gusdb.org

26. RAD Schema • About 65 tables and 30 views • Assay to Quantification tables • Study Design tables • BioMaterials tables • Platform tables • Quantification Result tables • Processing tables • Analysis Result tables • Misc tables: Protocol, Contact*, Ontologies* • Meta tables*: data privacy and for history tracking • Integrity Checks tables • * These are used by RAD, but belong to common GUS components Tables populated by the Study-Annotator

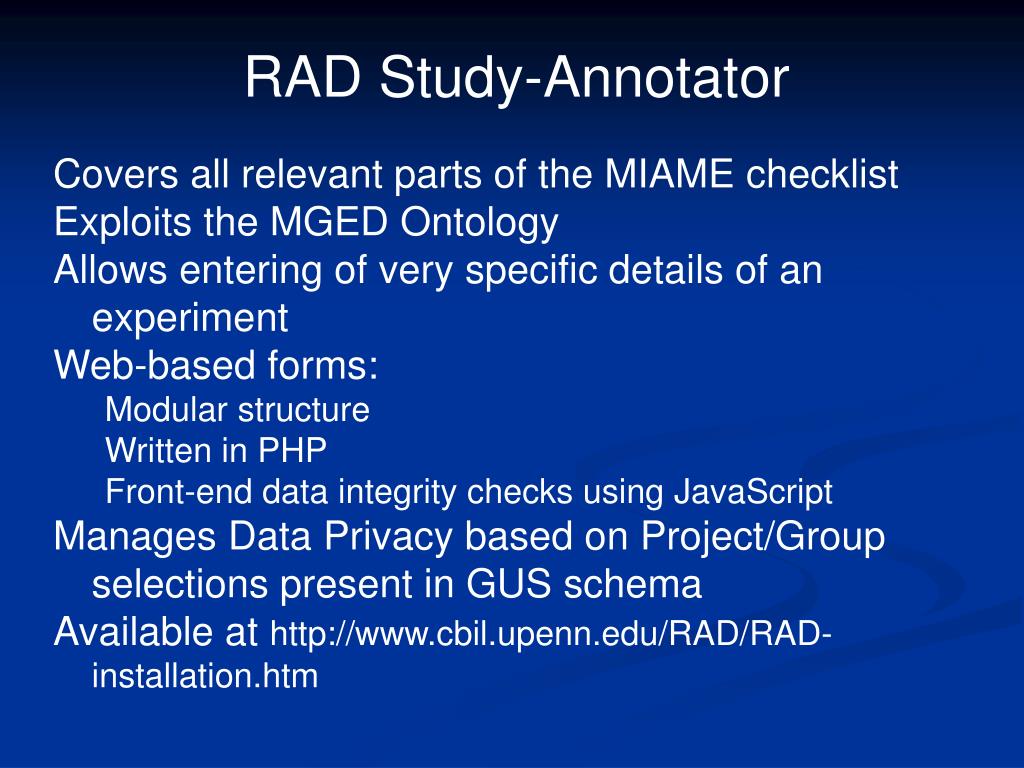

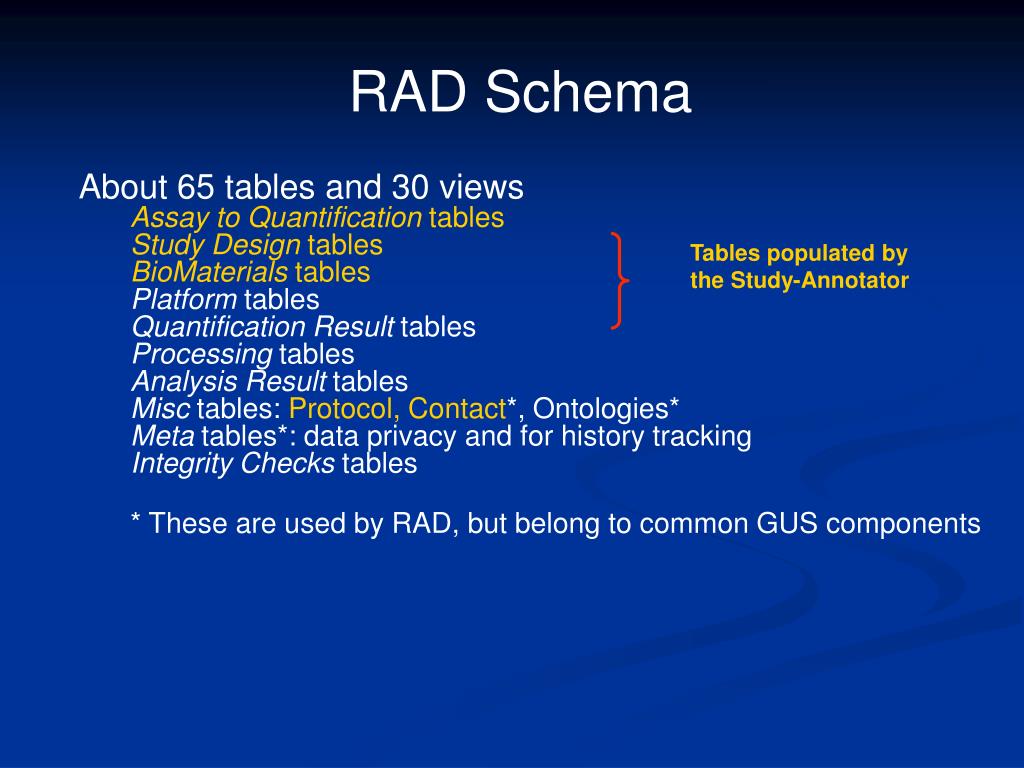

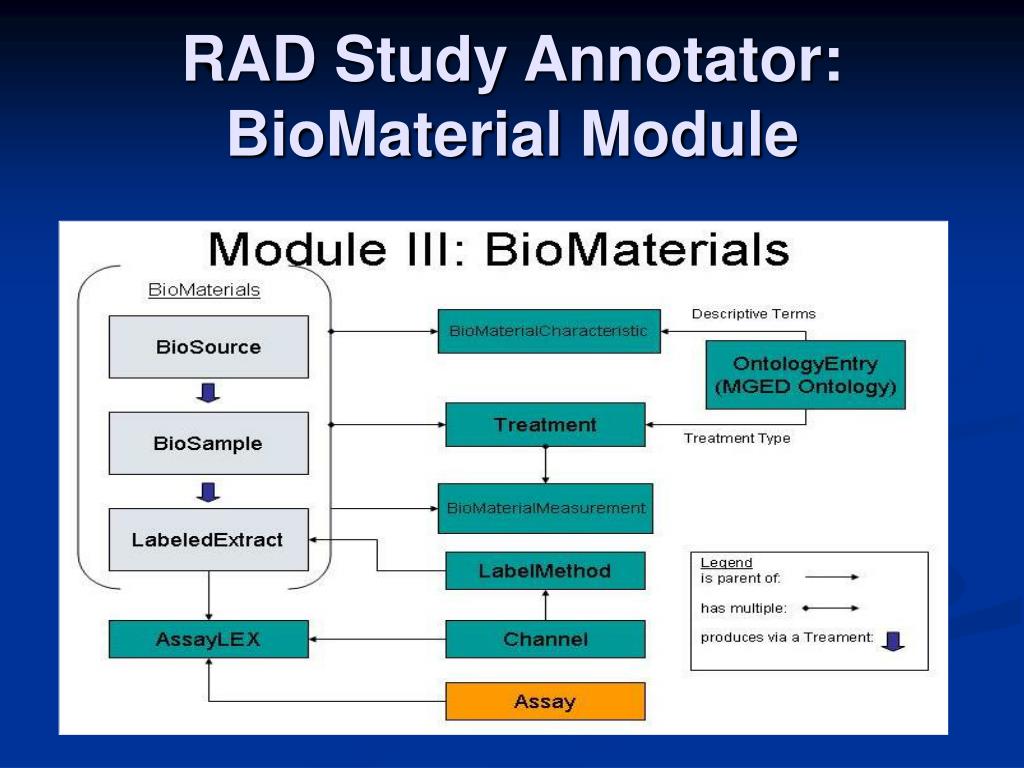

27. RAD Study-Annotator • Covers all relevant parts of the MIAME checklist • Exploits the MGED Ontology • Allows entering of very specific details of an experiment • Web-based forms: • Modular structure • Written in PHP • Front-end data integrity checks using JavaScript • Manages Data Privacy based on Project/Group selections present in GUS schema • Available at http://www.cbil.upenn.edu/RAD/RAD-installation.htm

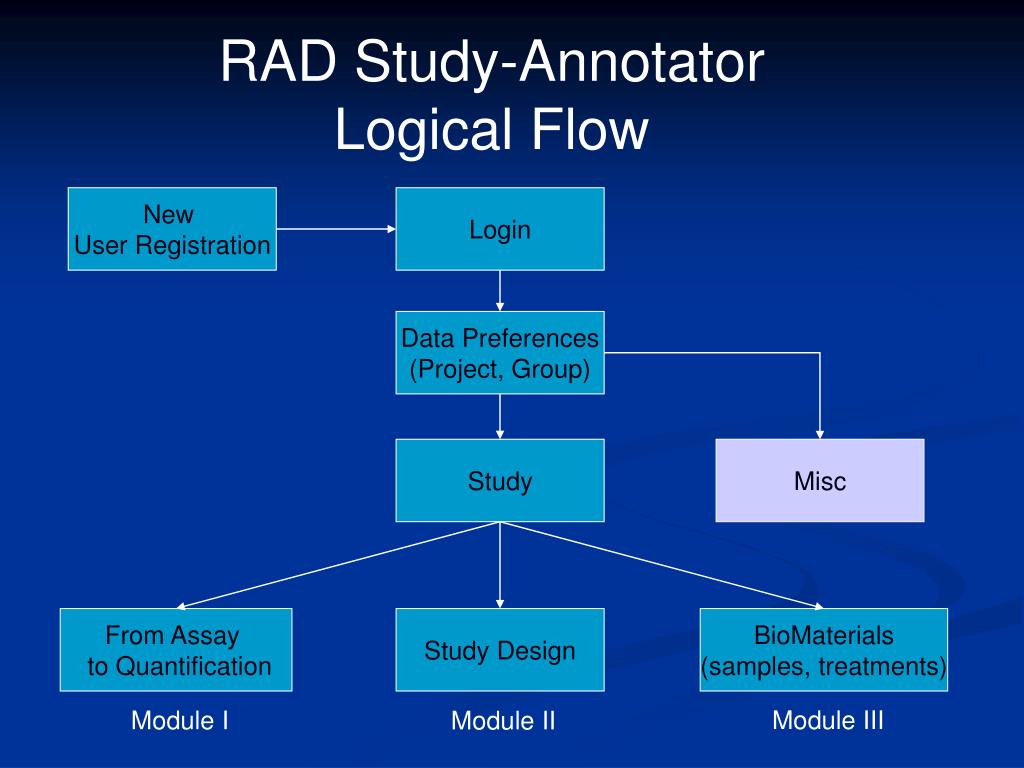

28. RAD Study-AnnotatorLogical Flow New User Registration Login Data Preferences (Project, Group) Study Misc From Assay to Quantification Study Design BioMaterials (samples, treatments) Module III Module I Module II

29. Experiment Annotation:Study Design

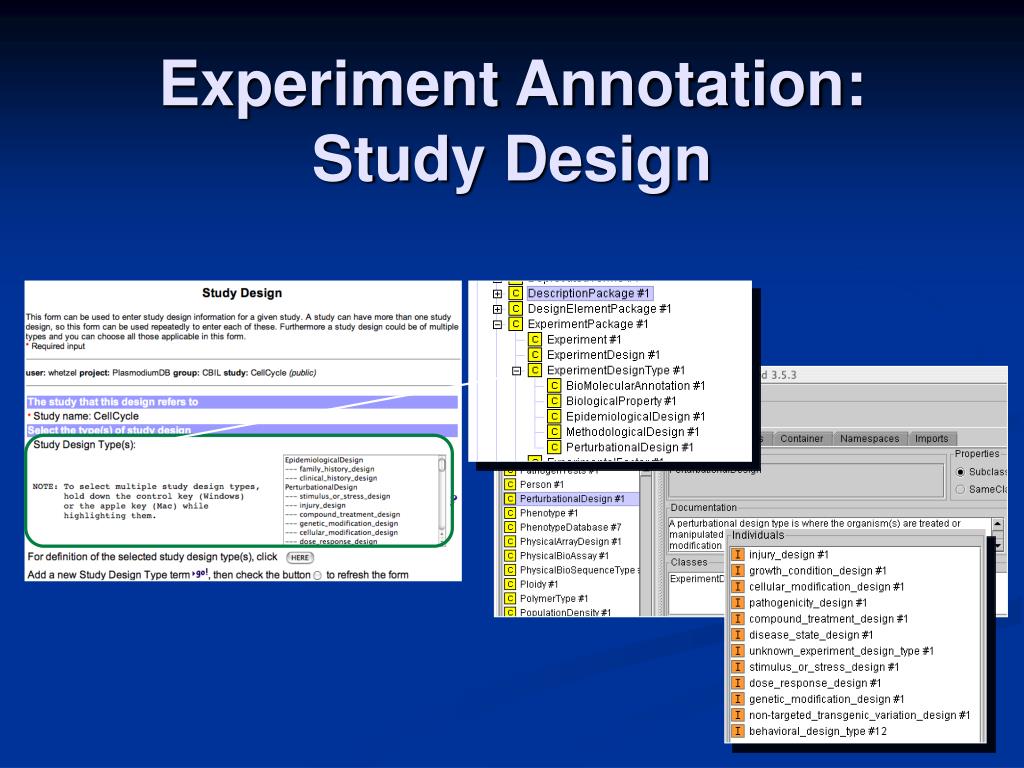

30. BioMaterial Annotation: Conceptual View

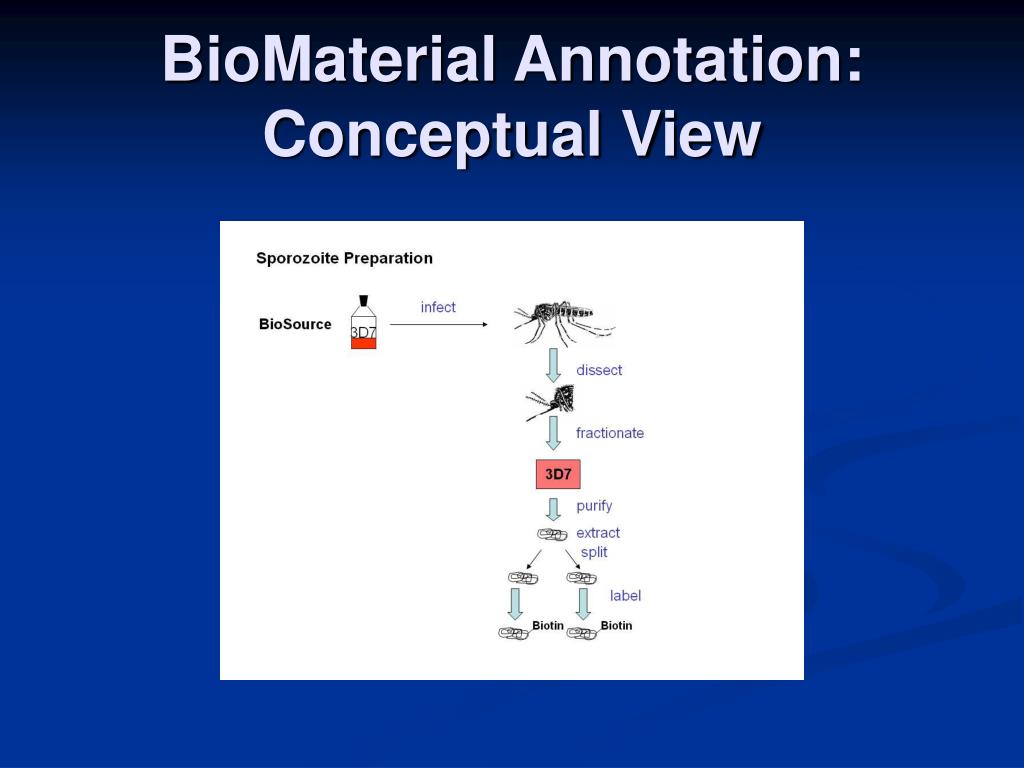

31. RAD Study Annotator: BioMaterial Module

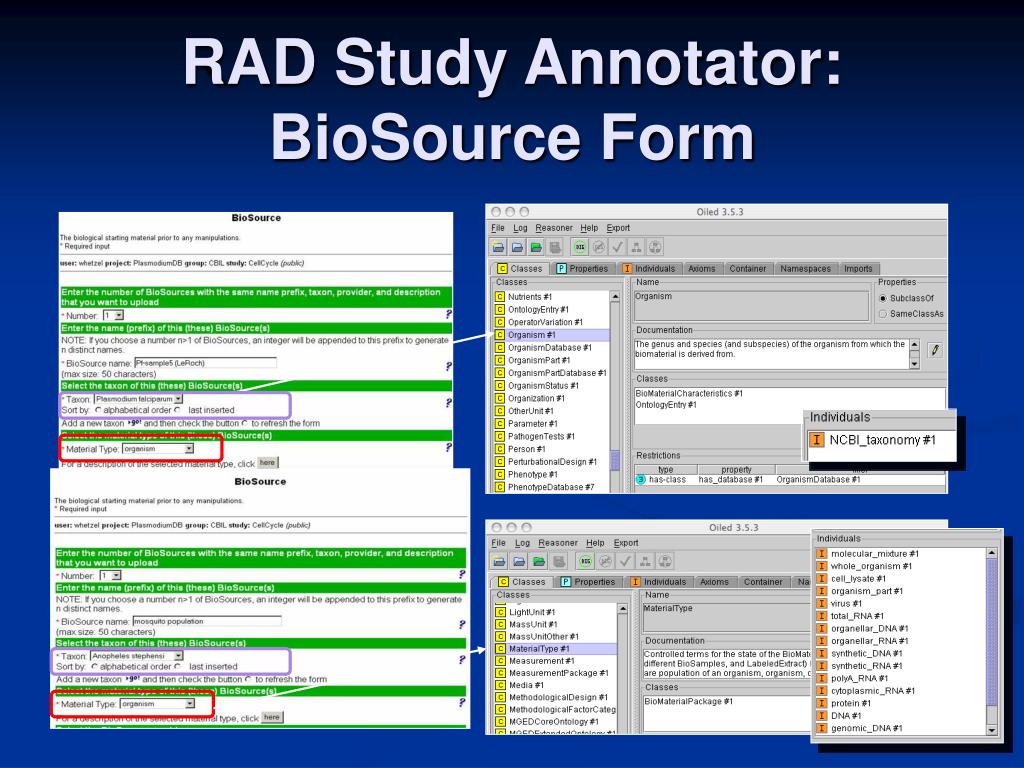

32. RAD Study Annotator: BioSource Form

33. RAD Study Annotator: Treatment Form

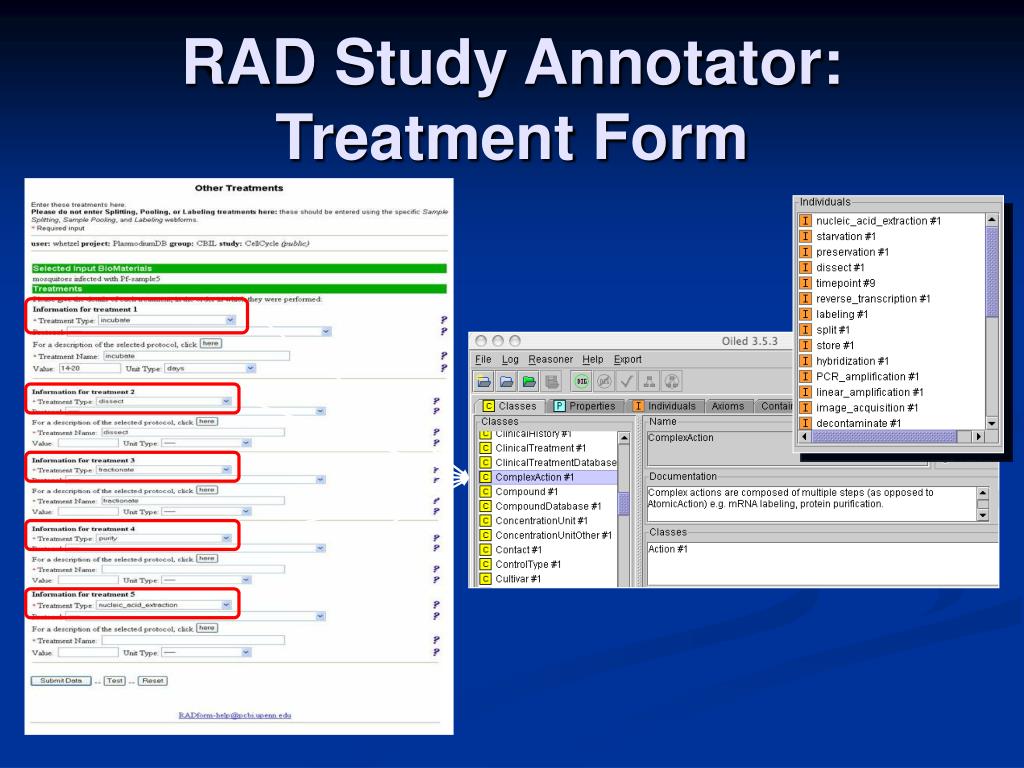

34. Using the Ontologies new terms can be proposed OntologyEntry RAD Ontology instances propagated to annotation web forms RAD Study-Annotator MGED Ontology Anatomy DevelopmentalStage Disease Lineage PATOAttribute Phenotype Taxon SRES MGED Ontology ExternalDatabases

35. Sources of New Terms in OntologyEntry • MGED Ontology • Continued development of new classes and terms • Shared Resources (SRes) • Contains controlled vocabularies and ontologies • External Database Sources • Annotated term provided by user

36. Adding New Terms Add term from SRes 1 Add term from External Database 2

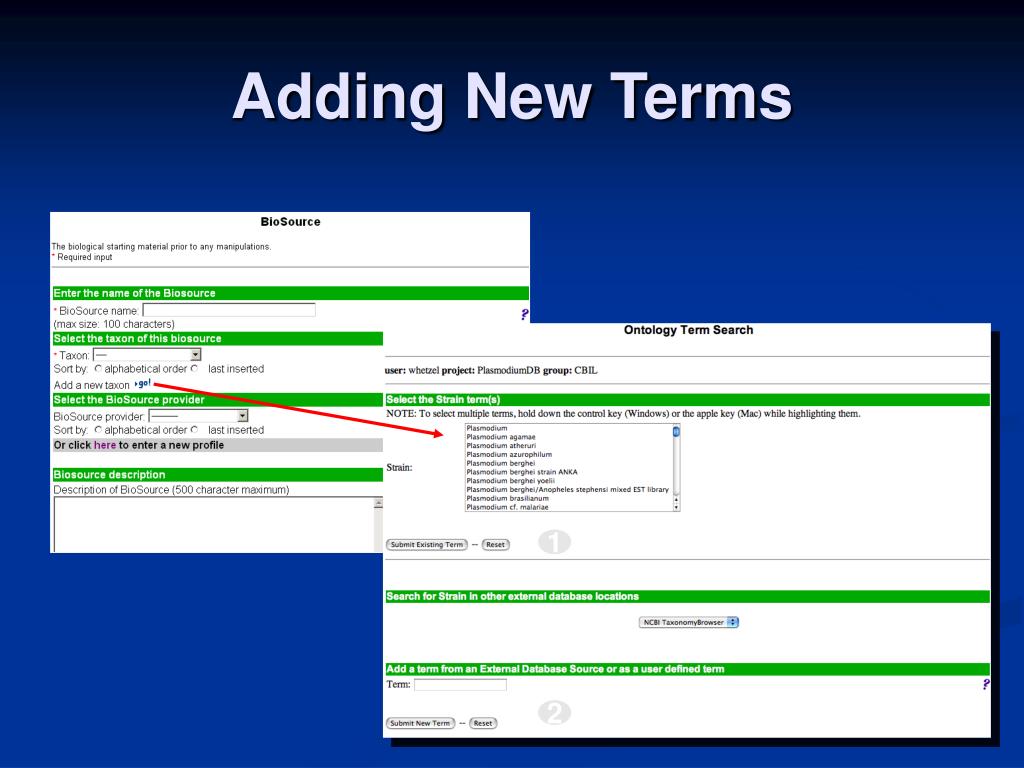

37. Future Issues • Burning Issues • Developing MO in synch with related efforts (MAGE-OM v.2.0) • Use/presentation in annotation forms • Coverage of other technologies and biological domains • Flame retardant structure • ExtendedOntology • Space to add new classes, terms and their relationship to one another

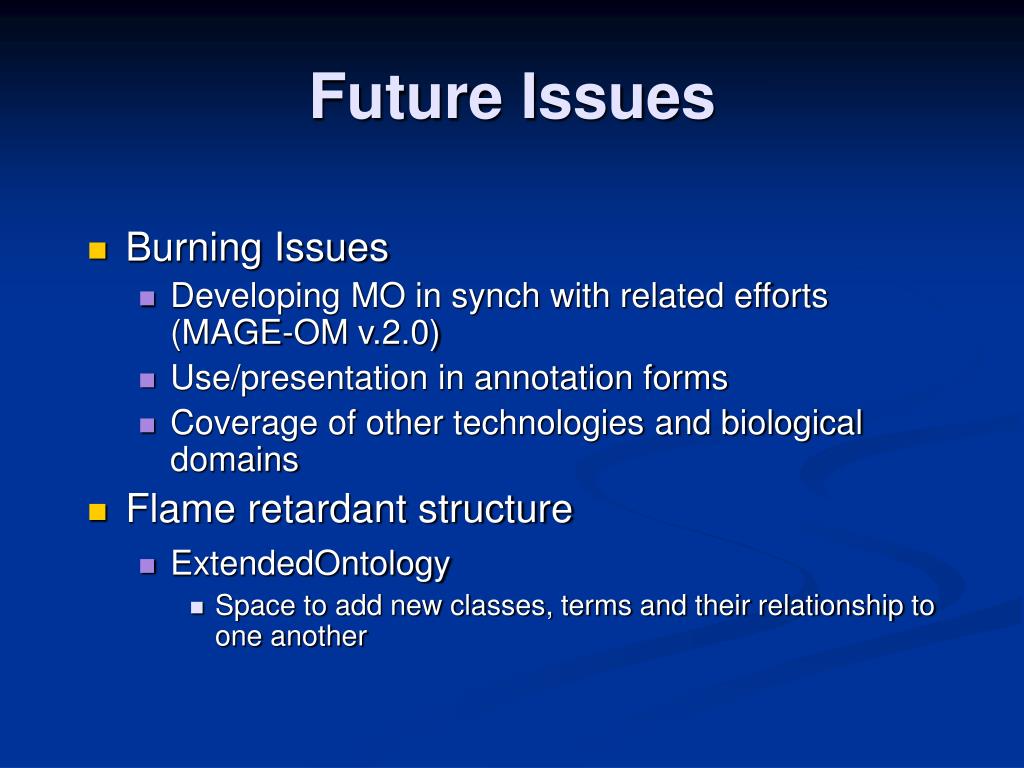

38. A Functional Genomics View A. Jones et al. submitted

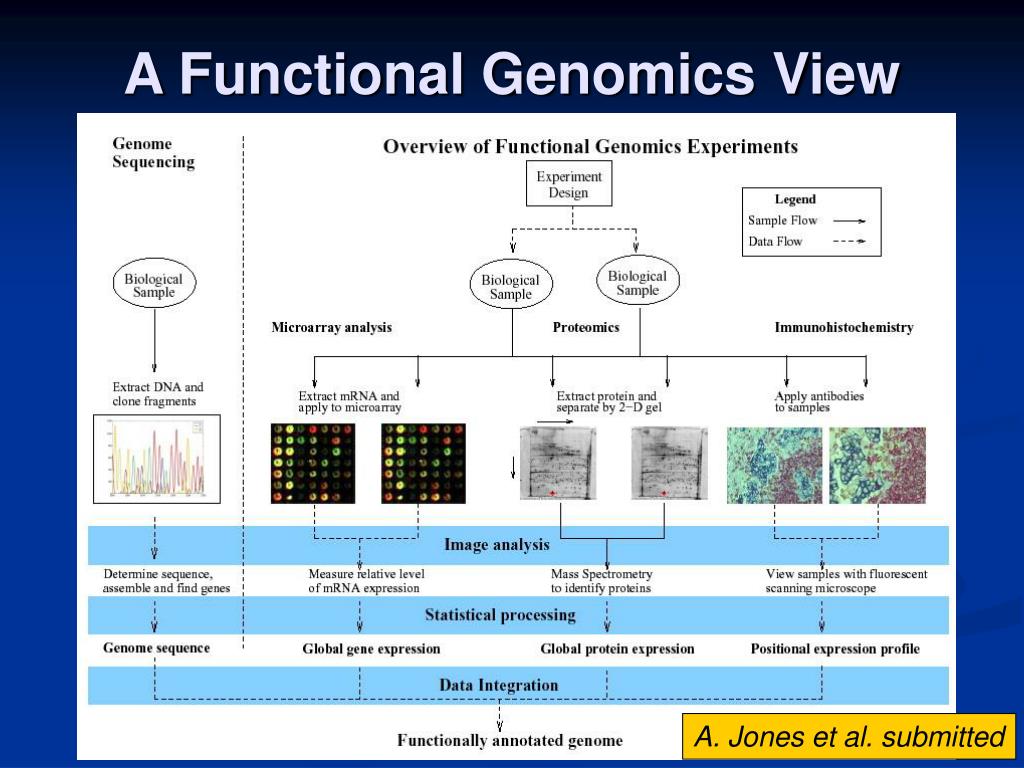

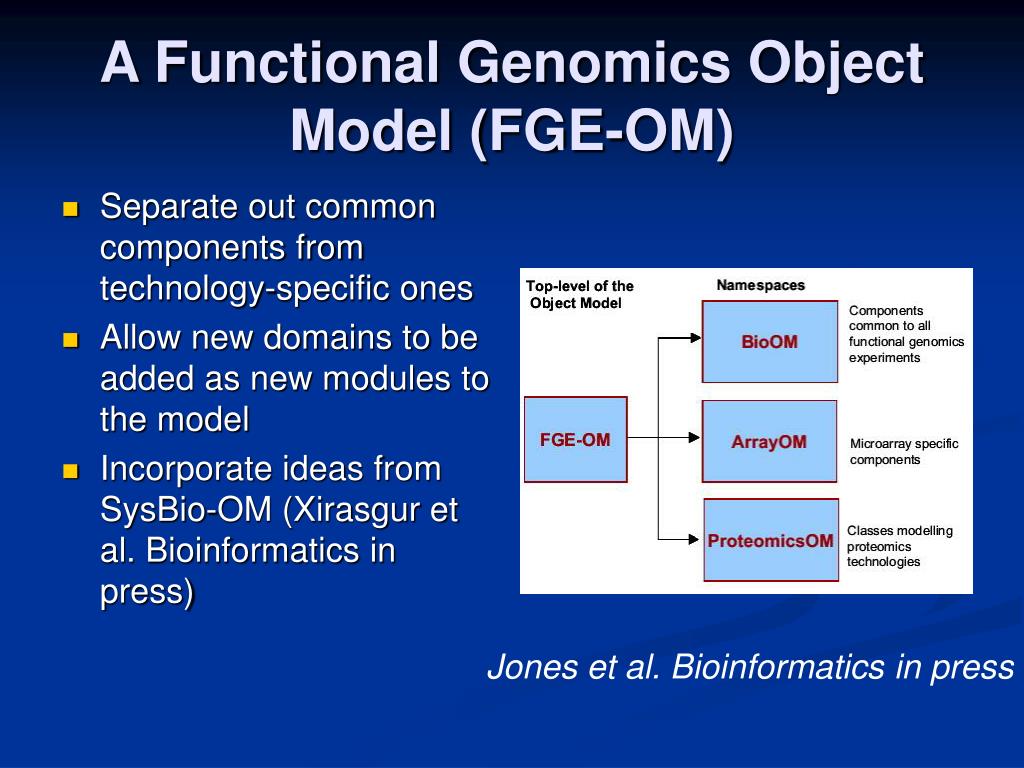

39. A Functional Genomics Object Model (FGE-OM) • Separate out common components from technology-specific ones • Allow new domains to be added as new modules to the model • Incorporate ideas from SysBio-OM (Xirasgur et al. Bioinformatics in press) Jones et al. Bioinformatics in press

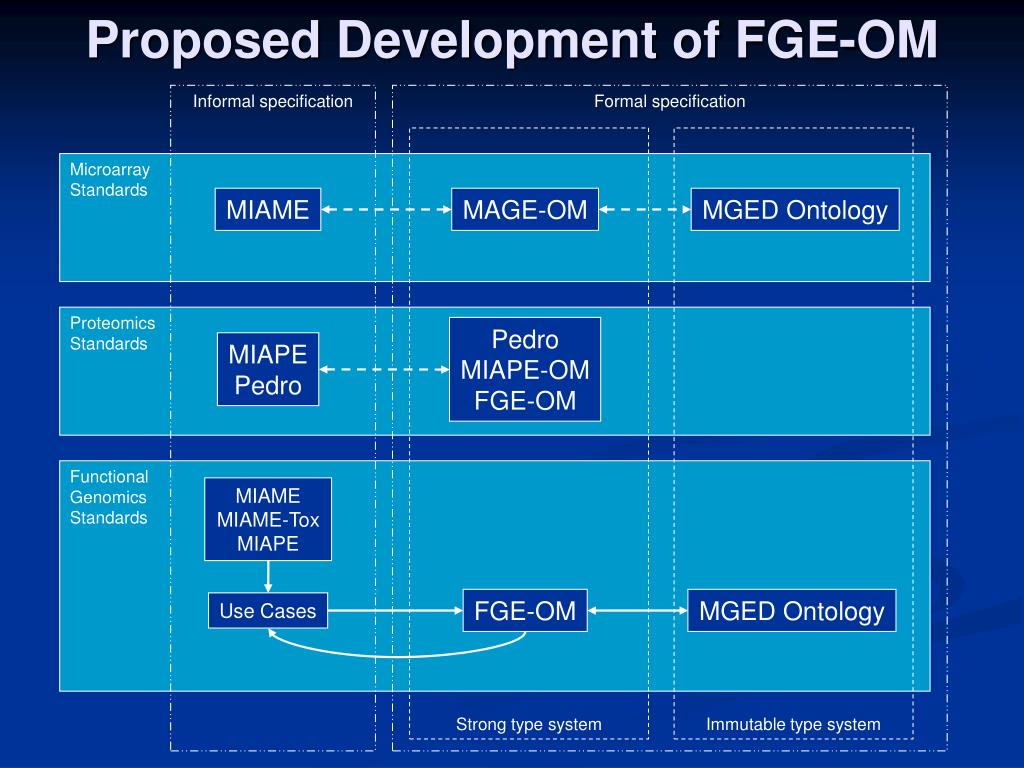

40. Microarray Standards MIAME MAGE-OM MGED Ontology Proposed Development of FGE-OM Informal specification Formal specification Strong type system Immutable type system Proteomics Standards Pedro MIAPE-OM FGE-OM MIAPE Pedro Functional Genomics Standards MIAME MIAME-Tox MIAPE FGE-OM MGED Ontology Use Cases

41. Acknowledgements • MGED Ontology Working Group • Chris Stoeckert, Trish Whetzel (Penn) • Helen Parkinson (EBI) • Joe White (TIGR) • Gilberto Fragoso, Liju Fan, Mervi Heiskanen (NCI) • Many others!
