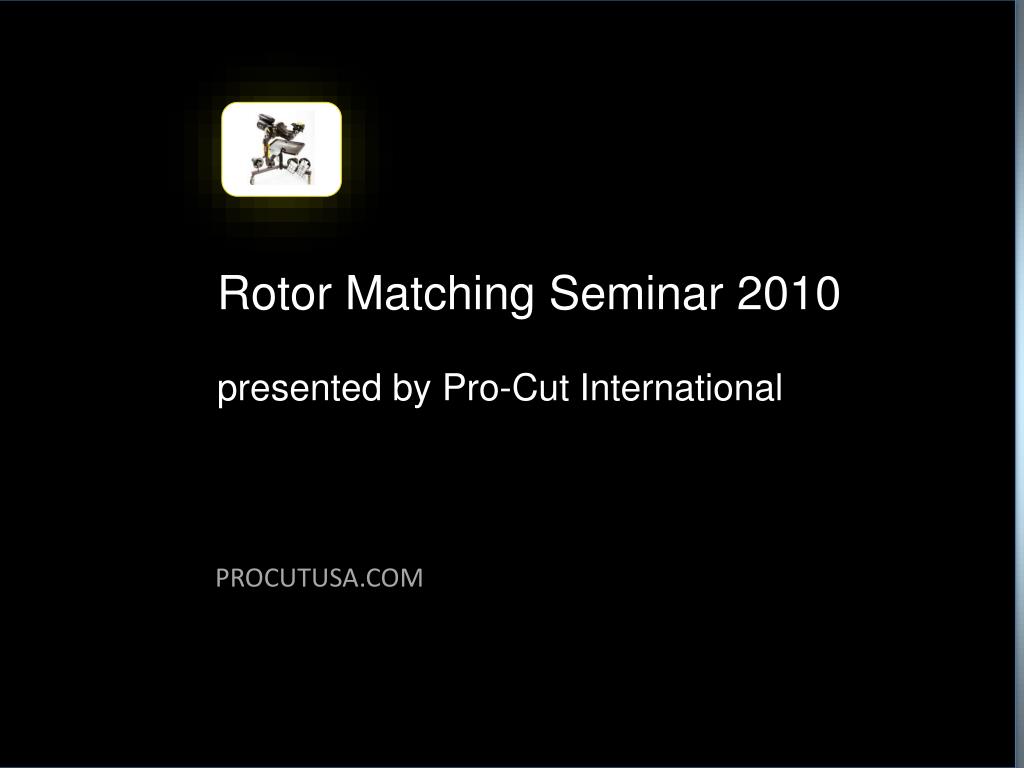

1. Rotor Matching Seminar 2010 presented by Pro-Cut International PROCUTUSA.COM

2. Rotor Matching Seminar 2010 GOAL A 1st rate brake job. Early disc brake vehicles had heavier braking systems and used softer compound asbestos content brake pads… …this combination caused less lateral run-out induced thickness variation as the friction material would wear before the rotor. The vehicles and drivers were also less sensitive to vibrations. SLIDE 2 PROCUTUSA.COM

3. Rotor Matching Seminar 2010 As vehicles have become lighter and more sophisticated, they have also become extremely sensitive to even slight amounts of run-out induced thickness variation! SLIDE 3 PROCUTUSA.COM

4. Rotor Matching Seminar 2010 …and brake service equipment has changed too! • Consider this: • When bench lathes were originally designed, most cars had drum brakes. The ability to machine rotors was an added feature to the bench lathe! • The bench lathe was also designed to machine flywheels since most vehicles had manual transmissions • Modern vehicles are lighter, and handle and stop better than cars from the 60s. They require modern solutions for precision repairs. Old technology bench lathe New Technology Pro-Cut PFM 9.2DRO Rotor Matching System PROCUTUSA.COM SLIDE 4

5. Rotor Matching Seminar 2010 MODERN BRAKE ROTOR REPAIR 1 Brake pulsation: cause and effect 2 Brake rotor repair alternatives 3 Auto Manufacturer positions on brake rotor repair methods 4 Hub mount on-car machining overview 5 Related repair issues 6 PFM 9.2DRO On-Car Brake Lathe presentation SLIDE 5 PROCUTUSA.COM

6. Rotor Matching Seminar 2010 BRAKE PULSATION: Cause & Effect 1 Prevalence of Lateral Run-Out (LRO) caused by stacked tolerances of components 2 LRO leads to uneven wear 3 Uneven wear leads to thickness variation (TV) 4 TV is felt as brake “judder” or pulsation CONCLUSION: LRO is the root cause of most brake pedal pulsation. SLIDE 6 PROCUTUSA.COM

7. Rotor Matching Seminar 2010 Brake Pulsation Primary Cause PROBLEM: Lateral run-out EFFECT: On every rotation, the high spot of the rotor impacts the brake pad causing thickness variation. Lateral run-out is the root cause of pedal pulsation. Years ago, LRO specifications were in the .005-.006” range. Today’s specs have become much smaller, in the range of .001-.002”. Selecting the correct method of repair requires considering many variables. SLIDE 7 PROCUTUSA.COM

8. Rotor Matching Seminar 2010 BRAKE ROTOR REPAIR ALTERNATIVES 1 New rotor replacement with tedious “phase” matching required to confirm LRO is within specification. 2 Shims with new or machined rotor — also a tedious lateral run-out correction process and not approved by most OEMs. 3 Bench (off-car) machining again with tedious “phase” matching or shims. 4 On-car match-machining with a computerized LRO compensating on-car lathe. SLIDE 8 PROCUTUSA.COM

9. Rotor Matching Seminar 2010 CONSTANTS FOR ALL BRAKE REPAIR METHODS 1 Integrity of all components that contribute to stacked tolerances must be confirmed. 2 Hub face, inside hat of rotor, and outer rotor surface must be clean of rust and debris in order to eliminate run-out. 3 Measurements of rotor thickness and initial LRO are required to determine correct repair method. SLIDE 9 PROCUTUSA.COM

10. Rotor Matching Seminar 2010 PROS AND CONS OF ROTOR REPLACEMENT POSITIVE • No thickness variation • Usually good surface finish NEGATIVE • Little control of total LRO (beyond indexing) • National average for parts wait-time is 45 minutes! • Complicated procedure on some vehicles (with trapped rotors) • Part Cost “double-edged sword” • OE rotors can be expensive but quality is best for vehicle • Aftermarket rotors can be cheap but quality is often suspect SLIDE 10 PROCUTUSA.COM

11. Rotor Matching Seminar 2010 PROS AND CONS OF SHIMS POSITIVE • Approved only by GM • Addresses LRO within 0.002” (but can’t guarantee less) NEGATIVE • Time-consuming and complicated • Safety-fretting issue; adding components • Limited coverage; multiple SKUs • Only approved by 1 OEM! • Not an option for trapped (captured) rotors SLIDE 11 PROCUTUSA.COM

12. Rotor Matching Seminar 2010 PROS AND CONS OF BENCH MACHINING POSITIVE • No thickness variation • Common procedure/technician familiarity NEGATIVE • Matches to bench lathe arbor instead of vehicle’s hub • Complicated or impossible procedure on some vehicle’s (those with trapped/captured rotors) • Time consuming and complicated to measure and correct run-out SLIDE 12 PROCUTUSA.COM

13. Rotor Matching Seminar 2010 PROS AND CONS OF PRO-CUT ON-CAR ROTOR MATCHING • POSITIVE • • No thickness variation • • No LRO — the rotor is precisely “matched” to the hub • • Same procedure on all vehicles — trapped or knock off • • Fast, efficient, and easy to learn • • Consistent results • • Change creates new service and revenue opportunity • Negative • Can’t put material back on rotors • Change requires effort SLIDE 13 PROCUTUSA.COM

14. Rotor Matching Seminar 2010 PFM 9.2 DRO Demonstration Pro-Cut PFM 9.2DRO SLIDE 14 PROCUTUSA.COM

15. Rotor Matching Seminar 2010 Historical Snapshot SLIDE 15 PROCUTUSA.COM

16. Rotor Matching Seminar 2010 AUTO MANUFACTURER POSITIONS ON BRAKE REPAIR ALTERNATIVES CHRYSLER • Replace — OK only if it can’t be machined • Shims: NO • Bench: NO • On-Car: REQUIRED (Warranty Bulletins 05-002-06 & 05-0003-06) SLIDE 16 PROCUTUSA.COM

17. Rotor Matching Seminar 2010 AUTO MANUFACTURER POSITIONS ON BRAKE REPAIR ALTERNATIVES FORD • Replace — OK only if it can’t be machined • Shims: NO • Bench: NO • On-Car: Pro-Cut REQUIRED since 1988 SLIDE 17 PROCUTUSA.COM

18. Rotor Matching Seminar 2010 AUTO MANUFACTURER POSITIONS ON BRAKE REPAIR ALTERNATIVES GENERAL MOTORS • Replace — Recommended only if there’s not enough material to machine • Shims: Recommended with new or bench machined rotor • Bench: OK with shims • Pro-Cut On-Car: ESSENTIAL EQUIPMENT since 2003 (Bulletin 03-05-23-005) SLIDE 18 PROCUTUSA.COM

19. Rotor Matching Seminar 2010 AUTO MANUFACTURER POSITIONS ON BRAKE REPAIR ALTERNATIVES Nissan/Infiniti (has tightest spec in the industry – finished rotor must be <.001” • Replace — Only if rotor can’t be machined with Pro-Cut • Shims: NO • Bench: NO • Pro-Cut On-Car: ESSENTIAL EQUIPMENT (only brand to hold spec) (Bulletin BR04-003/NTB04-066) SLIDE 19 PROCUTUSA.COM

20. Rotor Matching Seminar 2010 ROTOR MATCHING OVERVIEW • Widest acceptance by OEMs • Patented PFM Rotor Matching Technology eliminates lateral run-out to less than .001” • Fastest process time: 7-9 minutes/rotor • Excellent non-directional surface finish in one pass. • Rotor service time and quality consistent across all vehicle types including trucks with trapped/captured rotors SLIDE 20 PROCUTUSA.COM

21. Rotor Matching Seminar 2010 Pro-Cut PFM 9.2DRO PFM 9 SERIES LATHES ARE ... • • Built in West Lebanon, NH, USA • • Only patented, fully computerized run-out compensating machines • • Used on vehicles from 3-lug smart cars to 10-lug dual-wheel trucks • • Recommended or Required by Chrysler, Ford, GM, Nissan, Toyota, • Subaru (and most other manufacturers) • • Used by virtually all national service chains: Pep Boys, Sears, Les • Schwab, Goodyear, Firestone, etc. • • Found in over 60% of all OEM Dealerships in the USA • Over 40,000 sold worldwide –most prevalent OCL that technicians will encounter in the field SLIDE 21 PROCUTUSA.COM
