1. Simple Linear Regression:An Introduction Dr. Tuan V. Nguyen Garvan Institute of Medical Research Sydney

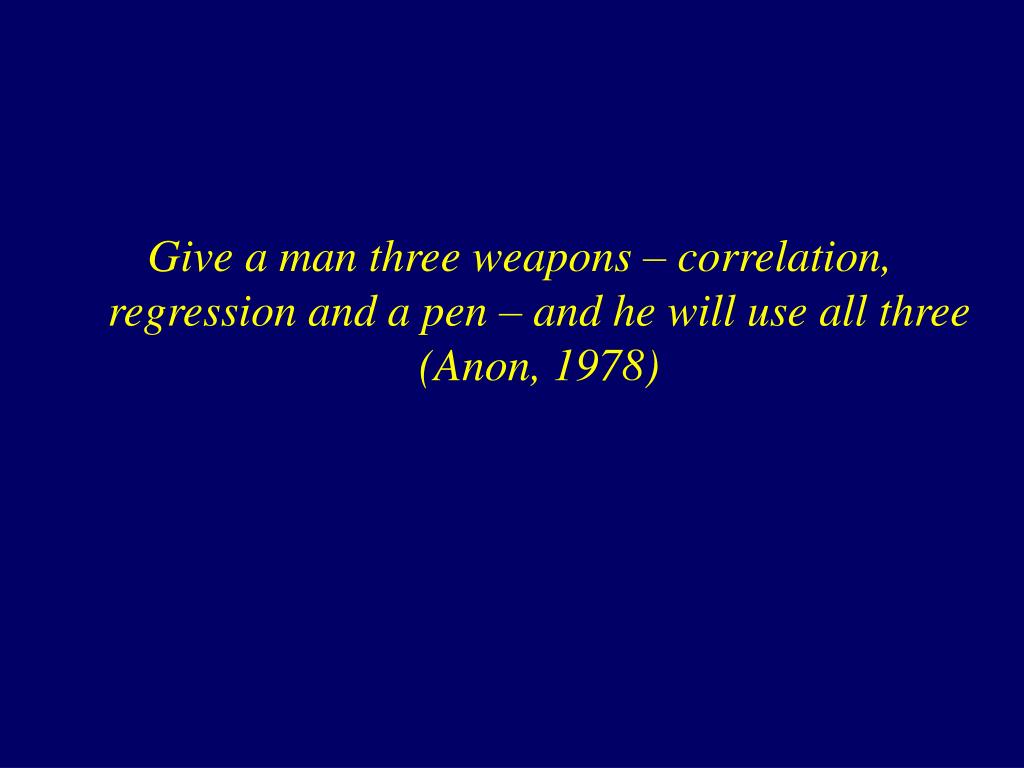

2. Give a man three weapons – correlation, regression and a pen – and he will use all three (Anon, 1978)

3. An example ID Age Chol (mg/ml) 1 46 3.5 2 20 1.9 3 52 4.0 4 30 2.6 5 57 4.5 6 25 3.0 7 28 2.9 8 36 3.8 9 22 2.1 10 43 3.8 11 57 4.1 12 33 3.0 13 22 2.5 14 63 4.6 15 40 3.2 16 48 4.2 17 28 2.3 18 49 4.0 Age and cholesterol levels in 18 individuals

4. Read data into R id <- seq(1:18) age <- c(46, 20, 52, 30, 57, 25, 28, 36, 22, 43, 57, 33, 22, 63, 40, 48, 28, 49) chol <- c(3.5, 1.9, 4.0, 2.6, 4.5, 3.0, 2.9, 3.8, 2.1, 3.8, 4.1, 3.0, 2.5, 4.6, 3.2, 4.2, 2.3, 4.0) plot(chol ~ age, pch=16)

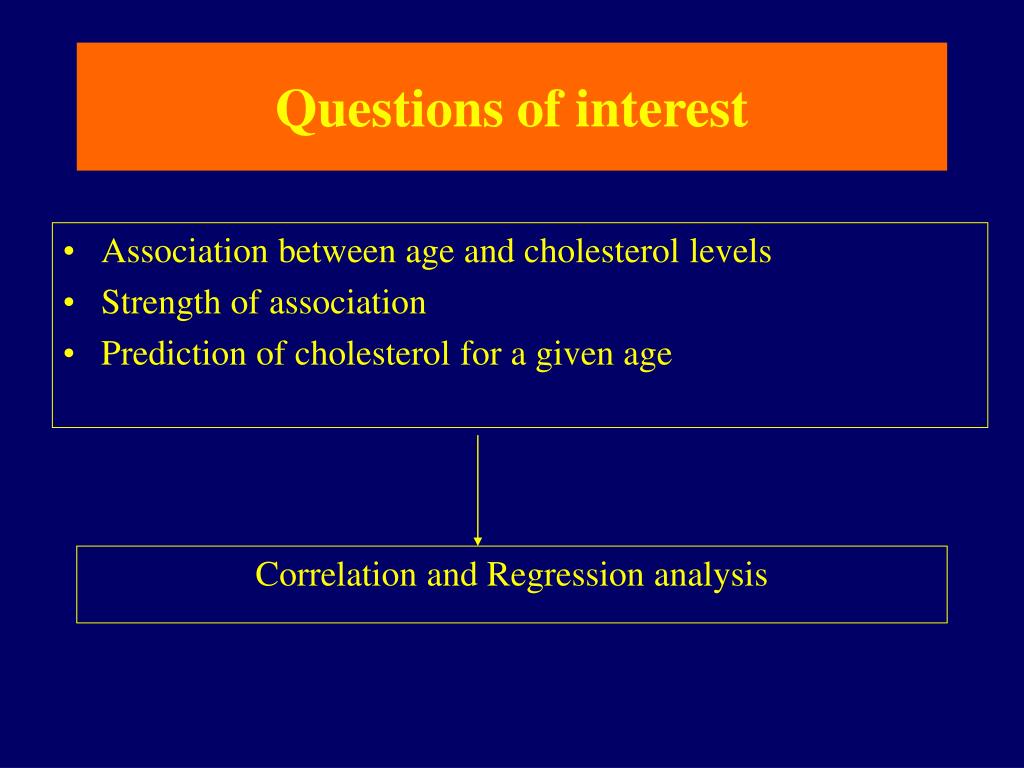

6. Questions of interest • Association between age and cholesterol levels • Strength of association • Prediction of cholesterol for a given age Correlation and Regression analysis

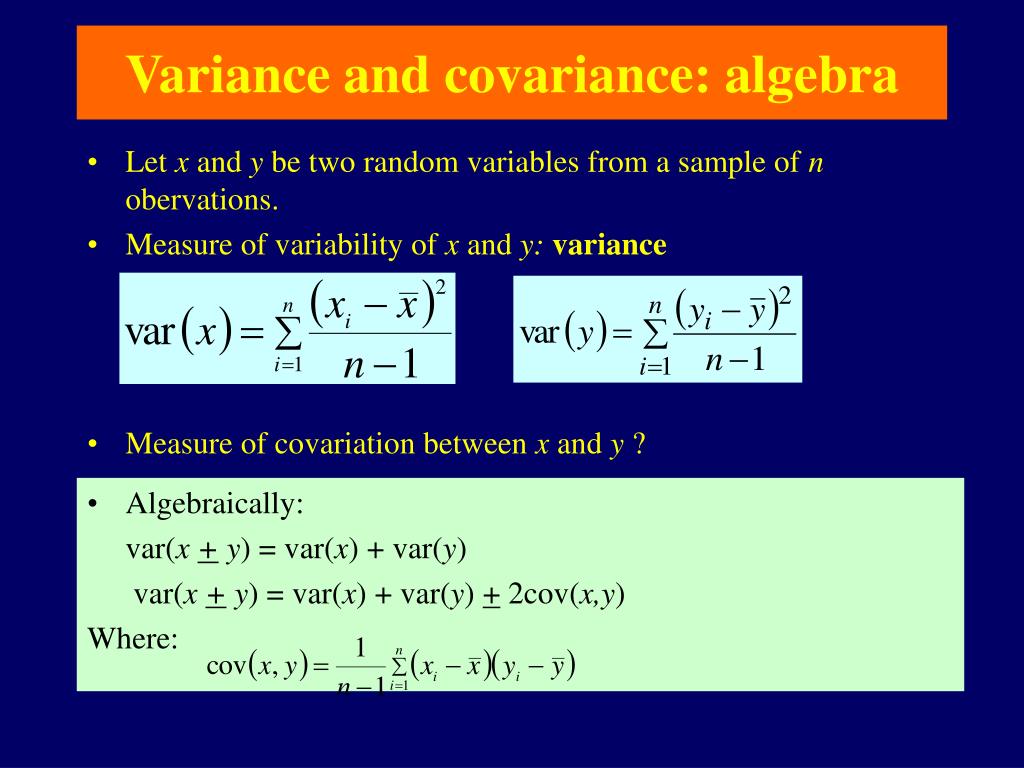

7. Variance and covariance: algebra • Let x and y be two random variables from a sample of n obervations. • Measure of variability of x and y: variance • Measure of covariation between x and y ? • Algebraically: • var(x + y) = var(x) + var(y) • var(x + y) = var(x) + var(y) + 2cov(x,y) • Where:

8. Variance and covariance: geometry • The independence or dependence between x and y can be represented geometrically: y h h y H x x h2 = x2 + y2 – 2xycos(H) h2 = x2 + y2

9. Meaning of variance and covariance • Variance is always positive • If covariance = 0, x and y are independent. • Covariance is sum of cross-products: can be positive or negative. • Negative covariance = deviations in the two distributions in are opposite directions, e.g. genetic covariation. • Positive covariance = deviations in the two distributions in are in the same direction. • Covariance = a measure of strength of association.

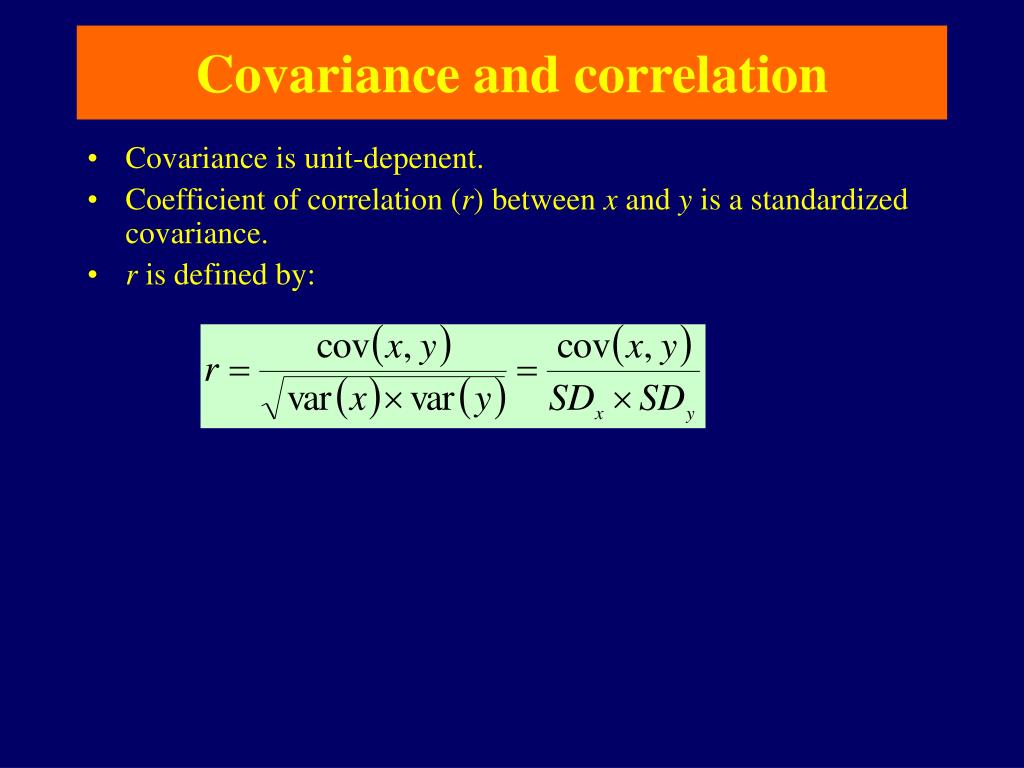

10. Covariance and correlation • Covariance is unit-depenent. • Coefficient of correlation (r) between x and y is a standardized covariance. • r is defined by:

11. Positive and negative correlation r = 0.9 r = -0.9

12. Test of hypothesis of correlation • Hypothesis: Ho: r = 0 versus Ho: r not equal to 0. • Standard error of r is: • The t-statistic: • This statistic has a t distribution with n – 2 degrees of freedom. • Fisher’s z-transformation: • Standard error of z: • Then 95% CI of z can be constructed as:

13. An illustration of correlation analysis Cov(x, y) = 10.68 ID Age Cholesterol (x) (y; mg/100ml) • 46 3.5 • 20 1.9 • 52 4.0 • 30 2.6 • 57 4.5 • 25 3.0 • 28 2.9 • 36 3.8 • 22 2.1 • 43 3.8 • 57 4.1 • 33 3.0 • 22 2.5 • 63 4.6 • 40 3.2 • 48 4.2 • 28 2.3 • 49 4.0 Mean 38.83 3.33 SD 13.60 0.84 t-statistic = 0.56 / 0.26 = 2.17 Critical t-value with 17 df and alpha = 5% is 2.11 Conclusion: There is a significant association between age and cholesterol.

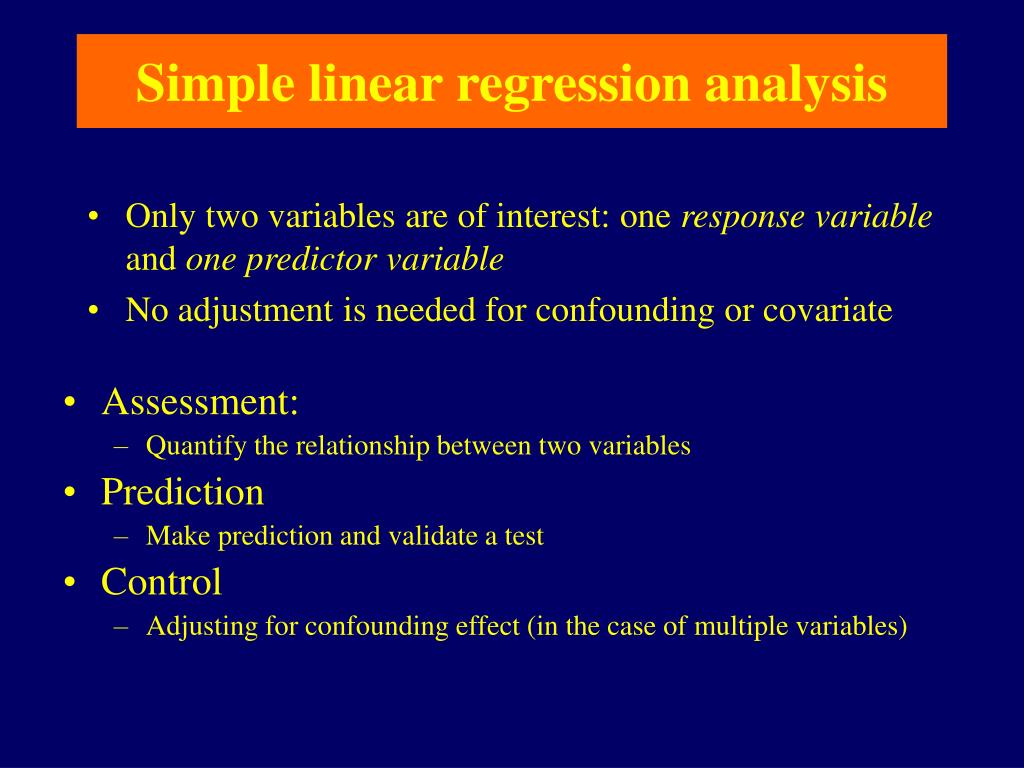

14. Simple linear regression analysis • Only two variables are of interest: one response variable and one predictor variable • No adjustment is needed for confounding or covariate • Assessment: • Quantify the relationship between two variables • Prediction • Make prediction and validate a test • Control • Adjusting for confounding effect (in the case of multiple variables)

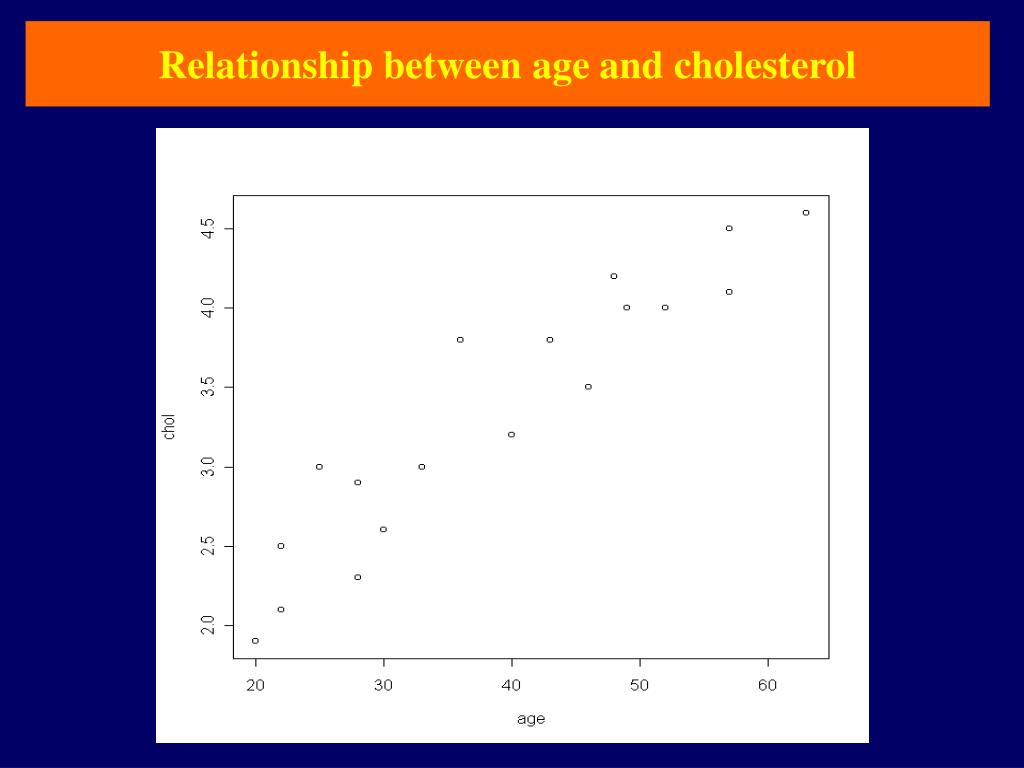

15. Relationship between age and cholesterol

16. Linear regression: model • Y : random variable representing a response • X : random variable representing a predictor variable (predictor, risk factor) • Both Y and X can be a categorical variable (e.g., yes / no) or a continuous variable (e.g., age). • If Y is categorical, the model is a logistic regression model; if Y is continuous, a simple linear regression model. • Model Y = a + bX + e a : intercept b : slope / gradient • : random error (variation between subjects in y even if x is constant, e.g., variation in cholesterol for patients of the same age.)

17. Linear regression: assumptions • The relationship is linear in terms of the parameter; • X is measured without error; • The values of Y are independently from each other (e.g., Y1 is not correlated with Y2) ; • The random error term (e) is normally distributed with mean 0 and constant variance.

18. Expected value and variance • If the assumptions are tenable, then: • The expected value of Y is: E(Y | x) = a + bx • The variance of Y is: var(Y) = var(e) = s2

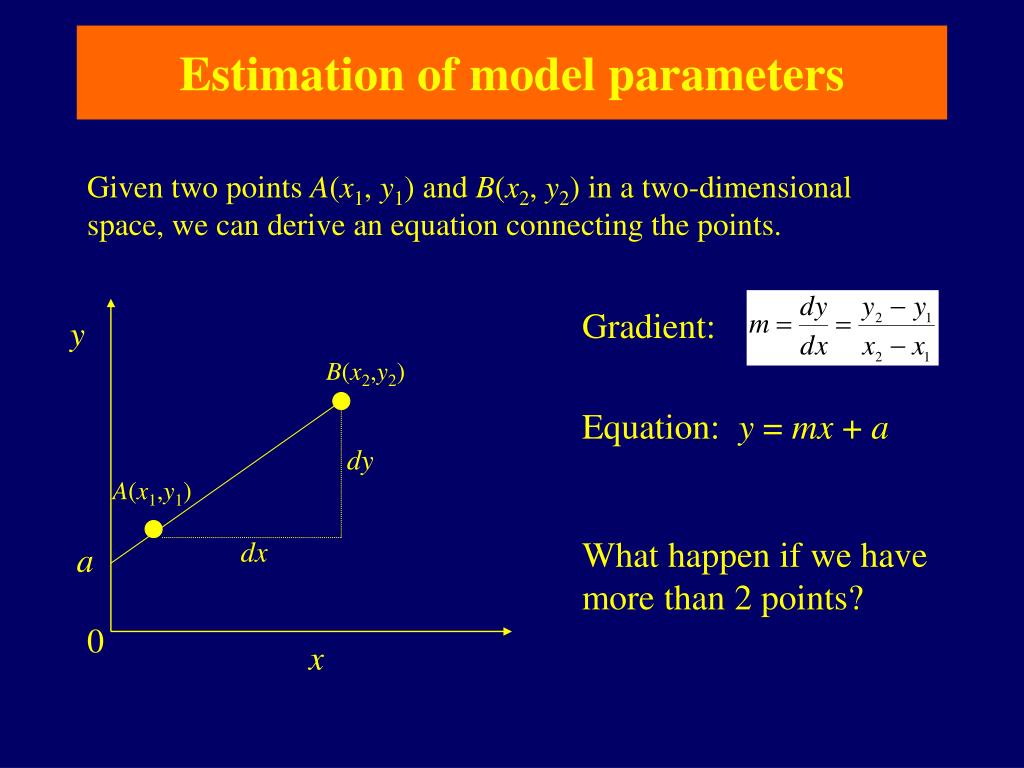

19. Estimation of model parameters Given two points A(x1, y1) and B(x2, y2) in a two-dimensional space, we can derive an equation connecting the points. Gradient: y B(x2,y2) Equation: y = mx + a What happen if we have more than 2 points? dy A(x1,y1) dx a 0 x

20. Estimation of a and b • For a series of pairs: (x1, y1), (x2, y2), (x3, y3), …, (xn, yn) • Let a and b be sample estimates for parameters a and b, • We have a sample equation: Y* = a + bx • Aim: finding the values of a and b so that (Y – Y*) is minimal. • Let SSE = sum of (Yi – a – bxi)2. • Values of a and b that minimise SSE are called least square estimates.

21. Criteria of estimation yi Chol Age The goal of least square estimator (LSE) is to find a and b such that the sum of d2 is minimal.

22. Estimation of a and b • After some calculus operations, the results can be shown to be: • Where: • When the regression assumptions are valid, the estimators of a and b have the following properties: • Unbiased • Uniformly minimal variance (eg efficient)

23. Goodness-of-fit • Now, we have the equation Y = a + bX + e • Question: how well the regression equation describe the actual data? • Answer: coefficient of determination (R2): the amount of variation in Y is explained by the variation in X.

24. Partitioning of variations: concept • SST = sum of squared difference between yi and the mean of y. • SSR = sum of squared difference between the predicted value of y and the mean of y. • SSE = sum of squared difference between the observed and predicted value of y. SST = SSR + SSE The the coefficient of determination is: R2 = SSR / SST

25. Partitioning of variations: geometry SSE SST Chol (Y) SSR mean Age (X)

26. Partitioning of variations: algebra • Some statistics: • Total variation: • Attributed to the model: • Residual sum of square: • SST = SSR + SSE • SSR = SST – SSE

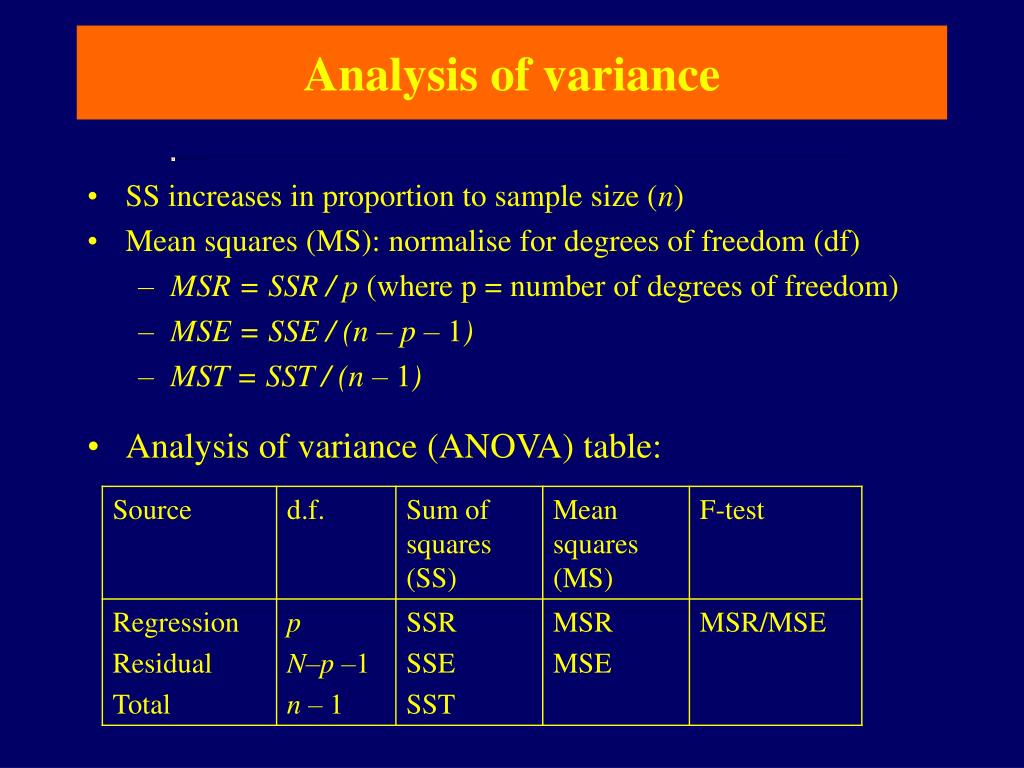

27. Analysis of variance • SS increases in proportion to sample size (n) • Mean squares (MS): normalise for degrees of freedom (df) • MSR = SSR / p (where p = number of degrees of freedom) • MSE = SSE / (n – p – 1) • MST = SST / (n – 1) • Analysis of variance (ANOVA) table:

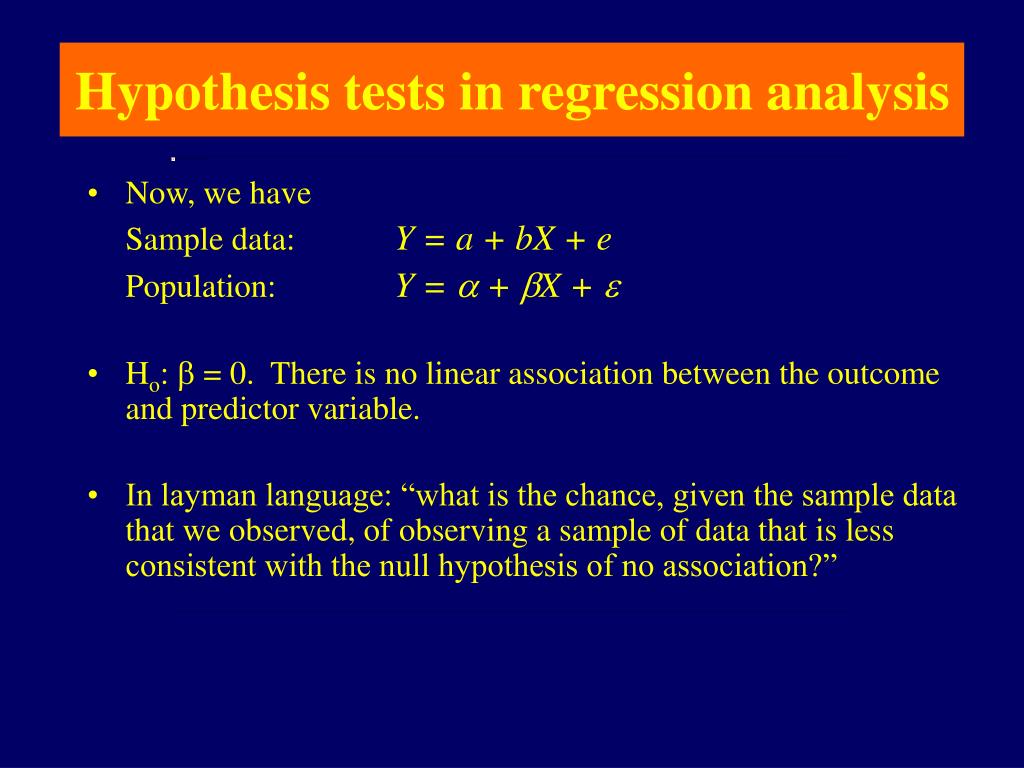

28. Hypothesis tests in regression analysis • Now, we have Sample data: Y = a + bX + e Population: Y = a + bX + e • Ho: b = 0. There is no linear association between the outcome and predictor variable. • In layman language: “what is the chance, given the sample data that we observed, of observing a sample of data that is less consistent with the null hypothesis of no association?”

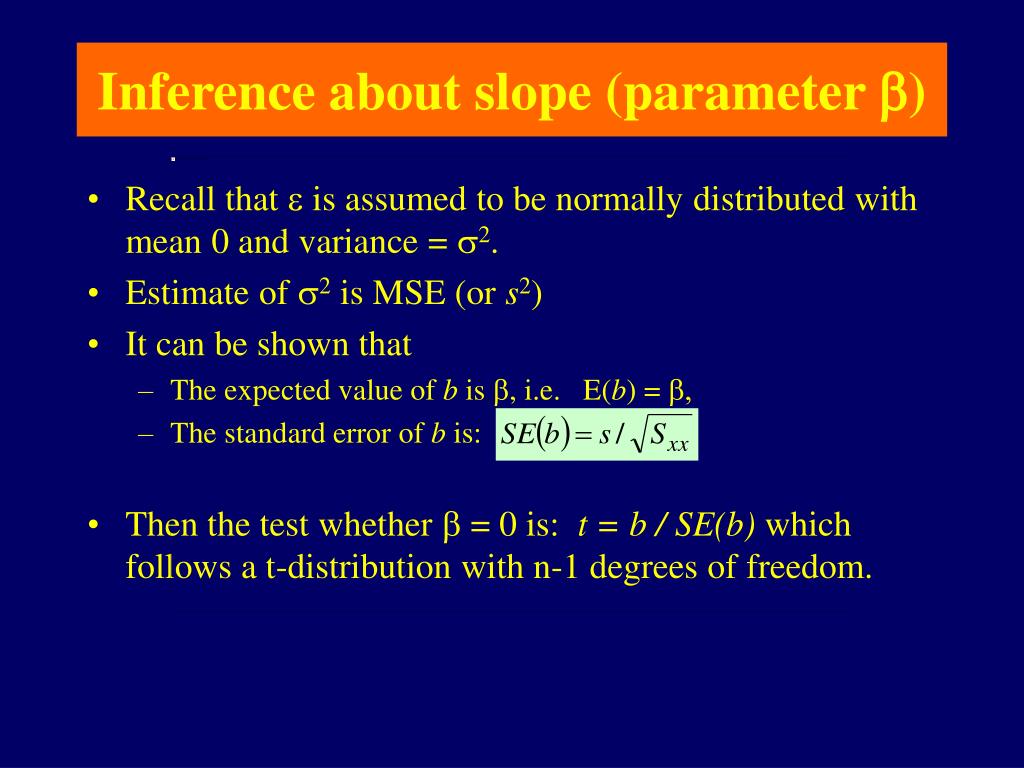

29. Inference about slope (parameter b) • Recall that e is assumed to be normally distributed with mean 0 and variance = s2. • Estimate of s2 is MSE (or s2) • It can be shown that • The expected value of b is b, i.e. E(b) = b, • The standard error of b is: • Then the test whether b = 0 is: t = b / SE(b) which follows a t-distribution with n-1 degrees of freedom.

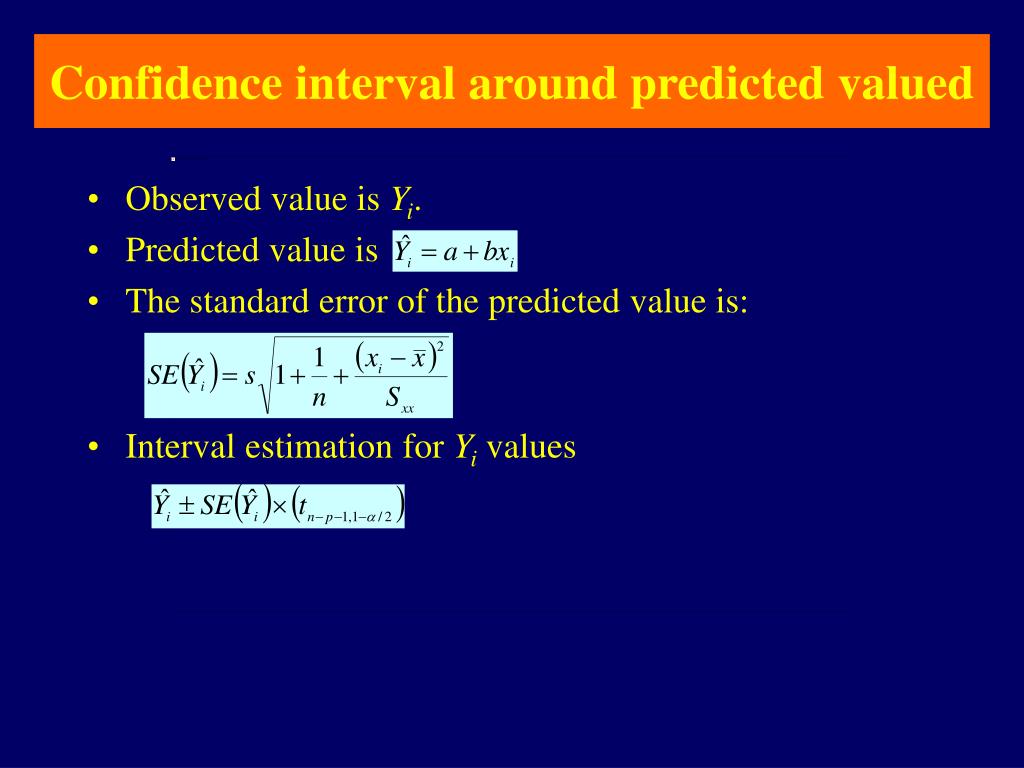

30. Confidence interval around predicted valued • Observed value is Yi. • Predicted value is • The standard error of the predicted value is: • Interval estimation for Yi values

31. Checking assumptions • Assumption of constant variance • Assumption of normality • Correctness of functional form • Model stability • All can be conducted with graphical analysis. The residuals from the model or a function of the residuals play an important role in all of the model diagnostic procedures.

32. Checking assumptions • Assumption of constant variance • Plot the studentized residuals versus their predicted values. Examine whether the variability between residuals remains relatively constant across the range of fitted values. • Assumption of normality • Plot the residuals versus their expected values under normality (Normal probability plot). If the residuals are normally distributed, it should fall along a 45o line. • Correct functional form? • Plot the residuals versus fitted values. Examine whether the residual plot for evidence of a non-linear trend in the value of the residual across the range of fitted values. • Model stability • Check whether one or more observations are influential. Use Cook’s distance.

33. Checking assumptions (Cont) • Cook’s distance (D) is a measure of the magnitude by which the fitted values of the regression model change if the ith observation is removed from the data set. • Leverage is a measure of how extreme the value of xi is relative to the remaining value of x. • The Studentized residual provides a measure of how extreme the value of yi is relative to the remaining value of y.

34. Remedial measures • Non-constant variance • Transform the response variable (y) to a new scale (e.g. logarithm) is often helpful. • If no transformation can achieve the non-constant variance problem, use a more robust estimator such as iterative weighted least squares. • Non-normality • Non-normality and non-constant variance go hand-in-hand. • Outliers • Check for accuracy • Use robust estimator

35. Regression analysis using R id <- seq(1:18) age <- c(46, 20, 52, 30, 57, 25, 28, 36, 22, 43, 57, 33, 22, 63, 40, 48, 28, 49) chol <- c(3.5, 1.9, 4.0, 2.6, 4.5, 3.0, 2.9, 3.8, 2.1, 3.8, 4.1, 3.0, 2.5, 4.6, 3.2, 4.2, 2.3, 4.0) #Fit linear regression model reg <- lm(chol ~ age) summary(reg)

36. ANOVA result > anova(reg) Analysis of Variance Table Response: chol Df Sum Sq Mean Sq F value Pr(>F) age 1 10.4944 10.4944 114.57 1.058e-08 *** Residuals 16 1.4656 0.0916 --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

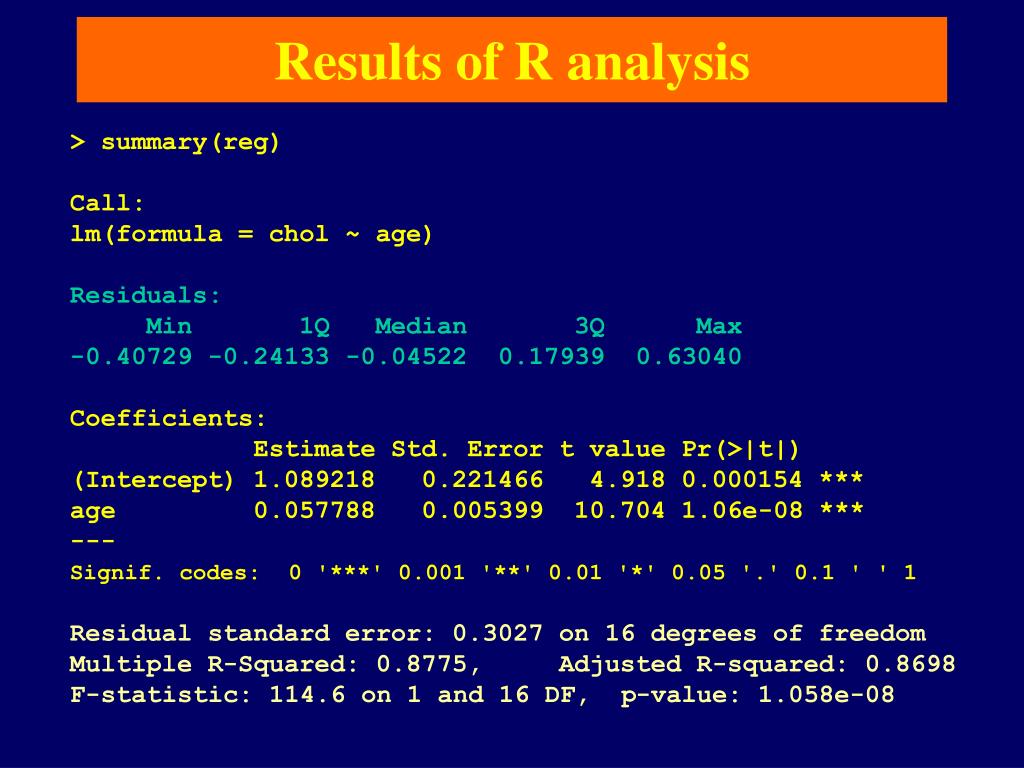

37. Results of R analysis > summary(reg) Call: lm(formula = chol ~ age) Residuals: Min 1Q Median 3Q Max -0.40729 -0.24133 -0.04522 0.17939 0.63040 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) 1.089218 0.221466 4.918 0.000154 *** age 0.057788 0.005399 10.704 1.06e-08 *** --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 Residual standard error: 0.3027 on 16 degrees of freedom Multiple R-Squared: 0.8775, Adjusted R-squared: 0.8698 F-statistic: 114.6 on 1 and 16 DF, p-value: 1.058e-08

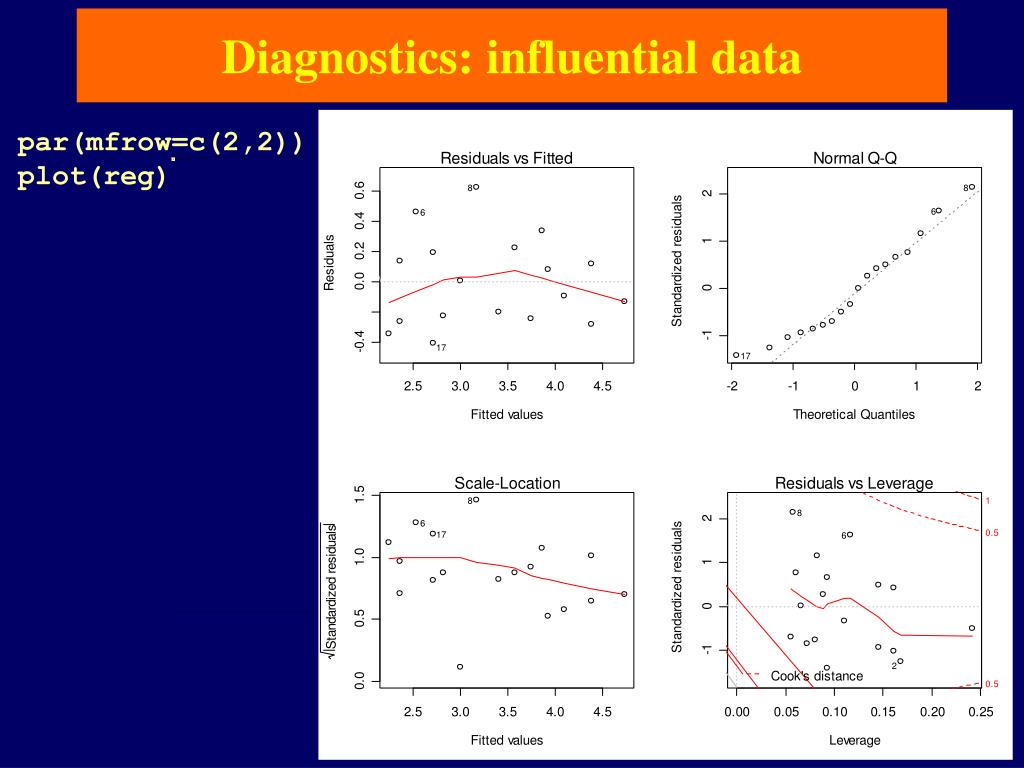

38. Diagnostics: influential data par(mfrow=c(2,2)) plot(reg)

39. Study on 44 university students Measure body mass index (BMI) Sexual attractiveness (SA) score A non-linear illustration: BMI and sexual attractiveness id <- seq(1:44) bmi <- c(11.00, 12.00, 12.50, 14.00, 14.00, 14.00, 14.00, 14.00, 14.00, 14.80, 15.00, 15.00, 15.50, 16.00, 16.50, 17.00, 17.00, 18.00, 18.00, 19.00, 19.00, 20.00, 20.00, 20.00, 20.50, 22.00, 23.00, 23.00, 24.00, 24.50, 25.00, 25.00, 26.00, 26.00, 26.50, 28.00, 29.00, 31.00, 32.00, 33.00, 34.00, 35.50, 36.00, 36.00) sa <- c(2.0, 2.8, 1.8, 1.8, 2.0, 2.8, 3.2, 3.1, 4.0, 1.5, 3.2, 3.7, 5.5, 5.2, 5.1, 5.7, 5.6, 4.8, 5.4, 6.3, 6.5, 4.9, 5.0, 5.3, 5.0, 4.2, 4.1, 4.7, 3.5, 3.7, 3.5, 4.0, 3.7, 3.6, 3.4, 3.3, 2.9, 2.1, 2.0, 2.1, 2.1, 2.0, 1.8, 1.7)

40. Linear regression analysis of BMI and SA reg <- lm (sa ~ bmi) summary(reg) Residuals: Min 1Q Median 3Q Max -2.54204 -0.97584 0.05082 1.16160 2.70856 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) 4.92512 0.64489 7.637 1.81e-09 *** bmi -0.05967 0.02862 -2.084 0.0432 * --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 Residual standard error: 1.354 on 42 degrees of freedom Multiple R-Squared: 0.09376, Adjusted R-squared: 0.07218 F-statistic: 4.345 on 1 and 42 DF, p-value: 0.04323

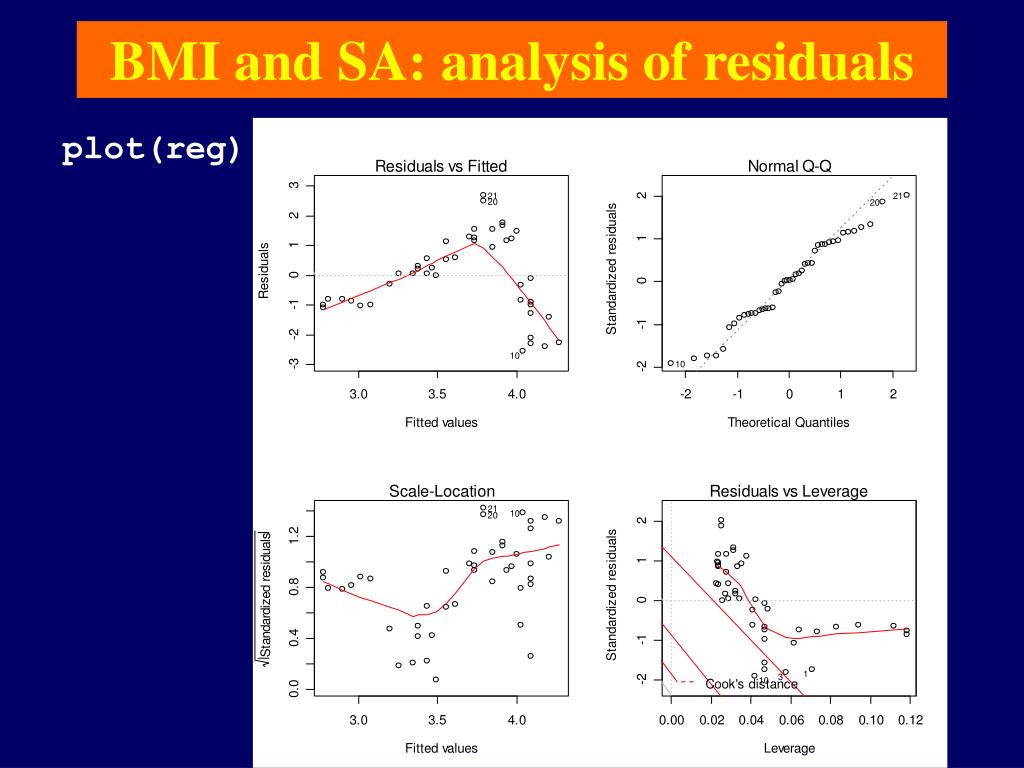

41. BMI and SA: analysis of residuals plot(reg)

42. BMI and SA: a simple plot par(mfrow=c(1,1)) reg <- lm(sa ~ bmi) plot(sa ~ bmi, pch=16) abline(reg)

43. Re-analysis of sexual attractiveness data # Fit 3 regression models linear <- lm(sa ~ bmi) quad <- lm(sa ~ poly(bmi, 2)) cubic <- lm(sa ~ poly(bmi, 3)) # Make new BMI axis bmi.new <- 10:40 # Get predicted values quad.pred <- predict(quad,data.frame(bmi=bmi.new)) cubic.pred <- predict(cubic,data.frame(bmi=bmi.new)) # Plot predicted values abline(reg) lines(bmi.new, quad.pred, col="blue",lwd=3) lines(bmi.new, cubic.pred, col="red",lwd=3)

45. Some comments: Interpretation of correlation • Correlation lies between –1 and +1. A very small correlation does not mean that no linear association between the two variables. The relationship may be non-linear. • For curlinearity, a rank correlation is better than the Pearson’s correlation. • A small correlation (eg 0.1) may be statistically significant, but clinically unimportant. • R2 is another measure of strength of association. An r = 0.7 may sound impressive, but R2 is 0.49! • Correlation does not mean causation.

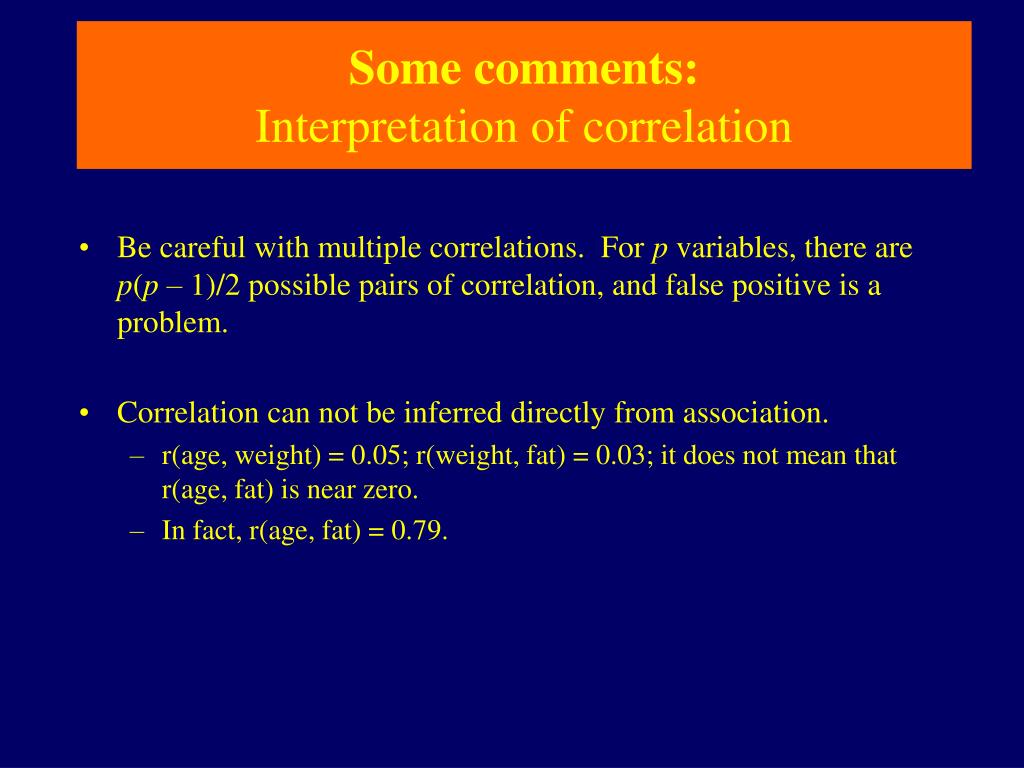

46. Some comments: Interpretation of correlation • Be careful with multiple correlations. For p variables, there are p(p – 1)/2 possible pairs of correlation, and false positive is a problem. • Correlation can not be inferred directly from association. • r(age, weight) = 0.05; r(weight, fat) = 0.03; it does not mean that r(age, fat) is near zero. • In fact, r(age, fat) = 0.79.

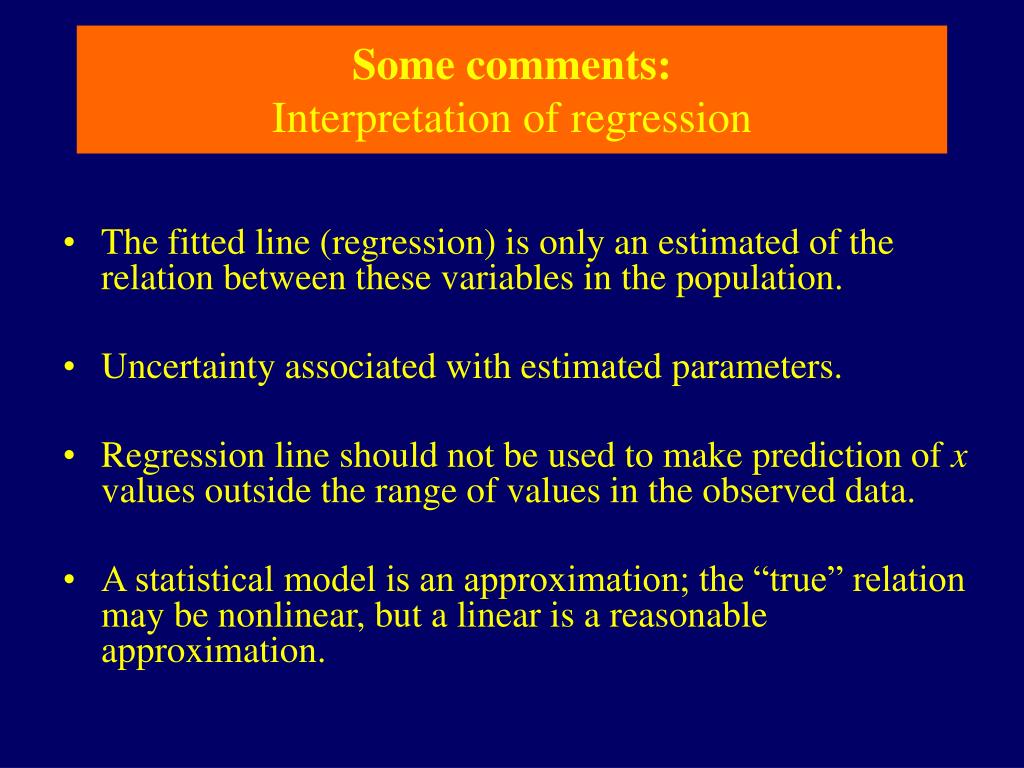

47. Some comments: Interpretation of regression • The fitted line (regression) is only an estimated of the relation between these variables in the population. • Uncertainty associated with estimated parameters. • Regression line should not be used to make prediction of x values outside the range of values in the observed data. • A statistical model is an approximation; the “true” relation may be nonlinear, but a linear is a reasonable approximation.

48. Some comments: Reporting results • Results should be reported in sufficient details: nature of response variable, predictor variable; any transformation; checking assumptions, etc. • Regression coefficients (a, b), their associated standard errors, and R2 are useful summary.

49. Some final comments • Equations are the cornerstone on which the edifice of science rests. • Equations are like poems, or even an onion. • So, be careful with your building of equations!
