  1. System On Chip - SoC 전북대학교 전자공학부 이종열

  2. 3세대 iPod Shuffle 분해

  3. 3세대 iPod Shuffle 분해 2세대 iPod Shuffle

  4. 다른 MP3 player 분해

  5. 3세대 iPod Shuffle 분해 K9HB608U1A-BCBC

  6. 다른 MP3 Player

  7. Outline • Introduction • What is SoC ? • SoC characteristics • Benefits and drawbacks • Solution • Major SoC Applications • Summary

  8. Introduction • Technological Advances • today’s chip can contains 100M transistors • transistor gate lengths are now in term of nano meters • approximately every 18 months the number of transistors on a chip doubles – Moore’s law • The Consequences • components connected on a Printed Circuit Board can now be integrated onto single chip • hence the development of System-On-Chip design

  9. Outline • Introduction • What is SoC ? • SoC characteristics • Benefits and drawbacks • Solution • Major SoC Applications • Summary

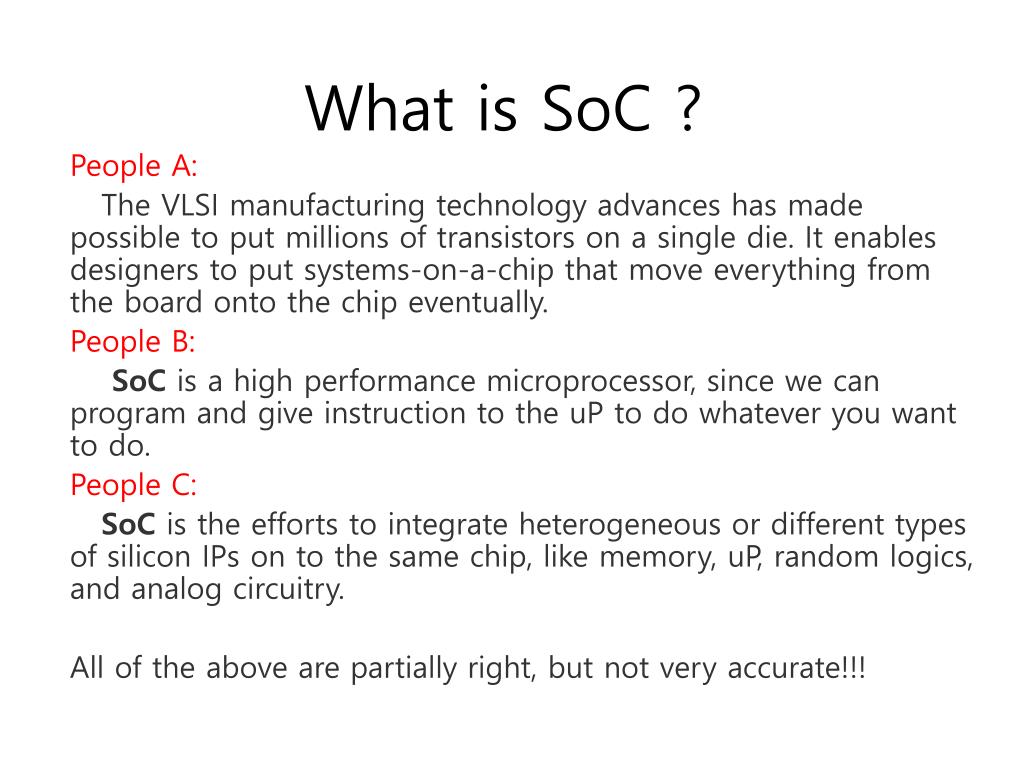

  10. What is SoC ? People A: The VLSI manufacturing technology advances has made possible to put millions of transistors on a single die. It enables designers to put systems-on-a-chip that move everything from the board onto the chip eventually. People B: SoC is a high performance microprocessor, since we can program and give instruction to the uP to do whatever you want to do. People C: SoC is the efforts to integrate heterogeneous or different types of silicon IPs on to the same chip, like memory, uP, random logics, and analog circuitry. All of the above are partially right, but not very accurate!!!

  11. What is SoC ? SoC not only chip, but more on “system”. SoC = Chip + Software + Integration The SoC chip includes: Embedded processor ASIC Logics and analog circuitry Embedded memory The SoC Software includes: OS, compiler, simulator, firmware, driver, protocol stackIntegrated development environment (debugger, linker, ICE)Application interface (C/C++, assembly) The SoC Integration includes : The whole system solution Manufacture consultant Technical Supporting

  12. Outline • Introduction • What is SoC ? • SoC characteristics • Benefits and drawbacks • Solution • Major SoC Applications • Summary

  13. System on Chip architecture ASIC Typical Design Steps • Typical ASIC design can take up to two years to complete Top Level Design Unit Block Design Unit Block Verification Integration and Synthesis Trial Netlists Timing Convergence & Verification System Level Verification Fabrication DVT Prep DVT 4 6 12 12 14 ?? 5 8 Time in Weeks 48 Time to Mask order 61

  14. System on Chip architecture • With increasing Complexity of IC’s and decreasing Geometry, IC Vendor steps of Placement, Layout and Fabrication are unlikely to be greatly reduced • In fact there is a greater risk that Timing Convergence steps will involve more iteration. • Need to reduce time before Vendor Steps. • Need to consider Layout issues up-front. SoC Typical Design Steps Top Level Design Unit Block Design Unit Block Verification Integration and Synthesis Trial Netlists Timing Convergence & Verification System Level Verification Fabrication DVT Prep DVT 4 4 2 14 5 4 Time in Weeks 24 Time to Mask order 33

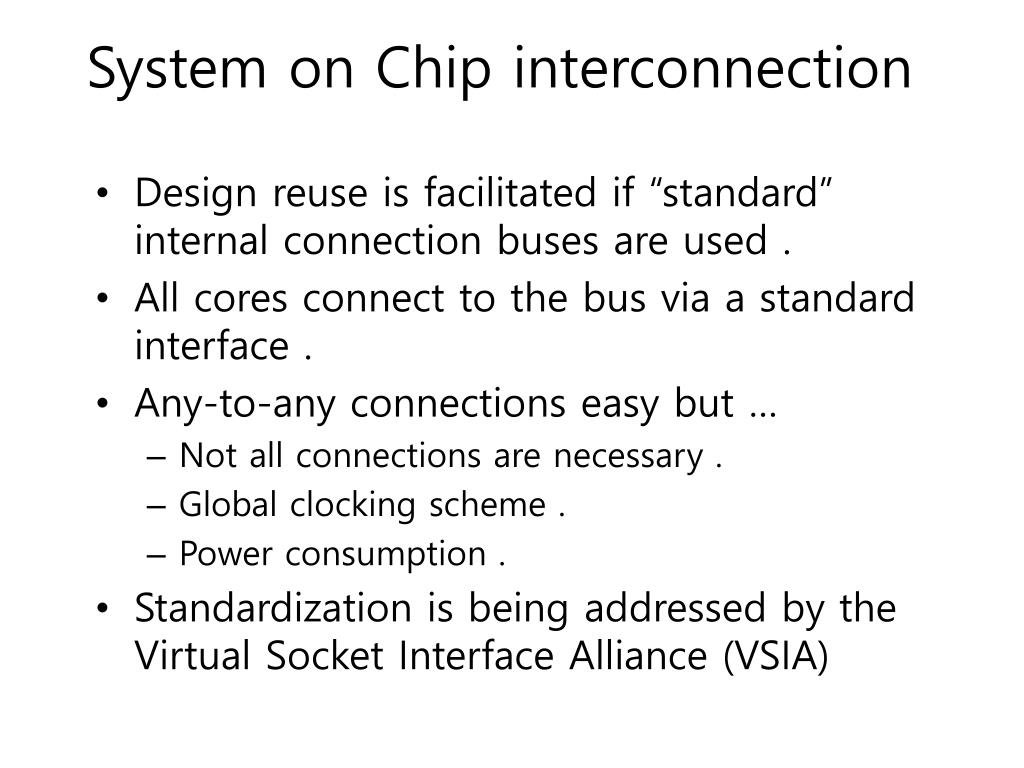

  15. System on Chip interconnection • Design reuse is facilitated if “standard” internal connection buses are used . • All cores connect to the bus via a standard interface . • Any-to-any connections easy but … • Not all connections are necessary . • Global clocking scheme . • Power consumption . • Standardization is being addressed by the Virtual Socket Interface Alliance (VSIA)

  16. System on Chip interconnection • AMBA (Advanced Microcontroller Bus Architecture) is a collection of buses from ARM for satisfying a range of different criteria. • APB (Advanced Peripheral Bus): simple strobed-access bus with minimal interface complexity. Suitable for hosting peripherals. • ASB (Advanced System Bus): a multimaster synchronous system bus. • AHB (Advanced High Performance Bus): a high- throughput synchronous system backbone. Burst transfers and split transactions.

  17. System on Chip cores • One solution to the design productivity gap is to make ASIC designs more standardized by reusing segments of previously manufactured chips. • These segments are known as “blocks”, “macros”, “cores” or “cells”. • The blocks can either be developed in-house or licensed from an IP company. • Cores are the basic building blocks .

  18. System on Chip cores • Soft Macro • Reusable synthesizable RTL or netlist of generic library elements • User of the core is responsible for the implementation and layout • Firm Macro • Structurally and topologically optimized for performance and area through floor planning and placement • Exist as synthesized code or as a netlist of generic library elements • Hard Macro • Reusable blocks optimized for performance, power, size and mapped to a specific process technology • Exist as fully placed and routed netlist and as a fixed layout such as in GDSII format .

  19. System on Chip cores Soft core Reusability portability flexibility Firm core Hard core Predictability, performance, time to market

  20. System on Chip cores • Locating the required cores and associated contract discussions can be a lengthy process • Identification of IP vendors • Evaluation criteria • Comparative evaluation exercise • Choice of core • Contract negotiations • Reuse restrictions • Costs: license, royalty, tool costs • Core integration, simulation and verification

  21. Outline • Introduction • What is SoC ? • SoC characteristics • Benefits and drawbacks • Solution • Major SoC Applications • Summary

  22. The Benefits • There are several benefits in integrating a large digital system into a single integrated circuit . • These include • Lower cost per gate . • Lower power consumption . • Faster circuit operation . • More reliable implementation . • Smaller physical size . • Greater design security .

  23. The Drawbacks • The principle drawbacks of SoC design are associated with the design pressures imposed on today’s engineers , such as : • Time-to-market demands . • Exponential fabrication cost . • Increased system complexity . • Increased verification requirements .

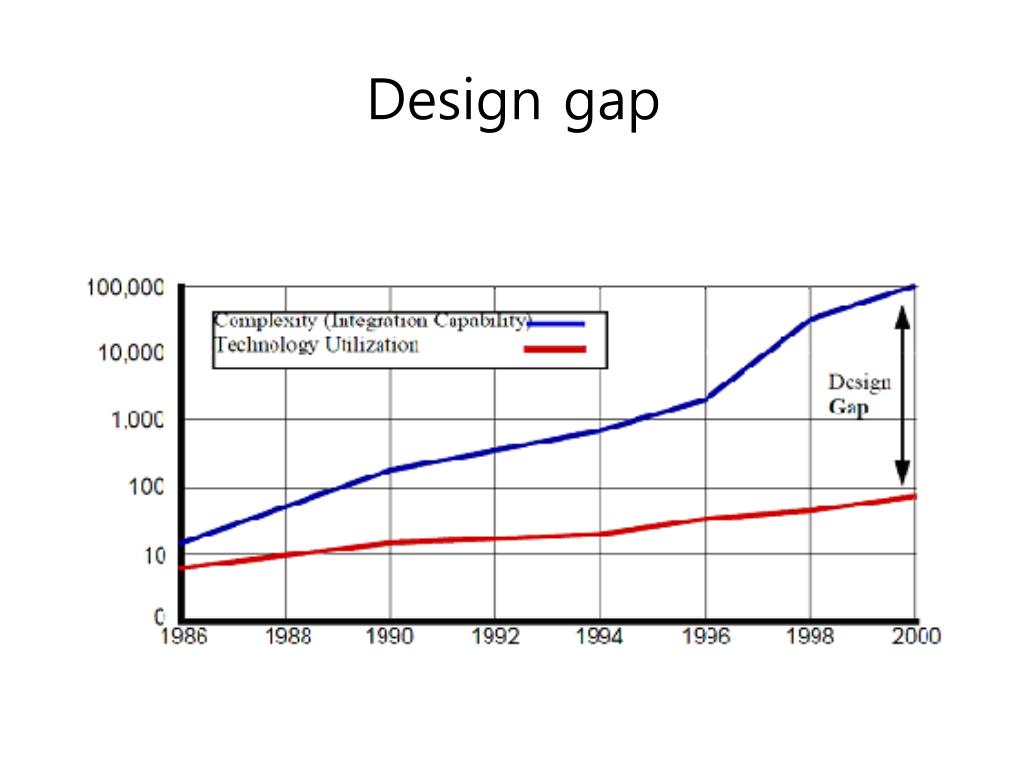

  24. Design gap

  25. Outline • Introduction • What is SoC ? • SoC characteristics • Benefits and drawbacks • Solution • Major SoC Applications • Summary

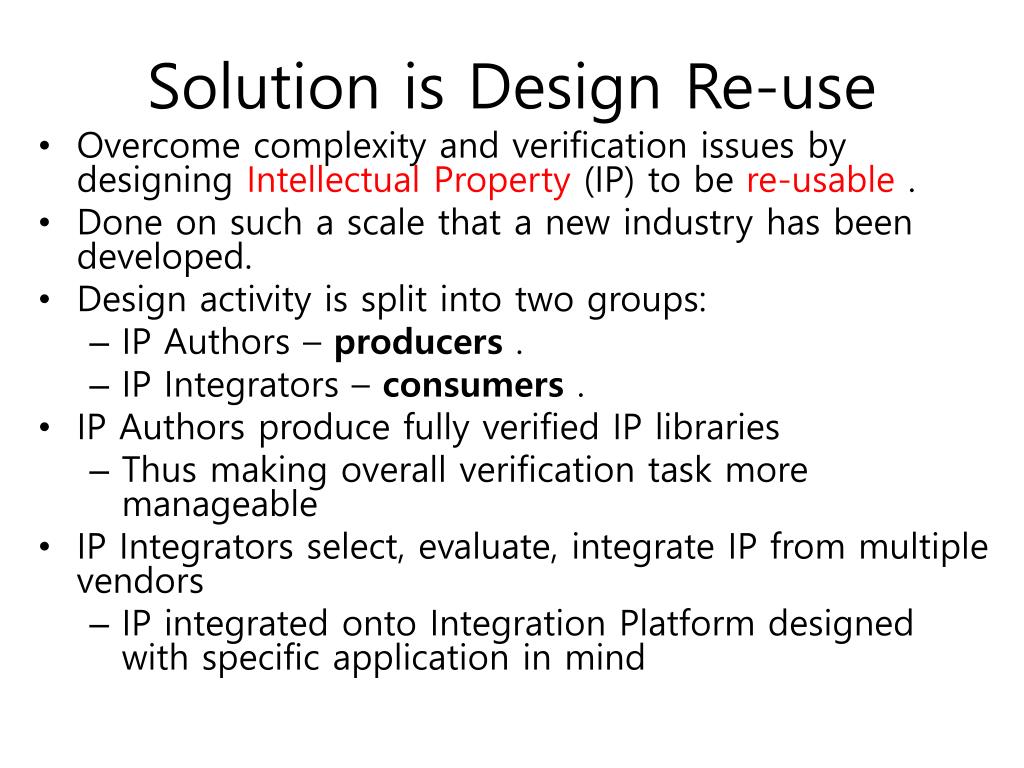

  26. Solution is Design Re-use • Overcome complexity and verification issues by designing Intellectual Property (IP) to be re-usable . • Done on such a scale that a new industry has been developed. • Design activity is split into two groups: • IP Authors – producers . • IP Integrators – consumers . • IP Authors produce fully verified IP libraries • Thus making overall verification task more manageable • IP Integrators select, evaluate, integrate IP from multiple vendors • IP integrated onto Integration Platform designed with specific application in mind

  27. Outline • Introduction • What is SoC ? • SoC characteristics • Benefits and drawbacks • Solution • Major SoC Applications • Summary

  28. Major SoC Applications • Speech Signal Processing . • Image and Video Signal Processing . • Information Technologies • PC interface (USB, PCI,PCI-Express, IDE,..etc) Computer peripheries (printer control, LCD monitor controller, DVD controller,.etc) . • Data Communication • Wireline Communication: 10/100 Based-T, xDSL, Gigabit Ethernet,.. Etc • Wireless communication: BlueTooth, WLAN, 2G/3G/4G, WiMax, UWB, …,etc

  29. Outline • Introduction • What is SoC ? • SoC characteristics • Benefits and drawbacks • Solution • Major SoC Applications • Summary

  30. Summary • Technological advances mean that complete systems can now be implemented on a single chip . • The benefits that this brings are significant in terms of speed , area and power . • The drawbacks are that these systems are extremely complex requiring amounts of verification . • The solution is to design and verify re-useable IP .

  31. SoC Trends • The SoC Paradigm and Key Trends • Time to Market Pressure • Design Complexity Issues • Deep Submicron Effects

  32. Moore’s Law and Technology Scaling

  33. ITRS Roadmap

  34. Accelerated IC Process Technology

  35. SoC Paradigm

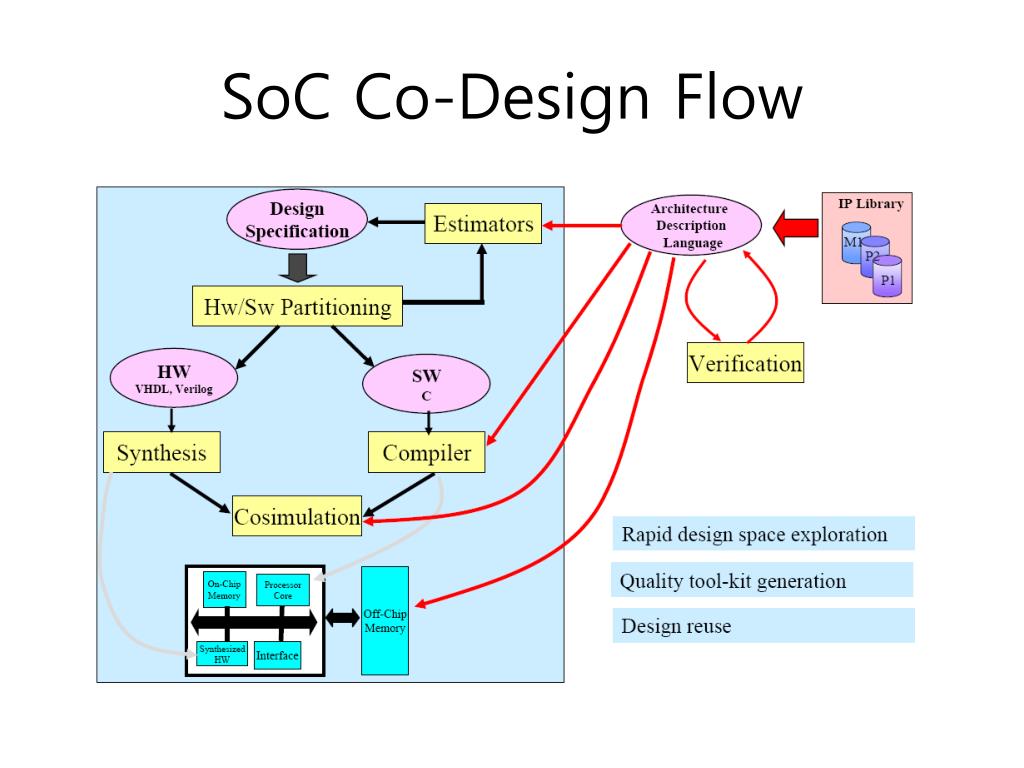

  36. SoC Co-Design Flow

  37. SoC: At the Heart of Conflicting Trends

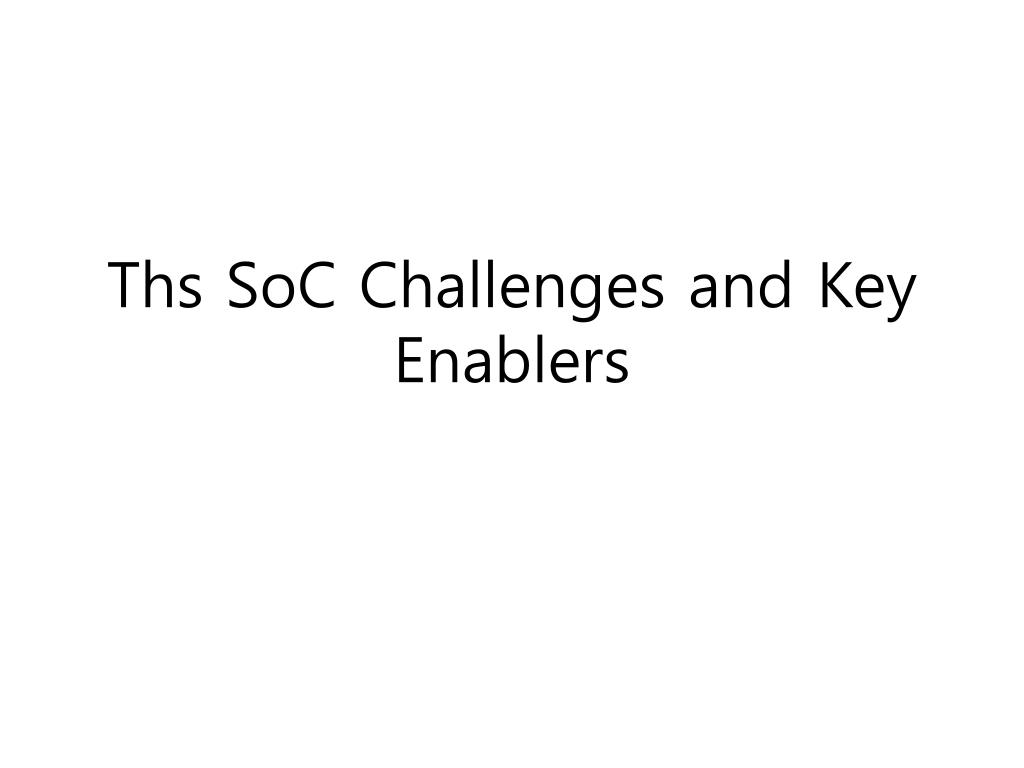

  38. ThsSoC Challenges and Key Enablers

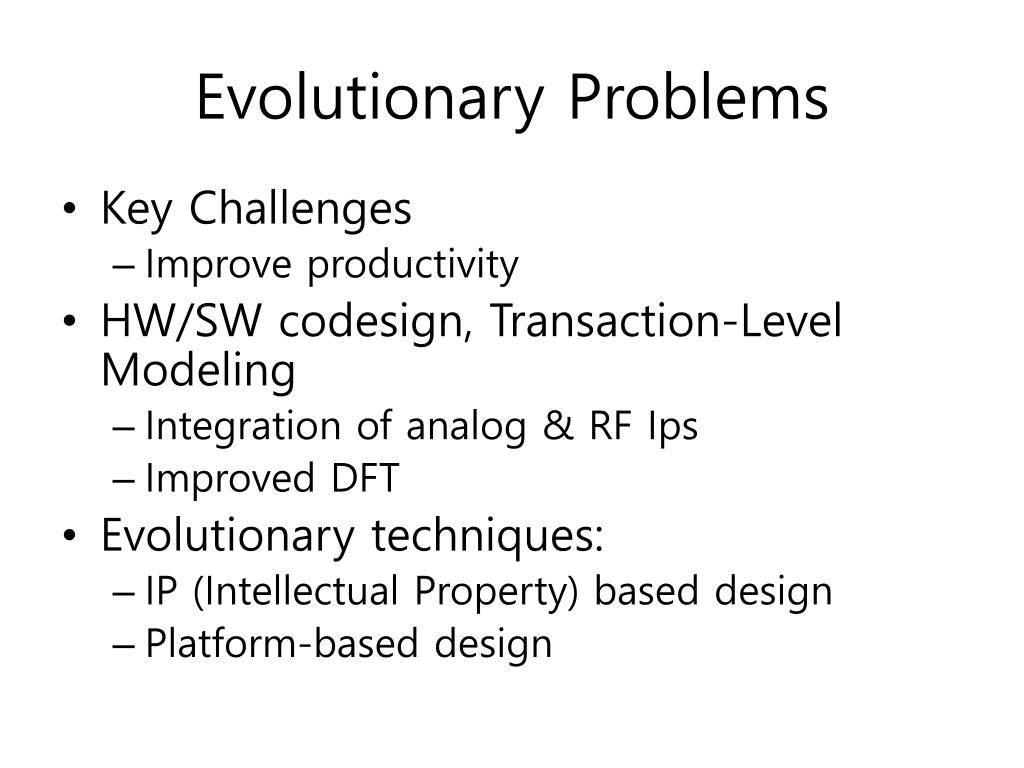

  39. Evolutionary Problems • Key Challenges • Improve productivity • HW/SW codesign, Transaction-Level Modeling • Integration of analog & RF Ips • Improved DFT • Evolutionary techniques: • IP (Intellectual Property) based design • Platform-based design

  40. SoC Economic Trends: Mask NRE

  41. Productivity Gap

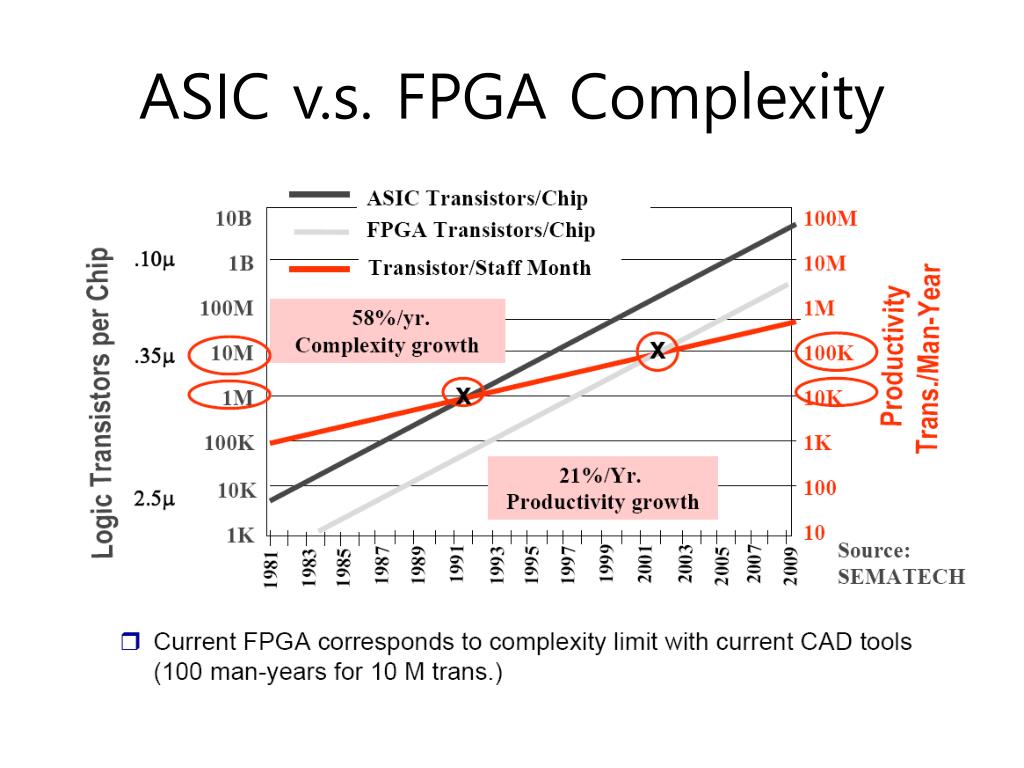

  42. ASIC v.s. FPGA Complexity

  43. Key Trends • ASIC/ASSP (application-specific standard-product) ratio: • 80/20 in 2000, 50/50 now • In-house ASIC design is down • Replaced by off-the-shelf, programmable ASSP • Number embedded processors in SoC rising: • ST: recordable DVD 5 • Hughes: set-top box 7 • Agere: Wireless base station 8 • ST: HDTV platform 8 • Latest mobile handsets 10 • NEC: Image processor 128 • ST: NPU >150

  44. IP Reuse and IP-Based SoC Design

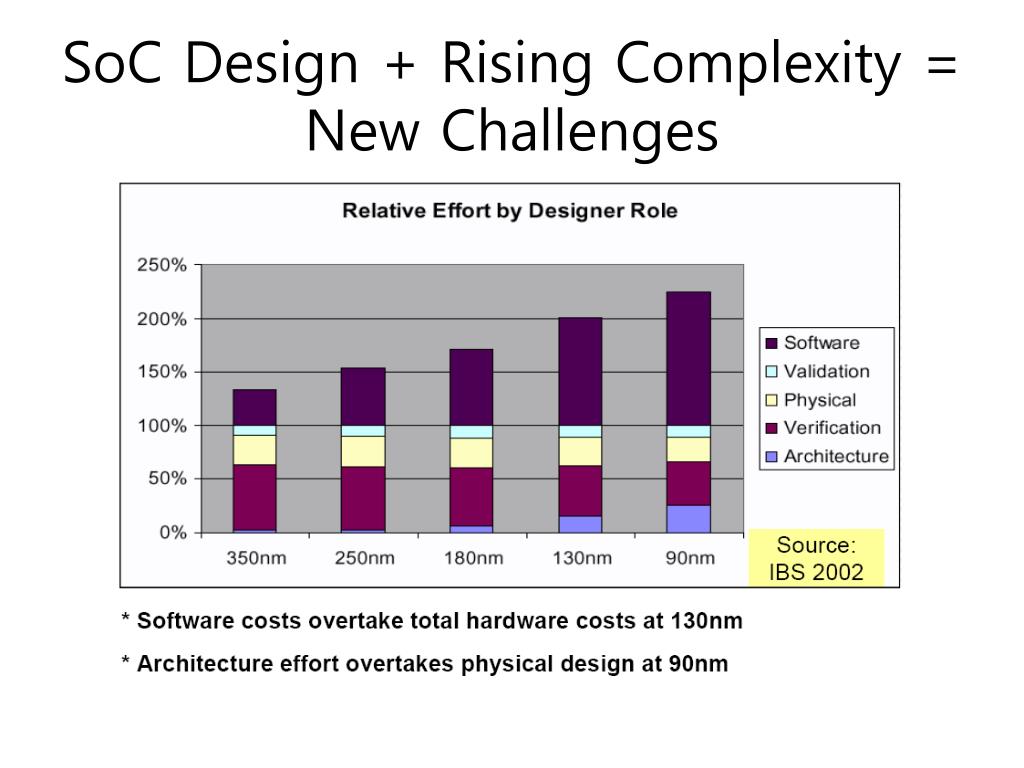

  45. SoC Design + Rising Complexity = New Challenges

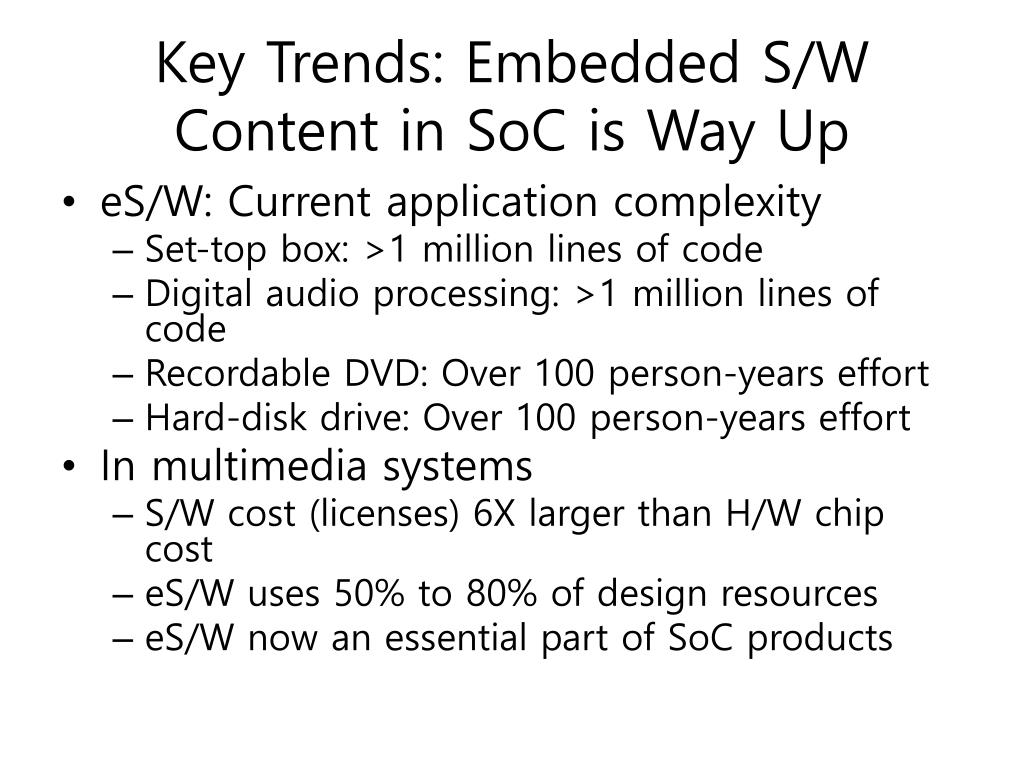

  46. Key Trends: Embedded S/W Content in SoC is Way Up • eS/W: Current application complexity • Set-top box: >1 million lines of code • Digital audio processing: >1 million lines of code • Recordable DVD: Over 100 person-years effort • Hard-disk drive: Over 100 person-years effort • In multimedia systems • S/W cost (licenses) 6X larger than H/W chip cost • eS/W uses 50% to 80% of design resources • eS/W now an essential part of SoC products

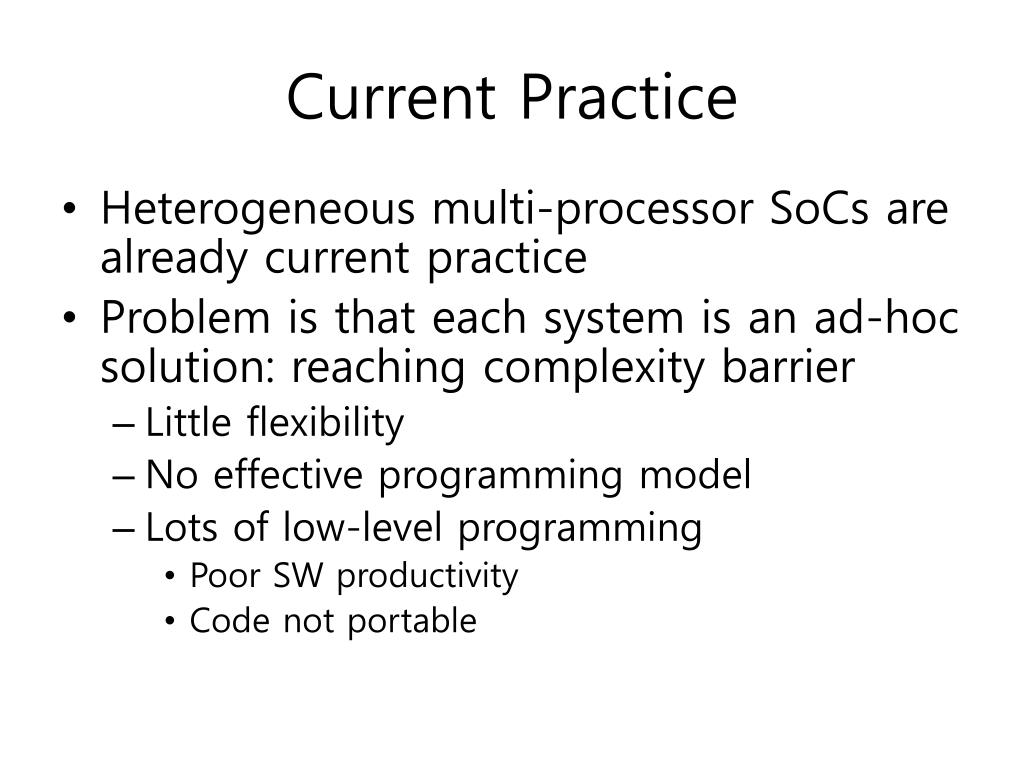

  47. Current Practice • Heterogeneous multi-processor SoCsare already current practice • Problem is that each system is an ad-hoc solution: reaching complexity barrier • Little flexibility • No effective programming model • Lots of low-level programming • Poor SW productivity • Code not portable

  48. Next-Generation SoC Platforms Key Objectives • Flexibility: amortize NRE over more products • ‘Softer’ systems: eFPGA, eSoG, eProcessors, combined with standard H/W IP (I/O, peripherals) • Fast platform implementation • Use of synthesizable, off-the-shelf IP components • Scalable SoC interconnect • Trend towards standardized platforms • Fast time-to-market for platform user • Need clean programming model • Shield architecture complexity

  49. Networks on a chip

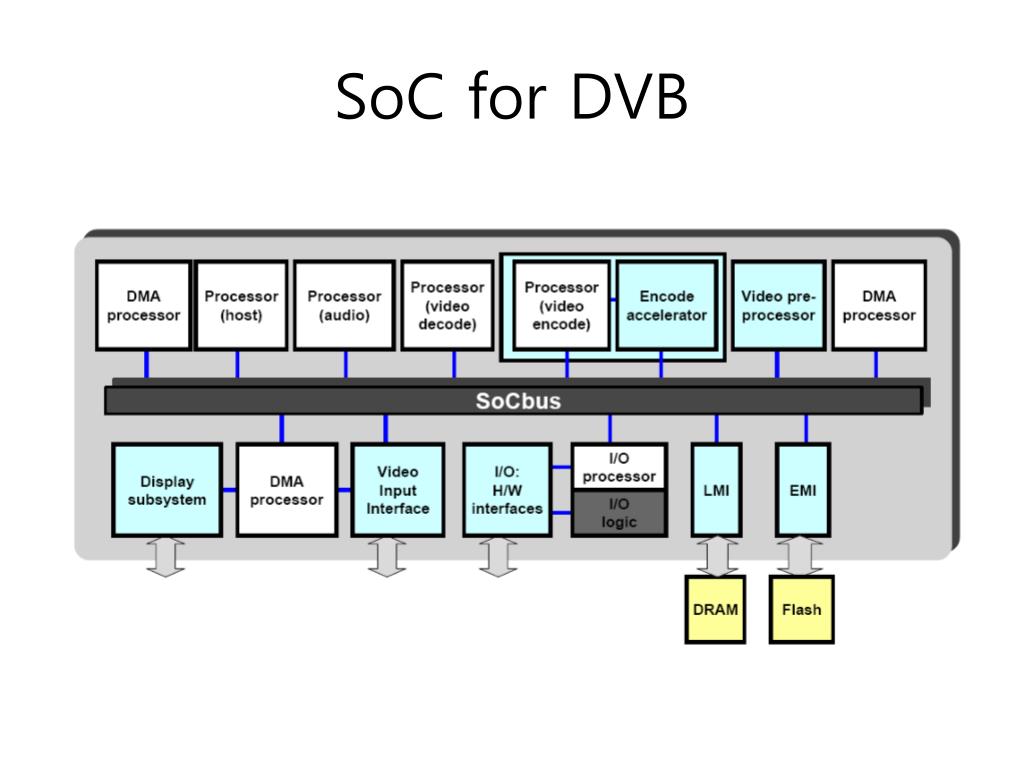

  50. SoC for DVB
