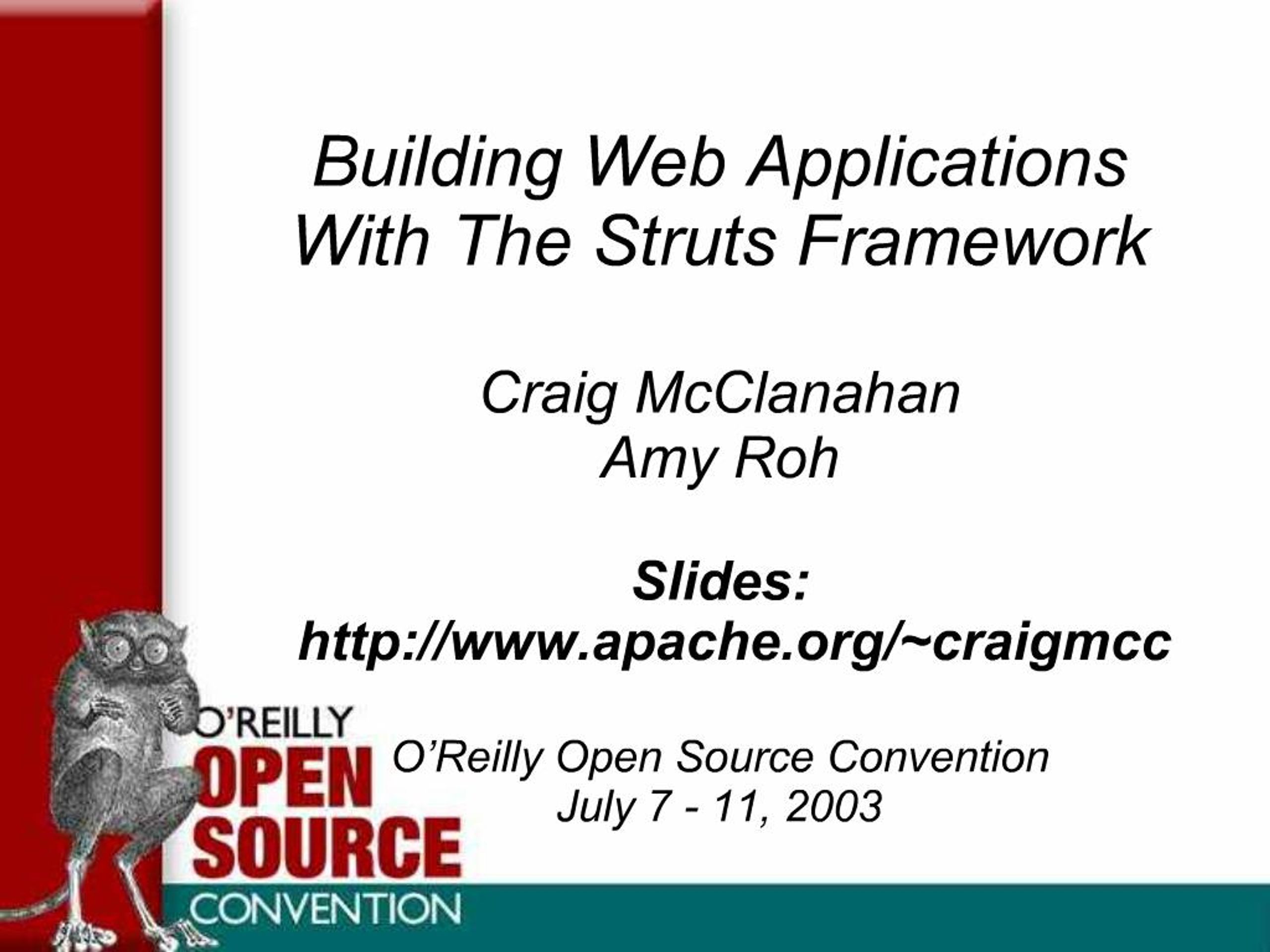

1. Building Web Applications With The Struts Framework Craig McClanahan Amy Roh Slides: http://www.apache.org/~craigmcc O’Reilly Open Source Convention July 7 - 11, 2003
2. Tutorial Outline Technology Backgrounder
Introduction To Struts
Our First Struts Application
Web Application Architecture Decisions
A More Advanced Struts Application
Struts and Emerging Technologies
Information Resources
3. Technology Backgrounder
4. Technology Backgrounder Struts is based on a host of foundational technologies
It behooves web application developers to be familiar with the basic characteristics of these technolgoies
World Wide Web (WWW) Standards:
HTTP, HTML, JavaScript
Java API Standards:
Servlet, JavaServer Pages (JSP)
5. Technology Backgrounder: HTTP Hypertext Transfer Protocol (HTTP) is the fundamental communications protocol of the World Wide Web
Simple to implement (client and server)
Request/response oriented
Stateless (no client identity across requests)
HTTP/1.0 – TCP connection per request
HTTP/1.1 – Supports persistent connections, for better throughput
6. Technology Backgrounder: HTTP So, what really happens when you type a URL like http://localhost:8080/index.html into your browser's location bar?
Your browser sends the following text, with CR/LF at the end of each line (signified by the ? symbol):
GET /index.html HTTP/1.1?
Host: localhost:8080?
If-Modified-Since: (cache-timestamp)?
User-Agent: (browser-id-string)?
?
7. Technology Backgrounder: HTTP And the server returns something like this:
HTTP/1.1 200 OK?
Last-Modified: Fri, 30 May 2003 12:56:38 GMT?
Content-Type: text/html?
Content-Length: xxx?
Server: Apache-Coyote/1.1?
?
<html>
<head>
<title>Welcome To My Web Site</title>
</head>
...
8. Technology Backgrounder: HTTP Does the “.html” extension mean that this response was from a static HTML page?
Only your server knows for sure :-)
How do redirects work?
HTTP/1.1 302 Temporary Redirect?
Location: http://foo.bar/baz.html?
What about BASIC authentication?
HTTP/1.1 401 Not Authorized?
WWW-Authenticate: Basic realm=”Log In”?
9. Technology Backgrounder: HTTP Significant issues for developers:
HTTP is stateless, so we need a way to tie requests from the same user together
Servlet API uses cookies or URL rewriting
Browsers can cache responses per URL:
Server returns “Not Modified” (304) status instead of the response content
Usually not what you want for dynamic web applications
10. Technology Backgrounder: HTTP Significant issues for developers:
What does a URL mean?
Significant debate in the web architecture community
As we will see, Struts decouples URLs from the content they return
Web Applications != Web Sites
Browsers have Bookmarks
Browsers have Back Buttons
11. Technology Backgrounder: HTML HTTP is agnostic to the content type it is carrying
Defined by the “Content-Type” header
Common content types include “text/html”, “text/xml”, “image/gif”, ...
Official content types are registered with the Internet Engineering Task Force (IETF)
Hypertext Markup Language (HTML) is very common, because it is used by many web browsers
12. Technology Backgrounder: HTML Official standards for HTML (as well as other web-related standards like Cascading Style Sheets (CSS)) are developed by the World Wide Web Consortium (W3C)
Current “official” version of HTML is 4.01
But many (most!) browsers support non-portable extensions
Struts only supports standard elements and attributes
13. Technology Backgrounder: HTML Recent standards activities focused on recasting HTML into an XML-compatible document type: XHTML
Allows pre-processing and post-processing by XML-compliant tools
Requires more careful editing of source documents to ensure “well-formed” and “valid” content is produced
Struts supports an option to render XHTML output instead of HTML
<html:html ... xhtml=”true”/>
14. Technology Backgrounder: HTML Significant issues for developers:
Browsers support different (and sometimes incompatible) versions of HTML
You can look at the “User-Agent” header to make programmatic decisions
But some browsers can or will lie to you
Be very careful when you allow users to enter marked-up HTML into a database, and then render it as part of your page
Very easy to create “cross site scripting” vulnerabilities
15. Technology Backgrounder: JavaScript JavaScript support (in some fashion) is embedded in almost every popular web browser currently available
But you cannot count on your users having it enabled
Original definition came from Netscape
Supports accessing and manipulating the DOM of the client browser
Currently standardized as ECMAScript is under the auspices of ECMA International
16. Technology Backgrounder: JavaScript From the perspective of the server, JavaScript code is part of the response content ... it is not special
JavaScript event handlers execute on the client, rather than the server
Can be embedded in a page, or referenced in a separate resource
Can be hand coded by the page author, or generated dynamically by web applications
17. Technology Backgrounder: JavaScript Struts support for JavaScript includes:
Standard HTML event handler attributes (onsubmit, onmouseover, ...) available on all relevant HTML tags
Form tag “focus” attribute uses JavaScript to initialize the position of the cursor on a newly rendered form
Validator Framework can optionally generate client-side JavaScript to implement the same correctness checks that will be performed on the server side.
18. Technology Backgrounder: Java No, we're not going to try to learn how to program in Java here :-)
Large numbers of web resources, books, and magazine articles are available
Instead, we'll look at some particular issues relevant to web application development
19. Technology Backgrounder: Java Java supports multithreaded applications
There can be more than one thread of execution running your code
On a multiprocessor machine, this can be happening literally at the same time
The JVM maintains a stack containing the local variables for each thread
Instance variables in the same object instance are shared across threads
Same for static variables in the same class
20. Technology Backgrounder: Java Java supports a multiple class loader environment
Class loaders arranged in a parent-child hierarchy
Request to load a class starts from the top, down to the loader that loaded the calling class
Class ABC loaded from class loader 1 is not the same as class ABC loaded from class loader 2
Even if the bytecodes are identical!
21. Technology Backgrounder: Servlet API Java standard API for writing HTTP-based web applications
Developer creates a servlet that responds to individual requests
Single instance of each servlet is created
Created at startup time or on first request
Multithreaded calls to doXxx() per request
Cleaned up at shutdown time
22. Technology Backgrounder: Servlet API
public class MyServlet extends HttpServlet {
...
public void doGet(HttpServletRequest req,
HttpServletResponse res) throws ... {
// Set HTTP headers on the response
res.setContentType(“text/html”);
// And write the response content
PrintWriter writer = res.getWriter();
writer.println(“<html>”); ...
}
...
}
23. Technology Backgrounder: Servlet API Servlets are combined into a web application
Packaged in a web application archive (WAR) file
JAR file with particular layout
Configured using a web application deployment descriptor (/WEB-INF/web.xml) file
Bound to a context path like “/shopping”
24. Technology Backgrounder: Servlet API Request URLs are mapped to individual servlets via (context relative) URL patterns
/foo – Exact match
/foo/* -- Starts with specific string
*.foo – Ends with specific extension
All components of URL available on HttpServletRequest object via methods
25. Technology Backgrounder: Servlet API Sessions provide a mechanism to work around HTTP statelessness
Session identifier passed back and forth with client via cookie or URL rewriting
Session lives on server in between requests
Programmatic timeout interval between requests
Container Managed Security supports authentication and authorization of users
Won't be covered in this tutorial
26. Technology Backgrounder: Servlet API Event Listeners for lifecycle events:
Application creation/shutdown/attributes
Session creation/shutdown/attributes
(Servlet 2.4 or later) Request creation/shutdown/attributes
Filters allow composition of processing pipelines. Examples:
“Roll your own” authentication
Post process generic XML output with user specific XSLT transformation
27. Technology Backgrounder: Request Dispatcher supports composition and delegation
Include – Incorporates output from a separate servlet into a composite result
Similar to “server side include” in a web server
Forward – Delegates creation of output for this request to a different servlet
Behaves like a “server side go-to”
Client has no clue this happened (URL does not change in location bar)
28. Technology Backgrounder: Servlet API Significant issues for developers:
Multithreading
Instance variables should not be used for per-request state information
Session attributes need to be threadsafe
Class Loading
Each web application has its own class loader
Most containers support shared parent class loaders
Not all code can be shared!
29. Technology Backgrounder: Servlet API Significant issues for developers:
HTTP requires headers at the beginning of the response
Container buffers output until “committed”
Web application deployment descriptor has element ordering requirements
Fixed in Servlet 2.4
In the mean time, easier to use a tool
Mixing presentation and business logic in a Java class can be hard to maintain
30. Technology Backgrounder: JavaServer Pages (JSP) Servlets embed dynamic logic and markup generation in Java
JavaServer Pages embed dynamic logic in static markup (typically HTML)
Application server converts each page into a servlet and compiles it
Dynamic logic embedded with scriptlets, expressions, or custom actions (tags)
31. Technology Backgrounder: JSP <%@ page contentType=”text/html” %>
<%@ taglib prefix=”fmt” uri=”...” %>
<html>
<head><title>Hello, World</title></head>
<body>
Hello <%= request.getRemoteUser() %>!
Today's date is
<fmt:formatDate value=”${now}”/>
</body>
</html>
32. Technology Backgrounder: JSP Scriptlets let you embed Java code in your JSP pages
That can be good ... full power of Java
That can be bad ... O-O syntax, wordy
Custom Actions (custom tags) let Java developers create reusable classes for:
Interacting with business logic
Creating markup dynamically
33. Technology Backgrounder: JSP Standard Actions provided for common requirements:
<jsp:useBean>
<jsp:getProperty>
<jsp:include>
JSP Standard Tag Library (JSTL) covers other basic needs (iteration, conditionals, XML processing, i18n, ...)
34. Technology Backgrounder: JSP Significant issues for developers:
Since a JSP is a servlet, you can leverage all of the capabilities of the Servlet API
Since a JSP is a servlet, all of the servlet issues continue to apply
In particular, mixing presentation and business logic in a JSP can be hard to maintain
35. Introduction To Struts
36. The Origin Of Struts Like many open source projects, Struts started with me scratching my own itch:
Take a US-centric application to Europe ...
In multiple languages (4 initially) ...
And make it available on the web ...
I was familiar with Java and open source
Apache JServ and Tomcat containers
But there was no good model for a web application architecture available
37. The Origin Of Struts The JSP 0.91 Specification described two fundamental approaches:
Model 1 – A resource (such as a JSP page) is responsible for both creating the markup for a form, and for processing the resulting submit
Model 2 – A resource (such as a JSP page) is responsible solely for creating the markup; processing the submit is dispatched to a separate resource
38. The Origin Of Struts The second approach sounded better
Resources for creating markup and performing database updates are separated
So they can be built by different people
So they can be built with different technologies
So, I built a home grown architecture based on the “Model-View-Controller” paradigm popular in client-server applications
39. Model-View-Controller (MVC) Model – The persistent data (typically in a database) and business logic functionality
View – The user interface (typically HTML forms in a web application)
Controller – Management software to dispatch form submits to the corresponding business logic, and trigger the display of the appropriate next page
40. MVC As Implemented In Struts
41. Struts Features: Model Tier Struts includes only minimal infrastructure for the model tier
A basic implementation of javax.sql.DataSource is included ...
But you can integrate any desired approach
42. Struts Features: View Tier Form Beans:
Represent the server side state of the input fields on an HTML form
Contains hooks for resetting fields to default values (needed for checkboxes) and input field validation
DynaActionForm means you do not have to create new JavaBeans yourself
43. Struts Features: View Tier Validation Framework:
Abstract input validation rules into separate XML document
Extensible for custom field checking
Optionally generates client-side JavaScript
Always checks on server side
Integrated with standard ActionForm beans and DynaActionForm beans
44. Struts Features: View Tier (JSP) Custom Tag Libraries:
Bean – General purpose bean and property manipulation
Html – Dynamic HTML-based user interfaces (including input forms)
Logic – Conditionals and iteration
Nested – Versions of other tags that access nested JavaBean hierarchies easily
Tiles – Layout management (next page)
45. Struts Features: View Tier (JSP) Tiles Framework:
Supports templating for common look and feel of all pages in a web app
Tile definitions created in JSP page or in external XML document
Definitions can extend base definitions
Advanced techniques for dynamically passing information to tiles
46. Struts Features: Controller Tier Configuration Document Defines Behavior
Action URLs mapped to Actions
Data sources
Exception handlers
Form beans
Forwarding URLs mapped to Pages
Message Resources for i18n
PlugIns for Lifecycle Management
One or more documents allowed
47. Struts Features: Controller Tier Request Processing Lifecycle
Extract action mapping path
Select locale (if necessary)
Select action mapping to utilize
Perform role-based access checks
Server-side validation (if requested)
Invoke application Action
Forward based on application outcome
Highly customizable and extendable
48. Struts Features: Controller Tier Sub-Application Modules
Logically divide single web application into multiple Struts “mini-applications”
Session state shared across all modules
Standard Action Implementations:
Forward or include other URLs
Dispatch to one of several methods in an Action class
Switch from one sub-application module to another
49. Struts Features: Miscellaneous Jakarta Commons Libraries
BeanUtils – Access bean properties dynamically, support DynaBeans
Collections – Extensions to Java2 Collections Classes (java.util)
Digester – Parse XML documents and configuration files
FileUpload – Support <input type-=”file”>
Lang – Extensions to core JDK classes (java.lang)
50. Struts Features: Miscellaneous Jakarta Commons Libraries
Logging – Abstract logging layer over Log4J, JDK 1.4 logging, or others
Validator – Validation framework that can be used in the business logic tier
Jakarta-ORO regular expression processing
51. Struts Features: Miscellaneous Extensive documentation and Javadocs
Wide variety of third party resources
Example web applications:
“Blank” starter application
Simple basic example
Exercise individual tags
General and specific documentation on all Struts features
52. Our First Struts Application
53. The Canonical Struts Example Delivered as webapps/struts-example.war in a Struts distribution
Can be dropped in to any Servlet 2.2 / JSP 1.1 (or later) container to verify proper support for Struts
Simulates (the beginnings of) a web application acting as a proxy for one or more IMAP or POP3 mail subscriptions
Let's take a look at its the app in action ...
54. The Configuration Files web.xml – Webapp deployment descriptor
“ActionServlet” is the controller
Multiple configuration files supported
Typically loaded at startup time
Mapped to extension pattern (*.do) or path prefix pattern (/do/*)
Identifies the application “Welcome File”
(JSP 1.1 only) Must declare tag library descriptors
55. The Configuration Files struts-config.xml – Struts configuration
Form beans (one dynamic, one standard)
Global exceptions (none in this app) define handlers for exceptions of particular types
Global forwards provide logical names for physical pages
Action mappings map URLs to Actions
Can nest local <exception> and <forward> definitions
56. The Configuration Files struts-config.xml – Struts configuration
Controller has global configuration settings
Message resources elements load sets of localized message text for i18n
Plug ins provide lifecycle (webapp start and stop) support for extensions
struts-config-registration.xml – Illustrates that you can use multiple config files
struts-config_1_1.dtd – Documents content of Struts configuration file elements
57. Walk Through: Logon Processing Start on /index.jsp, second hyperlink:
<html:link page=”/logon.jsp”>
<bean:message key=”index.logon”/>
</html:link>
Generated source is localized:
<a href=”/struts-example/logon.jsp”>
Log on to the MailReader Demo ...</a>
Automatic URL encoding supplied also
Direct link to JSP page is unusual
Useful only in “no setup” situations
58. Walk Through: Logon Processing The /logon.jsp page is displayed
Contains a custom form tag:
<html:form action=”/logon”
focus=”username” onsubmit=”...”>
Action attribute matches configured <action> element
Focus positions cursor via JavaScript
Onsubmit ties in to validation processing
Two input fields plus submit/reset buttons
Tags generate “smart” HTML
59. Walk Through: Logon Processing Submits to /struts-example/logon.do
Invokes ActionServlet processing
Selects the correct <action> element:
<action path=”/logon”
type=”org.apache....LogonAction”
name=”logonForm”
scope=”session”
input=”logon”/>
60. Walk Through: Logon Processing Instantiates logonForm bean if needed, per form bean definition:
<form-bean name=”logonForm”
type=”org.apache....DynaValidatorForm”>
<form-property name=”username”
type=”java.lang.String”/>
<form-property name=”password”
type=”java.lang.String”/>
</form-bean>
61. Walk Through: Logon Processing Server-side validation is performed based on configured validation rules
<form name=”logonForm”>
<field property=”username”
depends=”required,minlength,maxlength”> ...
<field property=”password” ...> ...
</form>
In this case, we used client-side validation as well, via generated JavaScript
You should never trust client-side validations to be enough ...
62. Walk Through: Logon Processing If validations fail, control goes to the “logon” forward
<action path=”/logon”
type=”org.apache....LogonAction”
name=”logonForm”
scope=”session”
input=”logon”/>
Which was defined to point at the logon page in a global forward definition
<forward name=”logon” page=”/logon.jsp”/>
63. Walk Through: Logon Processing If validation succeeds, the execute() method of our configured Action class is invoked (“Command Pattern”)
public class LogonAction extends Action {
public ActionForward execute
(ActionMapping mapping, ActionForm form,
HttpServletRequest request,
HttpServletResponse response)
throws Exception { ... }
}
64. Walk Through: Logon Processing The action checks the username and password against the user database ...
On unsuccessful match, stores an error message and returns to the input page
return (mapping.getInputForward());
On successful match, logs user in and indicates “success”
return (mapping.findForward(“success”));
Which transfers to the main menu page
<forward name=”success” page=”/mainMenu.jsp”/>
65. But What About Prepopulation? Often, you need to pre-populate fields to be displayed on a page
The Edit Registration option illustrates a very typical Struts design pattern:
“Setup” action populates beans (including the form bean), and forwards to ...
Page that displays the populated form, and submits to ...
“Process” action that updates the database based on the new user input values
66. Walk Through: Edit Registration Let's walk through the “Edit Registration” processing of the example application
A little faster, now that we've got the hang of how Struts handles requests
We start on the main menu (first link)
<html:link page=”/editRegistration...”>
<bean:message key=”mainMenu.registration”/>
</html:link>
67. Walk Through: Edit Registration The “/editRegistration” action declares a form bean, but with no validation
<action path=”/editRegistration”
type=”...EditRegistrationAction”
name=”registrationForm”
scope=”request”
validate=”false”/>
So, Struts precreates an empty form bean, but does not trigger validation on it
68. Walk Through: Edit Registration The EditRegistrationAction's execute() method then:
Ensures that there is a logged on user
Copies the user's info to the form bean
Sets a transaction token to disallow double submits (saveToken())
Forwards to the “success” logical forward
For this action, we have a local override of “success” that selects “/registration.jsp” instead
69. Walk Through: Edit Registration The /registration.jsp page displays the form values, already filled out because of the setup Action's activity
The form submission goes (after validation is completed) to the /saveRegistration action, which ...
Updates the database
Goes back to the main menu again
You will see this three-step pattern over and over again in Struts-based applications
70. Example Application Summary We've seen the basic organization and features that Struts provides
Struts lives up to its promise to separate the concerns of the presentation logic and the business logic
But what about a bigger application? How do I organize things when I've got 50 pages instead of 5?
71. Next Steps Examine the architectural decisions required to design and build a web application
Examine how these decisions were done in a more advanced Struts-based application
But first ... let's take a quick break
73. Web Application Architecture Decisions
74. Overall Architecture Decisions Let's start by assuming we are going to use Struts to develop a fairly large application
Good choice :-)
Our required decisions follow the separations of the MVC paradigm
Model Related Decisions
Technology for persistence tier
Technology for business logic
Transporting data to presentation tier
75. Overall Architecture Decisions View Related Decisions
Technology for markup generation
Layout management strategy
Form bean strategy
Input validation strategy
Localization strategy
Controller Related Decisions
Mapping logical names to physical resources
Responsibility split between Actions and Business Logic
76. Development Process Decisions Maximize opportunities for concurrent development across tiers
Identify required cross-tier knowledge transfers
Strive to hide implementation details
Application architect should own configuration file management
Struts-config.xml tends to be a clearinghouse for cross-tier communication
Can subdivide on functional lines if needed
77. Persistence Tier Technology In many cases, this decision will have already been made for you
Creating new web-based interface to existing data or functionality
In many cases, there will be more than once answer needed in the same app:
Tables in existing relational databases
User information in a directory server
Connector to legacy applications
78. Persistence Tier Options Relational Database (RDBMS)
Very common choice
“Rows and columns” paradigm is well understood
Mature, high performance products available
Programmatic access, directly (JDBC) or indirectly (EJB, O-R mapping tiers, ...)
Relational organization often needs to be adapted to O-O design patterns
79. Persistence Tier Options Object-Oriented Database (OODBMS)
Persistent data directly reflects object oriented relationships
Some databases implement this directly
Others define and/or generate a mapping of objects onto RDBMS tables
Relatively newer, less mature
80. Persistence Tier Options Flat Files
Best for sequential-only access
Can utilize text or binary data formats
Text formats tend to be more flexible
Binary formats tend to be more compact
Common text-based formats
One “row” per line with comma-separated columns (often called “CSV”)
Extensible Markup Language (XML)
Nice for hierarchical data
Becoming popular for inteoperability
81. Persistence Tier Options Integration Connectors
Often used to connect with legacy applications
Typically implemented as a network based protocol accessing a remote application or service
Web Services is about standarizing integration using XML data contents, described by WSDL metadata
82. Persistence Tier Decision Goals Define an API abstraction for use by business logic developers
Independent of web tier, so can be reusable
Presented in O-O terms for familiarity
Functional content driven by business logic requirements
83. Persistence Tier Decision Goals Insulate business logic developers from changes in underlying environment
Database Administrator splits tables
Data source changes from flatfile to RDBMS or web service or EJB
Data transport APIs for the presentation tier may be defined here
Or in the business logic tier
84. Persistence Tier Decision Goals Support transactional capabilities of most persistence tier technologies
Begin ... Process ... Commit/Rollback
Supports “all or nothing” changes to avoid inconsistent state being stored
Implementation details hidden inside defined APIs
85. Persistence Tier Decision Goals Support resource pooling to conserve scarce resources
Connections to resources often scarce
Allocating connection per user would limit scalability
Implementation details hidden inside defined APIs
86. Business Logic Technology The functional behavior of your application
Add new customer ABC
Transfer $X from acct 123 to acct 456
Submit purchase order 789
Typically modelled as an individual Java method per use case
Enables reuse across apps
Improves unit testability
87. Business Logic Technology Should operate on persistence tier API abstractions, not directly on databases
Insulated from changes in underlying persistence tier environment
Allows business logic developers to focus on business problems, not database problems
Should be independent of presentation tier considerations
Data is locale-independent objects
88. Business Logic Technology Business logic can be stateful or stateless
Stateful logic requires multiple interactions with the user to complete a single business transaction
Stateless logic can be done in a single call
Can sometimes model stateful logic as stateless if you use the persistence tier to maintain the state for you
Business logic can be implemented in JavaBeans or EJB session beans
89. Business Logic Decision Goals Define an API abstraction for use by presentation logic developers
Independent of web tier, so can be reusable
Presented as method per use case, with imperative names
Functional content driven by business logic requirements
Data transport APIs for the presentation tier may be defined here
Or in the persistence tier
90. Data Transport Strategy Presentation tier will require access to dynamic data to build user interfaces
Dynamic data may originate in:
Persistence tier
Business logic tier
Yet, we still want to insulate presentation tier developers from the underlying details
The usual approach is to use the Data Transfer Object (nee Value Object) pattern
91. Data Transport Strategy Typical Java implementation of a DTO is a simple JavaBean with only properties:
Properties are still native object types (to avoid ties to presentation tier)
Objects are light weight and Serializable
Supports type safety and compile-time checks on property getters and setters
Tedious to create and maintain without tools support
92. Data Transport Strategy A less tedious approach is to use a java.util.Map to contain the values to be transported
Objects are light weight and Serializable
Avoids the need to create and maintain JavaBean classes for each DTO
Loses type safety checks on property types
Compiler cannot catch errors like typos in property names for you
93. Data Transport Strategy Struts (because it includes commons-beanutils) supports DynaBeans as a hybrid between these approaches
Properties (name and type) belonging to a DynaBean can be configured programmatically
Objects are light weight and Serializable
Property getters and setters are typesafe, but name typos still not caught
Interoperates with Struts presentation tags
94. Data Transport Decision Goals Consider tradeoffs of using JavaBeans versus more generic options
Maintain independence of presentation tier considerations (date formats, etc.)
Avoid use of EJB entity beans directly as data transport objects
Potential network request on each property getter, versus once to retrieve entire DTO
95. Markup Generation Technology Decision starts with a description of the client runtime environment. Typically:
Standard browser (usually HTML)
With or without client-side JavaScript
Standard browser with plugins (Macromedia Flash, Adobe Acrobat, SVG Viewer, Java Applets, ...)
Rich client with programmatic capabilities (JavaWeb Start, client-server GUI, ...)
96. Markup Generation Technology Based on this, decide where actual markup will be generated:
Server Side – Markup composed by server and displayed by the client (possibly with embedded scripting)
Typical for HTML-based web apps
Client Side – Server sends a high level description of the data to be presented, but client performs layout
Flash, SVG Viewer, Xforms, ...
97. Markup Generation Technology Server side content can be dynamically generated via a number of technologies:
Programmatic execution of a servlet
JavaServer Pages (JSP)
Alternative templating solutions (Velocity, FreeMarker, ...)
Serialization of XML document objects
Struts has extra support for JSPs used to render HTML on the server side, but can be used with other alternatives as well
98. Layout Management Strategy High quality user interfaces feature consistent look and feel across the entire application
Traditional approach in web application design is “cut and paste” of common design elements across all pages
Tedious and error prone
Makes L&F remodels difficult
99. Layout Management Strategy Most markup generation technologies support composition of multiple elements:
JSP: <jsp:include> and <%@ include %>
Requires overall layout (i.e. the outermost <table>) to be present on each page
Limits ability to adjust the overall layout dynamically (say, based on user preferences)
100. Layout Management Strategy Struts supports the Tiles Framework for advanced management of look and feel issues:
Pages are assembled from a base layout that is separate from the actual pages
Layout includes markers to include individual tiles by composition
Individual tiles responsible for rendering only their individual portion of the overall content
101. Layout Management Strategy Tiles Framework supports many advanced features as well:
Layouts can be defined in configuration files, individual JSP pages, or programatically
Layouts can “extend” other layouts similar to the way Java subclasses extend superclasses
Behavior of Tiles can be customized by passing attributes in a Tiles context.
102. Form Beans Strategy Users of interactive computer applications have been trained to expect common behaviors
In particular, users expect the following when they make an error:
A suitable error message will be shown
The previous (incorrect) input values will be remembered, so the user need only correct their errors
103. Form Beans Strategy Aspects of HTTP and HTML make it difficult to meet this expectation:
HTML input fields are strings, even for data types that might not be (date, int, ...)
HTTP is stateless, and provides no facilities for remembering the previous values when a page is redisplayed
To address this need, Struts defines an API for form beans (more formally, org.apache.struts.action.ActionForm)
104. Form Beans Strategy A form bean is a component of the presentation tier, and has two responsibilities:
Represent server-side state of all the input fields on a form (even if the input data is syntactically or semantically invalid)
Serve as a data transfer object (DTO) from the presentation tier to the business logic tier (via a Struts Action)
105. Form Beans Strategy Two general implementation strategies are available:
Subclass ActionForm and add properties for each input field
Leverage Struts support for DynaActionForms, and define the properties in the Struts configuration file
Form bean instances are created as needed, typically in
Request scope
Session scope
106. Form Beans Recommendations Unless you have particular needs, use dynamic action forms
Simpler to manage and maintain
Do not include business logic directly in your form bean
Data conversions belong in an Action
Business logic belongs in separate classes that are part of the business logic tier
107. Form Beans Recommendations Declare the data type of all input field properties as Strings
Exception: Checkboxes should be backed by a boolean property
Reason: Consider what happens if you have a field of type “int” and the user types “1a3” instead of “123”:
User expects validation error message and redisplay of “1a3” so it can be fixed
User gets a runtime error because of the failed String->int conversion
108. Input Validation Strategy Robust applications will never allow incorrect values to be processed by the business logic tier, or stored in the persistence tier
Each tier should protect itself from invalid input from client tiers
Business logic might thrown IllegalArgumentException
Persistence tier might throw SQLException because a database trigger detected a problem
109. Input Validation Strategy Correctness criteria come from multiple tiers of an application:
Presentation tier: date and number formats
Business logic tier: semantic requirements (minimum six characters in a password, email address is required)
Presentation tier: unique key and foreign key constraints (that username belongs to someone else)
110. Input Validation Strategy High quality user interfaces perform input checking as close to the user as possible
Per-field instead of per-form is typical
In web applications, often implemented via client side JavaScript
But you cannot trust clientside JavaScript to do everything for you
It might be turned off
It might be bypassed by a client application
Cannot check 100% of requirements
111. Input Validation Strategy Struts offers the Validation Framework to manage combining correctness checks from all tiers into a configuration file
Implemented rules are configurable (minimum # of characters)
Set of available rules is extensible
Correctness checks are triggered automatically where needed
By form bean name
By action path
112. Input Validation Strategy Correctness checks always performed on the server side
Exception: normally disabled for “setup actions”
Validation rules can optionally cause client side JavaScript to be generated that will perform checks before the form is submitted
Improves user experience to catch these without a round trip to the server
113. Localization Strategy Providing a web application in multiple languages is becoming more common in a global economy
Even if you don't think you need to support localization, you should do it anyway:
You might be wrong :-)
Mechanics of implementing this allow you to share things like prompt strings and button labels, even in a single language
114. Localization Strategy Struts supports localization at all levels
<bean:message> tag looks up localized text from resource bundles
Validation error messages are based on keys to look up localized text, with parametric replacement
Can interoperate with JSTL for localized formatting
Message resources can be used programmatically (localized log messages)
115. Logical To Physical Mapping Throughout our discussion on decisions, we have seen a need to isolate developers in one tier from implementation details in another tier
Maintaining isolation minimizes the impact of changes inside one tier
Struts provides multiple layers of support for this by mappings defined in the Struts configuration file
116. Logical To Physical Mapping Isolation is based on mapping a logical name for a resource to the physical implementation of that resource
Action context-relative URL to Action class
Form bean name to implementation class
Exception to handler class
Forward alias to context-relative URL
Message resources bundle to implementation
117. Logical To Physical Mapping That being said, it is useful to define naming conventions that tie the various Struts features for a particular page together.
We will see how this was done in the “Advanced” application example, soon
118. Actions and Business Logic Action classes are invoked by the Struts controller based on the request URL
“Command Pattern”
It is tempting to place business logic directly into Actions
Common in smaller scale, simpler applications
But this ties business logic to web APIs
Yes, struts-example is guilty of this :-)
119. Actions and Business Logic Consider Actions part of the controller, not part of the model
Extract incoming data from form bean
Convert as necessary into DTOs defined by business logic tier
“Adapter Pattern”
Delegate processing to Business Logic class's appropriate business method
Make DTOs needed by next page available
Forward control to the next page
120. A More Advanced Struts Application
121. “Da Nooz” Example Application Even before blogging became popular ... Rich Site Summary (RSS) was a popular XML-based data format for syndication
This application supports self registration and personal management of one or more RSS newsfeeds
The RSS newsfeeds themselves are available in multiple formats
The RSS “community” is fairly fractured
122. “Da Nooz” Example Application Based on Struts 1.1
Utilizes advanced features like the Tiles and Validator Frameworks
Implements many “best practices” for web applications (with or without Struts)
Illustrates specific architectural choices
Not by any means the only reasonable ones
Will be open sourced (probably at http://java.net) in the near future
123. Model Tier Decisions Persistence Choices
Business Logic Choices
Data Transport Object (DTO) Choices
124. Persistence Choices Original requirement for this demo included supporting multiple choices:
Java Data Objects (JDO)
Relational Database (JDBC)
Flat File (Xml)
Entity Beans (EJB) – not done yet
Designed persistence tier API to reflect the natural object hierarchy:
User –> Channel –> Item
125. Persistence – Basic Decisions Employ Data Access Object (DAO) pattern
Support transactional state inside DAO
JavaBeans oriented API to express characteristics of business entities
Object oriented API to express relationships between business entities
126. Persistence–Implementation Independence JavaBeans style interfaces for each entity:
User (nooz.business.User)
Channel (nooz.business.Channel)
Item (nooz.business.Item)
Specific implementations of these interfaces depend on persistence strategy
Business logic programmed in terms of interfaces, not implementations
DAO interface (nooz.business.DAO)
127. Persistence–DAO Interface Transaction Lifecycle Methods:
begin(), close(), commit(), isActive(), isClosed(), rollback()
Top Level Application Methods:
createUser(), findUser(), findUsers()
Is it reasonable to separate these concepts?
Absolutely!
Tradeoffs always exist
128. Persistence–DAOFactory Interface In a web environment, it is important to minimize the amount of time resources are reserved for a specific user:
Holding precious resources across requests is not a scalable strategy
Connection pools are the usual mechanism for dealing with this issue
But acquiring and releasing connections from a pool can be error prone
Answer: provide higher level management
129. Persistence–DAOFactory Interface From an API perspective, very simple:
public DAO getDAO()
Implementation perspective – very useful:
Provide DAO instances for short lived (typically single transaction) requirements
Business logic using DAO does not have to worry about error conditions causing resource leakage
Allocated resources freed when DAO instance is finished
130. Persistence–DAOFactory Selection In the “Da Nooz” application, DAOFactory implementation selection is a configuration option:
Application assember picks a “listener” to run at startup time
Listener makes an implementation available as a servlet context attribute
Application uses generic DAO interface
Implementation selection can be deferred to container configuration time
131. Persistence–DAOFactory Operation DAOFactory implementation is a servlet context attribute
For each request, a Filter asks DAOFactory for a DAO for this request
The Filter does not know or care about the actual DAOFactory implemetnation!
The Filter cleans up (by closing the DAO), even if the application throws an exception
132. Persistence — JDBC Implementation JdbcDAOFactory – hands out DAOs
Requires a javax.sql.DataSource to handle connection pooling
Example code uses a JNDI resource for this
JdbcDAO – instance per request
Connection not allocated until begin() is called (if request doesn't need one)
Connection returned to pool (if used) when close() is called (by DAOFilter in a web application environment)
133. Persistence – JDBC Implementation JdbcHandler – Programming queries directly with JDBC is tedious
Get connection, get statement, get result set, process each row, close all objects
JdbcDAO offers an easy-to-use query() method to hide all this complexity
Takes SELECT statement, parameters, and JdbcHandler instance
Handler called once per selected row
Hollywood Principle -- “Don't call us, we'll call you”
134. Persistence – JDBC Implementation JdbcUser, JdbcChannel, JdbcItem
Implementation specific persistent objects
findXxx() contains embedded SQL for SELECT
remove() contains embedded SQL for DELETE
save() contains embedded SQL for INSERT or UPDATE
For database independence, some people abstract SQL statements to properties file
135. Persistence–Decision Results Persistence tier supplies a “persistence independent” API to business logic tier
Persistence tier is independent of view tier implementation technology
No ties to Struts Framework APIs!
Changes to persistence implementation details hidden inside an abstract API
Business tier is “mostly” independent of persistence tier implementation decisions
136. Business Logic Choices Business logic for “Da Nooz” is very simple
Encapsulated as methods on a single class (nooz.business.logic.Logic)
Each method accepts parameters:
DAO for the current request
Primary keys (as necessary)
DTO containing name/value pairs
137. Data Transfer Object Choices Persistence layer exposes User, Channel, and Item as abstractions of the underlying persistent data
Business logic expects java.util.Map parameters for name/value pairs:
Avoids linkage to Struts APIs that would lock it to web app use only
Could have used DynaBean directly
BeanUtils.copyProperties() useful for bulk transfer of name/value pairs w/conversion
138. View Tier Decisions Technology for markup generation
Layout management strategy
Form bean strategy
Input validation strategy
Localization strategy
139. View Tier – Markup Generation Chose to use JavaServer Pages
Popular, well understood, widely deployed
Struts tag libraries support this platform
JSP Standard Tag Library (JSTL)
Used in RSS rendering for access to EL
Struts offers a struts-el tag library that supports EL evaluation on JSP 1.2 containers
JSP 2.0 will support EL evaluation everywhere
140. View Tier – XML Markup “Da Nooz” normally renders HTML for the user's management activities
It also has facilities to directly create RSS feeds directly, in multiple formats
This is done using a JSP page as a template:
/rss/version-0_91.jsp
/rss/version-1_0.jsp
Templates pull data with JSTL tags
141. View Tier – Layout Management Chose to use Tiles Framework
<definition name=”.layout.basic”
page=”/layout/basic.jsp”>
<put name=”title” value=”Da Nooz”/>
<put name=”header”
value=”/tiles/header.jsp”/>
<put name=”footer”
value=”/tiles/footer.jsp”/>
<put name=”menu”
value=”/tiles/blank-menu.jsp”/>
<put name=”body”
value=”/tiles/blank-body.jsp”/>
</definition>
142. View Tier – Layout Management Actual formatting is in “/layout/basic.jsp”
<table width=”800” class=”basic-background”>
<tr><td colspan=”2” class=”basic-header”>
<tiles:insert attribute=”header”/>
</td></tr>
<tr><td width=”20%” class=”basic-menu”>
<tiles:insert attribute=”menu”/></td>
<td width=”80%” class=”basic-body”>
<tiles:insert attribute=”body”/></td>
</tr>
<tr><td colspan=”2” class=”basic-footer”>
<tiles:insert attribute=”footer”/
</td></tr>
</table>
143. View Tier – Layout Management Tiles can extend previous definitions
<definition name=”.layout.loggedon”
extends=”.layout.basic”>
<put name=”menu”
value=”/tiles/loggedon-menu.jsp”/>
</definition>
<definition name=”.menu”
extends=”.layout.loggedon”>
<put name=”title” value=”Main Menu”/>
<put name=”body”
value=”/pages/menu.jsp”/>
</definition>
144. View Tier – Layout Management Individual pages (/pages/menu.jsp) provide only the content for their tile
Concept is very similar to how portal servers aggregate content from multiple portlets
Can easily create portals with Tiles
145. View Tier – Form Beans DynaBeans avoid need to create separate classes for each form (and tie validation rules in as well):
<form-bean name=”logonForm”
type=”o.a.s.v.DynaValidatorForm”>
<form-property name=”username”
type=”java.lang.String”/>
<form-property name=”password”
type=”java.lang.String”/>
...
</form-bean>
146. View Tier – Input Validation Struts utilizes the commons-validator framework to support validation on input form fields
Validation checks always performed on the server side, before control passes to your Action
Framework can optionally generate client-side JavaScript for some or all of the tests
147. View Tier – Input Validation Validation rules described in a config file:
<form name=”logonForm”>
<field property=”username”
depends=”required,minlength,maxlength”> ...
<field property=”password” ...> ...
</form>
148. View Tier – Input Validation Matched by name to fields in the form:
<html:form action=”/logon/process” ...>
...
<html:text property=”username” .../>
...
<html:password property=”password” ...>
...
</form>
149. View Tier – Input Validation Client-side tests are easily incorporated
<html:form action=”/logon/process” ...
onsubmit=”return validateLogonForm(this)”>
...
</form>
<html:javascript formName=”logonForm” .../>
150. View Tier – Localization All of the prompts and messages in “Da Nooz” are localizable
Tag in JSP page specifies a message key
<bean:message key=”common.prompt.username”/>
Message text is defined in an application properties files (Resource Bundles)
common.prompt.username = Username:
Character Encoding set to “UTF-8”
<%@ page contentType=”text/html;charset=”UTF-8” %>
151. View Tier – Localization Actions can localize messages too:
public class MyAction ... {
public void execute(...) {
...
Locale locale = request.getLocale();
MessageResources messages =
getResources(request);
String message =
messages.getMessage(locale, “the.key”);
throw new FooException(message);
...
}
}
152. Controller Tier Decisions Mapping logical names to physical resources
REST-ful URLs for RSS feeds
153. Controller – Name Mapping As we have seen, the Struts configuration files can isolate the “logical” names for various resources from their “physical” name or location
Nevertheless, it is convenient, when initially developing an application, to establish a standardized logical naming strategy
Consider the “channel” page that displays a particular channel's information
154. Controller – Name Mapping Model Tier Concepts for Channel:
Channel.java – Persistence tier interface
XxxChannel.java – Persistence tier implementation of type Xxx
155. Controller – Name Mapping View Tier Concepts for Channel:
channel – Name of global <forward>
.channel – Name of tile definition
/pages/channel.jsp – Path to JSP page for body tile (context relative)
ChannelForm – Name of form bean (and key to validation rules)
channel.xxxxx – Localizable message strings specific to this form
156. Controller – Name Mapping Controller Tier Concepts for Channel:
/channel/setup – Action path for “setup” action, which will forward to the view tier page
/channel/process – Action path for “process” action, which will perform the required transaction
The details of your conventions are not as important as having them, so that logical names are more predictable
157. Controller – REST-ful URLs Proponents of the Representational State Transfer (REST) view of web architecture suggest that all resources have meaningful and persistent URLs
We have seen that Struts de-emphasizes this, because the URL seen by the user is normally the action they last submitted to
The RSS feeds created by “Da Nooz”, though, should have such URLs if possible
158. Controller – REST-ful URLs Using standard Struts facilities, the URL would need to include the action path of the setup action (/nooz/feed.do)
What we would like is something easier to remember:
http://foo.com/nooz/rss?username=user
&channelname=main
159. Controller – REST-ful URLs How can this be accomplished?
Web server redirect directives
Separate servlet mapped to “/rss”
Filter that forwards requests for “/rss” to “/nooz/feed.do” inside the web application (Servlet 2.3 or later)
The third technique was employed in “Da Nooz”, and is generally applicable whenever you need REST-ful URLs in a Struts based application
160. Controller – REST-ful URLs Filters can chain or forward:
public class ForwardingFilter implements Filter {
public void doFilter(...) {
...
if (is-mappable-request-url?) {
RequestDispatcher rd = ...;
rd.forward(request, response);
} else {
chain.doFilter(request, response);
}
}
}
161. Struts and JavaServer Faces
162. Struts and JavaServer Faces JavaServer Faces isa new API undergoing standardization as JSR-127 in the Java Community Process
Currently in Public Draft 2 State
EA4 release of reference implementation available as part of the Java Web Services Developer Pack 1.2
Plan is to go final by the end of this year
I am co-spec-lead on the JSR
163. Struts and JavaServer Faces JavaServer Faces is a server side UI component framework for Java web apps
So there are overlaps in functionality with the Struts features discussed today
JSP tags for rendering (Struts HTML library)
Concept of managing separation of presentation and business logic in configuration files
Indeed, Struts has had impact on how JavaServer Faces approaches many issues
164. Struts and JavaServer Faces JavaServer Faces has some unique capabilities that Struts does not have:
Rendering API that is independent of JSP
Rendering API that is independent of HTML
Likewise, Struts has some unique capabilities that JavaServer Faces does not have:
Tiles Framework
Validator Framework
165. Struts and JavaServer Faces So, is JavaServer Faces going to standardize Struts out of existence?
Absolutely not!
Well then, can I use the technologies together?
For sure!
How can I do that?
I'm glad you asked ...
166. Struts and JavaServer Faces If you have existing applications (and/or expertise) based on Struts, you can treat JavaServer Faces as an alternative view tier component library
Thus, maintaining your investment in the controller and model tiers
An integration library has been developed to make this very easy
Available on the Struts web site
167. Struts and JavaServer Faces Design goal of the integration library
Allow you to take an existing Struts app
Migrate your JSP pages from the Struts HTML tags to JavaServer Faces tags
One page at a time ...
And not have to touch your Actions or business logic
This goal has been achieved. Proof of concept is a converted struts-example that uses the new component capabilities
168. Struts and JavaServer Faces That being said, you can use JavaServer Faces directly and achieve many of the “separation of concerns” benefits that Struts provides
The “jsf-pure” demonstration is the same application converted to be based solely on JavaServer Faces
So, this should trigger some interesting innovation in future versions of Struts
Now that 1.1 is done, we can go for it
169. Summary
170. Summary We have covered a lot of ground ...
Background technologies
Basics of Struts features
Architectural decisions when designing large scale applications
Implementation of those decisions in a more advanced Struts demo app
A brief look at a future technology that will be affecting Struts
171. Summary It should be clear by now that Struts is a mature, stable technology base for designing and building scalable, maintainable web applications
Roughly 75,000 downloads per month
There are many web and print resources to provide more information, and much expertise in Struts available
172. Summary The STRUTS-USER mailing list in particular is very helpful to beginners who are learing to use Struts capabilities
Over 2700 subscribers (largest user list at jakarta.apache.org)
Friendly atmosphere
Most Struts developers hang out here too
Good luck with your current and future use of Struts!
173. Information Resources
174. Resources Struts Main Web Site:
http://jakarta.apache.org/struts/
Struts Resources Pages:
http://jakarta.apache.org/struts/resources/
Struts-Faces Integration Library
http://jakarta.apache.org/builds/
jakarta-struts/release/struts-faces/
Java Web Services Developer Pack
http://java.sun.com/webservices/
175. Resources HTTP/1.1 Specification
http://www.rfc-editor.org/rfc/rfc2616.txt
HTTP BASIC and DIGEST Authentication
http://www.rfc-editor.org/rfc/rfc2617.txt
HTML/4.01 Specification
http://www.w3.org/TR/html401
Cascading Style Sheets Level 2 Specification
http://www.w3.org/TR/REC-CSS2
176. Resources Cross Site Scripting Vulnerabilities:
http://www.cert.org/advisories/CA-2000-02.html
http://www.cert.org/tech_tips /malicious_code_mitigation.html
177. Resources XML/1.0 (Second Edition) Specification
http://www.w3.org/TR/REC-xml
XML Namespaces Specification
http://www.w3.org/TR/REC-xml-names
XML Information Set Specification
http://www.w3.org/TR/xml-infoset
XML Base Specification:
http://www.w3.org/TR/xmlbase
178. Resources Associating Stylesheets With XML Docs
http://www.w3.org/TR/xml-stylesheet
XSL Transformations (XSLT) Specification
http://www.w3.org/TR/xslt
XML Path Language (Xpath) Specification
http://www.w3.org/TR/xpath
Web Content Accessibility Guidelines
http://www.w3.org/TR/WAI-WEBCONTENT
179. Resources ECMAScript Language Specification (3rd Edition)
http:/www.ecma-international.org/publications/standards/ECMA/262.HTM
180. Resources Java Language Tutorial
http://java.sun.com/docs/books/tutorial/
Java Web Services Tutorial
Useful chapters on all the relevant Java APIs and technologies!
http://java.sun.com/webservices/tutorial.html
Servlets
http://java.sun.com/products/servlet/
JavaServer Pages:
http://java.sun.com/products/jsp/
181. Resources JSP Standard Tag Library (JSTL)
http://java.sun.com/products/jsp/jstl/
JavaServer Faces
http://java.sun.com/j2ee/javaserverfaces/
