  1. Architecture validation and Physics performance Carlo Schiavi

  2. Purpose of this study The purpose of the analyses presented here is: • to validate MCC-DSM architecture, studying its performance and robustness under nominal conditions, and comparing them with the ones obtainable from the MCC-D2 that was implemented using a less dense technology (DMILL); • to evaluate inefficiencies of the MCC in pessimistic working conditions but with a realistic physical content of data and to estimate their impact on the analysis and reconstruction of interesting physical channels.

  3. Architecture validation: layout Insertable layout: • Barrel: 3 layers with 5.05, 8.75 and 12.25 cm radius. • End-Caps: 3 disks placed at 49.5, 58.0 and 65.0 cm along Z axis. • Pixel size: 50x300µm2 for the b-layer and 50x400µm2 in the others modules.

  4. Architecture validation: event sample Physical conditions: • event sample: 1500 b-jets from Higgs decays (mH=100GeV/c2); • average pile-up events: 24; • LEV1 selection rate: 100 kHz; • electronic noise occupancy: 10-5Hit/Pixel/BCO. Front-End configuration: • ideal model, no inefficiencies. SimPix simulation scope: • single b-layer module at =0. Worst case conditions for the MCC at nominal occupancy

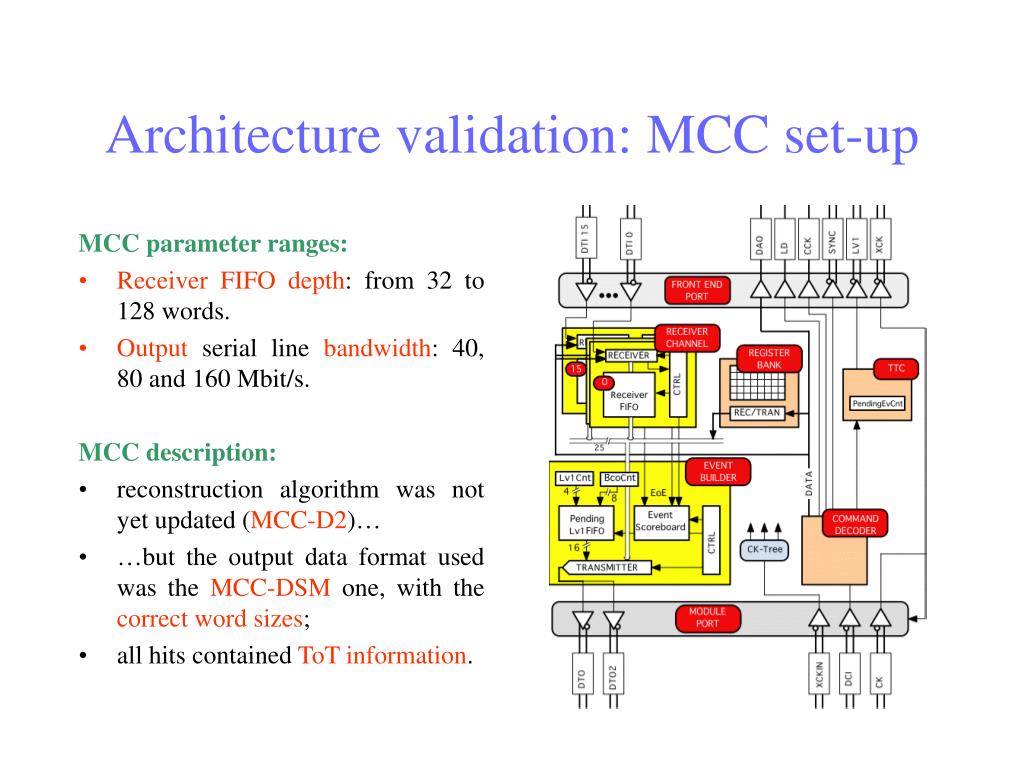

  5. Architecture validation: MCC set-up MCC parameter ranges: • Receiver FIFO depth: from 32 to 128 words. • Output serial line bandwidth: 40, 80 and 160 Mbit/s. MCC description: • reconstruction algorithm was not yet updated (MCC-D2)… • …but the output data format used was the MCC-DSM one, with the correct word sizes; • all hits contained ToTinformation.

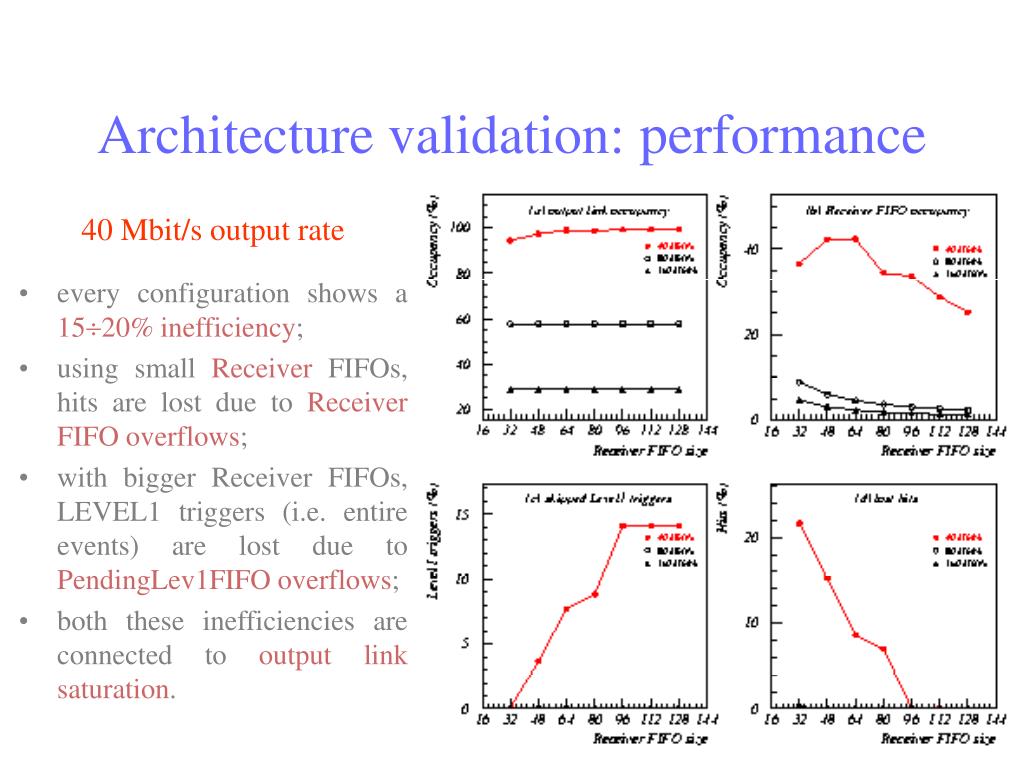

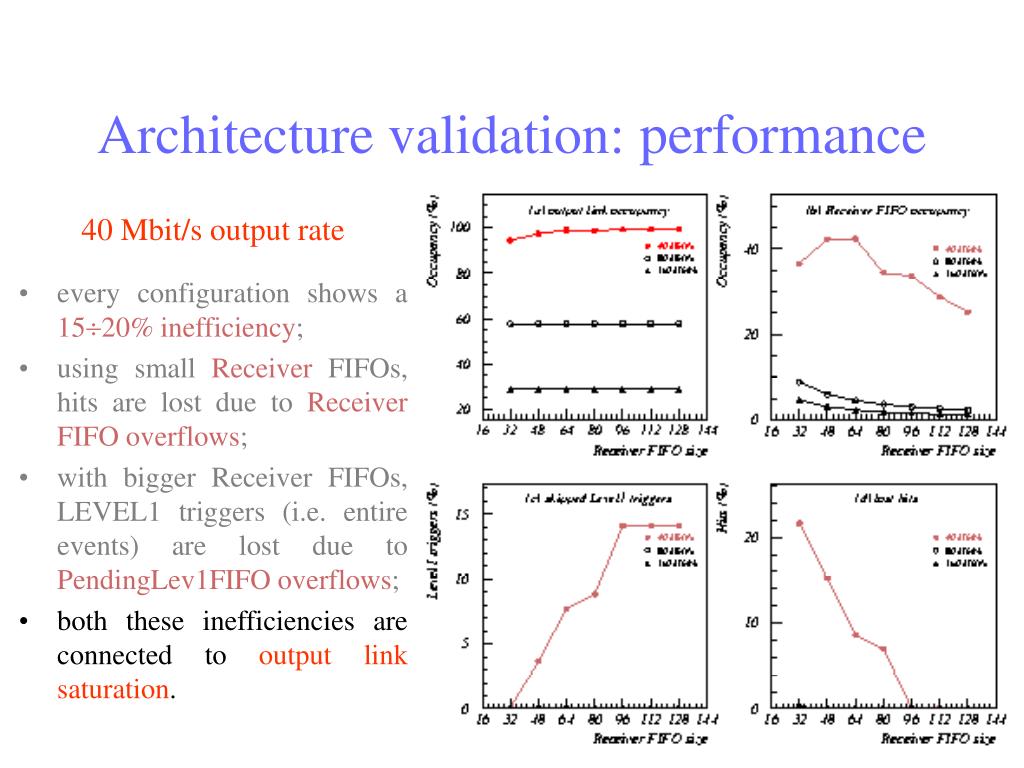

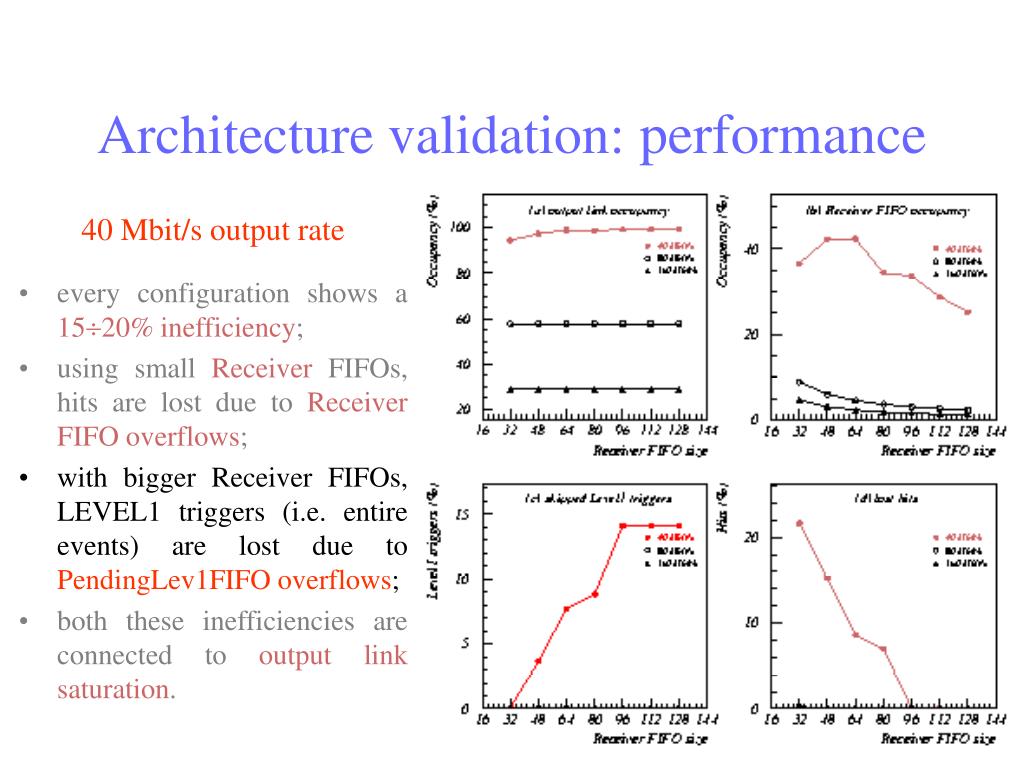

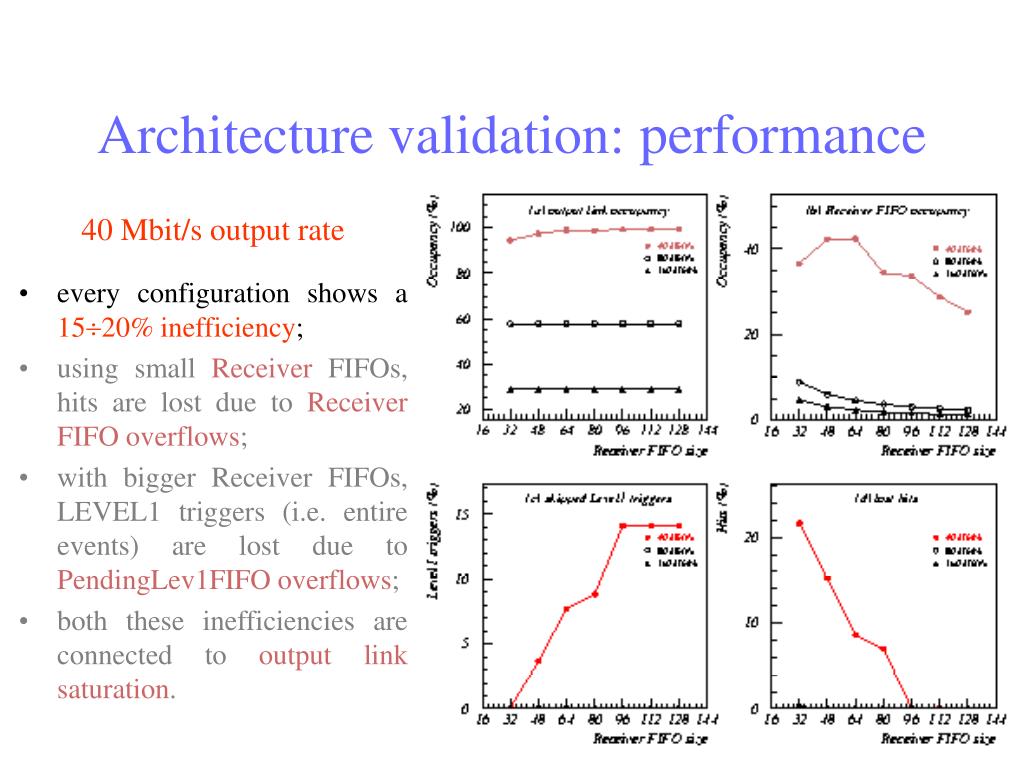

  6. Architecture validation: performance 40 Mbit/s output rate • every configuration shows a1520% inefficiency; • using small ReceiverFIFOs, hits are lost due to Receiver FIFO overflows; • with bigger Receiver FIFOs, LEVEL1 triggers (i.e. entire events) are lost due to PendingLev1FIFO overflows; • both these inefficiencies are connected to output link saturation.

  7. Architecture validation: performance 40 Mbit/s output rate • every configuration shows a 1520% inefficiency; • using small ReceiverFIFOs, hits are lost due to Receiver FIFO overflows; • with bigger Receiver FIFOs, LEVEL1 triggers (i.e. entire events) are lost due to PendingLev1FIFO overflows; • both these inefficiencies are connected to output link saturation.

  8. Architecture validation: performance 40 Mbit/s output rate • every configuration shows a1520% inefficiency; • using small Receiver FIFOs, hits are lost due to Receiver FIFO overflows; • with bigger Receiver FIFOs, LEVEL1 triggers (i.e. entire events) are lost due to PendingLev1FIFO overflows; • both these inefficiencies are connected to output link saturation.

  9. Architecture validation: performance 40 Mbit/s output rate • every configuration shows a1520% inefficiency; • using small ReceiverFIFOs, hits are lost due to Receiver FIFO overflows; • with bigger Receiver FIFOs, LEVEL1 triggers (i.e. entire events) are lost due to PendingLev1FIFO overflows; • both these inefficiencies are connected to output link saturation.

  10. Architecture validation: performance 40 Mbit/s output rate • every configuration shows a1520% inefficiency; • using small ReceiverFIFOs, hits are lost due to Receiver FIFO overflows; • with bigger Receiver FIFOs, LEVEL1 triggers (i.e. entire events) are lost due to PendingLev1FIFO overflows; • both these inefficiencies are connected to output link saturation.

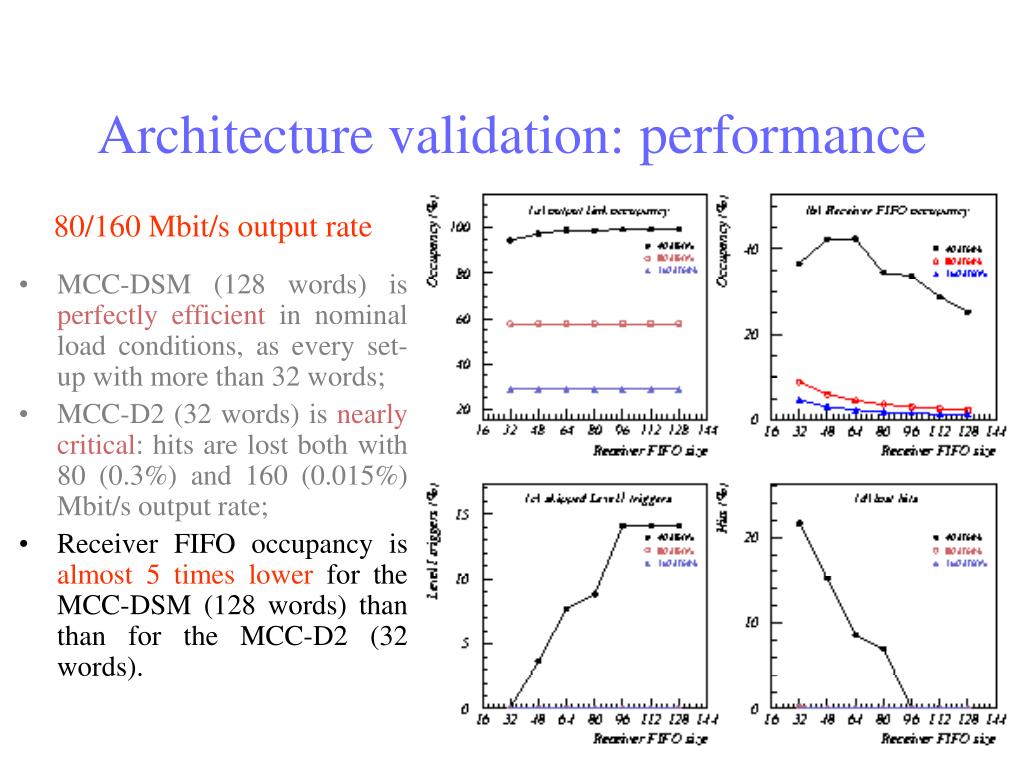

  11. Architecture validation: performance 80/160 Mbit/s output rate • MCC-DSM (128 words) is perfectly efficientin nominal load conditions, as every set-up with more than 32 words; • MCC-D2 (32 words) is nearly critical: hits are lost both with 80 (0.3%) and 160 (0.015%) Mbit/s output rate; • Receiver FIFO occupancy is almost 5 times lower for the MCC-DSM (128 words) than than for the MCC-D2 (32 words).

  12. Architecture validation: performance 80/160 Mbit/s output rate • MCC-DSM (128 words) is perfectly efficient in nominal load conditions, as every set-up with more than 32 words; • MCC-D2 (32 words) is nearly critical: hits are lost both with 80 (0.3%) and 160 (0.015%) Mbit/s output rate; • Receiver FIFO occupancy is almost 5 times lower for the MCC-DSM (128 words) than than for the MCC-D2 (32 words).

  13. Architecture validation: performance 80/160 Mbit/s output rate • MCC-DSM (128 words) is perfectly efficientin nominal load conditions, as every set-up with more than 32 words; • MCC-D2 (32 words) is nearly critical: hits are lost both with 80 (0.3%) and 160 (0.015%) Mbit/s output rate; • Receiver FIFO occupancy is almost 5 times lower for the MCC-DSM (128 words) than than for the MCC-D2 (32 words).

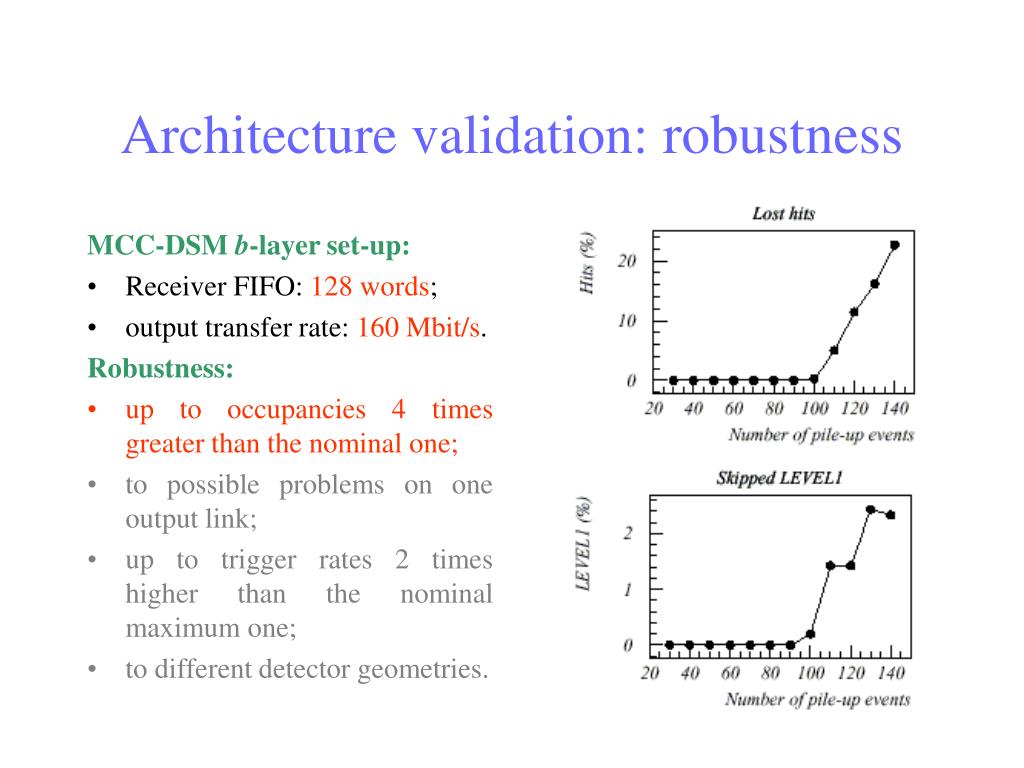

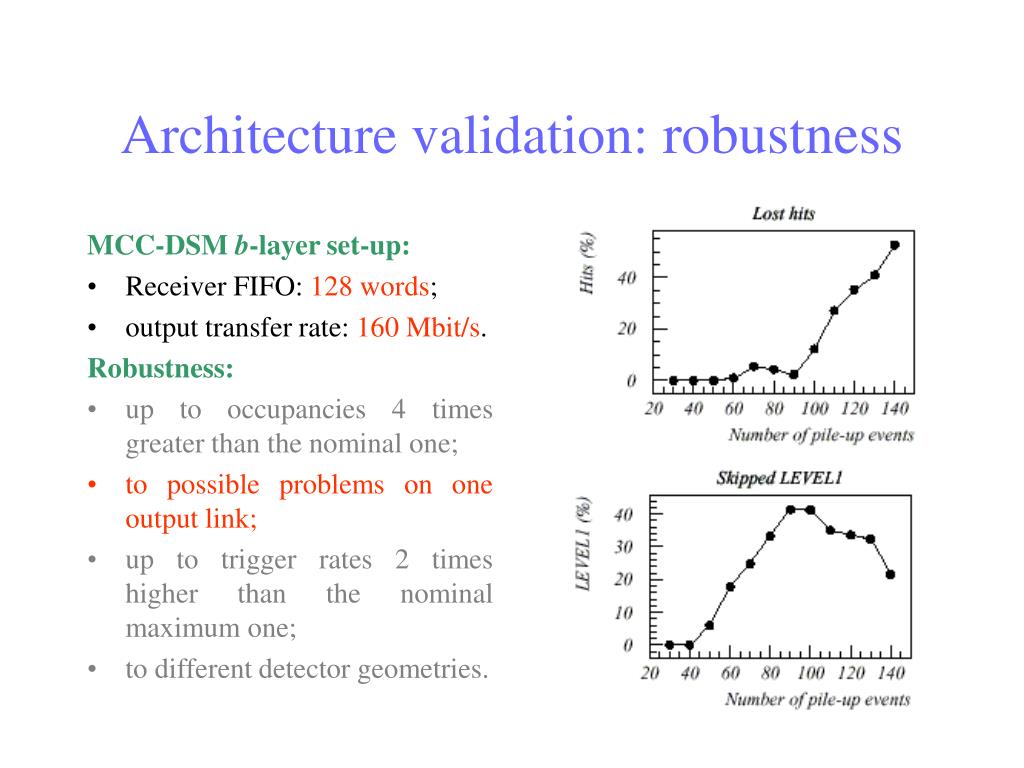

  14. Architecture validation: robustness MCC-DSM b-layer set-up: • Receiver FIFO: 128 words; • output transfer rate: 160 Mbit/s. Robustness: • up to occupancies 4 times greater than the nominal one; • to possible problems on one output link; • up to trigger rates 2 times higher than the nominal maximum one; • to different detector geometries.

  15. Architecture validation: robustness MCC-DSM b-layer set-up: • Receiver FIFO: 128 words; • output transfer rate: 160 Mbit/s. Robustness: • up to occupancies 4 times greater than the nominal one; • to possible problems on one output link; • up to trigger rates 2 times higher than the nominal maximum one; • to different detector geometries.

  16. Architecture validation: robustness MCC-DSM b-layer set-up: • Receiver FIFO: 128 words; • output transfer rate: 160 Mbit/s. Robustness: • up to occupancies 4 times greater than the nominal one; • to possible problems on one output link; • up to trigger rates 2 times higher than the nominal maximum one; • to different detector geometries.

  17. Architecture validation: robustness MCC-DSM b-layer set-up: • Receiver FIFO: 128 words; • output transfer rate: 160 Mbit/s. Robustness: • up to occupancies 4 times greater than the nominal one; • to possible problems on one output link; • up to trigger rates 2 times higher than the nominal maximum one; • to different detector geometries. No hits nor triggers lost at nominal pile-up level, even working with a LEVEL1 selection rate of 200 kHz.

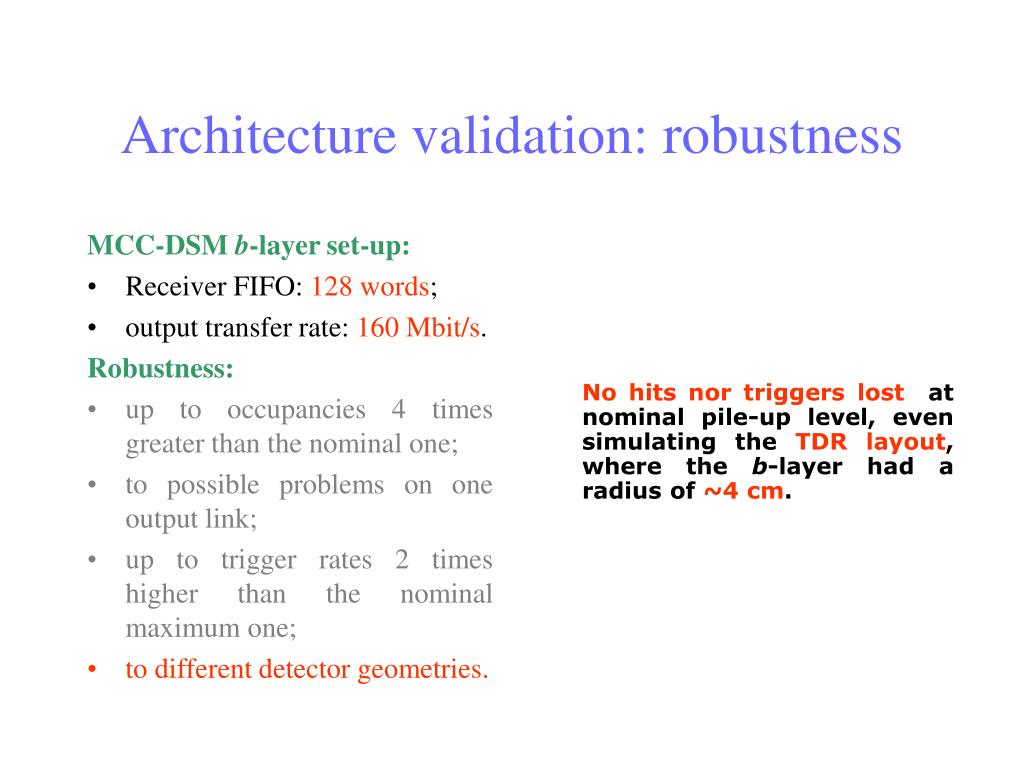

  18. Architecture validation: robustness MCC-DSM b-layer set-up: • Receiver FIFO: 128 words; • output transfer rate: 160 Mbit/s. Robustness: • up to occupancies 4 times greater than the nominal one; • to possible problems on one output link; • up to trigger rates 2 times higher than the nominal maximum one; • to different detector geometries. No hits nor triggers lost at nominal pile-up level, even simulating the TDRlayout, where the b-layer had a radius of ~4 cm.

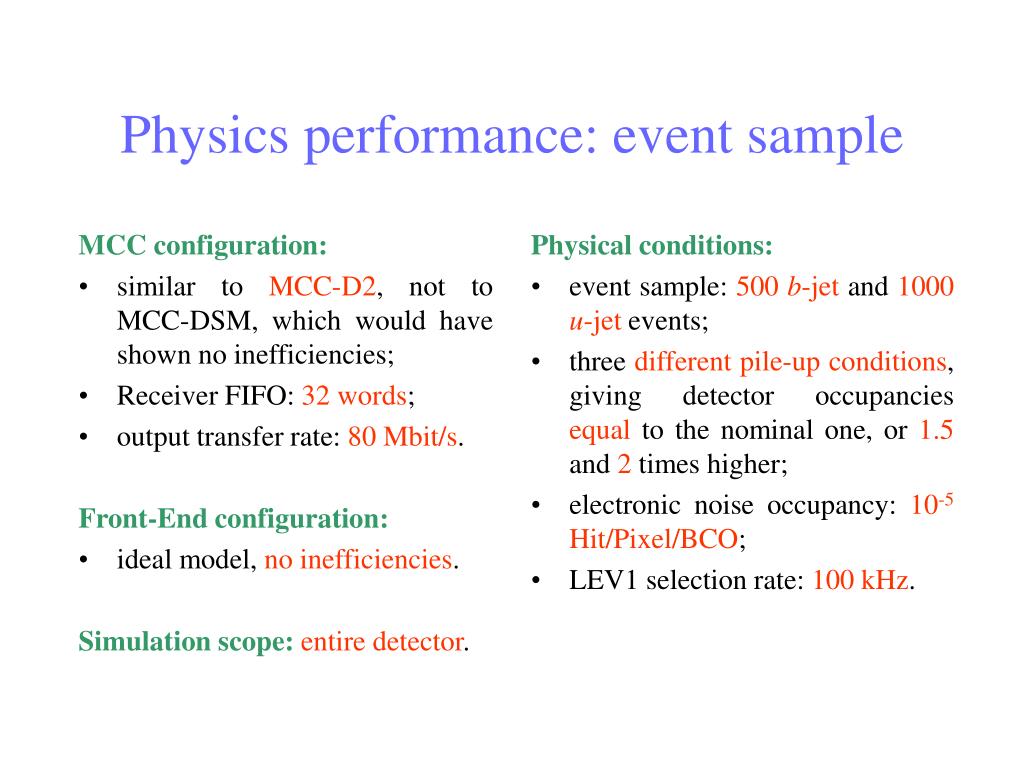

  19. MCC configuration: similar to MCC-D2, not to MCC-DSM, which would have shown no inefficiencies; Receiver FIFO: 32 words; output transfer rate: 80 Mbit/s. Front-End configuration: ideal model, no inefficiencies. Simulation scope:entire detector. Physical conditions: event sample: 500 b-jet and 1000 u-jet events; three different pile-up conditions, giving detector occupancies equal to the nominal one, or 1.5 and 2 times higher; electronic noise occupancy: 10-5Hit/Pixel/BCO; LEV1 selection rate: 100 kHz. Physics performance: event sample

  20. Physics performance: inefficiencies Results: • lost hits percentage grows with average detector occupancy; • inefficiencies are peaked on the b-layer; loss of space-points which mainly contribute to give a better resolution on impact parameter: we can expect an efficiency loss for track reconstruction and b-tagging algorithms. Maximum inefficiency: 3% Occupancy: equal to nominal one

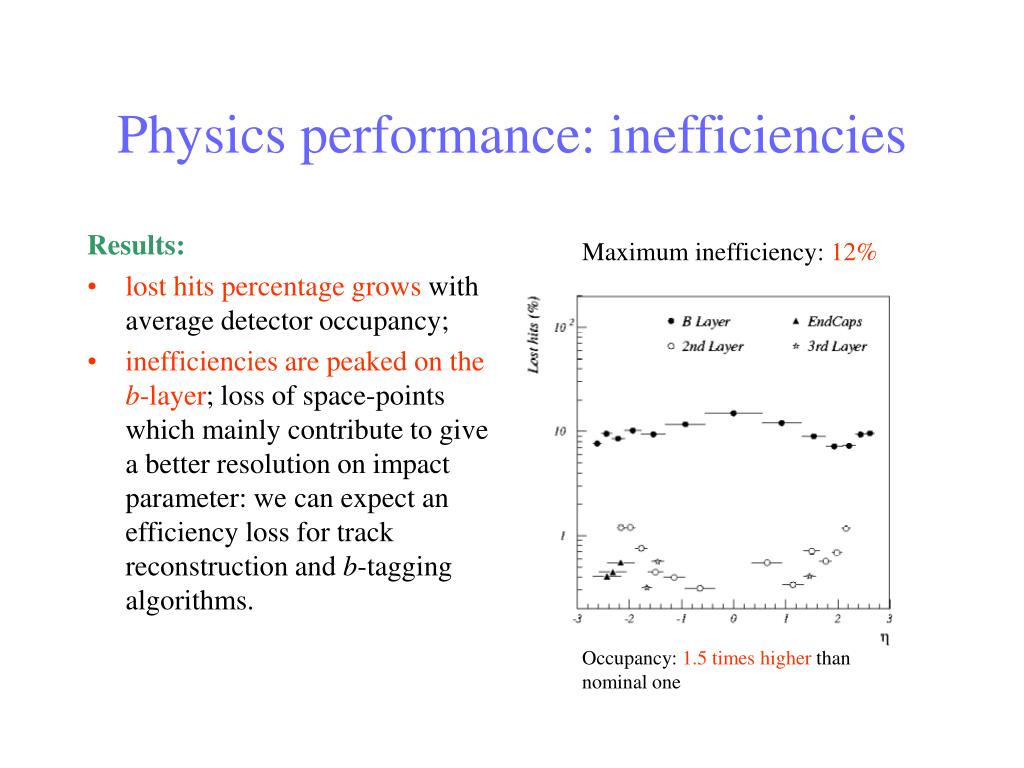

  21. Physics performance: inefficiencies Results: • lost hits percentage grows with average detector occupancy; • inefficiencies are peaked on the b-layer; loss of space-points which mainly contribute to give a better resolution on impact parameter: we can expect an efficiency loss for track reconstruction and b-tagging algorithms. Maximum inefficiency: 12% Occupancy: 1.5 times higher than nominal one

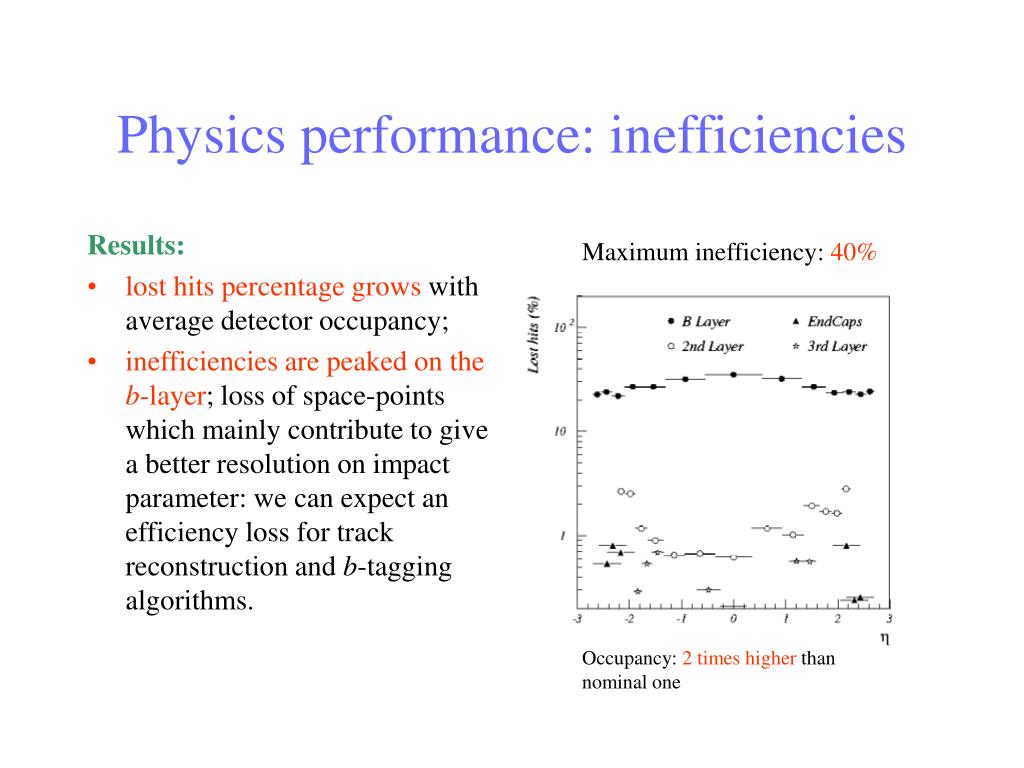

  22. Physics performance: inefficiencies Results: • lost hits percentage grows with average detector occupancy; • inefficiencies are peaked on the b-layer; loss of space-points which mainly contribute to give a better resolution on impact parameter: we can expect an efficiency loss for track reconstruction and b-tagging algorithms. Maximum inefficiency: 40% Occupancy: 2 times higher than nominal one

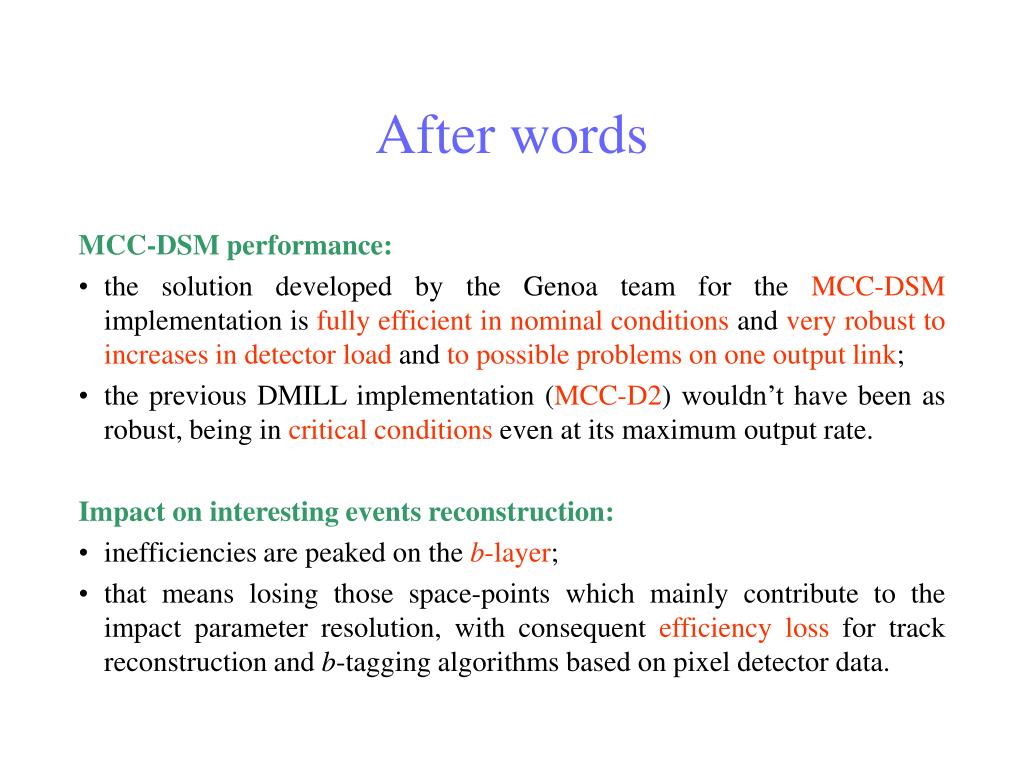

  23. After words MCC-DSM performance: • the solution developed by the Genoa team for the MCC-DSM implementation is fully efficient in nominal conditions and very robust to increases in detector load and to possible problems on one output link; • the previous DMILL implementation (MCC-D2) wouldn’t have been as robust, being in critical conditions even at its maximum output rate. Impact on interesting events reconstruction: • inefficiencies are peaked on the b-layer; • that means losing those space-points which mainly contribute to the impact parameter resolution, with consequent efficiency loss for track reconstruction and b-tagging algorithms based on pixel detector data.

  24. What’s next • Correctly evaluate Front-End inefficiencies and their impact: an up-to-date model of FE must be developed, to estimate the percentage of hit lost before they are transferred to the MCC; • repeat this kind of study using an updated model for MCC behaviour:new Receiver and EventBuilder algorithms must be correctly simulated… …anyway… the new features shouldn’t affect the results for MCC performance as: • FE inefficiencies can only reduce MCC load; • Receiver and EventBuilder new algorithms should prove more efficient than the old ones.
