  1. Overcoming the Internet Impasse through Virtualization Written by Thomas Anderson, Larry Peterson, Scott Shenker, Jonathan Turner IEEE Computer, April 2005 Presented by Eunsang Cho 2008. 09. 22.

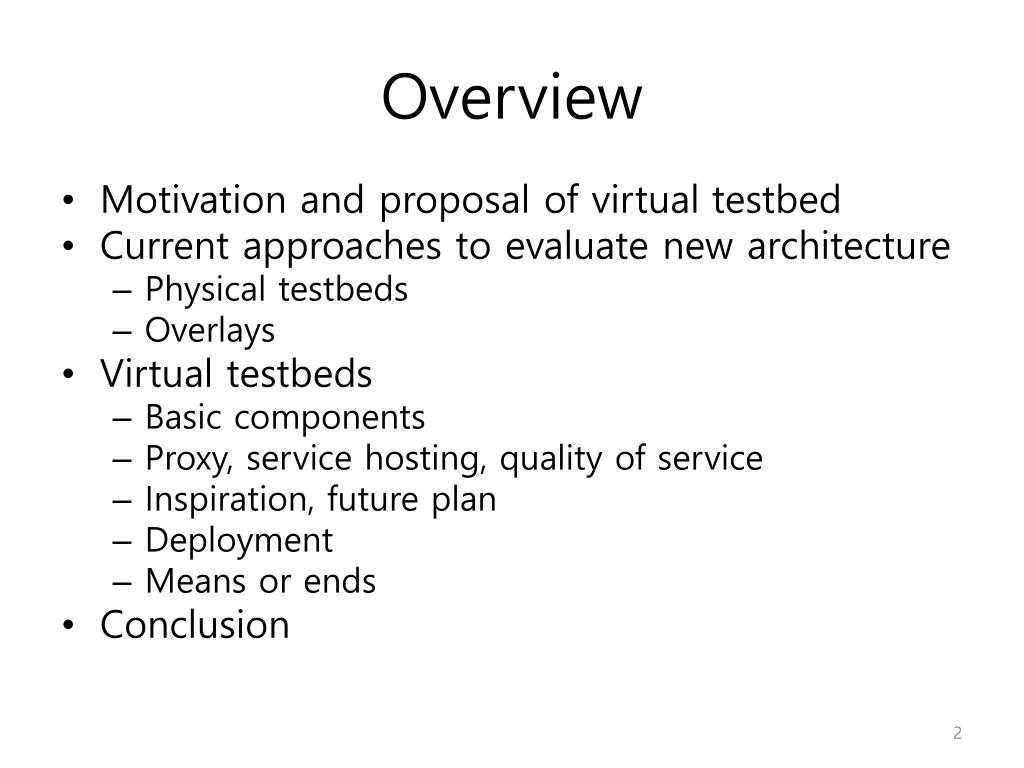

  2. Overview • Motivation and proposal of virtual testbed • Current approaches to evaluate new architecture • Physical testbeds • Overlays • Virtual testbeds • Basic components • Proxy, service hosting, quality of service • Inspiration, future plan • Deployment • Means or ends • Conclusion

  3. Motivation • Today’s Internet is facing many challenges. • Internet’s increasing ubiquity and centrality has brought with it a number of challenges. • But, Internet is so successful. • It is hard to change its architecture. • This has led to an increasing number of ad hoc workarounds.

  4. Impasse • Nevertheless, there seems little hope for major architectural changes – altering its basic architecture. • Impasse of the current Internet • Evaluation issue • Traditional testbeds have limitations. • Deployment issue • It is needed that an agreement of ISPs.

  5. Overcoming the Impasse • Three separate requirements • Easy experiment with new architectures on live traffic • A plausible deployment path for putting validated architectural ideas into practice. • Comprehensive solutions, addressing the broad range of current architectural problems

  6. Proposal • Virtual testbed • Supporting multiple simultaneous architectures • Serving all the communication needs of clients and servers • No need for universal architectural agreement • So more plausible scenario

  7. Current Approaches • Simulation and emulation • Without live traffic • Physical testbeds • Overlays

  8. Physical Testbeds • Production testbeds • Internet2 • Users have no choice about participating the experiment. Example of Internet2 – CalREN of CENIC

  9. Physical Testbeds • Research testbeds • DETER (Defense Technology Experimental Research) • Lack of real traffic • Using synthetically generated traffic • Utilizing dedicated transmission links • Involves substantial cost DETER uses Emulab.

  10. Overlays PlanetLab node architecture • PlanetLab • Advantages • Not limited geographically • Usage is voluntary • Not involve significant expenditures • Disadvantages • Overlays have been seen as a way to deploy narrow fixes to specific problems. • Overlays have been architecturally tame. • IP is assumed for the interoverlay protocol. • No dramatic architectural advancement. PlanetLab node distribution

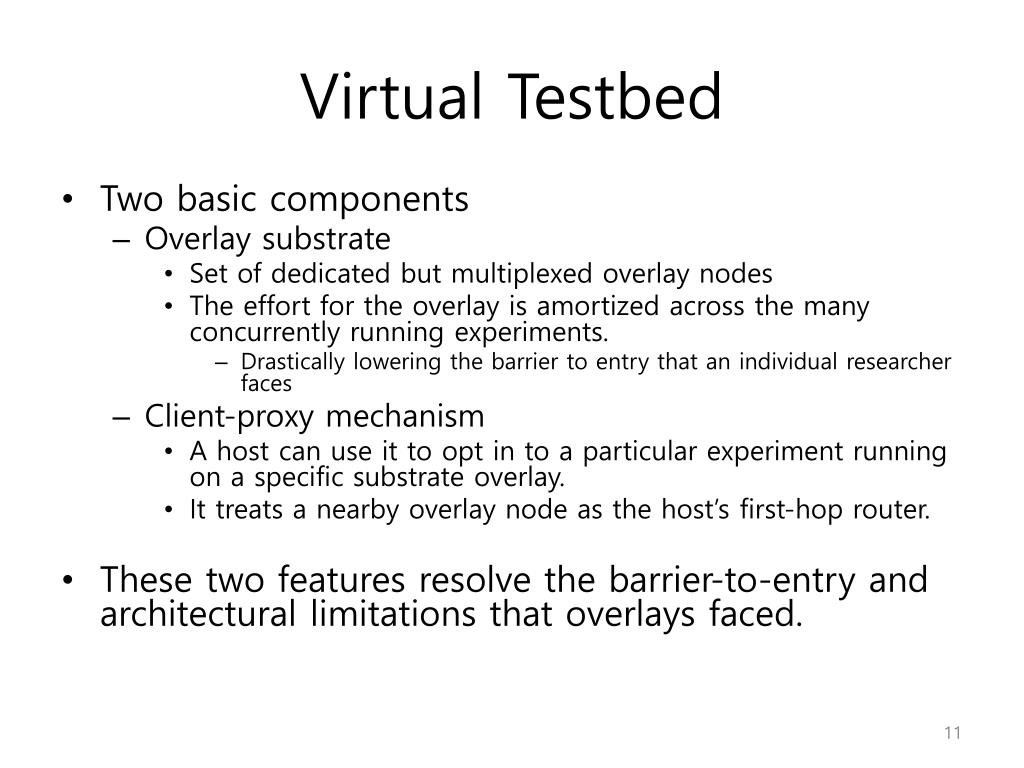

  11. Virtual Testbed • Two basic components • Overlay substrate • Set of dedicated but multiplexed overlay nodes • The effort for the overlay is amortized across the many concurrently running experiments. • Drastically lowering the barrier to entry that an individual researcher faces • Client-proxy mechanism • A host can use it to opt in to a particular experiment running on a specific substrate overlay. • It treats a nearby overlay node as the host’s first-hop router. • These two features resolve the barrier-to-entry and architectural limitations that overlays faced.

  12. Virtual Testbed • Some issues to explore • PlanetLab nodes clearly cannot compete with custom hardware. • Achieving sufficiently high throughput rates on PlanetLab nodes is challenging. • Overlay’s Virtual links cannot compete with dedicated links.

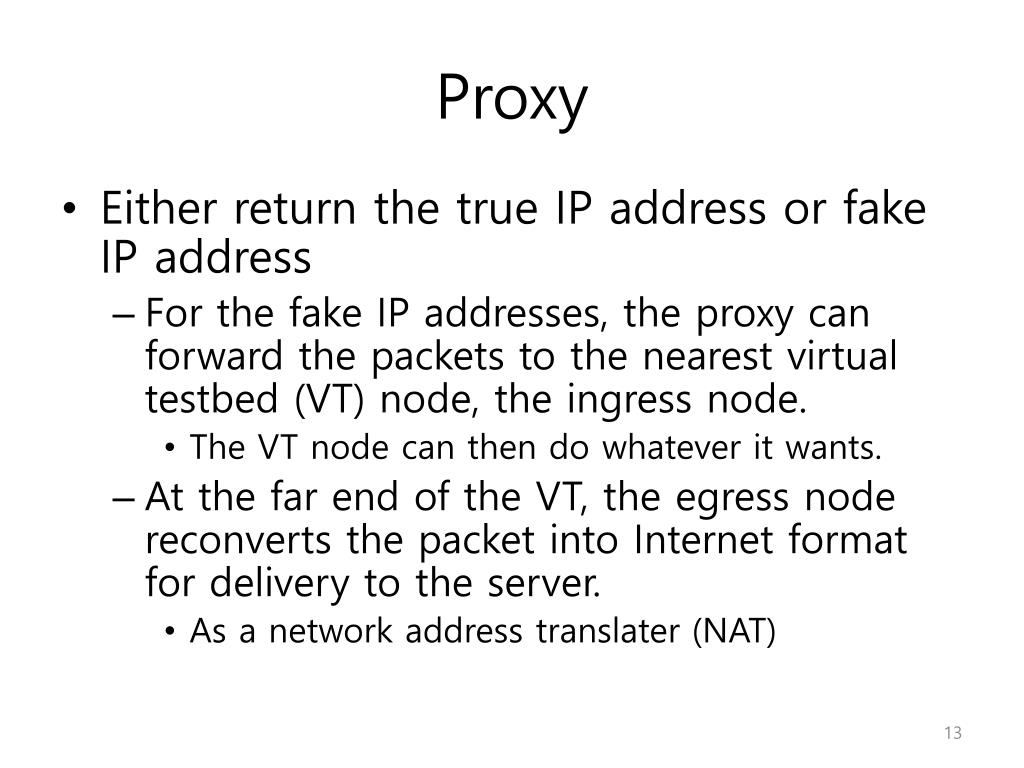

  13. Proxy • Either return the true IP address or fake IP address • For the fake IP addresses, the proxy can forward the packets to the nearest virtual testbed (VT) node, the ingress node. • The VT node can then do whatever it wants. • At the far end of the VT, the egress node reconverts the packet into Internet format for delivery to the server. • As a network address translater (NAT)

  14. Service Hosting • Service hosting to the clients outside VT • VT provides DNS resolution. • Some security issues must be resolved. • How to respect server address-based policy restrictions when the overlay shields the source’s IP address

  15. Quality of Service • Drawback • VT cannot control the quality of service (QoS) for packets traversing the virtual testbed. • However, it is not a fatal flaw. • Relative QoS • Simulation and emulation can effectively evaluate QoS. • Many other issues that involve routing and addressing warrant more urgent attention and better suit the VT approach.

  16. Inspiration • Ideas from • X-Bone • VT uses suite of tools supporting automated establishment and management of overlays. • The virtual Internet • Allows multiple levels of virtualization • But it remains closely tied to the current Internet architecture. • But different emphasis • VT focuses the virtualization of overlay nodes themselves. (vs. X-Bone) • VT does not tied to current Internet, it aims radically different architectures. (vs. virtual Internet)

  17. Future Plan • A high-perfomance backbone • Using dedicated MPLS tunnels on Internet2 • A set of scalable substrate routers and links provided through the National LambdaRail (NLR) National LambdaRail

  18. Future Plan • Two major advantages of high-speed backbone with PlanetLab • PlanetLab-based overlays serve as an access network for the backbone, bringing traffic from a large user community on to the backbone. • Developing and deploying the hardware does not gate the architectural work.

  19. Deployment • Traditional, discredited deployment • A next-generation architecture • Validation on a traditional testbed • Magical process of consensus and daring • Adopted by ISPs and router vendors alike

  20. Deployment • New deployment alternative • A new-generation service provider (NGSP) chooses a new architecture. • NGSP constructs an overlay supporting that architecture. • NGSP distributes proxy software to access its overlay. • If overlay is successful, NGSP offers direct access or current ISPs begin to support this new architecture.

  21. Deployment • Overlays offer an opportunity to radically change the architecture. • A single daring NGSP or long-running VT could accomplish this. • Seamless migration • Substantial advantage  attract more user  VT to dedicated • Collection of narrowly targeted overlay  coordination is needed.

  22. Virtualization:Means or Ends • The virtual testbed approach uses virtualization in two ways. • Virtual links is equivalent to a native network. • This frees users from their local ISP. • Network providers no longer need to deploy new functionality at every node. • Multiplexing overlay nodes greatly reduces the barrier to entry for any particular experiment.

  23. Virtualization:Means or Ends • Means • Architectural changes are rare. • Virtualization is means for architectural change. • Purist view • Architecture must have flexibility.

  24. Virtualization:Means or Ends • Ends • Internet changes constantly, with many coexisting components. • Virtualization can play a central role to support many components and constant change. • Pluralist view • Flexibility derives from adding or augmenting overlays.

  25. Conclusion • The canonical story of adopting new promising architecture evaluated by testbed experiments is no longer applies. • Narrow-focused research, empirical or incremental studies is insufficient to meet new Internet challenges. • Virtual testbed fosters a renaissance in applied architectural research that extends beyond incrementally deployable designs.
