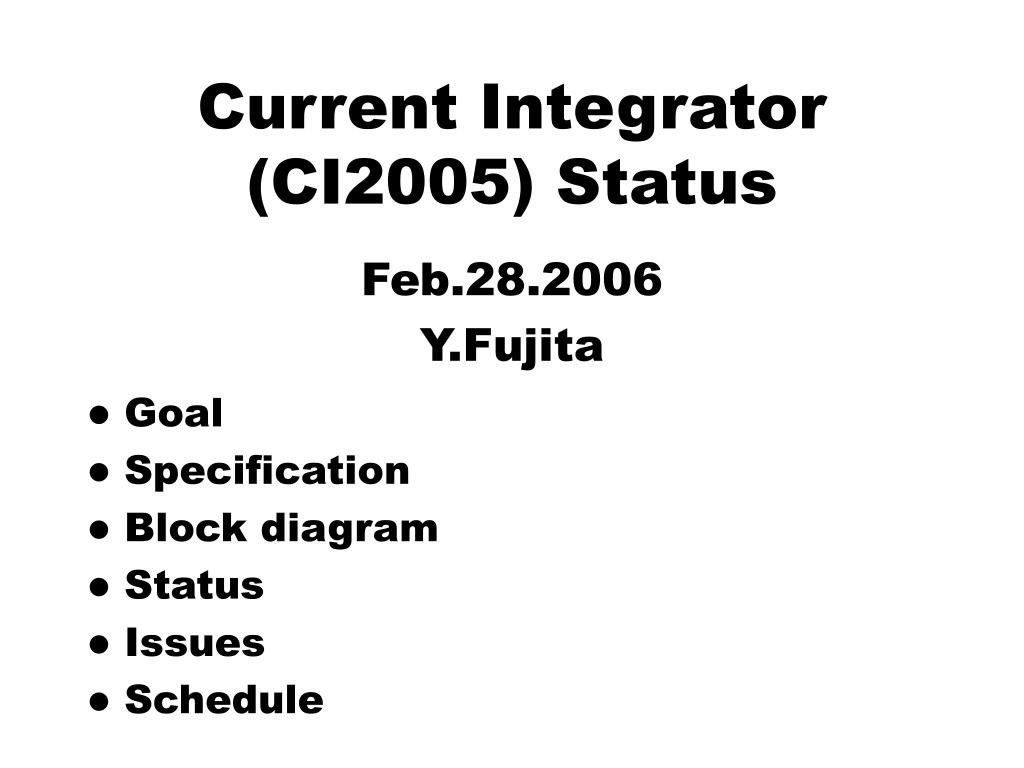

  1. Current Integrator (CI2005) Status • Goal • Specification • Block diagram • Status • Issues • Schedule Feb.28.2006 Y.Fujita

  2. Goal • Deadtimeless Current Integrator

  3. Specification • Maximum Clock Freq.: ~ a few MHz • Dynamic range : > 3V • Resolution : ~ 0.02% • INL : ~ 0.5% • Amp spec • Differential input/output • GB product : ~100MHz • Gain >70dB • TDC a few nsec resolution for test • TMC type

  4. Block diagram Timing control CI CI CI SW Delay latch Integrator out TDC out

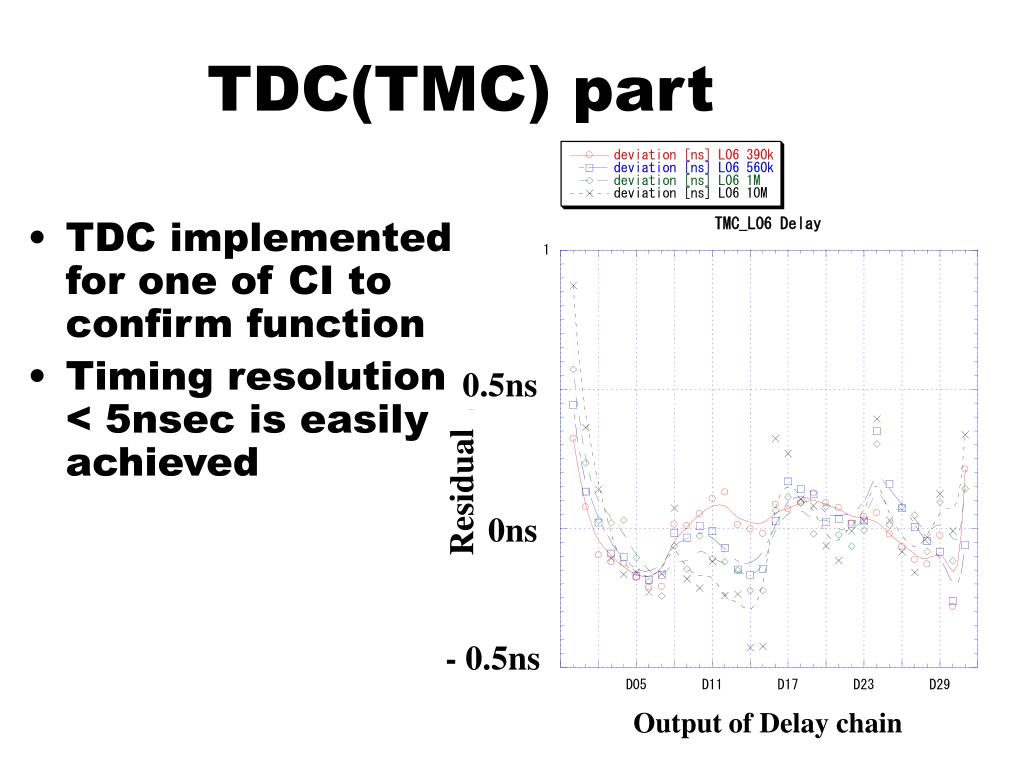

  5. TDC(TMC) part • TDC implemented for one of CI to confirm function • Timing resolution < 5nsec is easily achieved 0.5ns Residual 0ns - 0.5ns Output of Delay chain

  6. Status • Spec: Modified (TDC part added) • Simulation : Finished (CI only) • Layout : Ready (CI + TDC) • Submit : Jan 10th

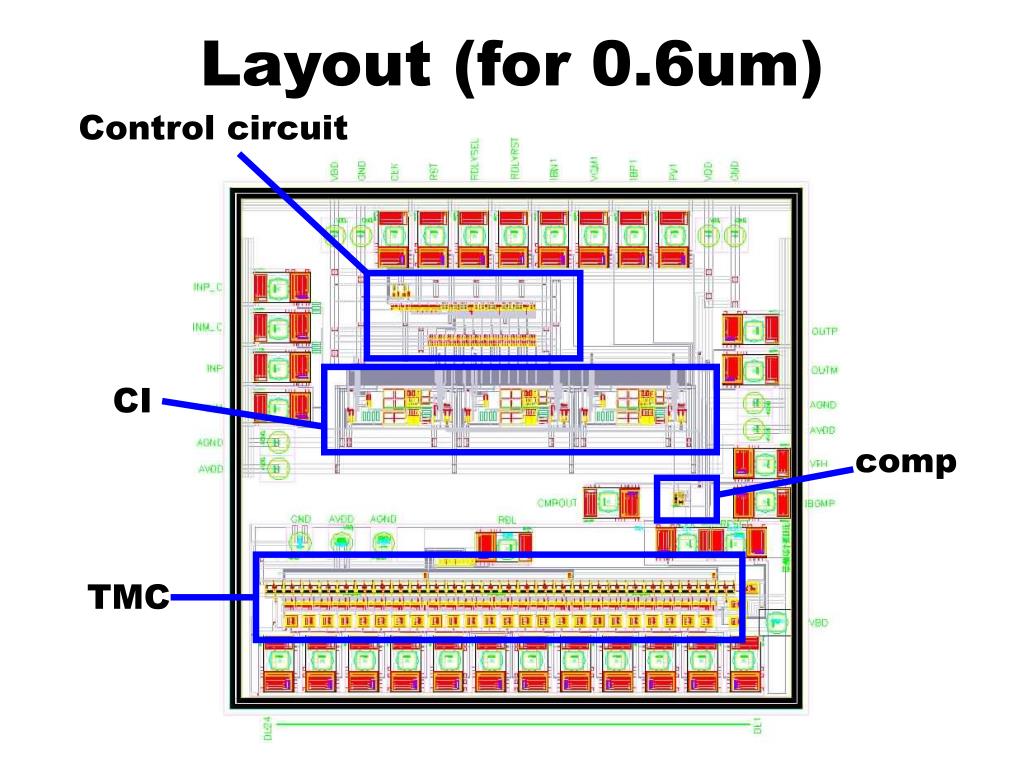

  7. Layout (for 0.6um) Control circuit CI comp TMC

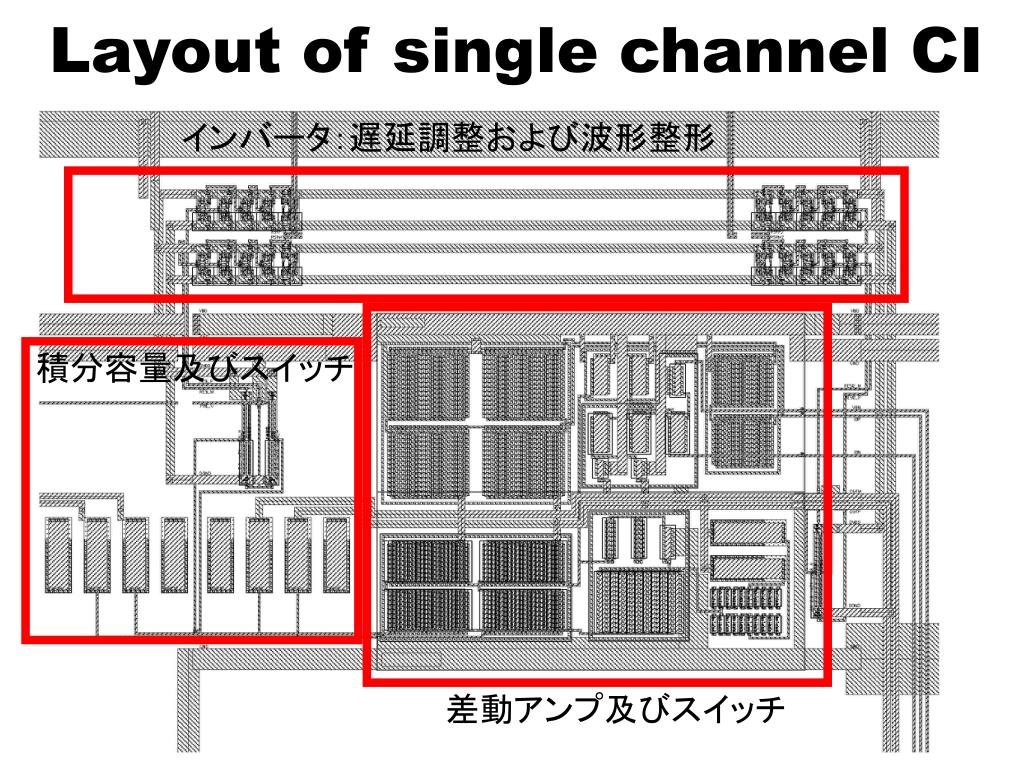

  8. Layout of single channel CI インバータ:遅延調整および波形整形 積分容量及びスイッチ 差動アンプ及びスイッチ

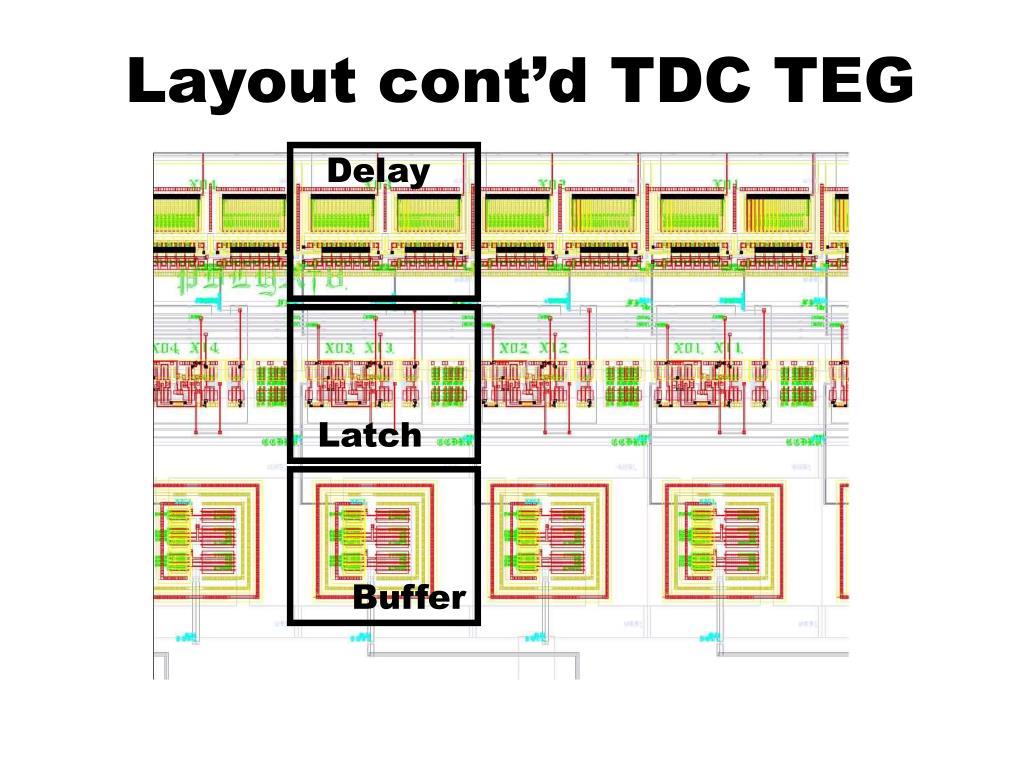

  9. Layout cont’d TDC TEG Delay Latch Buffer

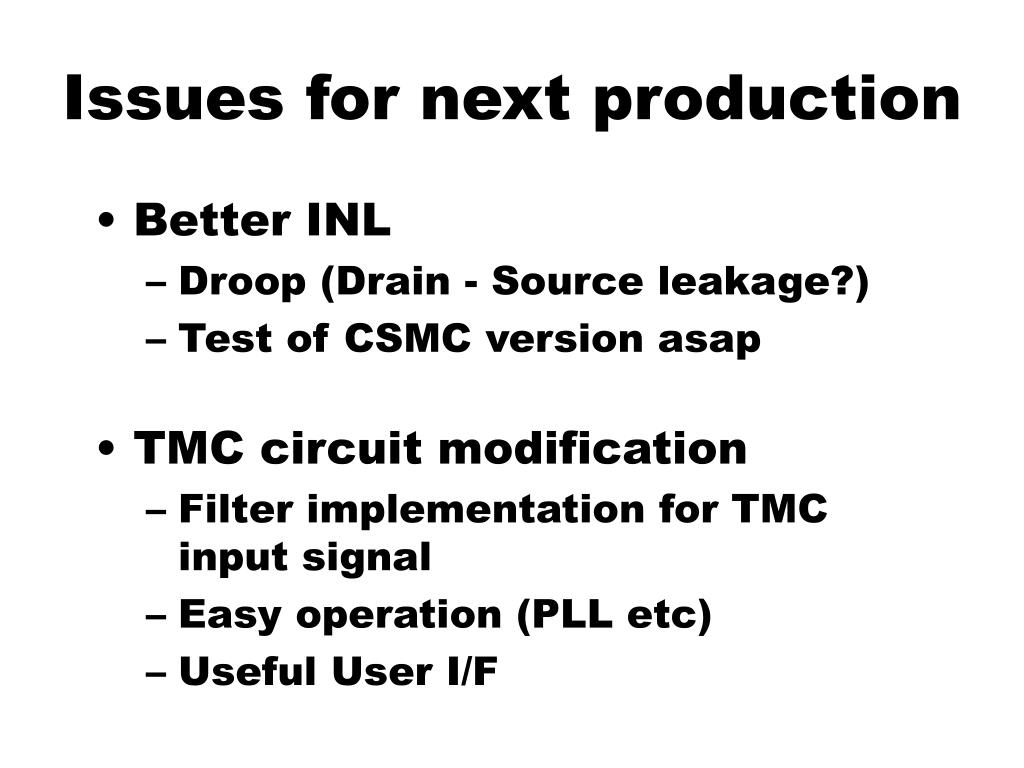

  10. Issues for next production • Better INL • Droop (Drain - Source leakage?) • Test of CSMC version asap • TMC circuit modification • Filter implementation for TMC input signal • Easy operation (PLL etc) • Useful User I/F

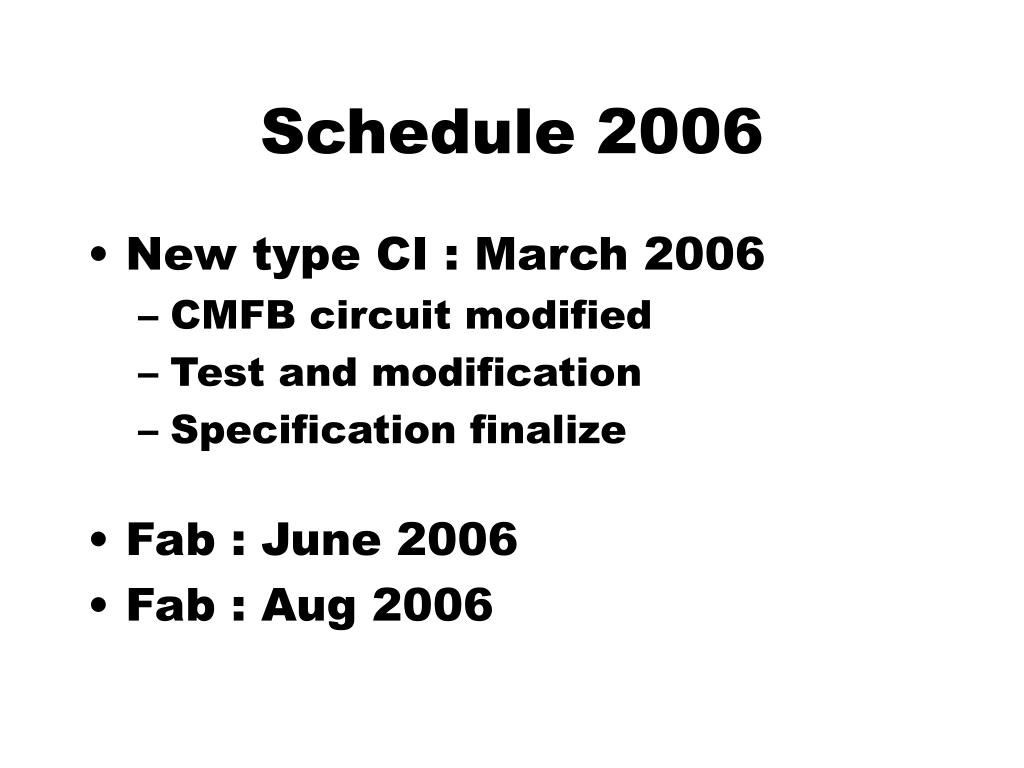

  11. Schedule 2006 • New type CI : March 2006 • CMFB circuit modified • Test and modification • Specification finalize • Fab : June 2006 • Fab : Aug 2006
