  1. Implementation of adaptive control algorithm based on SPOC form Winter 2011 Supervisor: Dr. IlanRusnak Submitted by: Ofer Rosenberg Roy Mainer

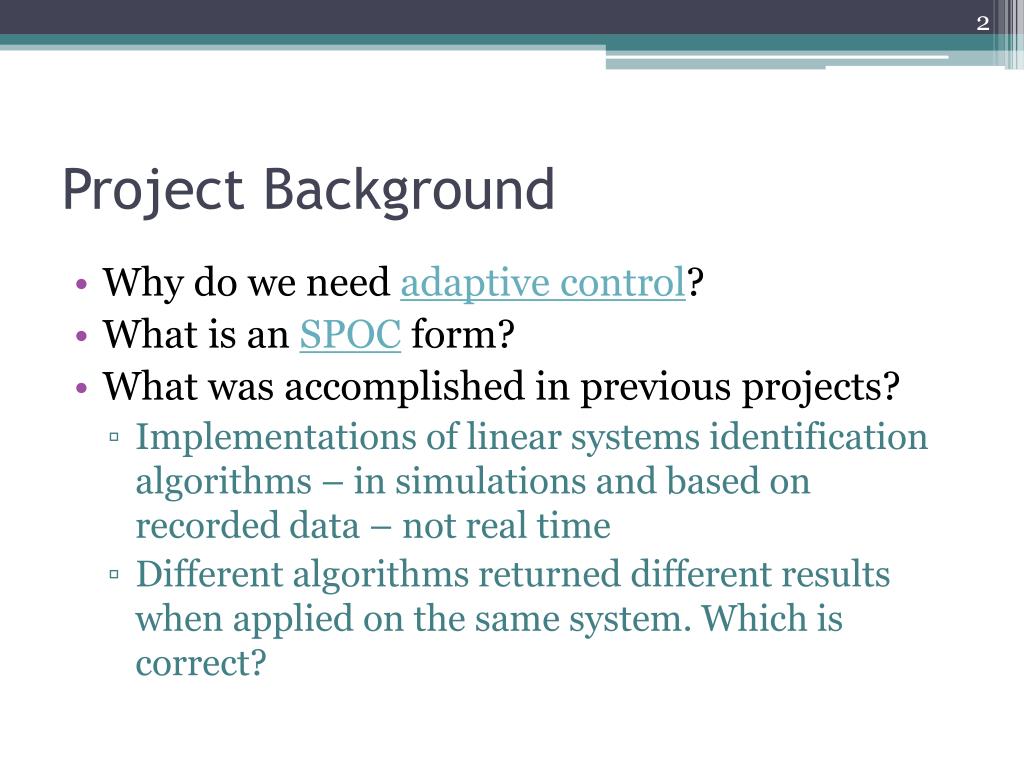

  2. Project Background • Why do we need adaptive control? • What is an SPOC form? • What was accomplished in previous projects? • Implementations of linear systems identification algorithms – in simulations and based on recorded data – not real time • Different algorithms returned different results when applied on the same system. Which is correct?

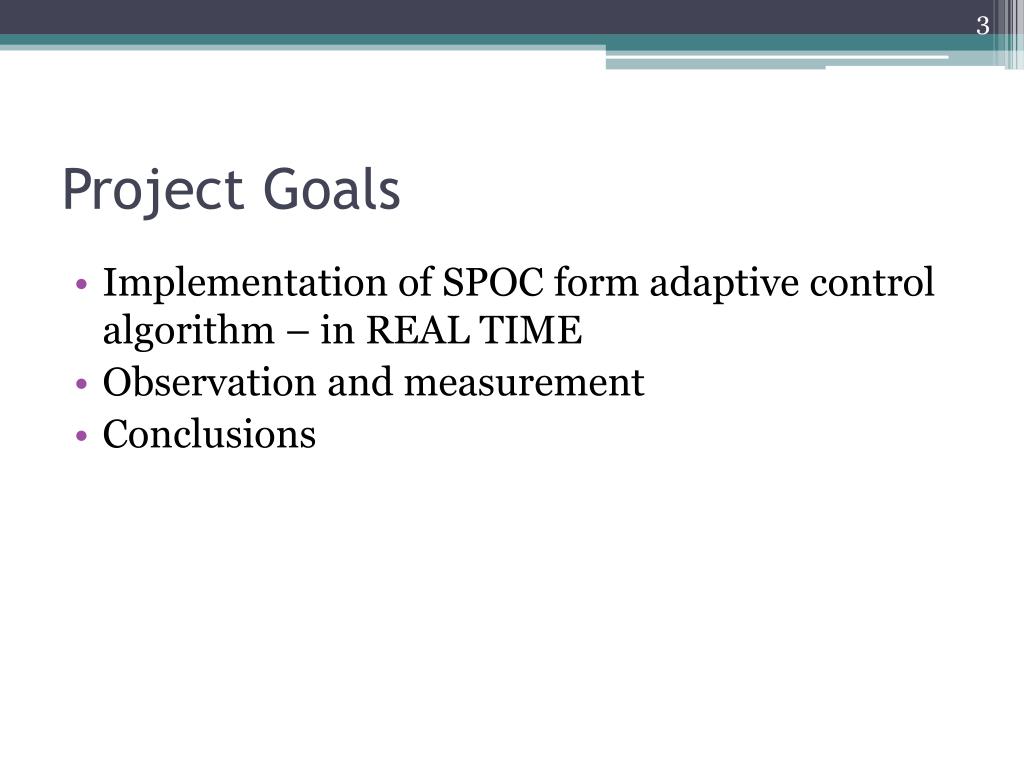

  3. Project Goals • Implementation of SPOC form adaptive control algorithm – in REAL TIME • Observation and measurement • Conclusions

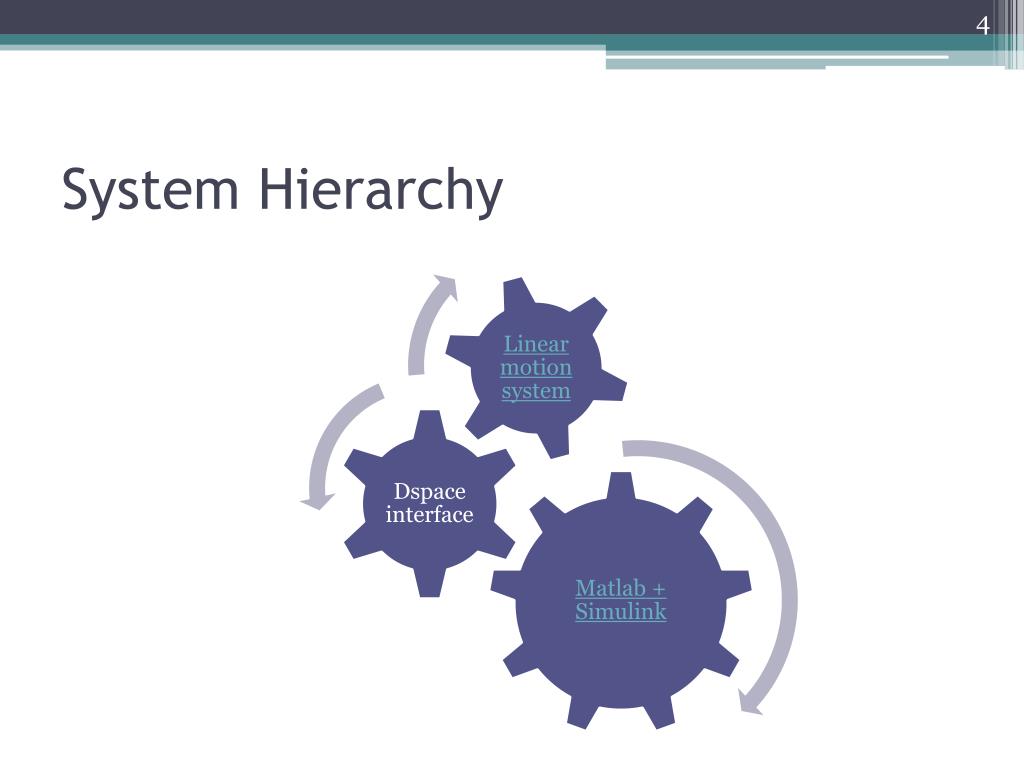

  4. System Hierarchy

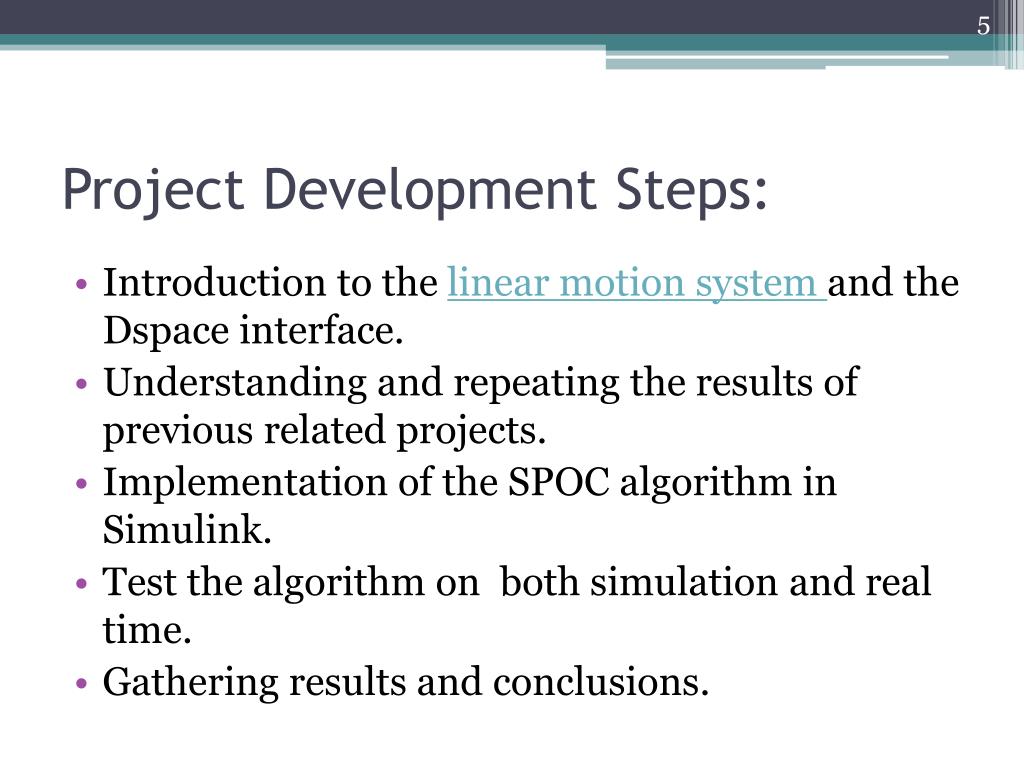

  5. Project Development Steps: • Introduction to the linear motion system and the Dspace interface. • Understanding and repeating the results of previous related projects. • Implementation of the SPOC algorithm in Simulink. • Test the algorithm on both simulation and real time. • Gathering results and conclusions.

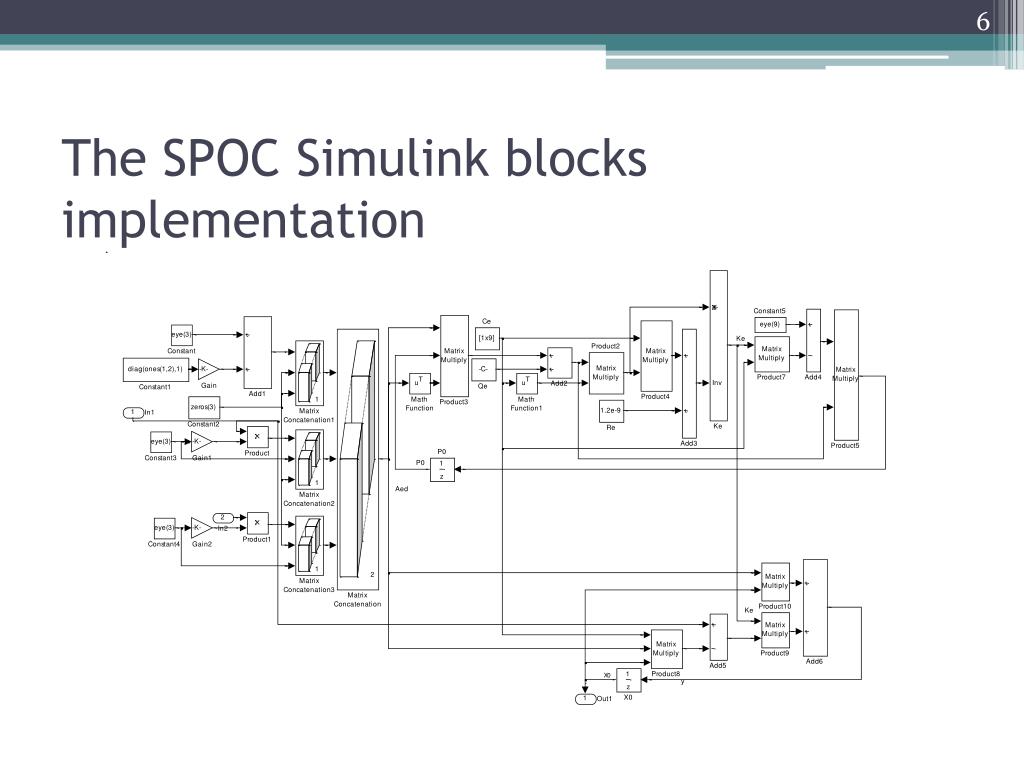

  6. The SPOC Simulink blocks implementation

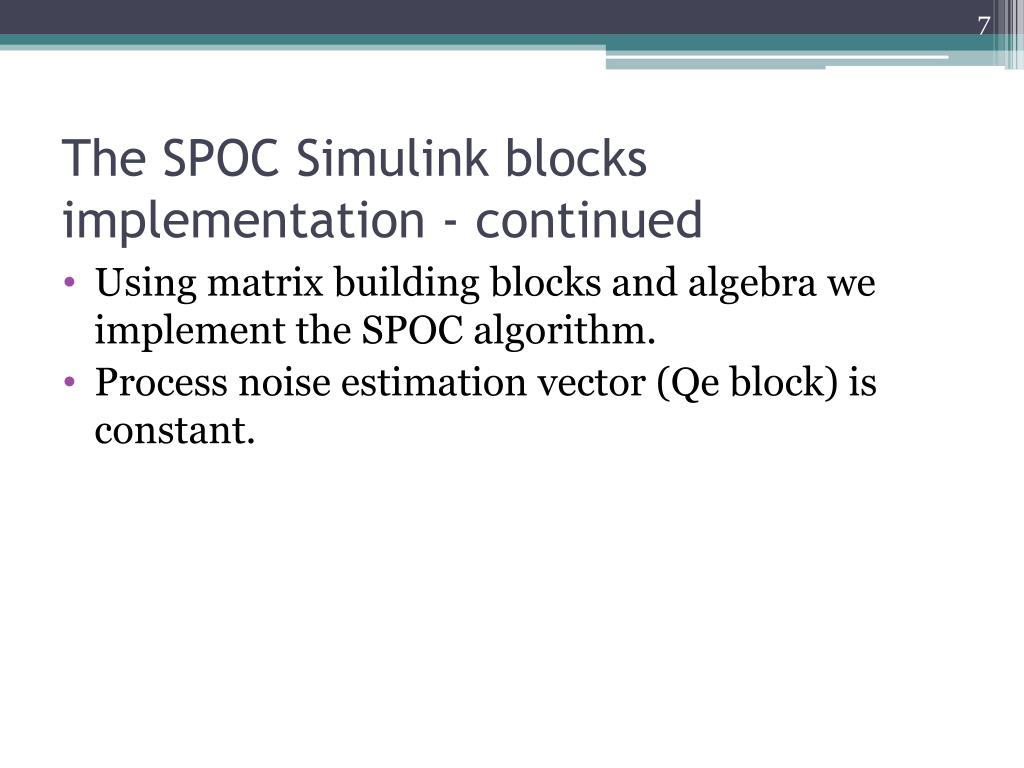

  7. The SPOC Simulink blocks implementation - continued • Using matrix building blocks and algebra we implement the SPOC algorithm. • Process noise estimation vector (Qe block) is constant.

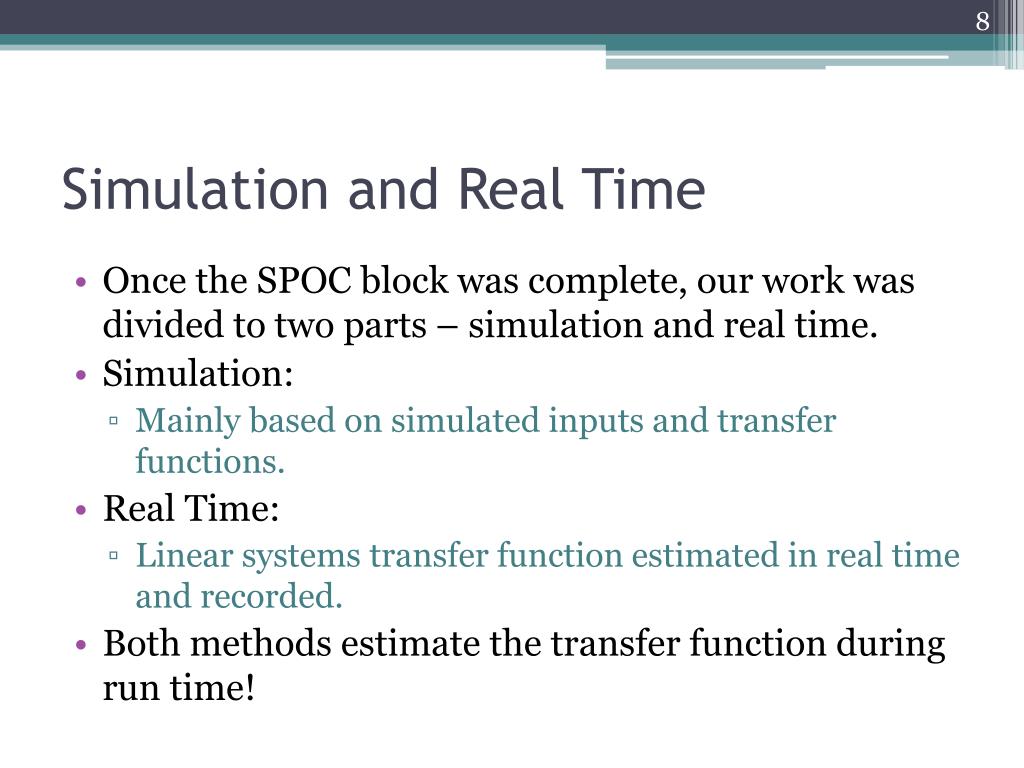

  8. Simulation and Real Time • Once the SPOC block was complete, our work was divided to two parts – simulation and real time. • Simulation: • Mainly based on simulated inputs and transfer functions. • Real Time: • Linear systems transfer function estimated in real time and recorded. • Both methods estimate the transfer function during run time!

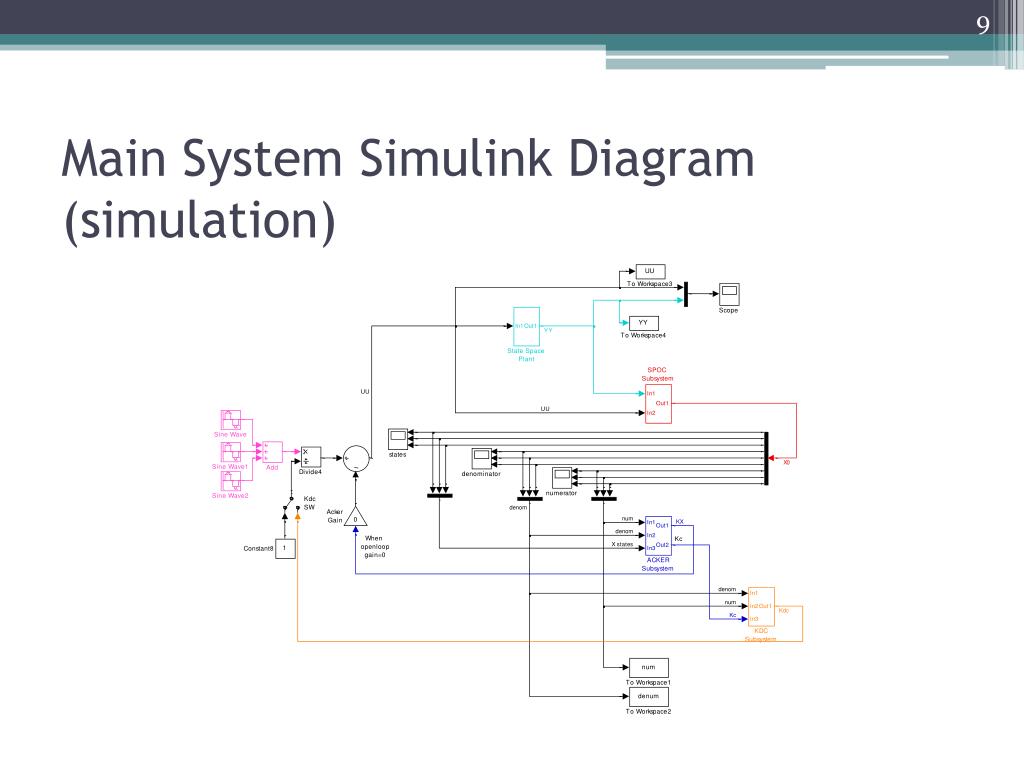

  9. Main System Simulink Diagram (simulation)

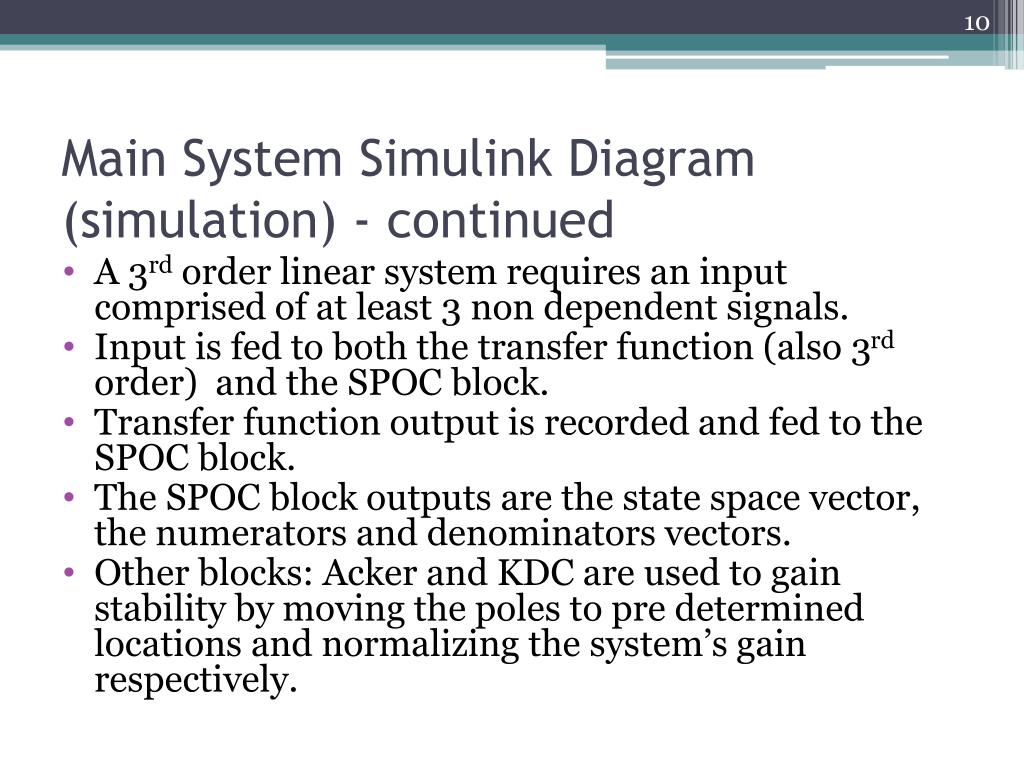

  10. Main System Simulink Diagram (simulation) - continued • A 3rd order linear system requires an input comprised of at least 3 non dependent signals. • Input is fed to both the transfer function (also 3rd order) and the SPOC block. • Transfer function output is recorded and fed to the SPOC block. • The SPOC block outputs are the state space vector, the numerators and denominators vectors. • Other blocks: Acker and KDC are used to gain stability by moving the poles to pre determined locations and normalizing the system’s gain respectively.

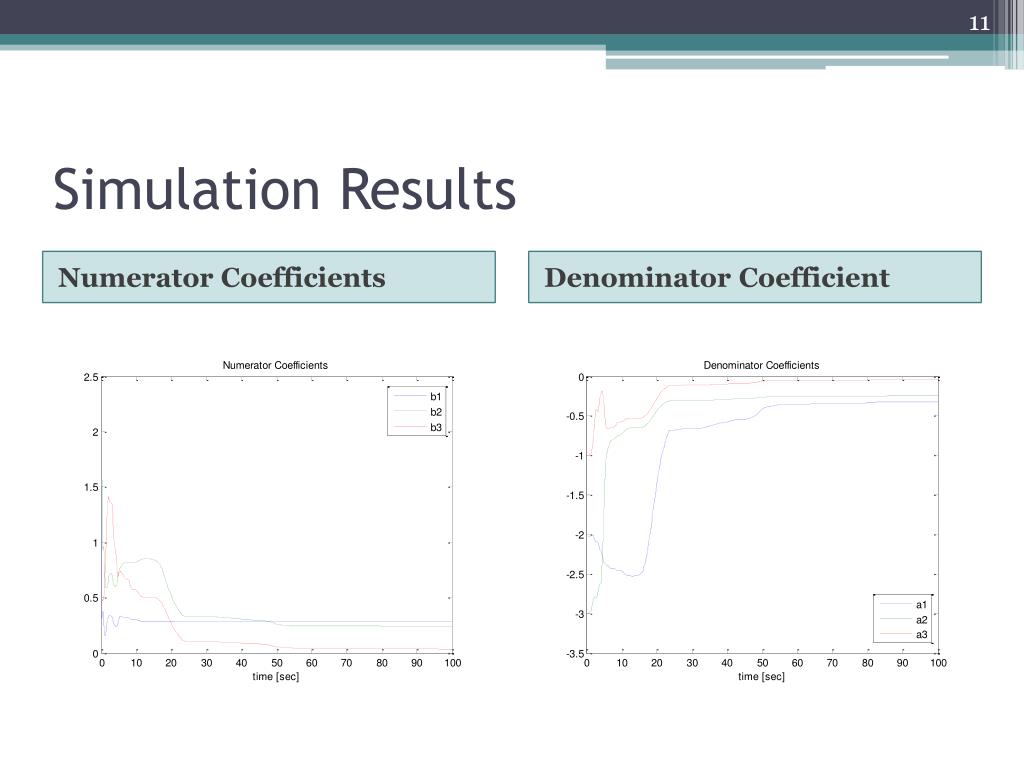

  11. Simulation Results Numerator Coefficients Denominator Coefficient

  12. Simulation Results – continued • Simulated transfer function: • Estimated transfer function: • Success!

  13. Main System Simulink Diagram (real time)

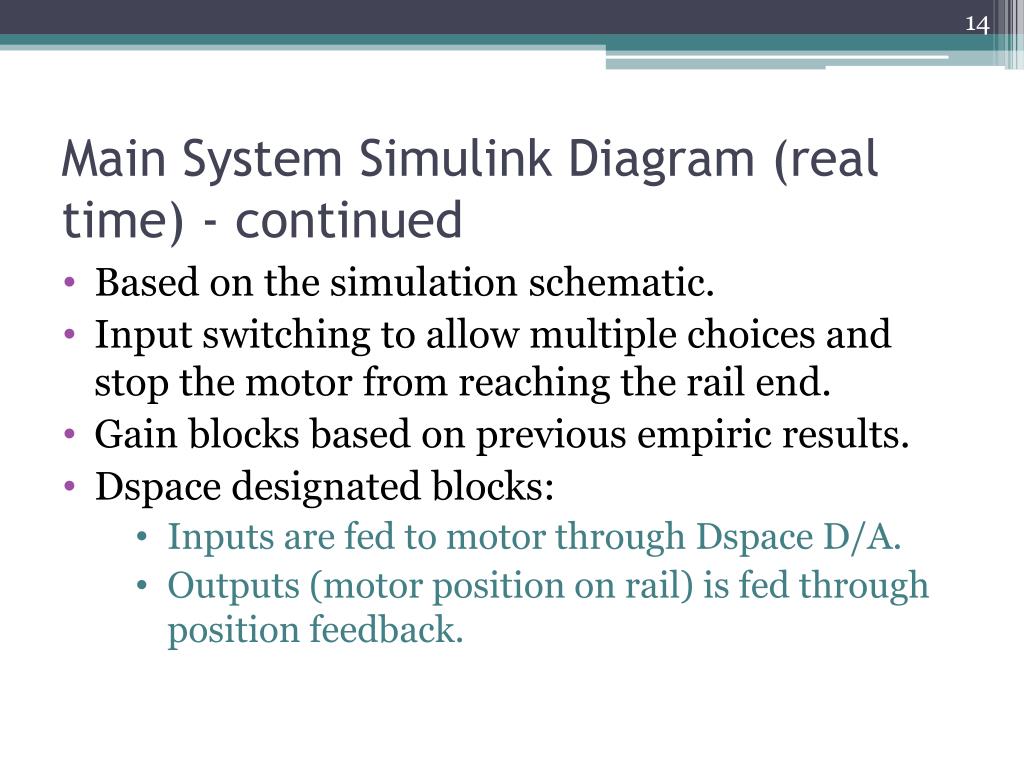

  14. Main System Simulink Diagram (real time) - continued • Based on the simulation schematic. • Input switching to allow multiple choices and stop the motor from reaching the rail end. • Gain blocks based on previous empiric results. • Dspace designated blocks: • Inputs are fed to motor through Dspace D/A. • Outputs (motor position on rail) is fed through position feedback.

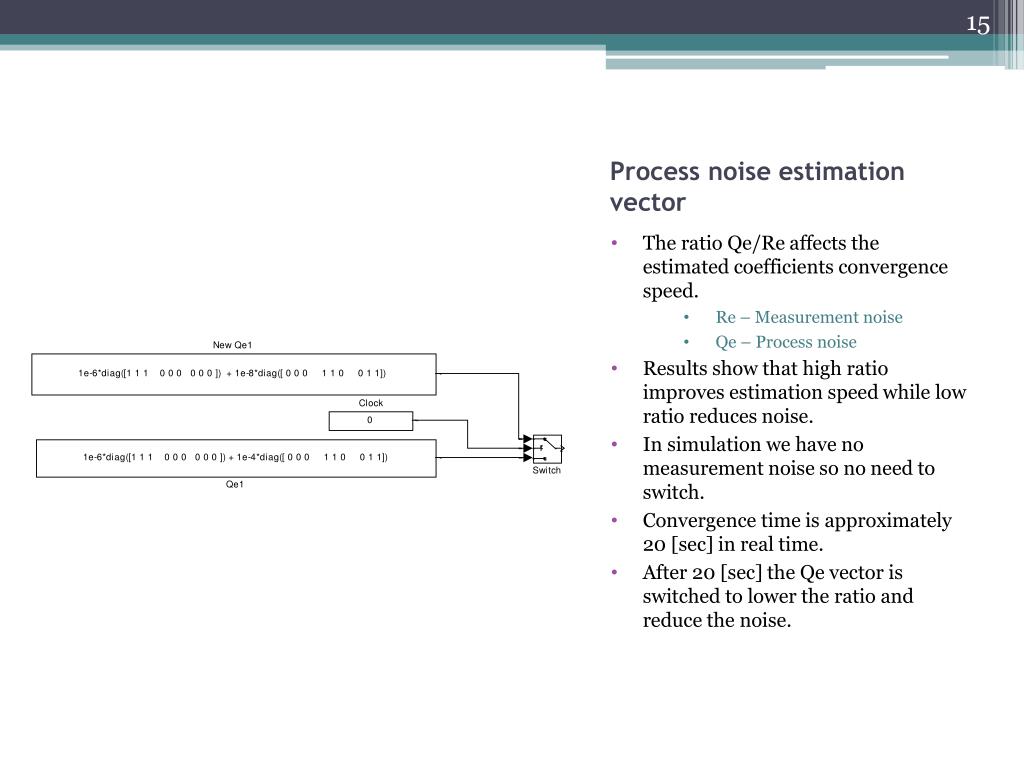

  15. Process noise estimation vector The ratio Qe/Re affects the estimated coefficients convergence speed. Re – Measurement noise Qe – Process noise Results show that high ratio improves estimation speed while low ratio reduces noise. In simulation we have no measurement noise so no need to switch. Convergence time is approximately 20 [sec] in real time. After 20 [sec] the Qe vector is switched to lower the ratio and reduce the noise.

  16. Real Time Results Numerator Coefficients Denominator Coefficient

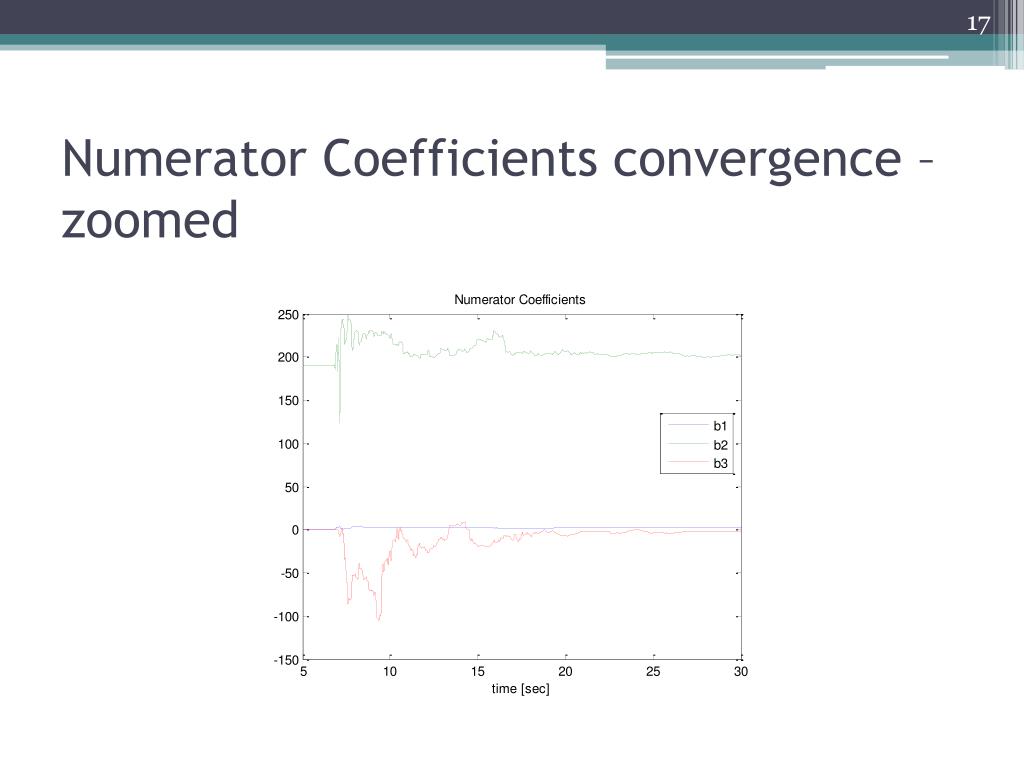

  17. Numerator Coefficients convergence – zoomed

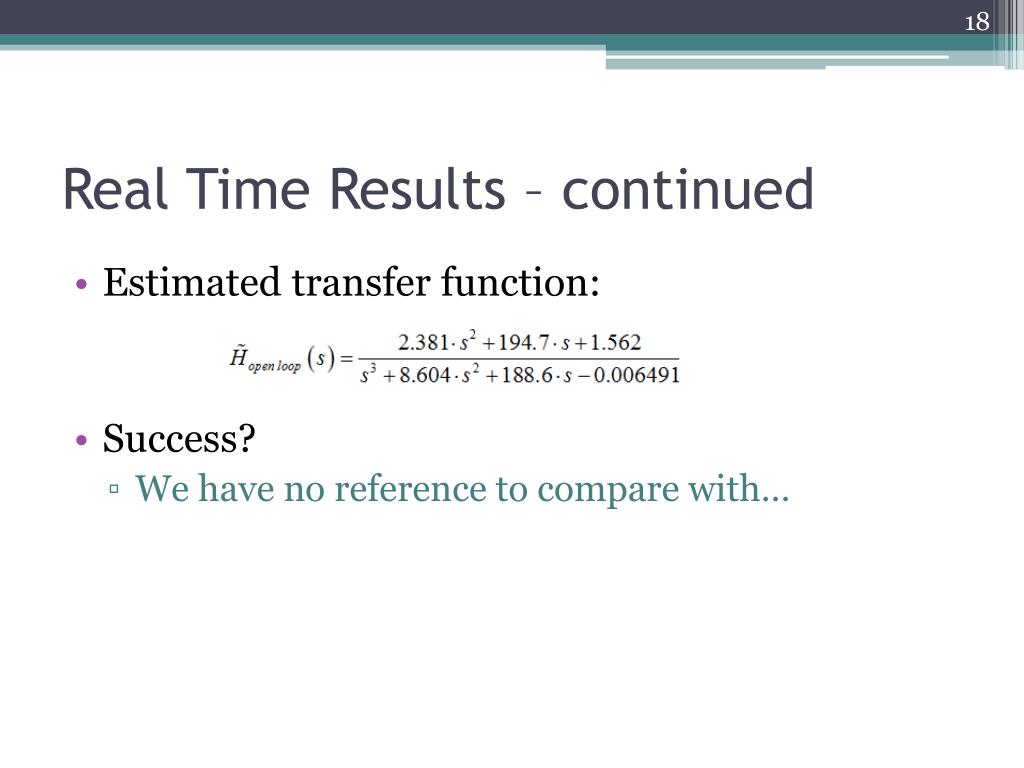

  18. Real Time Results – continued • Estimated transfer function: • Success? • We have no reference to compare with…

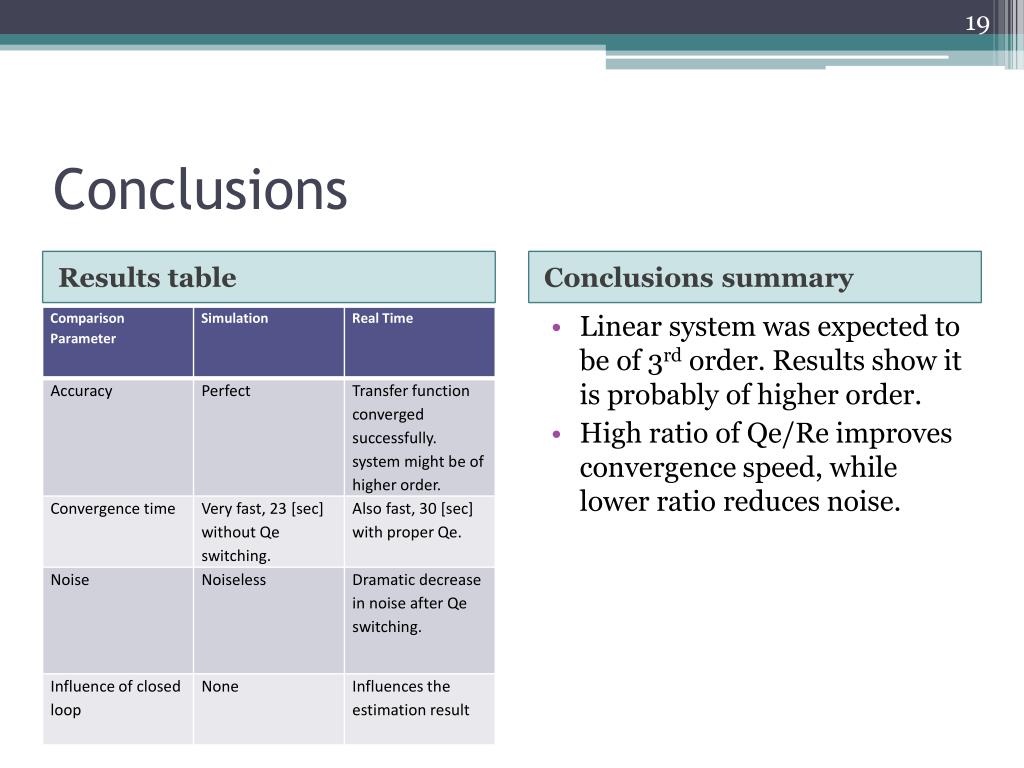

  19. Conclusions Results table Conclusions summary • Linear system was expected to be of 3rd order. Results show it is probably of higher order. • High ratio of Qe/Re improves convergence speed, while lower ratio reduces noise.

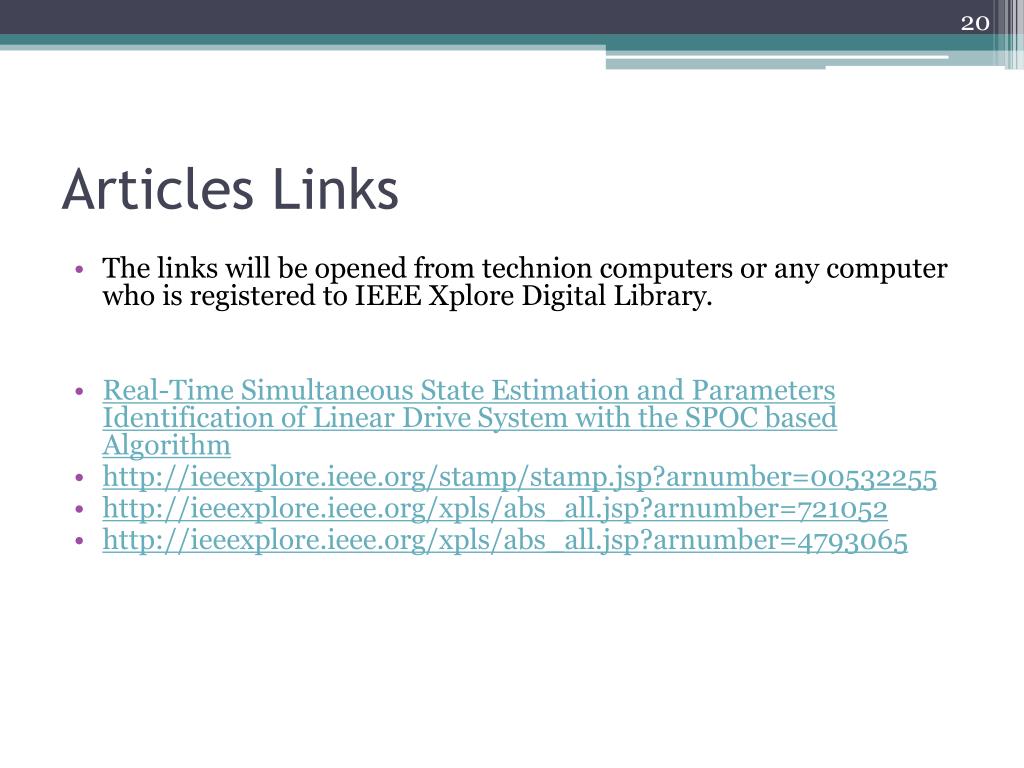

  20. Articles Links • The links will be opened from technion computers or any computer who is registered to IEEE Xplore Digital Library. • Real-Time Simultaneous State Estimation and Parameters Identification of Linear Drive System with the SPOC based Algorithm • http://ieeexplore.ieee.org/stamp/stamp.jsp?arnumber=00532255 • http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=721052 • http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=4793065

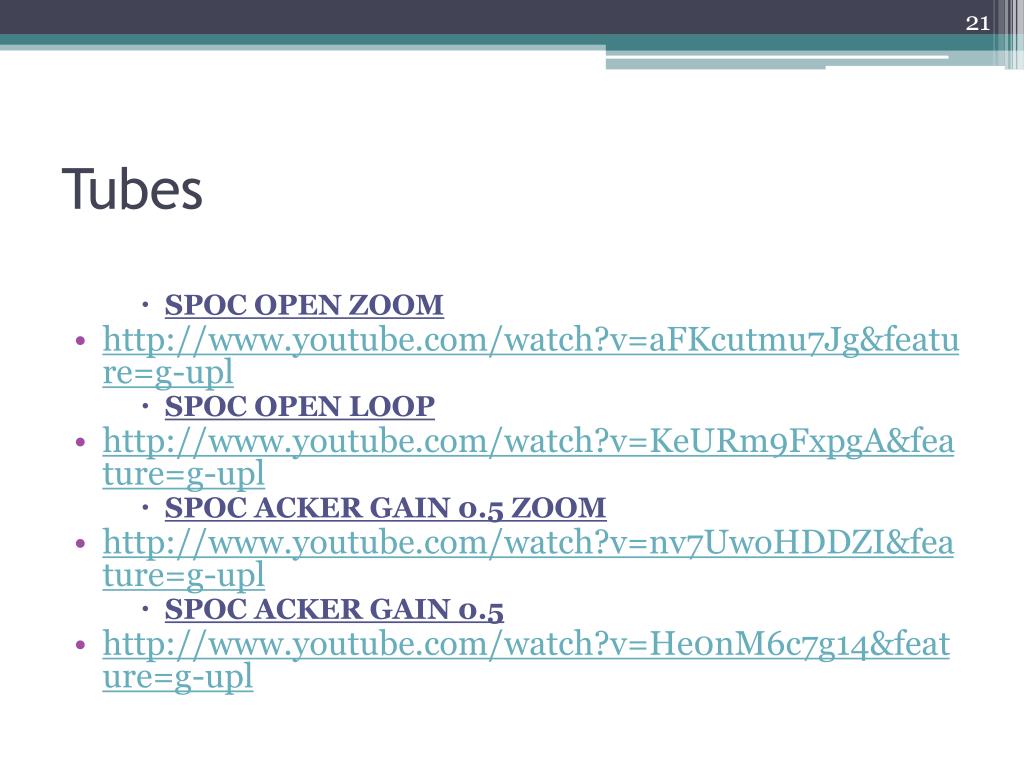

  21. Tubes • SPOC OPEN ZOOM • http://www.youtube.com/watch?v=aFKcutmu7Jg&feature=g-upl • SPOC OPEN LOOP • http://www.youtube.com/watch?v=KeURm9FxpgA&feature=g-upl • SPOC ACKER GAIN 0.5 ZOOM • http://www.youtube.com/watch?v=nv7UwoHDDZI&feature=g-upl • SPOC ACKER GAIN 0.5 • http://www.youtube.com/watch?v=He0nM6c7g14&feature=g-upl

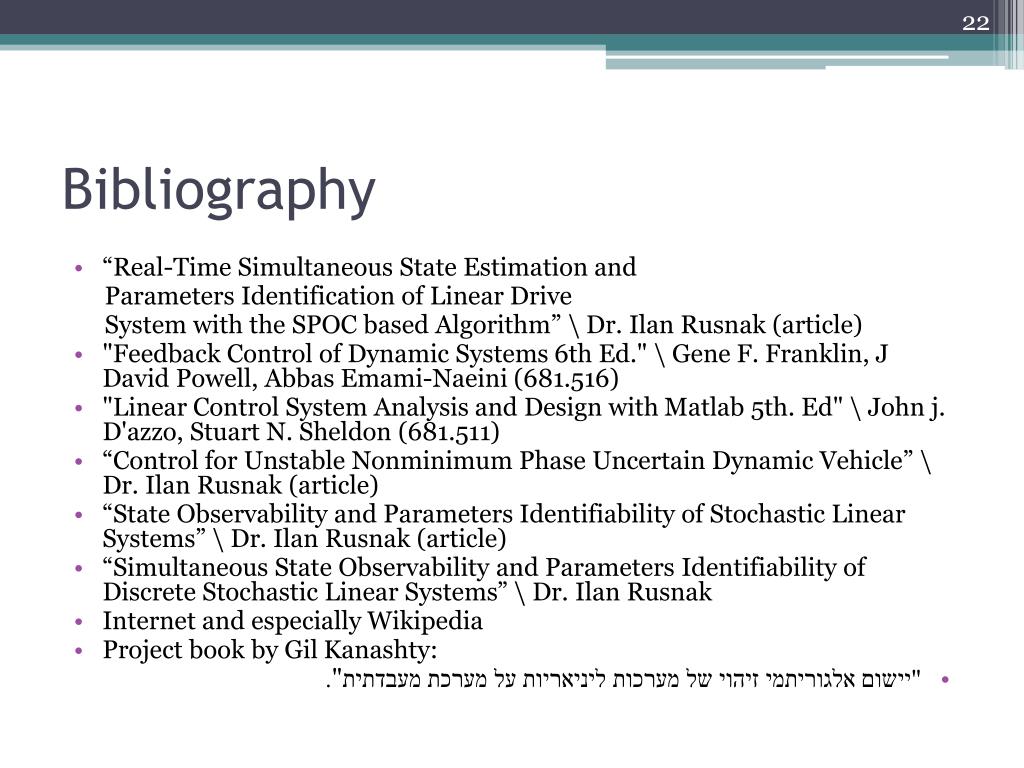

  22. Bibliography • “Real-Time Simultaneous State Estimation and Parameters Identification of Linear Drive System with the SPOC based Algorithm” \ Dr. IlanRusnak (article) • "Feedback Control of Dynamic Systems 6th Ed." \ Gene F. Franklin, J David Powell, Abbas Emami-Naeini (681.516) • "Linear Control System Analysis and Design with Matlab 5th. Ed" \ John j. D'azzo, Stuart N. Sheldon (681.511) • “Control for Unstable Nonminimum Phase Uncertain Dynamic Vehicle” \ Dr. IlanRusnak (article) • “State Observability and Parameters Identifiability of Stochastic Linear Systems” \ Dr. IlanRusnak (article) • “Simultaneous State Observability and Parameters Identifiability of Discrete Stochastic Linear Systems” \ Dr. IlanRusnak • Internet and especially Wikipedia • Project book by Gil Kanashty: • "יישום אלגוריתמי זיהוי של מערכות ליניאריות על מערכת מעבדתית".

  23. Special thanks Dr. IlanRusnak KobyKochai OrlyVigderzon Gil Kanashty

  24. Thanks for watching OferRosneberg Roy Mainer

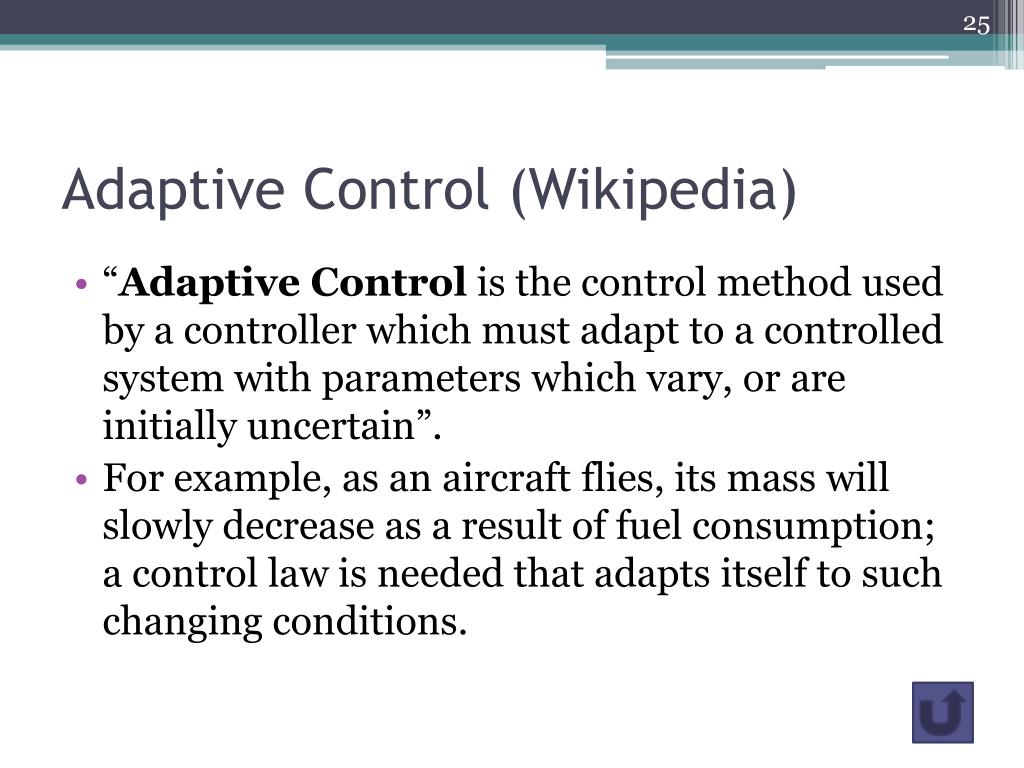

  25. Adaptive Control (Wikipedia) • “Adaptive Control is the control method used by a controller which must adapt to a controlled system with parameters which vary, or are initially uncertain”. • For example, as an aircraft flies, its mass will slowly decrease as a result of fuel consumption; a control law is needed that adapts itself to such changing conditions.

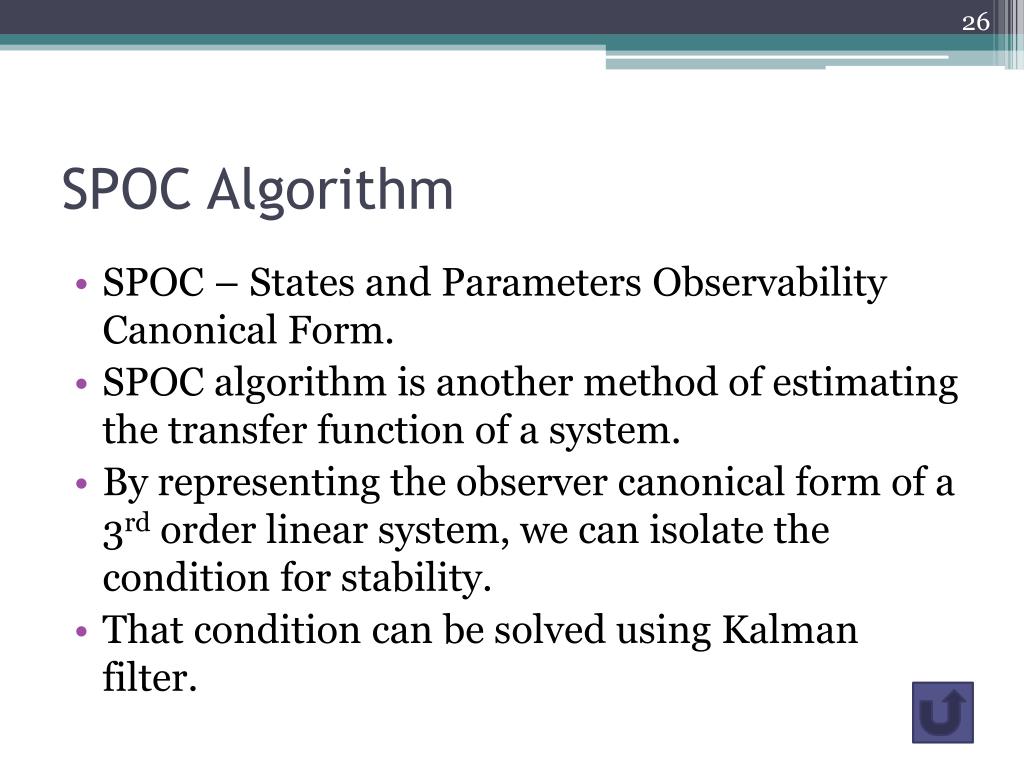

  26. SPOC Algorithm • SPOC – States and Parameters Observability Canonical Form. • SPOC algorithm is another method of estimating the transfer function of a system. • By representing the observer canonical form of a 3rd order linear system, we can isolate the condition for stability. • That condition can be solved using Kalman filter.

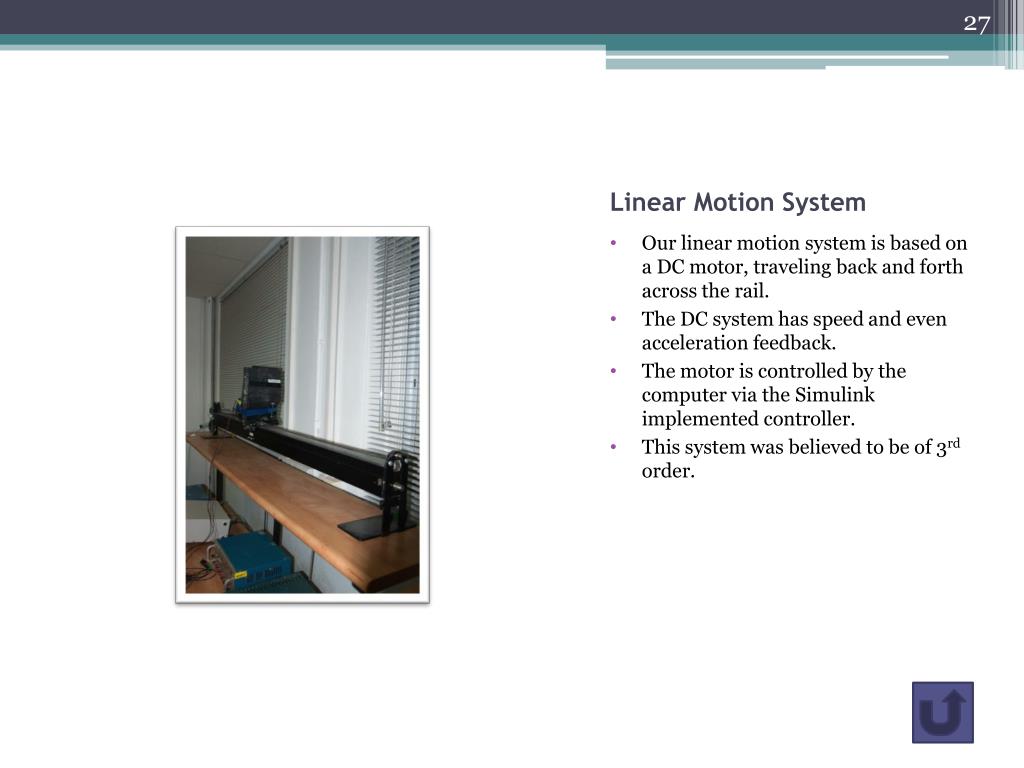

  27. Linear Motion System Our linear motion system is based on a DC motor, traveling back and forth across the rail. The DC system has speed and even acceleration feedback. The motor is controlled by the computer via the Simulink implemented controller. This system was believed to be of 3rd order.

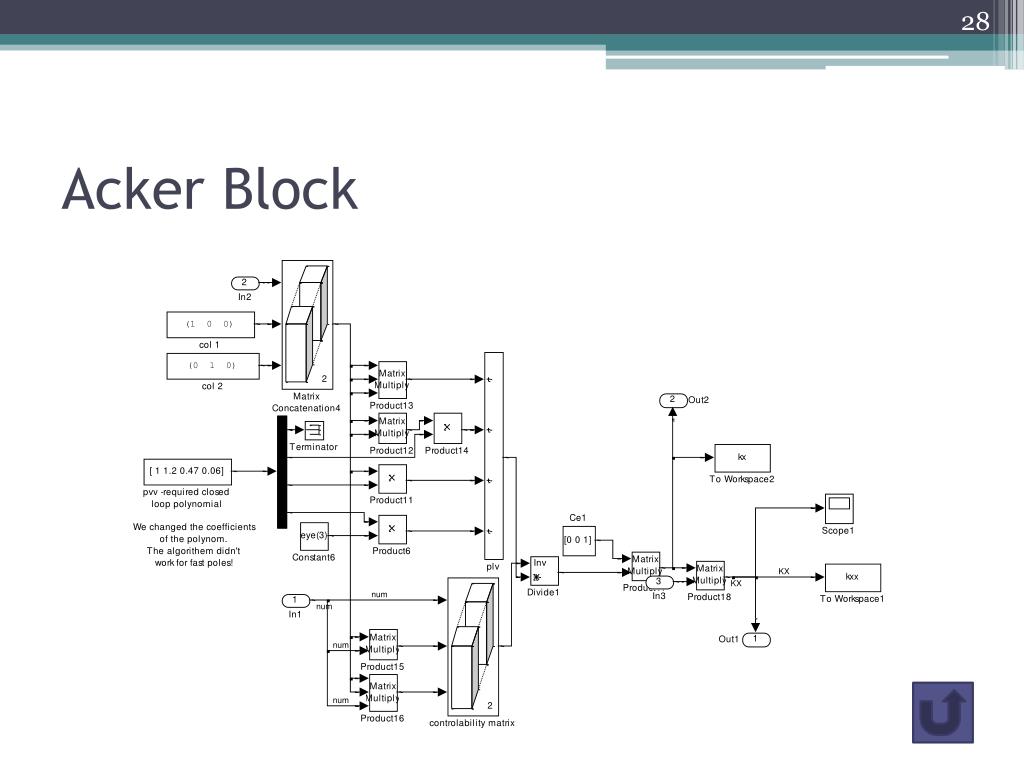

  28. Acker Block

  29. Real-Time Simultaneous State Estimation and Parameters Identification of Linear Drive System with the SPOC based Algorithm

  30. Real-Time Simultaneous State Estimation and Parameters Identification of Linear Drive System with the SPOC based Algorithm - continued

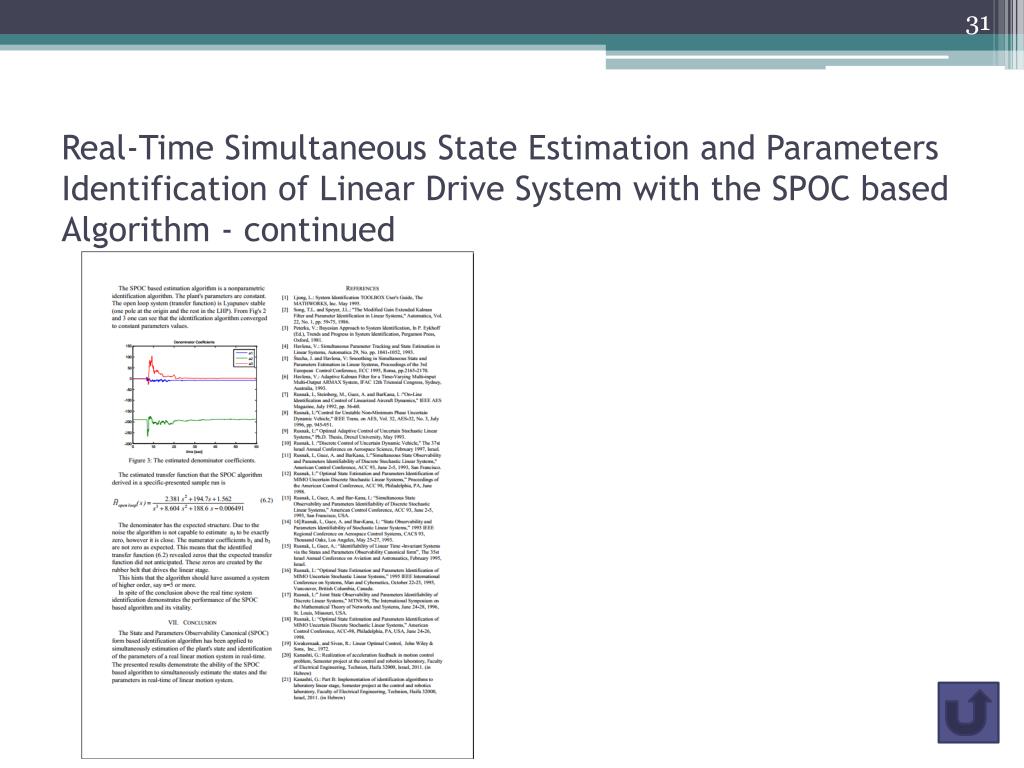

  31. Real-Time Simultaneous State Estimation and Parameters Identification of Linear Drive System with the SPOC based Algorithm - continued
