  1. Creating and ModifyingDatabase Tables Chapter 2 A Guide to Oracle9i

  2. Objectives • Become acquainted with Structured Query Language (SQL) • Learn about Oracle9i user schemas • Learn how to define Oracle9i database tables • Create database tables using SQL*Plus A Guide to Oracle9i

  3. Objectives • Learn how to debug Oracle9i SQL commands and use Oracle Corporation online help resources • Learn how to view information about your database tables using Oracle9i data dictionary views • Modify and delete database tables using SQL*Plus A Guide to Oracle9i

  4. Introduction to SQL • Structured Query Language (SQL): the standard query language for relational databases • Data definition language (DDL) • Create new database objects • Modify or delete existing objects. • Data manipulation language (DML) • Insert, update, delete, and view database data. A Guide to Oracle9i

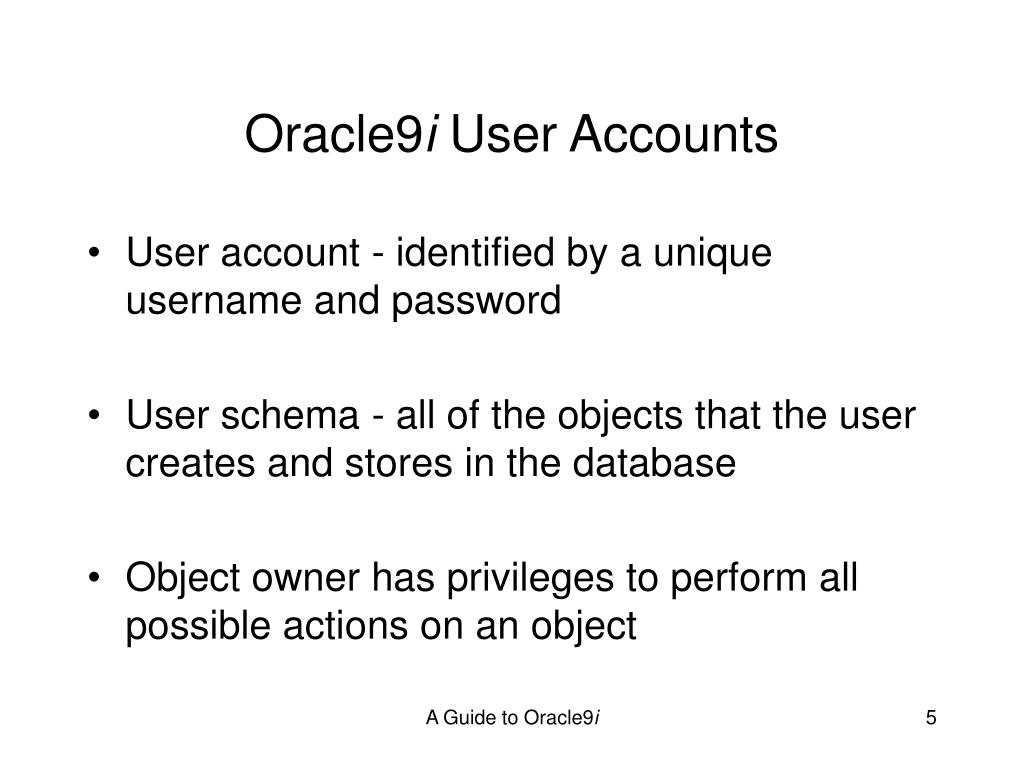

  5. Oracle9i User Accounts • User account - identified bya unique username and password • User schema - all of the objects that the user creates and stores in the database • Object owner has privileges to perform all possible actions on an object A Guide to Oracle9i

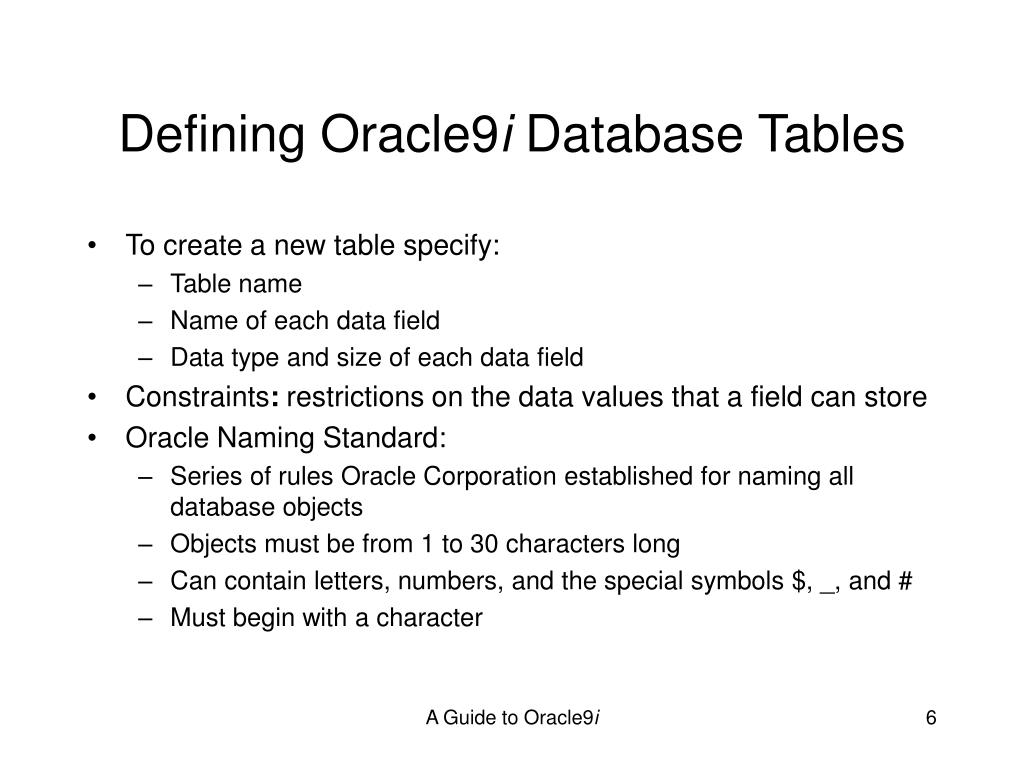

  6. Defining Oracle9i Database Tables • To create a new table specify: • Table name • Name of each data field • Data type and size of each data field • Constraints: restrictions on the data values that a field can store • Oracle Naming Standard: • Series of rules Oracle Corporation established for naming all database objects • Objects must be from 1 to 30 characters long • Can contain letters, numbers, and the special symbols $, _, and # • Must begin with a character A Guide to Oracle9i

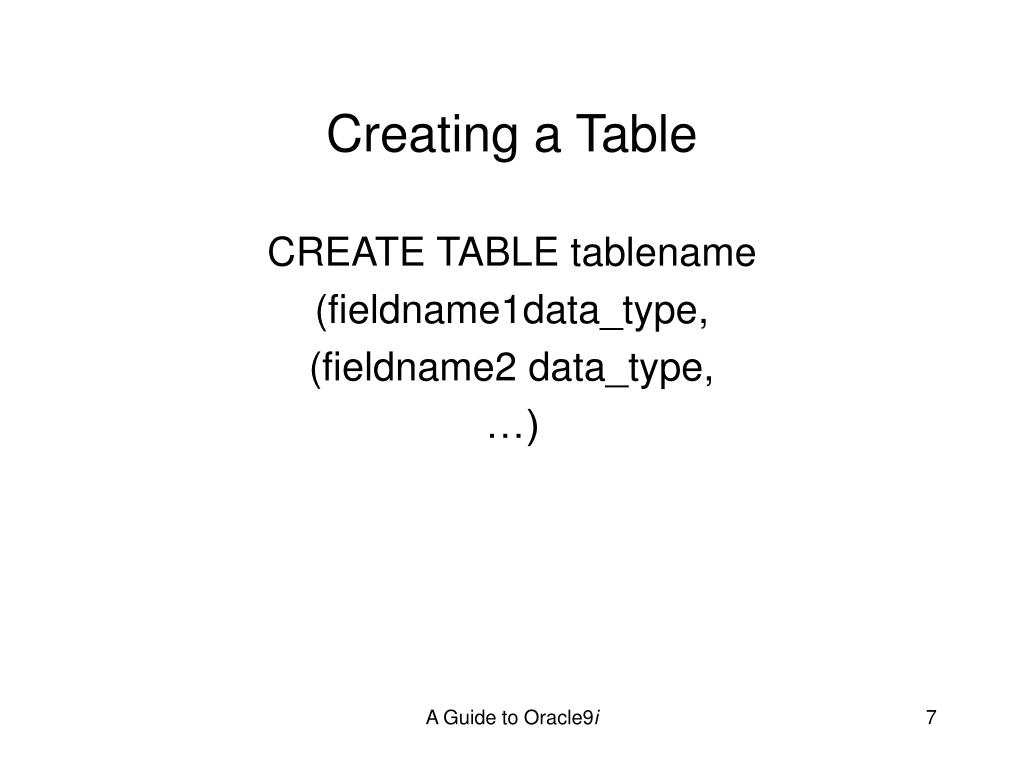

  7. Creating a Table CREATE TABLE tablename (fieldname1data_type, (fieldname2 data_type, …) A Guide to Oracle9i

  8. Oracle9i Data Types • Data type:specifies the kind of data that a field stores • Assigning a data type provides a means for error checking • Data types enable the DBMS to use storage space more efficiently by internally storing different types of data in different ways A Guide to Oracle9i

  9. Character Data Types • VARCHAR2 • Stores variable-length character data up to a maximum of 4,000 characters • Values in different records can have a different number of characters • fieldname VARCHAR2(maximum_size) A Guide to Oracle9i

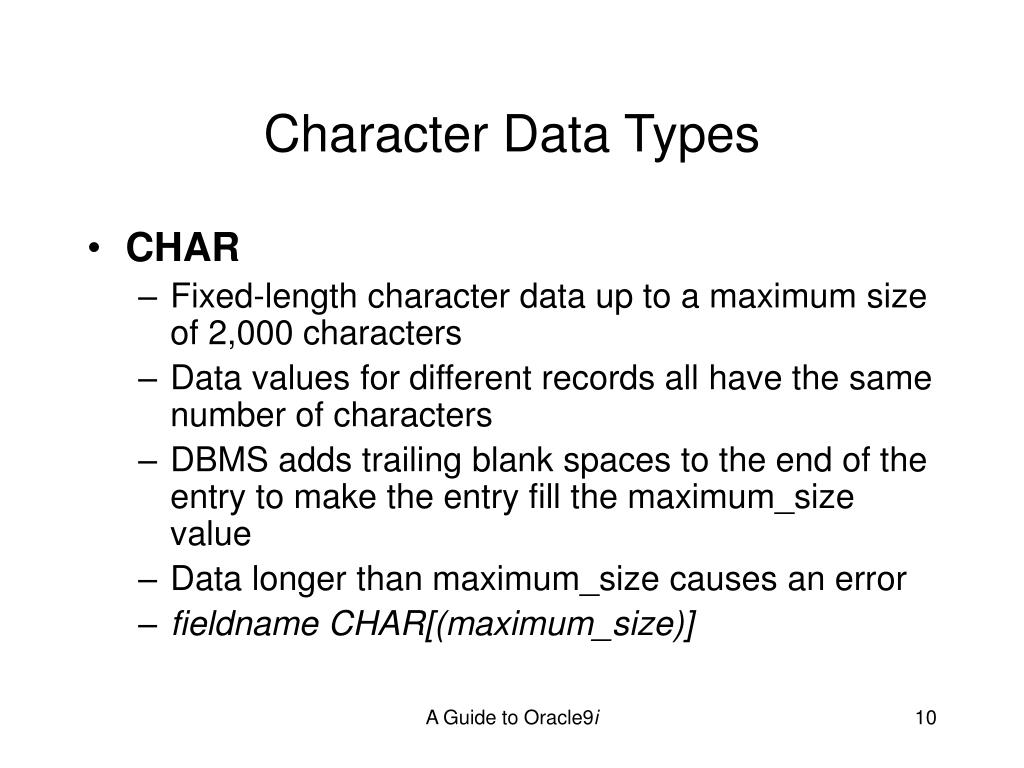

  10. Character Data Types • CHAR • Fixed-length character data up to a maximum size of 2,000 characters • Data values for different records all have the same number of characters • DBMS adds trailing blank spaces to the end of the entry to make the entry fill the maximum_sizevalue • Data longer than maximum_size causes an error • fieldname CHAR[(maximum_size)] A Guide to Oracle9i

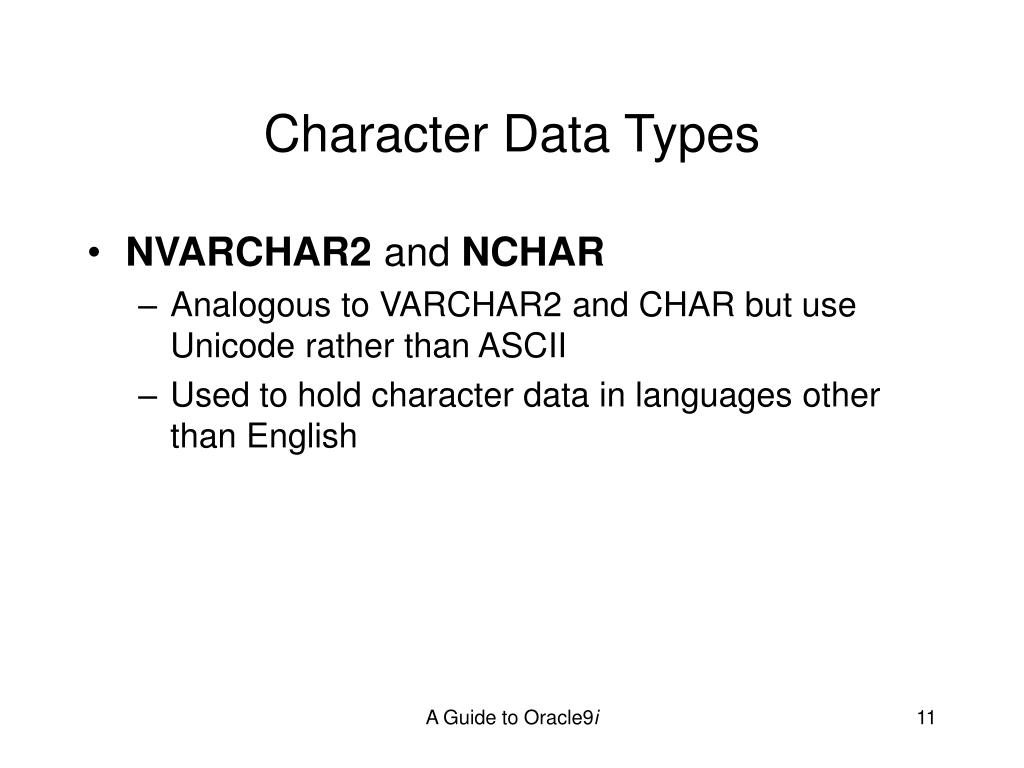

  11. Character Data Types • NVARCHAR2 and NCHAR • Analogous to VARCHAR2 and CHAR but use Unicode rather than ASCII • Used to hold character data in languages other than English A Guide to Oracle9i

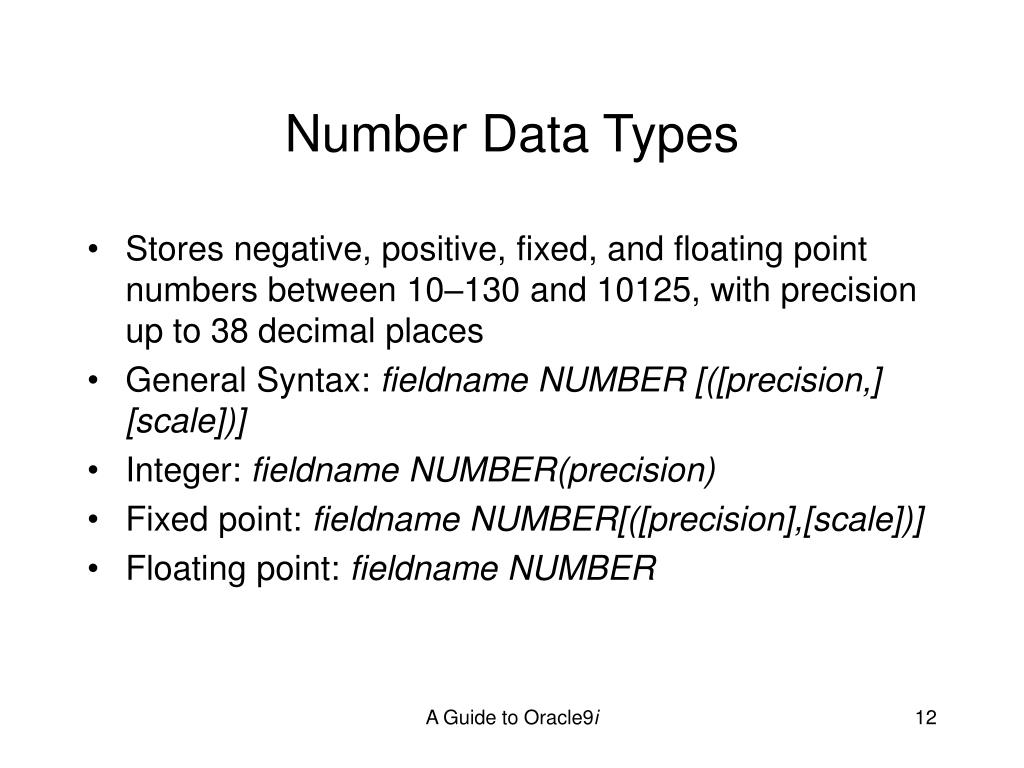

  12. Number Data Types • Stores negative, positive, fixed, and floating point numbers between 10–130 and 10125, with precision up to 38 decimal places • General Syntax: fieldname NUMBER [([precision,] [scale])] • Integer: fieldname NUMBER(precision) • Fixed point: fieldname NUMBER[([precision],[scale])] • Floating point: fieldname NUMBER A Guide to Oracle9i

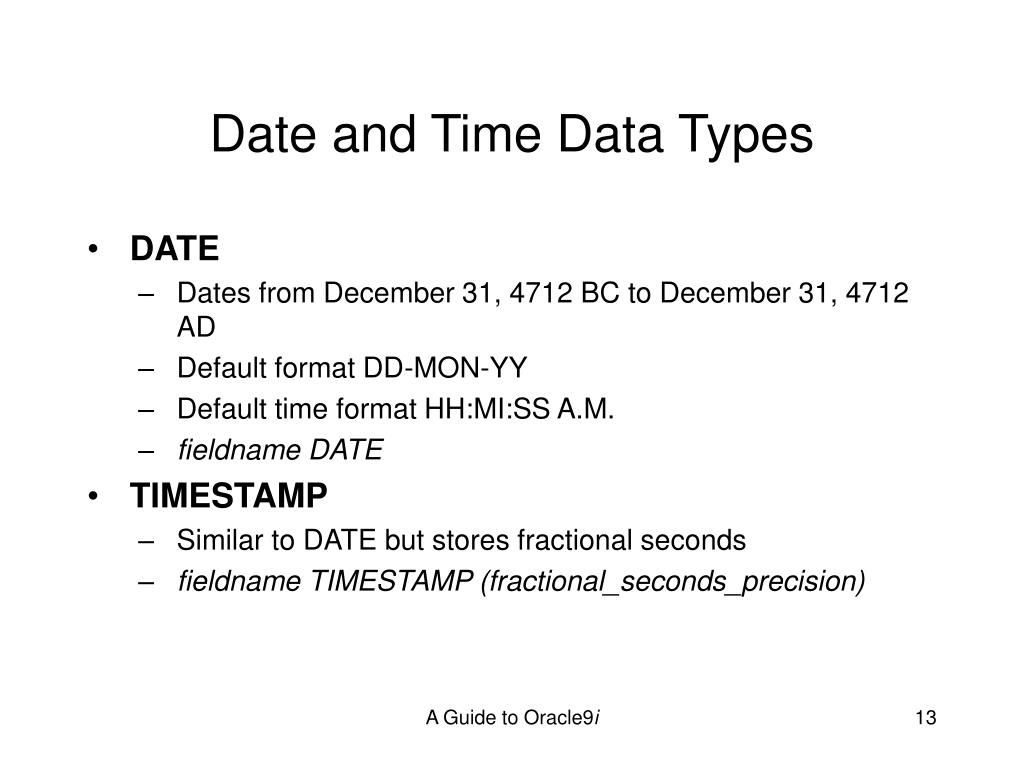

  13. Date and Time Data Types • DATE • Dates from December 31, 4712 BC to December 31, 4712 AD • Default format DD-MON-YY • Default time format HH:MI:SS A.M. • fieldname DATE • TIMESTAMP • Similar to DATE but stores fractional seconds • fieldname TIMESTAMP (fractional_seconds_precision) A Guide to Oracle9i

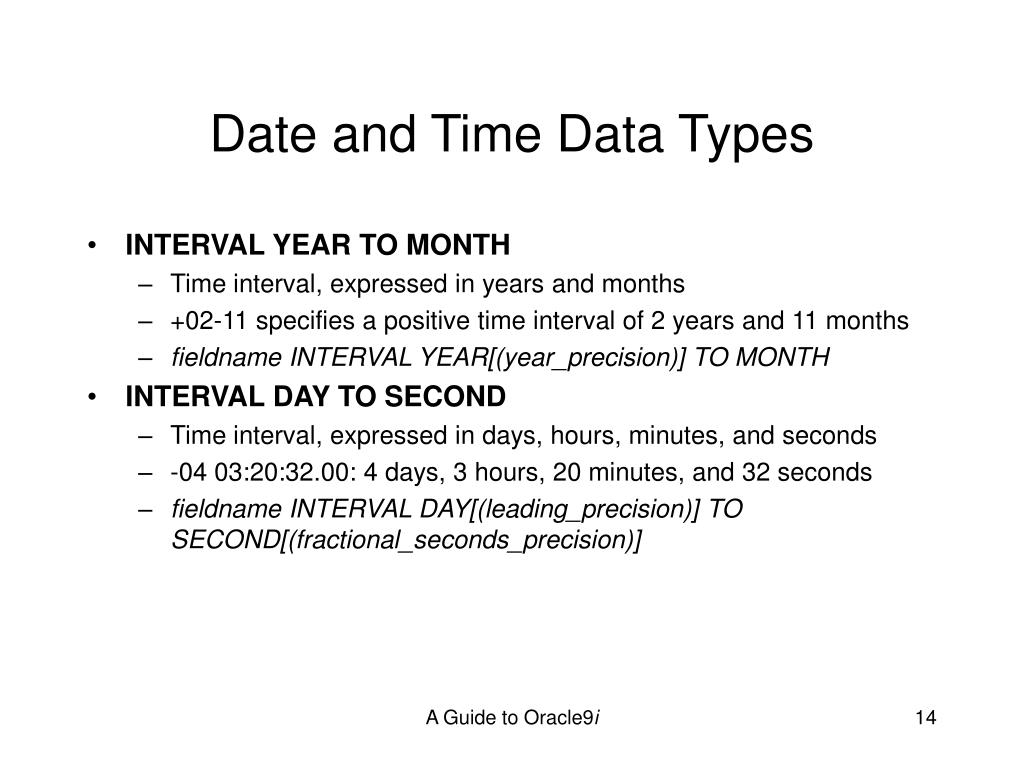

  14. Date and Time Data Types • INTERVAL YEAR TO MONTH • Time interval, expressed in years and months • +02-11 specifies a positive time interval of 2 years and 11 months • fieldname INTERVAL YEAR[(year_precision)] TO MONTH • INTERVAL DAY TO SECOND • Time interval, expressed in days, hours, minutes, and seconds • -04 03:20:32.00: 4 days, 3 hours, 20 minutes, and 32 seconds • fieldname INTERVAL DAY[(leading_precision)] TO SECOND[(fractional_seconds_precision)] A Guide to Oracle9i

  15. Large Object (LOB) Data Types A Guide to Oracle9i

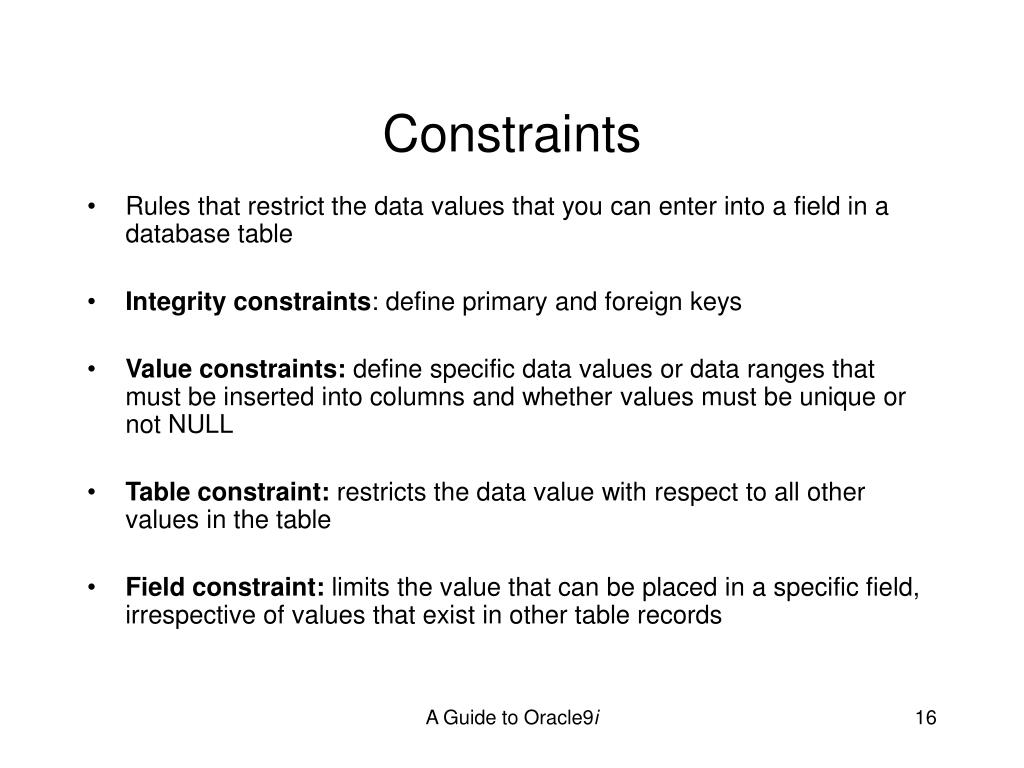

  16. Constraints • Rules that restrict the data values that you can enter into a field in a database table • Integrity constraints: define primary and foreign keys • Value constraints: define specific data values or data ranges that must be inserted into columns and whether values must be unique or not NULL • Table constraint: restricts the data value with respect to all other values in the table • Field constraint: limits the value that can be placed in a specific field, irrespective of values that exist in other table records A Guide to Oracle9i

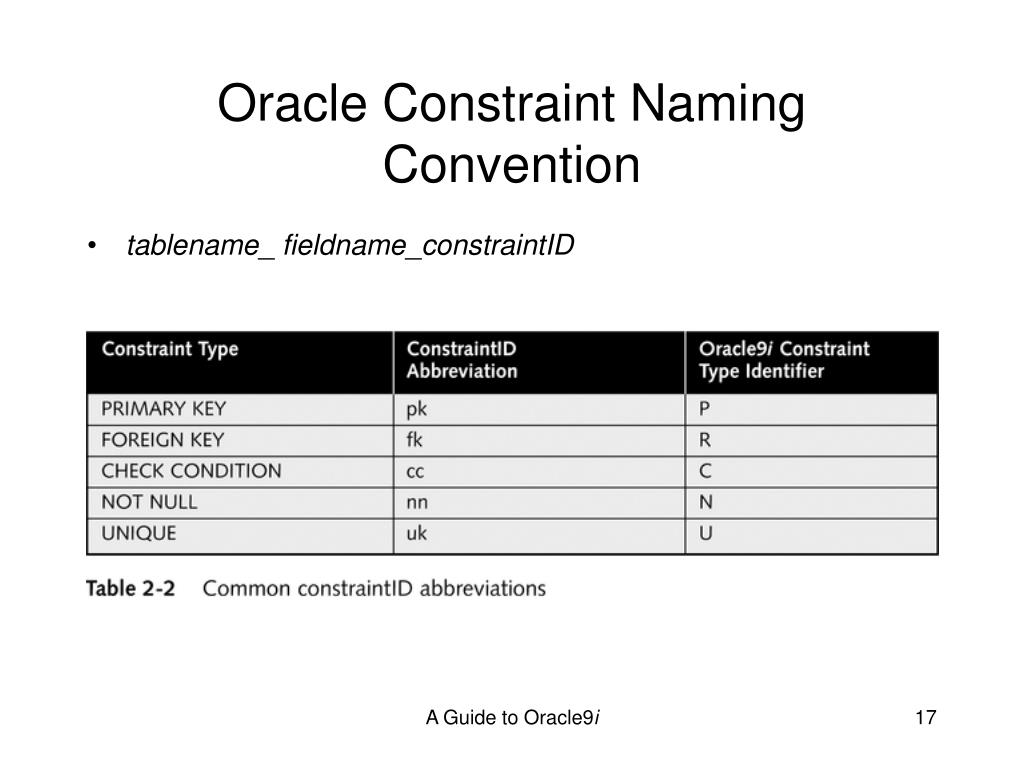

  17. Oracle Constraint Naming Convention • tablename_ fieldname_constraintID A Guide to Oracle9i

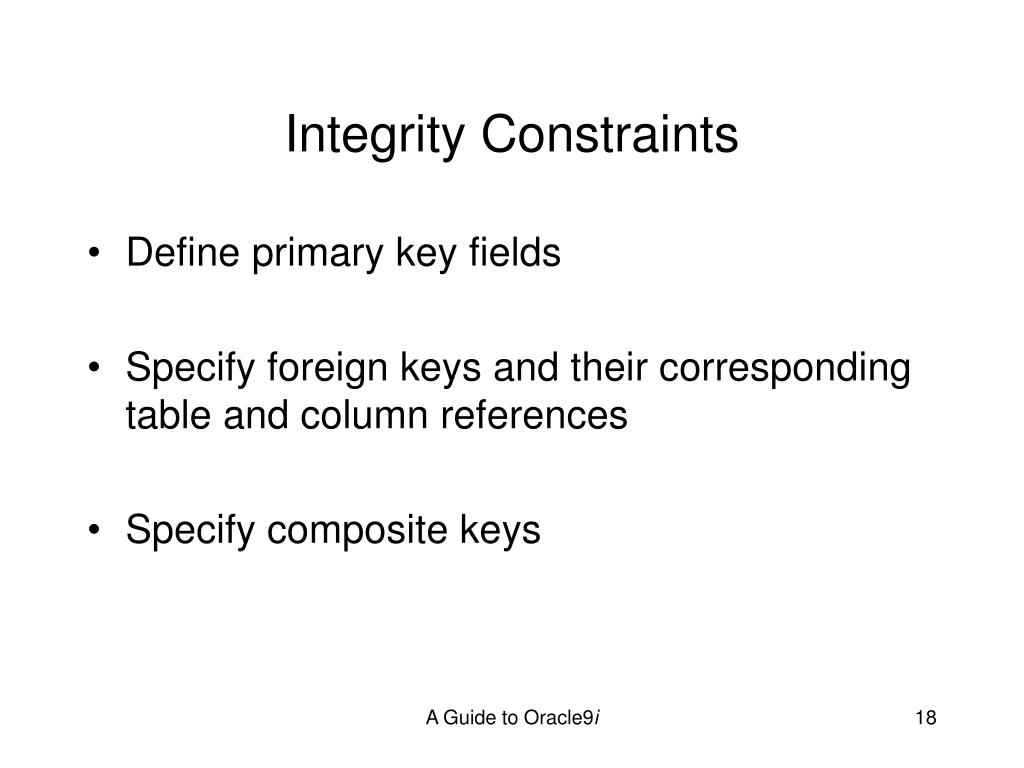

  18. Integrity Constraints • Define primary key fields • Specify foreign keys and their corresponding table and column references • Specify composite keys A Guide to Oracle9i

  19. Value Constraints • Check conditions: field value must be a specific value or fall within a range of values • NOT NULL constraints: specify whether a field value can be NULL • Default constraints: specify that a field has a default value that the DBMS automatically inserts for every record, unless the user specifies an alternate value • Unique constraints: specify that a field must have a unique value for every table record A Guide to Oracle9i

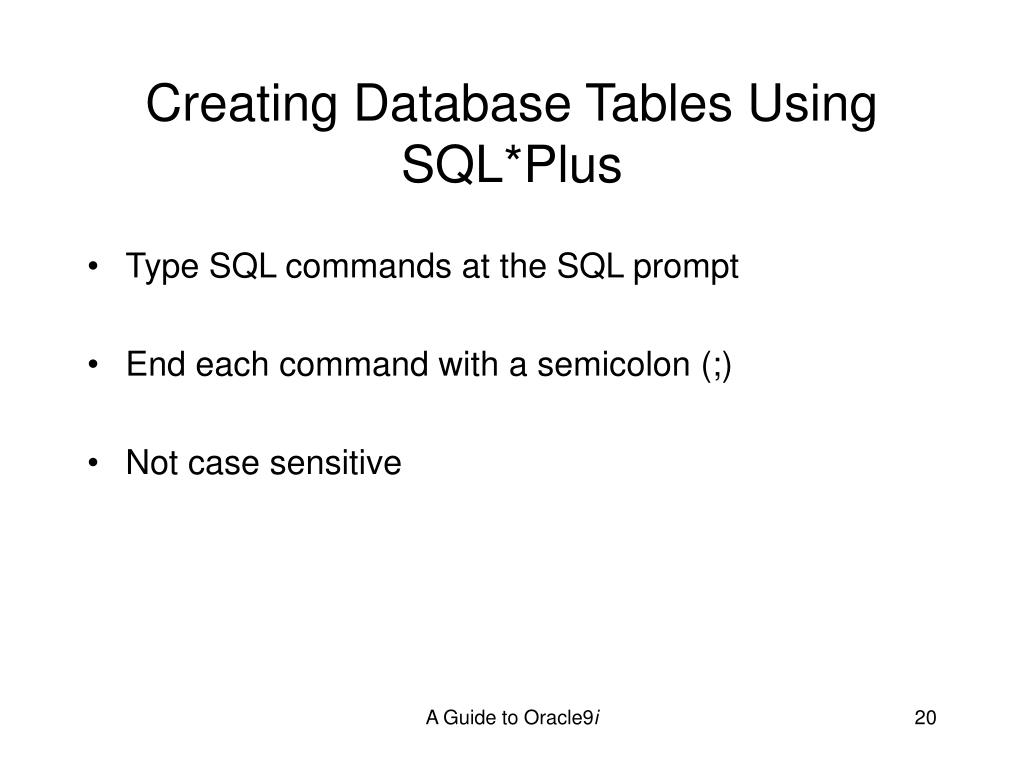

  20. Creating Database Tables Using SQL*Plus • Type SQL commands at the SQL prompt • End each command with a semicolon (;) • Not case sensitive A Guide to Oracle9i

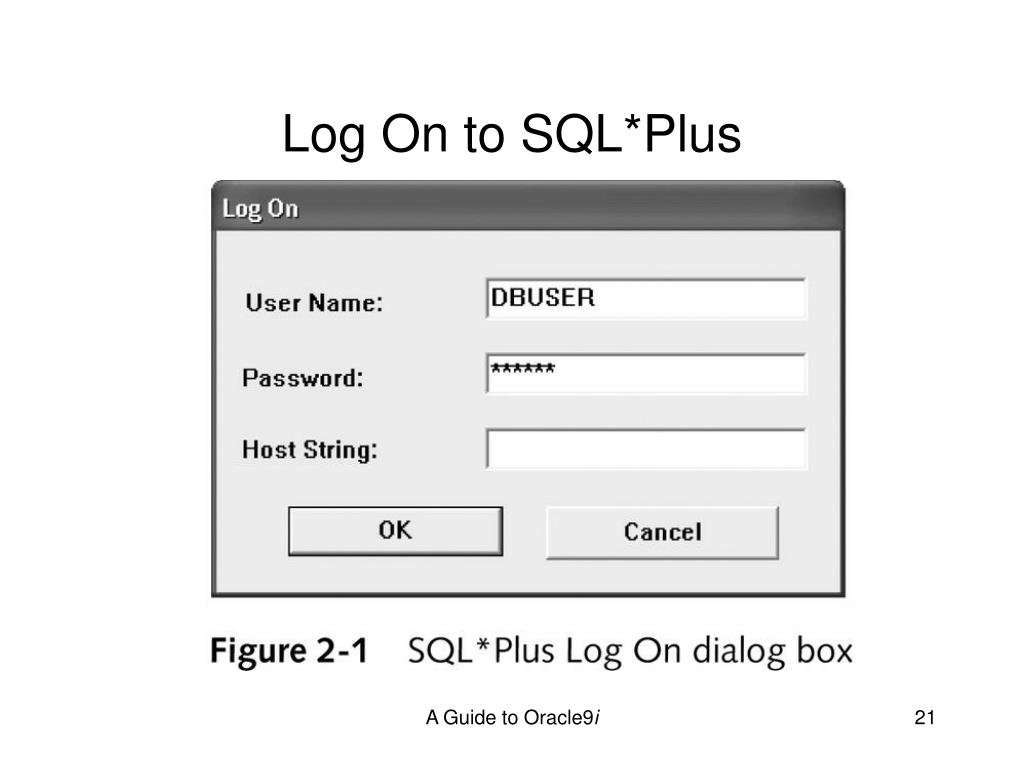

  21. Log On to SQL*Plus A Guide to Oracle9i

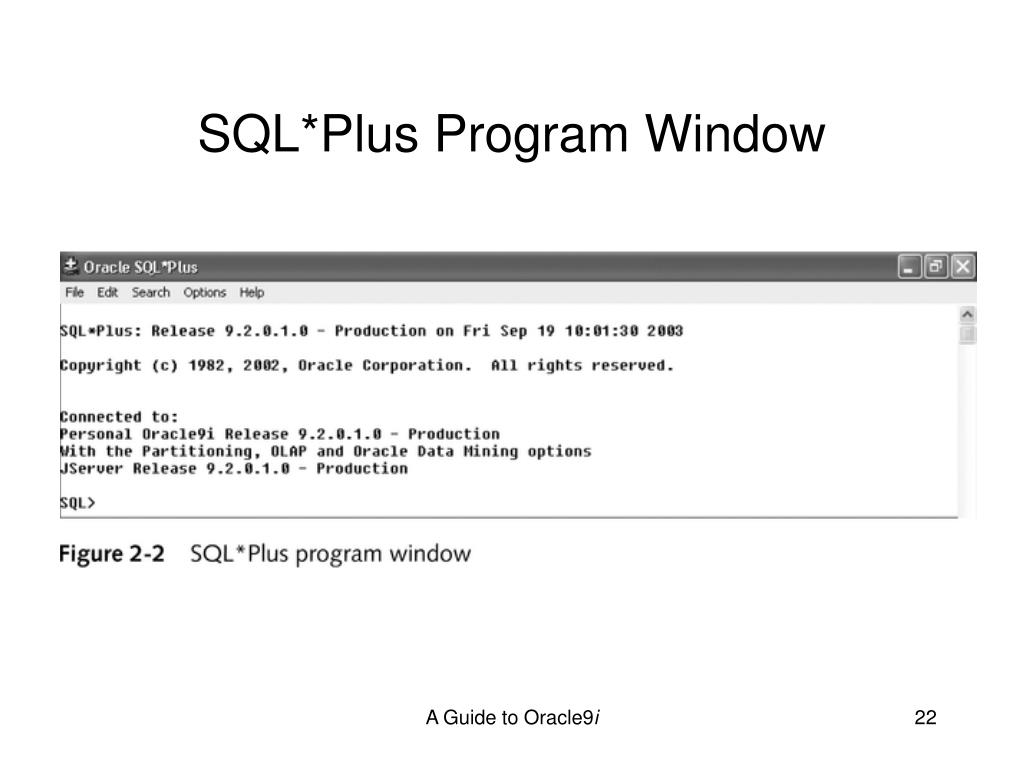

  22. SQL*Plus Program Window A Guide to Oracle9i

  23. Create a Table A Guide to Oracle9i

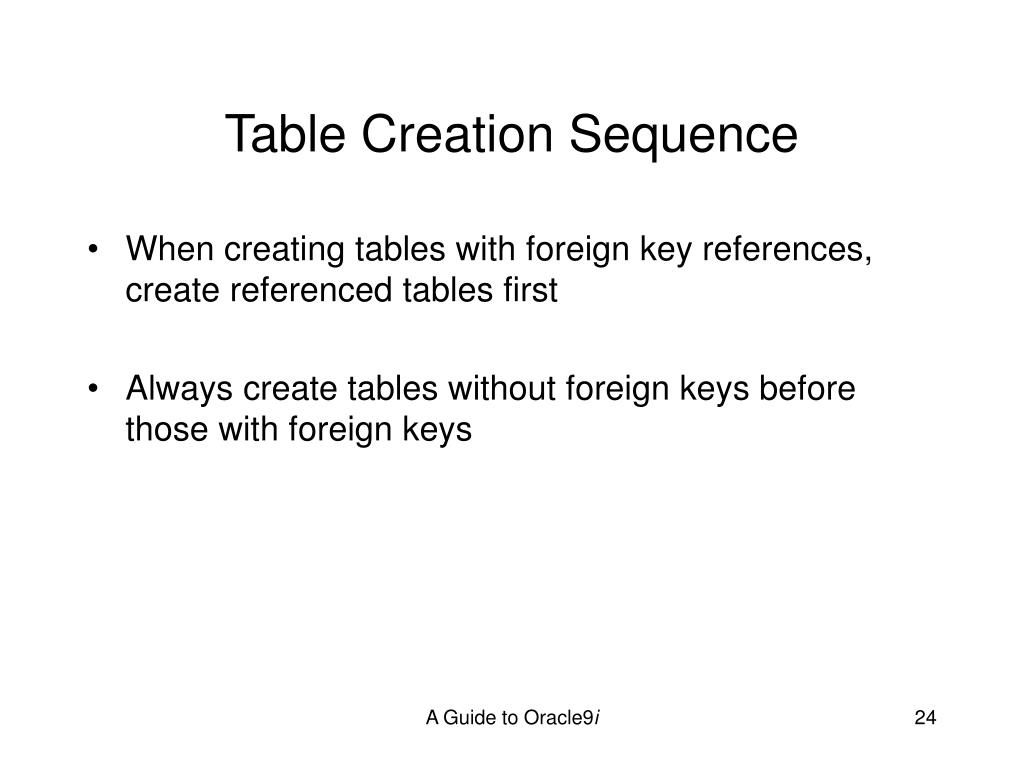

  24. Table Creation Sequence • When creating tables with foreign key references, create referenced tables first • Always create tables without foreign keys before those with foreign keys A Guide to Oracle9i

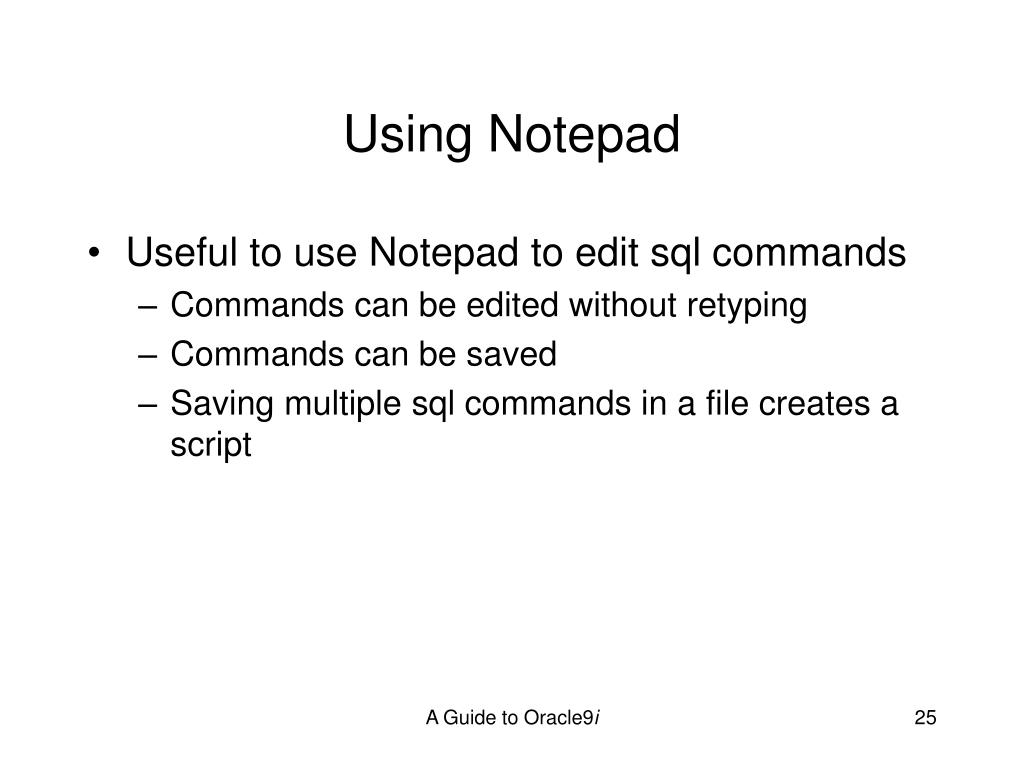

  25. Using Notepad • Useful to use Notepad to edit sql commands • Commands can be edited without retyping • Commands can be saved • Saving multiple sql commands in a file creates a script A Guide to Oracle9i

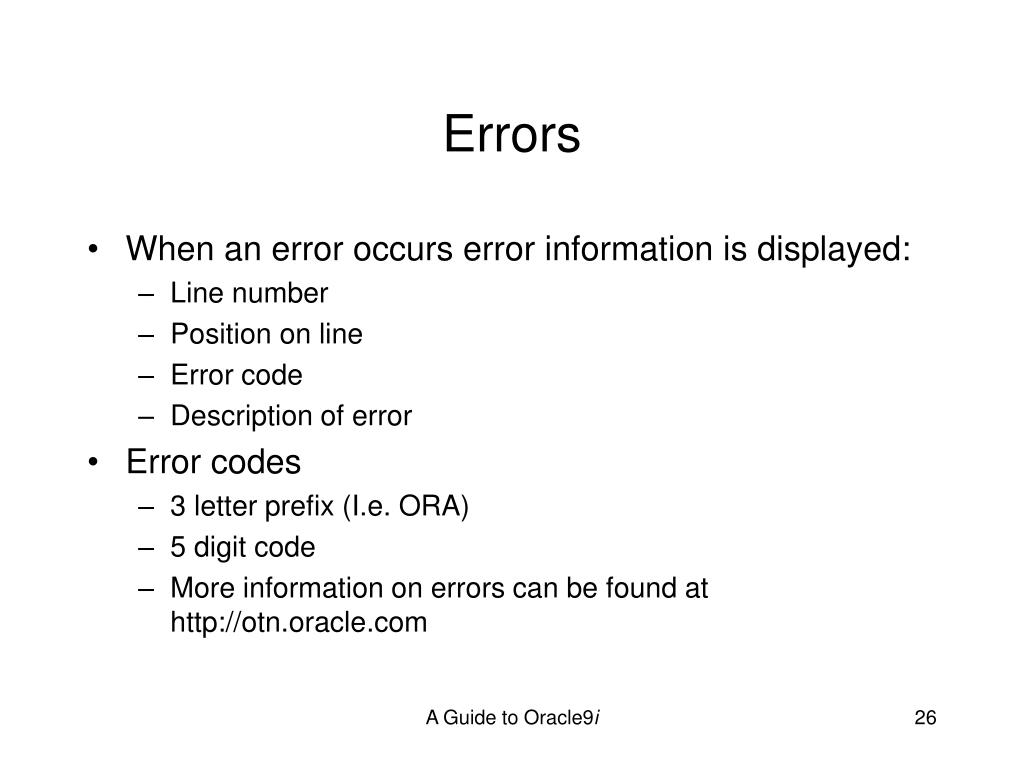

  26. Errors • When an error occurs error information is displayed: • Line number • Position on line • Error code • Description of error • Error codes • 3 letter prefix (I.e. ORA) • 5 digit code • More information on errors can be found at http://otn.oracle.com A Guide to Oracle9i

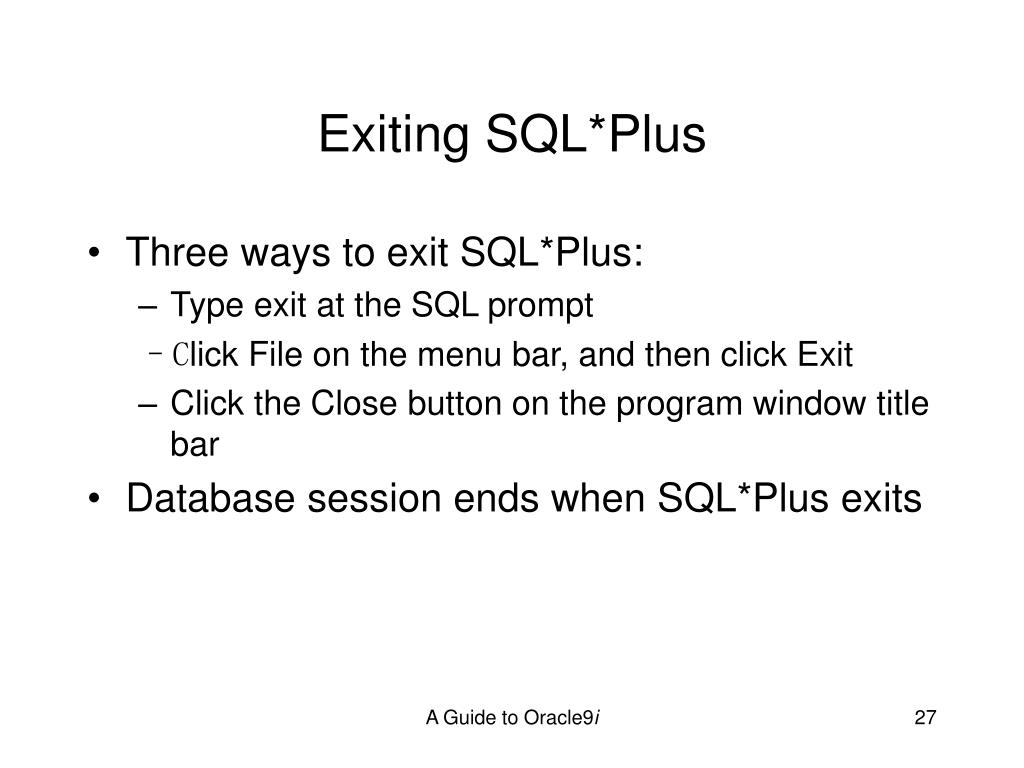

  27. Exiting SQL*Plus • Three ways to exit SQL*Plus: • Type exit at the SQL prompt • Click File on the menu bar, and then click Exit • Click the Close button on the program window title bar • Database session ends when SQL*Plus exits A Guide to Oracle9i

  28. Create Table with Foreign Key Constraint A Guide to Oracle9i

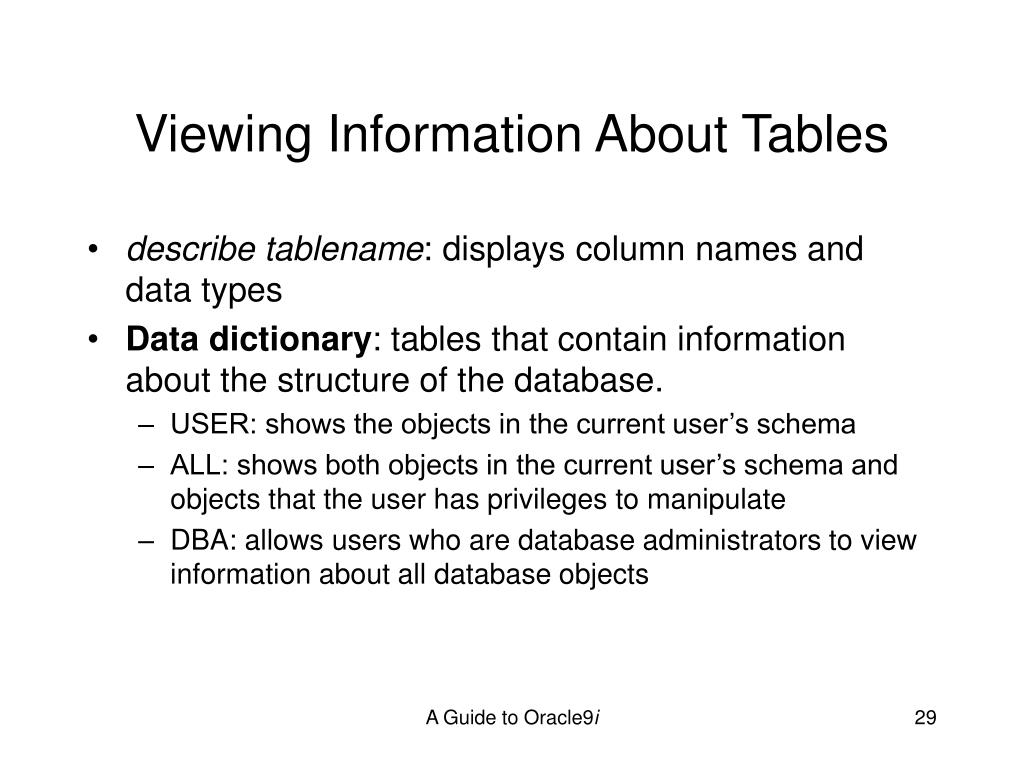

  29. Viewing Information About Tables • describe tablename: displays column names and data types • Data dictionary: tables that contain information about the structure of the database. • USER: shows the objects in the current user’s schema • ALL: shows both objects in the current user’s schema and objects that the user has privileges to manipulate • DBA: allows users who are database administrators to view information about all database objects A Guide to Oracle9i

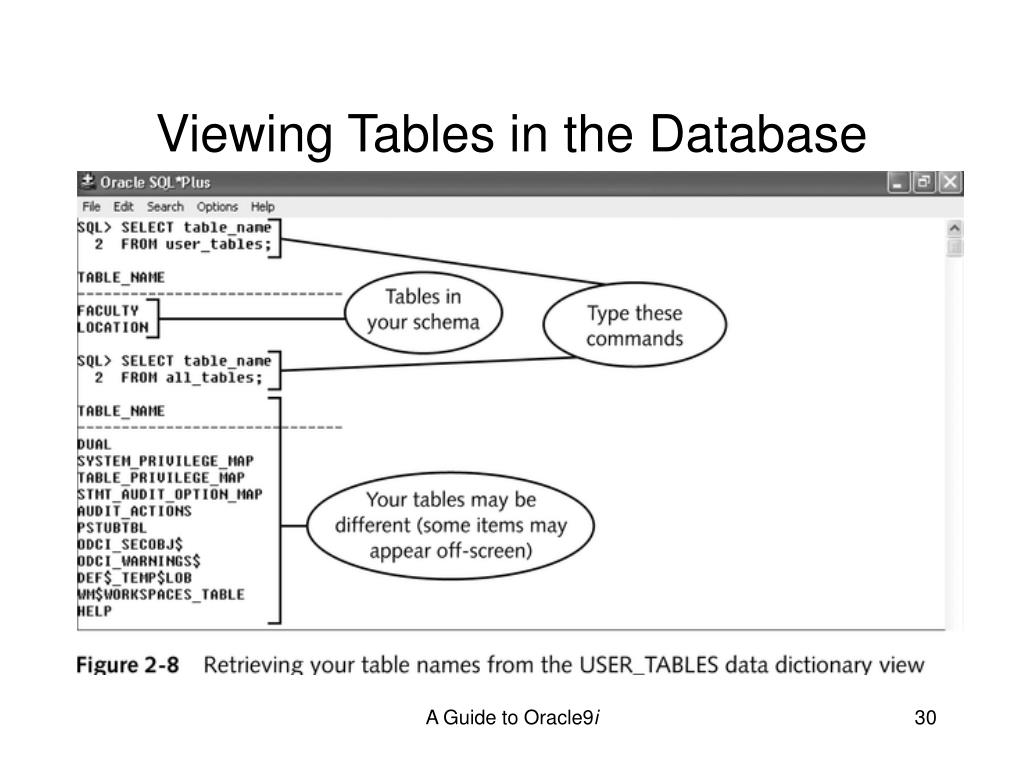

  30. Viewing Tables in the Database A Guide to Oracle9i

  31. Viewing Constraints on One Table A Guide to Oracle9i

  32. Modifying and Deleting Database Tables • Modify existing database tables by: • Changing the name of a table • Adding new columns • Deleting columns that are no longer needed • Changing the data type or maximum size of an existing column • Unrestricted action: some specifications can always be modified • Restricted action: specifications modified only in certain situations A Guide to Oracle9i

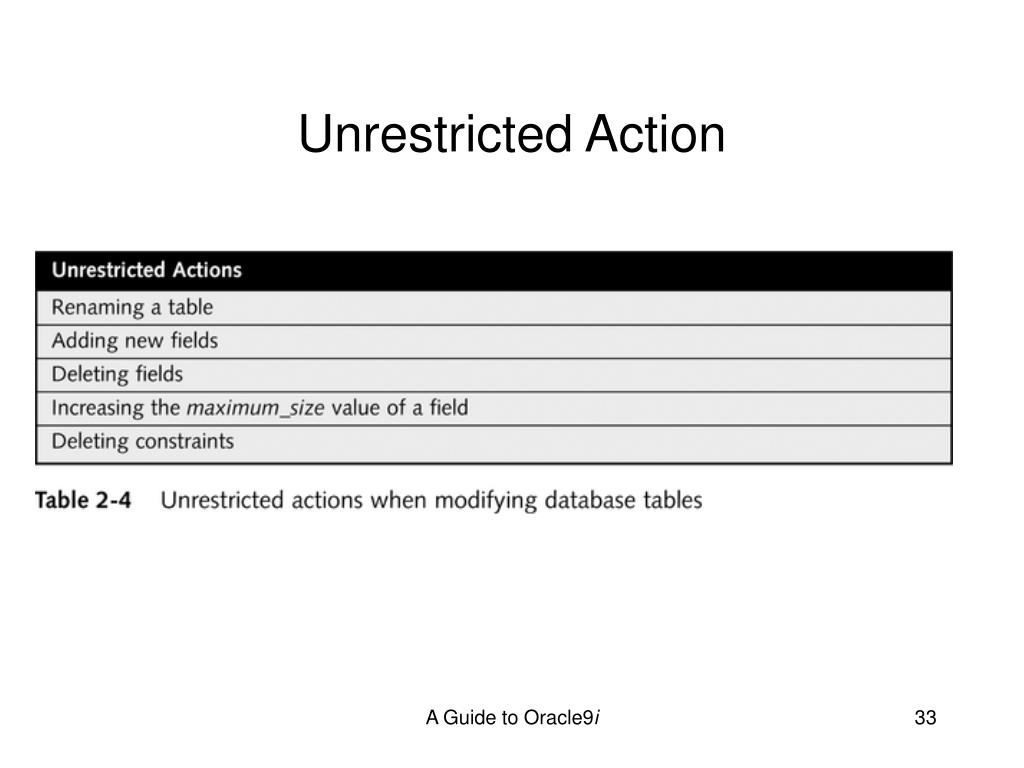

  33. Unrestricted Action A Guide to Oracle9i

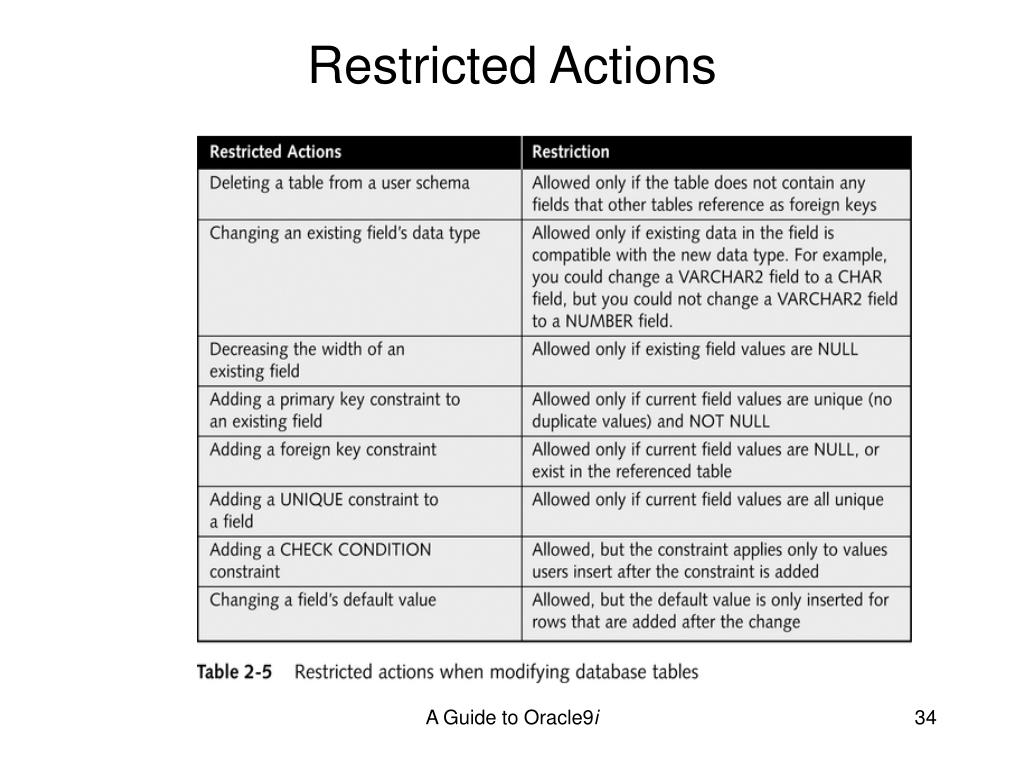

  34. Restricted Actions A Guide to Oracle9i

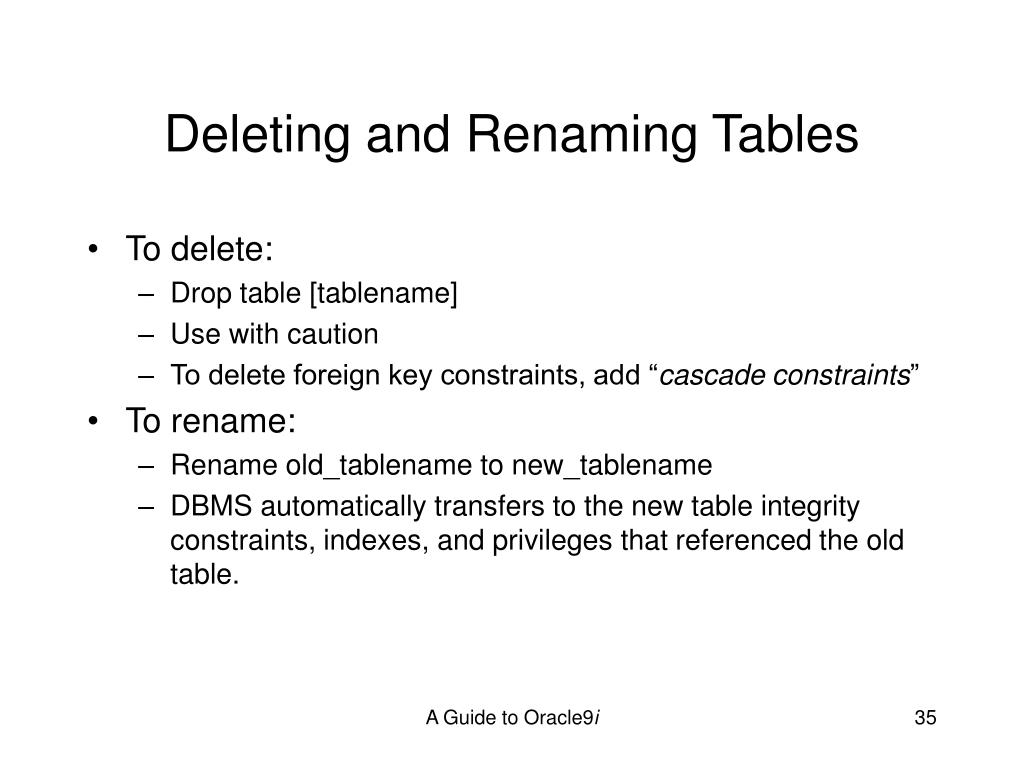

  35. Deleting and Renaming Tables • To delete: • Drop table [tablename] • Use with caution • To delete foreign key constraints, add “cascade constraints” • To rename: • Rename old_tablename to new_tablename • DBMS automatically transfers to the new table integrity constraints, indexes, and privileges that referenced the old table. A Guide to Oracle9i

  36. Adding Fields to Existing Tables • To add a field: • ALTER TABLE tablename ADD(fieldname data_declaration constraints); A Guide to Oracle9i

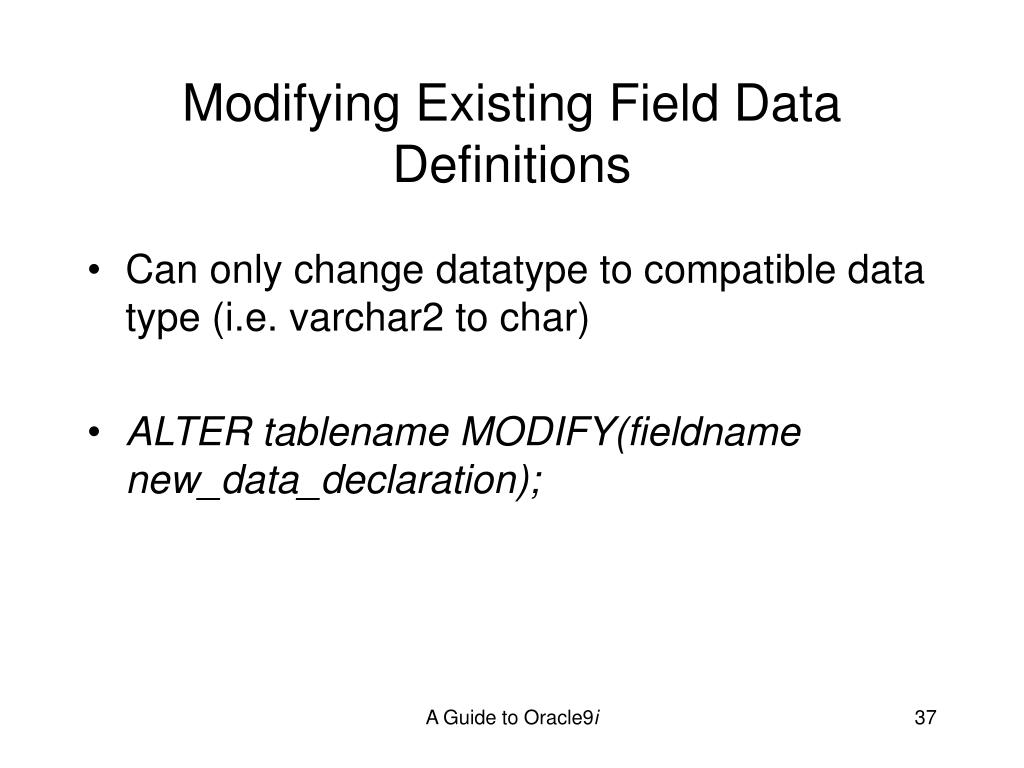

  37. Modifying Existing Field Data Definitions • Can only change datatype to compatible data type (i.e. varchar2 to char) • ALTER tablename MODIFY(fieldname new_data_declaration); A Guide to Oracle9i

  38. Deleting a Field • ALTER TABLE tablename DROP COLUMN fieldname; • Can be used to rename a field – first drop, then add A Guide to Oracle9i

  39. Adding and Deleting Constraints • Add a constraint: ALTER TABLE tablename ADD CONSTRAINT constraint_name constraint_definition; • Remove a constraint: ALTER TABLE tablename DROP CONSTRAINT constraint_name; A Guide to Oracle9i

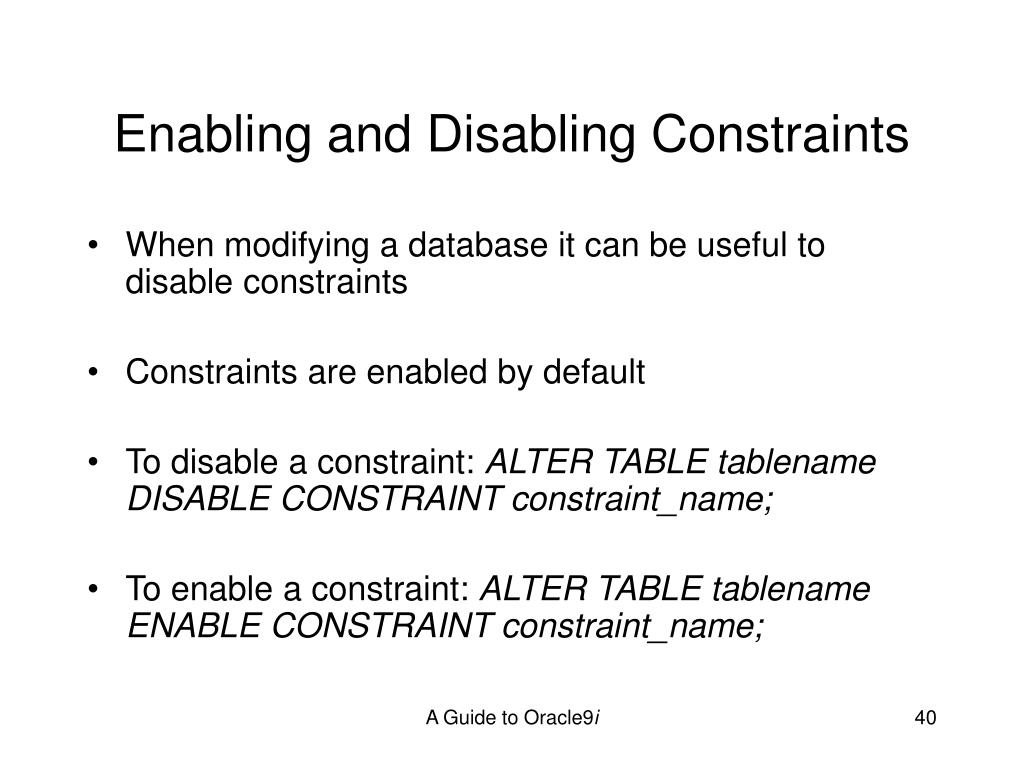

  40. Enabling and Disabling Constraints • When modifying a database it can be useful to disable constraints • Constraints are enabled by default • To disable a constraint: ALTER TABLE tablename DISABLE CONSTRAINT constraint_name; • To enable a constraint: ALTER TABLE tablename ENABLE CONSTRAINT constraint_name; A Guide to Oracle9i

  41. Summary • SQL commands include: • Data description language (DDL) commands: create, modify, Deleted database objects • Data manipulation language (DML) commands: insert, update, delete, view database data • To create a table: • specify the table name, the name of each data field, and the data type and size of each data field • Data types ensure correct data values • Constraints restrict values of database fields • SQL*Plus commands are not case sensitive A Guide to Oracle9i

  42. Summary • Errors include line number, position, error code • Use DESCRIBE command to display a table’s fieldnames and data types • Tables can be modified or deleted but some changes are restricted A Guide to Oracle9i
