  1. Geometry Notes Section 1-2

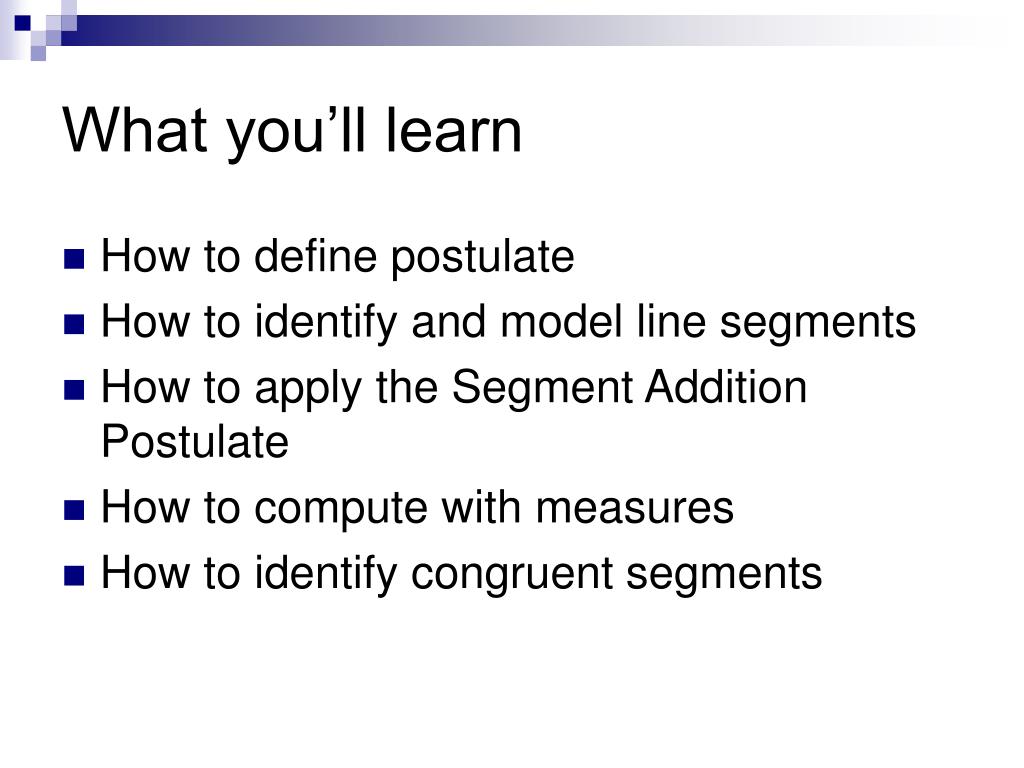

  2. What you’ll learn • How to define postulate • How to identify and model line segments • How to apply the Segment Addition Postulate • How to compute with measures • How to identify congruent segments

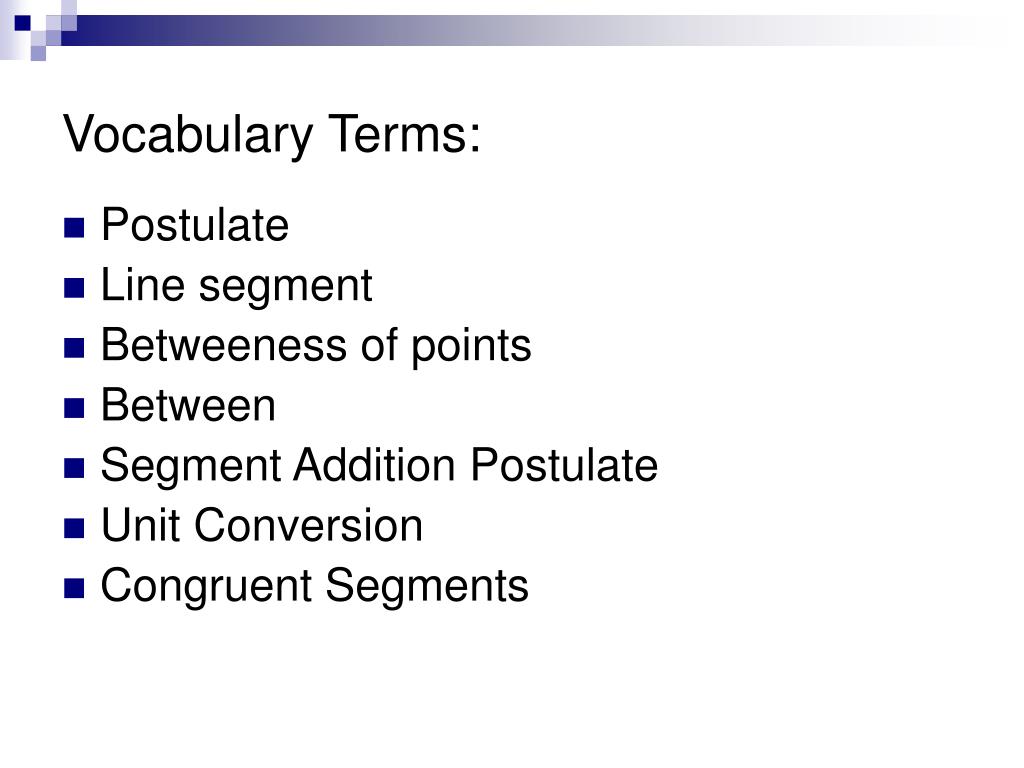

  3. Vocabulary Terms: • Postulate • Line segment • Betweeness of points • Between • Segment Addition Postulate • Unit Conversion • Congruent Segments

  4. Postulates • Geometry is based on accepted rules and proven theories. • Postulate is the term used for rules that are assumed to be true (postulates do not have to be proven).

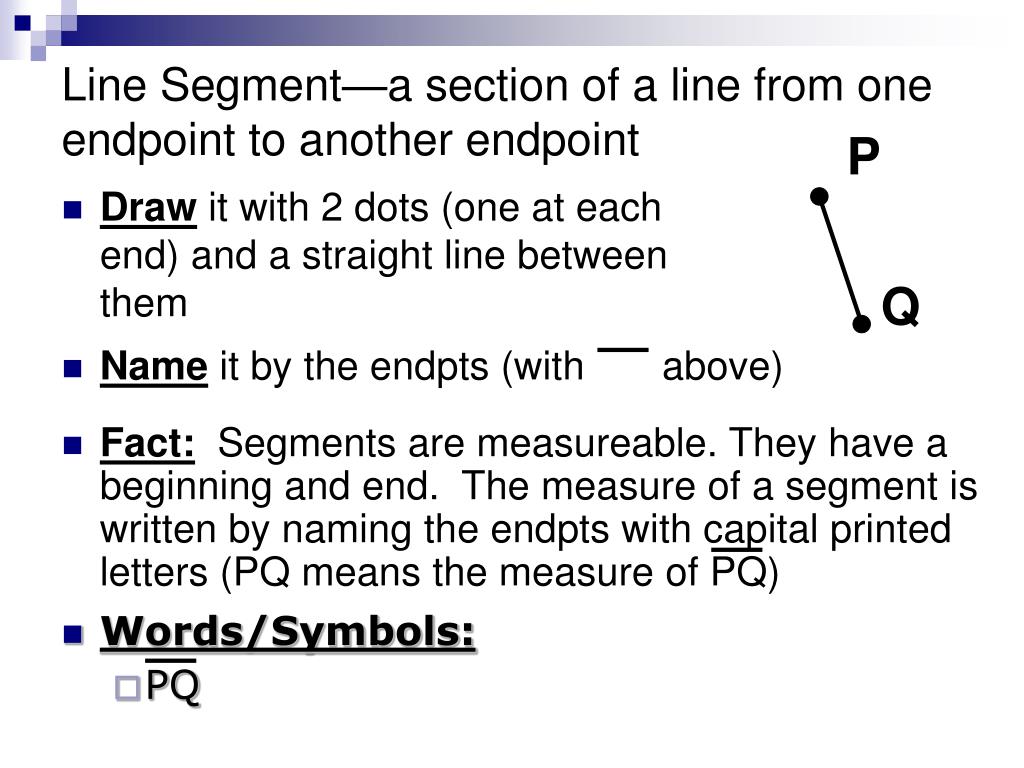

  5. Line Segment—a section of a line from one endpoint to another endpoint P • Draw it with 2 dots (one at each end) and a straight line between them Q • Name it by the endpts (with above) • Fact: Segments are measureable. They have a beginning and end. The measure of a segment is written by naming the endpts with capital printed letters (PQ means the measure of PQ) • Words/Symbols: • PQ

  6. Segments have measure • Segments are measured with a ruler, yardstick or tape measure • Units of measure include • Inches • Feet • Yards • Centimeters • Meters

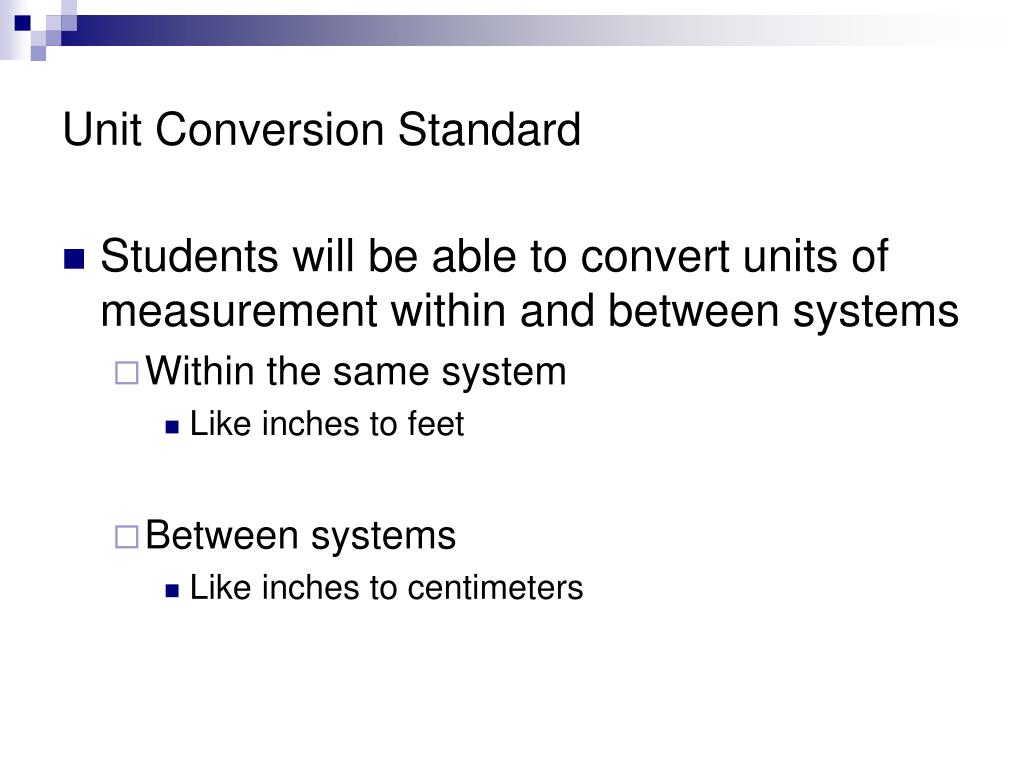

  7. Unit Conversion Standard • Students will be able to convert units of measurement within and between systems • Within the same system • Like inches to feet • Between systems • Like inches to centimeters

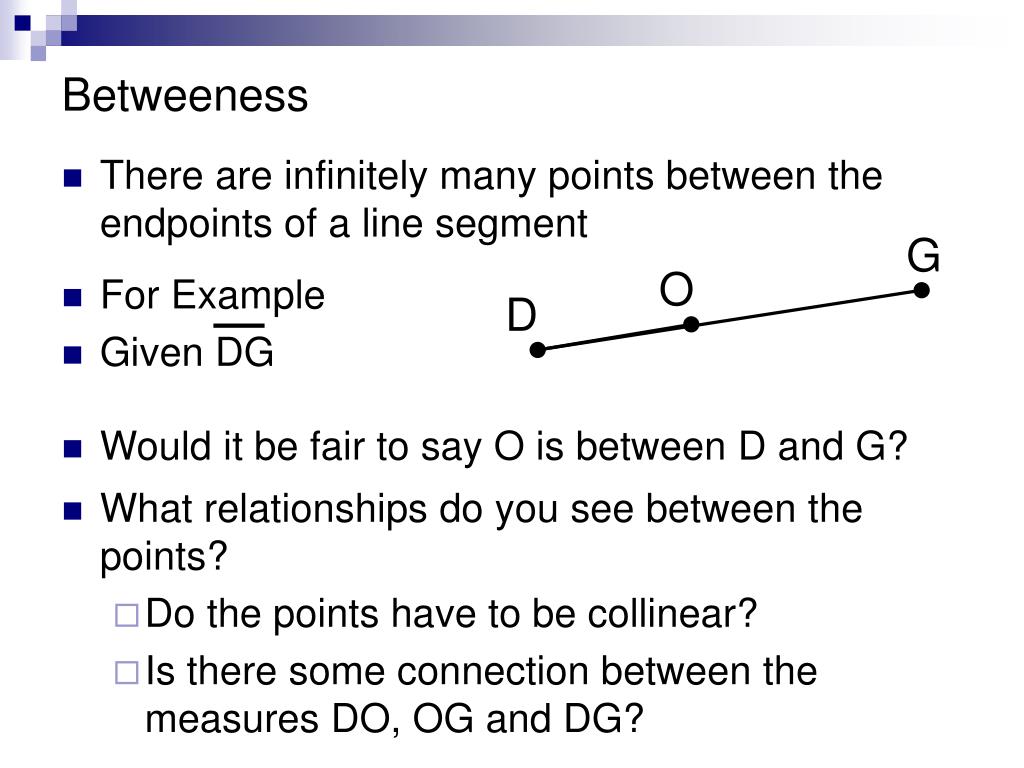

  8. Betweeness • There are infinitely many points between the endpoints of a line segment G O • For Example • Given DG D • Would it be fair to say O is between D and G? • What relationships do you see between the points? • Do the points have to be collinear? • Is there some connection between the measures DO, OG and DG?

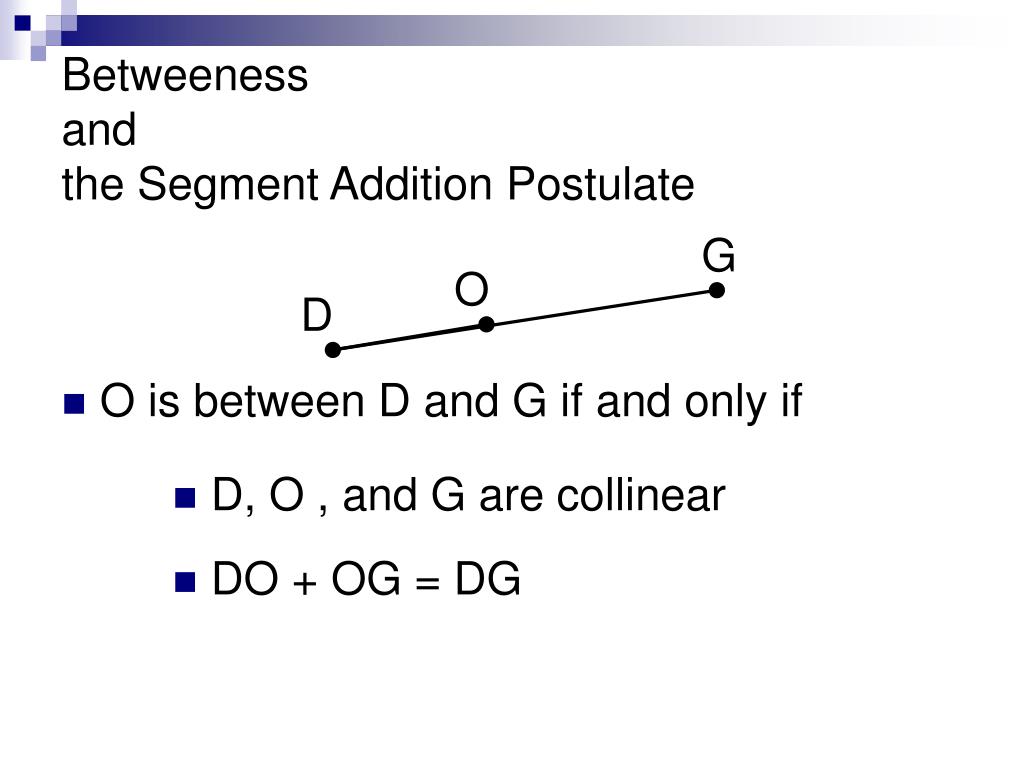

  9. Betweeness and the Segment Addition Postulate • O is between D and G if and only if G O D • D, O , and G are collinear • DO + OG = DG

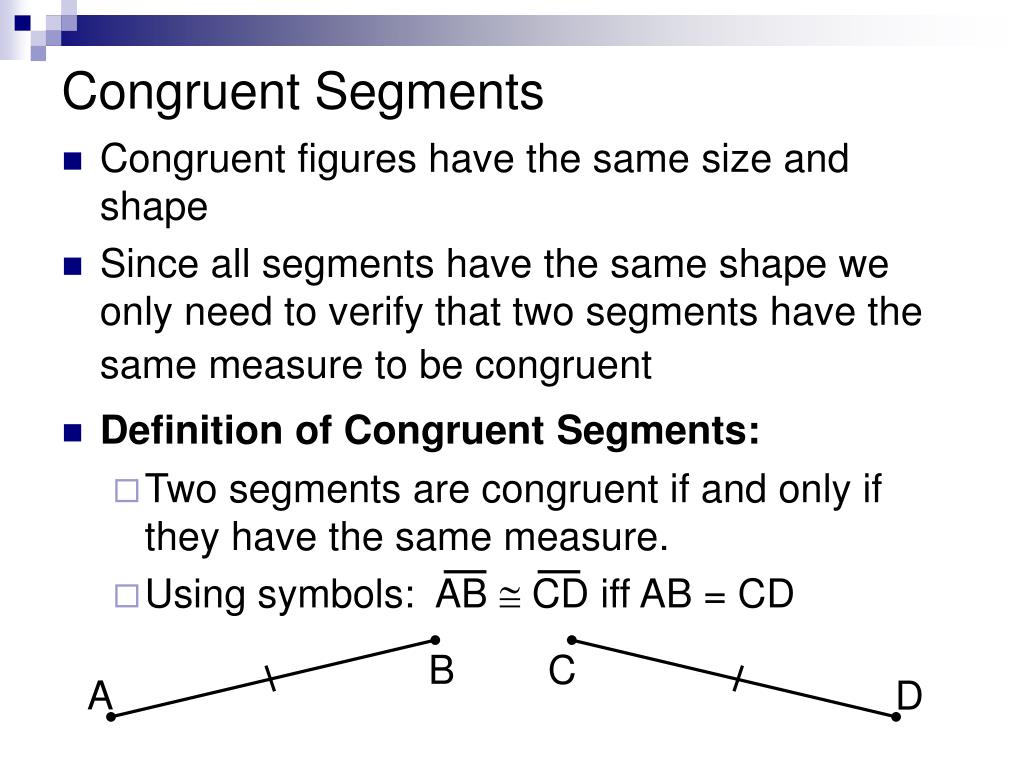

  10. B C A D Congruent Segments • Congruent figures have the same size and shape • Since all segments have the same shape we only need to verify that two segments have the same measure to be congruent • Definition of Congruent Segments: • Two segments are congruent if and only if they have the same measure. • Using symbols: AB  CD iff AB = CD

  11. Have you learned. . . • How to define postulate? • How to identify and model line segments? • How to apply the Segment Addition Postulate? • How to compute with measures? • How to identify congruent segments? • Your assignment is Worksheet 1.2
