  1. MOLDEN: a pre- and post- processing program for molecular and electronic structures

  2. Interfaced via program output • Gaussian • GAMESS-US • GAMESS-UK • MOPAC, AMPAC

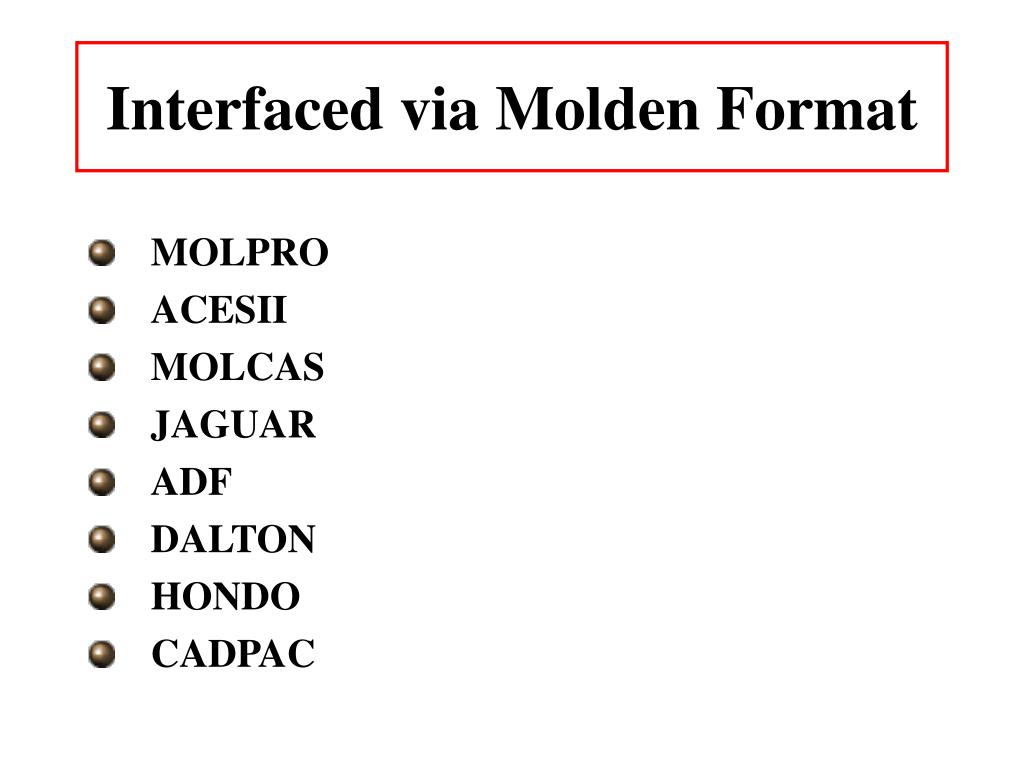

  3. Interfaced via Molden Format • MOLPRO • ACESII • MOLCAS • JAGUAR • ADF • DALTON • HONDO • CADPAC

  4. Molecular Builder/Editor

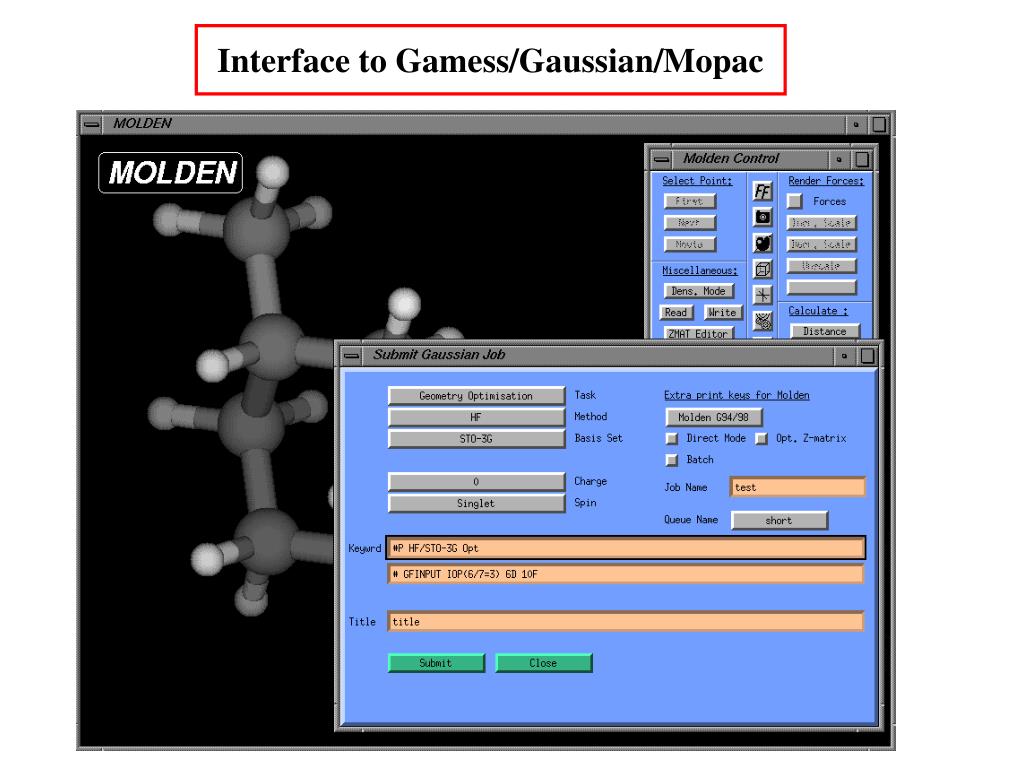

  5. Interface to Gamess/Gaussian/Mopac

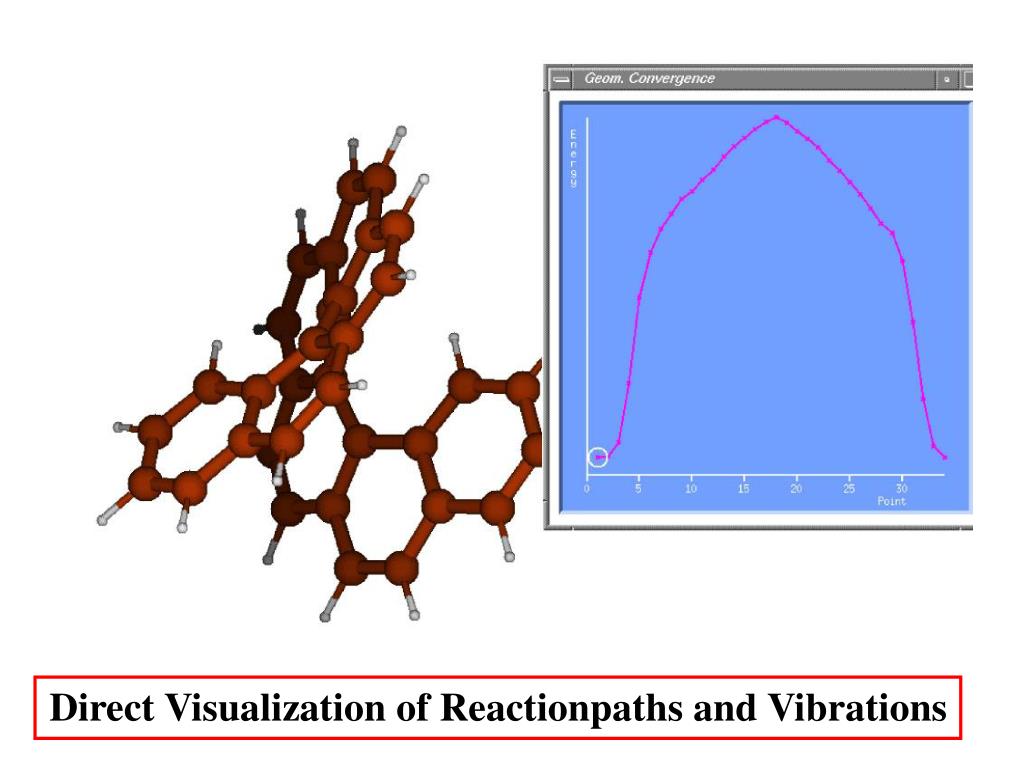

  6. Direct Visualization of Reactionpaths and Vibrations

  7. VRML animations of Reactions, Orbitals and Vibrations

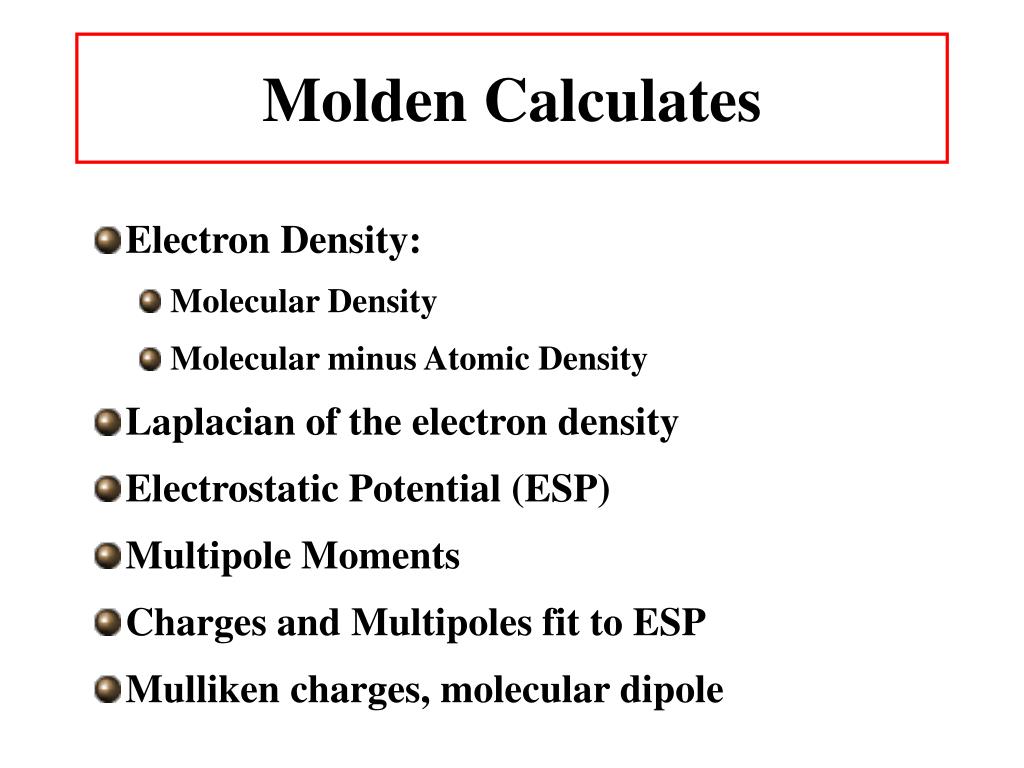

  8. Molden Calculates • Electron Density: • Molecular Density • Molecular minus Atomic Density • Laplacian of the electron density • Electrostatic Potential (ESP) • Multipole Moments • Charges and Multipoles fit to ESP • Mulliken charges, molecular dipole

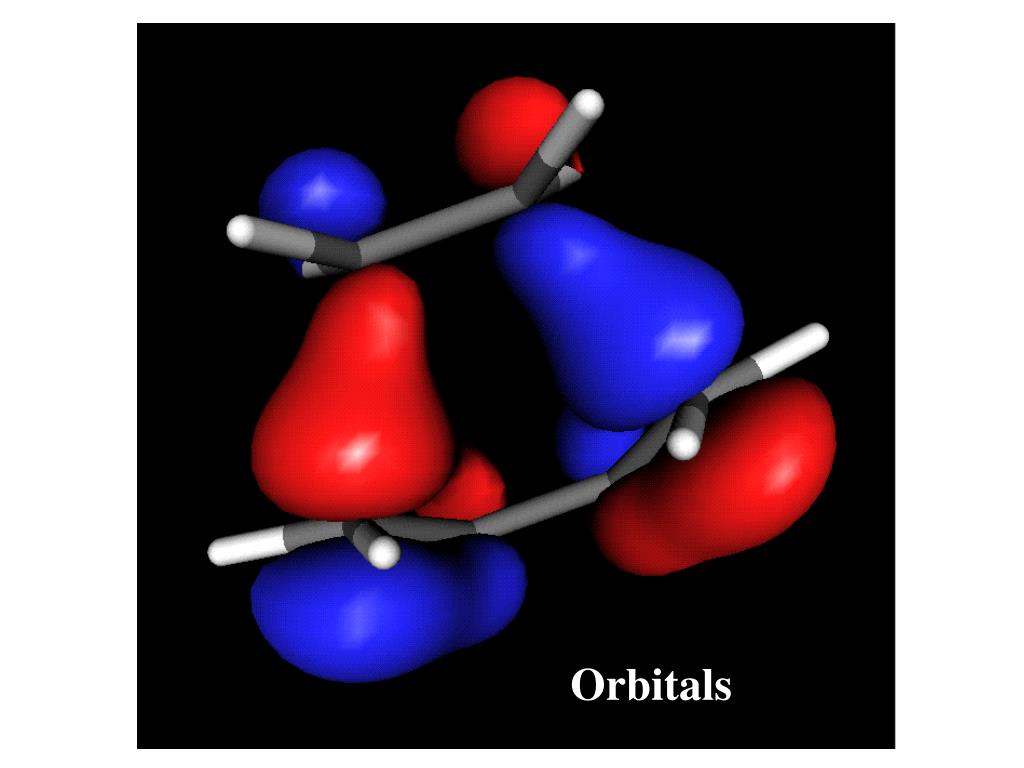

  9. Orbitals

  10. Difference Density

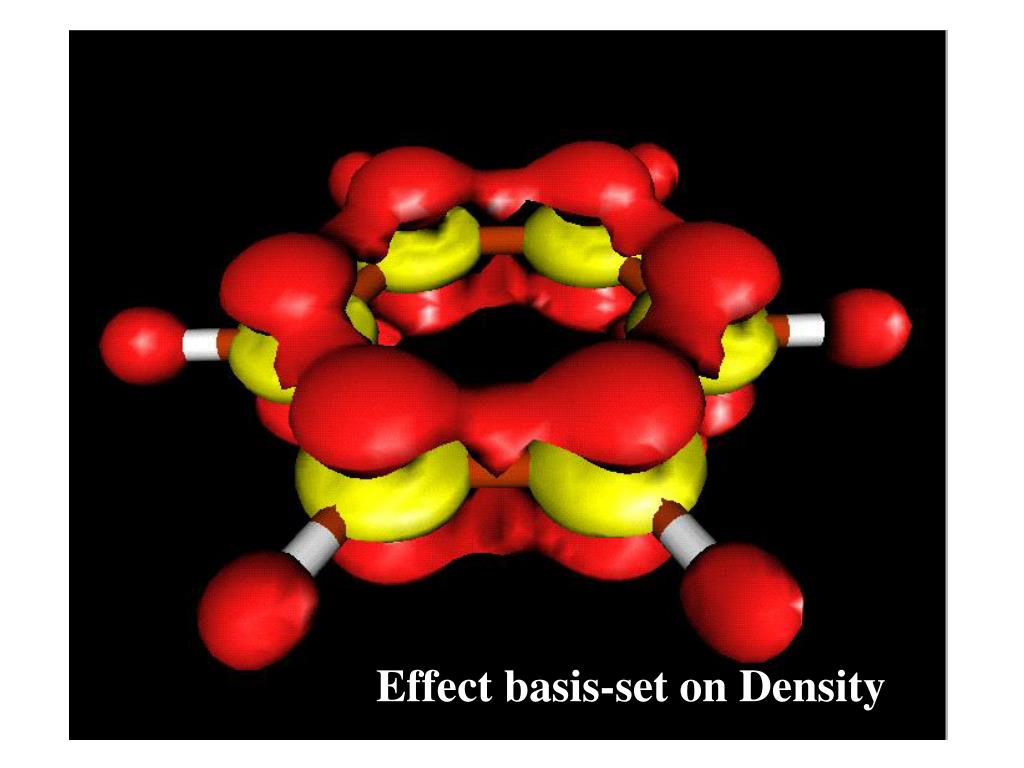

  11. Effect basis-set on Density

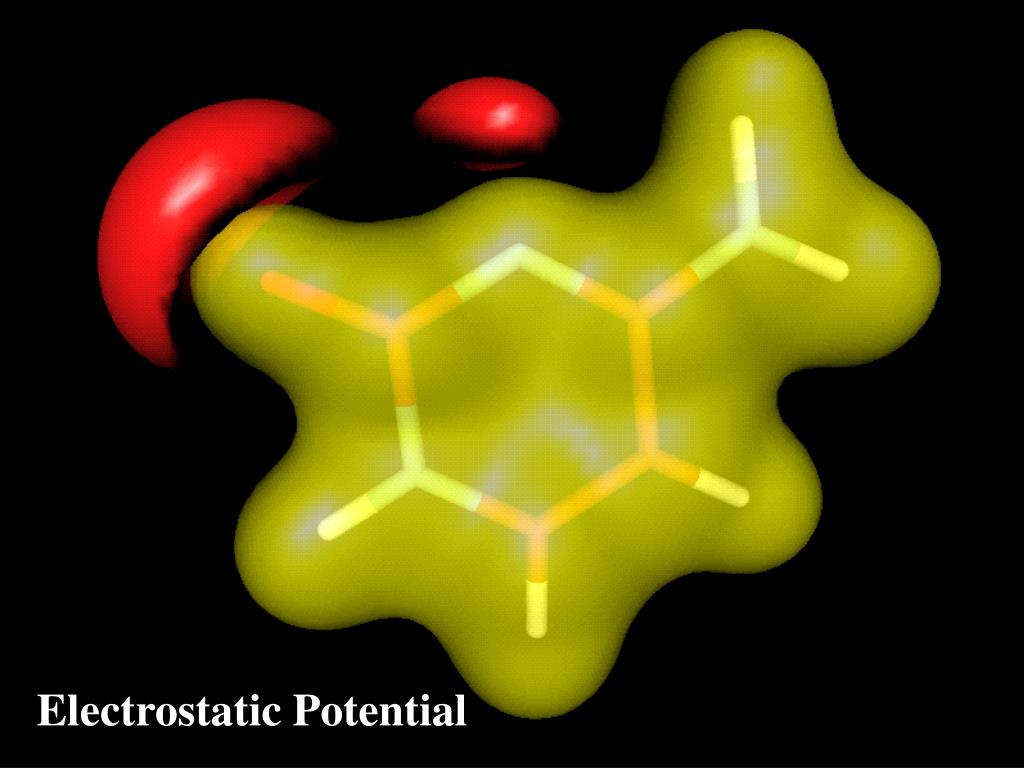

  12. Electrostatic Potential

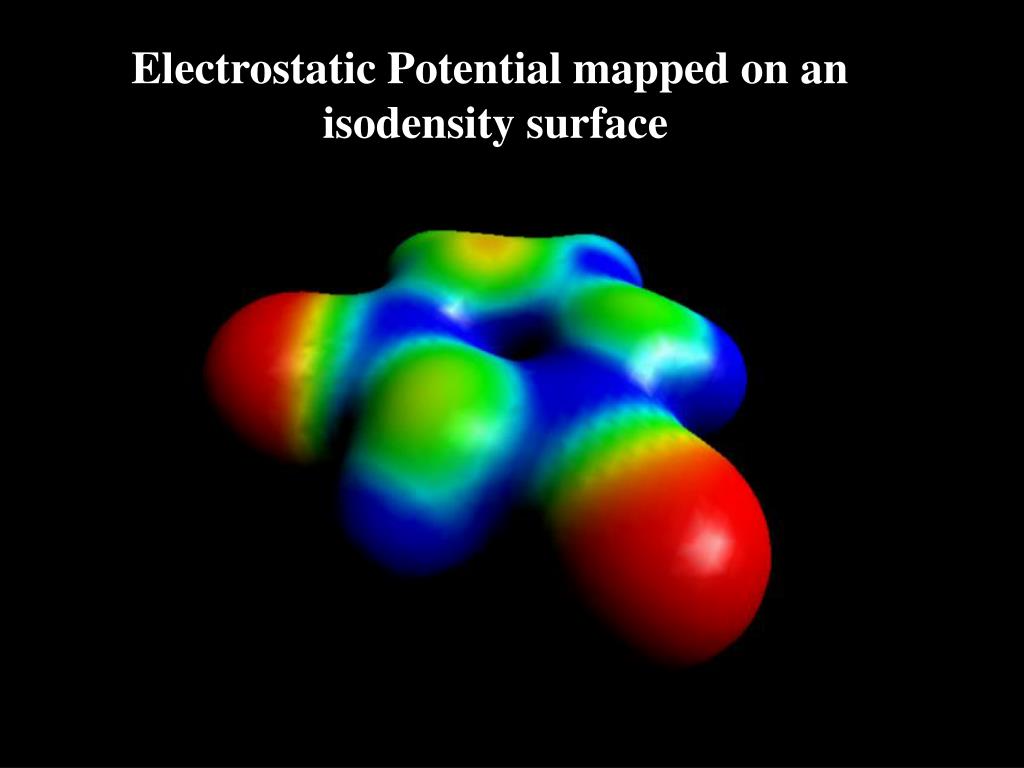

  13. Electrostatic Potential mapped on an isodensity surface

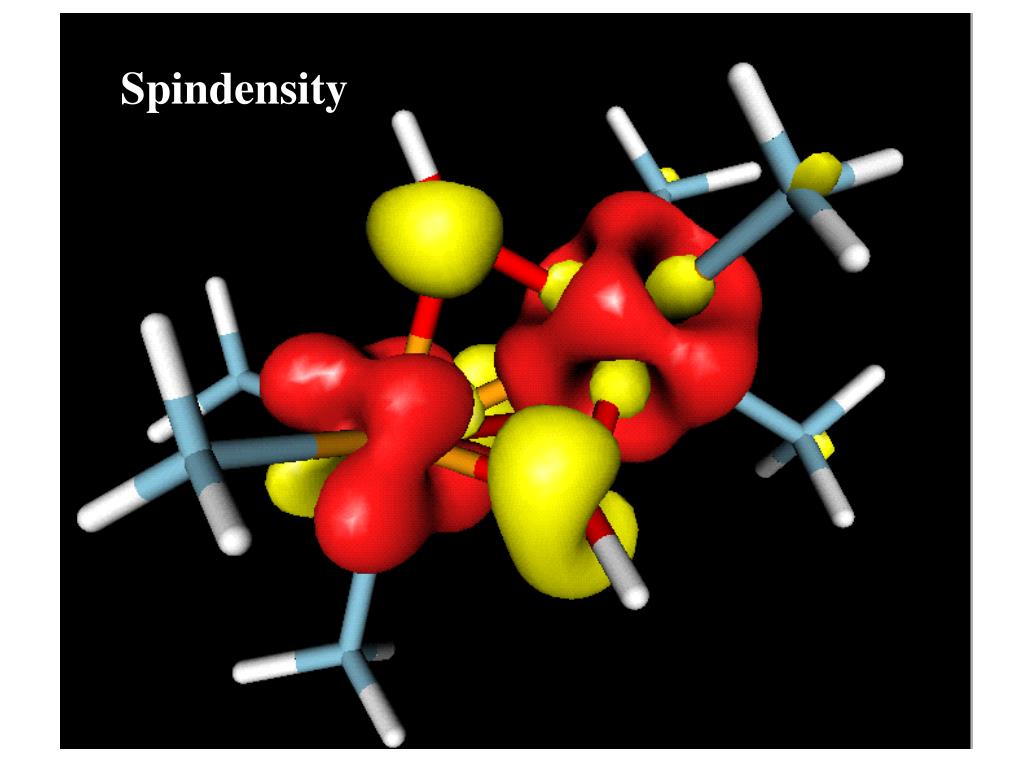

  14. Spindensity

  15. Multipole Derived Electrostatic Potential

  16. Simultaneous Rendering of multiple surfaces

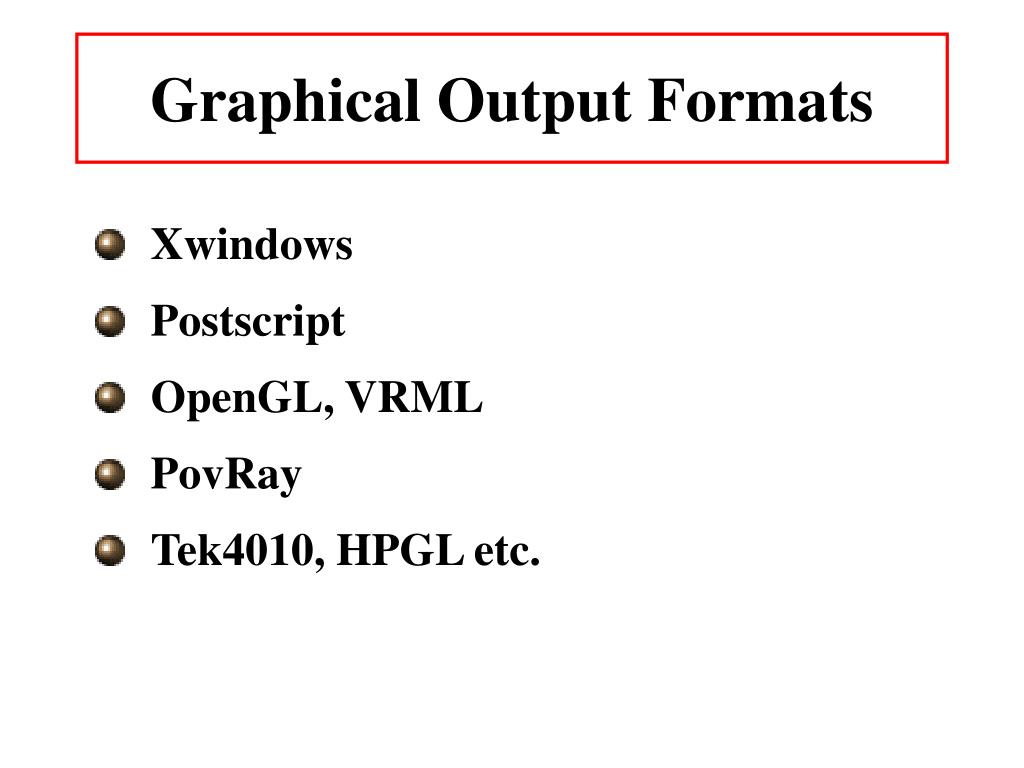

  17. Graphical Output Formats • Xwindows • Postscript • OpenGL, VRML • PovRay • Tek4010, HPGL etc.

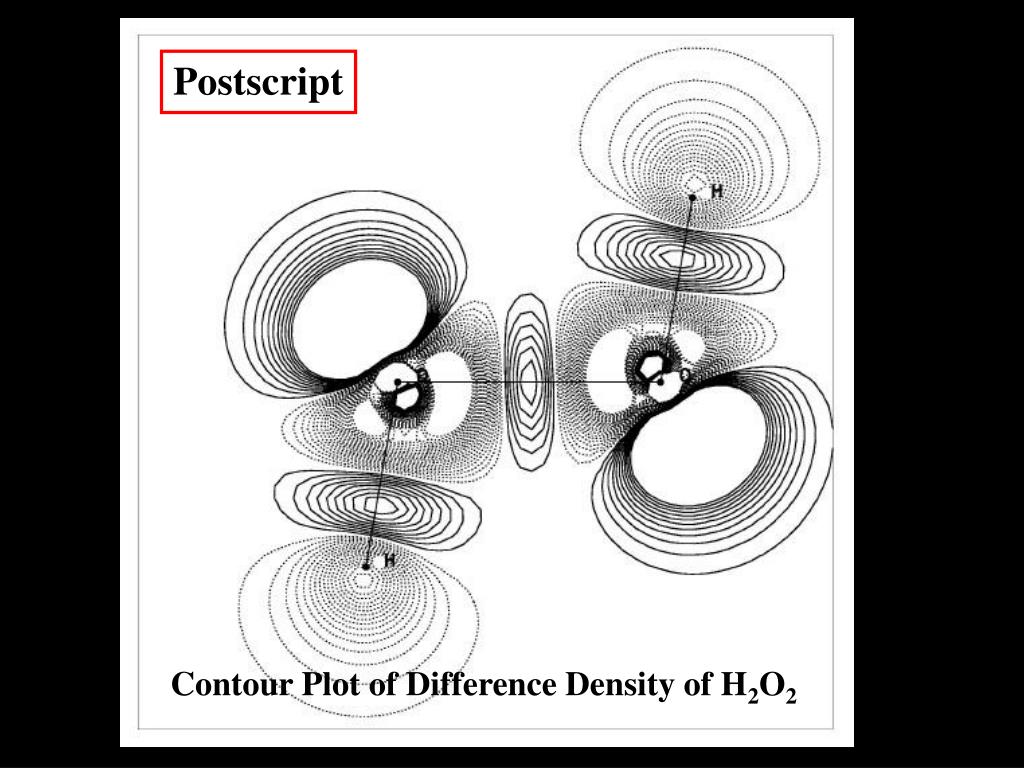

  18. Postscript Contour Plot of Difference Density of H2O2

  19. VRML

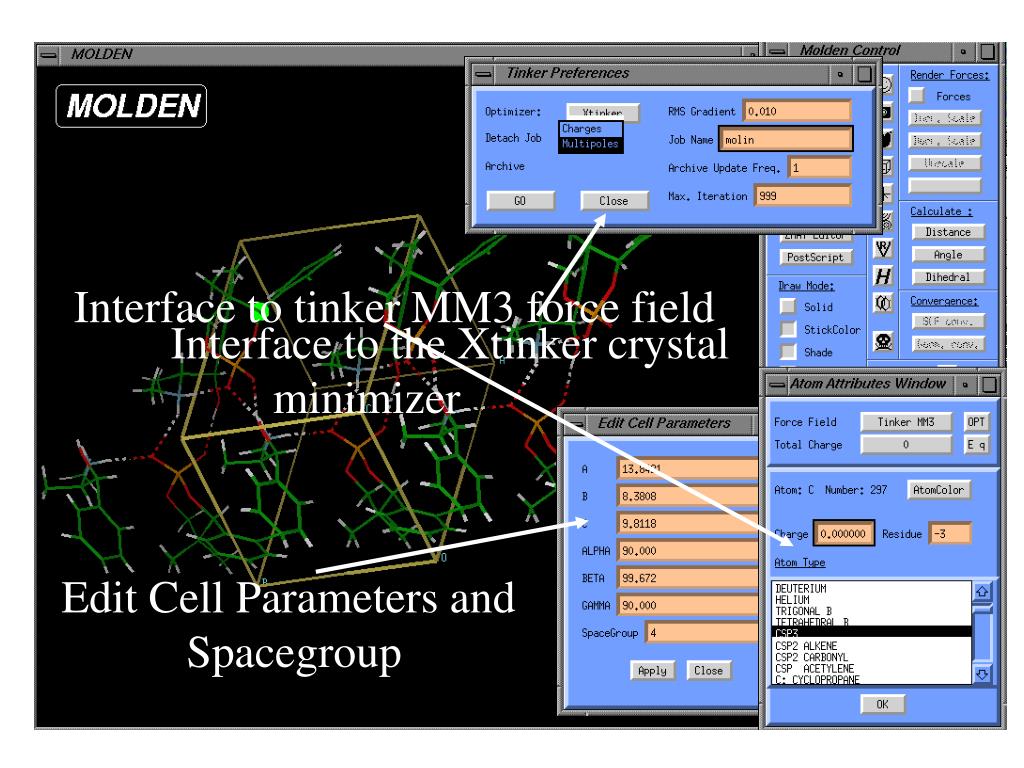

  20. Interface to tinker MM3 force field Interface to the Xtinker crystal minimizer Edit Cell Parameters and Spacegroup

  21. Building of Protein Structure

  22. Interactive manipulation of Atom Types Interface to Tinker Protein Force Fields

  23. Manipulation of Protein Sidechains

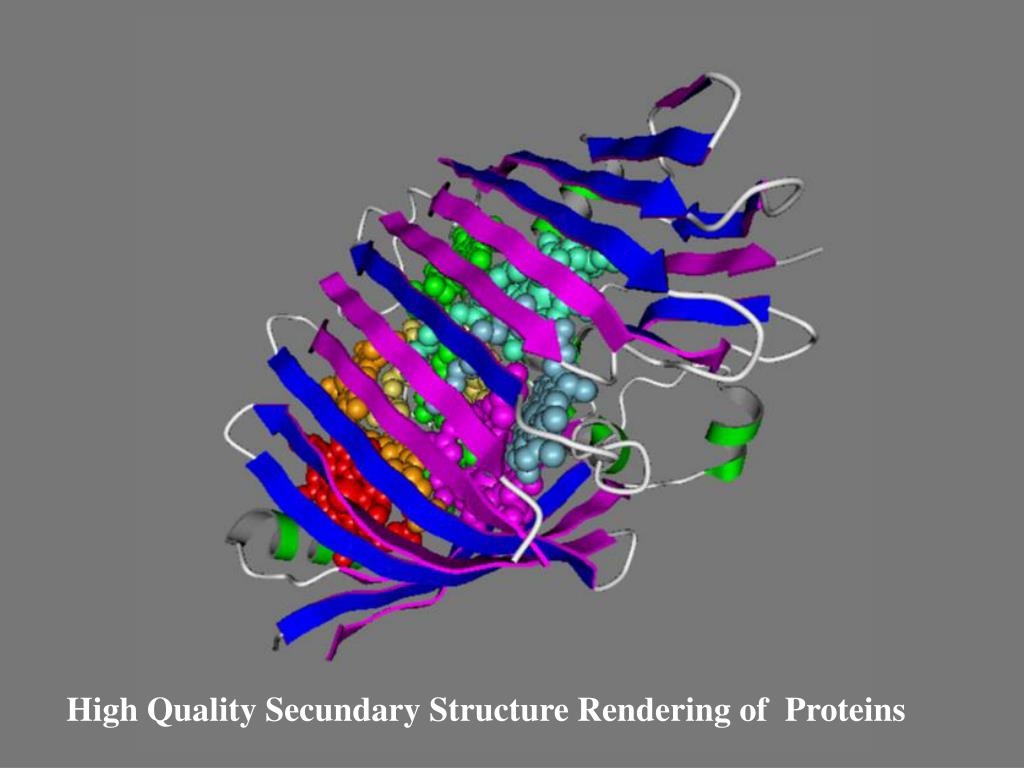

  24. High Quality Secundary Structure Rendering of Proteins

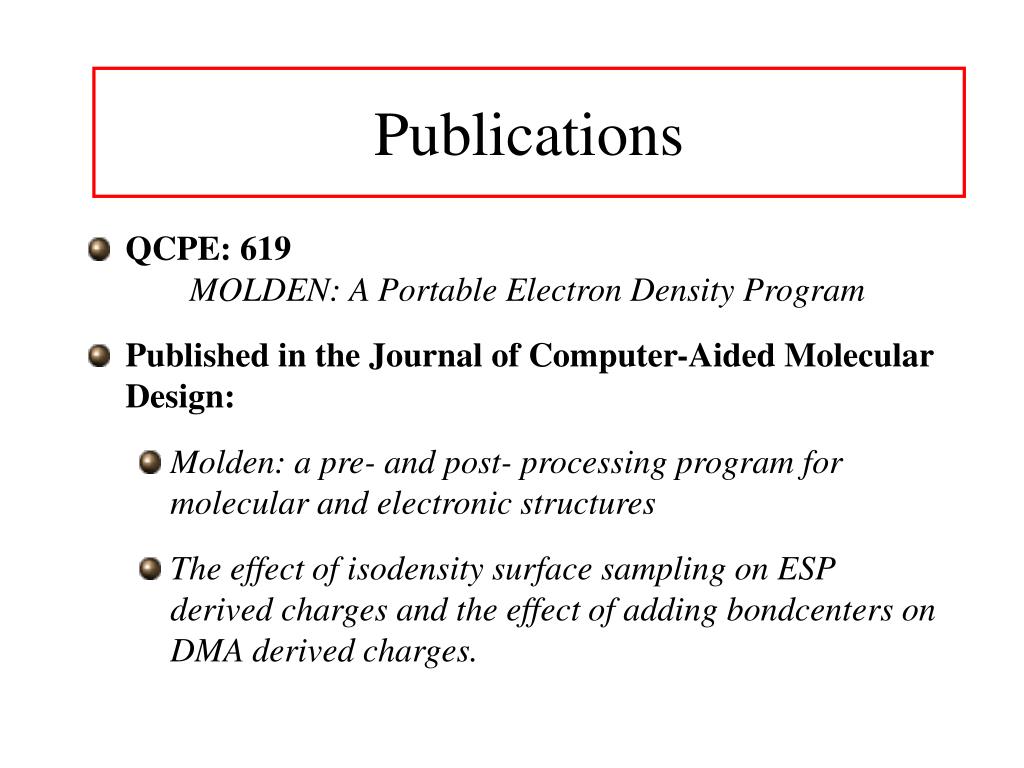

  25. Publications • QCPE: 619MOLDEN: A Portable Electron Density Program • Published in the Journal of Computer-Aided Molecular Design: • Molden: a pre- and post- processing program for molecular and electronic structures • The effect of isodensity surface sampling on ESP derived charges and the effect of adding bondcenters on DMA derived charges.

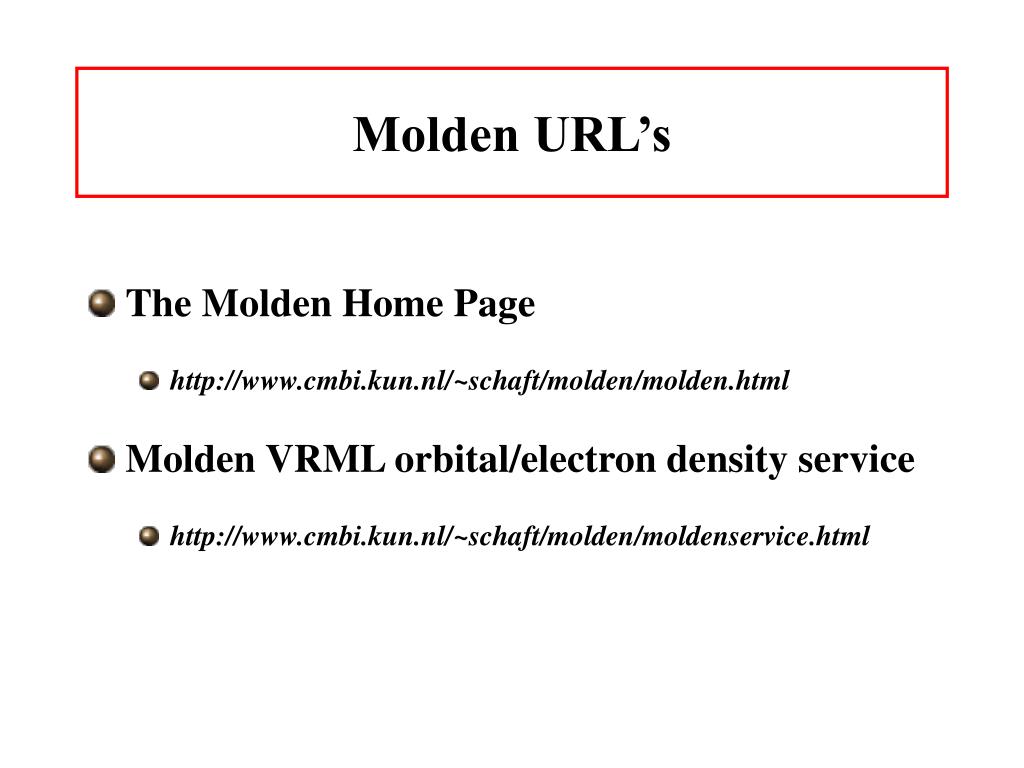

  26. Molden URL’s • The Molden Home Page • http://www.cmbi.kun.nl/~schaft/molden/molden.html • Molden VRML orbital/electron density service • http://www.cmbi.kun.nl/~schaft/molden/moldenservice.html

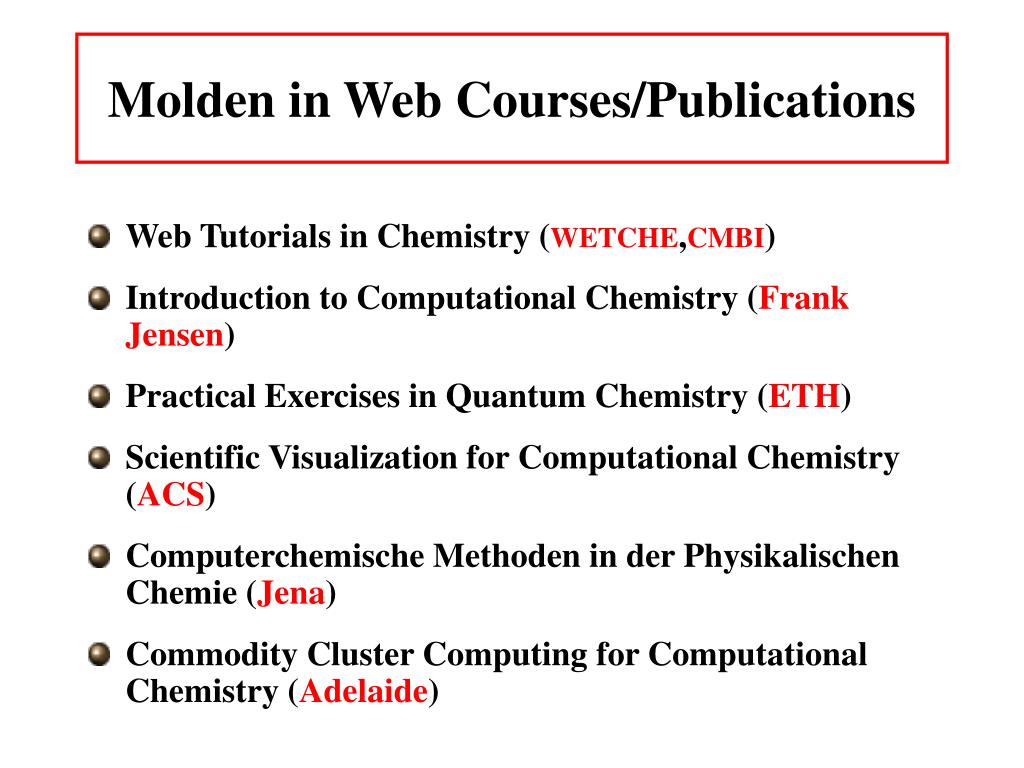

  27. Molden in Web Courses/Publications • Web Tutorials in Chemistry (WETCHE,CMBI) • Introduction to Computational Chemistry (Frank Jensen) • Practical Exercises in Quantum Chemistry (ETH) • Scientific Visualization for Computational Chemistry (ACS) • Computerchemische Methoden in der Physikalischen Chemie (Jena) • Commodity Cluster Computing for Computational Chemistry (Adelaide)

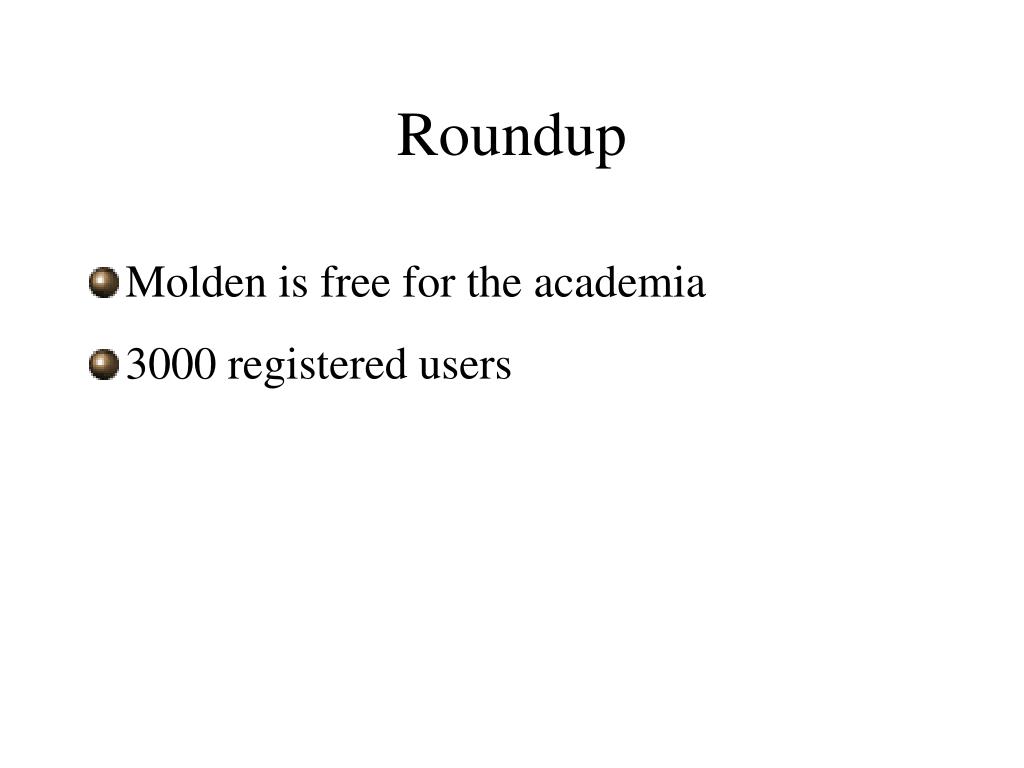

  28. Roundup • Molden is free for the academia • 3000 registered users
