Musical Intervals & Scales

Musical Intervals & Scales. Creator of instruments will need to define the tuning of that instrument Systems of tuning depend upon the intervals (or distances of frequency) between notes. Intervals. Musical intervals are distances of frequency between two notes

orrick
Télécharger la présentation

Musical Intervals & Scales

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Musical Intervals & Scales • Creator of instruments will need to define the tuning of that instrument • Systems of tuning depend upon the intervals (or distances of frequency) between notes

  2. Intervals • Musical intervals are distances of frequency between two notes • The distance of an octave is a doubling of frequency

  3. Intervals: The Octave pressure f2 = 2 * f1 Frequency Ratio = 2/1 f1 time f2

  4. pressure time f1 f2 Intervals: The Fifth f2 = 3/2 * f1 Frequency Ratio = 3/2

  5. Musical Intervals

  6. Consonance & Dissonance • Commonly used intervals are commonly used because they sound good • When two or more tones sound pleasing together this is known as consonance • When they sound harsh, jarring, or unpleasant this is known as dissonance

  7. Consonance & Dissonance • Are to some degree subjective • Two notes within each others critical bandwidth sound dissonant • Other points of dissonance have been noticed

  8. Scales Aimed at creating: ‘a discrete set of pitches in such a way as to yield the maximum possible number of consonant combinations (or the minimum possible number of dissonances) when two or more notes of the set are sounded together.’ Roederer (1975: 153)

  9. The Pythagorean Scale • Step 1 - Ascend in fifths 1 3/2 (3/2)2 (3/2)3 (3/2)4 (3/2)5 (100Hz) (150Hz) (225Hz) (337.5Hz) (506.25Hz) (759.38Hz) or 1 3/2 9/4 27/8 81/16 243/32

  10. The Pythagorean Scale • Step 2 - bring into the range of a single octave by descending in whole octave steps 1 3/2 9/4 27/8 81/16 243/32 (100Hz) (150Hz) (225Hz) (337.5Hz) (506.25Hz) (759.38Hz) Descend one octave ( / 2) Descend one octave ( / 2) Descend two octaves ( / 4) Descend two octaves ( / 4) OK OK 1 3/2 9/4 27/8 81/16 243/32 (100Hz) (150Hz) (112.5Hz) (168.75Hz) (126.56Hz) (189.84Hz)

  11. The Pythagorean Scale • Step 3 - arrange the notes obtained in ascending order 1 9/8 81/64 3/2 27/16 243/128 2 (100Hz) (112.5Hz) (126.56Hz) (150Hz) (168.75Hz) (189.84Hz) (200Hz)

  12. The Pythagorean Scale • Step 4 - create the fourth by descending a fifth and then moving up an octave 2/3 1 2/3 2/3 * 2 = 4/3 insert 1 9/8 81/64 4/3 3/2 27/16 243/128 2 (100Hz) (112.5Hz) (126.56Hz) (133.33) (150Hz) (168.75Hz) (189.84Hz) (200Hz) do re mi fa so la ti do

  13. Problems with Pythag exact fourth exact fifth slightly off (should be 5/4) slightly off (should be 5/3) intervals ratios

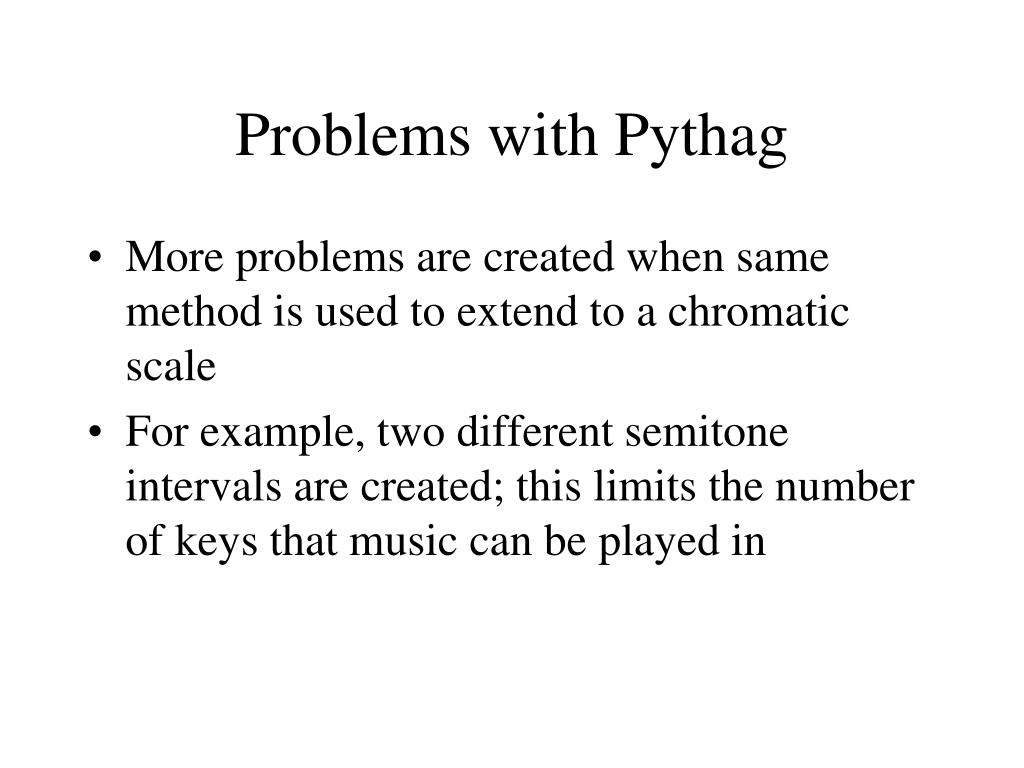

  14. Problems with Pythag • More problems are created when same method is used to extend to a chromatic scale • For example, two different semitone intervals are created; this limits the number of keys that music can be played in

  15. The Equal Tempered Scale • Has become the standard scale to which all instruments are tuned • Allows flexibility regarding tonalities that can be used

  16. The Equal Tempered Scale • Achieved by creating 12 equally spaced semi-tonal divisions i = 21/12 = 1.059463 • Requires all of the intervals within an octave to be slightly mistuned

  17. The Equal Tempered Scale For example, the ratio of notes: • a fifth (3/2 = 1.5) apart is tuned to 1.4987 (0.087% flat) • a sixth apart (5/3 = 1.6667) is tuned to 1.6823 (0.936% sharp)

  18. Intervals • In equal temperament are measured by the number of letter names between two notes (both of whose letter names are included)

  19. Third

  20. Minor Third

  21. Fourth

  22. Fifth

  23. Sixth

  24. Minor Sixth

  25. Tones & Semitones • Moving up a semitone is moving up one key on the keyboard • Moving up a tone is moving up two keys on the keyboard • A fifth involves moving up how many semitones?

  26. The Major & Minor Scales • A scale is an alphabetic succession of notes ascending or descending from a starting note • Beginning with the note C the succeeding white notes of the keyboard form the C major scale

  27. The C Major Scale • The intervals between each note are what make it a major scale

  28. T T S T T T S C Major

  29. Major Scales • Move up one note but keep the same intervals between the notes and the scale C Sharp Major is found • This is the next Major Scale • Continue this process to find all twelve Major Scales

  30. T T S T T T S C Sharp Major

  31. The Minor Scales • A different pattern of intervals produces all of the Harmonic Minor Scales • The Melodic Minor Scales are a variation of these, their intervals change depending upon whether the scale is ascended or descended

  32. T S T T S M T S Harmonic C Minor MT = Minor Third (3 semitones)

  33. Melodic C Minor ascending intervals T T S T T T S ascending notes descending notes descending intervals T S T T S T T

  34. T S T T S M T S Harmonic C Sharp Minor

  35. Melodic C Sharp Minor ascending intervals T T S T T T S ascending notes descending notes descending intervals T S T T S T T
