  1. PEAP & EAP-TTLS • EAP-TLS Drawbacks • PEAP • EAP-TTLS • EAP-TTLS – Full Example • Security Issues • PEAP vs. EAP-TTLS • Other EAP methods • Summary

  2. So far… • EAP was introduced, it doesn’t provide enough security for wireless environments. • EAP-TLS provides protection from most attacks

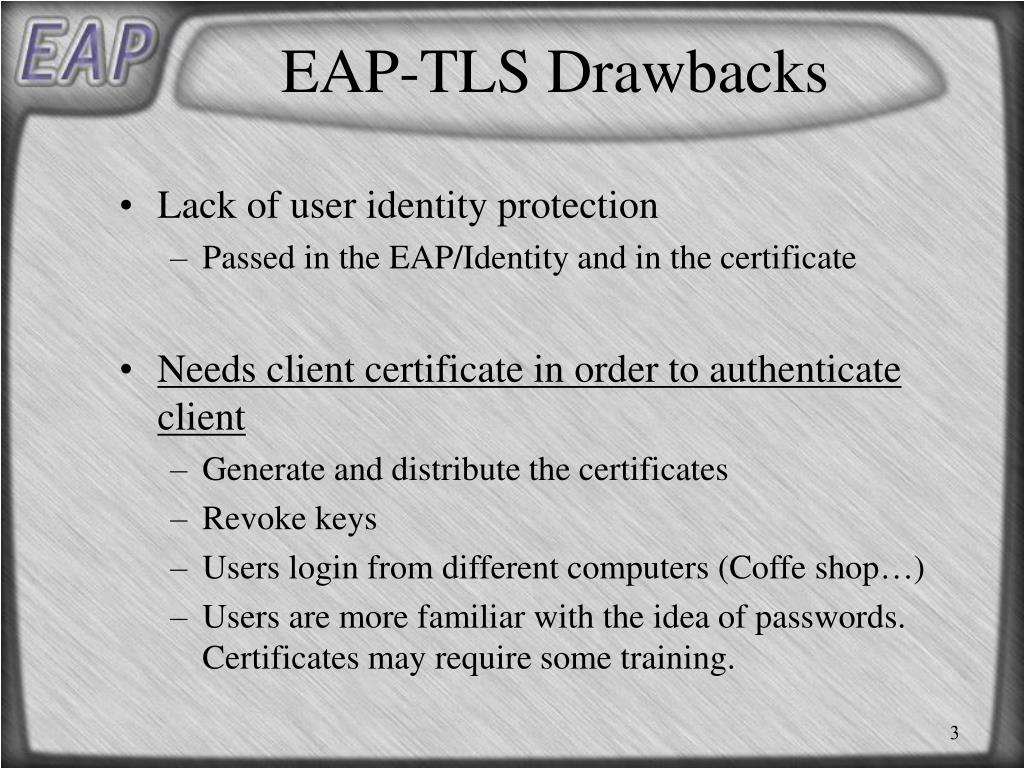

  3. EAP-TLS Drawbacks • Lack of user identity protection • Passed in the EAP/Identity and in the certificate • Needs client certificate in order to authenticate client • Generate and distribute the certificates • Revoke keys • Users login from different computers (Coffe shop…) • Users are more familiar with the idea of passwords. Certificates may require some training.

  4. EAP-TLS Extensions • Two quite similar protocols are developed in order to improve the weaker points of EAP-TLS. • In both, the main idea is to establish a TLS channel and then using the TLS tunnel in order to pass the identity of the user and perform the authentication protocol.

  5. Developed by Microsoft, Cisco and RSA Security Current status: Internet draft (draft-josefsson-pppext-eap-tls-eap-06.txt at ieft.org) Provides: Mutual authentication, client identity protection and key generation. PEAP – Protected EAP

  6. PEAP – The Participants Perform PEAP (NAS uses as pass-through) Trust Some Link Layer Secured Link Backend Server NAS Client Can be the same machine or separated The NAS doesn’t have to know PEAP

  7. PEAP – The Protocol Two phases: • Perform TLS handshake in which the server is being authenticated to the client by using a certificate. Optionally, the user can be authenticated as well with a certificate. • If the user was not authenticated with a certificate, perform EAP in the generated TLS channel in order to authenticate the client.

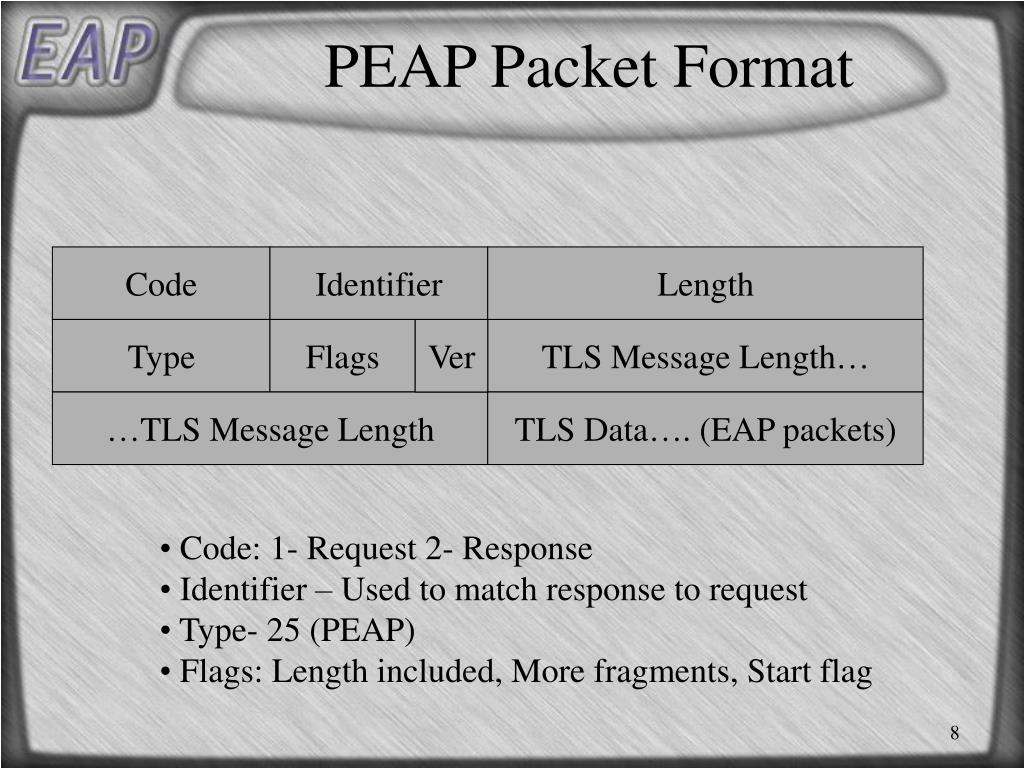

  8. PEAP Packet Format Code Identifier Length Type Flags Ver TLS Message Length… …TLS Message Length TLS Data…. (EAP packets) • Code: 1- Request 2- Response • Identifier – Used to match response to request • Type- 25 (PEAP) • Flags: Length included, More fragments, Start flag

  9. EAP-Request / Identity EAP- Response / Identity [My Domain] EAP-Request (Type = PEAP, start) TLS Handshake PEAP – Phase 1 PEAP Server Client TLS Channel Established EAP- Response (empty)

  10. EAP-Request / Identity EAP-Response / Identity [My ID] EAP-Request / Type = X (MD5, OTP, etc) Establish EAP method and Perform authentication EAP-Success / EAP-Failure PEAP – Phase 2 In the TLS Channel PEAP Server Client Transfer of the generated key from the PEAP server to the NAS if on different machines

  11. EAP-TTLS • Developed by Funk Software. • Internet draft: draft-ieft-pppext-eap-ttls-02.txt on ietf.org • Provides: mutual authentication, key generation , client identity privacy and data cipher suite negotiation

  12. EAP-TTLS – The Protocol Again, two phases: • Establish TLS Channel, authenticate server (Optionally authenticate user too) • If the user wasn’t authenticated, use the TLS channel to authenticate user using an authentication protocol (not only EAP)

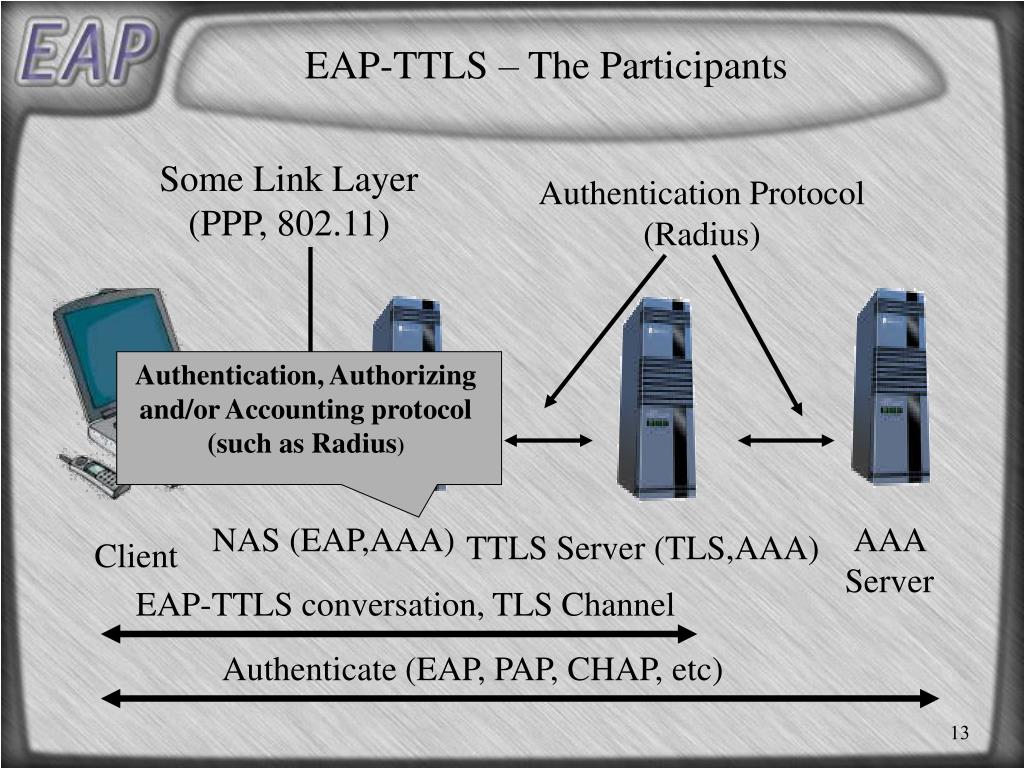

  13. Some Link Layer (PPP, 802.11) Authentication Protocol (Radius) EAP-TTLS – The Participants Authentication, Authorizing and/or Accounting protocol (such as Radius) NAS (EAP,AAA) AAA Server TTLS Server (TLS,AAA) Client EAP-TTLS conversation, TLS Channel Authenticate (EAP, PAP, CHAP, etc)

  14. EAP-TTLS Layers User Authentication- PAP/CHAP/EAP etc TLS EAP-TTLS EAP Link Layer/AAA layer – PPP, Radius, etc

  15. EAP-TTLS Packet Format Contains AVPs, which encapsulates authentication information (PAP/CHAP/...) Code Identifier Length Type Flags Ver TLS Message Length… …TLS Message Length TLS Data…. • Code: 1- Request 2- Response • Identifier – Used to match response to request • Type- 21 (EAP-TTLS) • Flags: Length included, More fragments, Start flag

  16. AVPs • In PEAP the data exchanged between the client and the server over the TLS channel is EAP packets. • In EAP-TTLS, AVPs – attribute-values pairs are exchanged. Encrypted by TLS and encapsulated in EAP-TTLS packets. • The AVPs format of EAP-TTLS is compatible with the Diameter & Radius AVP format. • This allows easy translation of AVP packets by the EAP-TTLS server between the client and the AAA server (using Radius for example).

  17. EAP-TTLS AVP Format AVP Code V M r r r r r r AVP Length Vendor-ID (optional) Data… AVP Code + Vendor ID : Used to identify attributes V: Does Vendor-ID appear M: 0- This AVP can be ignored if not supported 1- If this AVP isnt supported, fail the negotation

  18. EAP-TTLS - Phase 1 EAP-Request / Identity EAP- Response / Identity [My Domain] EAP-Request (Type= EAP-TTLS, start) TLS Handshake TTLS Server Client TLS Channel Established EAP- Response (empty)

  19. Exchange AVPs over the TLS Channel, encapsulated in EAP-TTLS AVPs (extracted from the TTLS records) EAP-Success/ EAP-Failure Success/Failure EAP-TTLS – Phase 2 Client TTLS Server AAA Server TTLS Message Exchange NAS as a pass-through Radius Message Exchange

  20. EAP-TTLS – Key Distribution • EAP-TTLS Enables key distribution to the client and to the access point. • The key is used for the communication between the AP and the client. • Supports exchange of: • Data cipher suite (cryptographic algorithm, key length) not the same as the suite used in the TLS phase • Keying Material (from which the used keys will be generated) Supported by PEAP as well.

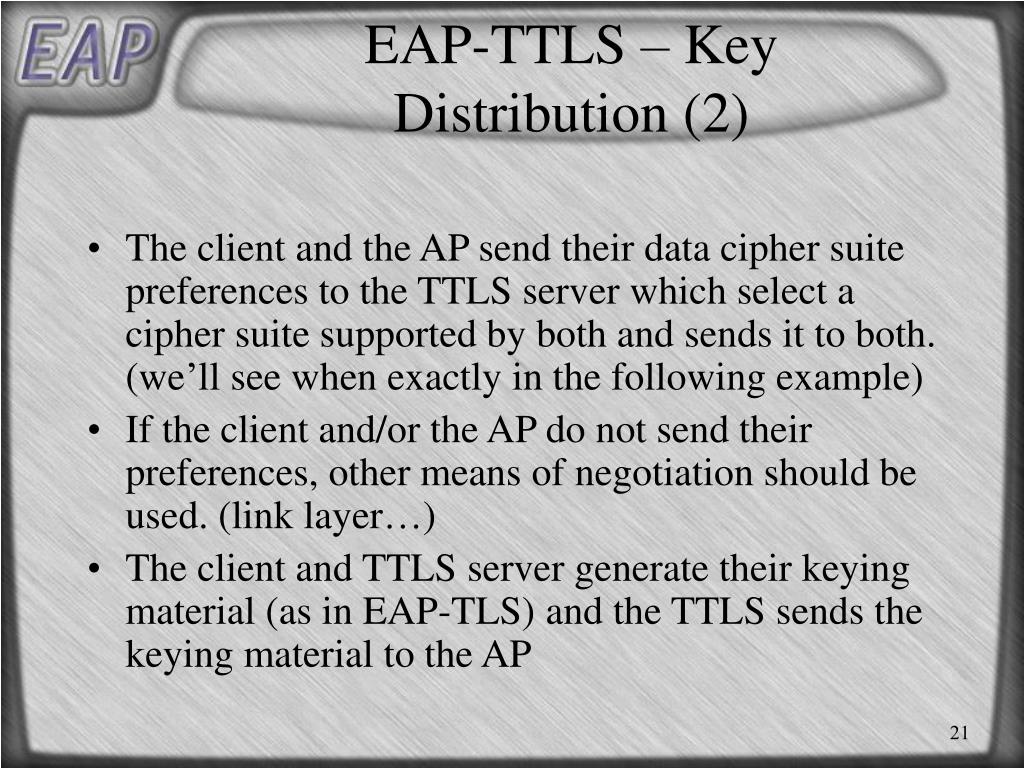

  21. EAP-TTLS – Key Distribution (2) • The client and the AP send their data cipher suite preferences to the TTLS server which select a cipher suite supported by both and sends it to both. (we’ll see when exactly in the following example) • If the client and/or the AP do not send their preferences, other means of negotiation should be used. (link layer…) • The client and TTLS server generate their keying material (as in EAP-TLS) and the TTLS sends the keying material to the AP

  22. EAP-TTLS – Full Example LAN Radius Radius Access Point AAA TTLS Server Client • Usage of CHAP in order to authenticate the client • Establishment of data cipher suite and keying material

  23. EAP-TTLS – Full Example (1) Radius Radius Access Point AAA TTLS Server Client EAP-Request/Identity EAP-Response/Identity Radius Access Request: Data-Cipher-Suite+ EAP-Response/Identity Radius Access Challenge: EAP-Request/TTLS-Start EAP-Request/TTLS-Start EAP-Response/TTLS: client_hello RAR: EAP-Response/TTLS: client_hello RAC: EAP-Request/TTLS (server_hello,certificate, server_key_exchange,server_hello_done)

  24. EAP-TTLS – Full Example (2) Radius Radius Access Point AAA TTLS Server Client EAP-Request/TTLS (server_hello,certificate,server_key_exchange,srv_hello_done) EAP-Response/TTLS (client_key_exchange,CCS,client_finish) RAR: EAP-Response/TTLS (client_key_exchange,CCS,client_finish) RAC: EAP-Request/TTLS (CCS, server_finish) EAP-Request/TTLS (CCS, server_finish) EAP-Response/TTLS (user_name, CHAP-Challenge&Password) Data-CipherSuite+ RAR: EAP-Response/TTLS (user_name, CHAP-Challenge, CHAP-Password) +Data-CipherSuite RAR: User_name, CHAP-Challenge, Chap-Password

  25. EAP-TTLS – Full Example (3) Radius Radius Access Point AAA TTLS Server Client Radius Access-Accept [RAA] RAC: EAP-Request/TTLS (Data-Cipher-Suite) EAP-Request/TTLS (Data-Cipher-Suite) EAP-Response (No data) RAR: EAP-Response (No data) RAA: Data-Cipher-Suite, Data-Keying-Material, EAP-Success Mutual Authentication done Data cipher suite and key established EAP-Success

  26. PEAP & EAP-TTLS Security Issues • Based on TLS which is well tested. Using TLS grants protection from: • Man in the middle attacks • Snooping user ID & password • Session hijacking • Usage of tunneling: • Enables using existing protocols over a protected layer • Provides client identity protection: • Identity passed over the TLS channel • If the client is to be authenticated using a certificate, can be done after the TLS channel was established

  27. Open Security Problems • Relies on the security between the AAA, TTLS/PEAP server and AP. • Injection of EAP-Success / EAP-Failure packets • Possible solution: Other EAP message? inside the channel?

  28. Compare PEAP, EAP-TTLS, EAP-TLS

  29. Additional Issues • In addition to the security issues we introduced about PEAP & EAP-TTLS , they have some additional features: • Same as in EAP-TLS: • Support for fragmentation of long messages • Support for fast re-connection to the network (using TLS resumption abilities) • Exchange of information between the client and the authentication server. (EAP-TTLS: AVPs, PEAP: Latest draft defines something similar – TLVs) • Example for such information: language settings for notifications

  30. Other EAP Methods • EAP-MD5 • Only user authentication • Uses user id and password • Vulnerable to Dictionary attack, man in the middle, session hijack • Easy implementation • EAP-SRP (Secure Remote Password) • Usage of DH in order to authenticate both sides. (The DH exchange is protected via usage of hash and salt) • Does not use certificates at all • Mutual authentication • Uses user id and password

  31. EAP Methods (2) • EAP-LEAP (Light Extensible Authentication Protocol) • Developed by Cisco as a proprietary protocol, can only be supported by Cisco NASes • Usage of challenge and response • Mutual authentication • Uses user id and password (no certificates) • Vulnerable to dictionary attack • EAP-SIM • Used for cellular communication, based on challenge-response which is done according to a key stored in the SIM card of a GSM cell phone. • Mutual Authentication • Vulnerable to spoofing

  32. EAP Methods (3) • EAP-SecurID • Usage of one time password in order to authenticated client. • No authentication of the server (solution: use tunneling) • Vulnerable to Man in the middle attack, session hijack

  33. Summary (1) • EAP enables usage of diverse methods in order to perform authentication. It defines the exchange of message until authentication process is done. • EAP-TLS makes use of the existing TLS protocol in order to provide safe mutual authentication. • PEAP and EAP-TTLS use TLS to authenticate server and offer tunneling of other methods in order to authenticate the client.

  34. E A P EA P P A P C H A P MD5 TLS TTLS PEAP MS-CHAPv2 EAP 802.1X PPP 802.11 Summary (2)EAP Architecture

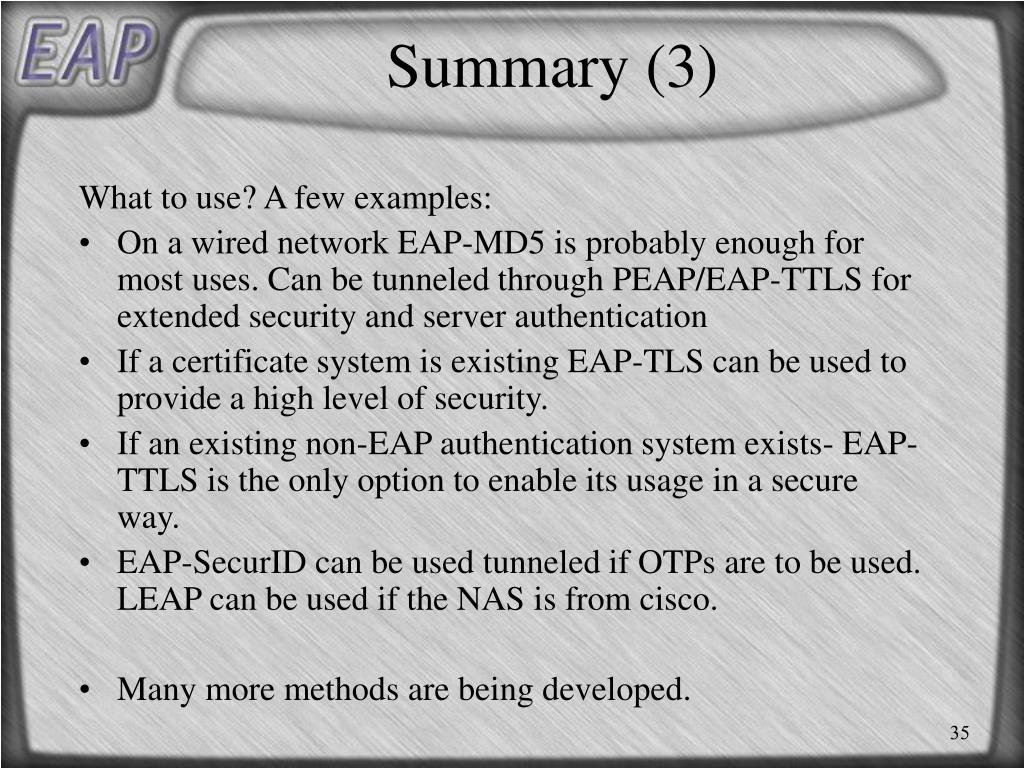

  35. Summary (3) What to use? A few examples: • On a wired network EAP-MD5 is probably enough for most uses. Can be tunneled through PEAP/EAP-TTLS for extended security and server authentication • If a certificate system is existing EAP-TLS can be used to provide a high level of security. • If an existing non-EAP authentication system exists- EAP-TTLS is the only option to enable its usage in a secure way. • EAP-SecurID can be used tunneled if OTPs are to be used. LEAP can be used if the NAS is from cisco. • Many more methods are being developed.
