  1. How Close can They be Stacked?

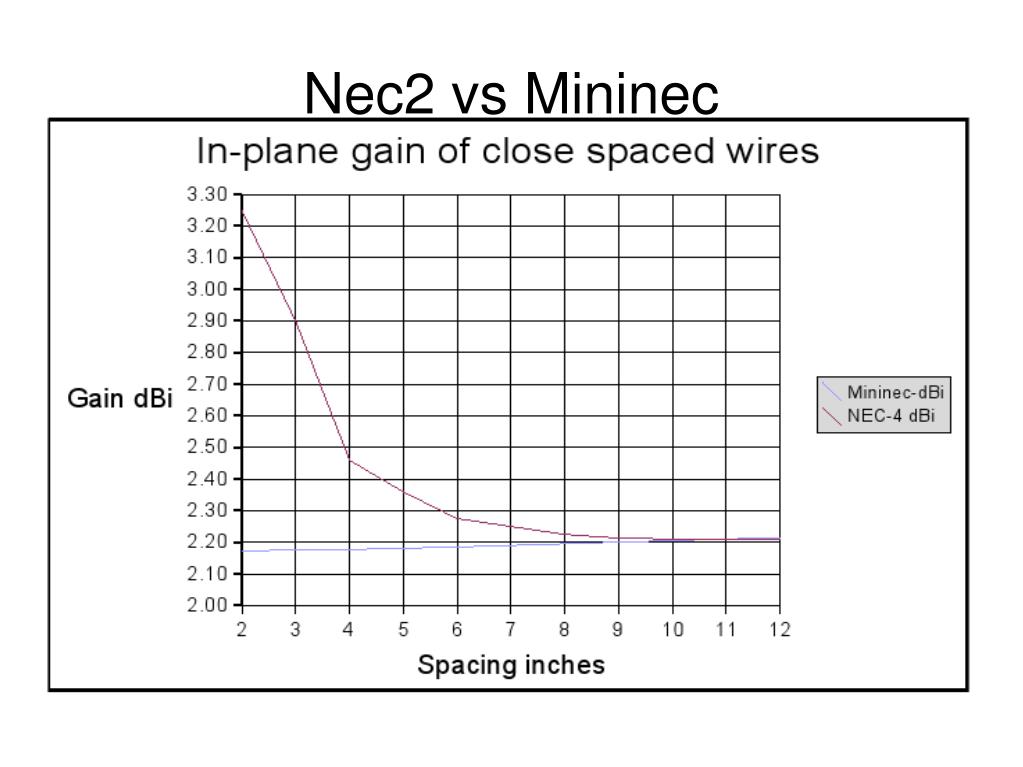

  2. Nec2 vs Mininec

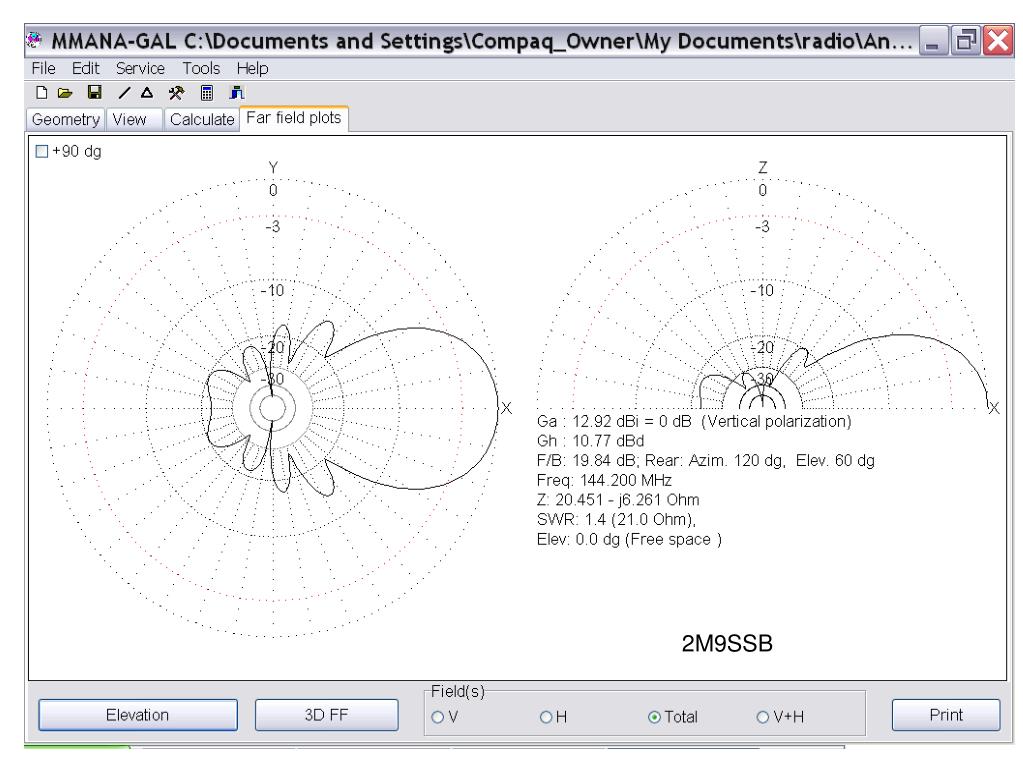

  3. MMANA-GAL display 2M9SSB

  4. FO9-144 @ 432

  5. FO9-144 @ 432

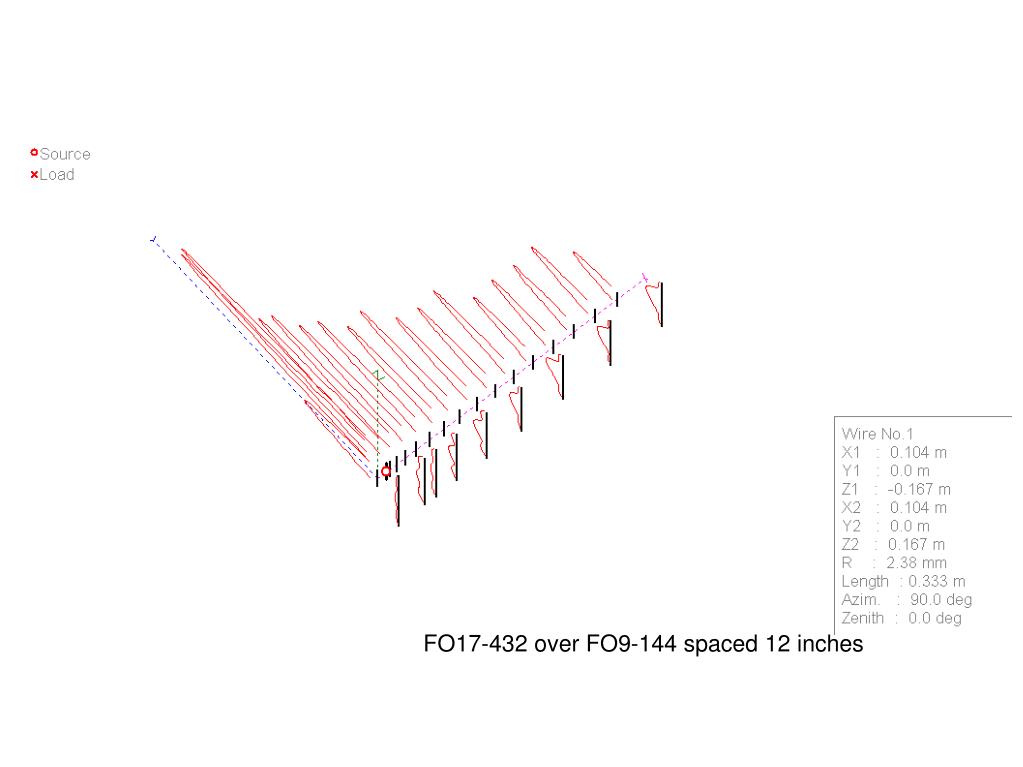

  6. FO17-432 over FO9-144 spaced 12 inches

  7. 13WL-432 over 5WL-144

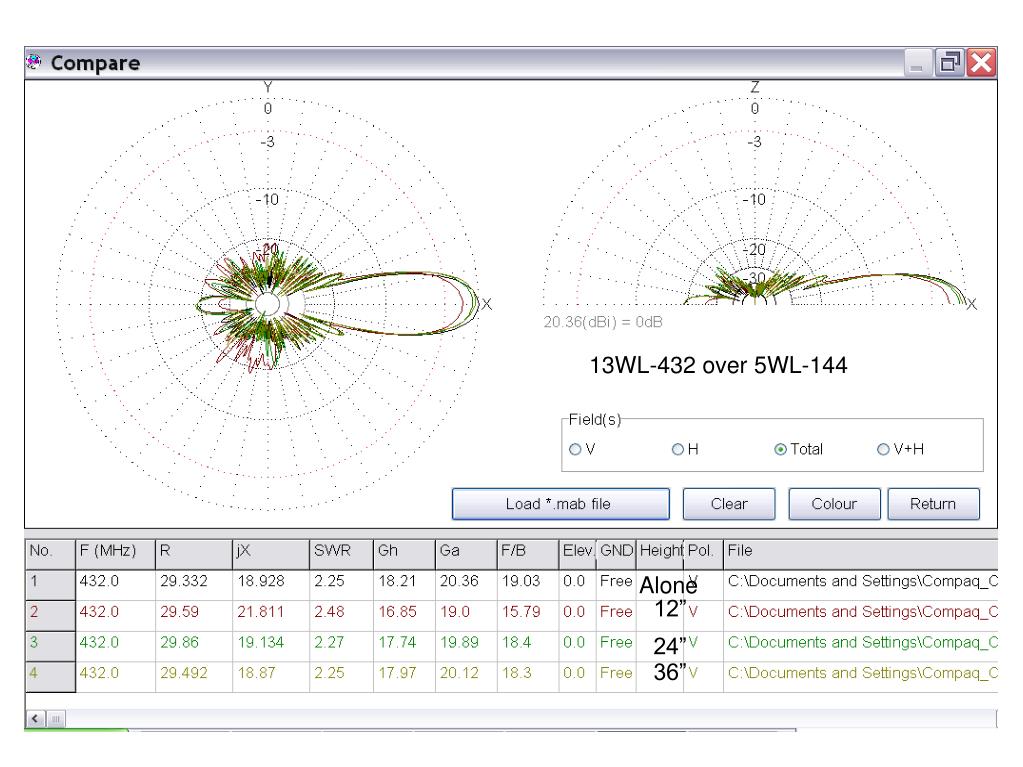

  8. 13WL-432 over 5WL-144 Alone 12” 24” 36”

  9. 13WL-432 over 5WL-144 spaced 36” to 182” (half boom)

  10. FO-9 vs 2MSSB9 10 ft vs 14.5 ft

  11. Stacked FO9 5WL Stacked FO9 vs 5 WL

  12. FO17-432 over FO9-144 Spaced 24 to 57 inches (½ boom)

  13. Shifted forward Centered FO17-432 over FO9-144 spaced 6” centered and shifted forward Centered For 1.5m For 2m

  14. FO-9 432 over FO9 144 spaced 6” shifted 0 to 10 inches

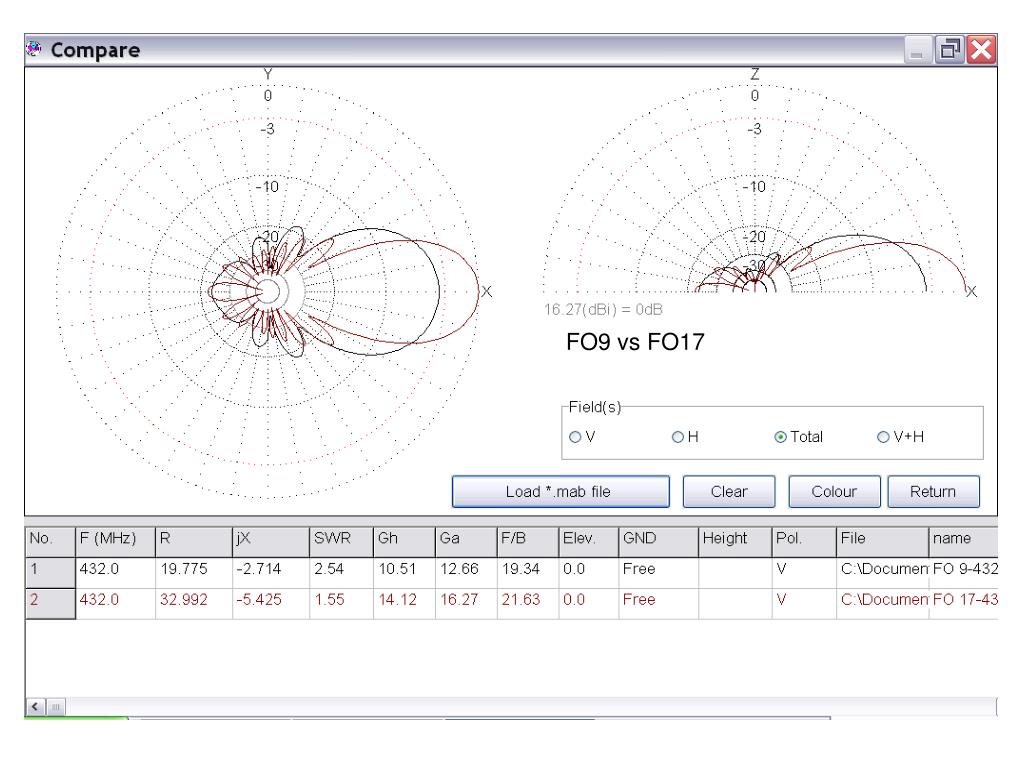

  15. FO9 vs FO17

  16. FO9-432 over FO9-144 spaced 2” to 47”

  17. FO9-432 over FO9-144 spaced 6 inches

  18. 47” and alone 12” FO9-432 over FO9-144 spaced 12, 24, and 47 inches 24” Alone 12” 24” 47”

  19. 0.1 1 0.01 Spacing in Boom Lengths

  20. 13WL 5WL Spacing inches and wavelengths @ 432

  21. That's all for now. 73, K0CQ
