Adding bar tack at Side vent November 21st 2011

Adding bar tack at Side vent November 21st 2011. Style:men’s SS Rayon Shirt: Bar tack at Side vent. Requirement: Bar tack at side vents are required for Durability. Issue: Yarn is Pulling while adding bar tack at Side vent. In darker colors it is more visible as white yarns are showing.

ozzie
Télécharger la présentation

Adding bar tack at Side vent November 21st 2011

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

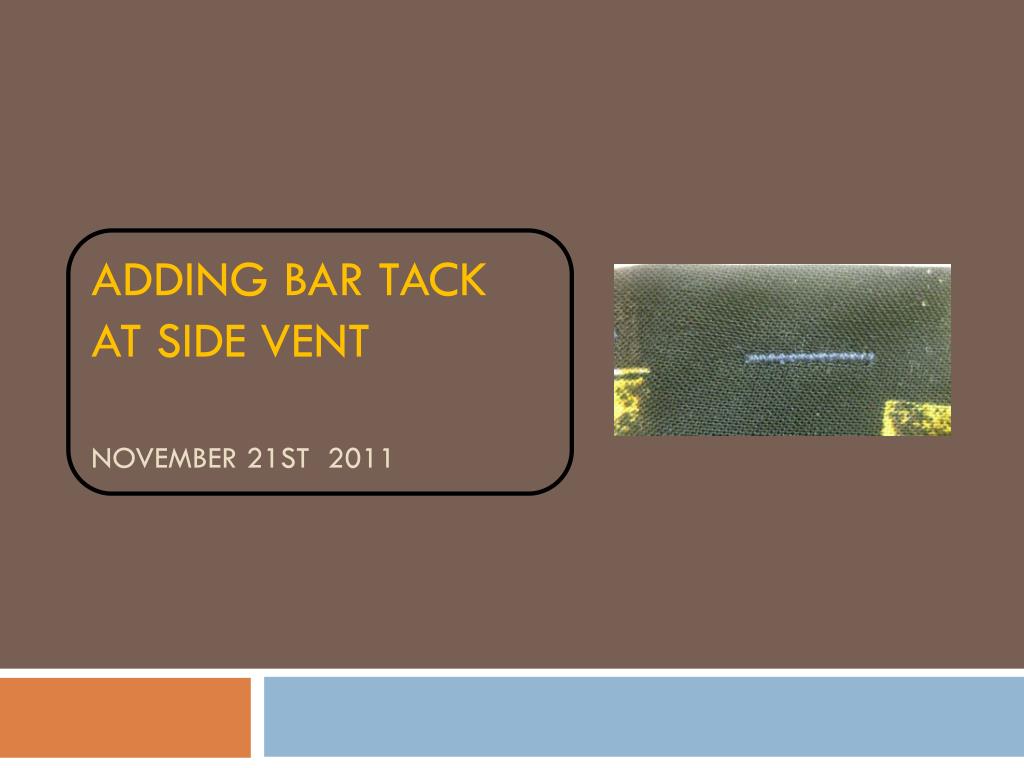

  1. Adding bar tack at Side ventNovember 21st 2011

  2. Style:men’s SS Rayon Shirt: Bar tack at Side vent. Requirement: Bar tack at side vents are required for Durability. Issue: Yarn is Pulling while adding bar tack at Side vent. In darker colors it is more visible as white yarns are showing. Solution: Bar tack can be used at side vent without yarn pulling issue with below m/c set up. • M/c name- Juki • Pattern # 1 • X # 90 • Y # 75 • M/C Speed- 2000 • Tension – 35 • Needle size – 9 (Ball Point) • DP # 5 • Bar tack width at End product - ½”

  3. Style:men’s SS Rayon Shirt: Bar tack at Side vent. M/c set up: >Pattern # 1 >X # 90 >Y # 75 >M/C Speed- 2000 >Tension – 35 >Needle size – 9 (Ball Point) >DP # 5 >Bar tack width at End product - ½”

  4. Style:men’s SS Rayon Shirt: Bar tack at Side vent. Check the needle point regularly. Must not use Blunt needle.

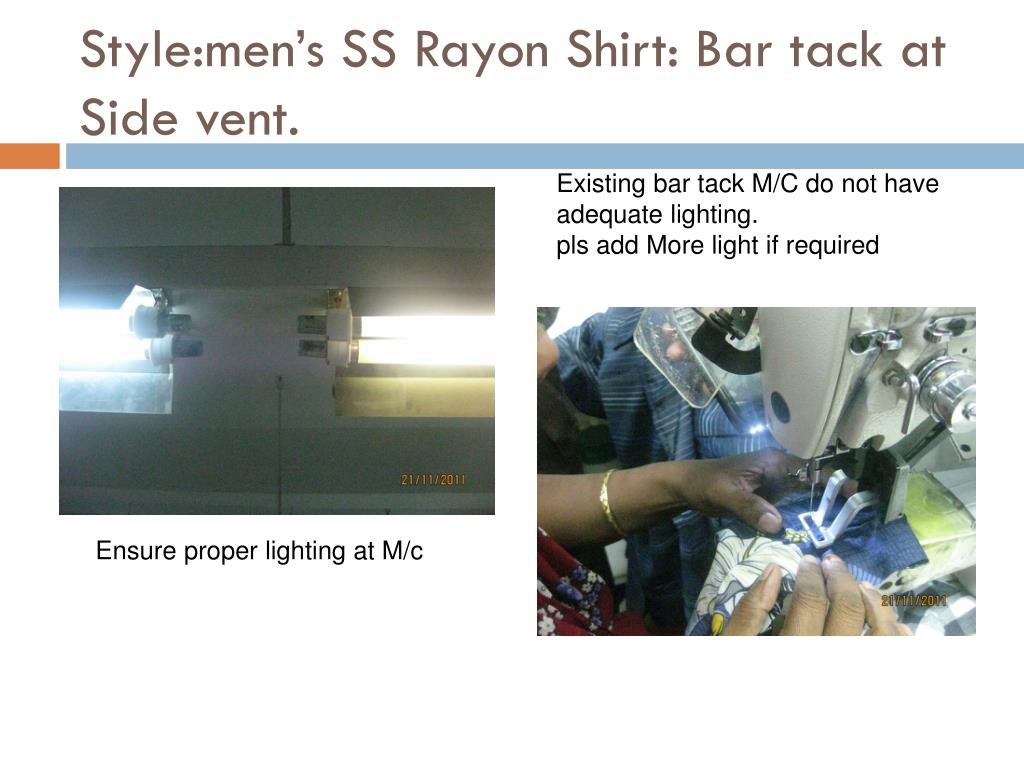

  5. Style:men’s SS Rayon Shirt: Bar tack at Side vent. Existing bar tack M/C do not have adequate lighting. pls add More light if required Ensure proper lighting at M/c

  6. Style:men’s SS Rayon Shirt: Bar tack at Side vent. >Use Guideline if needed to ensure correct angle & placement. >Over tacking is not Acceptable. >Try to avoid placing bar tack at single layer

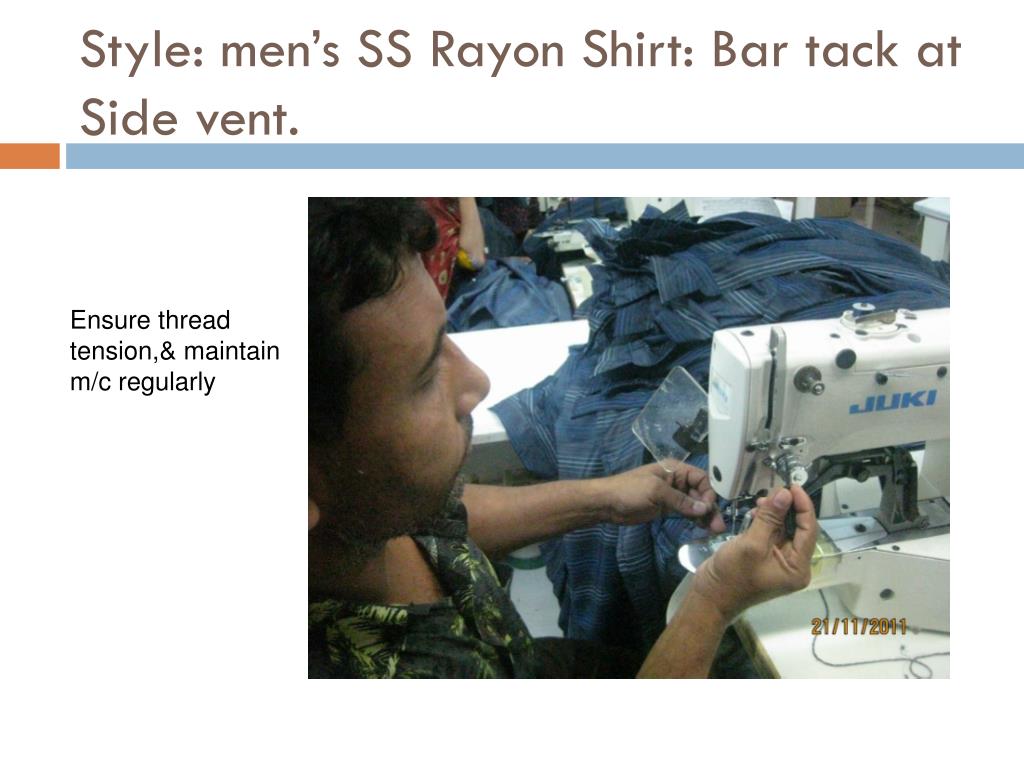

  7. Style: men’s SS Rayon Shirt: Bar tack at Side vent. Ensure thread tension,& maintain m/c regularly

  8. Style:: men’s SS Rayon Shirt: Bar tack at Side vent. Bar tack on mock ups with specific M/C Set up. Done by operator at Sewing Floor In 10 Pcs.

  9. Thank You
