  1. Sorted Array • What is BigO for sorted list implemented as: ArrayList: • Search : • Insert(value) : • Remove(value) : LinkedList: • Search : • Insert(value) : • Remove(value) :

  2. Sorted Array • What is BigO for sorted list implemented as: ArrayList: • Search : O(logN) • Insertion : O(N) • Removal : O(N) LinkedList: • Search : O(N) • Insertion : O(N) • Removal : O(N)

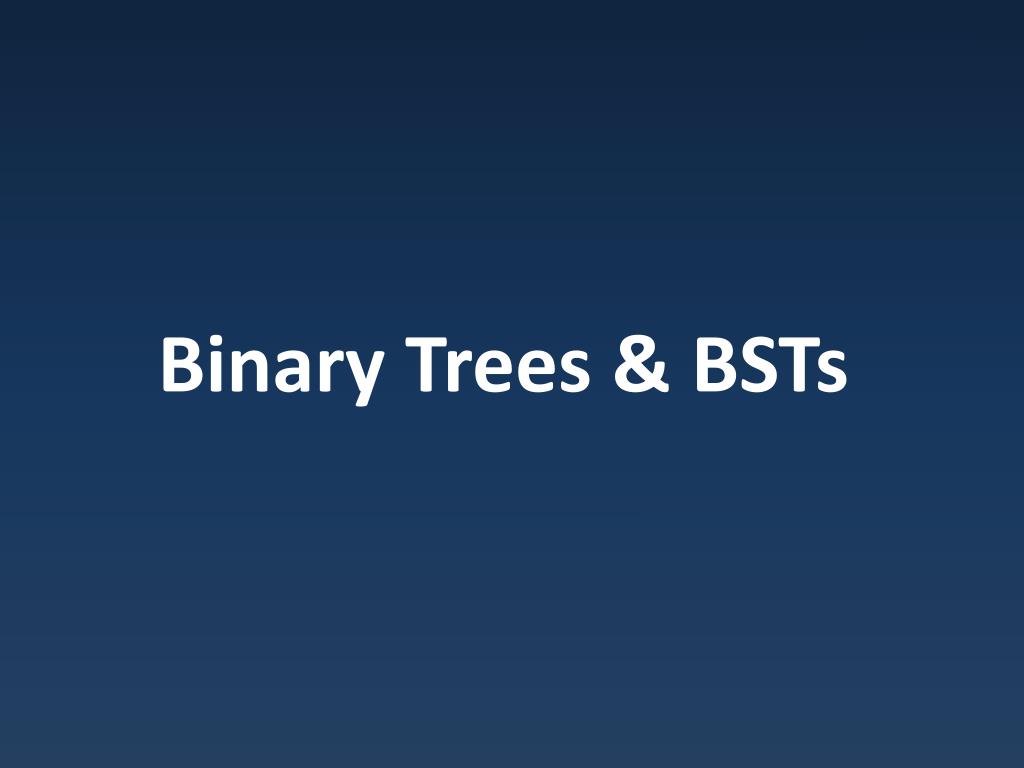

  3. Binary Trees & BSTs

  4. Binary Tree • Binary Tree • Each node has 0-2 children (left/right)

  5. Binary Tree • Can represent any tree as binary

  6. Binary Tree • Can represent any tree as binary • Left = first child • Right = next sibling

  7. Binary Search Tree • Binary Search Tree • Enforce ordering of children relative to parent • Anything on left subtree is smaller • Anything on right subtree is larger

  8. Binary Search Tree Use • BST maintains sorted collection with: • Search : O(logN)* • Insertion : O(logN)* • Removal : O(logN)* * Actual mileage may vary…

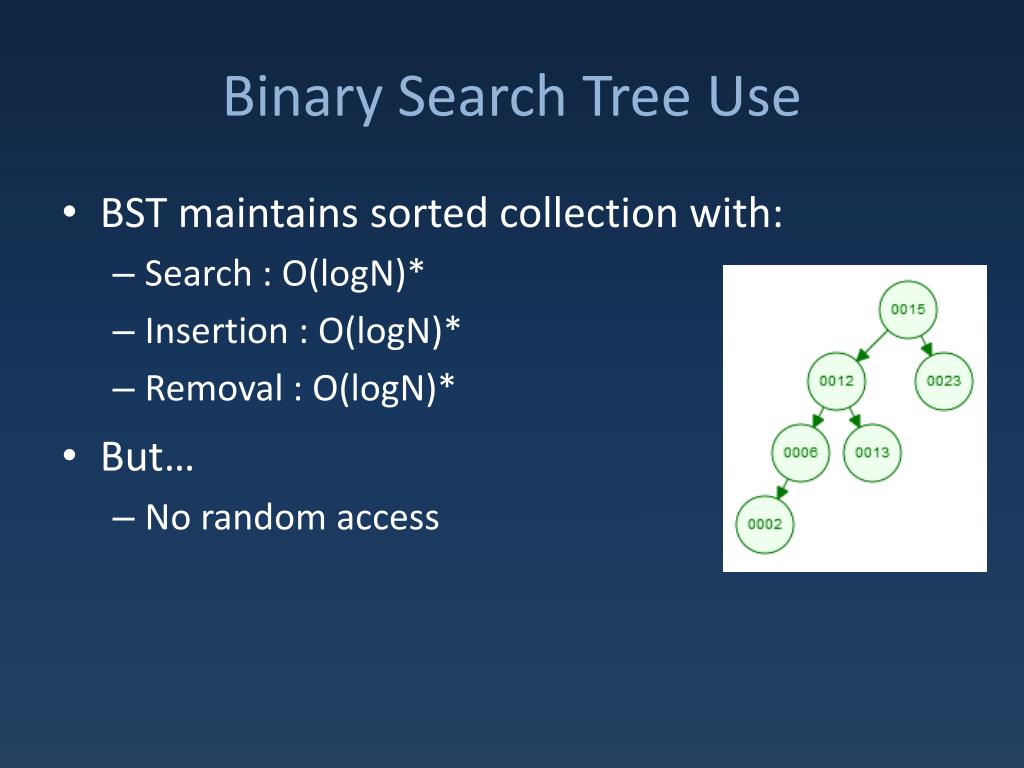

  9. Binary Search Tree Use • BST maintains sorted collection with: • Search : O(logN)* • Insertion : O(logN)* • Removal : O(logN)* • But… • No random access

  10. Duplicates • Duplicate value approaches: • No duplicates : left < current < right • left < current <= right(duplicates on right) • left <= current < right (duplicates on left) • Duplicates stored in list in node : left < current < right • 2 & 3 more complicated, especiallyfor balanced trees

  11. BST Search • Searching for a value • Descend tree looking for value • Use ordering to guide search http://www.cse.hut.fi/en/research/SVG/TRAKLA2/exercises/BST_search-28.html

  12. BST Search Recursive search: Search(value) return SearchHelp(root, value)SearchHelp(node , value) if node == null return false if node == value return true if value < node return SearchHelp(leftChild, value) else return SearchHelp(rightChild, value)

  13. BST Search Iterative search: ItSerach(value) current = root while current != null if current == value return true if value < node current = leftChild else current = rightChild end while return false

  14. BST Insertion • Inserting a value • New values are always leaves • Descend tree as if searching • Insert wherever you hit null http://www.cse.hut.fi/en/research/SVG/TRAKLA2/exercises/BST_Insert-5.html

  15. BST Insertion IterativeInsert Insert(value) if root == null root = new Node(value) else parent = root current = root do parent = current if value < node current = leftChild else current = rightChild while current != nullptr if value < parent parent->left = new Node(value) else parent->right = new Node(value)

  16. BST Insertion IterativeInsert Insert(value) if root == null root = new Node(value) else parent = root current = root do parent = current if value < node current = leftChild else current = rightChild while current != nullptr if value < parent parent->left = new Node(value) else parent->right = new Node(value) Empty BST = Special

  17. BST Insertion IterativeInsert Insert(value) if root == null root = new Node(value)elseparent = rootcurrent = root do parent = current if value < node current = leftChild else current = rightChild while current != nullptr if value < parent parent->left = new Node(value) else parent->right = new Node(value) Insert(9)

  18. BST Insertion IterativeInsert Insert(value) if root == null root = new Node(value)elseparent = rootcurrent = root doparent = current if value < node current = leftChild else current = rightChild while current != nullptr if value < parent parent->left = new Node(value) else parent->right = new Node(value) Insert(9)

  19. BST Insertion IterativeInsert Insert(value) if root == null root = new Node(value)elseparent = rootcurrent = root do parent = currentif value < node current = leftChild else current = rightChild while current != nullptr if value < parent parent->left = new Node(value) else parent->right = new Node(value) Insert(9)

  20. BST Insertion IterativeInsert Insert(value) if root == null root = new Node(value)elseparent = rootcurrent = root doparent = current if value < node current = leftChild else current = rightChild while current != nullptr if value < parent parent->left = new Node(value) else parent->right = new Node(value) Insert(9)

  21. BST Insertion IterativeInsert Insert(value) if root == null root = new Node(value)elseparent = rootcurrent = root do parent = currentif value < node current = leftChild else current = rightChild while current != nullptr if value < parent parent->left = new Node(value) else parent->right = new Node(value) Insert(9)

  22. BST Insertion IterativeInsert Insert(value) if root == null root = new Node(value)elseparent = rootcurrent = root doparent = current if value < node current = leftChild else current = rightChild while current != nullptr if value < parent parent->left = new Node(value) else parent->right = new Node(value) Insert(9)

  23. BST Insertion IterativeInsert Insert(value) if root == null root = new Node(value)elseparent = rootcurrent = root do parent = current if value < node current = leftChildelse current = rightChild while current != nullptr if value < parent parent->left = new Node(value) else parent->right = new Node(value) Insert(9)

  24. BST Insertion Iterative Insert Insert(value) if root == null root = new Node(value)elseparent = rootcurrent = root do parent = current if value < node current = leftChild else current = rightChild while current != nullptr if value < parent parent->left = new Node(value) else parent->right = new Node(value) Insert(9)

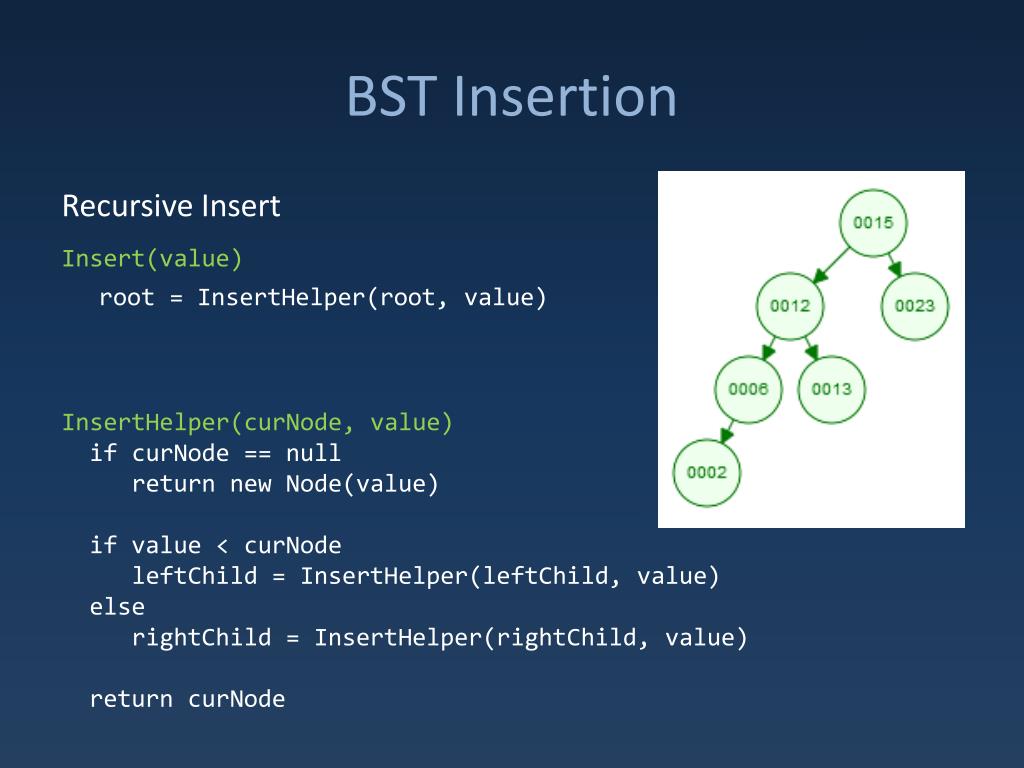

  25. BST Insertion Recursive Insert Insert(value)root = InsertHelper(root, value)InsertHelper(curNode, value) if curNode == null return new Node(value) if value < curNodeleftChild = InsertHelper(leftChild, value) elserightChild = InsertHelper(rightChild, value) return curNode

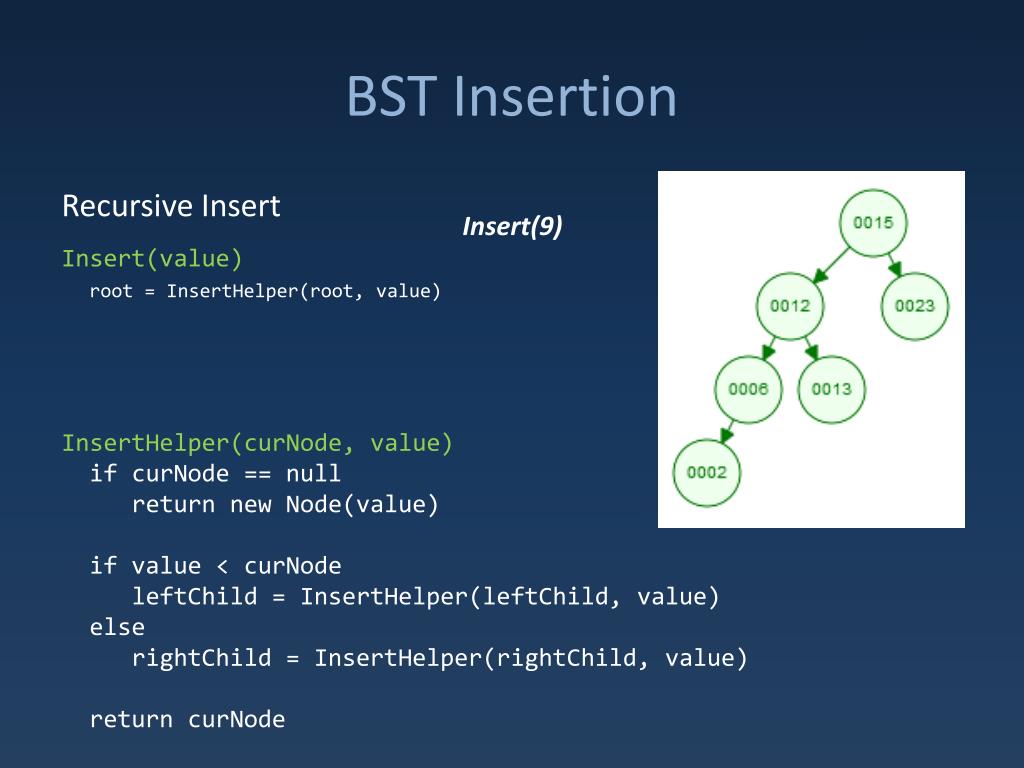

  26. BST Insertion Recursive Insert Insert(value)root = InsertHelper(root, value)InsertHelper(curNode, value) if curNode == null return new Node(value) if value < curNodeleftChild = InsertHelper(leftChild, value) elserightChild = InsertHelper(rightChild, value) return curNode Insert(9)

  27. BST Insertion Recursive Insert Insert(value)root = InsertHelper(root, value)InsertHelper(curNode, value) if curNode == null return new Node(value)if value < curNodeleftChild = InsertHelper(leftChild, value) elserightChild = InsertHelper(rightChild, value) return curNode Insert(9) Insert(root, 9)

  28. BST Insertion Recursive Insert Insert(value)root = InsertHelper(root, value)InsertHelper(curNode, value) if curNode == null return new Node(value)if value < curNodeleftChild = InsertHelper(leftChild, value) elserightChild = InsertHelper(rightChild, value) return curNode Insert(9) Insert(root, 9)Insert({12}, 9)

  29. BST Insertion Recursive Insert Insert(value)root = InsertHelper(root, value)InsertHelper(curNode, value) if curNode == null return new Node(value) if value < curNodeleftChild = InsertHelper(leftChild, value) elserightChild = InsertHelper(rightChild, value) return curNode Insert(9) Insert(root, 9)Insert({12}, 9)Insert({6}, 9)

  30. BST Insertion Recursive Insert Insert(value)root = InsertHelper(root, value)InsertHelper(curNode, value)if curNode == nullreturn new Node(value) if value < curNodeleftChild = InsertHelper(leftChild, value) elserightChild = InsertHelper(rightChild, value) return curNode Insert(9) Insert(root, 9)Insert({12}, 9)Insert({6}, 9)Insert(null, 9)

  31. BST Insertion Recursive Insert Insert(value)root = InsertHelper(root, value)InsertHelper(curNode, value) if curNode == nullreturn new Node(value) if value < curNodeleftChild = InsertHelper(leftChild, value) elserightChild= InsertHelper(rightChild, value) return curNode Insert(9) Insert(root, 9)Insert({12}, 9)Insert({6}, 9)

  32. BST Insertion Recursive Insert Insert(value)root = InsertHelper(root, value)InsertHelper(curNode, value) if curNode == null return new Node(value) if value < curNodeleftChild= InsertHelper(leftChild, value) elserightChild= InsertHelper(rightChild, value) return curNode Insert(9) Insert(root, 9)Insert({12}, 9)

  33. BST Insertion Recursive Insert Insert(value)root = InsertHelper(root, value)InsertHelper(curNode, value) if curNode == null return new Node(value) if value < curNodeleftChild= InsertHelper(leftChild, value) elserightChild= InsertHelper(rightChild, value) return curNode Insert(9) Insert(root, 9)

  34. BST Insertion Recursive Insert Insert(value)root = InsertHelper(root, value)InsertHelper(curNode, value) if curNode == null return new Node(value) if value < curNodeleftChild = InsertHelper(leftChild, value) elserightChild= InsertHelper(rightChild, value) return curNode Insert(9)

  35. CharBST • BST of Chars • Allow dupes to right • Built from BSTNode<char>

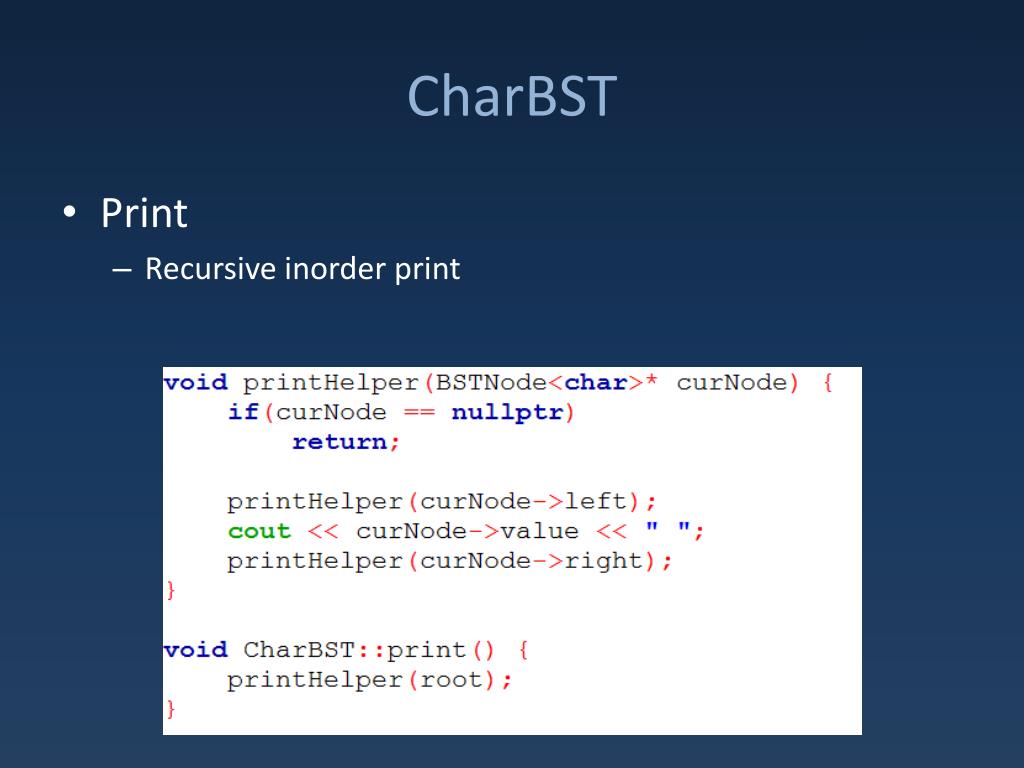

  36. CharBST • Print • Recursive inorder print
