  1. PeerNet: Pushing Peer-to-Peer Down the Stack Jakob Eriksson, Michalis Faloutsos, Srikanth Krishnamurthy University of California, Riverside

  2. What is PeerNet • an approach to separate address and identity • address reflects the node’s current location • identifier remains the same • a p2p-based network layer for large networks • an alternative to the IP layer

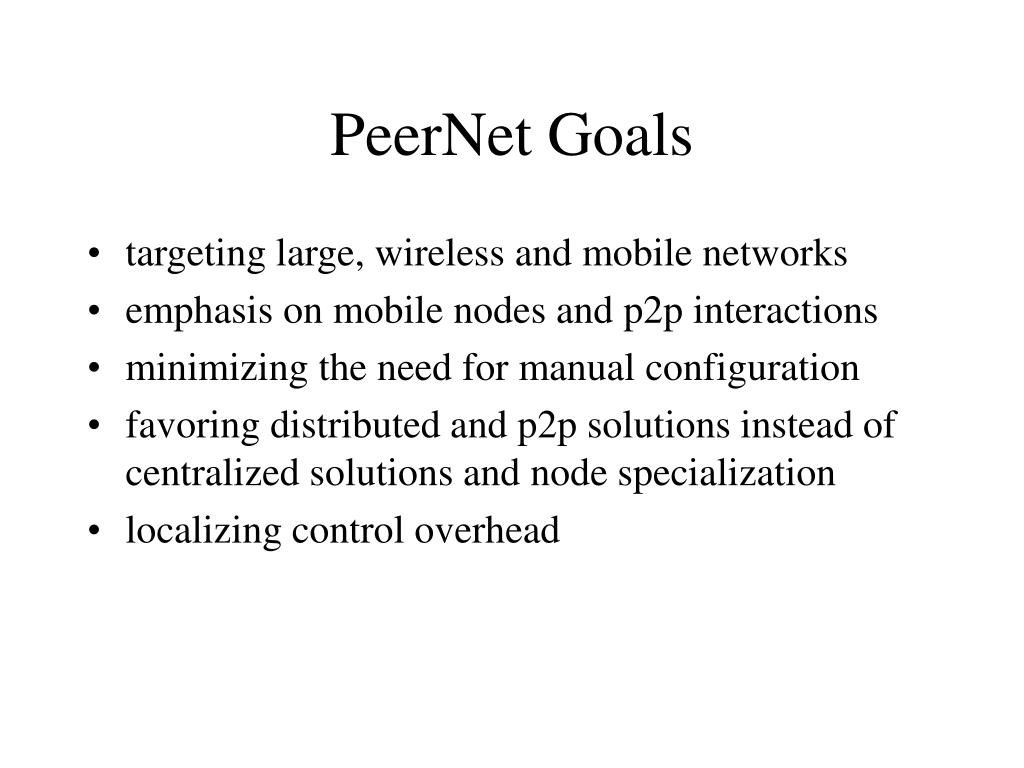

  3. PeerNet Goals • targeting large, wireless and mobile networks • emphasis on mobile nodes and p2p interactions • minimizing the need for manual configuration • favoring distributed and p2p solutions instead of centralized solutions and node specialization • localizing control overhead

  4. ...and Challenges • while location-based addressing simplifies routing, new challenges are created: • consistent dynamic address allocation • efficient node lookup service for finding addresses for given identifiers => the project proposes distributed solutions

  5. PeerNet Network layer (1/2) • dynamic addressing, depending on the node’s current location in the network • addresses organized as a binary tree • selecting addresses so that locality of communication is guaranteed (subtree/area)

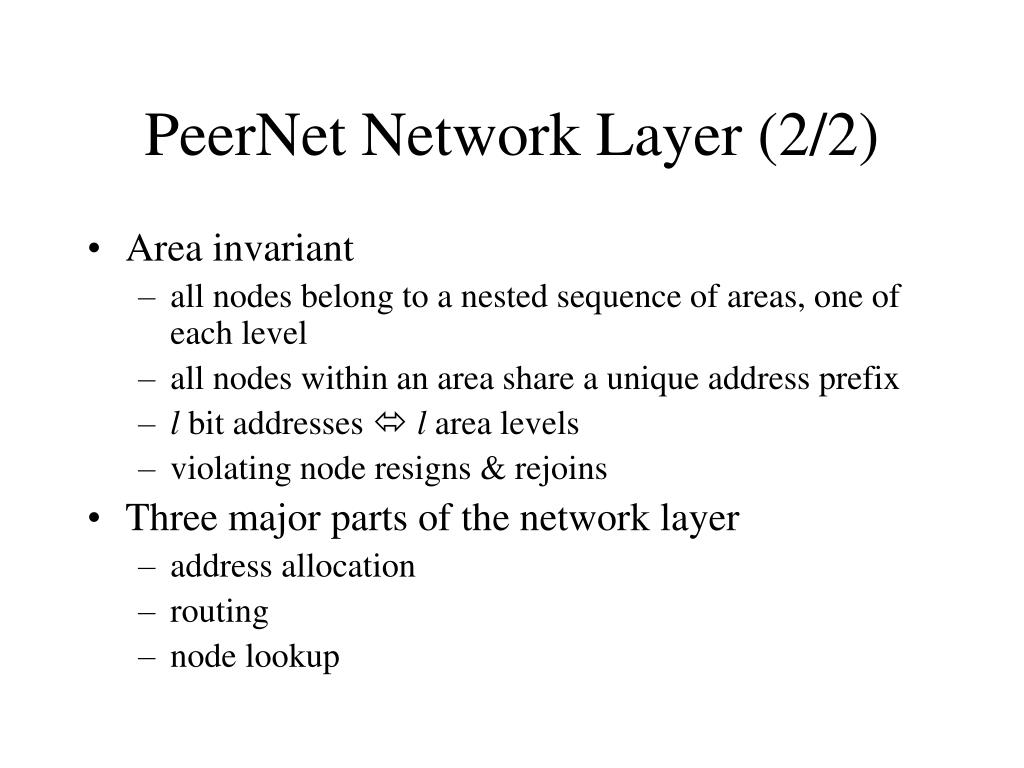

  6. PeerNet Network Layer (2/2) • Area invariant • all nodes belong to a nested sequence of areas, one of each level • all nodes within an area share a unique address prefix • l bit addresses  l area levels • violating node resigns & rejoins • Three major parts of the network layer • address allocation • routing • node lookup

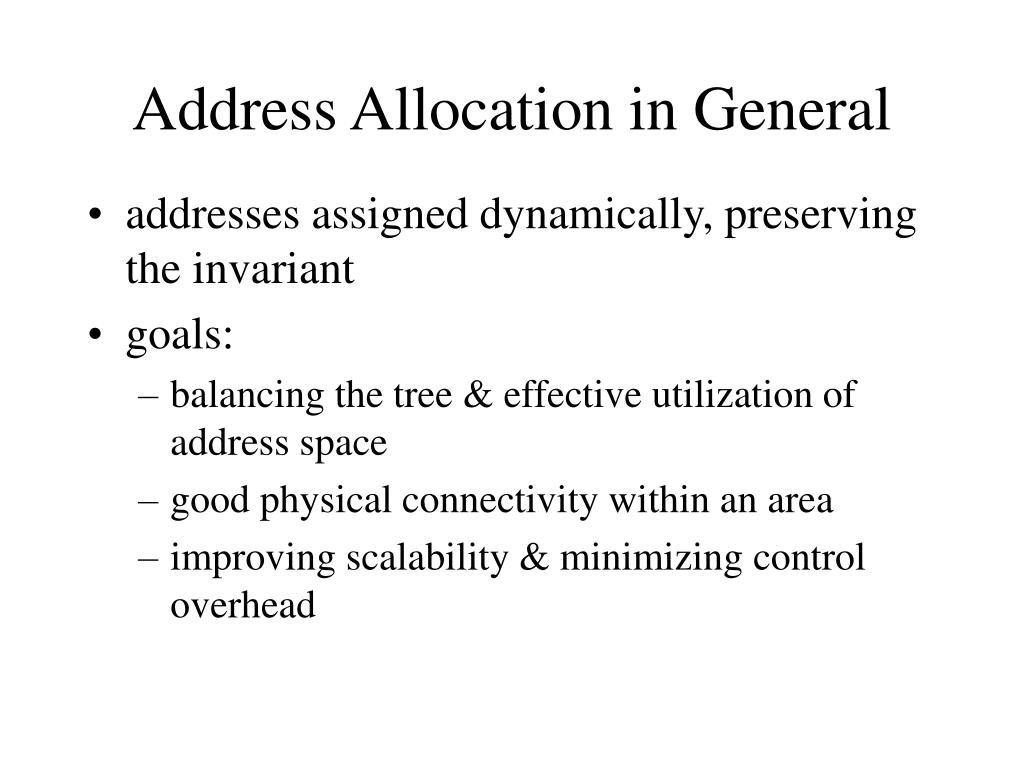

  7. Address Allocation in General • addresses assigned dynamically, preserving the invariant • goals: • balancing the tree & effective utilization of address space • good physical connectivity within an area • improving scalability & minimizing control overhead

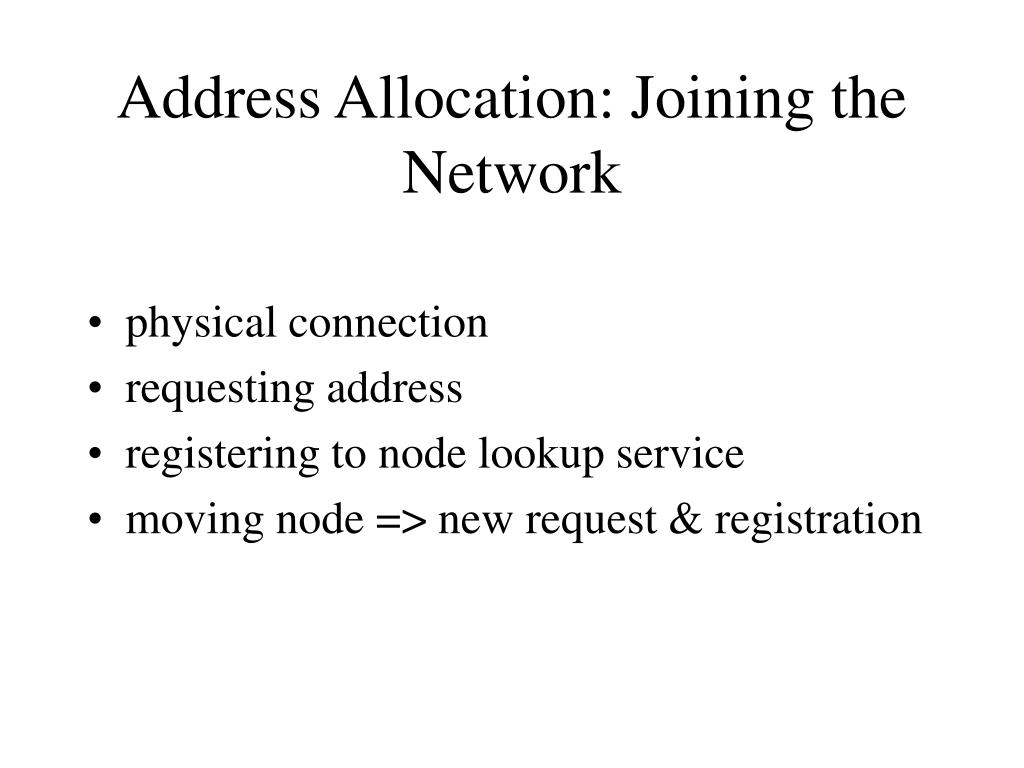

  8. Address Allocation: Joining the Network • physical connection • requesting address • registering to node lookup service • moving node => new request & registration

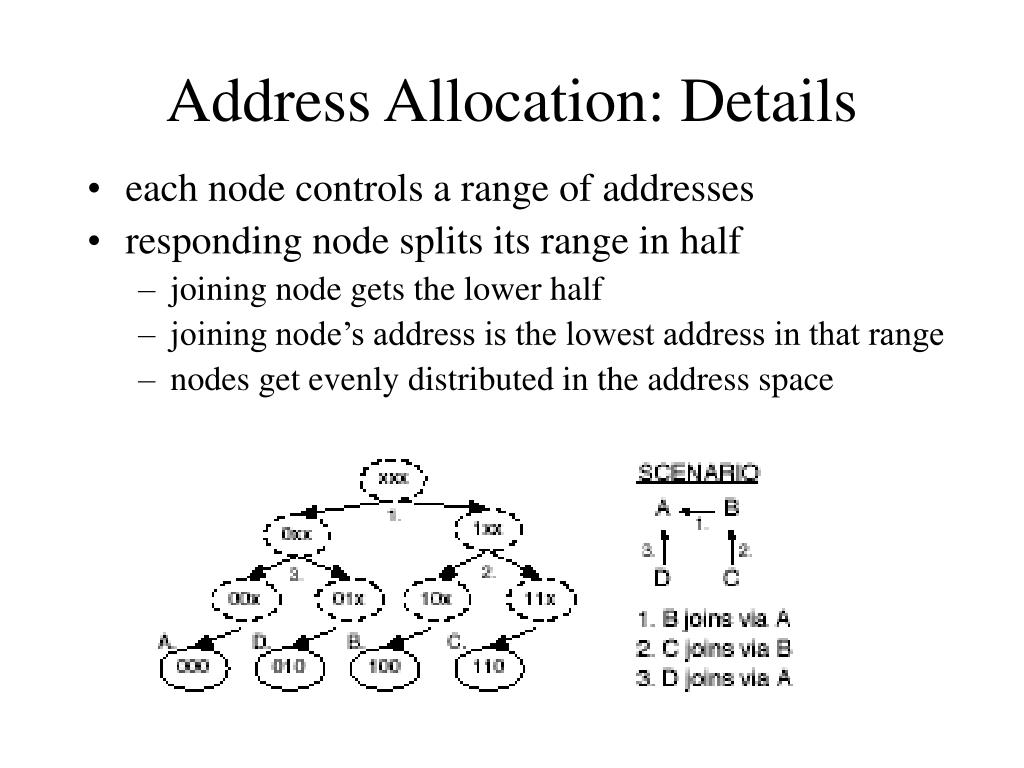

  9. Address Allocation: Details • each node controls a range of addresses • responding node splits its range in half • joining node gets the lower half • joining node’s address is the lowest address in that range • nodes get evenly distributed in the address space

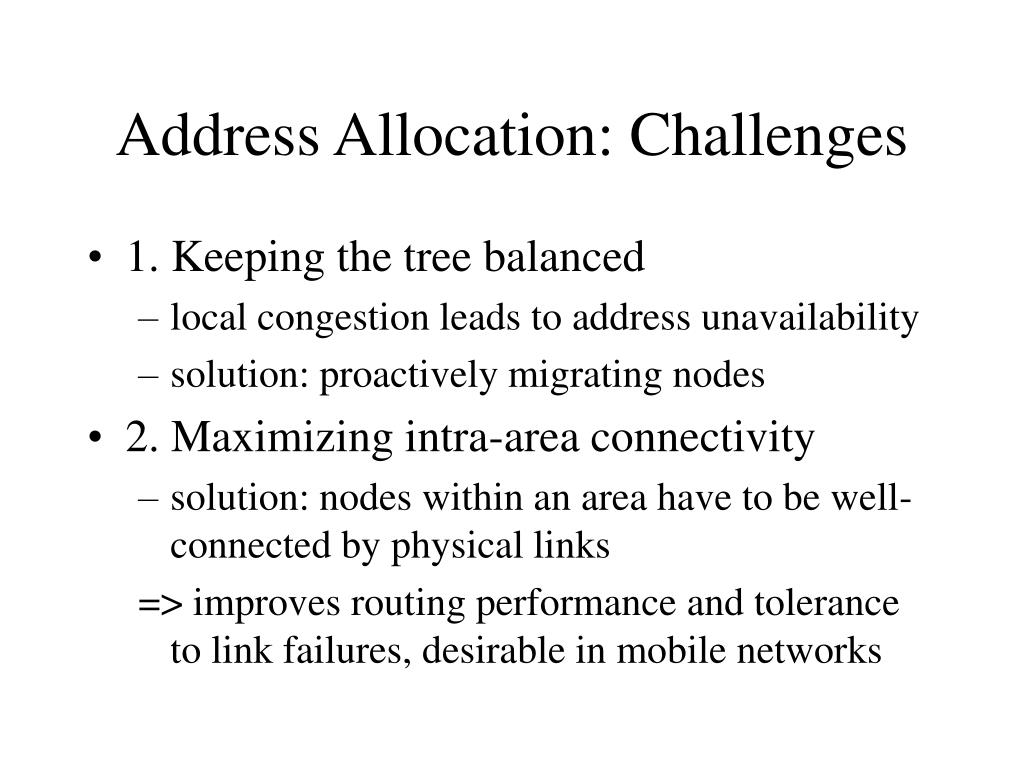

  10. Address Allocation: Challenges • 1. Keeping the tree balanced • local congestion leads to address unavailability • solution: proactively migrating nodes • 2. Maximizing intra-area connectivity • solution: nodes within an area have to be well-connected by physical links => improves routing performance and tolerance to link failures, desirable in mobile networks

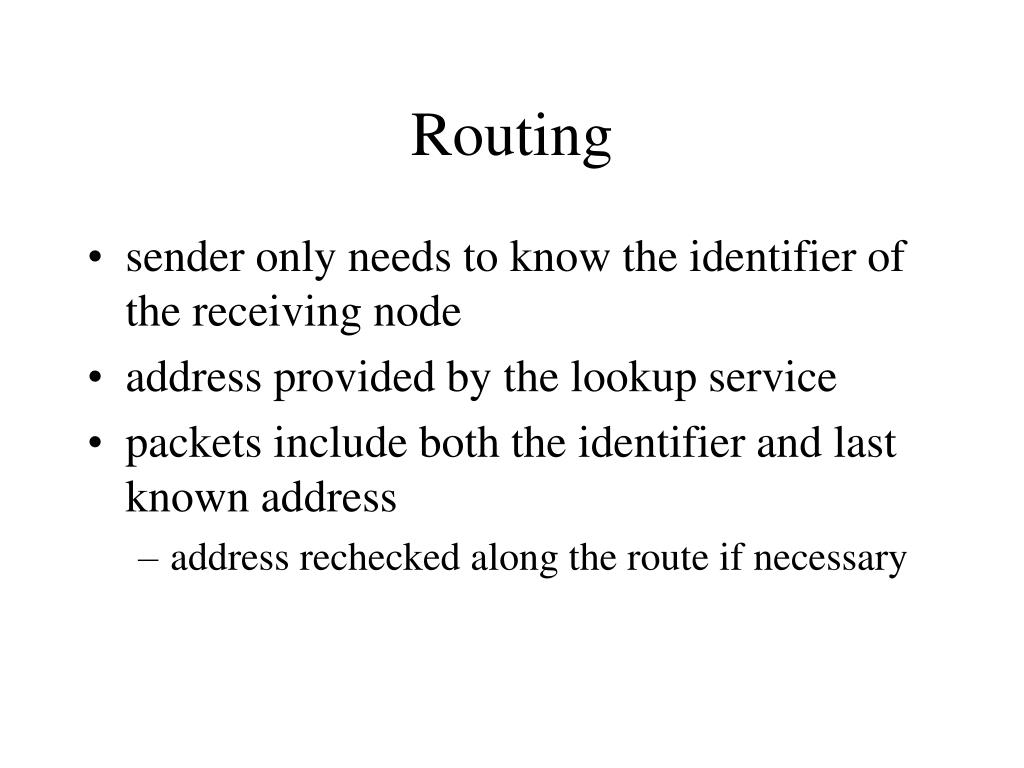

  11. Routing • sender only needs to know the identifier of the receiving node • address provided by the lookup service • packets include both the identifier and last known address • address rechecked along the route if necessary

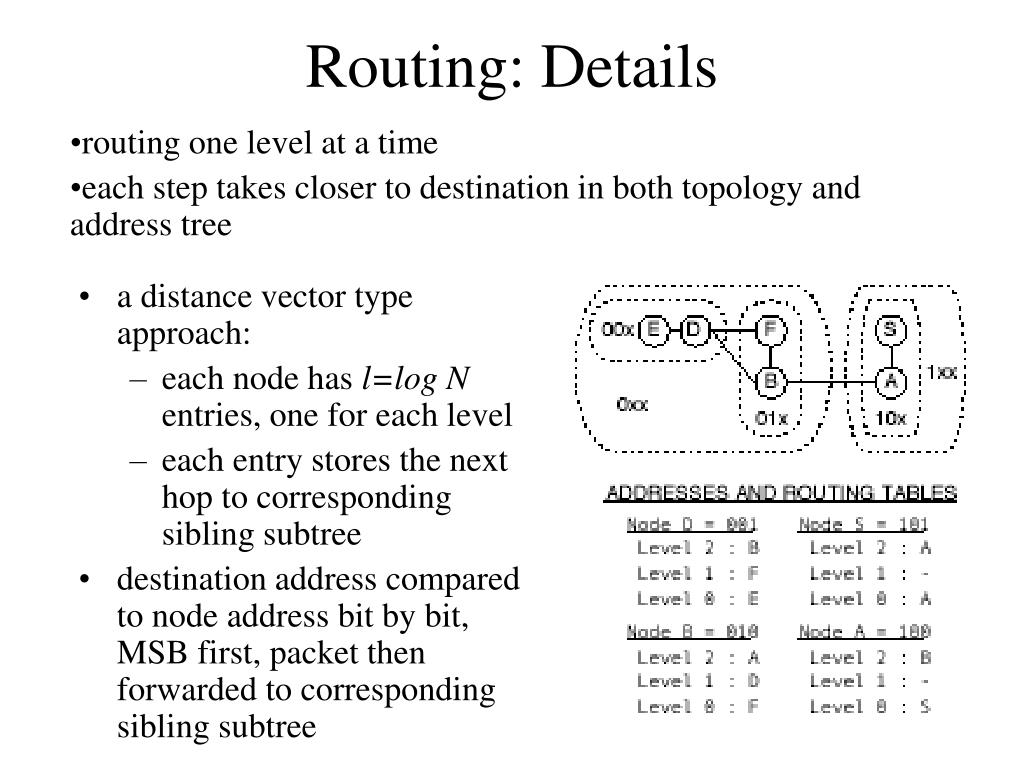

  12. Routing: Details routing one level at a time each step takes closer to destination in both topology and address tree • a distance vector type approach: • each node has l=log N entries, one for each level • each entry stores the next hop to corresponding sibling subtree • destination address compared to node address bit by bit, MSB first, packet then forwarded to corresponding sibling subtree

  13. Node Lookup Service (1/3) • distributed node lookup for finding addresses for given node identifiers • Storing lookup entries (id, addr) • choosing a node with minimum xor-distance (address XOR identifier) • Challenges • node movement => address change => lookup entries need to be updated or moved

  14. Node Lookup Service (2/3) • Solutions: • Preserving locality of lookups • multiple locations for lookup tables, chosen so that local queries get local answers • iterating from local scope to larger subtrees • Creating locality of updates • moving nodes change their low bits more often • storing LSB locally and MSB in remote nodes • remote nodes need less updating • MSB found first, query then forwarded to corresponding area

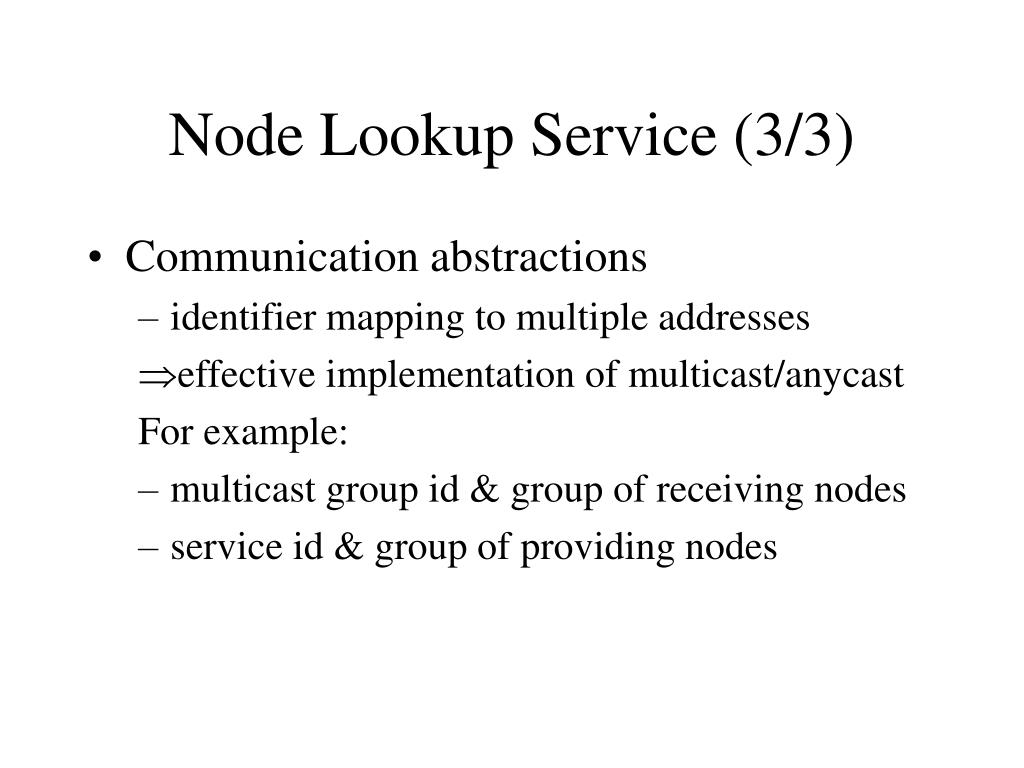

  15. Node Lookup Service (3/3) • Communication abstractions • identifier mapping to multiple addresses • effective implementation of multicast/anycast For example: • multicast group id & group of receiving nodes • service id & group of providing nodes

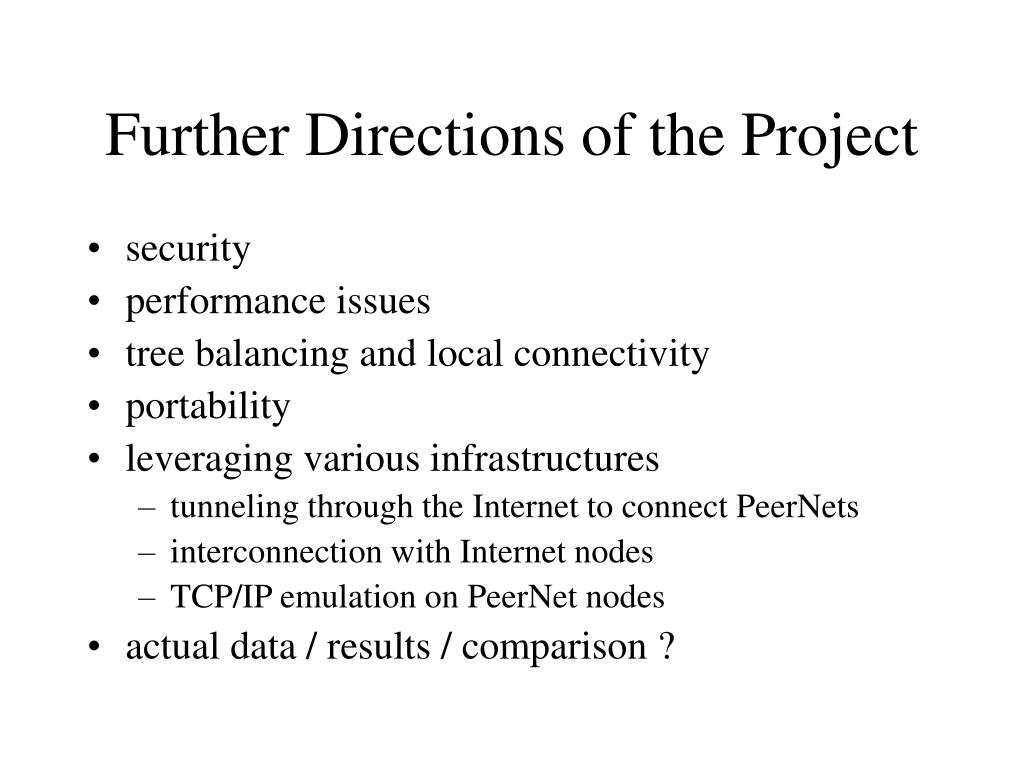

  16. Further Directions of the Project • security • performance issues • tree balancing and local connectivity • portability • leveraging various infrastructures • tunneling through the Internet to connect PeerNets • interconnection with Internet nodes • TCP/IP emulation on PeerNet nodes • actual data / results / comparison ?
