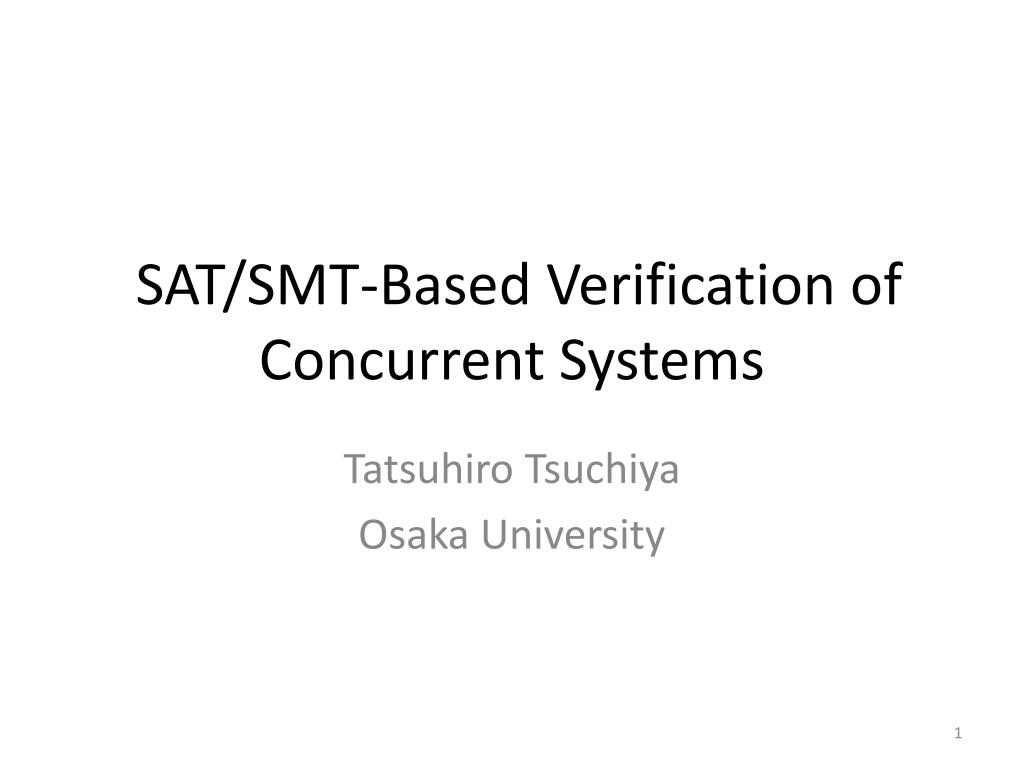

  1. SAT/SMT-Based Verification of Concurrent Systems Tatsuhiro Tsuchiya Osaka University

  2. Summary • Topic • SAT/SMT-based model checking of concurrent systems • Problem • The standard interleaving semantics leads to formula size blow up. • Solution • We propose a different semantics. • ATVA 2004

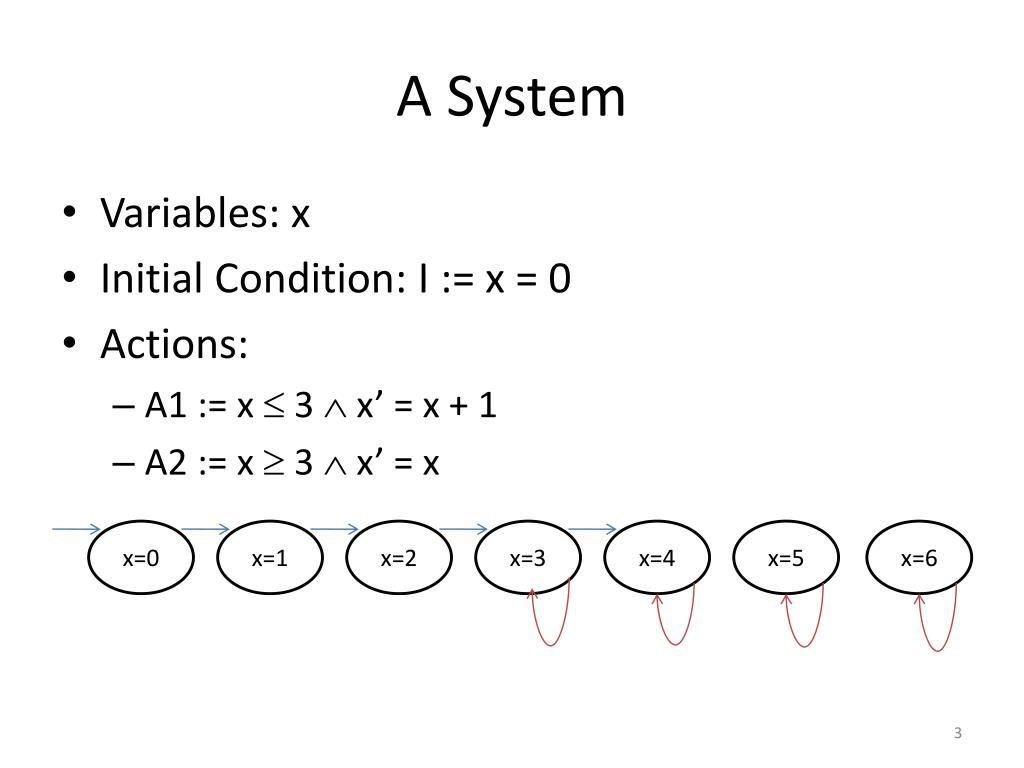

  3. A System • Variables: x • Initial Condition: I := x = 0 • Actions: • A1 := x  3  x’ = x + 1 • A2 := x  3  x’ = x x=0 x=1 x=2 x=3 x=4 x=5 x=6

  4. Bounded Reachability Analysis • Initial Condition: I := x = 0 • Actions: • A1 := x  3  x’ = x + 1 • A2 := x  3  x’ = x • Transition Relation: T := A1  A2 I<x/x0> T<x,x’/x0,x1>  …  T <x,x’/xk-1,xk>  P<x/xk> = x0 = 0  (x0 3  x1 = x0 + 1  x0 > 3  x1 = x0)  …  (xk-1 3 xk = xk-1 + 1  xk-1 > 3 xk = xk-1)  P(xk) • Satisfying valuation of x0,x1,x2,x3,… xk = Trace that reaches a state in P in k steps. • x0 = 0, x1 = 1, x2 = 2, …

  5. What if there are many concurrent actions? • Actions: • A1 := PC0 = 0  R0 = F  PC0’ = 1  R0’ = T  PC1’ = PC1  R1’ = F • A2 := PC0 = 1  R1 = F  PC0’ = 2  R1’ = T  PC1’ = PC1  R1’ = F • …. • Transition Relation: T = A1  A2  …  An • n is the number of actions. • A large disjunction is required to represent only a single step.

  6. Interleaving Semantics Action 1, Action 2, Action 3, or Action n Si Si+1 T := A1  A2  …  An A large disjunction is required to represent only a single step.

  7. Proposed Execution Semantics • Macro step= n Micro Steps • n : Number of Actions • Micro Step i • Action i or a stuttering step takes place. Action 1 or Stuttering Action 2 or Stuttering Action n or Stuttering S0 S1 = S2 Sn-1 Sn

  8. Correspondence between Traces under the Two Semantics Action 2 Action 4 • Stuttering Equivalence • LTLX is preserved. Interleaving Semantics Stutter Action 2 Stutter Action 4 NewSemantics = =

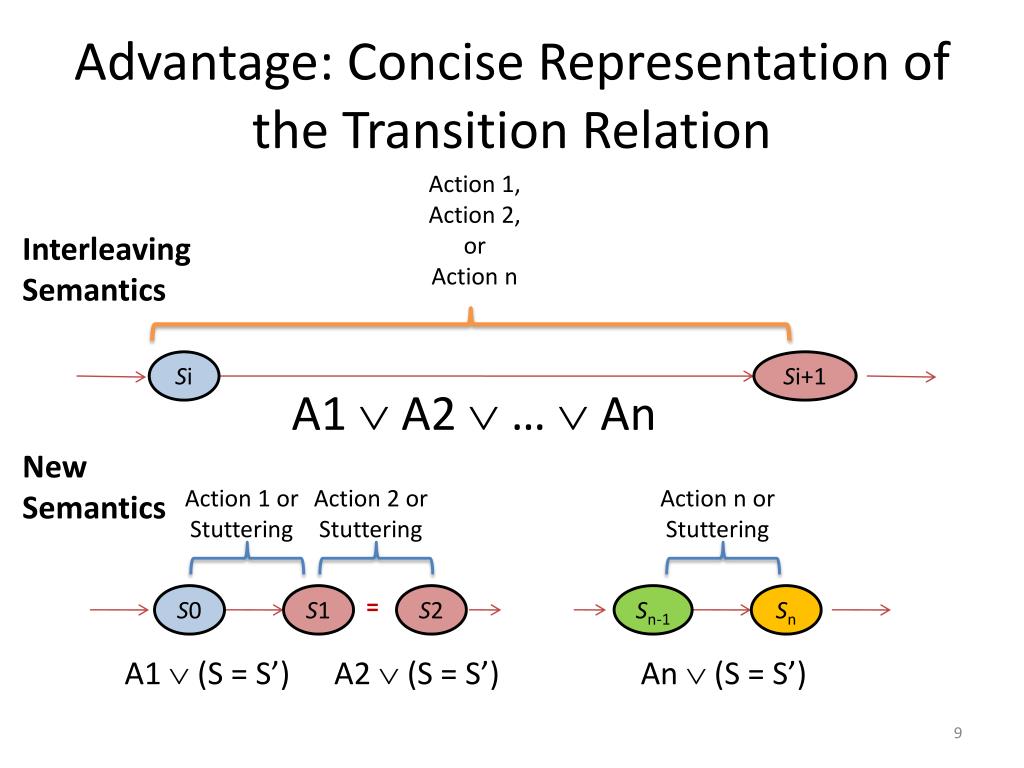

  9. Advantage: Concise Representation of the Transition Relation Action 1, Action 2, or Action n Interleaving Semantics Si Si+1 A1  A2  …  An NewSemantics Action 1 or Stuttering Action 2 or Stuttering Action n or Stuttering S0 S1 = S2 Sn-1 Sn A1  (S = S’) A2  (S = S’) An  (S = S’)

  10. States Explored • 12 Actions (Bakery Algorithm) • Explicit-state reachability analysis was used to measure the number of states. New Number of States Interleaving k

  11. Runtime • Yices SMT Solver Interleaving Time(Sec) New k

  12. Other Semantics • Step semantics Toni Jussila, Keijo Heljanko, Ilkka Niemelä: BMC via on-the-fly determinization. STTT 7(2): 89-101 (2005).

  13. Comparison(Runtime) • Andy Jingquin Yu, Gianfranco Ciardo, and Gerald Lüttgen, STTT, 117-131 (2009). • Deadlock Detection of Petri Nets • Zchaff SAT Solver

  14. Summary • Topic • SAT/SMT-based model checking of concurrent systems • Problem • The standard interleaving semantics leads to formula size blow up. • Solution • We propose a different semantics. • ATVA 2004

  15. Future Work • LTL model checking • Networks of timed automata • Systems with unbounded integer variables • K-induction
