  1. Lesson 18Phasors & Complex Numbers in AC

  2. Learning Objectives • Define and graph complex numbers in rectangular and polar form. • Perform addition, subtraction, multiplication and division using complex numbers and illustrate them using graphical methods. • Define a phasor and use phasors to represent sinusoidal voltages and currents. • Define time domain and phasor (frequency) domain • Represent a sinusoidal voltage or current as a complex number in polar and rectangular form. • Use the phasor domain to add/subtract AC voltages and currents. • Determine when a sinusoidal waveform leads or lags another. Graph a phasor diagram that illustrates phase relationships.

  3. Complex numbers • A complex number is a number of the form C = a + jb where a and b are real and j = • a is the real part of C and b is the imaginary part. • Complex numbers are merely an invention designed to allow us to talk about the quantity j. • j is used in EE to represent the imaginary component to avoid confusion with CURRENT (i)

  4. Geometric Representation C = 6 + j8 (rectangular form) C = 1053.13º (polar form)

  5. Conversion Between Forms • To convert between forms where apply the following relations

  6. Example Problem 1 • Convert (5∠60) to rectangular form. • Convert 6 + j 7 to polar form. • Convert -4 + j 4 to polar form. • Convert (5∠220) to rectangular form.

  7. Properties of j

  8. Addition and Subtraction of Complex Numbers • Easiest to perform in rectangular form • Add/subtract real and imaginary parts separately

  9. Multiplication and Division of Complex Numbers • Easiest to perform in polar form • Multiplication: multiply magnitudes and add the angles • Division: Divide the magnitudes and subtract the angles

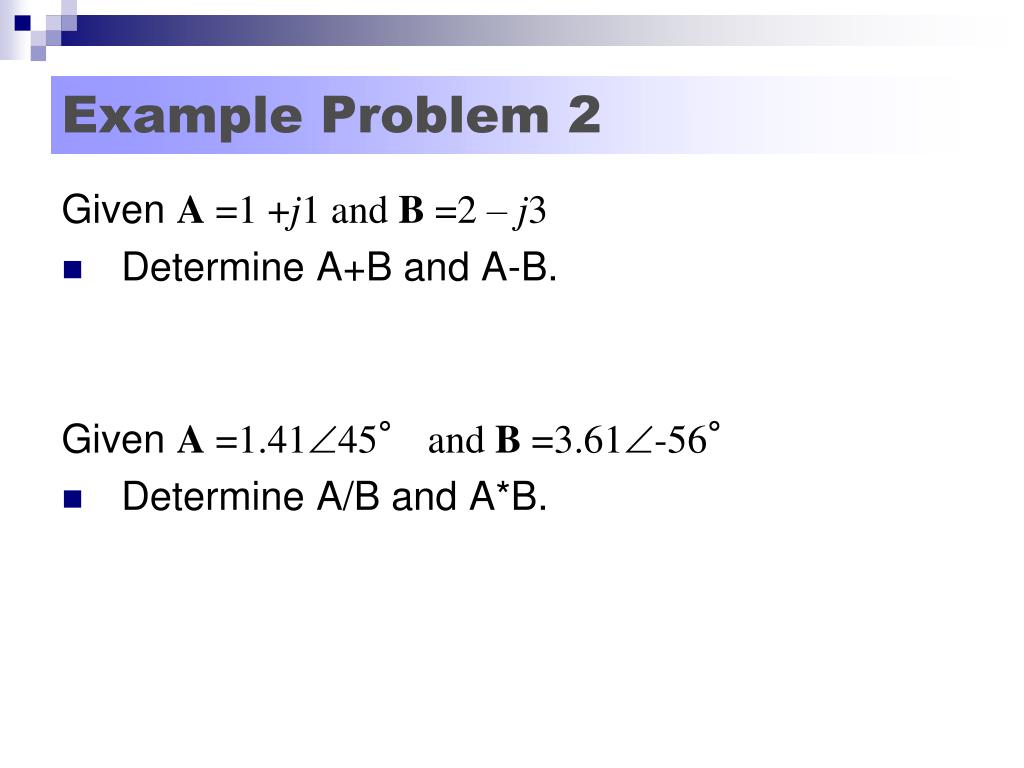

  10. Example Problem 2 Given A =1 +j1 and B =2 – j3 • Determine A+B and A-B. Given A =1.4145° and B =3.61-56° • Determine A/B and A*B.

  11. Reciprocals and Conjugates • The reciprocal of C = C , is • The conjugate of C is denoted C*, which has the same real value but the opposite imaginary part:

  12. Example Problem 3 And now you can try with your TI!! • (3-i4) + (10∠44) ANS: 10.6∠16.1 ANS: 10.2 + 2.9i • (22000+i13)/(3∠-17) ANS: 7.3E3∠17.0 • Convert 95-12j to polar: ANS: 95.8∠-7.2

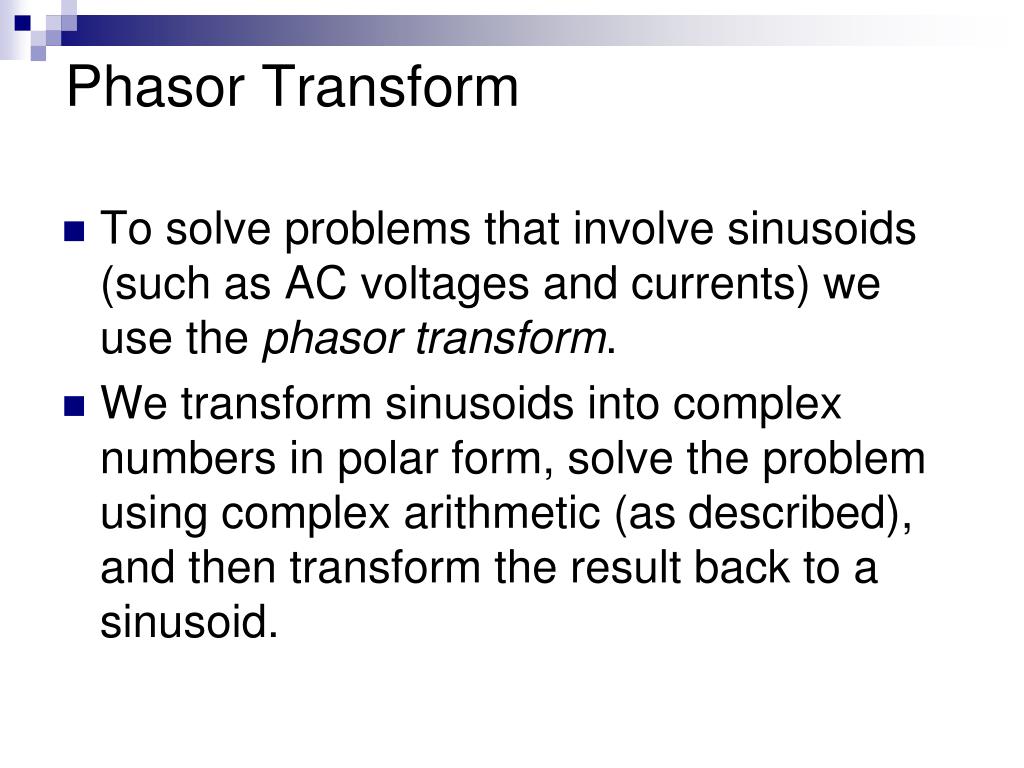

  13. Phasor Transform • To solve problems that involve sinusoids (such as AC voltages and currents) we use the phasor transform. • We transform sinusoids into complex numbers in polar form, solve the problem using complex arithmetic (as described), and then transform the result back to a sinusoid.

  14. Generating a sinusoidal waveform through the vertical projection of a rotating vector. THE SINUSOIDAL WAVEFORM

  15. Phasors • A phasor is a rotating vector whose projection on the vertical axis can be used to represent a sinusoid. • The length of the phasor is amplitude of the sinusoid (Vm) • The angular velocity of the phasor is 

  16. Representing AC Signals with Complex Numbers • By replacing e(t) with it’s phasor equivalent E, we have transformed the source from the time domain to the phasor domain. • Phasors allow us to convert from differential equations to simple algebra. • KVL and KCL still work in phasor domain.

  17. Using phasors to represent AC voltage and current • Looking at the sinusoid eqn, determine VPkand phase offset . • Using VPK, determine VRMS using the formula: • “The equivalent dc value of a sinusoidal current or voltage is 0.707 of its peak value” • The phasor is then

  18. Representing AC Signals with Complex Numbers • Phasor representations can be viewed as a complex number in polar form. E = Erms

  19. Example Problem 4 i1 = 20sin (t) mA. i2 = 10sin (t+90˚) mA. i3 = 30sin (t - 90˚) mA. Determine the equation for iT.

  20. Phase Difference Phase difference is angular displacement between waveforms of same frequency. If angular displacement is 0° then waveforms are in phase If angular displacement is not 0o, they are out of phaseby amount of displacement

  21. Phase Difference If v1 = 5 sin(100t) and v2 = 3 sin(100t - 30°), v1 leads v2 by 30°

  22. Phase Difference w/ Phasors • The waveform generated by the leading phasor leads the waveform generated by the laggingphasor.

  23. Formulas from Trigonometry • Sometimes signals are expressed in cosines instead of sines.

  24. Example Problem 5 Draw the phasor diagram, determine phase relationship, and sketch the waveform for the following: i = 40 sin(t + 80º) and v = -30 sin(t - 70º)
