Recommended Connection

Recommended Connection. Used cables. TelePhone Code (2 cables). RJ9. RJ9. Controll Code. 3.5mm. 3.5mm. KX-UT670. EHS （ CS70N ）. RJ9. RJ9. Handset port [A]. Modular Handset Jack. 3.5mm. 3.5mm. Headset Lifter Jack. EHS Jack. Handset port [B]. Modular Handset Jack in Handset.

pandora-carpenter
Télécharger la présentation

Recommended Connection

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

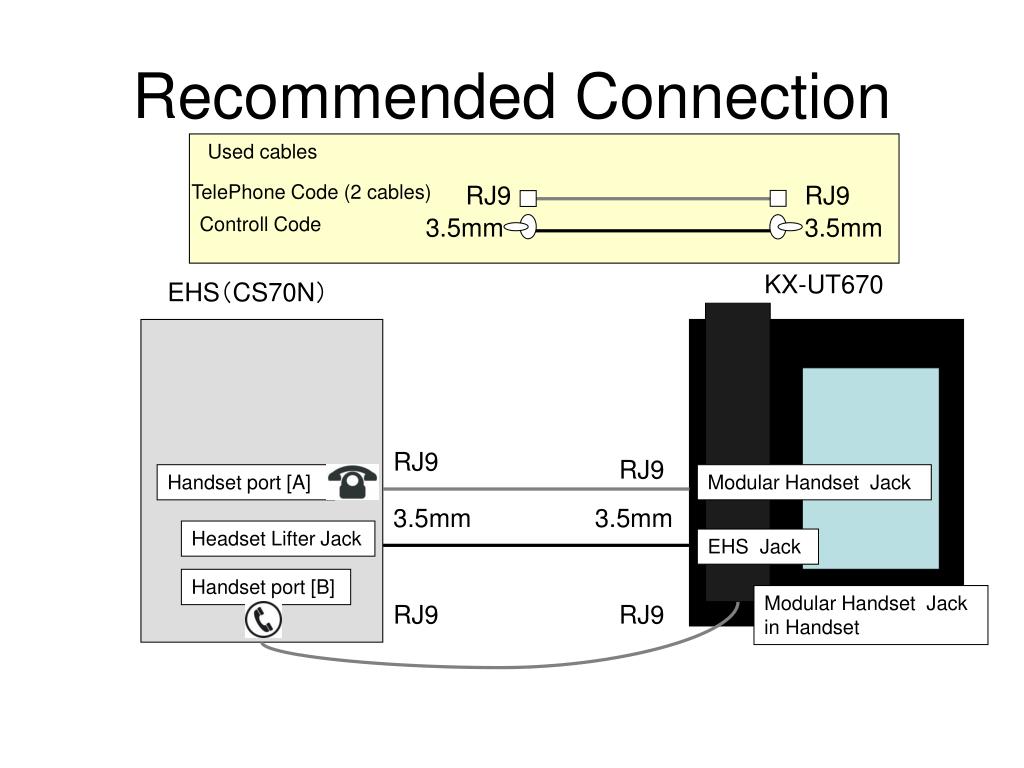

  1. Recommended Connection Used cables TelePhone Code (2 cables) RJ9 RJ9 Controll Code 3.5mm 3.5mm KX-UT670 EHS（CS70N） RJ9 RJ9 Handset port [A] Modular Handset Jack 3.5mm 3.5mm Headset Lifter Jack EHS Jack Handset port [B] Modular Handset Jack in Handset RJ9 RJ9

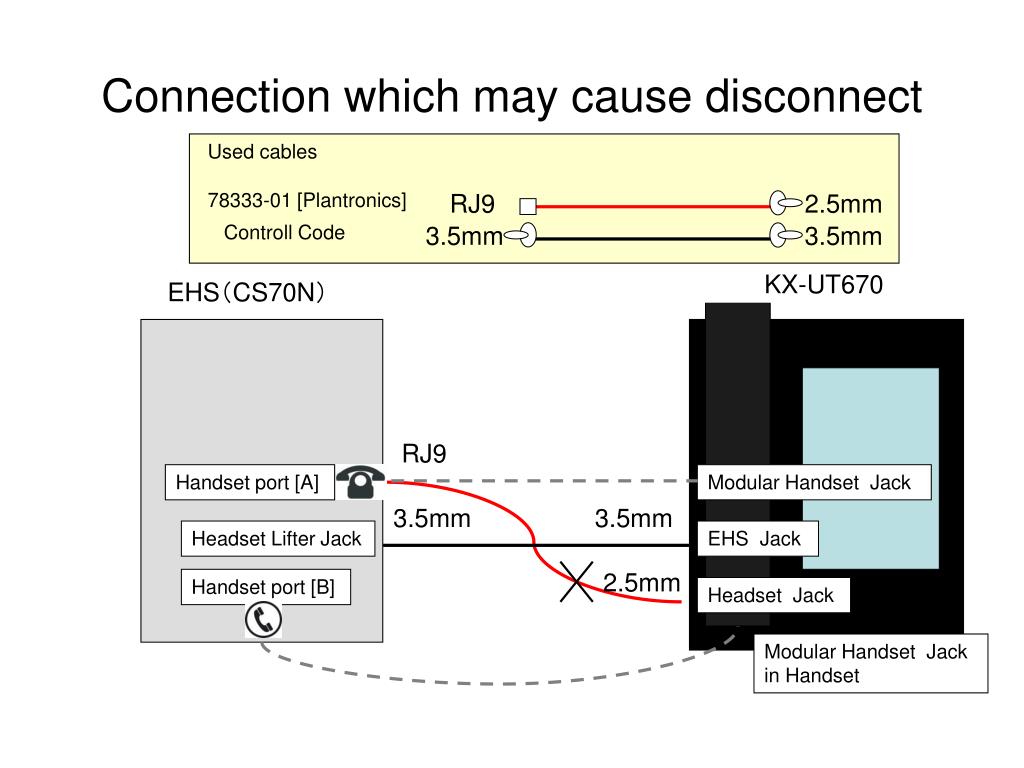

  2. Connection which may cause disconnect Used cables 78333-01 [Plantronics] RJ9 2.5mm Controll Code 3.5mm 3.5mm KX-UT670 EHS（CS70N） RJ9 Handset port [A] Modular Handset Jack 3.5mm 3.5mm Headset Lifter Jack EHS Jack 2.5mm Handset port [B] Headset Jack Modular Handset Jack in Handset
