  1. Adv. Network ProgrammingRPC (Remote Procedure Call) Kubilay Akgül

  2. RPC (Remote Procedure Call) • Two Paradigms for Distributed Programs. • Smilarities and Differences Conventional Procedure Calls and RPC • SUN RPC • Remote Program Identification • RPC Mapping, Inet.d • Call Semantics • RPCGEN ADVANCED NETWORK PROGRAMING -- RPC

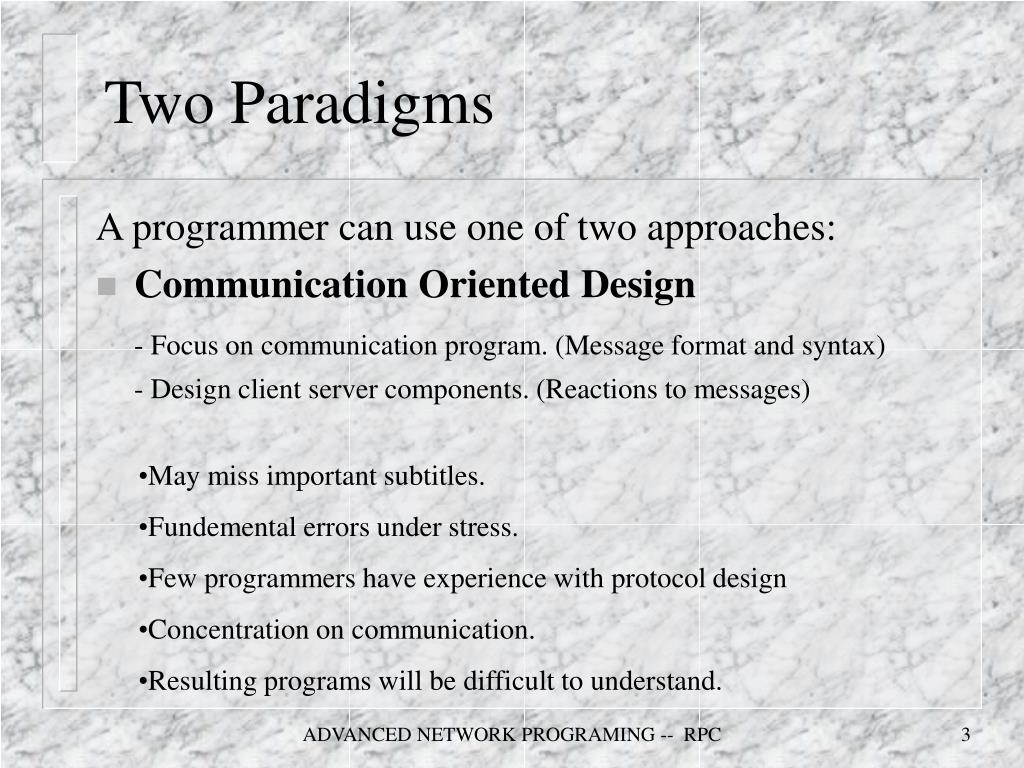

  3. Two Paradigms A programmer can use one of two approaches: • Communication Oriented Design - Focus on communication program. (Message format and syntax) - Design client server components. (Reactions to messages) • May miss important subtitles. • Fundemental errors under stress. • Few programmers have experience with protocol design • Concentration on communication. • Resulting programs will be difficult to understand. ADVANCED NETWORK PROGRAMING -- RPC

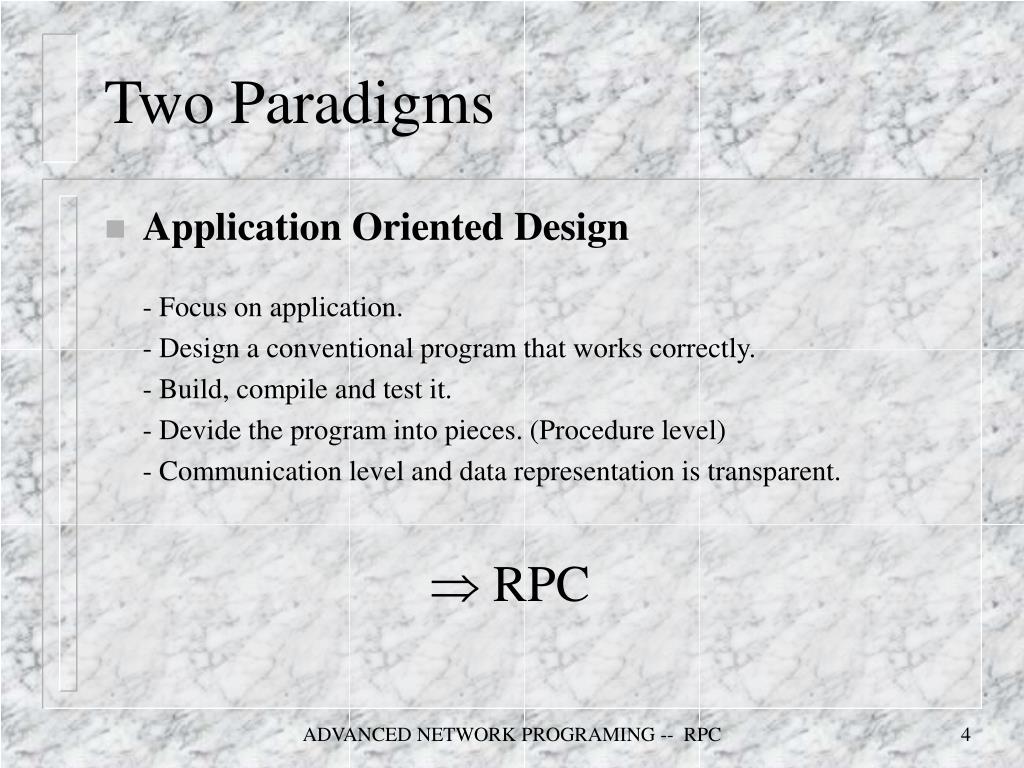

  4. Two Paradigms • Application Oriented Design - Focus on application. - Design a conventional program that works correctly. - Build, compile and test it. - Devide the program into pieces. (Procedure level) - Communication level and data representation is transparent.  RPC ADVANCED NETWORK PROGRAMING -- RPC

  5. Conventional Programs and RPC • Smilarities CALL • Caller transfers control to called procedure. • Caller suspends. • Only one thread of execution continues at any given time. • Values in all variables are frozen. RESPONSE • Control flows back to the caller • A called procedure may call another procedure. (Server becomes a client) ADVANCED NETWORK PROGRAMING -- RPC

  6. Conventional Programs and RPC • Differences • Server Procedures - RPC procedures must exist and be waiting to compute a response. • Data Flow - RPC may accept or return arbitrary amount of data. • Network Delays - Protocol, lost packets, data representation. • Adress Space - Conventional programs can pass pointers as argument. • Environment - RPC does not have direct access to callers I/O descriptors, OS functions... ADVANCED NETWORK PROGRAMING -- RPC

  7. SUN Microsystems’ RPC Definition • SUN defined specific form of RPC  SUNRPC • Wide acceptance, many applications. (NFS) • Defines format of messages and arguments. • Protocol  TCP , UDP. • Data Representation  XDR. • Uses structure instead of multiple arguments. • At most one remote procedure in a remote program can be invoked at a given time Automatic Mutual Exclusion • A complier tool helps programmers to build distributed programs automatically  RPCGEN ADVANCED NETWORK PROGRAMING -- RPC

  8. Remote Program and Procedure Identification Program no Description 0x00000000 - 0x1fffffff defined by SUN 0x20000000 - 0x3fffffff defined by system mng. 0x40000000 - 0x5fffffff customer written appl. 0x60000000 - 0xffffffff reserved • Program Number - Each program must be assigned a unique 32 - bit integer • Procedure Number - Each procedure in a remote program must have an integer. (1,2,3...) • Version number - Multiple versions may run at the same time. You can change details with same version number. Easy to migrate. (prog, ver, proc) ADVANCED NETWORK PROGRAMING -- RPC

  9. RPC Mapping • UDP and TCP  16 bit protocol port numbers. RCP  32 bit program numbers. • Servers uses well known ports. RPC servers use ephemeral ports. They takes different ports after each time they restart. Machine address + Program no  ?  correct server port ADVANCED NETWORK PROGRAMING -- RPC

  10. PORT MAPPER, RPCBIND • Uses a database of dynamic port mapping. (TCP/UDP port = 111) • Starts in multiuser mode. • Server’s main function calls svc_create • - Determines protocols supported by clients • - Creates end-points, Binds port to TCP and UDP. • - Contacts RPCBIND and registers itself (port, prog, ver). • - Goes to sleep. • Client calls clnt_create (server_IP, prog_no, ver, protocol) • - Usually makes a UDP connection to RPCBIND on servers machine. ADVANCED NETWORK PROGRAMING -- RPC

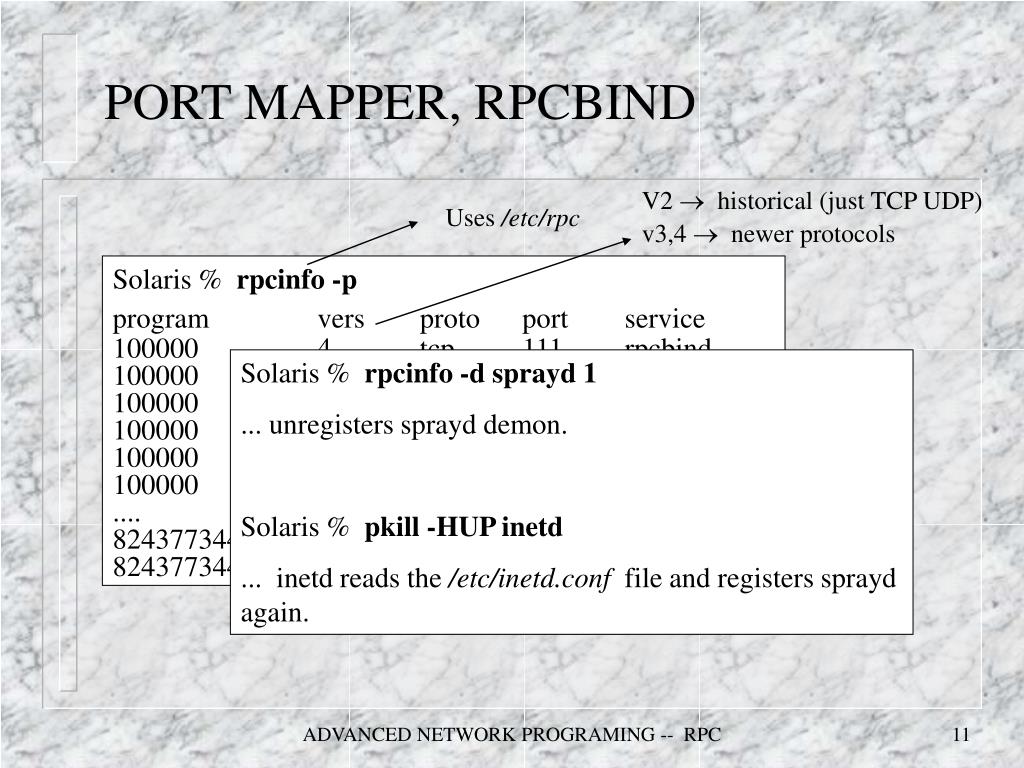

  11. PORT MAPPER, RPCBIND V2  historical (just TCP UDP) v3,4  newer protocols Uses /etc/rpc Solaris % rpcinfo -p program vers proto port service 100000 4 tcp 111 rpcbind 100000 3 tcp 111 rpcbind 100000 2 tcp 111 rpcbind 100000 4 udp 111 rpcbind 100000 3 udp 111 rpcbind 100000 2 udp 111 rpcbind .... 824377344 1 udp 42972 server 824377344 1 tcp 40849 server Solaris % rpcinfo -d sprayd 1 ... unregisters sprayd demon. Solaris % pkill -HUP inetd ... inetd reads the /etc/inetd.conf file and registers sprayd again. ADVANCED NETWORK PROGRAMING -- RPC

  12. RPC - Inetd • RPCgen created servers may be invoked by inetd. • /etc/inetd.conf file needs ti be updated. ... Rstatd/2-4 tli rpc/datagram_V wait root /usr/.../rpc.rstatd rpc.rstatd ... Inetd - creates endpoint, registers to RPCBIND. - listens for ports, fork, exec, waits until server terminates. Server - std. input is a xti endpoint (no need to re-register). - waits for ~2 minutes before terminate ( to prevent new fork and exec) - generates SIGCHLD to inetd. ADVANCED NETWORK PROGRAMING -- RPC

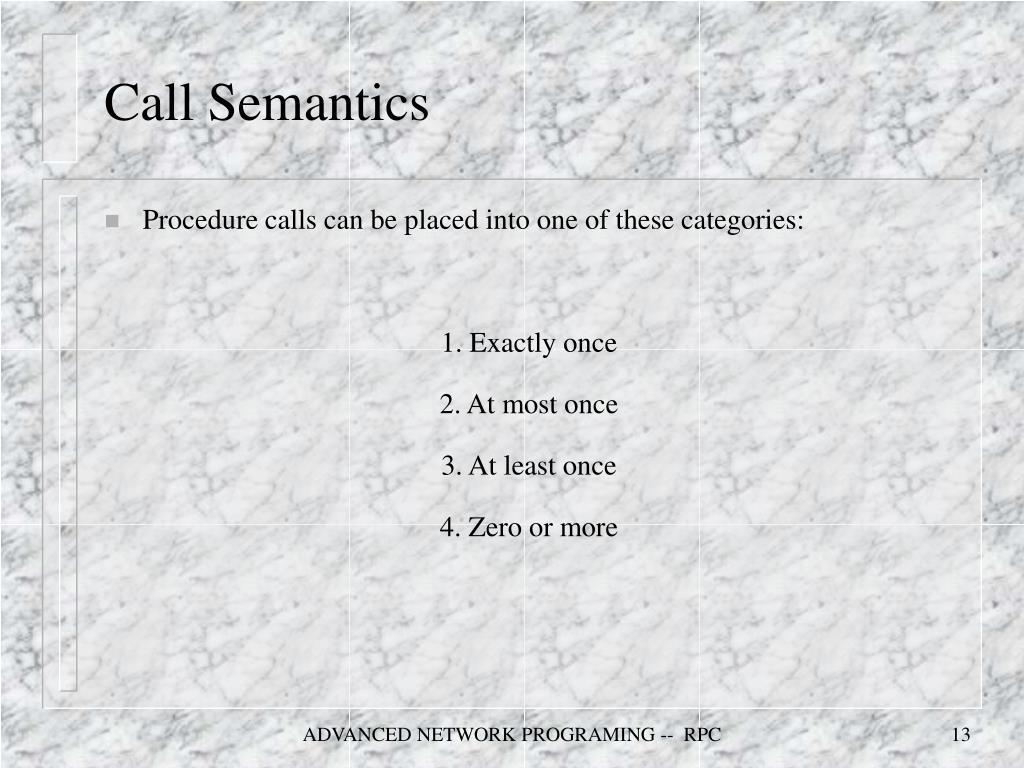

  13. Call Semantics • Procedure calls can be placed into one of these categories: 1. Exactly once 2. At most once 3. At least once 4. Zero or more ADVANCED NETWORK PROGRAMING -- RPC

  14. Call Semantics - Scenarios • TCP Reply received: Exactly Once No reply: At most once (server may have crashed) • UDP without server cash Reply received: at least once No reply: zero or more • UDP with server cash Reply received: Exactly Once No reply: At most once ADVANCED NETWORK PROGRAMING -- RPC

  15. Stub Procedure Consept & RPCGEN • Sun RPC specifications are extensive and complicated without a software tool. Assistance: 1. XDR library routines: internal data items  XDR standard 2. RPC untime library: correctly make call, receive call, registration... 3. RPCgen: A program generater ADVANCED NETWORK PROGRAMING -- RPC

  16. Stub Procedures • Additional procedures added to program to implement RPC. • Client Side Stub : They replaces the called procedure. • Server Side Stub : They replaces the caller procedure. Computer 1 Computer 2 PROC A Server Stub Client Stub Proc B ADVANCED NETWORK PROGRAMING -- RPC

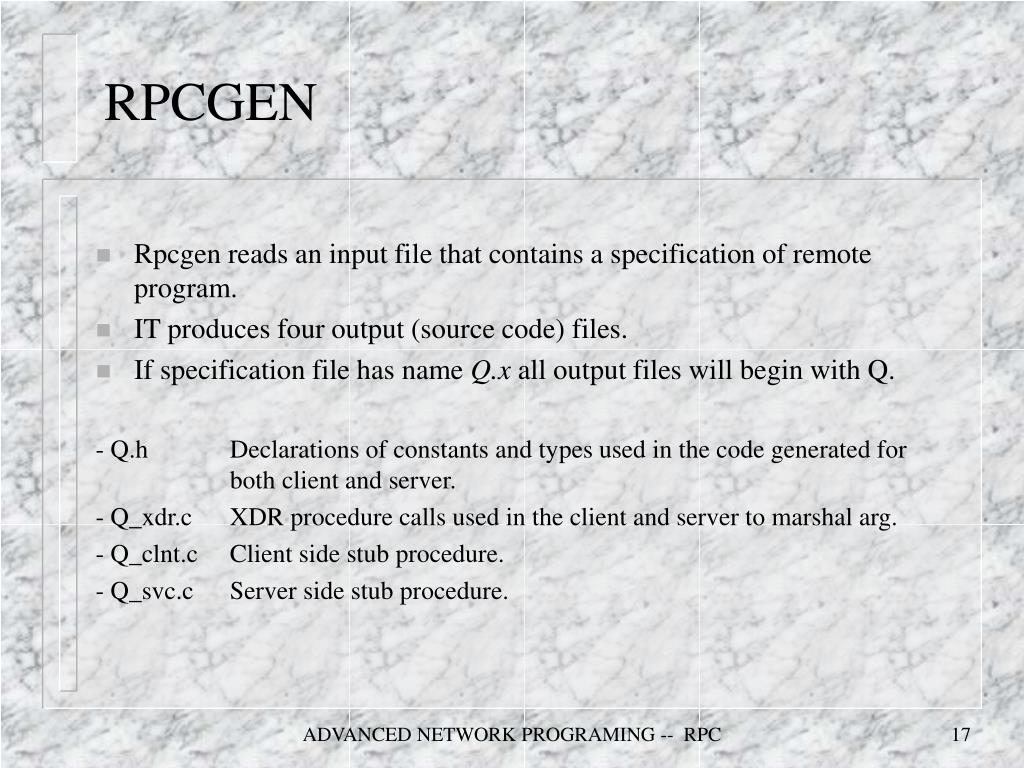

  17. RPCGEN • Rpcgen reads an input file that contains a specification of remote program. • IT produces four output (source code) files. • If specification file has name Q.x all output files will begin with Q. - Q.h Declarations of constants and types used in the code generated for both client and server. - Q_xdr.c XDR procedure calls used in the client and server to marshal arg. - Q_clnt.c Client side stub procedure. - Q_svc.c Server side stub procedure. ADVANCED NETWORK PROGRAMING -- RPC

  18. RPC Example ADVANCED NETWORK PROGRAMING -- RPC

  19. RPC Example struct square_in { /* input (argument) */ long arg1; }; struct square_out { /* output (result) */ long res1; }; program SQUARE_PROG { version SQUARE_VERS { square_out SQUAREPROC(square_in) = 1; /* procedure number = 1 */ } = 1; /* version number */ } = 0x31230000; /* program number */ • Specification file ADVANCED NETWORK PROGRAMING -- RPC

  20. RPC Example Client.c (Client main function) #include "unpipc.h" /* our header */ #include "square.h" /* generated by rpcgen */ int main(int argc, char **argv) { CLIENT *cl; square_in in; square_out *outp; if (argc != 3) err_quit("usage: client <hostname> <integer-value>"); cl = clnt_create(argv[1], SQUARE_PROG, SQUARE_VERS, "tcp"); in.arg1 = atol(argv[2]); if ( (outp = squareproc_1(&in, cl)) == NULL) err_quit("%s", clnt_sperror(cl, argv[1])); printf("result: %ld\n", outp->res1); exit(0); } Client handle ADVANCED NETWORK PROGRAMING -- RPC

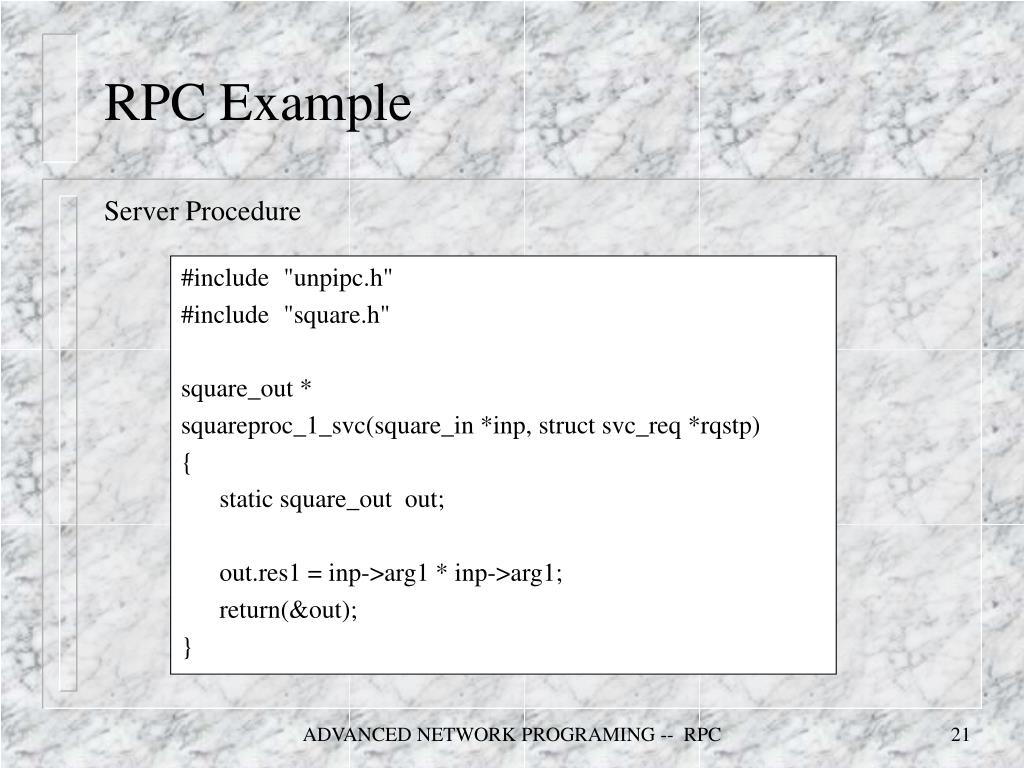

  21. RPC Example Server Procedure #include "unpipc.h" #include "square.h" square_out * squareproc_1_svc(square_in *inp, struct svc_req *rqstp) { static square_out out; out.res1 = inp->arg1 * inp->arg1; return(&out); } ADVANCED NETWORK PROGRAMING -- RPC

  22. RPC Example Client executable Solaris % rpcgen -C square.x Solaris % cc -c client.c -o client.o Solaris % cc -c square_clnt.c -o square_clnt.o Solaris % cc -c square_xdr.c -o square_xdr.o Solaris % cc -o client client.o square_clnt.o square_xdr.o libunpipc.a -lnsl Server executable Solaris % cc -c server.c -o server.o Solaris % cc -c square_svc.c -o square.svc.o Solaris % cc -o server server.o square_svc.o square_xdr.o libunpipc.a -lnsl ADVANCED NETWORK PROGRAMING -- RPC

  23. RPC Example ADVANCED NETWORK PROGRAMING -- RPC
