  1. OUTLINE Short-channel MOSFET (reprise) SOI technology Reading: Finish Chapter 19.2 Lecture #43 EE130 Lecture 43, Slide 1

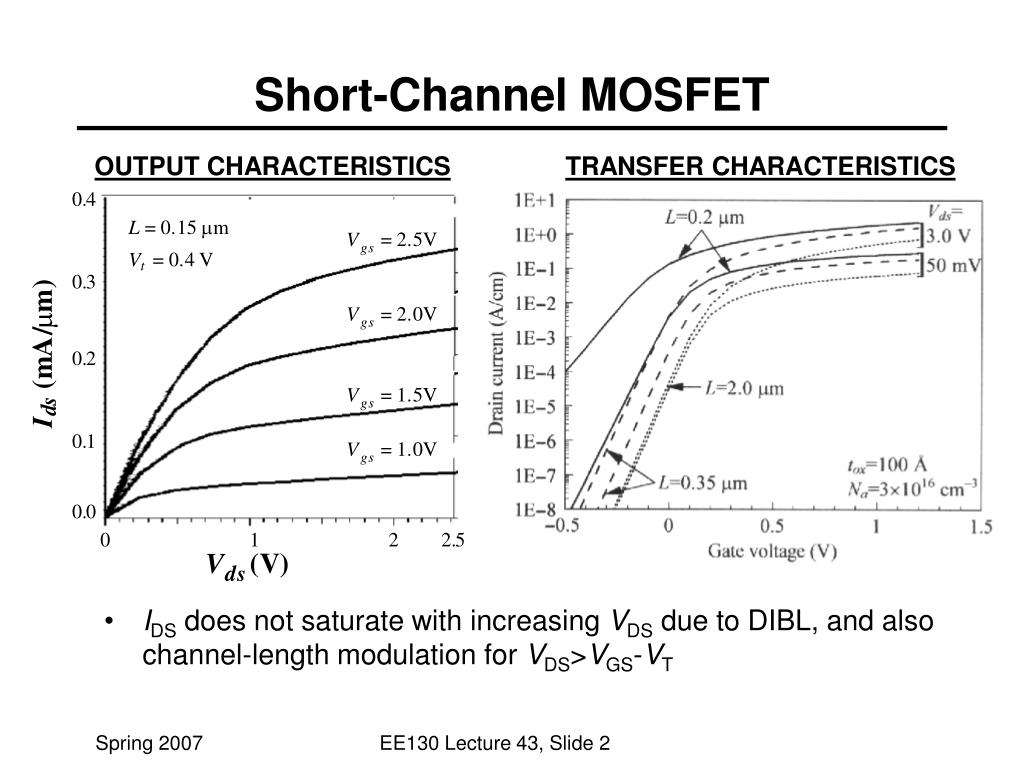

  2. Short-Channel MOSFET OUTPUT CHARACTERISTICS TRANSFER CHARACTERISTICS • IDS does not saturate with increasing VDS due to DIBL, and also channel-length modulation for VDS>VGS-VT EE130 Lecture 43, Slide 2

  3. Transistors are fabricated in a thin single-crystal Si layer on top of an electrically insulating layer of SiO2 Simpler device isolation  savings in circuit layout area Low junction capacitances  faster circuit operation Better soft-error immunity No body effect Higher cost Silicon on Insulator (SOI) Technology TSOI EE130 Lecture 43, Slide 3

  4. Floating body effect (history dependent): When a PD-SOI NMOSFET is in the ON state, at moderate-to-high VDS, holes are generated via impact ionization near the drain Holes are swept into the neutral body, collecting at the source junction The body-source pn junction is forward biased  VT is lowered  IDsat increases  “kink” in output IDvs.VDS curve Partially Depleted SOI (PD-SOI) EE130 Lecture 43, Slide 4

  5. No floating body effect! VT is sensitive to SOI film thickness Poorer control of short-channel effects due to fringing electric field from drain Elevated S/D contact structure needed to reduce RS, RD Gate Source SOI Drain SiO2 Silicon Substrate Fully Depleted SOI (FD-SOI) EE130 Lecture 43, Slide 5
