Circular Motion

Circular Motion. Physics 1. What is “circular motion”?. An object that moves in a circular path about an external point is in circular motion. Angular Velocity. An object in circular motion moves with an angular velocity ( w ) expressed in radians per second. Tangential Speed.

Télécharger la présentation

Circular Motion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Circular Motion Physics 1

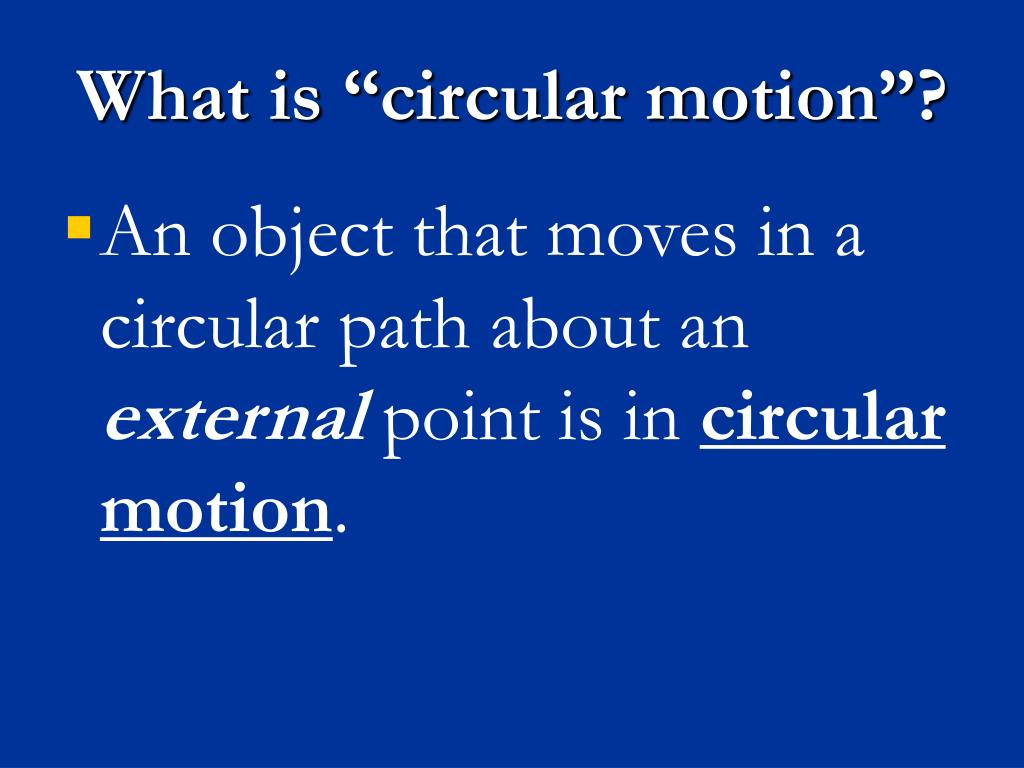

  2. What is “circular motion”? • An object that moves in a circular path about an external point is in circular motion.

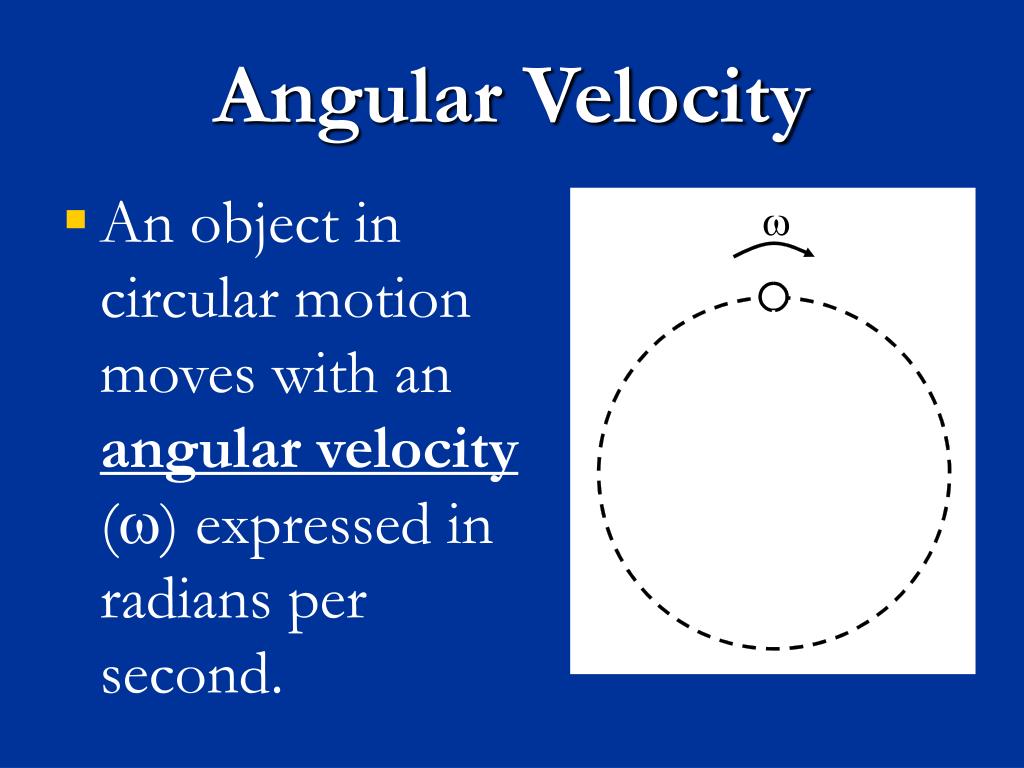

  3. Angular Velocity • An object in circular motion moves with an angular velocity (w) expressed in radians per second.

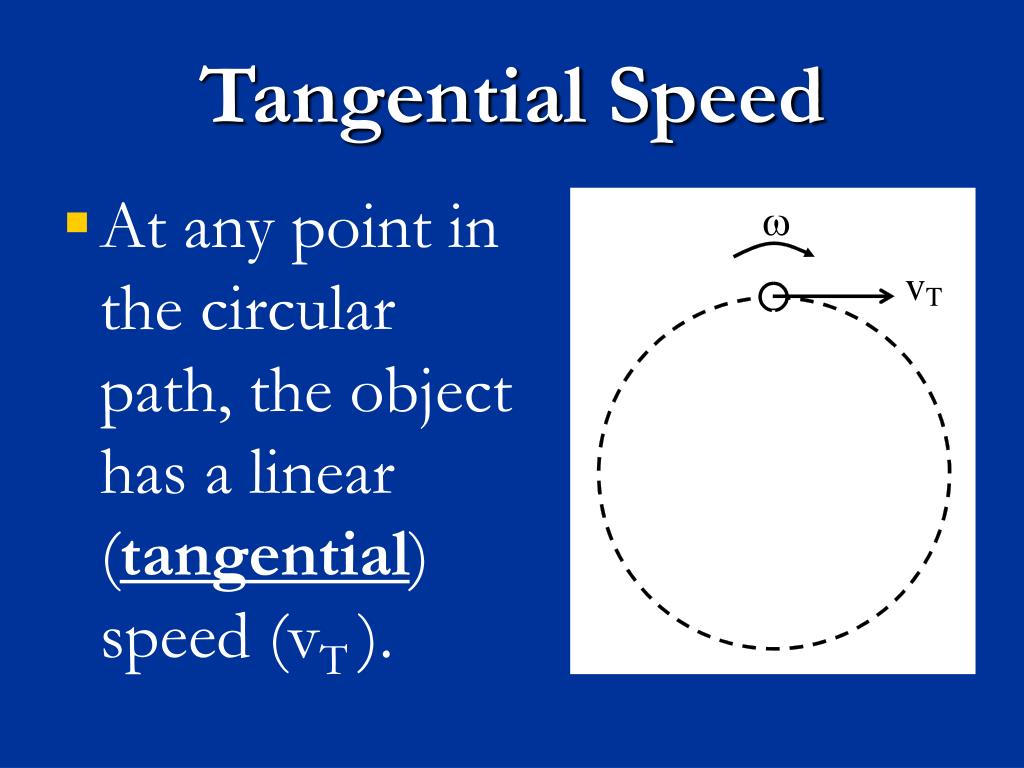

  4. Tangential Speed • At any point in the circular path, the object has a linear (tangential) speed (vT ).

  5. The Value of vT • The tangential speed depends on the size of the path circumference.

  6. The Value of vT • A larger path circumference means a larger path radius (r).

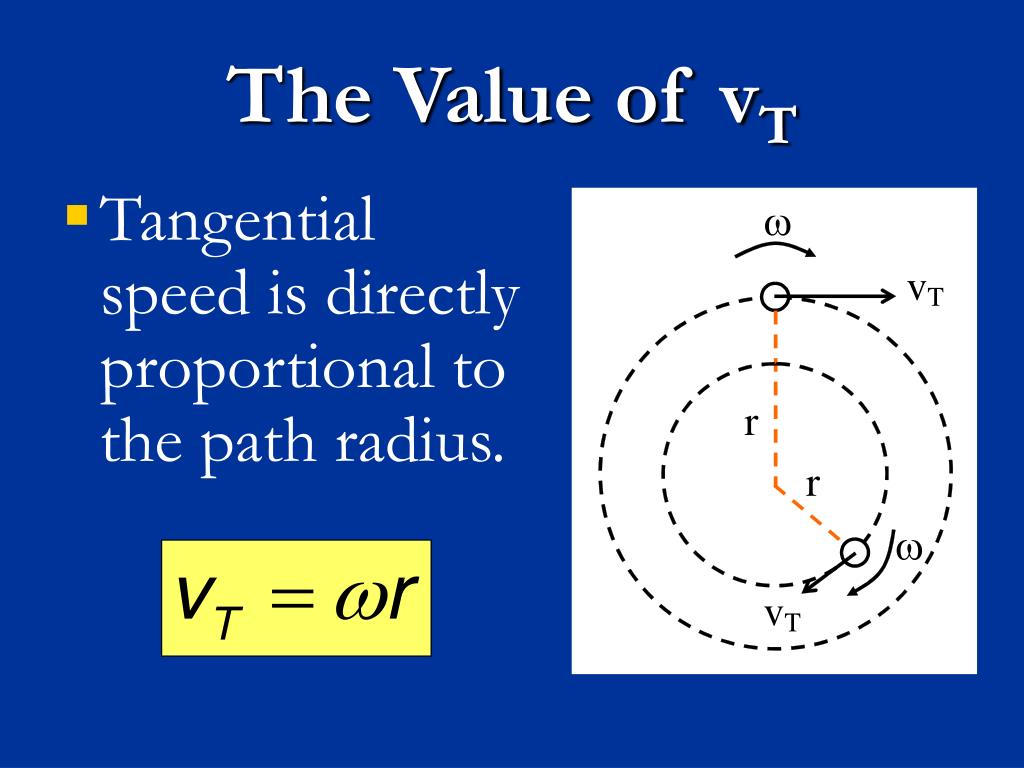

  7. The Value of vT • Tangential speed is directly proportional to the path radius.

  8. The Change in vT • As an object moves between points in a circular path, the direction of vT changes. So, there is a Dv.

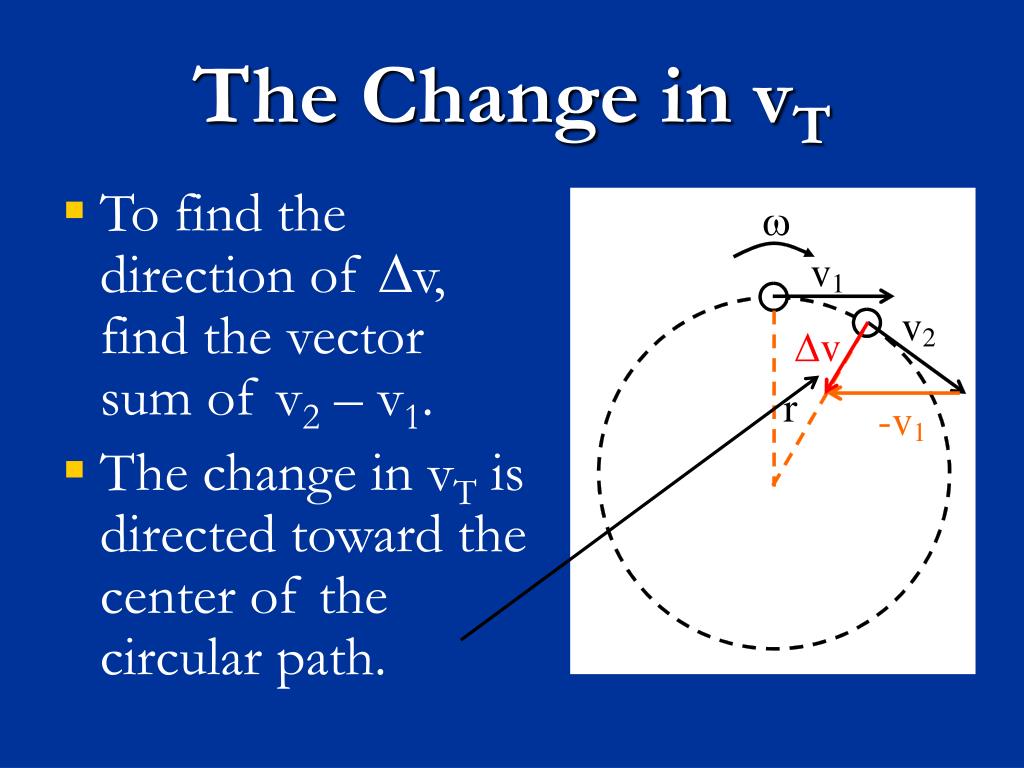

  9. The Change in vT • To find the direction of Dv, find the vector sum of v2 – v1. • The change in vT is directed toward the center of the circular path.

  10. The Change in vT • Since there is a change in velocity, the object is undergoing an acceleration toward the center (centripetal). This is called centripetal acceleration (ac ).

  11. The Value of ac • To find the magnitude of ac, use the two triangles formed in the diagram to the right.

  12. The Value of ac • Since the two triangles are similar,

  13. The Value of ac • With vT being uniform in magnitude, s = vT t .

  14. The Value of ac • Rearranging and simplifying,

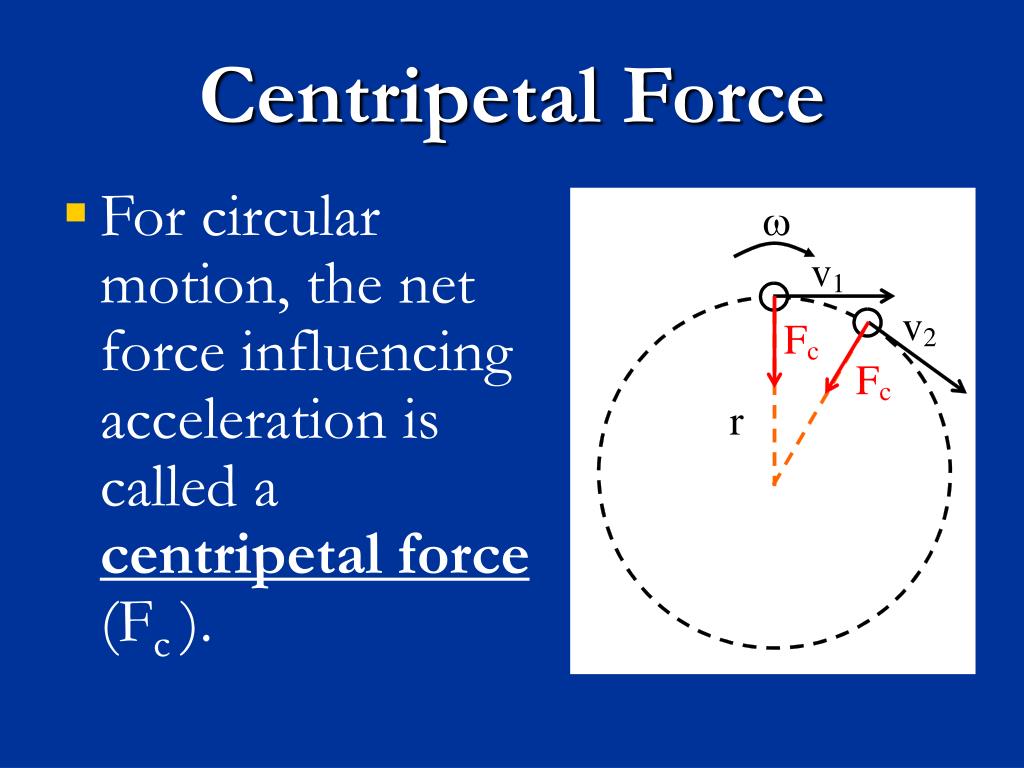

  15. Centripetal Force • For circular motion, the net force influencing acceleration is called a centripetal force (Fc ).

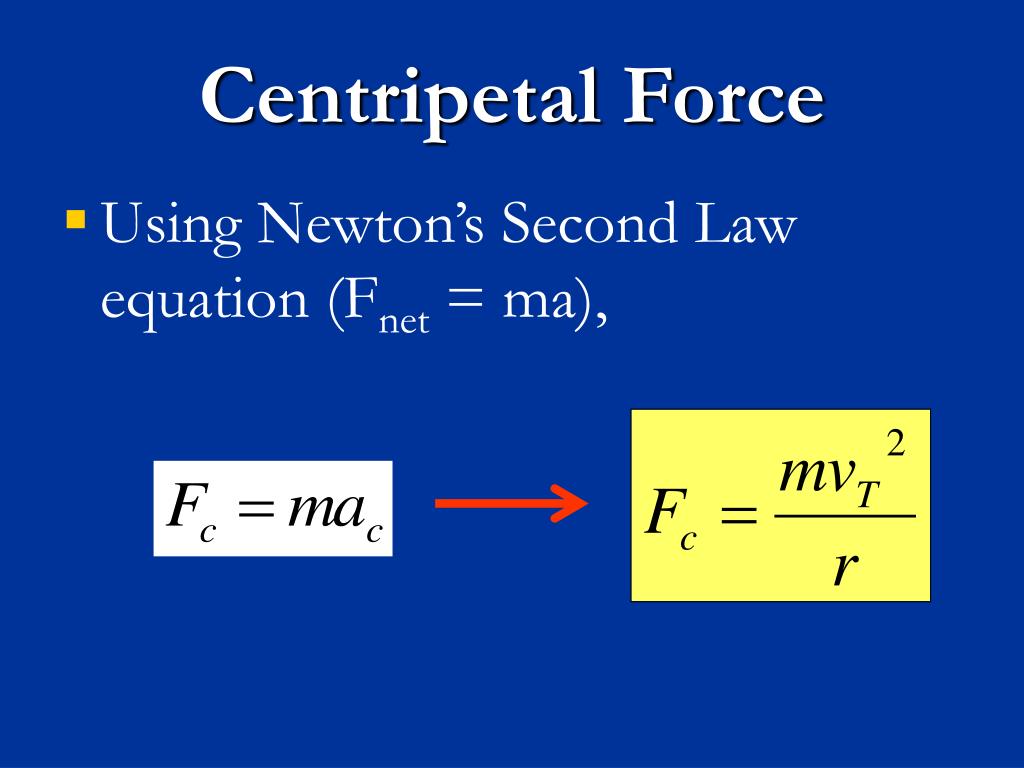

  16. Centripetal Force • Using Newton’s Second Law equation (Fnet = ma),
