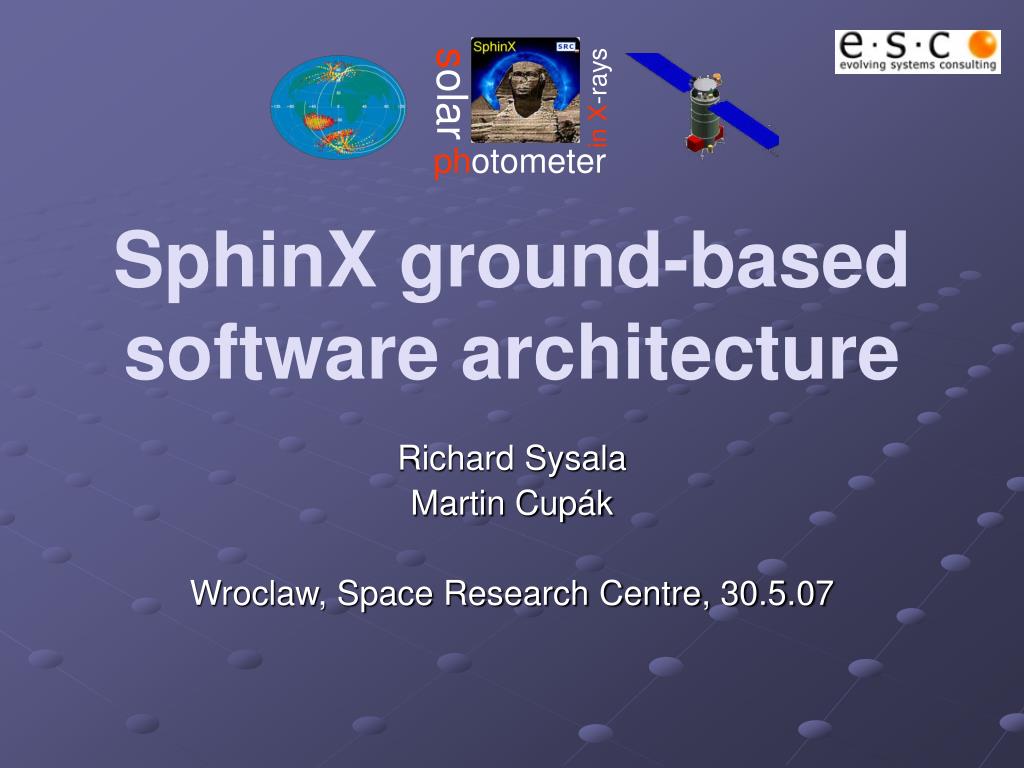

  1. solar in X-rays photometer SphinX ground-based software architecture Richard Sysala Martin Cupák Wroclaw, Space Research Centre, 30.5.07

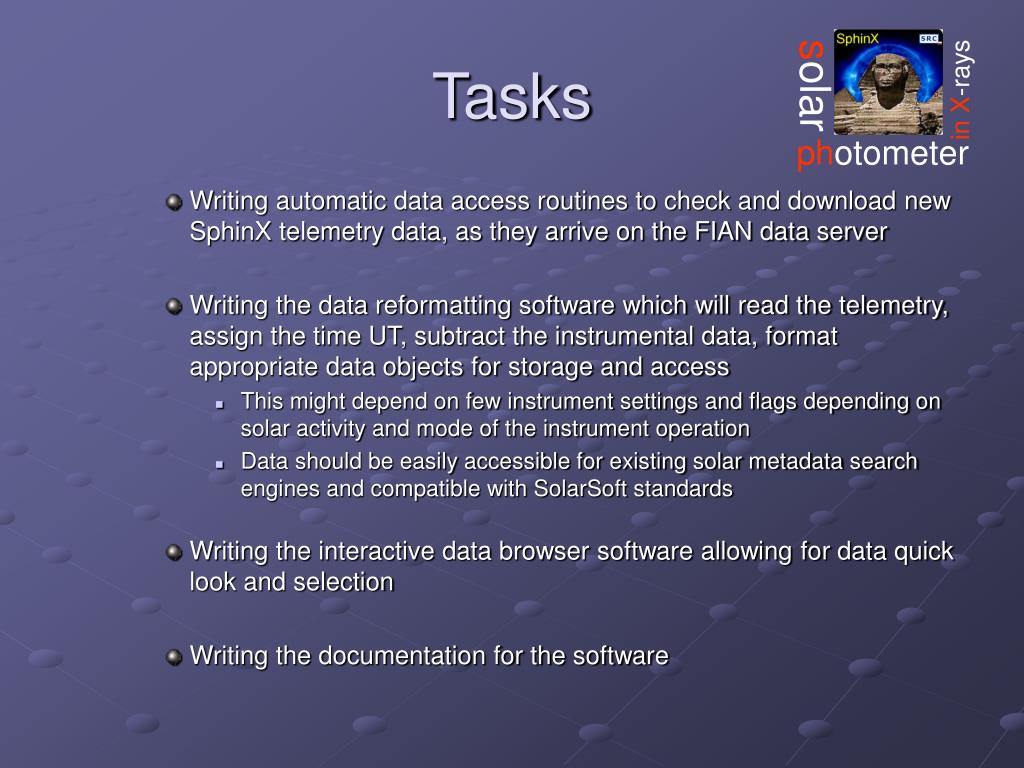

  2. Tasks solar in X-rays photometer • Writing automatic data access routines to check and download new SphinX telemetry data, as they arrive on the FIAN data server • Writing the data reformatting software which will read the telemetry, assign the time UT, subtract the instrumental data, format appropriate data objects for storage and access • This might depend on few instrument settings and flags depending on solar activity and mode of the instrument operation • Data should be easily accessible for existing solar metadata search engines and compatible with SolarSoft standards • Writing the interactive data browser software allowing for data quick look and selection • Writing the documentation for the software

  3. Architecture solar in X-rays photometer • Proposed solution consists ofsix main parts: • a) component for a data block manipulationand creating FITS files • b) component for a visualization • c) IDL thick client • d) PHP component on a web server • e) firebird database • f) data synchronization tool

  4. Component for a data block manipulation and creating FITS files solar in X-rays photometer • It will be a program (resp. a set of programs) with no GUI and its main purpose is to generate FITS files and store them to a database • this program will run on a server in Wroclaw or, in case the server in Wroclaw does not run, it will run on a server in Ondřejov • Because of this, part of this program is a watchdog which will check whether instance on the other machine is running or not • First part called „Data blocks transfer component“ will download data blocks (raw files) from FIAN data server and distribute them for further processing

  5. Component for a data block manipulation and creating FITS files II Component for a visualization solar in X-rays photometer • „Decompress & reformat“ component will be responsible for decompressing and reformatting input raw files and creating FITS files • It can be stored in a shared library or it can be one of the command-line programs – it depends on a form of provided decompress/reformat routines (source code, shared library with a set of exported functions, executable) • „DB component“ will care about a communication with a database • This component will be written using IDL and will create images/PDF files from previously created FITS files

  6. IDL thick client solar in X-rays photometer • Smart browser written in IDL for an interactive visualization PHP component on a Web server • It will provide web pages with automatically generated pages from every incoming dump • These pages will contain PDFs with measurement data, generated images and other

  7. Firebird database solar in X-rays photometer • The DB will be used as a datastore for • FITS files • images • PDFs Data synchronization tool • A simple application responsible for a data synchronization

  8. Staffing plan solar in X-rays photometer ECSS-E-40 Part 1B • Space engineering • Software - Part 1: Principles and requirements SW Project manager SW Design & Development System Engineer & SW architect SW Testing

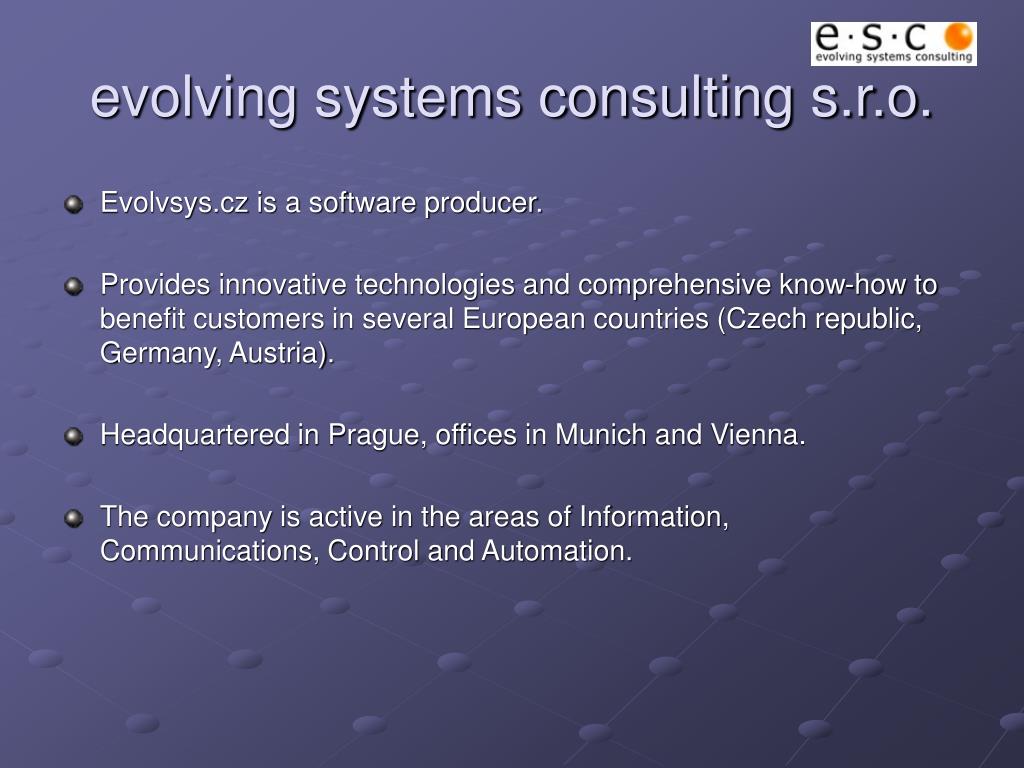

  9. evolving systems consulting s.r.o. • Evolvsys.cz is a software producer. • Provides innovative technologies and comprehensive know-how to benefit customers in several European countries (Czech republic, Germany, Austria). • Headquartered in Prague, offices in Munich and Vienna. • The company is active in the areas of Information, Communications, Control and Automation.

  10. evolving systems consulting s.r.o. • 10 running projects in 2007, our customers e.g.: • Sparkassen Informatik / Informatik Zentrum Bayern (one of the leading IT companies of the Savings Bank Financial Group in Germany) • Fiducia (the seventh largest IT full-service provider in Germany - provider of solutions for german Reifeisen- und Volksbanken) • RWE Rhein Ruhr (one of the largest European utility companies. It deals with the production and distribution of energy and water.) • ASMM (Axel Springer Mediahouse München) Visit www.evolvsys.czThank you for an attention
